2023 TOYOTA CAMRY Manual de utilização (in Portuguese)

4155-4. Other interior features
CAMRY_HV_EE
5
Interior features
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
?Cleaning the wireless charger
P. 430
WARNING
?Caution while driving
When charging a portable device while driving, for safety reasons, the driver
should not operate the portable device.
?Precautions for when driving
Do not charge small, lightweight portable devices, such as wireless ear-
buds, while driving. Lightweight devices may fly off of the charging tray, pos-
sibly leading to an accident.
?Caution regarding interference with electronic devices
People with implantable cardiac pacemakers, cardiac resynchronization
therapy pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physician about the
usage of the wireless charger.
Operations of the wireless charger may have an affect on medical devices.
?To prevent damage or burns
Observe the following precautions.
Failure to do so may result in the possibility of fire, equipment failure or
damage, or burns due to heat.
?Do not put any metallic objects between the charging area and the porta-
ble device while charging.
?Do not attach metallic objects, such as aluminum stickers, to the charging
area.
?Do not charge portable devices with aluminum stickers or other metallic
<00520045004d0048004600570056000300440057005700440046004b0048004700030057005200030057004b004800030056004c004700480003005a004b004c0046004b00030057005200580046004b0048005600030057004b004800030046004b004400
55004a004c0051004a000300440055004800440011[
?Do not store items on the wireless charger instead of in an auxiliary box.
?Do not apply force or impact to the wireless charger.
?Do not disassemble, modify or remove the wireless charger.
?Do not attempt to charge portable devices which are not compatible with
the Qi wireless charging standard.
?Do not allow magnetic objects to come near the wireless charger
?<0027005200030051005200570003005300480055004900520055005000030046004b00440055004a004c0051004a0003004c004900030057004b004800030046004b00440055004a004c0051004a000300440055004800440003004c005600030047004c00
550057005c[
?Do not cover the wireless charger with a cloth or other object while
charging.

4165-4. Other interior features
CAMRY_HV_EE

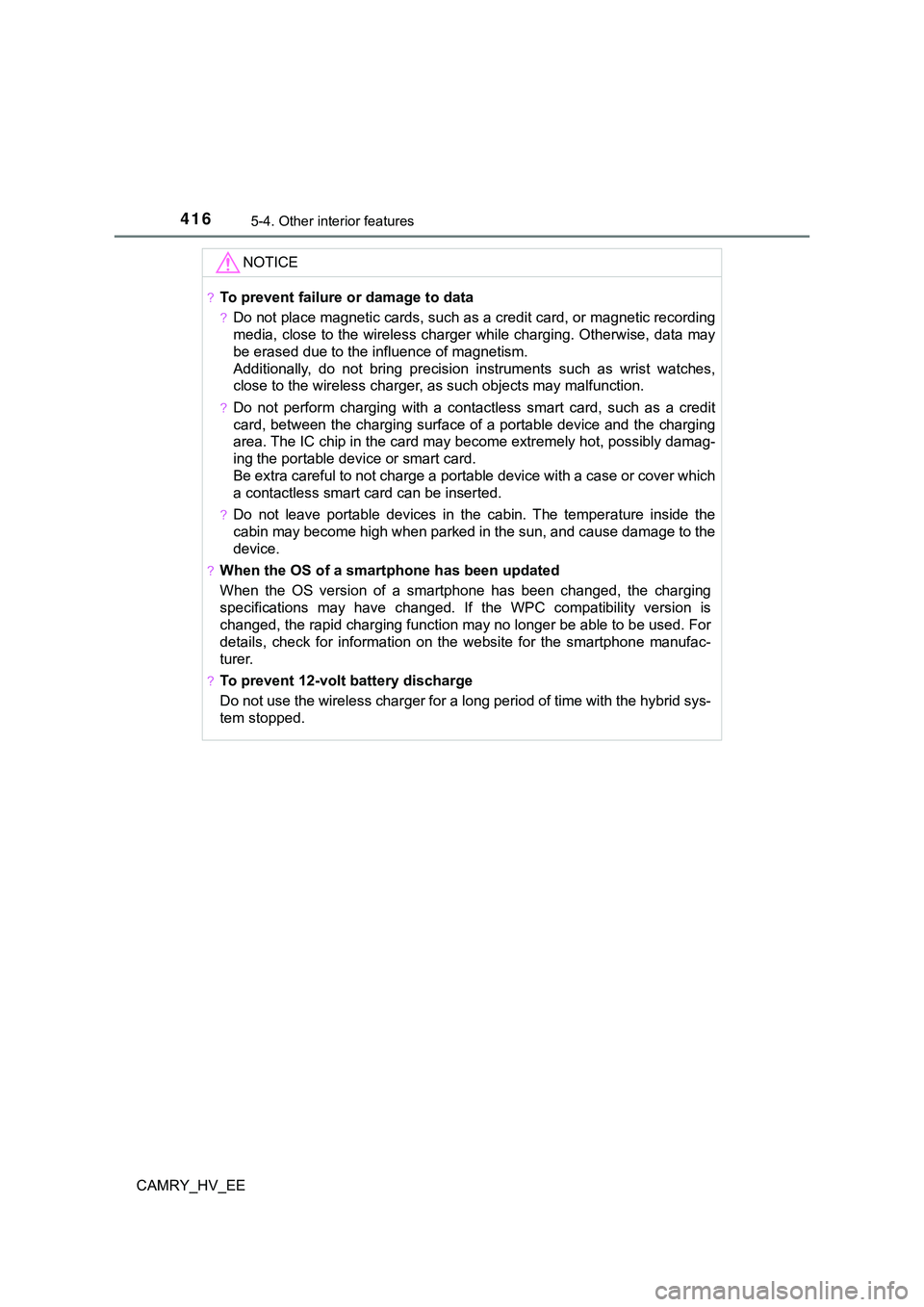

NOTICE
?To prevent failure or damage to data
?Do not place magnetic cards, such as a credit card, or magnetic recording
media, close to the wireless charger while charging. Otherwise, data may
be erased due to the influence of magnetism.
Additionally, do not bring precision instruments such as wrist watches,
close to the wireless charger, as such objects may malfunction.
?Do not perform charging with a contactless smart card, such as a credit
card, between the charging surface of a portable device and the charging
area. The IC chip in the card may become extremely hot, possibly damag-
ing the portable device or smart card.
Be extra careful to not charge a portable device with a case or cover which
a contactless smart card can be inserted.
?Do not leave portable devices in the cabin. The temperature inside the
cabin may become high when parked in the sun, and cause damage to the
device.
?When the OS of a smartphone has been updated
When the OS version of a smartphone has been changed, the charging
specifications may have changed. If the WPC compatibility version is
changed, the rapid charging function may no longer be able to be used. For
details, check for information on the website for the smartphone manufac-
turer.
?To prevent 12-volt battery discharge
Do not use the wireless charger for a long period of time with the hybrid sys-
tem stopped.

4175-4. Other interior features
CAMRY_HV_EE
5
Interior features

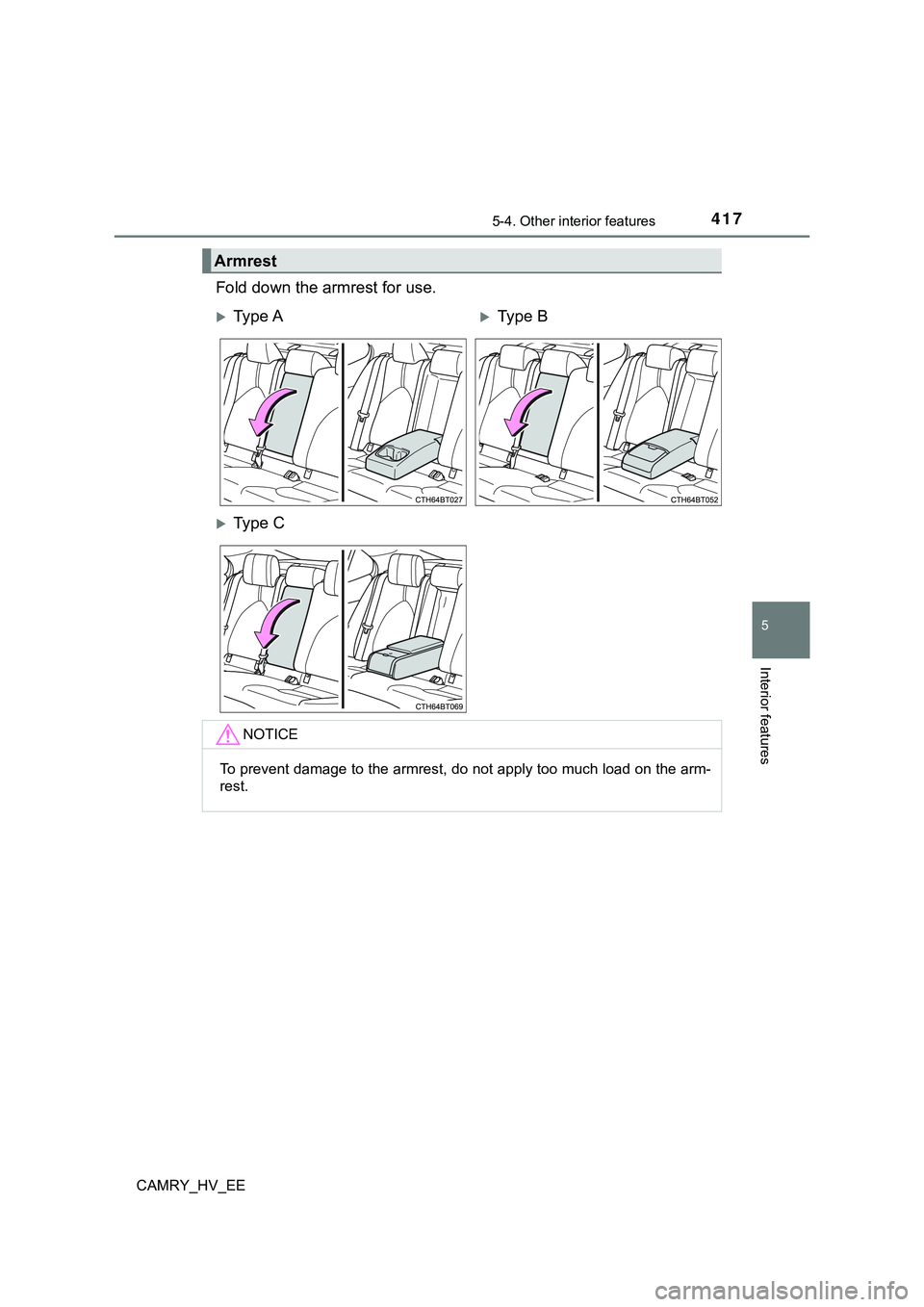

Fold down the armrest for use.
Armrest
Ty p e AType B
Ty p e C
NOTICE
To prevent damage to the armrest, do not apply too much load on the arm-
rest.

4185-4. Other interior features
CAMRY_HV_EE
The rear sunshade can be raised
and lowered using any of the fol-
lowing.
Meter control switches
Select on the multi-information display using the meter control
switches on the steering wheel. (P. 131)
Select and then press .
Each time is pressed, the operating direction of the rear sun-
shade will change.
From a rear seat
Fold down the rear armrest. (P. 417)
Press to turn the rear
control panel on.
Touch button.
Each time button is
touched, the operating direction
of the rear sunshade will
change.
Rear sunshade (if equipped)
1
2
1
2
3

4195-4. Other interior features
CAMRY_HV_EE
5
Interior features
?The rear sunshade can be used when the power switch is in ON mode.
?The rear sunshade can be operated for approximately 1 minute even after
the power switch is turned off.
?Reverse operation feature: To ensure adequate rear visibility, the rear sun-
shade automatically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
• The shift lever is shifted into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 15
km/h (9 mph).
• The power switch is turned off.
?The reverse operation feature may not work under some conditions. In such
cases, press the switch to extend/retract the rear sunshade.
?The rear control panel will turn off if it is not touched for approximately 10
seconds.
?Changing the settings of the rear control panel (P. 386)
WARNING
When the rear sunshade is being operated, do not place fingers or other
objects in the fastener section or in the opening. They may get caught,
causing injury.
NOTICE
?To prevent 12-volt battery discharge, do not operate the rear sunshade
when the hybrid system is off.
?Observe the following precautions to ensure normal operation of the rear
sunshade.
• Do not place excessive load on the motor or other components of the
rear sunshade.
• Do not place objects where they may hinder opening and closing opera-
tions.
• Do not attach items to the rear sunshade.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade continuously for long periods of time.

4205-4. Other interior features
CAMRY_HV_EE
Pull the tab up and hook the sun-
shade on to the anchors.
To lower the sunshade, pull the tab
up slightly to unhook the shade
from the anchors, and lower it
slowly.
Rear door sunshades (if equipped)
WARNING
When the rear door sunshades are being operated, do not place fingers or
other objects in the fastener section or in the opening. They may get caught,
causing injury.
NOTICE
To ensure normal operation of the rear door sunshades, observe the follow-
ing precautions:
?Do not place anything where it may hinder the opening/closing of a sun-
shade.
?Do not place anything on the sunshades.
?Keep the opening clean and clear of obstructions.

4215-4. Other interior features
CAMRY_HV_EE
5
Interior features
An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Coat hooks are provided on the
rear assist grips.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist
grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.

4225-4. Other interior features
CAMRY_HV_EE
