Page 1593 of 2198

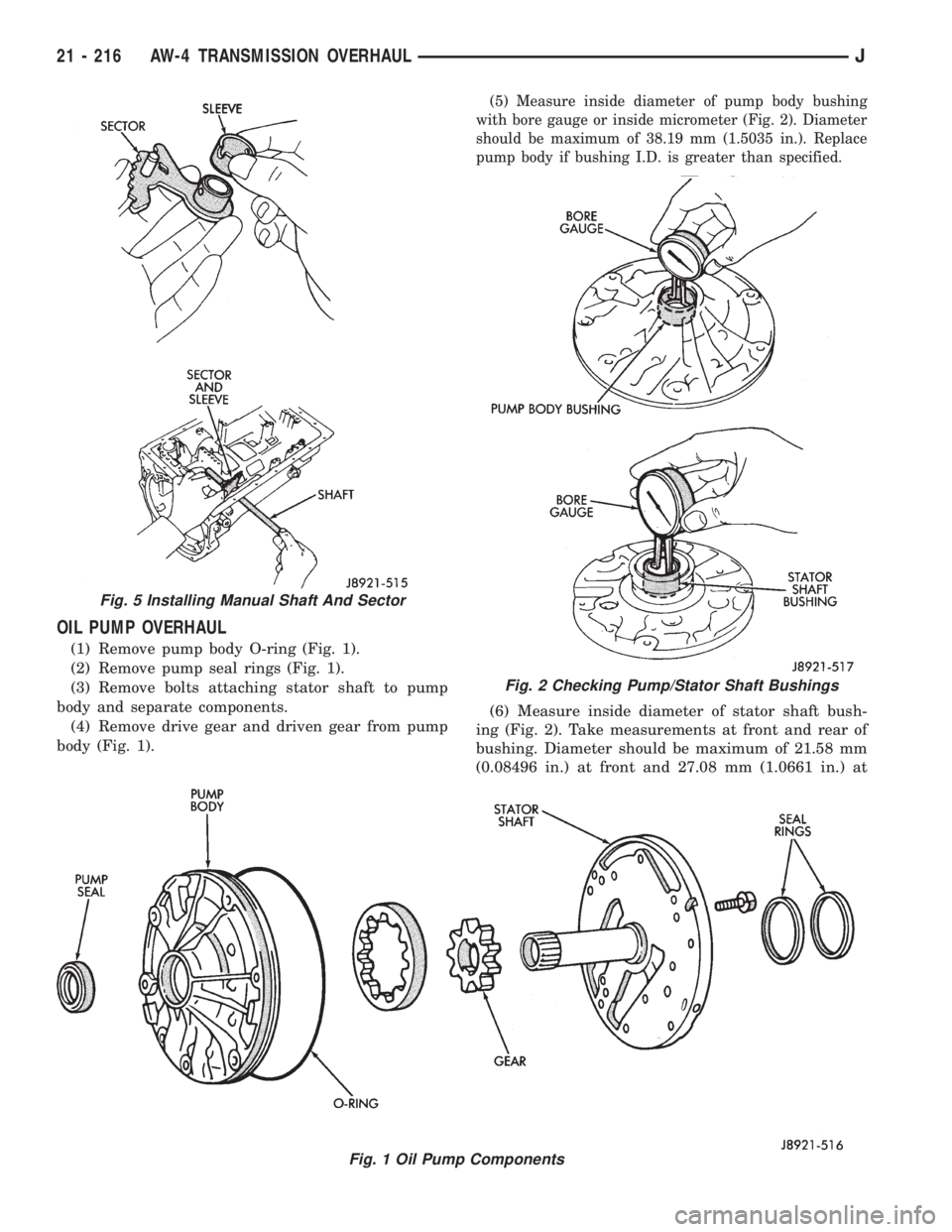

JEEP CHEROKEE 1995 Service Repair Manual OIL PUMP OVERHAUL (1) Remove pump body O-ring (Fig. 1). (2) Remove pump seal rings (Fig. 1). (3) Remove bolts attaching stator shaft to pump body and separate components. (4) Remove drive gear and dri

Page 1594 of 2198

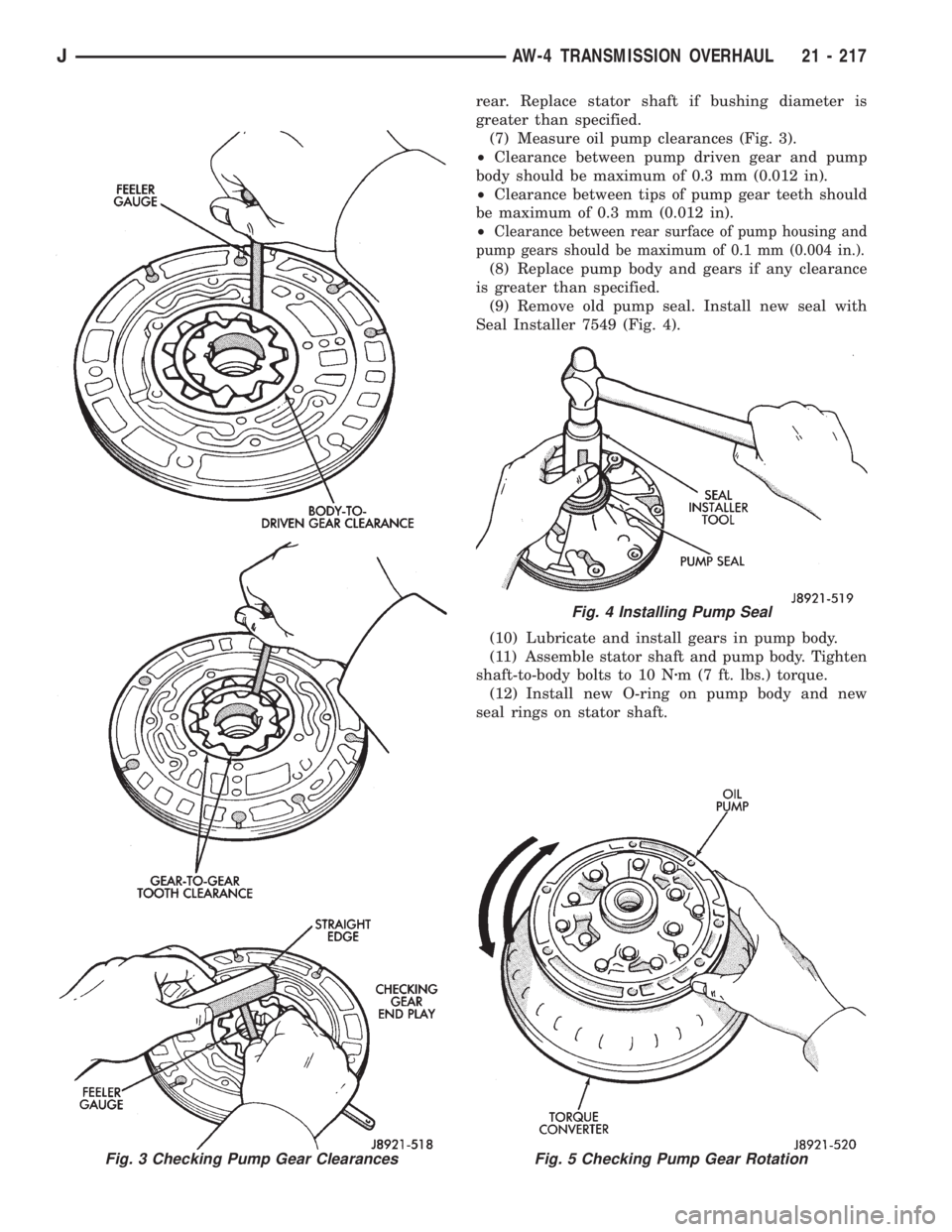

JEEP CHEROKEE 1995 Service Repair Manual rear. Replace stator shaft if bushing diameter is greater than specified. (7) Measure oil pump clearances (Fig. 3). ²Clearance between pump driven gear and pump body should be maximum of 0.3 mm (0.01

Page 1595 of 2198

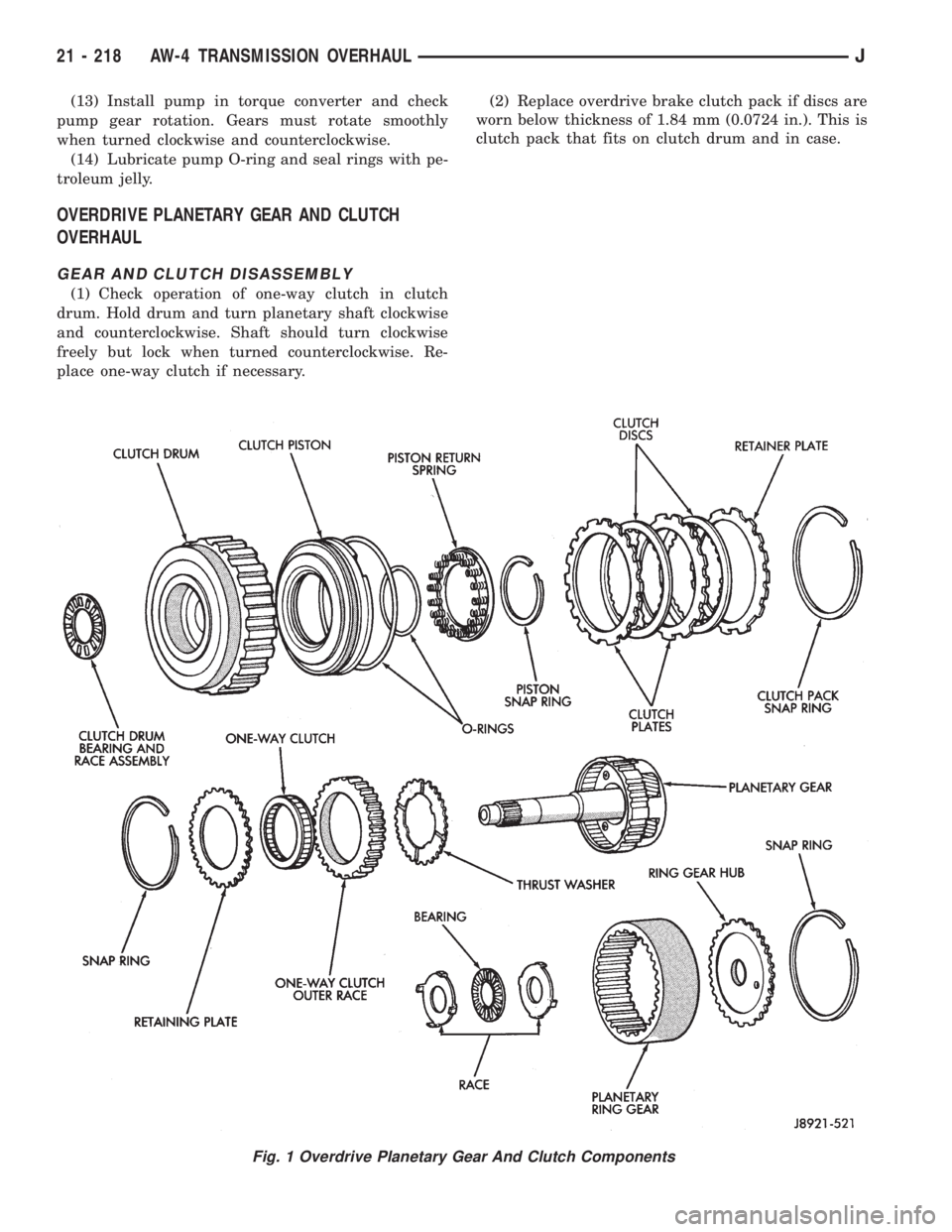

JEEP CHEROKEE 1995 Service Repair Manual (13) Install pump in torque converter and check pump gear rotation. Gears must rotate smoothly when turned clockwise and counterclockwise. (14) Lubricate pump O-ring and seal rings with pe- troleum je

Page 1596 of 2198

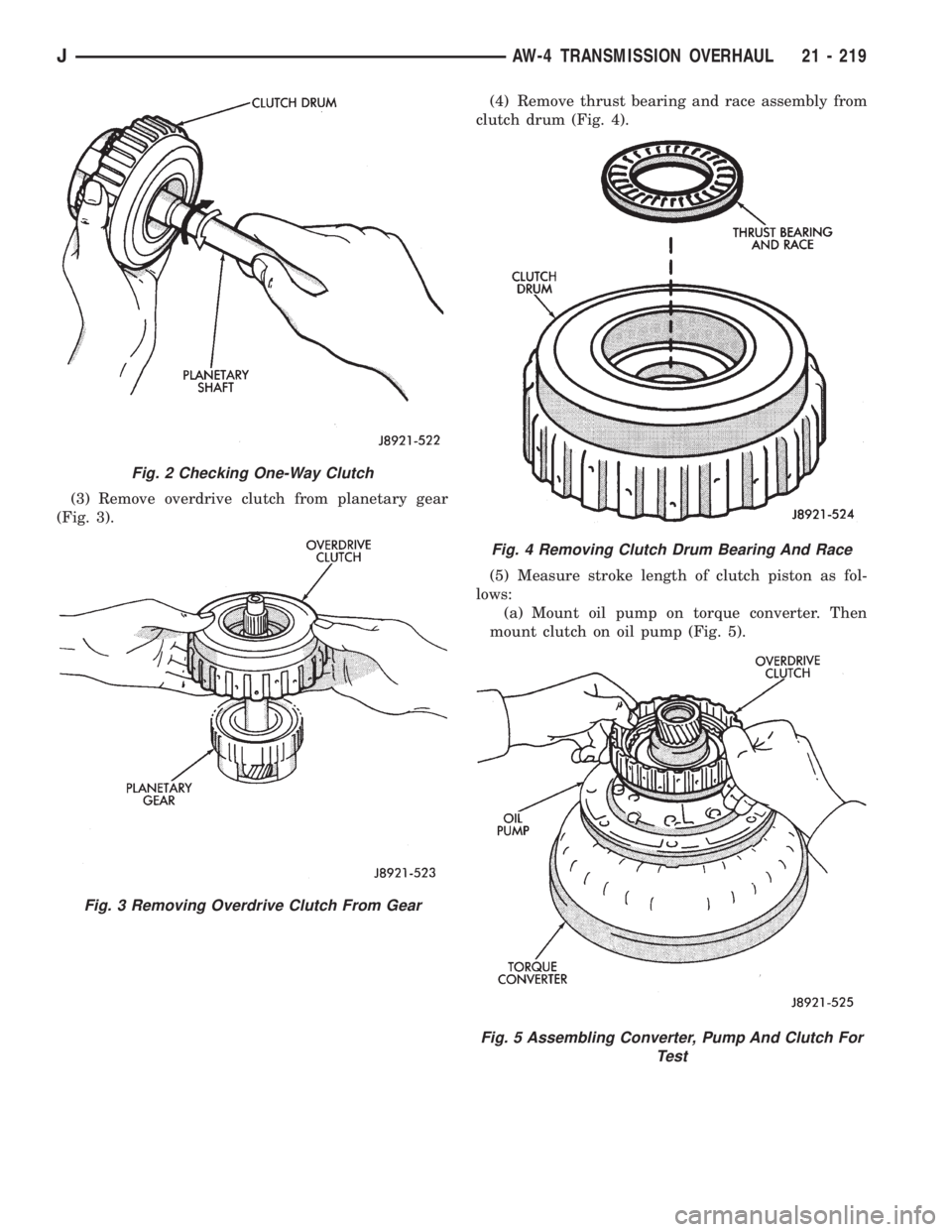

JEEP CHEROKEE 1995 Service Repair Manual (3) Remove overdrive clutch from planetary gear (Fig. 3).(4) Remove thrust bearing and race assembly from clutch drum (Fig. 4). (5) Measure stroke length of clutch piston as fol- lows: (a) Mount oil p

Page 1597 of 2198

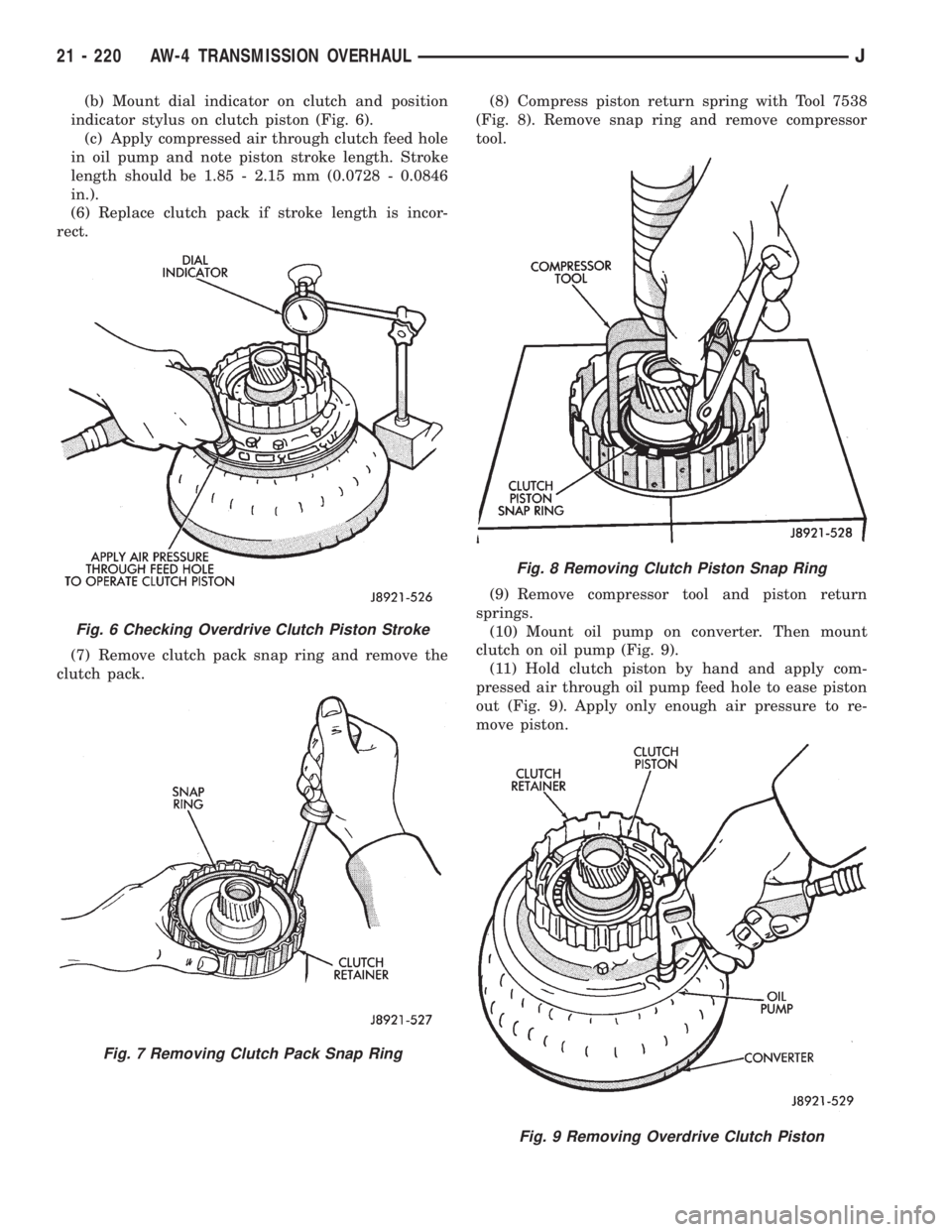

JEEP CHEROKEE 1995 Service Repair Manual (b) Mount dial indicator on clutch and position indicator stylus on clutch piston (Fig. 6). (c) Apply compressed air through clutch feed hole in oil pump and note piston stroke length. Stroke length s

Page 1598 of 2198

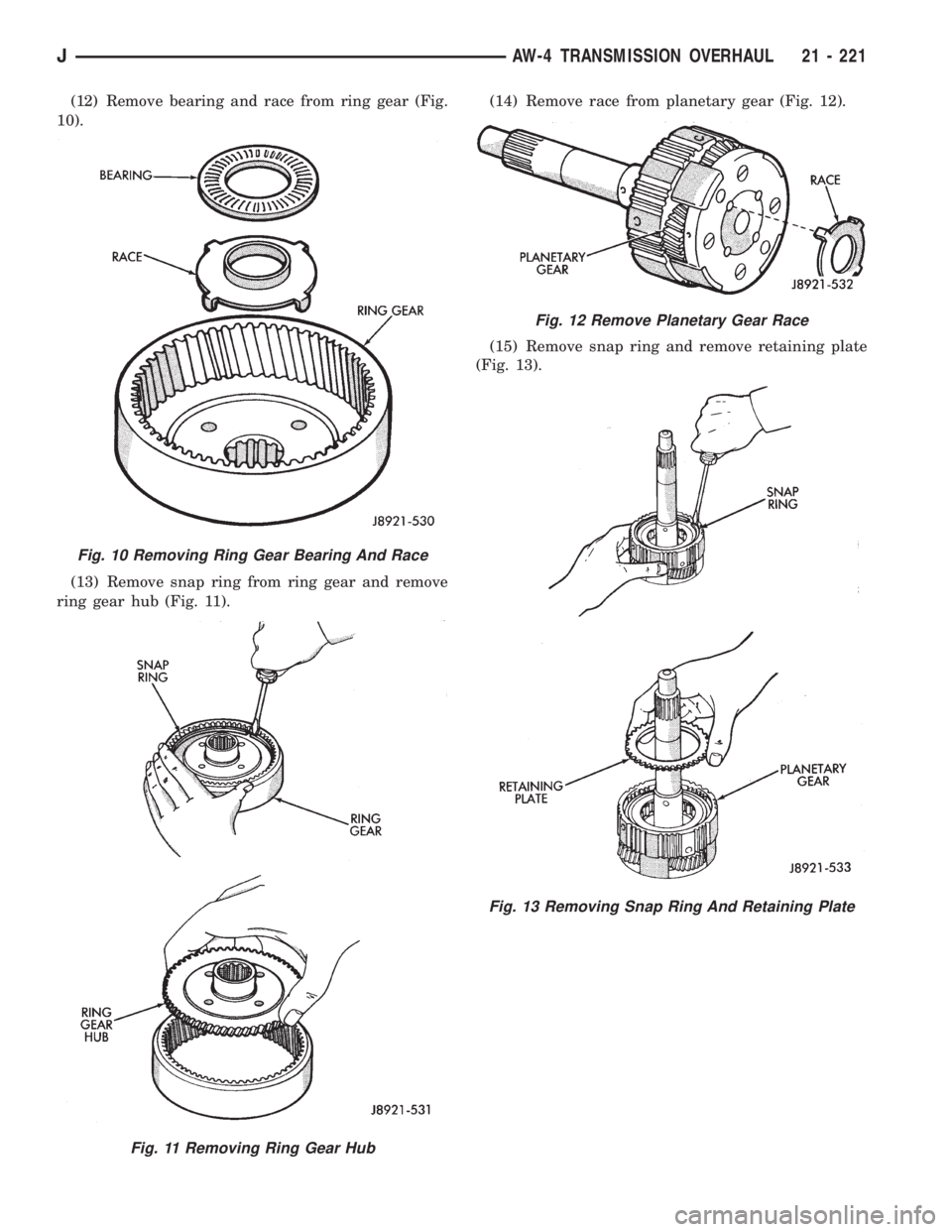

JEEP CHEROKEE 1995 Service Repair Manual (12) Remove bearing and race from ring gear (Fig. 10). (13) Remove snap ring from ring gear and remove ring gear hub (Fig. 11).(14) Remove race from planetary gear (Fig. 12). (15) Remove snap ring and

Page 1599 of 2198

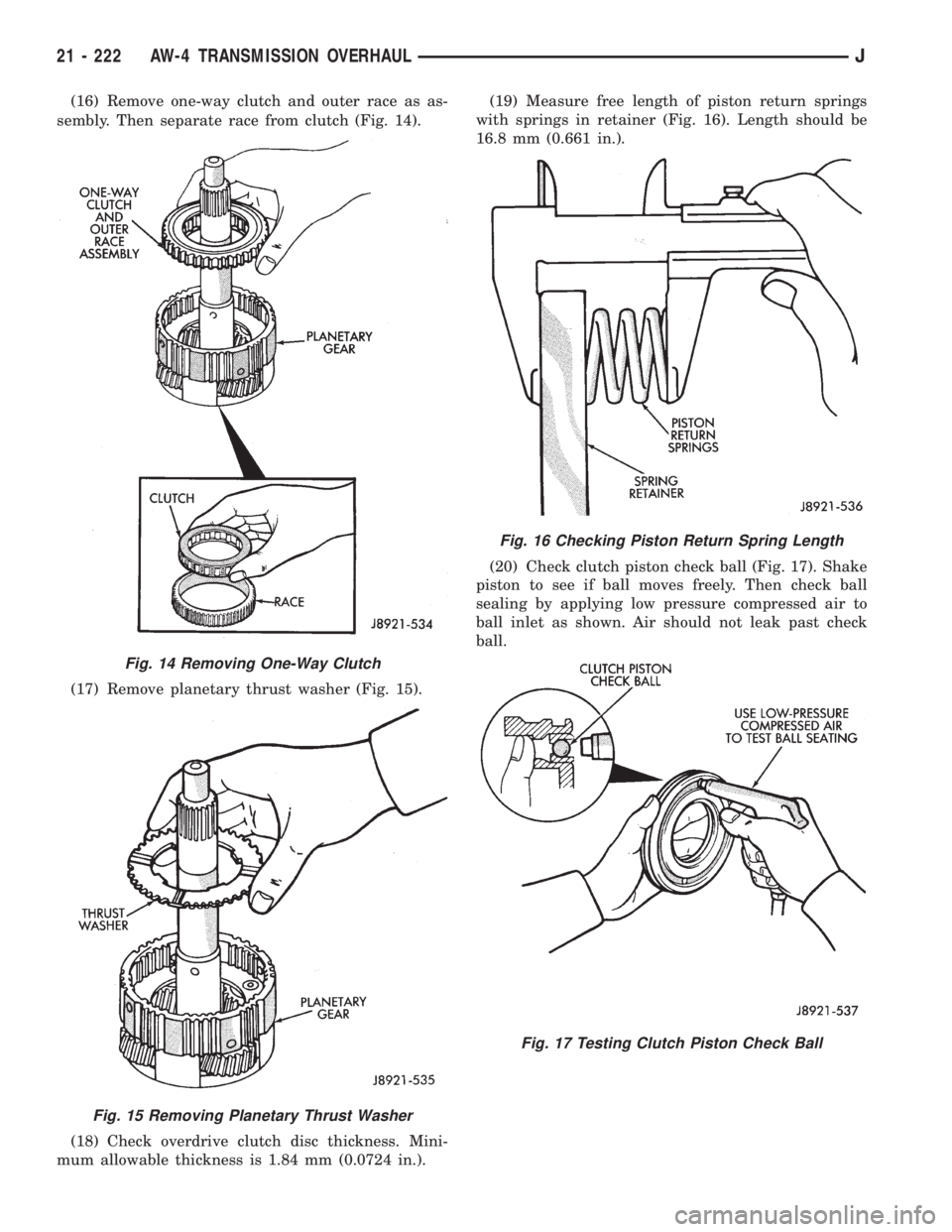

JEEP CHEROKEE 1995 Service Repair Manual (16) Remove one-way clutch and outer race as as- sembly. Then separate race from clutch (Fig. 14). (17) Remove planetary thrust washer (Fig. 15). (18) Check overdrive clutch disc thickness. Mini- mum

Page 1600 of 2198

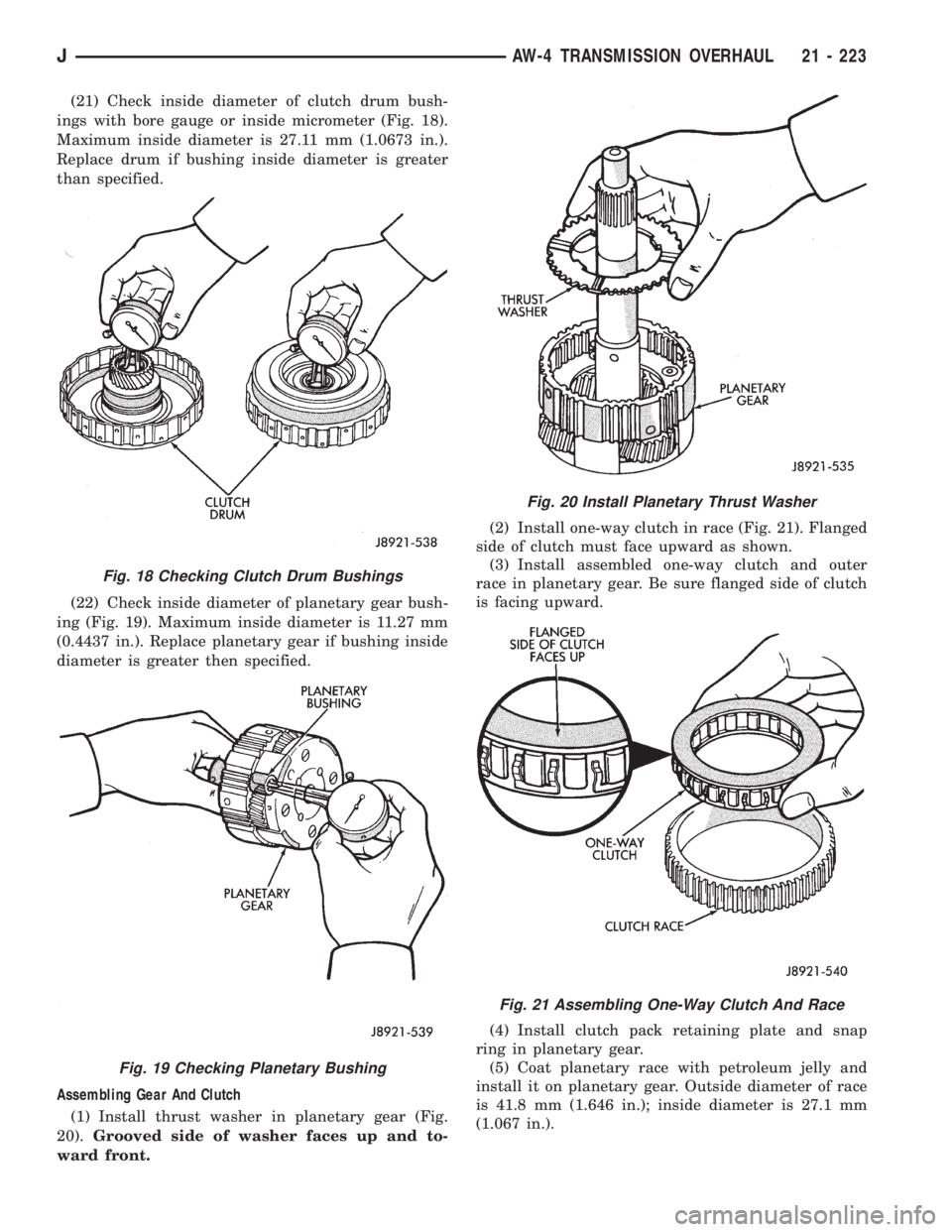

JEEP CHEROKEE 1995 Service Repair Manual (21) Check inside diameter of clutch drum bush- ings with bore gauge or inside micrometer (Fig. 18). Maximum inside diameter is 27.11 mm (1.0673 in.). Replace drum if bushing inside diameter is greate
