1995 JEEP CHEROKEE Service Repair Manual

Page 1585 of 2198

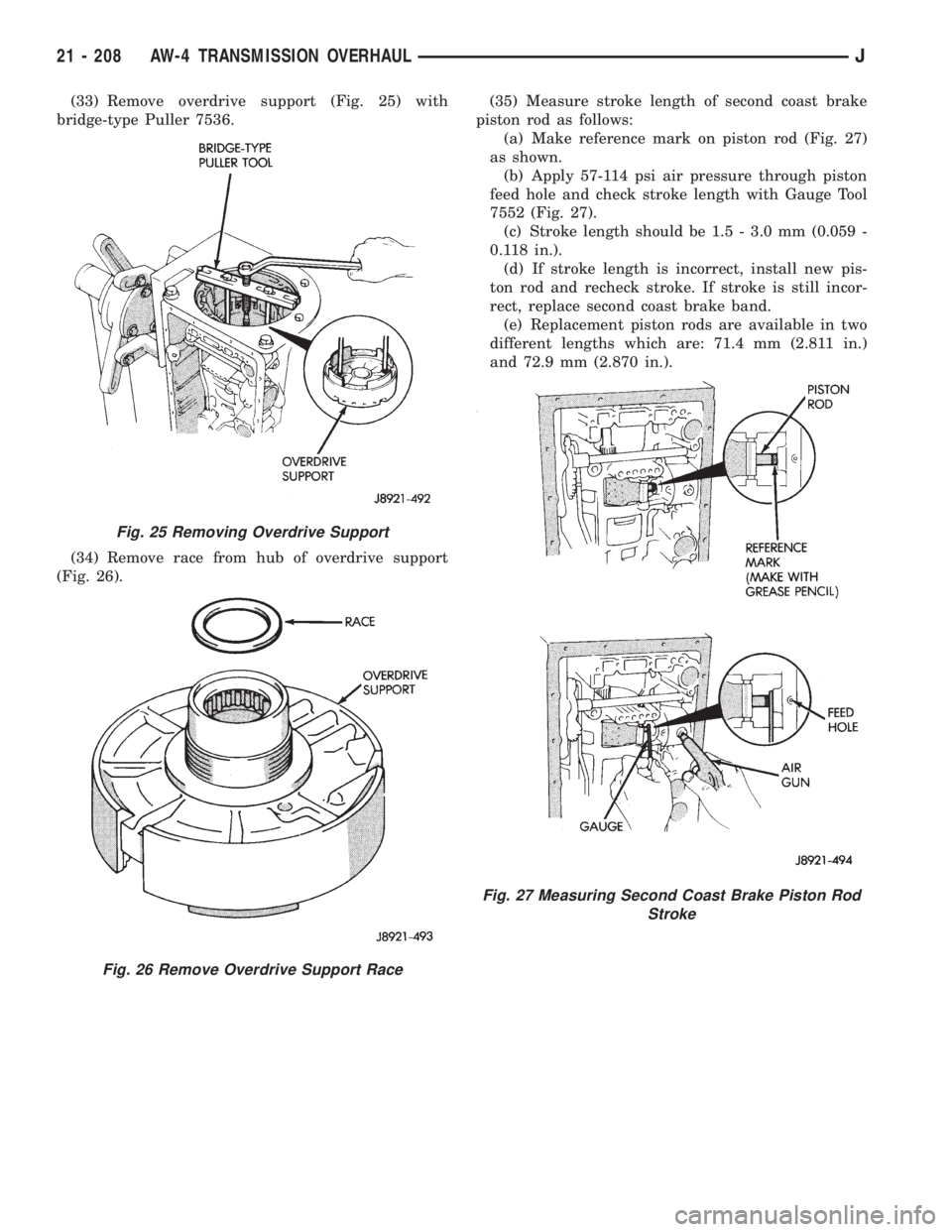

JEEP CHEROKEE 1995  Service Repair Manual (33) Remove overdrive support (Fig. 25) with
bridge-type Puller 7536.
(34) Remove race from hub of overdrive support
(Fig. 26).(35) Measure stroke length of second coast brake
piston rod as follows:
(

Page 1586 of 2198

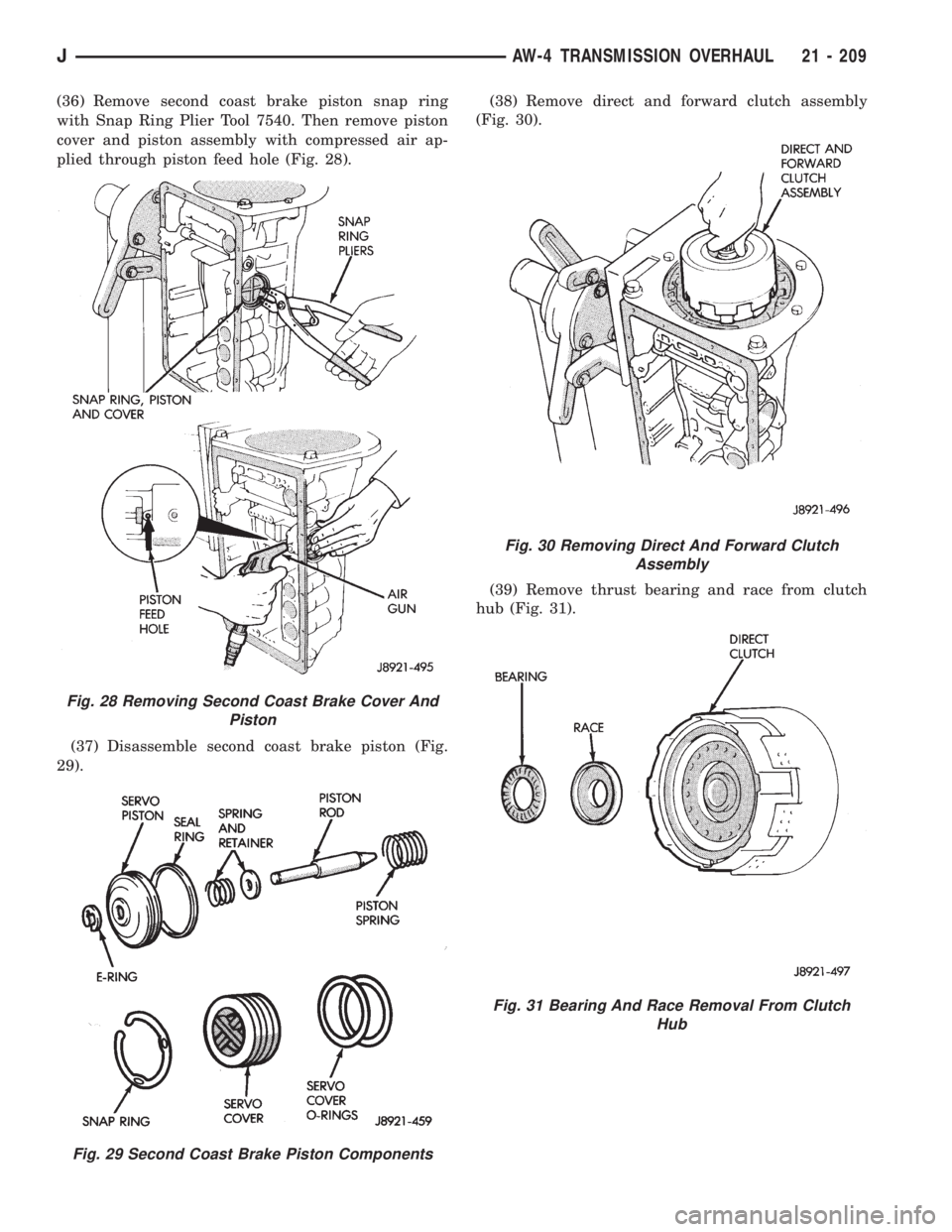

JEEP CHEROKEE 1995  Service Repair Manual (36) Remove second coast brake piston snap ring
with Snap Ring Plier Tool 7540. Then remove piston
cover and piston assembly with compressed air ap-
plied through piston feed hole (Fig. 28).
(37) Disa

Page 1587 of 2198

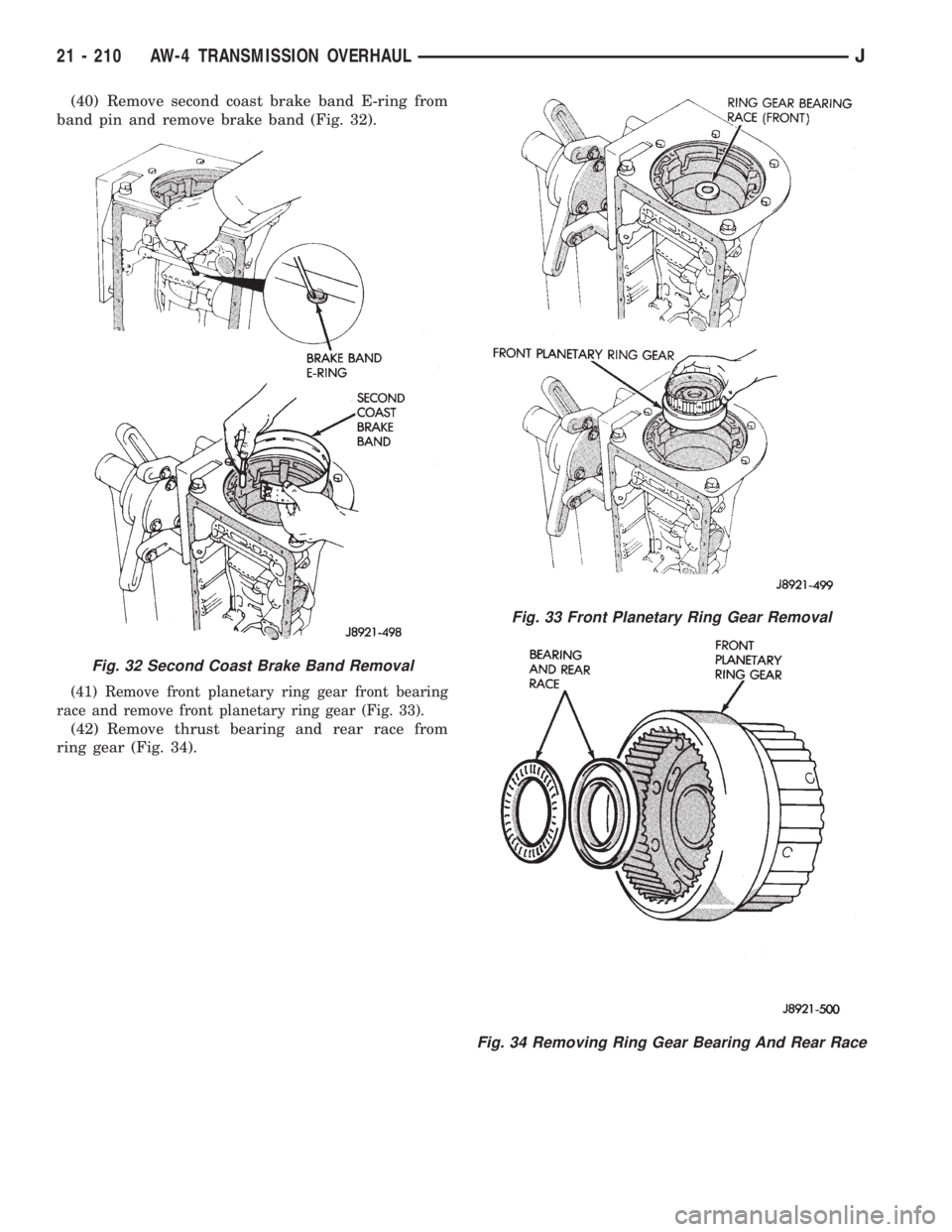

JEEP CHEROKEE 1995  Service Repair Manual (40) Remove second coast brake band E-ring from
band pin and remove brake band (Fig. 32).
(41) Remove front planetary ring gear front bearing
race and remove front planetary ring gear (Fig. 33).
(42)

Page 1588 of 2198

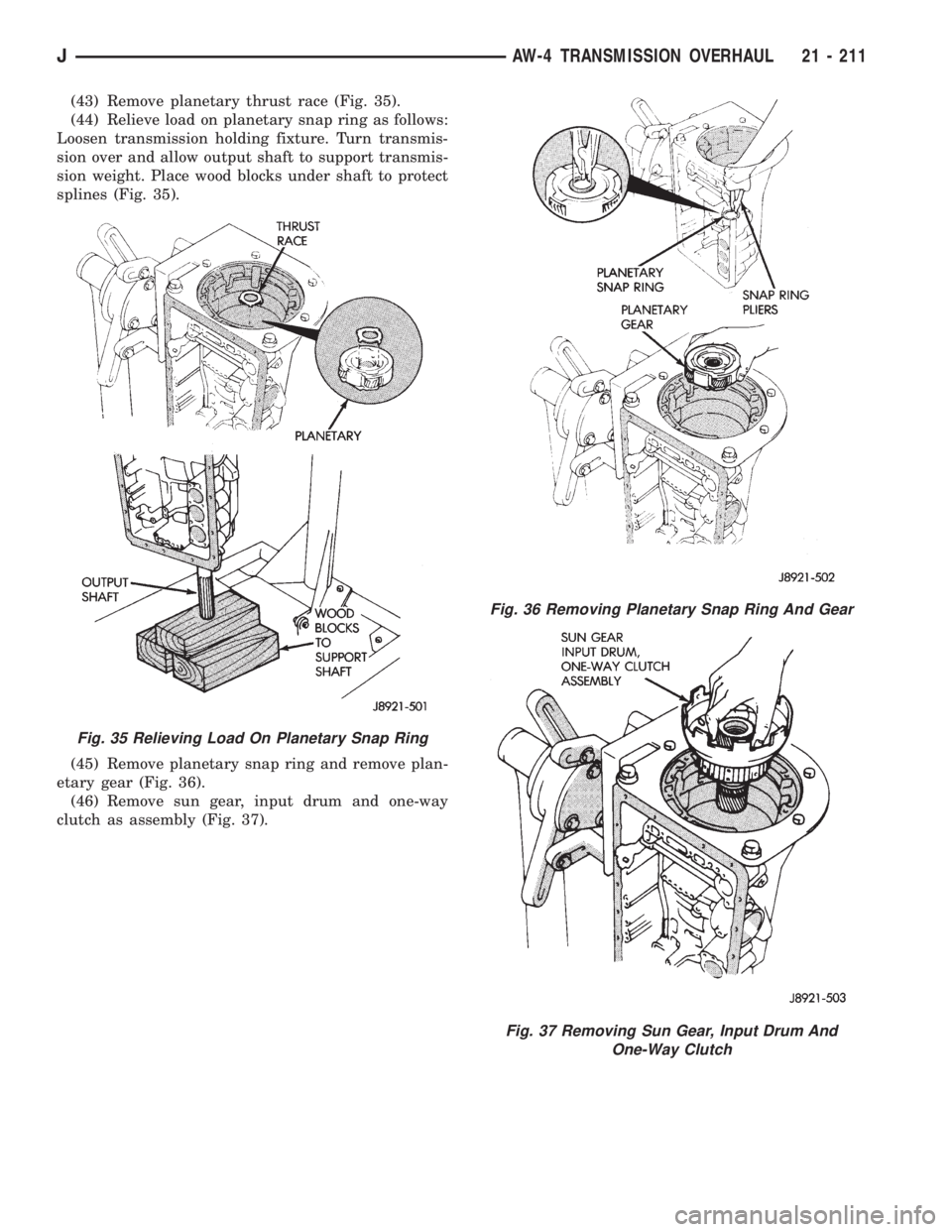

JEEP CHEROKEE 1995  Service Repair Manual (43) Remove planetary thrust race (Fig. 35).
(44) Relieve load on planetary snap ring as follows:
Loosen transmission holding fixture. Turn transmis-
sion over and allow output shaft to support transm

Page 1589 of 2198

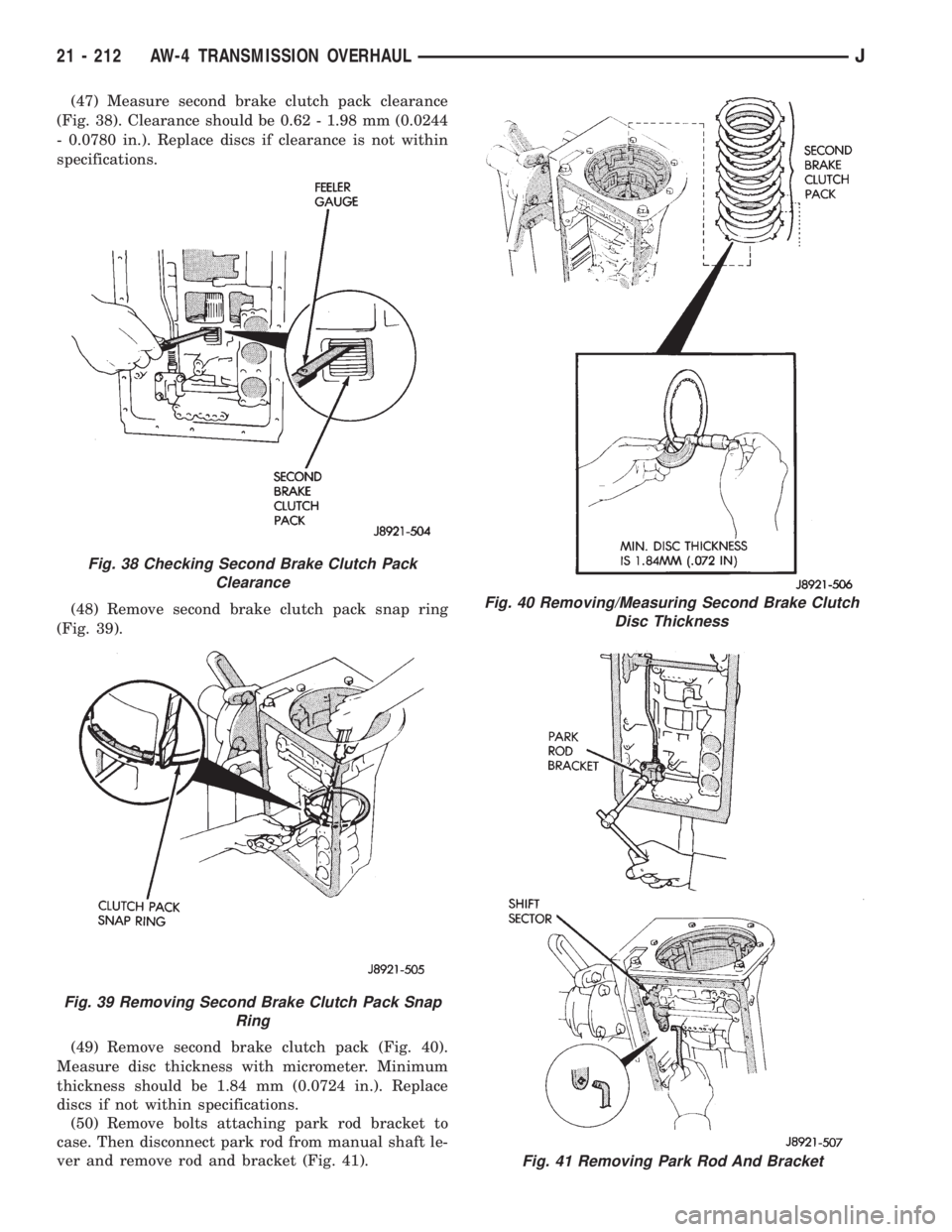

JEEP CHEROKEE 1995  Service Repair Manual (47) Measure second brake clutch pack clearance
(Fig. 38). Clearance should be 0.62 - 1.98 mm (0.0244
- 0.0780 in.). Replace discs if clearance is not within
specifications.
(48) Remove second brake c

Page 1590 of 2198

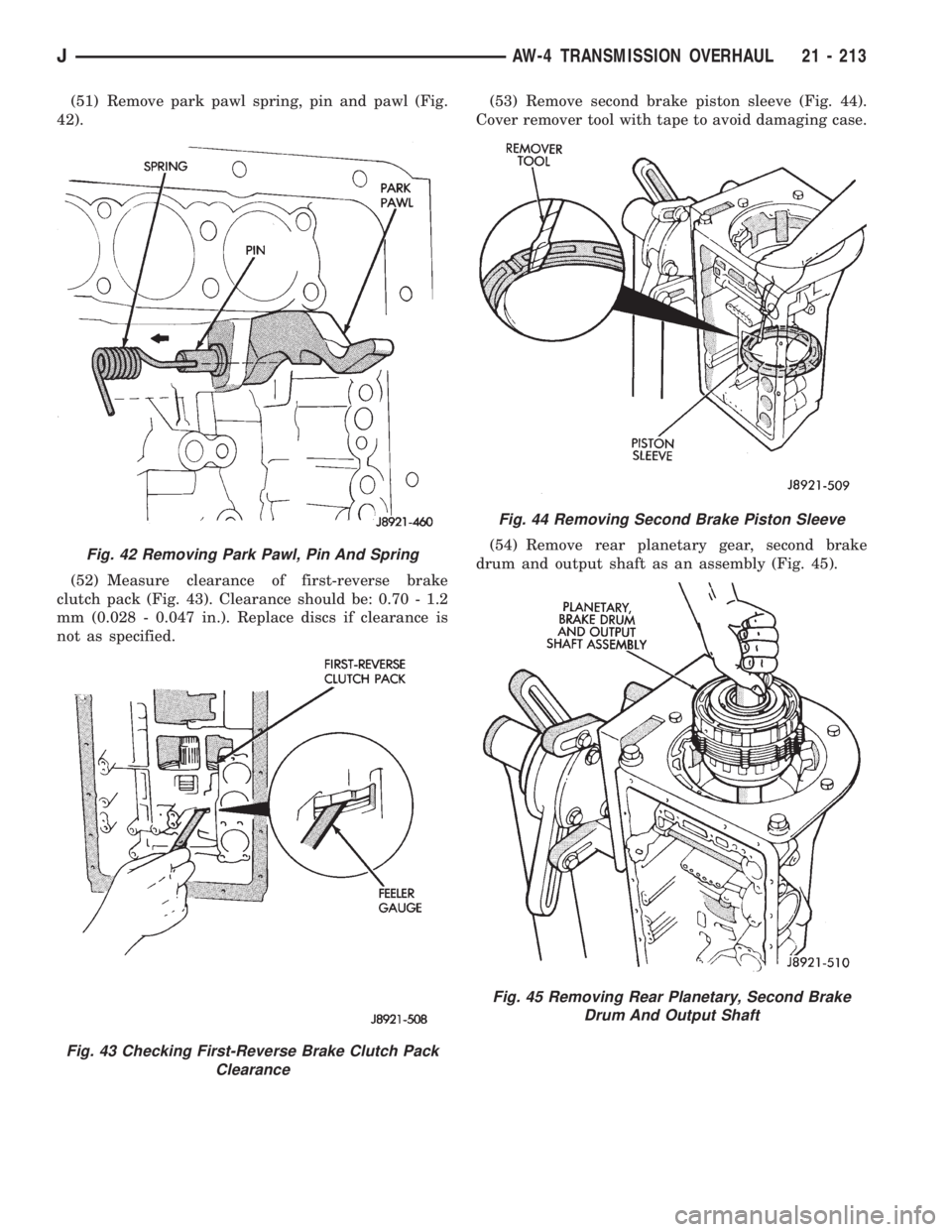

JEEP CHEROKEE 1995  Service Repair Manual (51) Remove park pawl spring, pin and pawl (Fig.
42).
(52) Measure clearance of first-reverse brake
clutch pack (Fig. 43). Clearance should be: 0.70 - 1.2
mm (0.028 - 0.047 in.). Replace discs if clea

Page 1591 of 2198

JEEP CHEROKEE 1995  Service Repair Manual (55) Remove planetary and brake drum thrust
bearing and race assembly (Fig. 46).
(56) Remove second brake drum gasket from case
with gasket scraper or screwdriver (Fig. 47). Retain
tube shaped gasket

Page 1592 of 2198

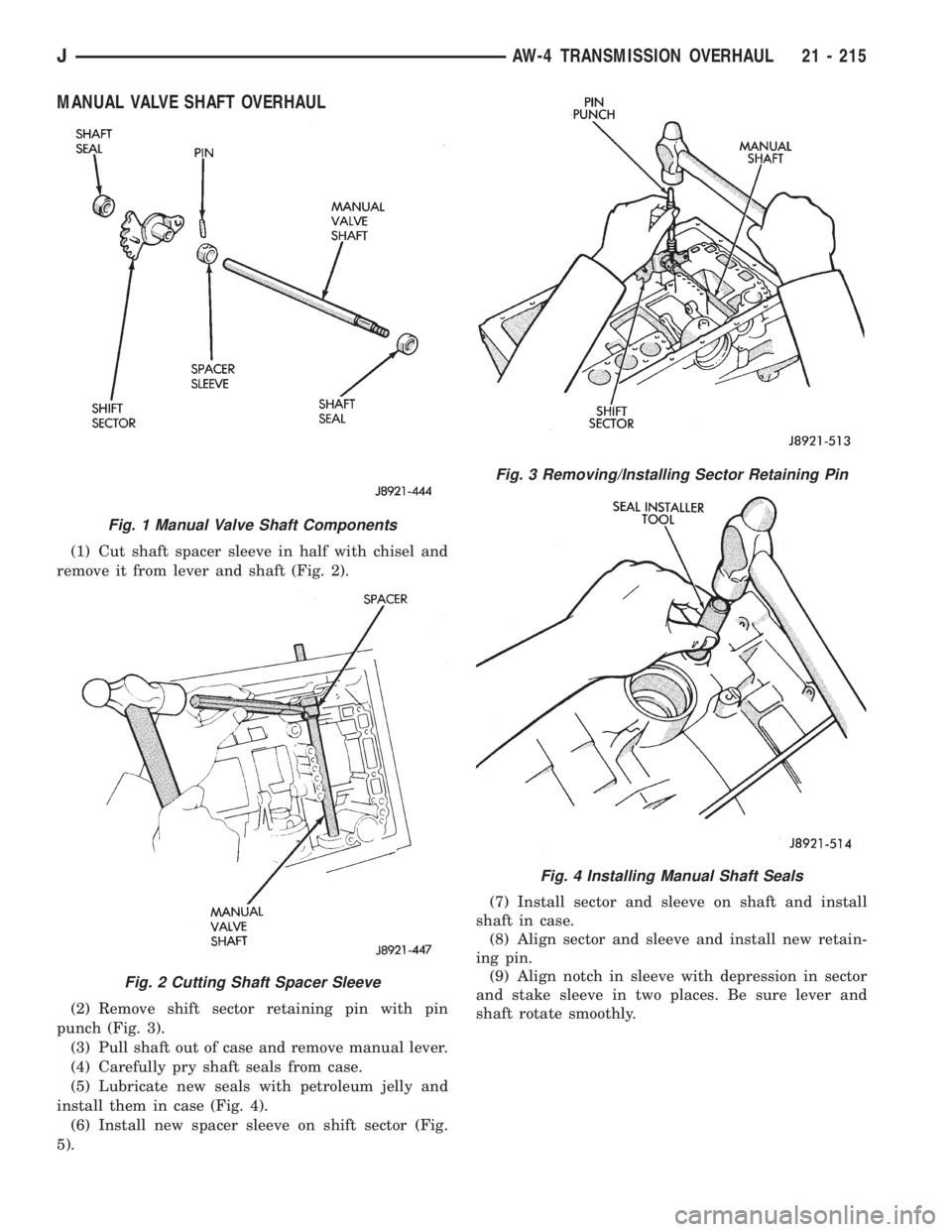

JEEP CHEROKEE 1995  Service Repair Manual MANUAL VALVE SHAFT OVERHAUL
(1) Cut shaft spacer sleeve in half with chisel and
remove it from lever and shaft (Fig. 2).
(2) Remove shift sector retaining pin with pin
punch (Fig. 3).
(3) Pull shaft o
