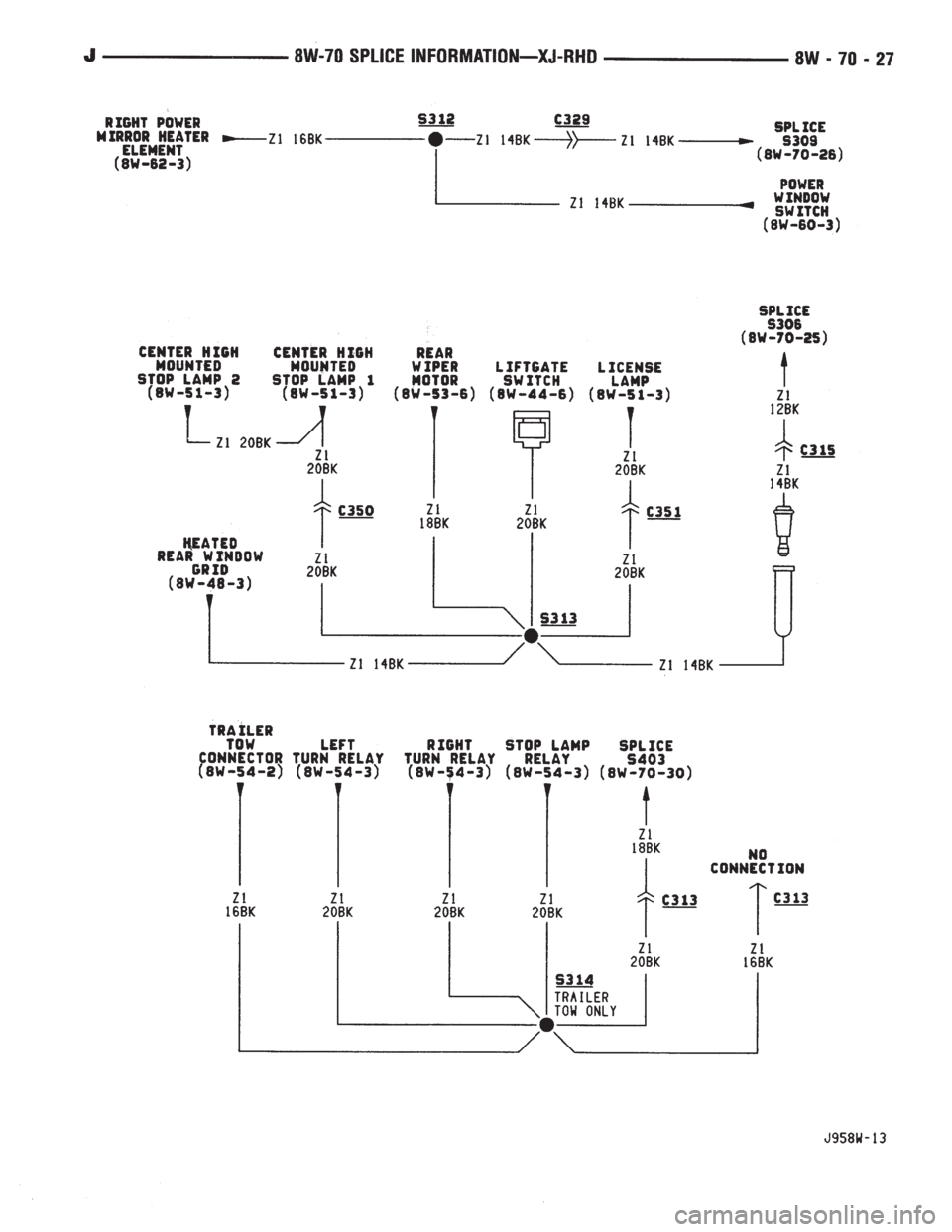

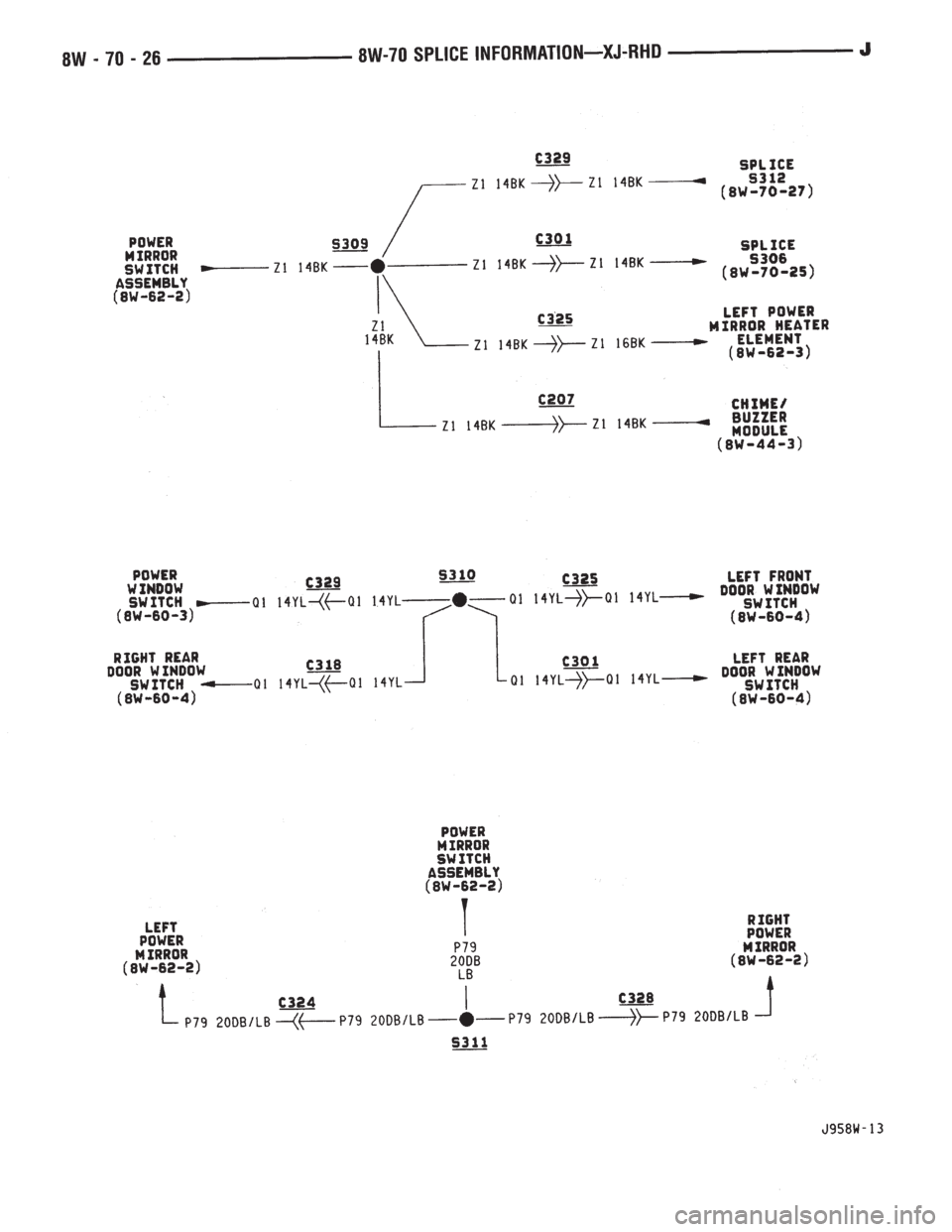

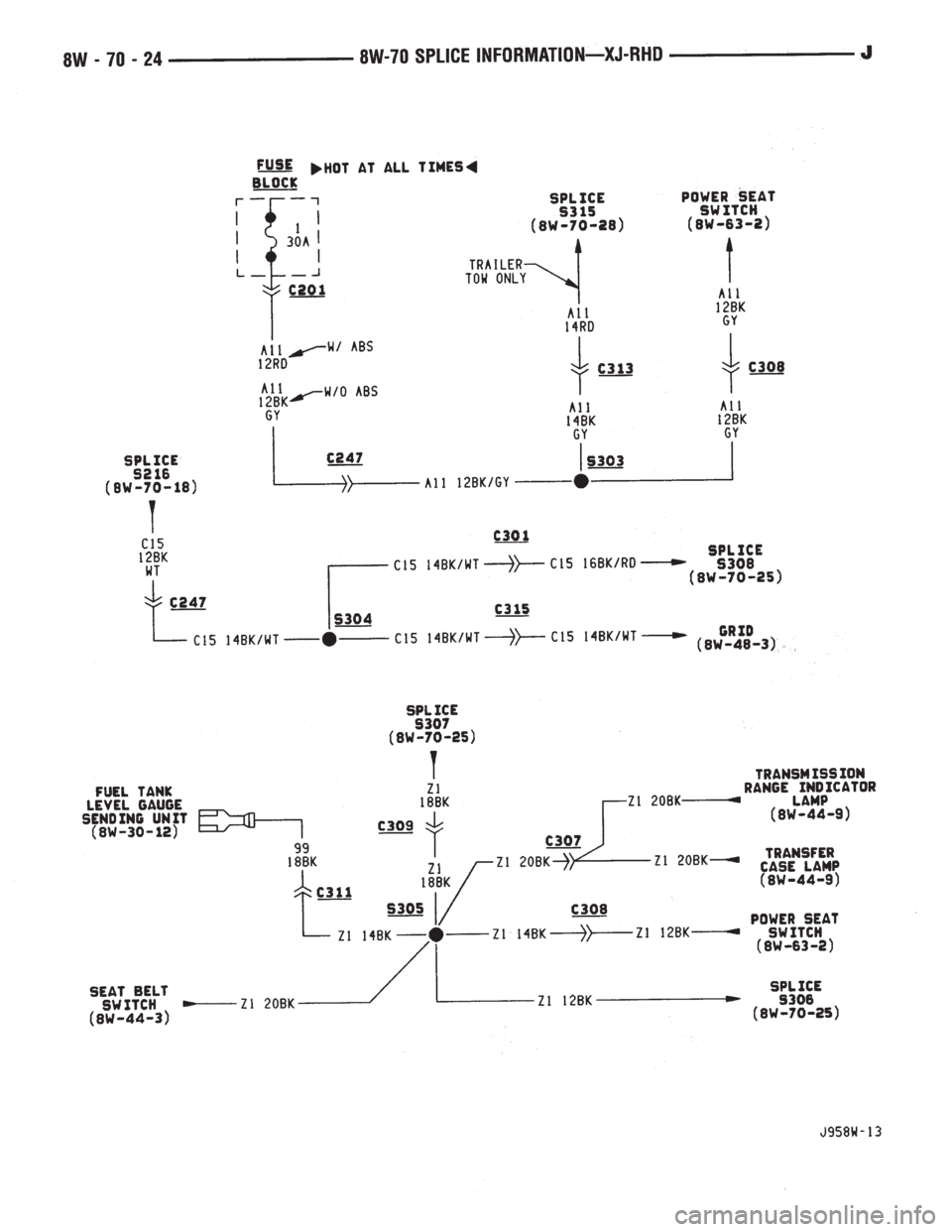

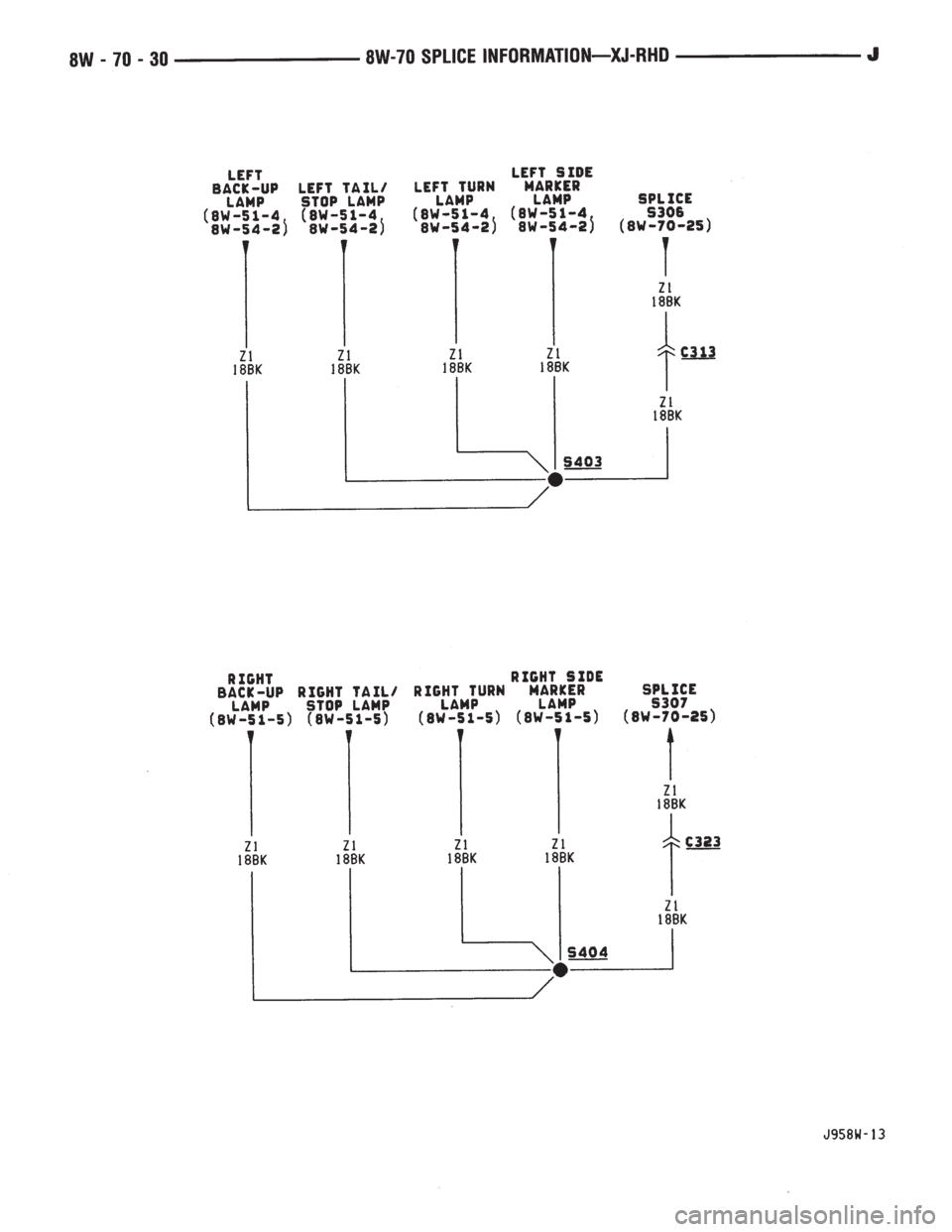

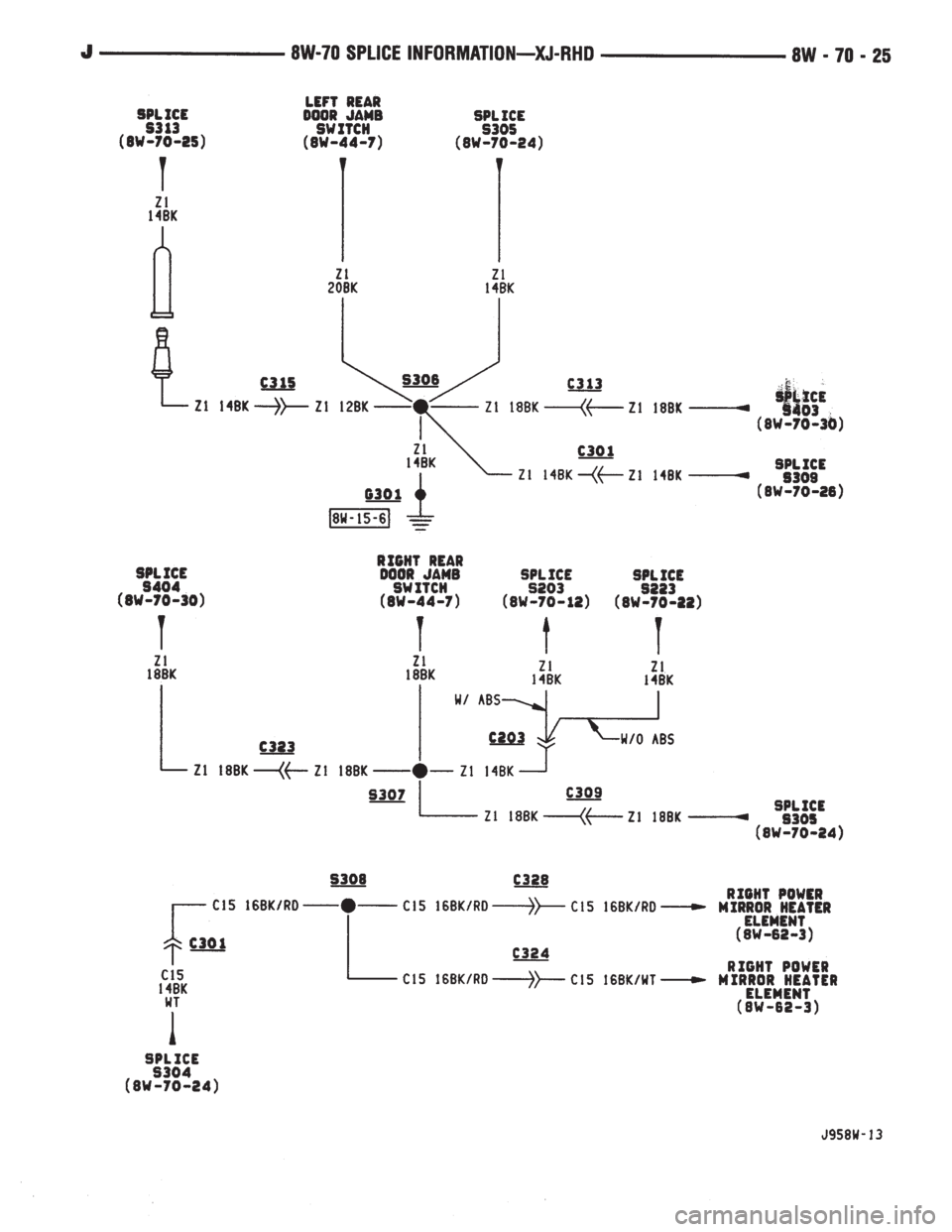

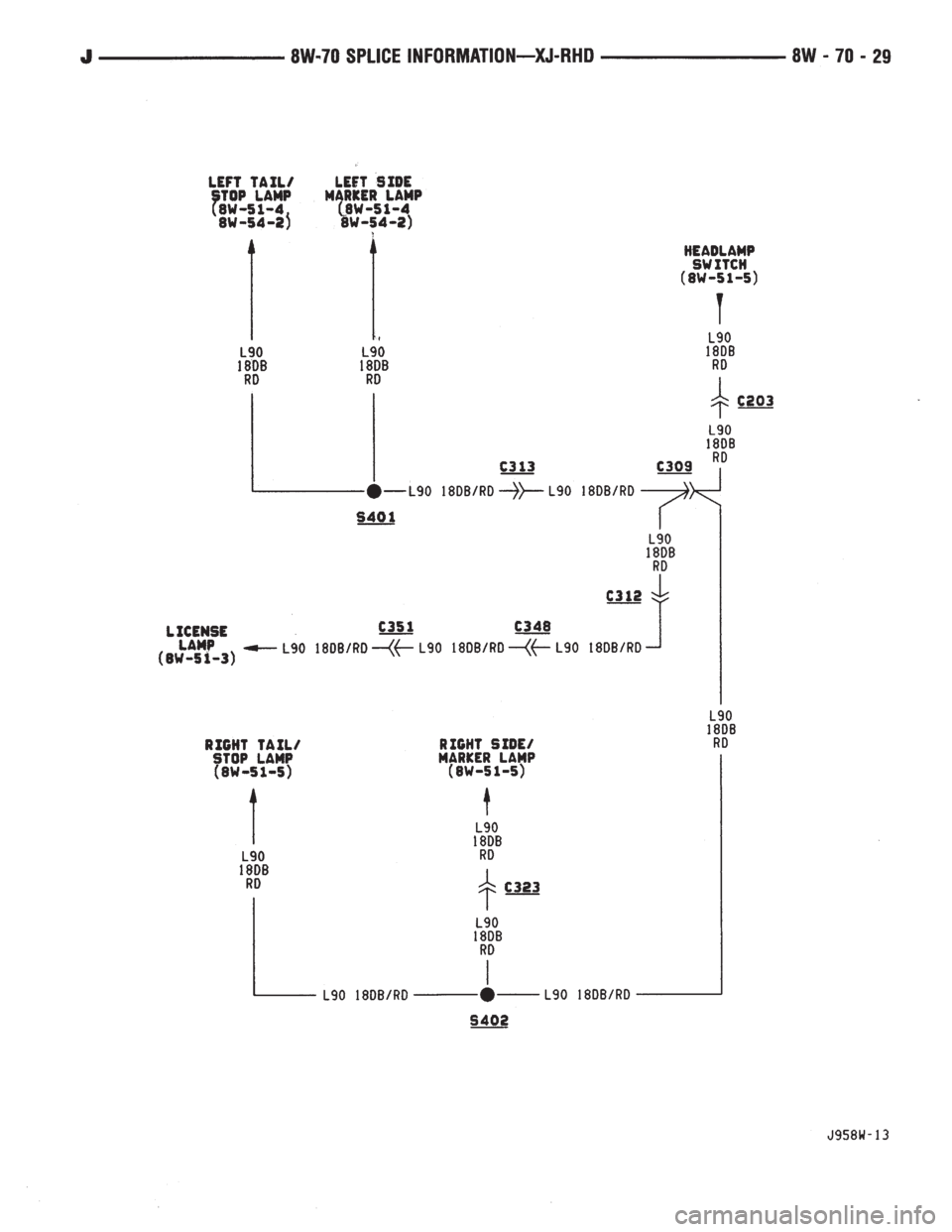

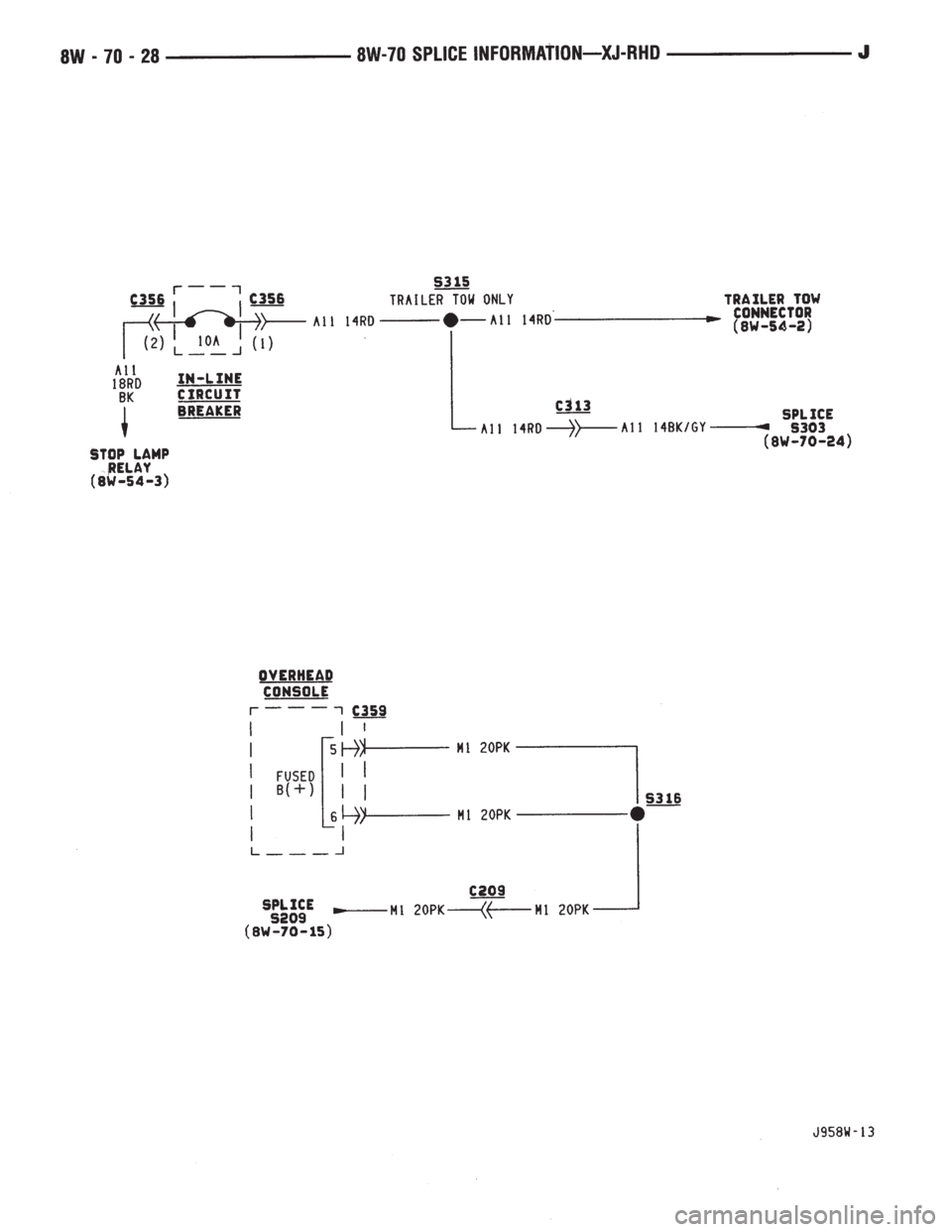

JEEP CHEROKEE 1995 Service Repair Manual CONNECTOR PIN OUTS
GENERAL INFORMATION
The pages referenced in this section show the con-
nector, the circuits in the connector, and the pin thatcircuit occupies. Individual connector numbers are
refe

CONNECTOR PIN OUTS
GENERAL INFORMATION
The pages referenced in this section show the con-
nector, the circuits in the connector, and the pin thatcircuit occupies. Individual connector numbers are
referenced on diagram pages throughout Group 8W.
CONNECTOR LOCATIONS
Component Page
C101................................8W-80-3
C102................................8W-80-4
C103................................8W-80-4
C104................................8W-80-4
C105................................8W-80-4
C106................................8W-80-5
C107................................8W-80-5
C108................................8W-80-5
C109................................8W-80-5
C110................................8W-80-6
C111................................8W-80-6
C112................................8W-80-6
C113................................8W-80-6
C114................................8W-80-6
C115................................8W-80-7
C116................................8W-80-8
C117................................8W-80-8
C118................................8W-80-8
C119................................8W-80-8
C120................................8W-80-9
C121................................8W-80-9
C122................................8W-80-9
C123................................8W-80-9
C124................................8W-80-10
C125................................8W-80-10
C126................................8W-80-11
C127................................8W-80-12
C128................................8W-80-12
C129................................8W-80-12
C130................................8W-80-12
C131................................8W-80-13
C132................................8W-80-13
C133................................8W-80-13
C134................................8W-80-13
C135................................8W-80-14
C136................................8W-80-14
C137................................8W-80-14
C138................................8W-80-14
C139................................8W-80-15
C140................................8W-80-15
C141................................8W-80-16
C142................................8W-80-16
C143................................8W-80-16
C144................................8W-80-17
C145................................8W-80-17
C146................................8W-80-17
C147................................8W-80-17Component Page
C148................................8W-80-18
C149................................8W-80-18
C150................................8W-80-18
C151................................8W-80-18
C152................................8W-80-19
C153................................8W-80-19
C154................................8W-80-19
C155................................8W-80-19
C156................................8W-80-20
C157................................8W-80-20
C158................................8W-80-20
C159................................8W-80-20
C160................................8W-80-21
C201................................8W-80-21
C202................................8W-80-21
C203................................8W-80-21
C204................................8W-80-22
C205................................8W-80-22
C206................................8W-80-22
C207................................8W-80-22
C208................................8W-80-23
C209................................8W-80-23
C210................................8W-80-23
C211................................8W-80-23
C212................................8W-80-24
C213................................8W-80-24
C214................................8W-80-24
C215................................8W-80-24
C216................................8W-80-25
C217................................8W-80-25
C218................................8W-80-25
C219................................8W-80-25
C220................................8W-80-26
C221................................8W-80-27
C222................................8W-80-27
C223................................8W-80-27
C224................................8W-80-28
C225................................8W-80-28
C228................................8W-80-28
C229................................8W-80-28
C230................................8W-80-29
C231................................8W-80-29
C232................................8W-80-29
C233................................8W-80-30
C234................................8W-80-30
C235................................8W-80-30
C236................................8W-80-31
J8W-80 CONNECTOR PIN OUTSÐXJ-RHD 8W - 80 - 1
