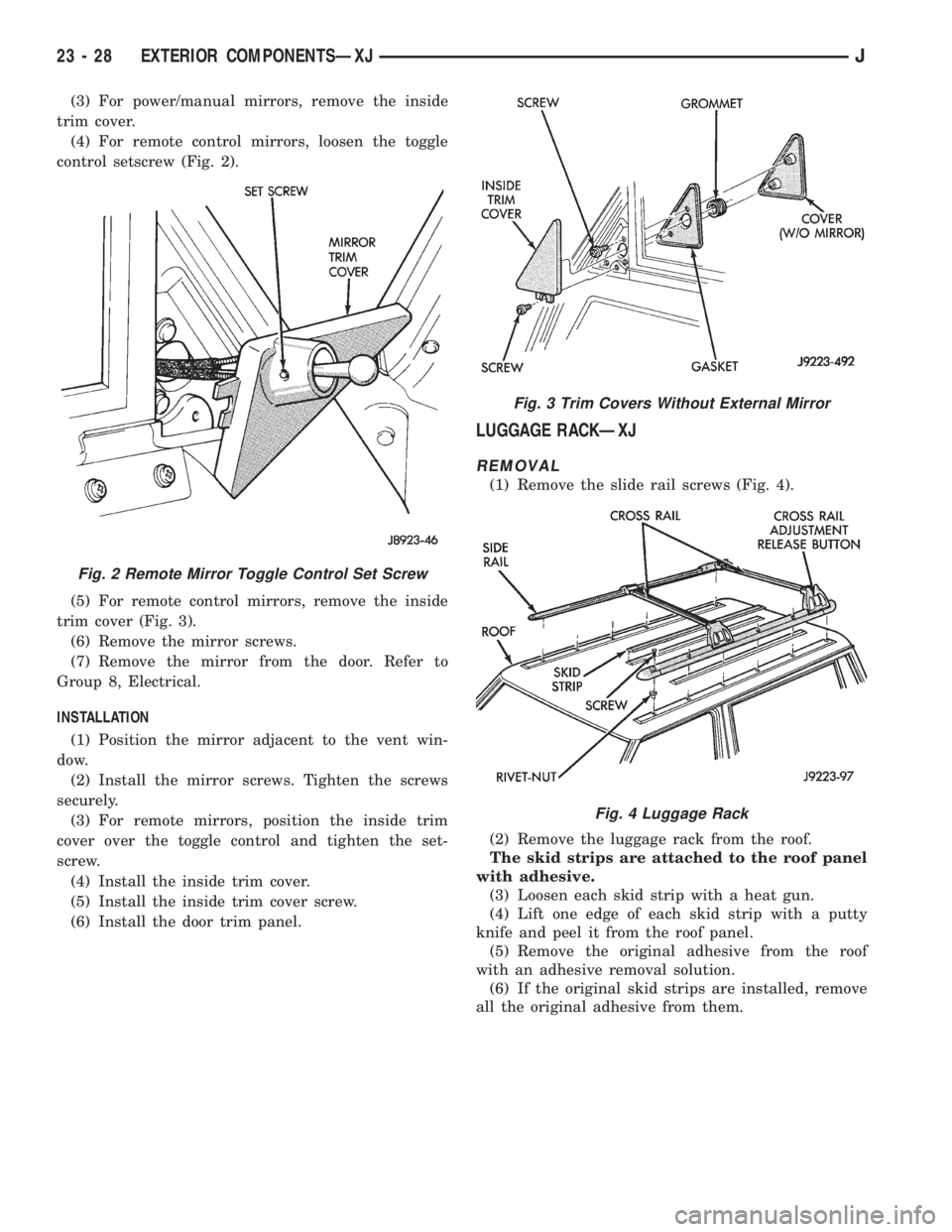

Page 1761 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (3) For power/manual mirrors, remove the inside trim cover. (4) For remote control mirrors, loosen the toggle control setscrew (Fig. 2). (5) For remote control mirrors, remove the inside trim cover (F

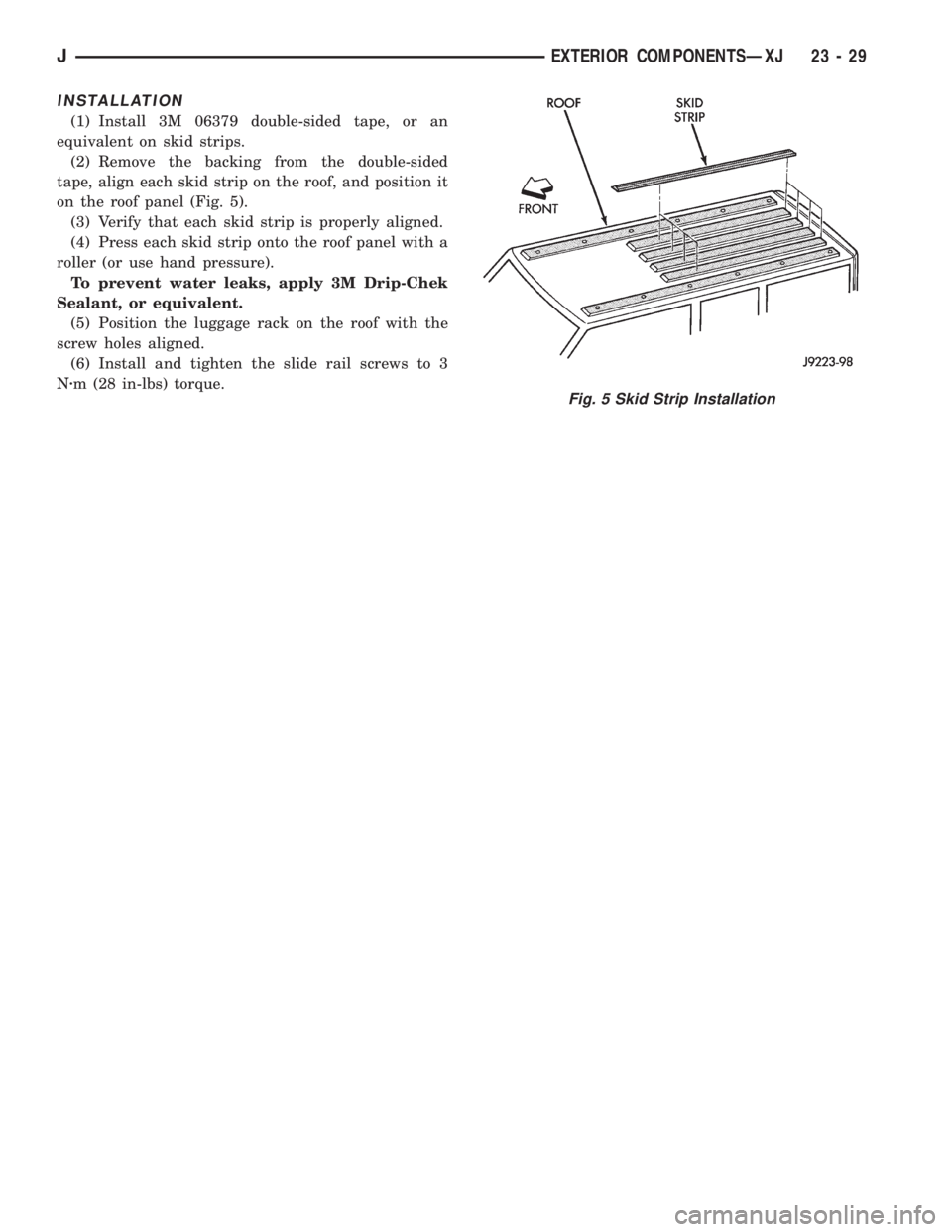

Page 1762 of 2198

JEEP CHEROKEE 1995 Service Repair Manual INSTALLATION (1) Install 3M 06379 double-sided tape, or an equivalent on skid strips. (2) Remove the backing from the double-sided tape, align each skid strip on the roof, and position it on the roof

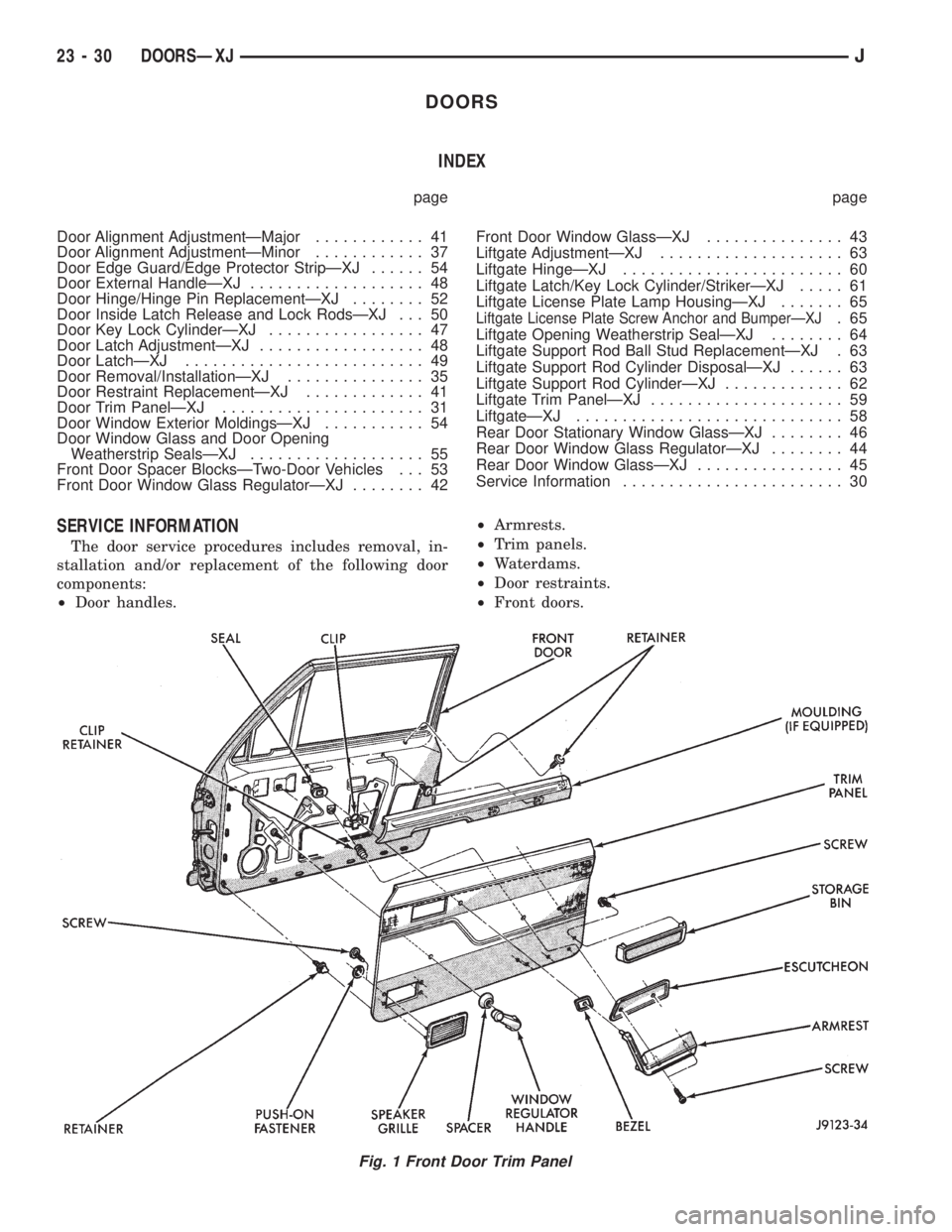

Page 1763 of 2198

JEEP CHEROKEE 1995 Service Repair Manual DOORS INDEX page page Door Alignment AdjustmentÐMajor............ 41 Door Alignment AdjustmentÐMinor............ 37 Door Edge Guard/Edge Protector StripÐXJ...... 54 Door External HandleÐXJ........

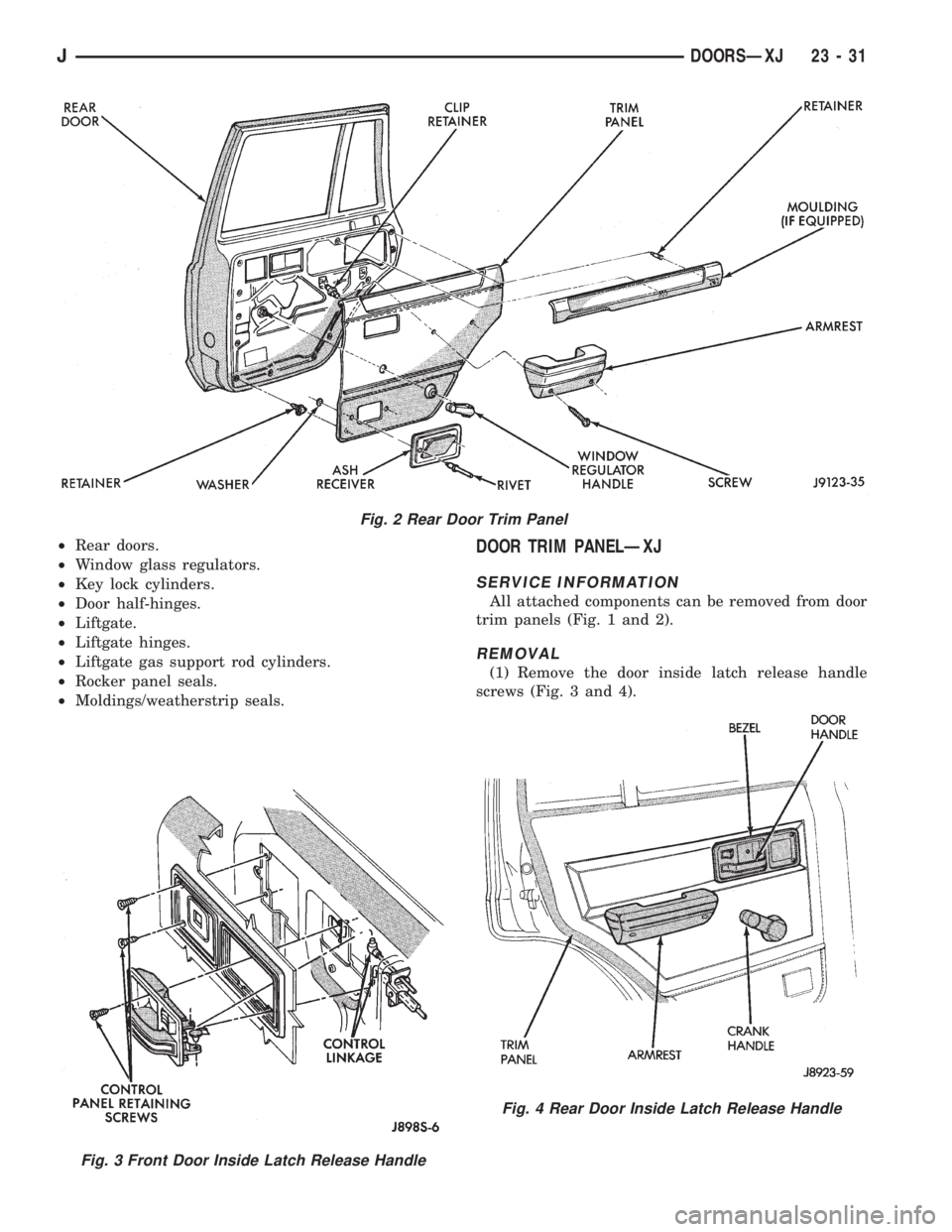

Page 1764 of 2198

JEEP CHEROKEE 1995 Service Repair Manual ²Rear doors. ²Window glass regulators. ²Key lock cylinders. ²Door half-hinges. ²Liftgate. ²Liftgate hinges. ²Liftgate gas support rod cylinders. ²Rocker panel seals. ²Moldings/weatherstrip se

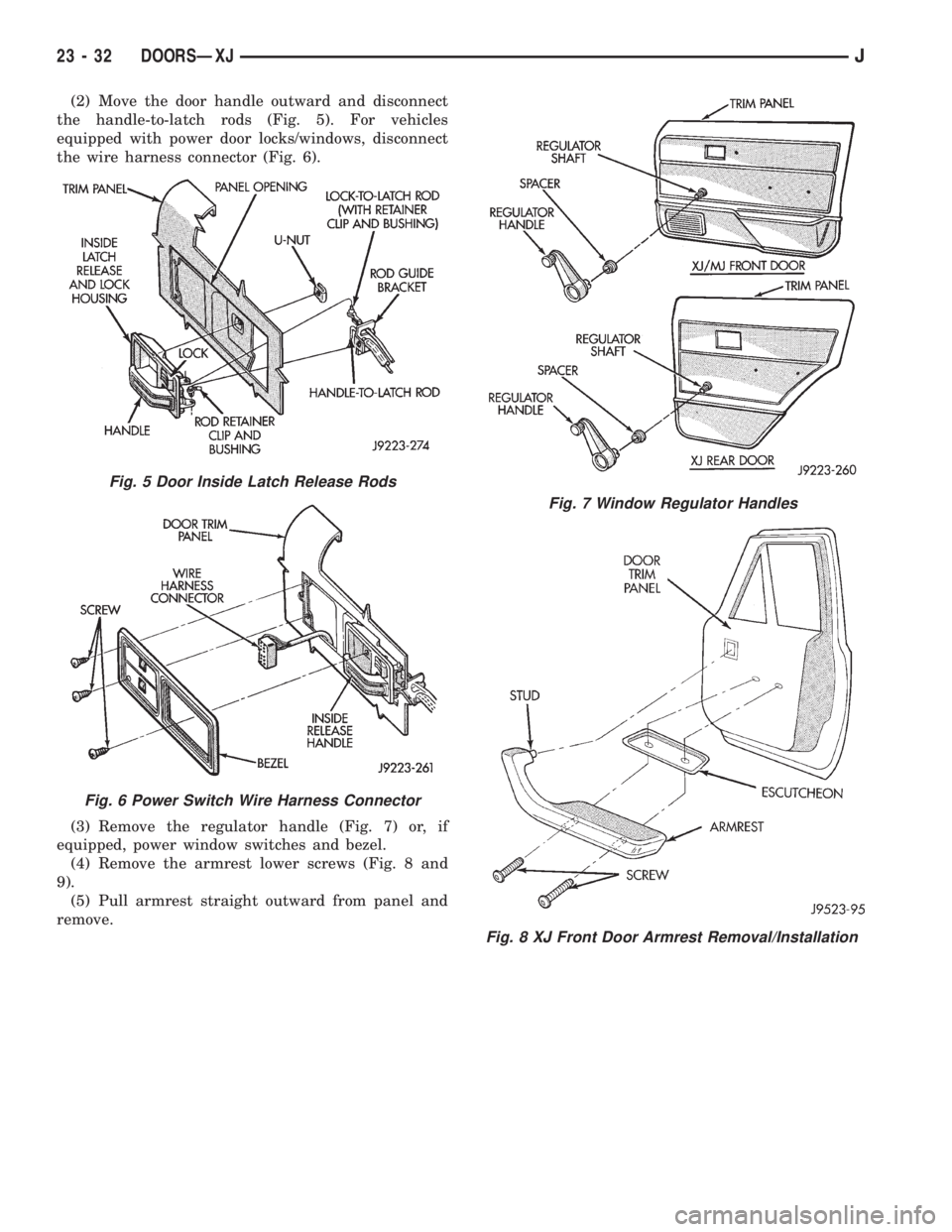

Page 1765 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (2) Move the door handle outward and disconnect the handle-to-latch rods (Fig. 5). For vehicles equipped with power door locks/windows, disconnect the wire harness connector (Fig. 6). (3) Remove the r

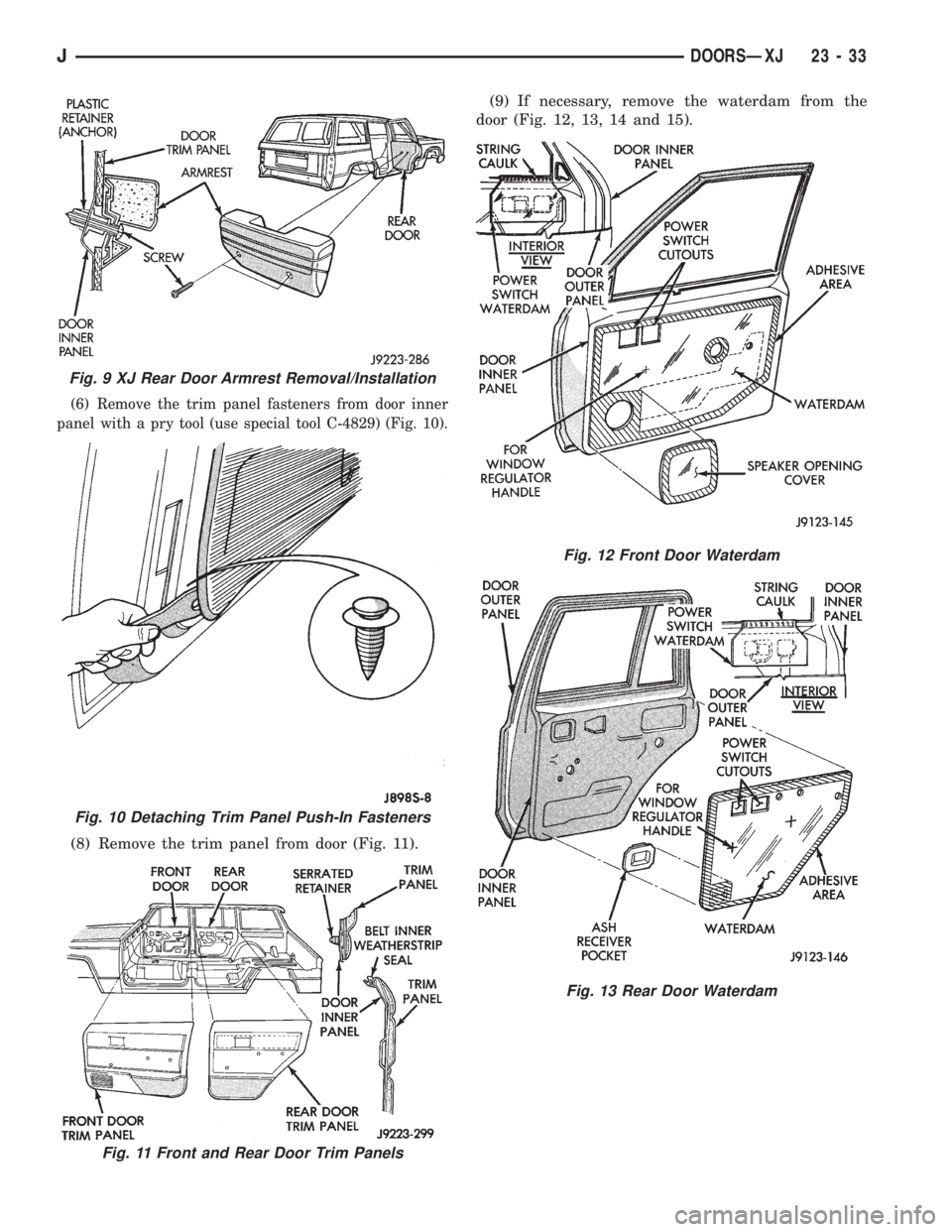

Page 1766 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (6) Remove the trim panel fasteners from door inner panel with a pry tool (use special tool C-4829) (Fig. 10). (8) Remove the trim panel from door (Fig. 11).(9) If necessary, remove the waterdam from

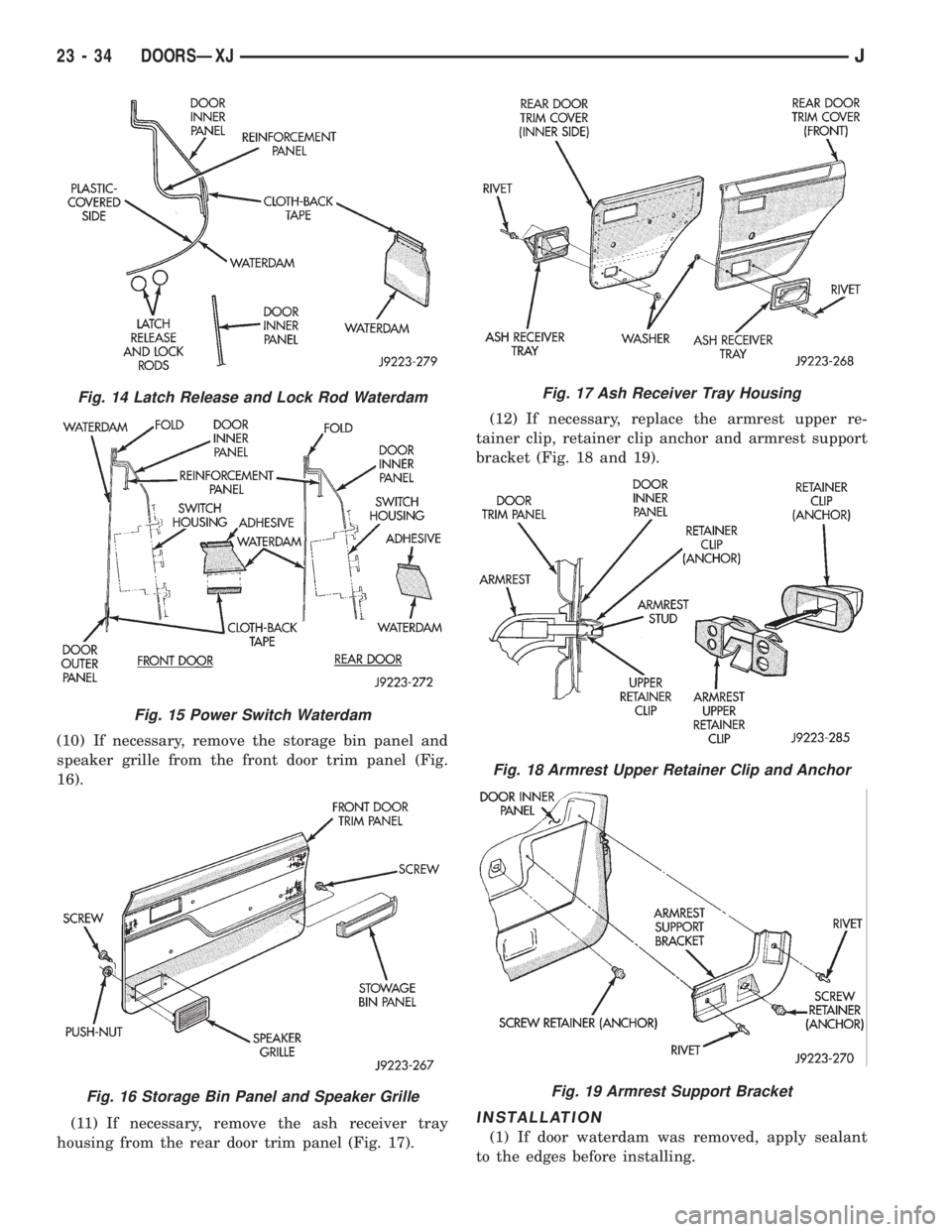

Page 1767 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (10) If necessary, remove the storage bin panel and speaker grille from the front door trim panel (Fig. 16). (11) If necessary, remove the ash receiver tray housing from the rear door trim panel (Fig.

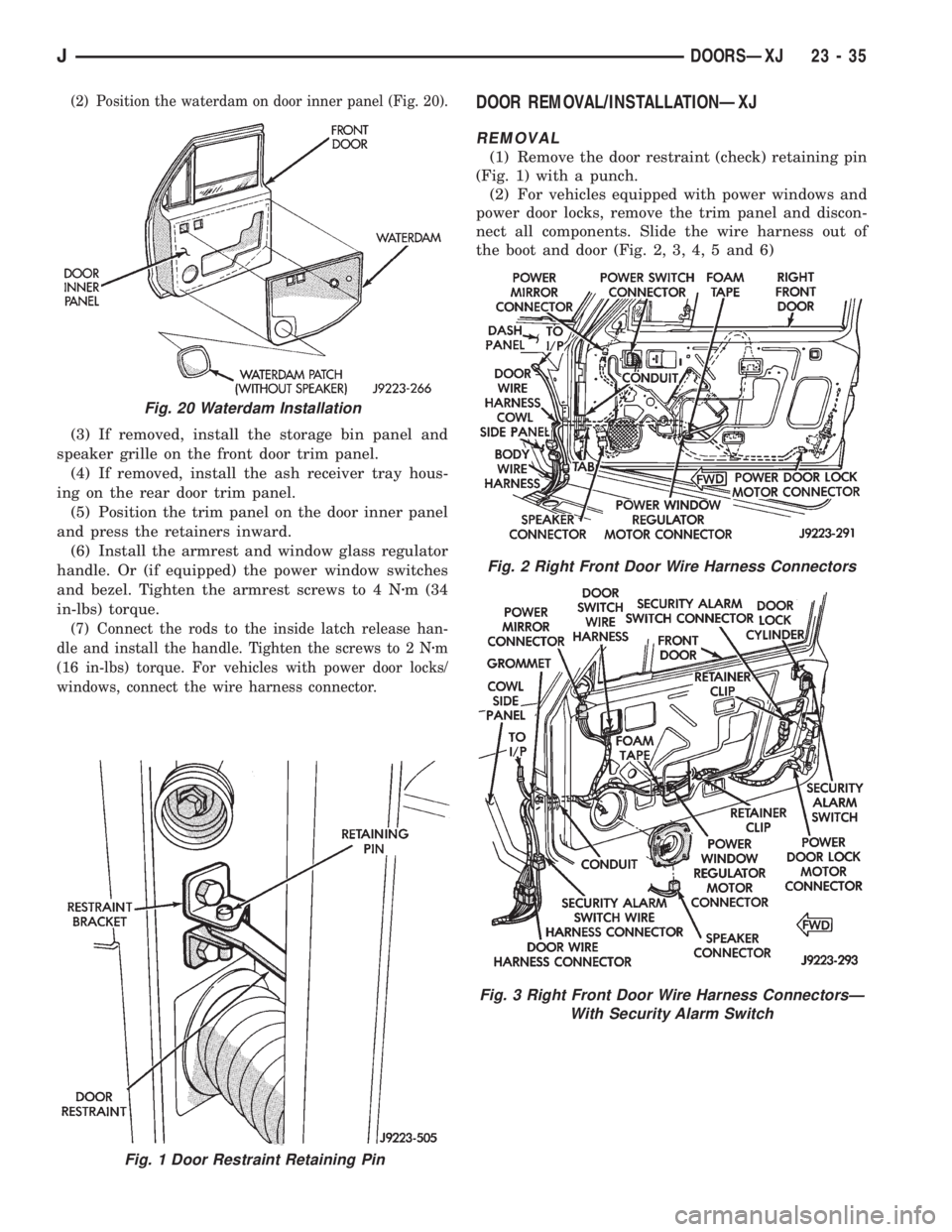

Page 1768 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (2) Position the waterdam on door inner panel (Fig. 20). (3) If removed, install the storage bin panel and speaker grille on the front door trim panel. (4) If removed, install the ash receiver tray ho
