1995 JEEP CHEROKEE Service Repair Manual

Page 1377 of 2198

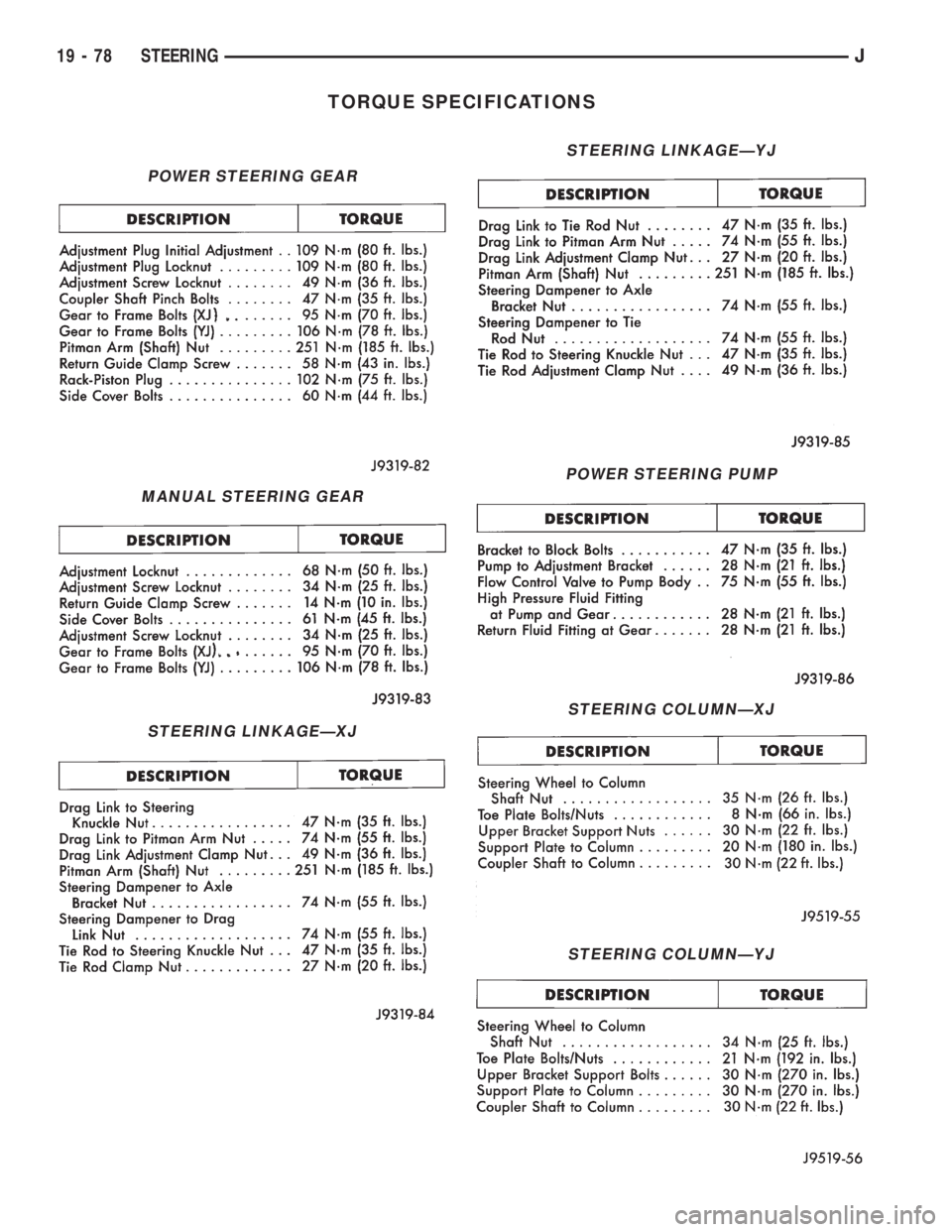

JEEP CHEROKEE 1995  Service Repair Manual TORQUE SPECIFICATIONS
POWER STEERING GEAR
MANUAL STEERING GEAR
STEERING LINKAGEÐXJ
STEERING LINKAGEÐYJ
POWER STEERING PUMP
STEERING COLUMNÐXJ
STEERING COLUMNÐYJ
19 - 78 STEERINGJ

Page 1378 of 2198

JEEP CHEROKEE 1995  Service Repair Manual TRANSMISSION AND TRANSFER CASE
CONTENTS
page page
30RH/32RH AUTOMATIC TRANSMISSION.... 67
AW 4 AUTOMATIC TRANSMISSION........ 165
AX 15 MANUAL TRANSMISSION........... 33
AX 4/5 MANUAL TRANSMISSION....

Page 1379 of 2198

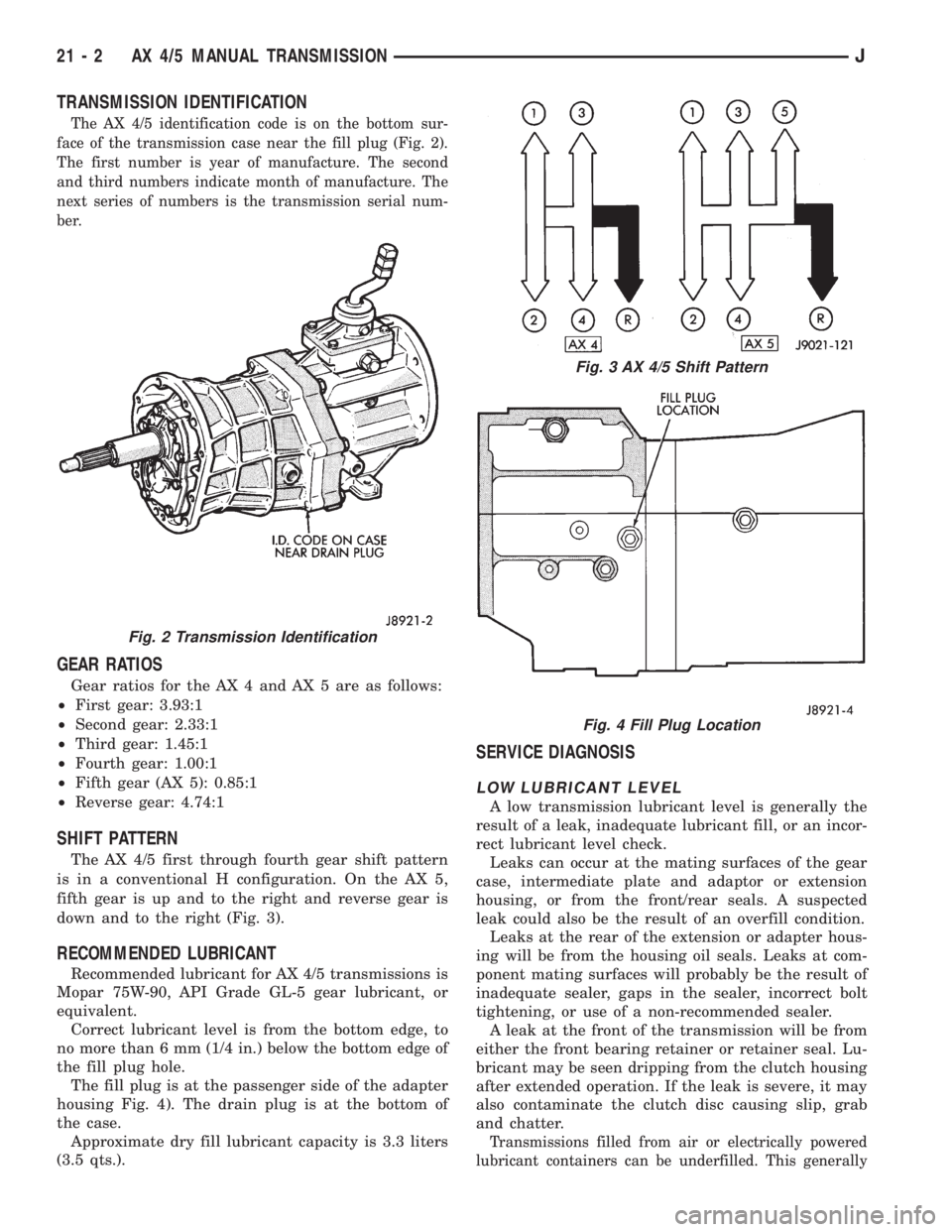

JEEP CHEROKEE 1995  Service Repair Manual TRANSMISSION IDENTIFICATION
The AX 4/5 identification code is on the bottom sur-
face of the transmission case near the fill plug (Fig. 2).
The first number is year of manufacture. The second
and thir

Page 1380 of 2198

JEEP CHEROKEE 1995  Service Repair Manual happens when the container delivery mechanism is im-
properly calibrated. Always check the lubricant level af-
ter filling to avoid an under fill condition.
A correct lubricant level check can only be

Page 1381 of 2198

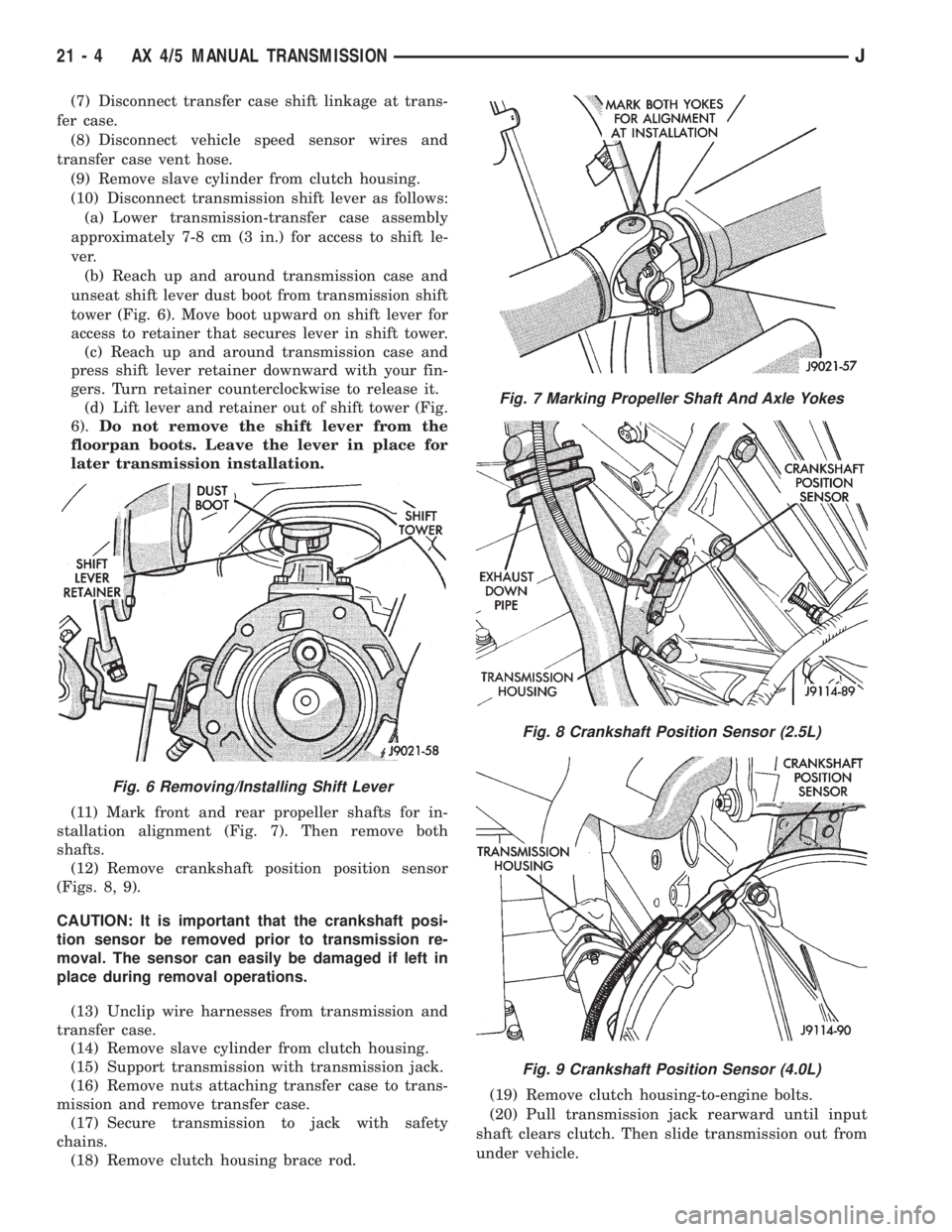

JEEP CHEROKEE 1995  Service Repair Manual (7) Disconnect transfer case shift linkage at trans-
fer case.
(8) Disconnect vehicle speed sensor wires and
transfer case vent hose.
(9) Remove slave cylinder from clutch housing.
(10) Disconnect tra

Page 1382 of 2198

JEEP CHEROKEE 1995  Service Repair Manual (21) Remove clutch release bearing, release fork
and retainer clip.
(22) Remove clutch housing from transmission.
TRANSMISSION INSTALLATION
(1) Install clutch housing on transmission. Tighten
housing

Page 1383 of 2198

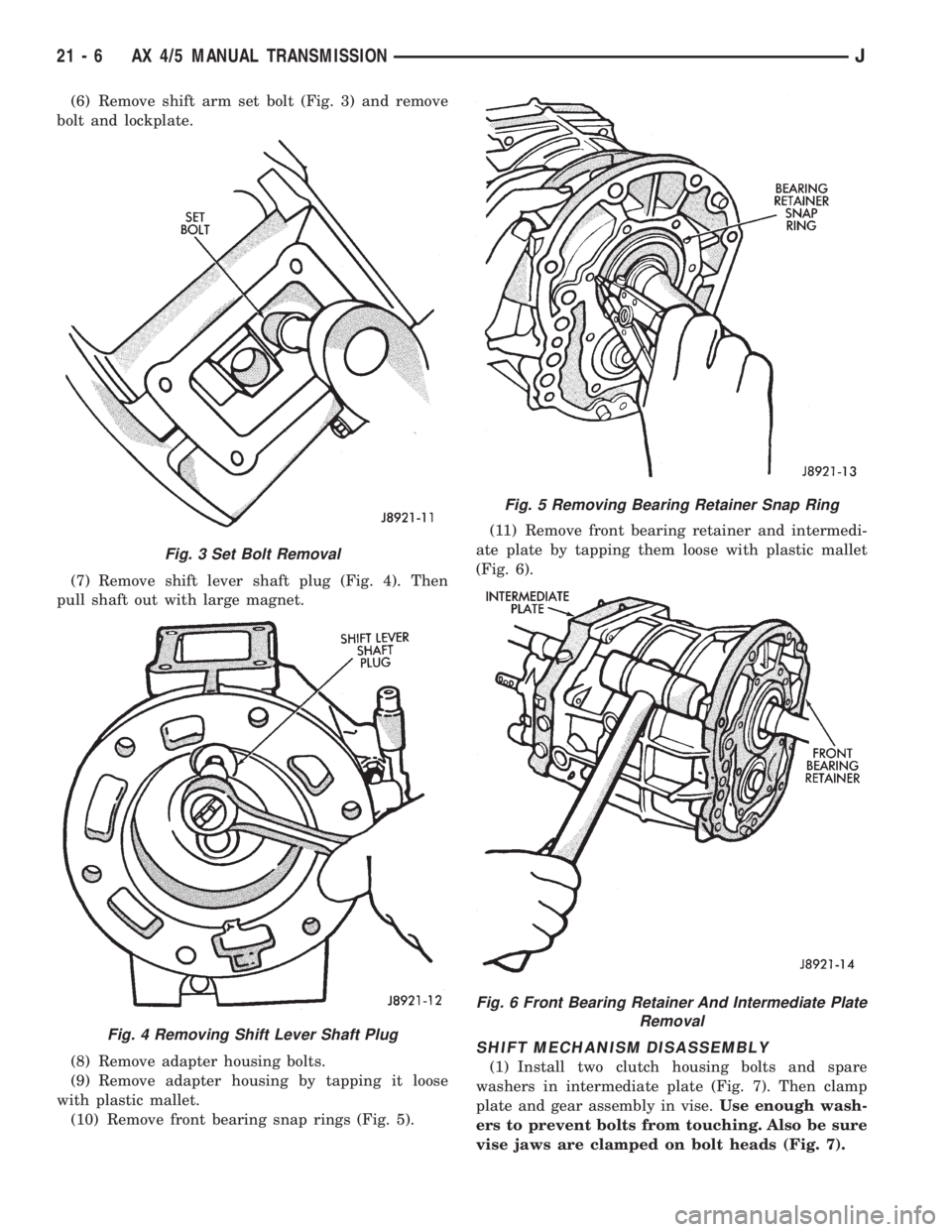

JEEP CHEROKEE 1995  Service Repair Manual (6) Remove shift arm set bolt (Fig. 3) and remove
bolt and lockplate.
(7) Remove shift lever shaft plug (Fig. 4). Then
pull shaft out with large magnet.
(8) Remove adapter housing bolts.
(9) Remove ad

Page 1384 of 2198

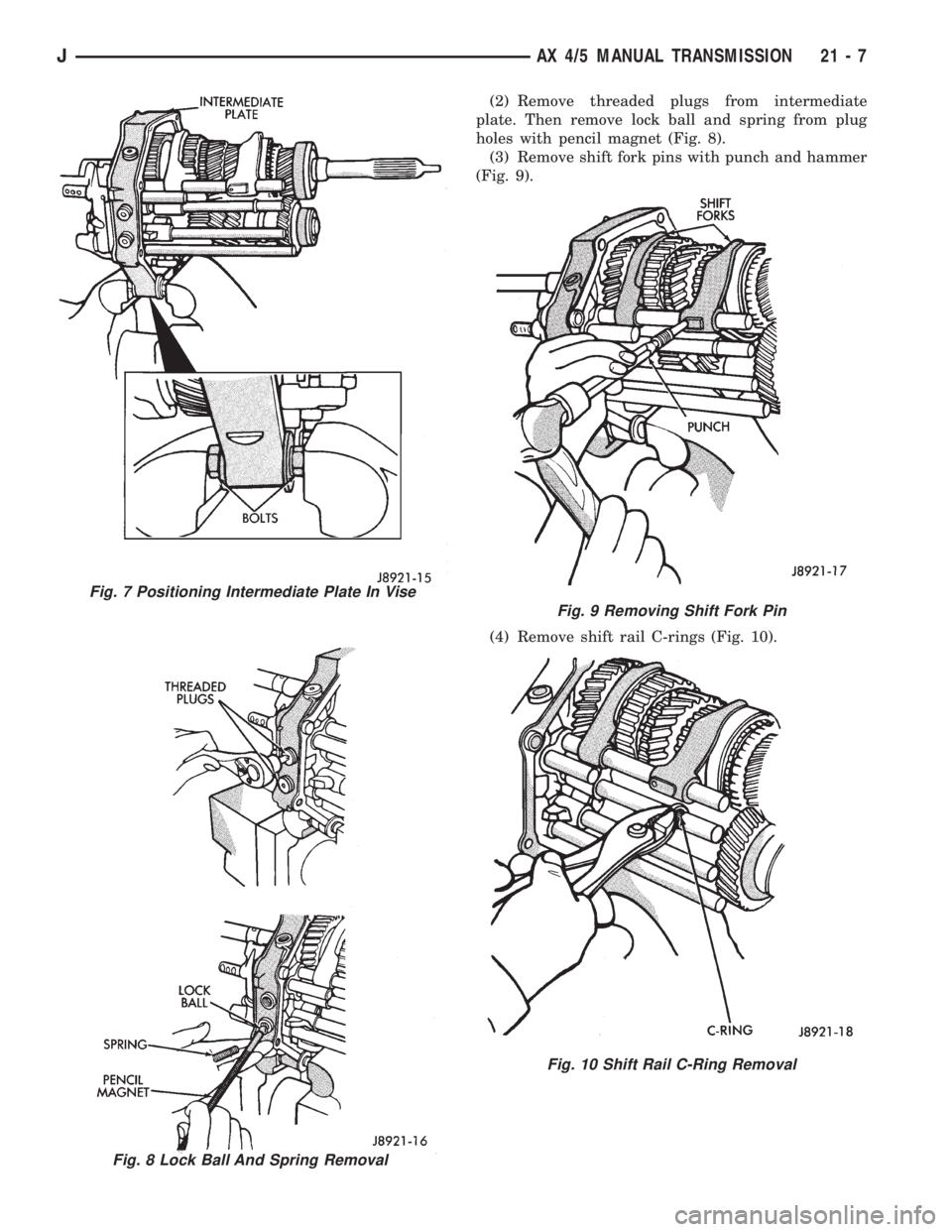

JEEP CHEROKEE 1995  Service Repair Manual (2) Remove threaded plugs from intermediate
plate. Then remove lock ball and spring from plug
holes with pencil magnet (Fig. 8).
(3) Remove shift fork pins with punch and hammer
(Fig. 9).
(4) Remove s
