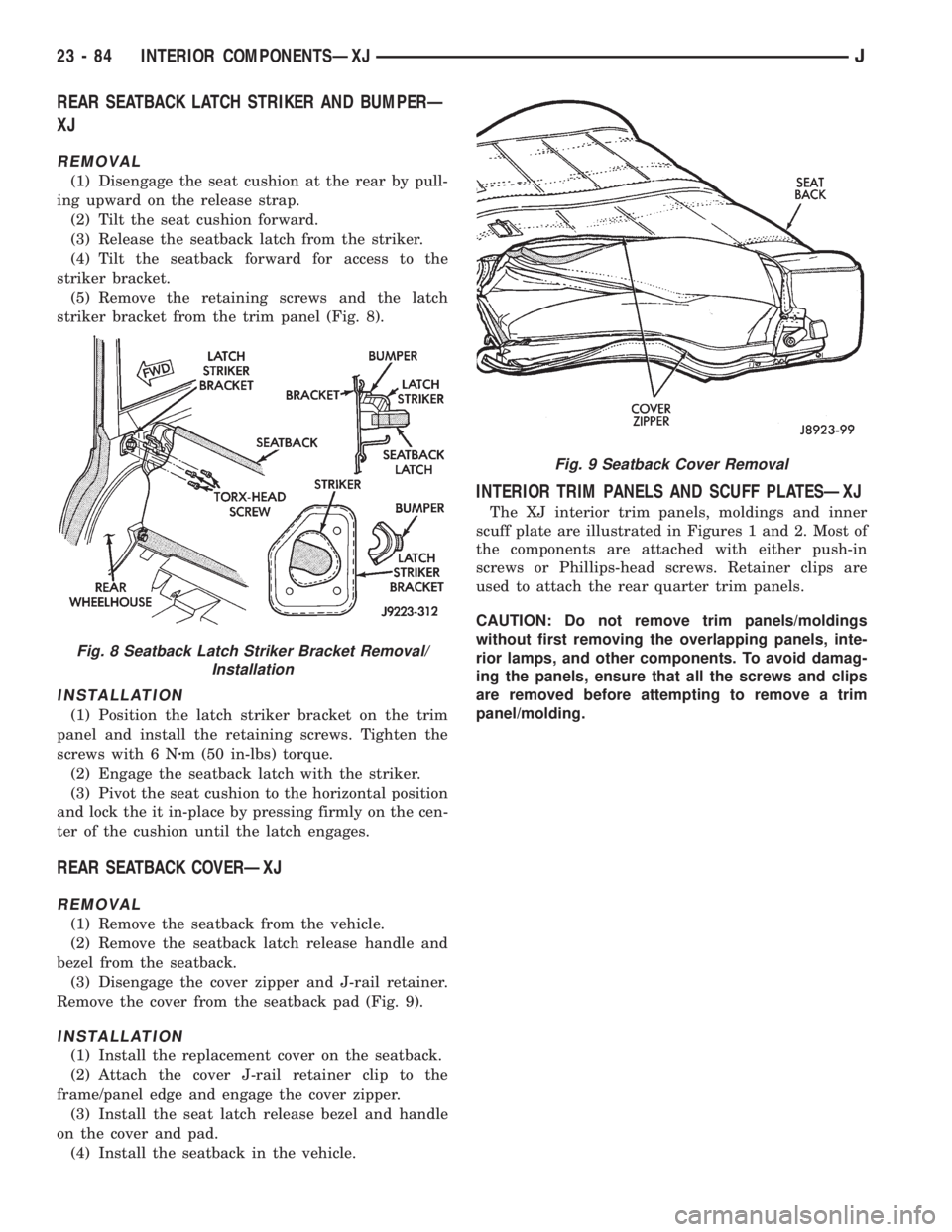

JEEP CHEROKEE 1995 Service Repair Manual REAR SEATBACK LATCH STRIKER AND BUMPERÐ
XJ
REMOVAL
(1) Disengage the seat cushion at the rear by pull-
ing upward on the release strap.
(2) Tilt the seat cushion forward.
(3) Release the seatback lat

Page 1818 of 2198

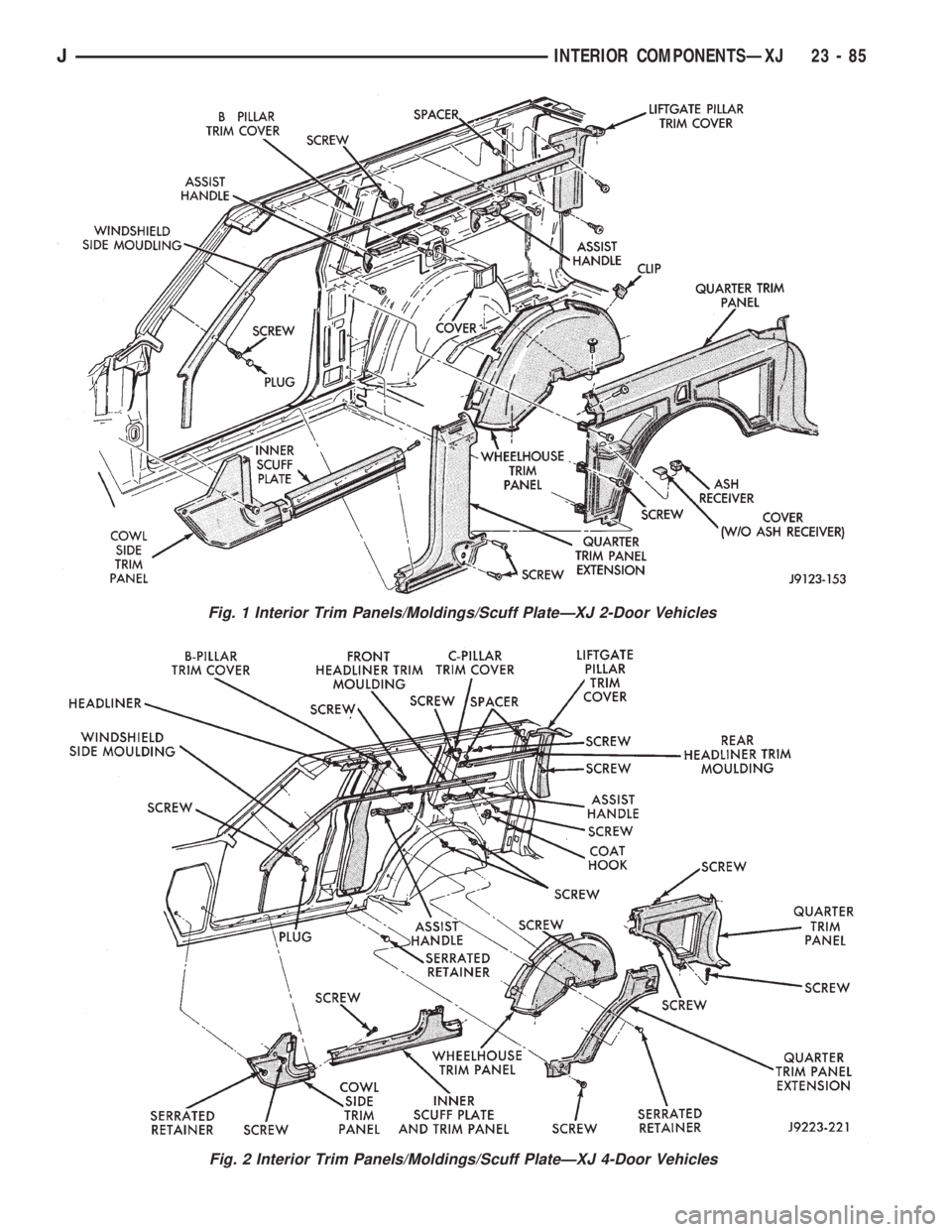

JEEP CHEROKEE 1995 Service Repair Manual Fig. 1 Interior Trim Panels/Moldings/Scuff PlateÐXJ 2-Door Vehicles
Fig. 2 Interior Trim Panels/Moldings/Scuff PlateÐXJ 4-Door Vehicles
JINTERIOR COMPONENTSÐXJ 23 - 85

Page 1819 of 2198

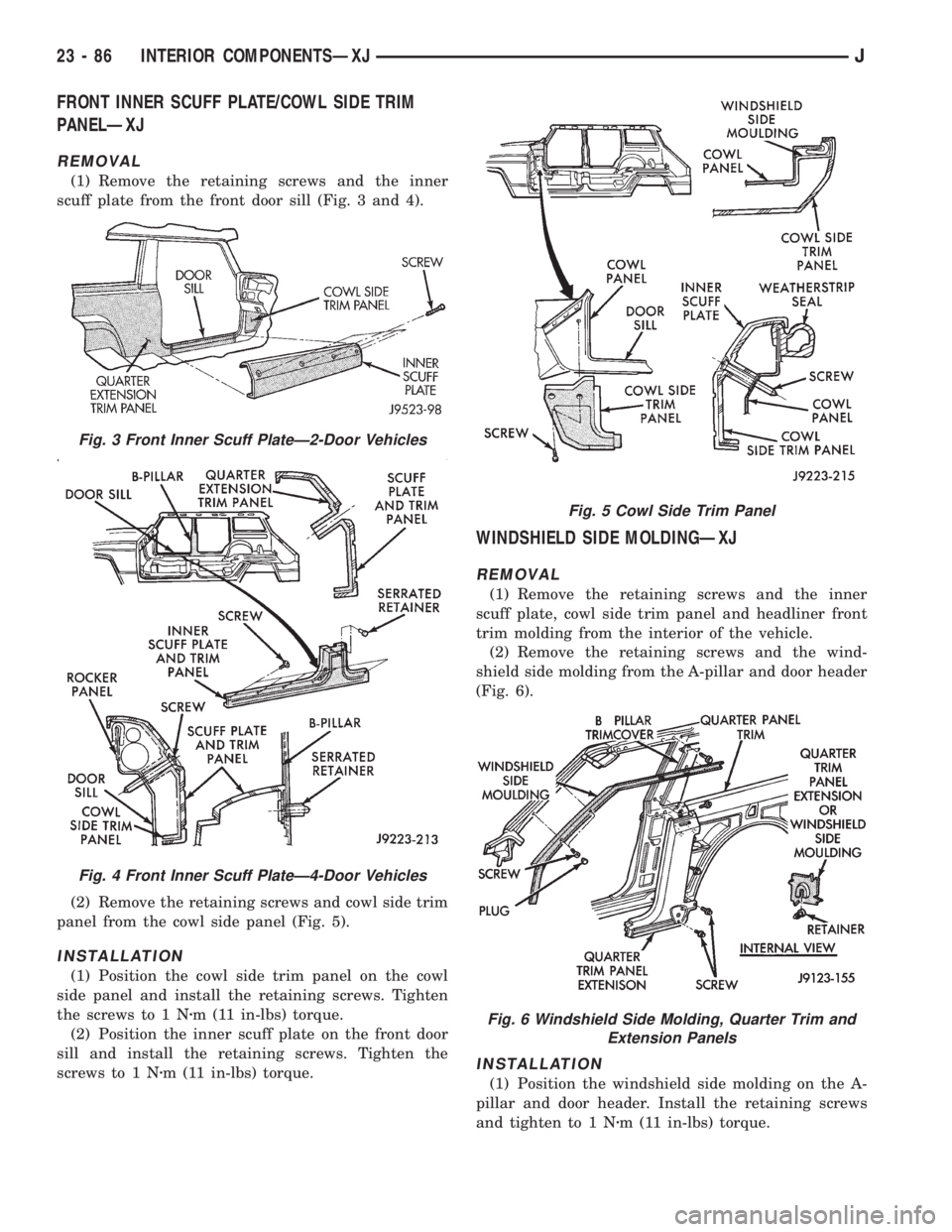

JEEP CHEROKEE 1995 Service Repair Manual FRONT INNER SCUFF PLATE/COWL SIDE TRIM
PANELÐXJ
REMOVAL
(1) Remove the retaining screws and the inner
scuff plate from the front door sill (Fig. 3 and 4).
(2) Remove the retaining screws and cowl sid

Page 1820 of 2198

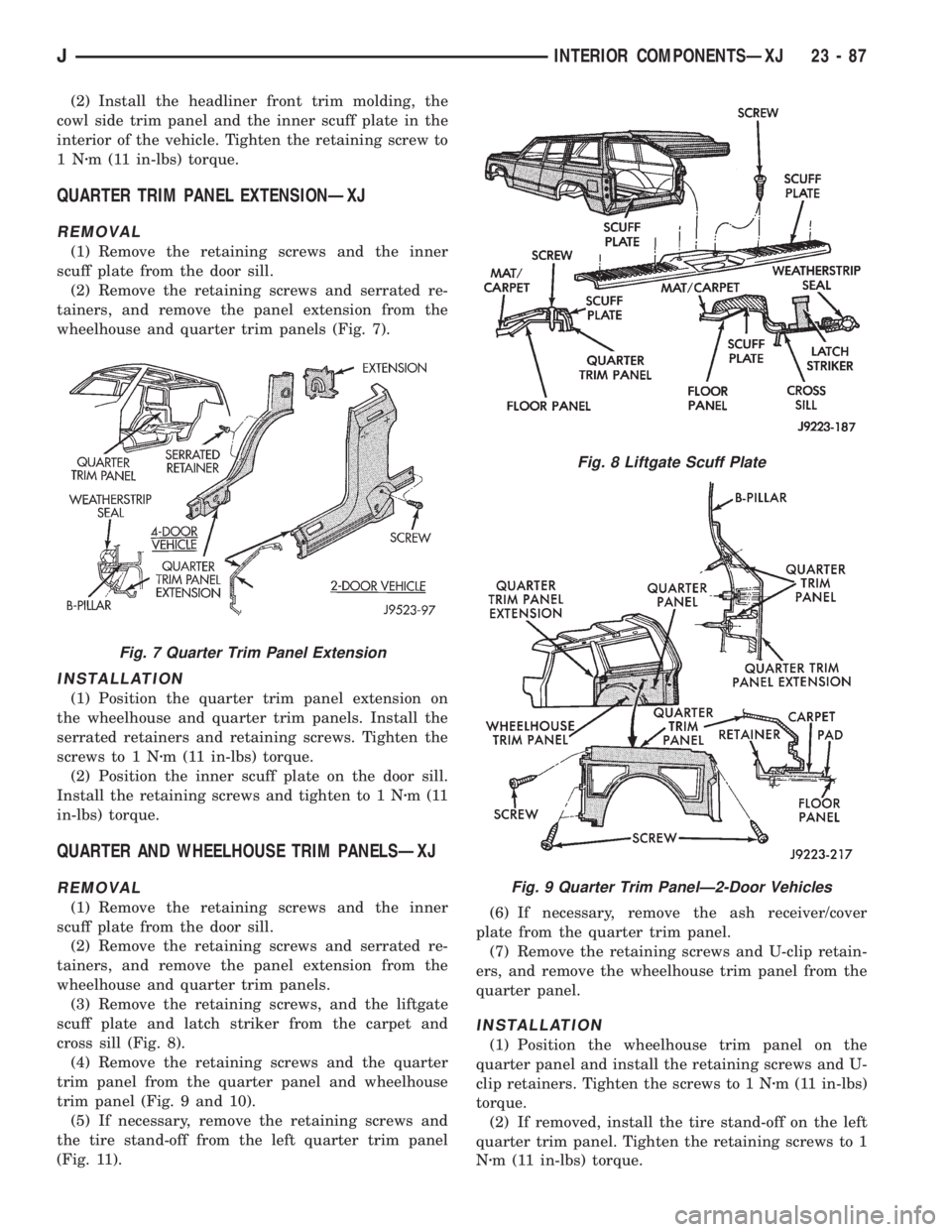

JEEP CHEROKEE 1995 Service Repair Manual (2) Install the headliner front trim molding, the
cowl side trim panel and the inner scuff plate in the
interior of the vehicle. Tighten the retaining screw to
1Nzm (11 in-lbs) torque.
QUARTER TRIM PA

(2) Install the headliner front trim molding, the
cowl side trim panel and the inner scuff plate in the
interior of the vehicle. Tighten the retaining screw to
1Nzm (11 in-lbs) torque.
QUARTER TRIM PANEL EXTENSIONÐXJ
REMOVAL
(1) Remove the retaining screws and the inner
scuff plate from the door sill.
(2) Remove the retaining screws and serrated re-
tainers, and remove the panel extension from the
wheelhouse and quarter trim panels (Fig. 7).
INSTALLATION
(1) Position the quarter trim panel extension on
the wheelhouse and quarter trim panels. Install the
serrated retainers and retaining screws. Tighten the
screws to 1 Nzm (11 in-lbs) torque.
(2) Position the inner scuff plate on the door sill.
Install the retaining screws and tighten to 1 Nzm(11
in-lbs) torque.
QUARTER AND WHEELHOUSE TRIM PANELSÐXJ
REMOVAL
(1) Remove the retaining screws and the inner
scuff plate from the door sill.
(2) Remove the retaining screws and serrated re-
tainers, and remove the panel extension from the
wheelhouse and quarter trim panels.
(3) Remove the retaining screws, and the liftgate
scuff plate and latch striker from the carpet and
cross sill (Fig. 8).
(4) Remove the retaining screws and the quarter
trim panel from the quarter panel and wheelhouse
trim panel (Fig. 9 and 10).
(5) If necessary, remove the retaining screws and
the tire stand-off from the left quarter trim panel
(Fig. 11).(6) If necessary, remove the ash receiver/cover
plate from the quarter trim panel.
(7) Remove the retaining screws and U-clip retain-
ers, and remove the wheelhouse trim panel from the
quarter panel.
INSTALLATION
(1) Position the wheelhouse trim panel on the
quarter panel and install the retaining screws and U-
clip retainers. Tighten the screws to 1 Nzm (11 in-lbs)
torque.
(2) If removed, install the tire stand-off on the left
quarter trim panel. Tighten the retaining screws to 1
Nzm (11 in-lbs) torque.
Fig. 7 Quarter Trim Panel Extension
Fig. 8 Liftgate Scuff Plate
Fig. 9 Quarter Trim PanelÐ2-Door Vehicles
JINTERIOR COMPONENTSÐXJ 23 - 87

Page 1821 of 2198

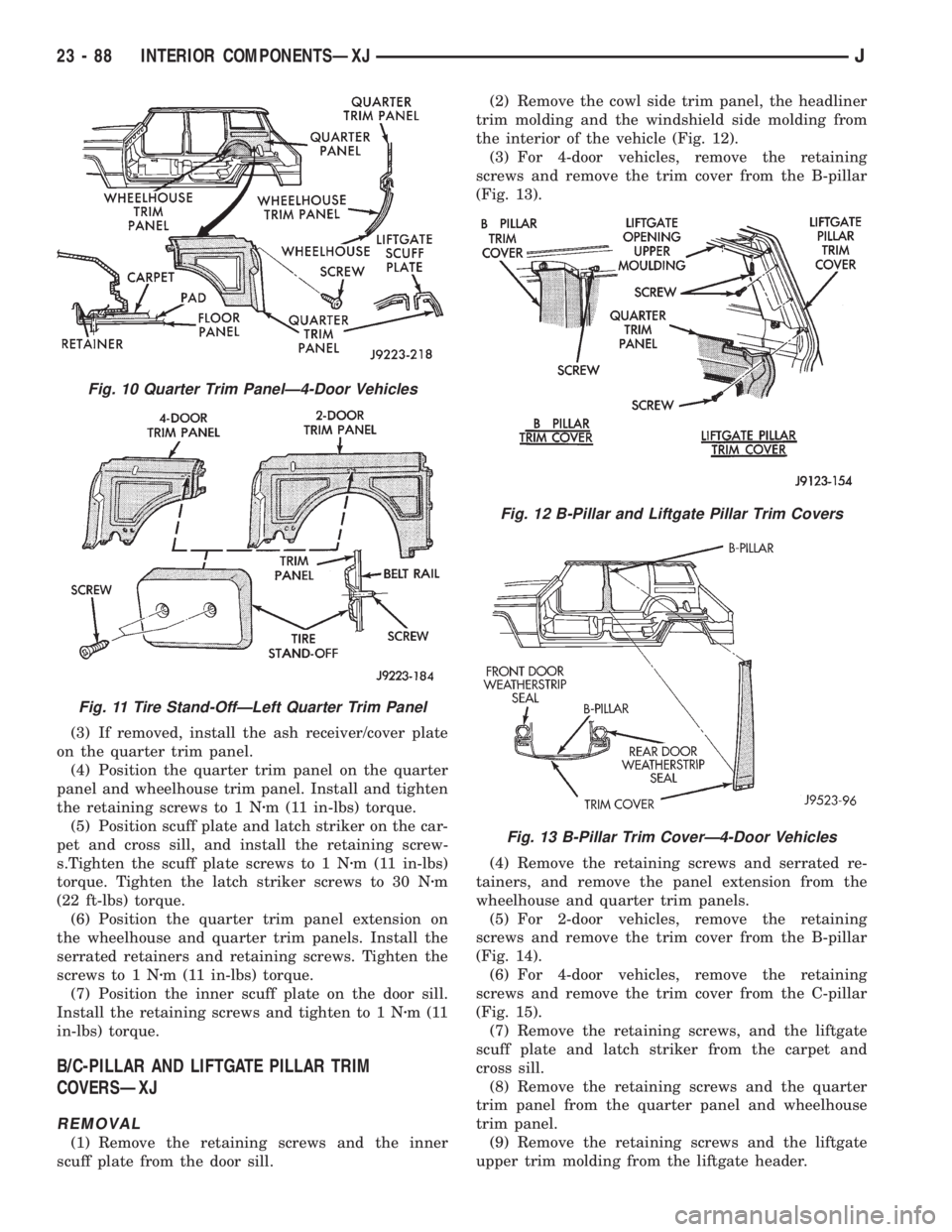

JEEP CHEROKEE 1995 Service Repair Manual (3) If removed, install the ash receiver/cover plate
on the quarter trim panel.
(4) Position the quarter trim panel on the quarter
panel and wheelhouse trim panel. Install and tighten
the retaining sc

(3) If removed, install the ash receiver/cover plate
on the quarter trim panel.
(4) Position the quarter trim panel on the quarter
panel and wheelhouse trim panel. Install and tighten
the retaining screws to 1 Nzm (11 in-lbs) torque.
(5) Position scuff plate and latch striker on the car-
pet and cross sill, and install the retaining screw-
s.Tighten the scuff plate screws to 1 Nzm (11 in-lbs)
torque. Tighten the latch striker screws to 30 Nzm
(22 ft-lbs) torque.
(6) Position the quarter trim panel extension on
the wheelhouse and quarter trim panels. Install the
serrated retainers and retaining screws. Tighten the
screws to 1 Nzm (11 in-lbs) torque.
(7) Position the inner scuff plate on the door sill.
Install the retaining screws and tighten to 1 Nzm(11
in-lbs) torque.
B/C-PILLAR AND LIFTGATE PILLAR TRIM
COVERSÐXJ
REMOVAL
(1) Remove the retaining screws and the inner
scuff plate from the door sill.(2) Remove the cowl side trim panel, the headliner
trim molding and the windshield side molding from
the interior of the vehicle (Fig. 12).
(3) For 4-door vehicles, remove the retaining
screws and remove the trim cover from the B-pillar
(Fig. 13).
(4) Remove the retaining screws and serrated re-
tainers, and remove the panel extension from the
wheelhouse and quarter trim panels.
(5) For 2-door vehicles, remove the retaining
screws and remove the trim cover from the B-pillar
(Fig. 14).
(6) For 4-door vehicles, remove the retaining
screws and remove the trim cover from the C-pillar
(Fig. 15).
(7) Remove the retaining screws, and the liftgate
scuff plate and latch striker from the carpet and
cross sill.
(8) Remove the retaining screws and the quarter
trim panel from the quarter panel and wheelhouse
trim panel.
(9) Remove the retaining screws and the liftgate
upper trim molding from the liftgate header.
Fig. 10 Quarter Trim PanelÐ4-Door Vehicles
Fig. 11 Tire Stand-OffÐLeft Quarter Trim Panel
Fig. 12 B-Pillar and Liftgate Pillar Trim Covers
Fig. 13 B-Pillar Trim CoverÐ4-Door Vehicles
23 - 88 INTERIOR COMPONENTSÐXJJ

Page 1822 of 2198

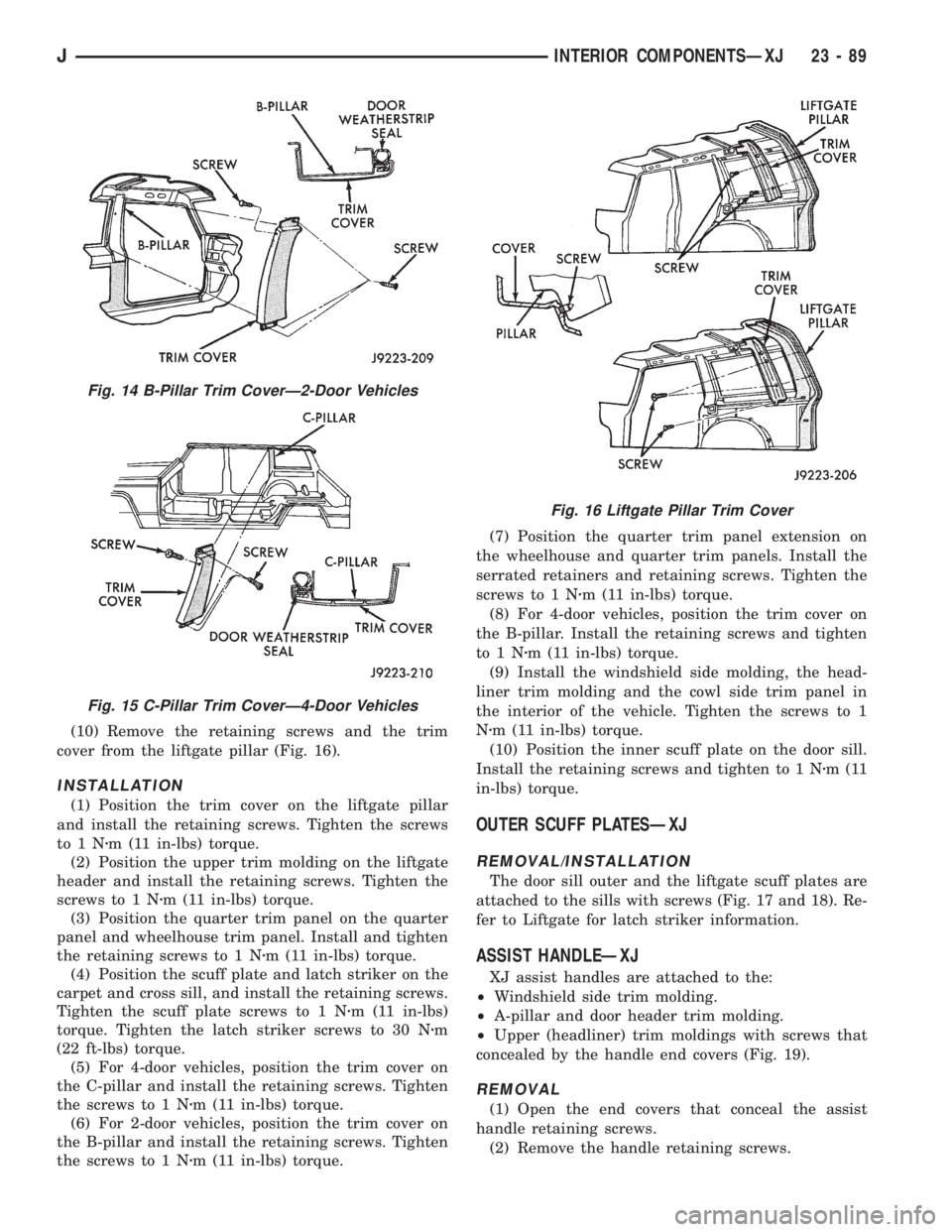

JEEP CHEROKEE 1995 Service Repair Manual (10) Remove the retaining screws and the trim
cover from the liftgate pillar (Fig. 16).
INSTALLATION
(1) Position the trim cover on the liftgate pillar
and install the retaining screws. Tighten the sc

(10) Remove the retaining screws and the trim
cover from the liftgate pillar (Fig. 16).
INSTALLATION
(1) Position the trim cover on the liftgate pillar
and install the retaining screws. Tighten the screws
to1Nzm (11 in-lbs) torque.
(2) Position the upper trim molding on the liftgate
header and install the retaining screws. Tighten the
screws to 1 Nzm (11 in-lbs) torque.
(3) Position the quarter trim panel on the quarter
panel and wheelhouse trim panel. Install and tighten
the retaining screws to 1 Nzm (11 in-lbs) torque.
(4) Position the scuff plate and latch striker on the
carpet and cross sill, and install the retaining screws.
Tighten the scuff plate screws to 1 Nzm (11 in-lbs)
torque. Tighten the latch striker screws to 30 Nzm
(22 ft-lbs) torque.
(5) For 4-door vehicles, position the trim cover on
the C-pillar and install the retaining screws. Tighten
the screws to 1 Nzm (11 in-lbs) torque.
(6) For 2-door vehicles, position the trim cover on
the B-pillar and install the retaining screws. Tighten
the screws to 1 Nzm (11 in-lbs) torque.(7) Position the quarter trim panel extension on
the wheelhouse and quarter trim panels. Install the
serrated retainers and retaining screws. Tighten the
screws to 1 Nzm (11 in-lbs) torque.
(8) For 4-door vehicles, position the trim cover on
the B-pillar. Install the retaining screws and tighten
to1Nzm (11 in-lbs) torque.
(9) Install the windshield side molding, the head-
liner trim molding and the cowl side trim panel in
the interior of the vehicle. Tighten the screws to 1
Nzm (11 in-lbs) torque.
(10) Position the inner scuff plate on the door sill.
Install the retaining screws and tighten to 1 Nzm(11
in-lbs) torque.
OUTER SCUFF PLATESÐXJ
REMOVAL/INSTALLATION
The door sill outer and the liftgate scuff plates are
attached to the sills with screws (Fig. 17 and 18). Re-
fer to Liftgate for latch striker information.
ASSIST HANDLEÐXJ
XJ assist handles are attached to the:
²Windshield side trim molding.
²A-pillar and door header trim molding.
²Upper (headliner) trim moldings with screws that
concealed by the handle end covers (Fig. 19).
REMOVAL
(1) Open the end covers that conceal the assist
handle retaining screws.
(2) Remove the handle retaining screws.
Fig. 14 B-Pillar Trim CoverÐ2-Door Vehicles
Fig. 15 C-Pillar Trim CoverÐ4-Door Vehicles
Fig. 16 Liftgate Pillar Trim Cover
JINTERIOR COMPONENTSÐXJ 23 - 89

Page 1823 of 2198

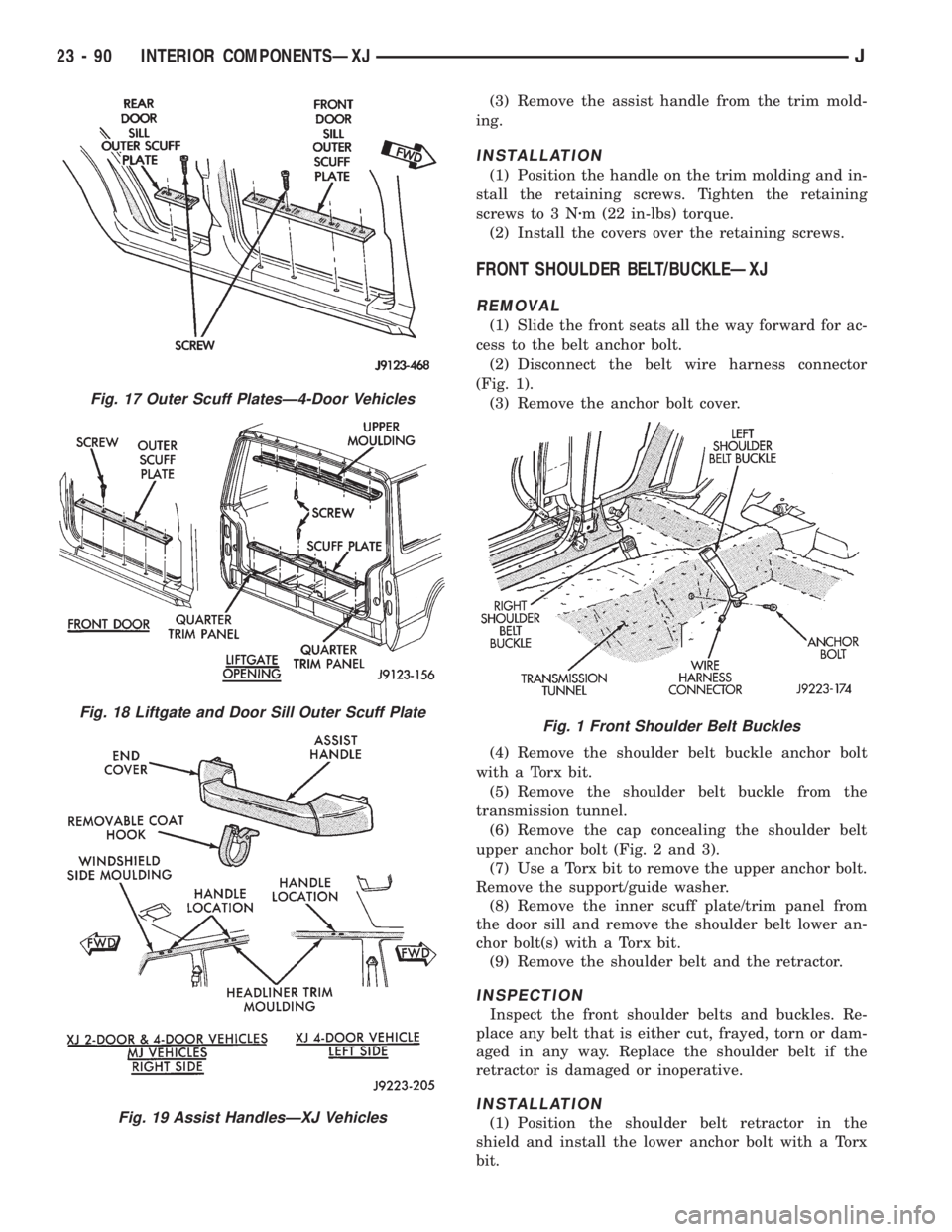

JEEP CHEROKEE 1995 Service Repair Manual (3) Remove the assist handle from the trim mold-
ing.
INSTALLATION
(1) Position the handle on the trim molding and in-
stall the retaining screws. Tighten the retaining
screws to 3 Nzm (22 in-lbs) tor

Page 1824 of 2198

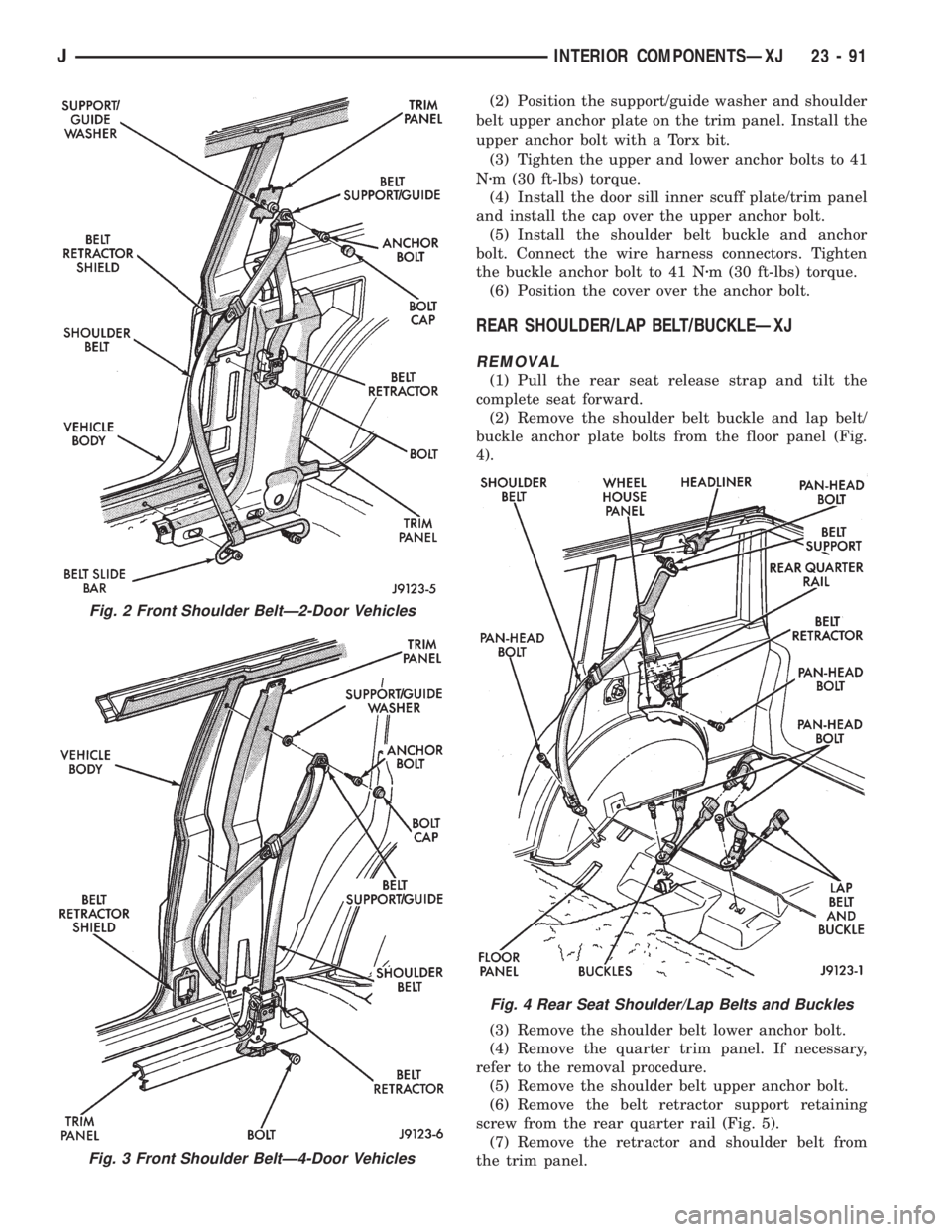

JEEP CHEROKEE 1995 Service Repair Manual (2) Position the support/guide washer and shoulder
belt upper anchor plate on the trim panel. Install the
upper anchor bolt with a Torx bit.
(3) Tighten the upper and lower anchor bolts to 41
Nzm (30
