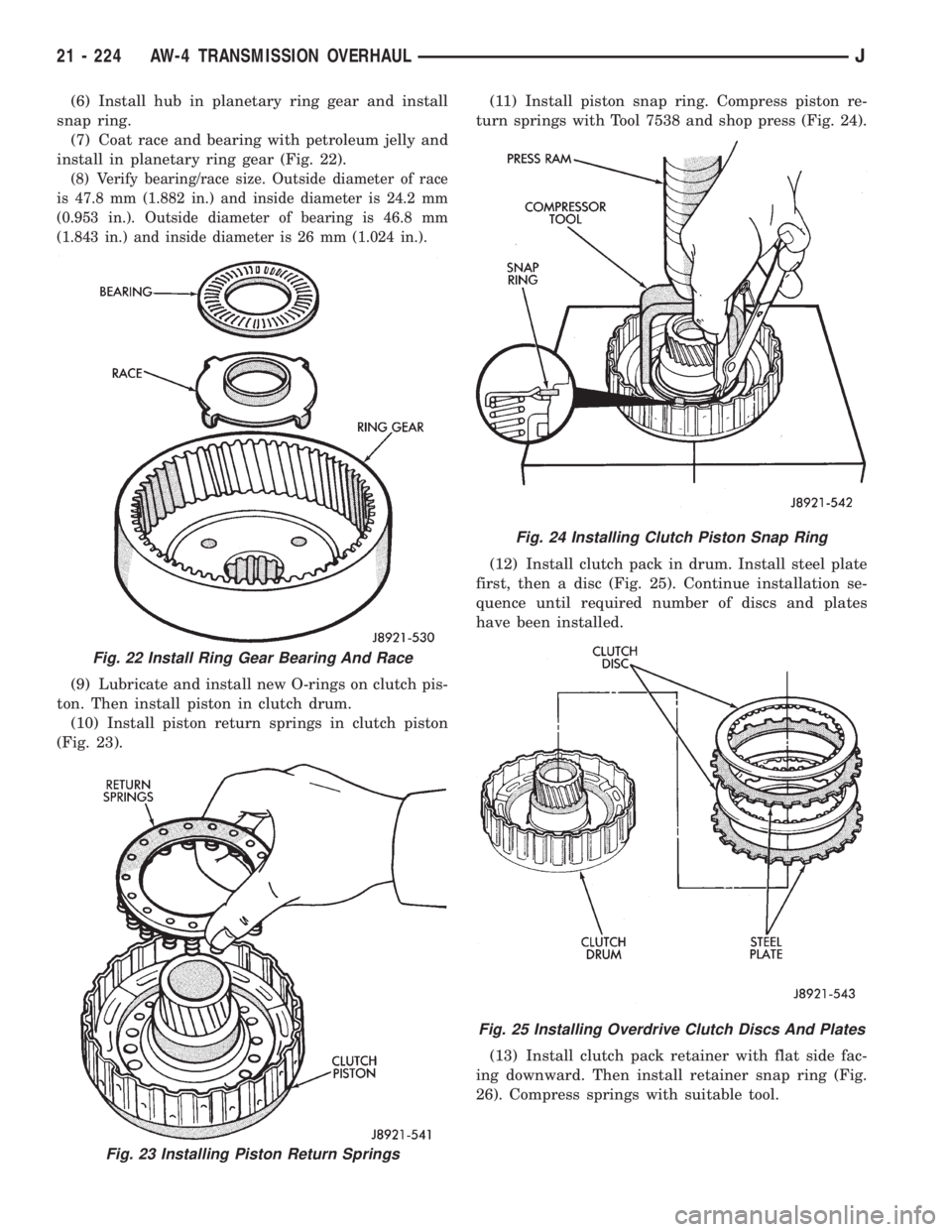

JEEP CHEROKEE 1995 Service Repair Manual (6) Install hub in planetary ring gear and install snap ring. (7) Coat race and bearing with petroleum jelly and install in planetary ring gear (Fig. 22). (8) Verify bearing/race size. Outside diamete

Page 1602 of 2198

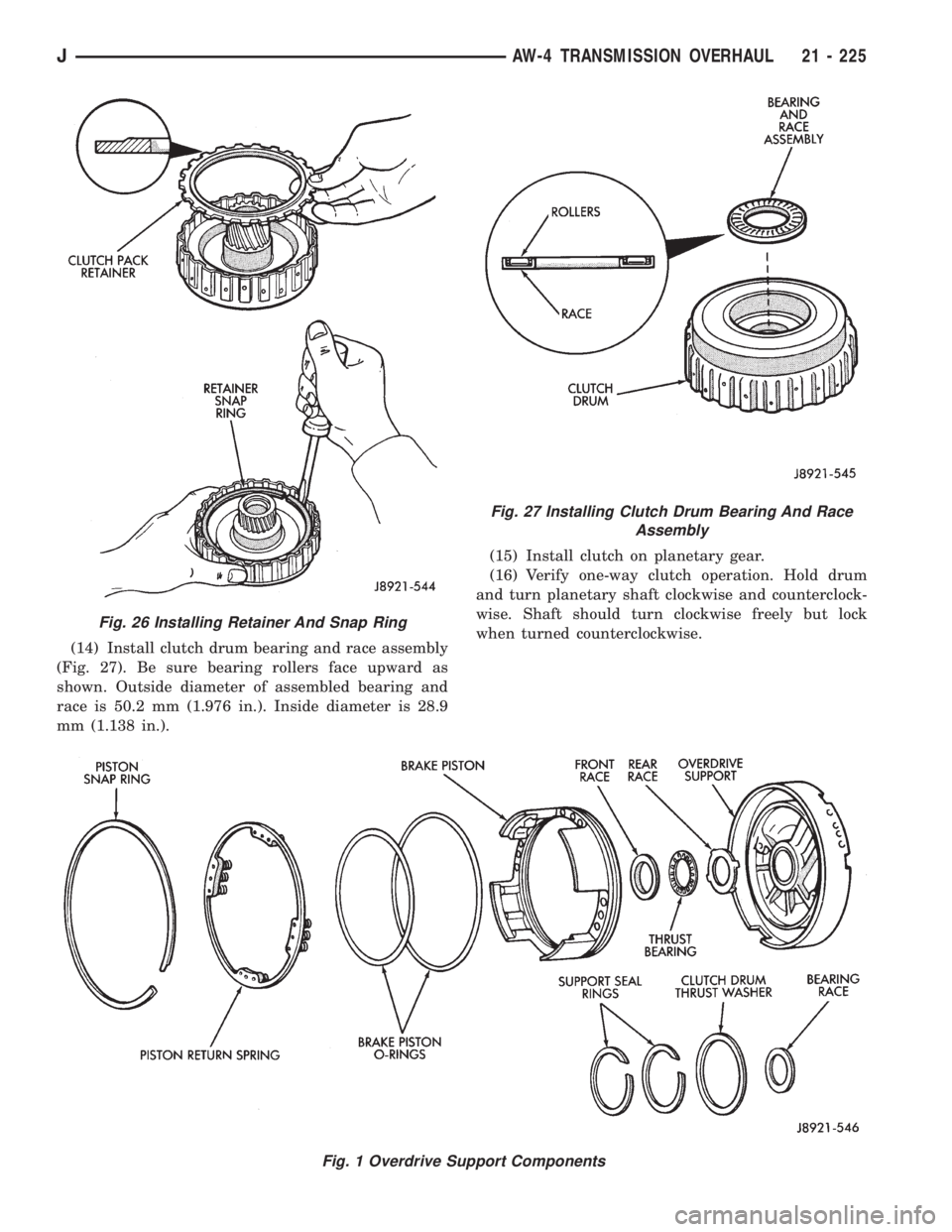

JEEP CHEROKEE 1995 Service Repair Manual (14) Install clutch drum bearing and race assembly (Fig. 27). Be sure bearing rollers face upward as shown. Outside diameter of assembled bearing and race is 50.2 mm (1.976 in.). Inside diameter is 28

Page 1603 of 2198

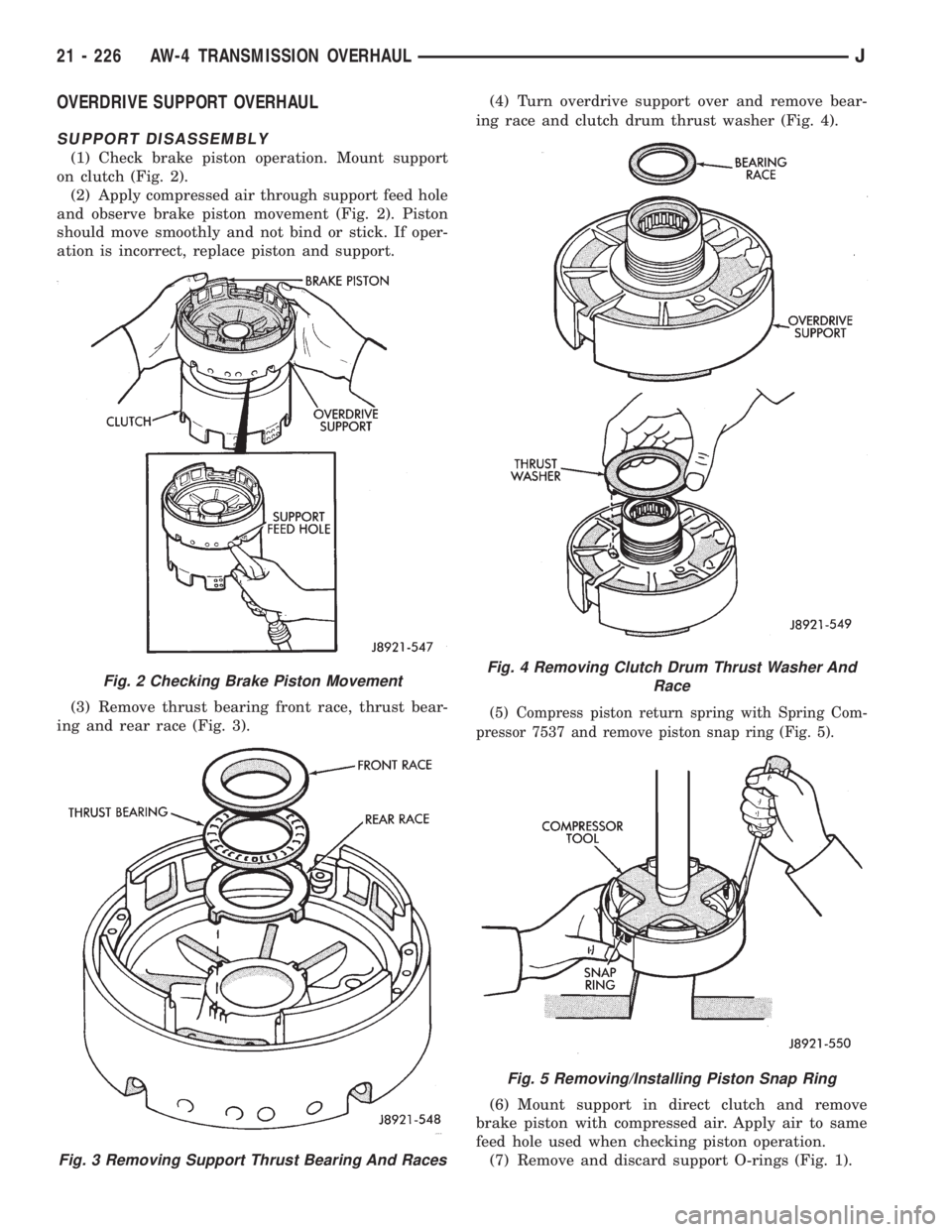

JEEP CHEROKEE 1995 Service Repair Manual OVERDRIVE SUPPORT OVERHAUL SUPPORT DISASSEMBLY (1) Check brake piston operation. Mount support on clutch (Fig. 2). (2) Apply compressed air through support feed hole and observe brake piston movement

Page 1604 of 2198

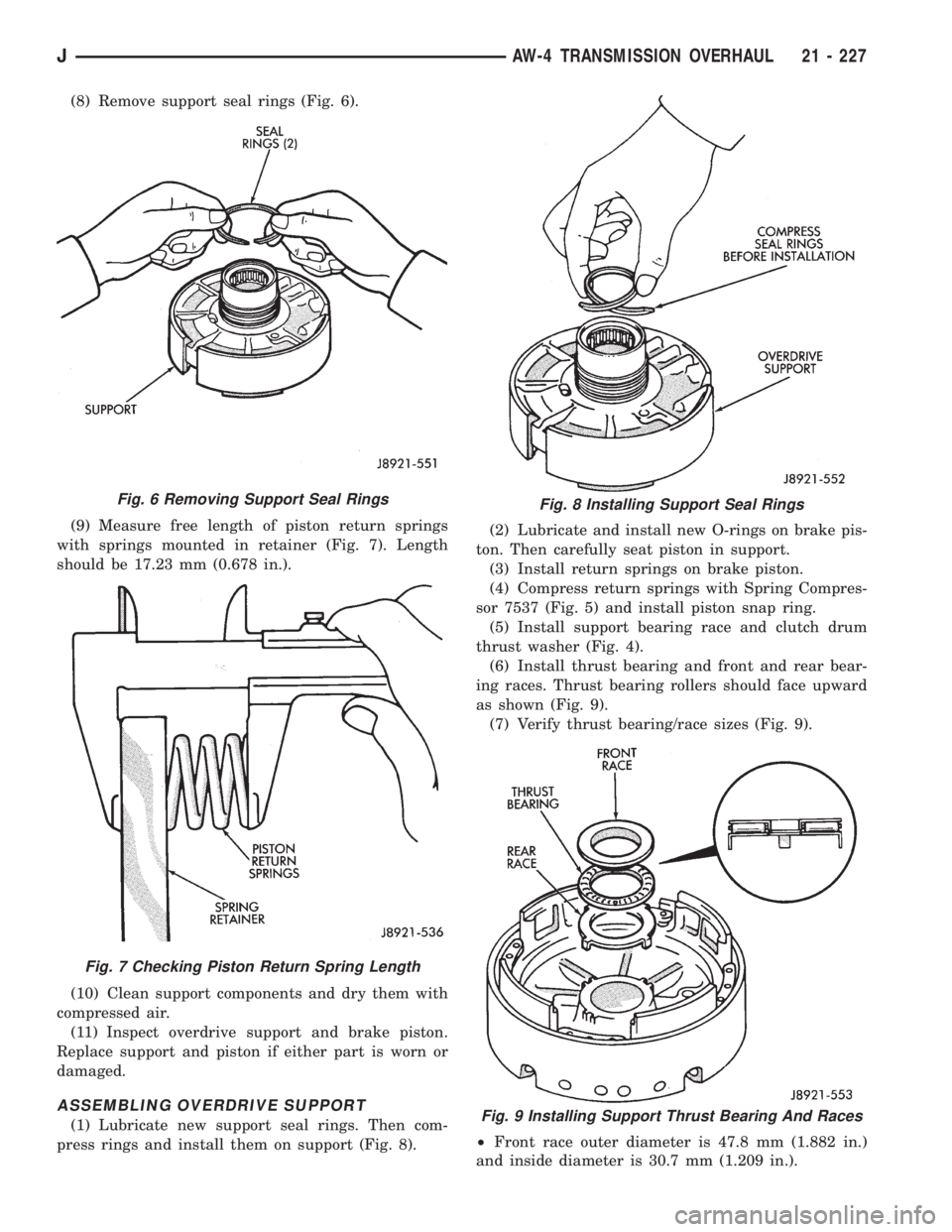

JEEP CHEROKEE 1995 Service Repair Manual (8) Remove support seal rings (Fig. 6). (9) Measure free length of piston return springs with springs mounted in retainer (Fig. 7). Length should be 17.23 mm (0.678 in.). (10) Clean support components

Page 1605 of 2198

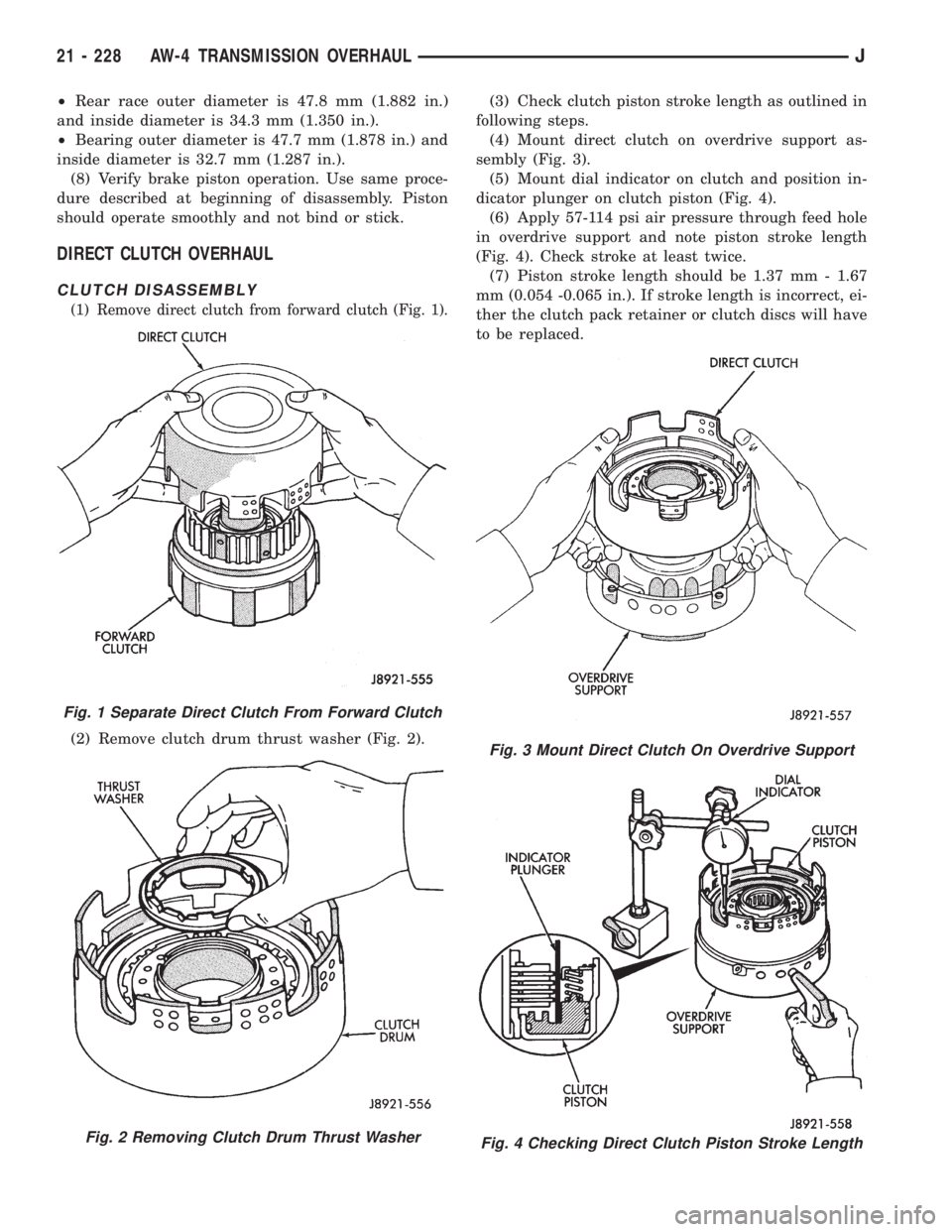

JEEP CHEROKEE 1995 Service Repair Manual ²Rear race outer diameter is 47.8 mm (1.882 in.) and inside diameter is 34.3 mm (1.350 in.). ²Bearing outer diameter is 47.7 mm (1.878 in.) and inside diameter is 32.7 mm (1.287 in.). (8) Verify bra

Page 1606 of 2198

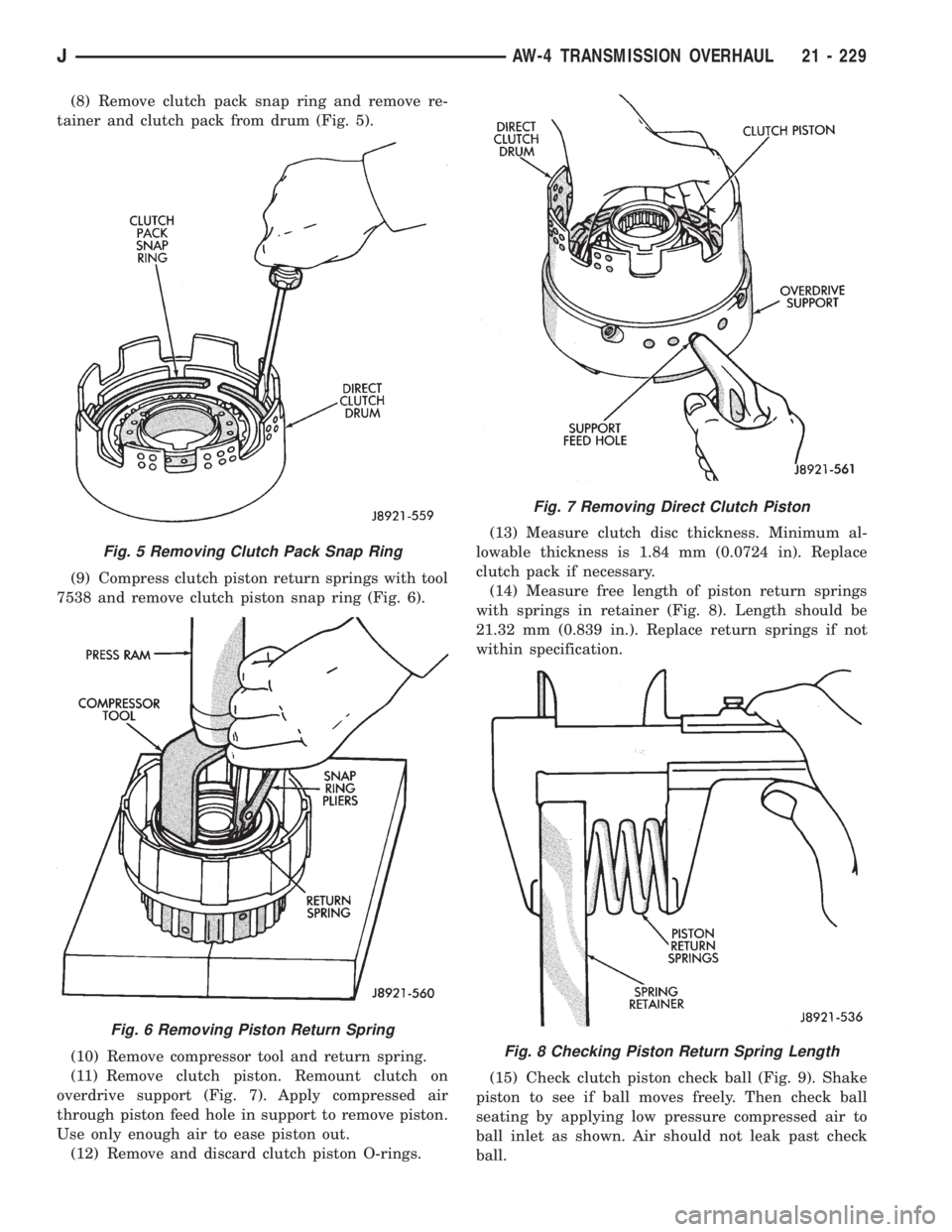

JEEP CHEROKEE 1995 Service Repair Manual (8) Remove clutch pack snap ring and remove re- tainer and clutch pack from drum (Fig. 5). (9) Compress clutch piston return springs with tool 7538 and remove clutch piston snap ring (Fig. 6). (10) Re

Page 1607 of 2198

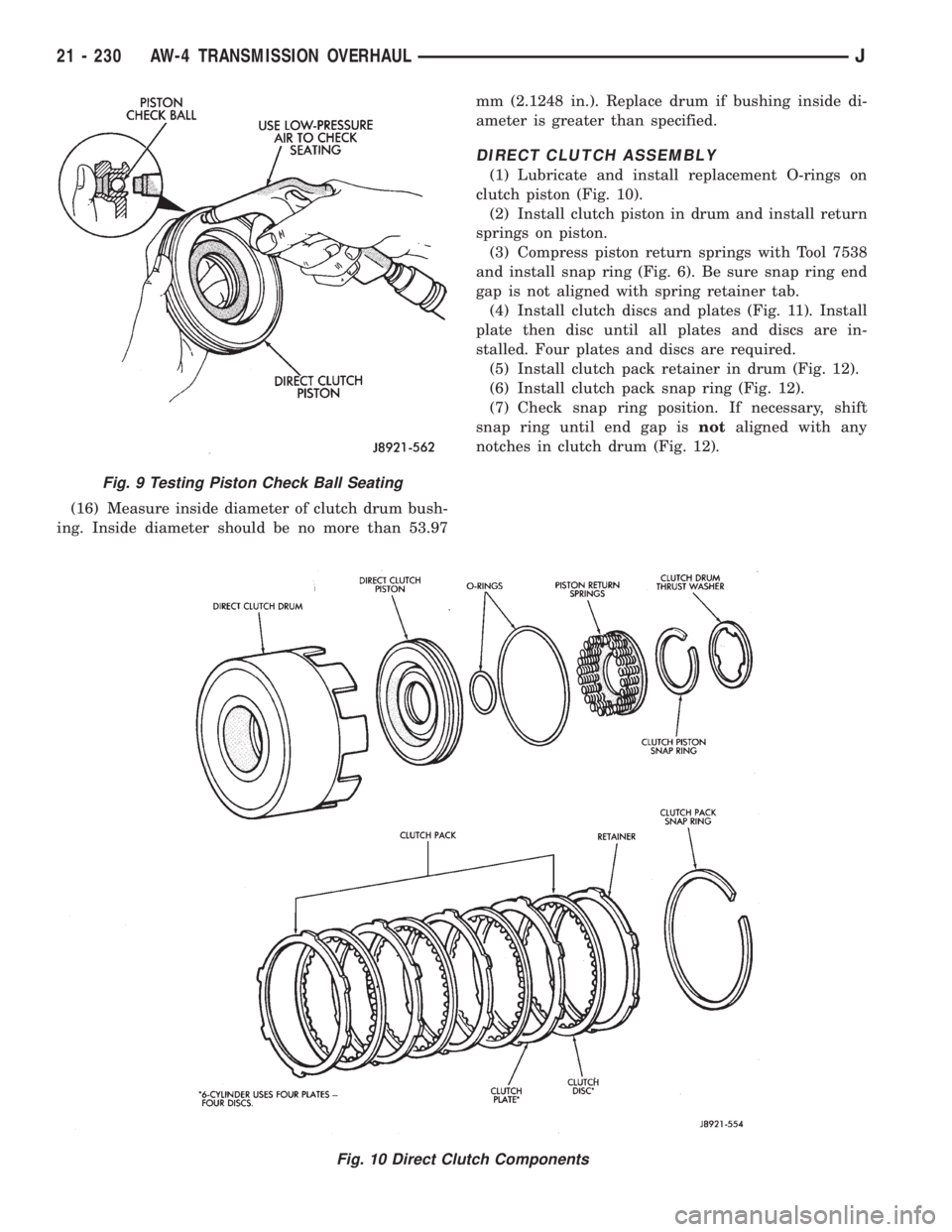

JEEP CHEROKEE 1995 Service Repair Manual (16) Measure inside diameter of clutch drum bush- ing. Inside diameter should be no more than 53.97mm (2.1248 in.). Replace drum if bushing inside di- ameter is greater than specified. DIRECT CLUTCH A

Page 1608 of 2198

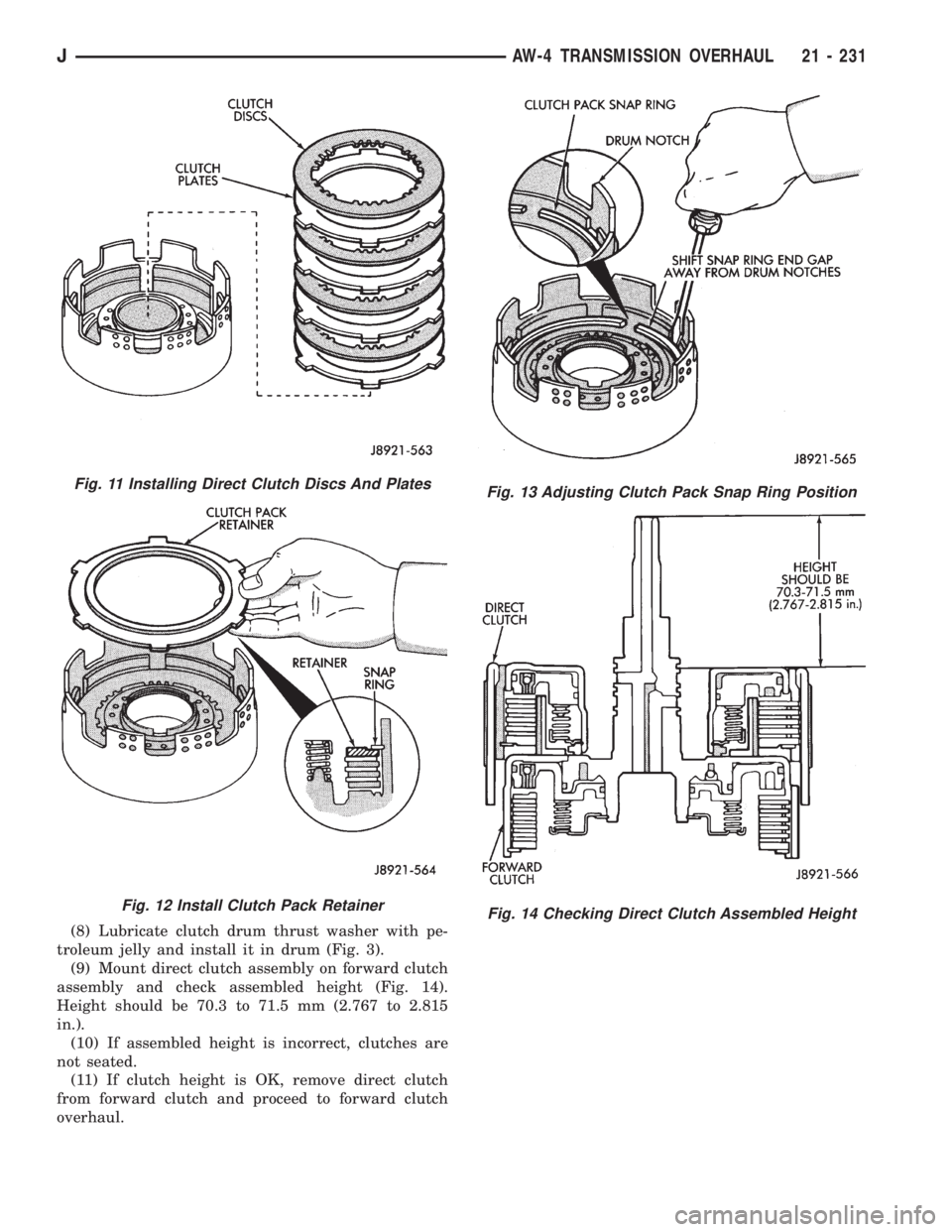

JEEP CHEROKEE 1995 Service Repair Manual (8) Lubricate clutch drum thrust washer with pe- troleum jelly and install it in drum (Fig. 3). (9) Mount direct clutch assembly on forward clutch assembly and check assembled height (Fig. 14). Height
