Page 441 of 2198

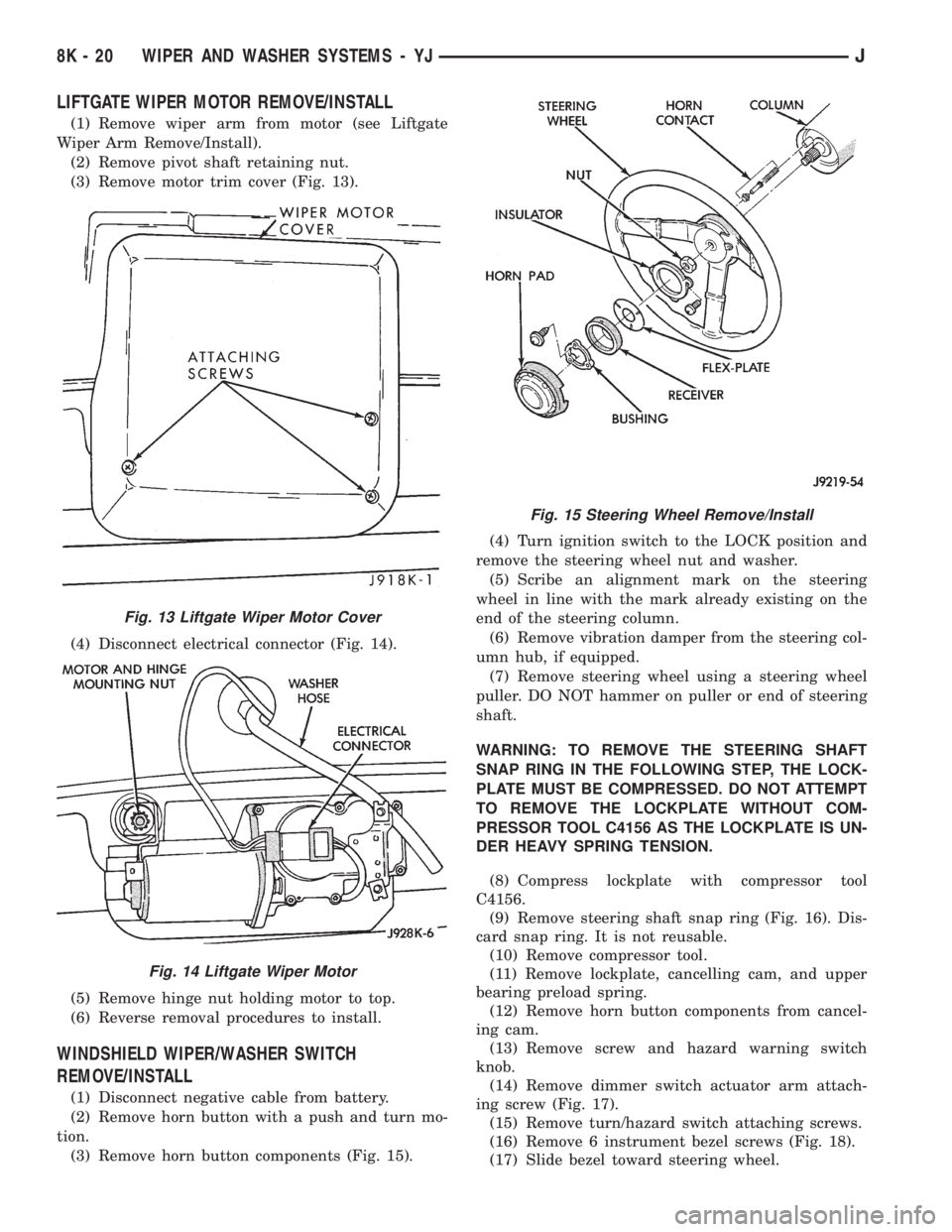

JEEP CHEROKEE 1995 Service Repair Manual LIFTGATE WIPER MOTOR REMOVE/INSTALL (1) Remove wiper arm from motor (see Liftgate Wiper Arm Remove/Install). (2) Remove pivot shaft retaining nut. (3) Remove motor trim cover (Fig. 13). (4) Disconnect

Page 442 of 2198

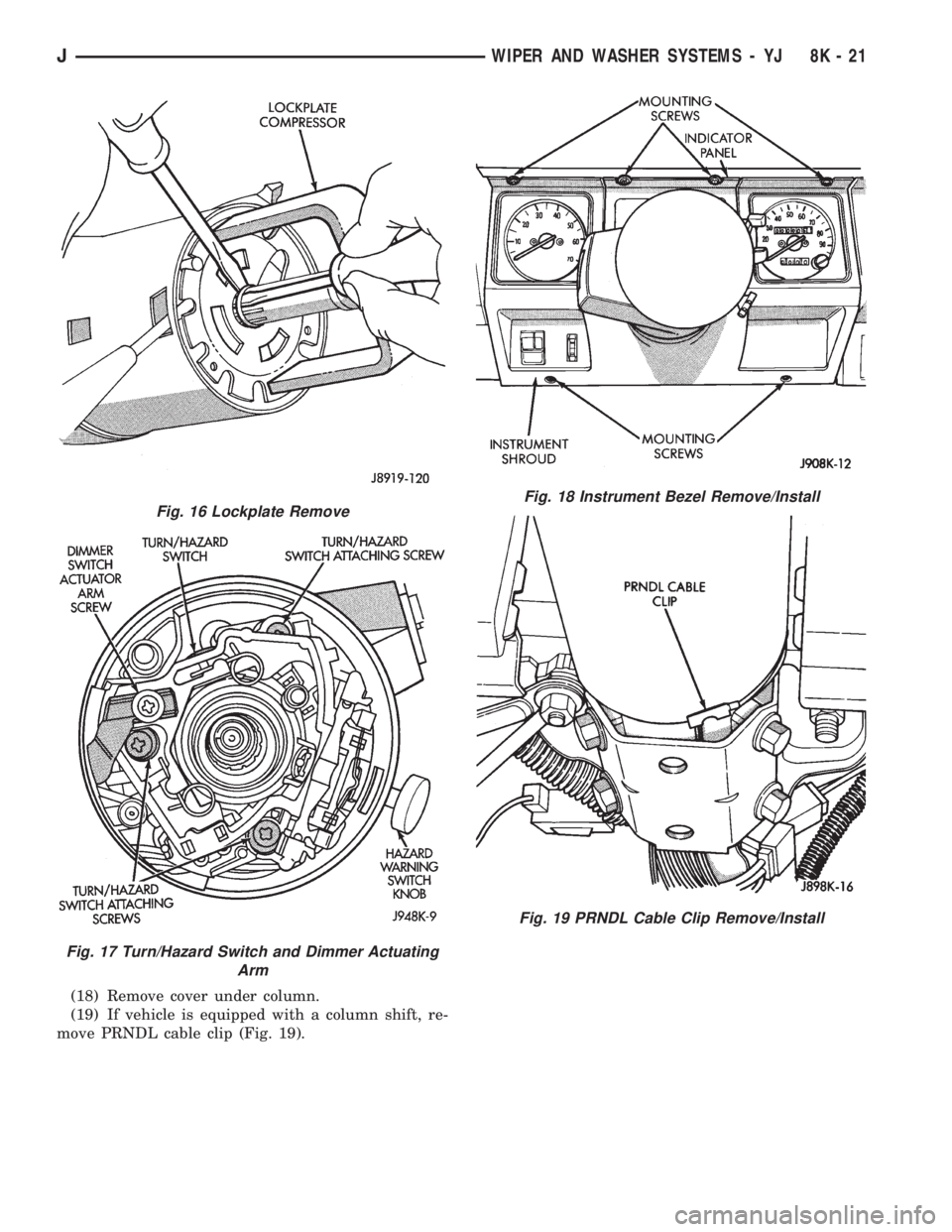

JEEP CHEROKEE 1995 Service Repair Manual (18) Remove cover under column. (19) If vehicle is equipped with a column shift, re- move PRNDL cable clip (Fig. 19). Fig. 16 Lockplate Remove Fig. 17 Turn/Hazard Switch and Dimmer Actuating Arm Fig.

Page 443 of 2198

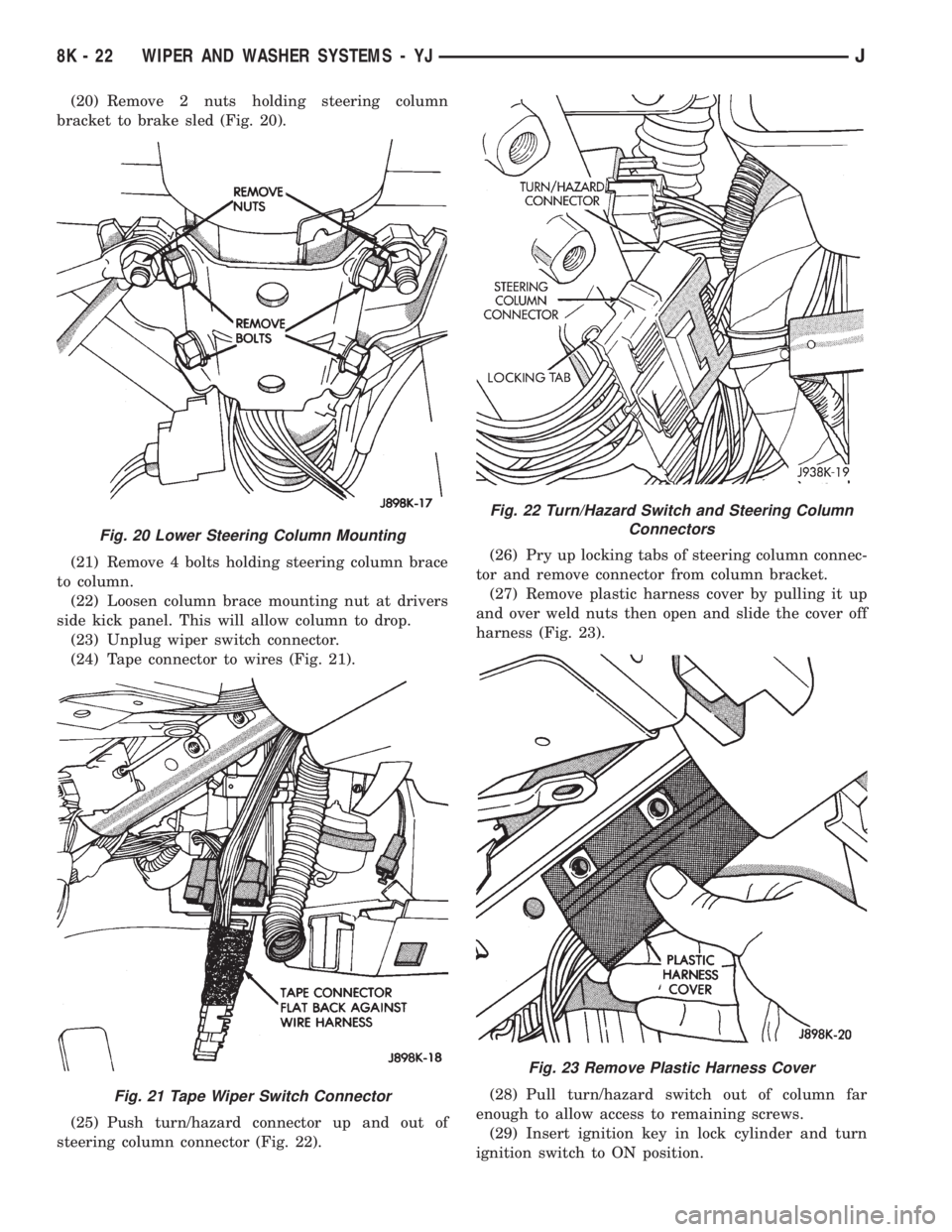

JEEP CHEROKEE 1995 Service Repair Manual (20) Remove 2 nuts holding steering column bracket to brake sled (Fig. 20). (21) Remove 4 bolts holding steering column brace to column. (22) Loosen column brace mounting nut at drivers side kick pane

Page 444 of 2198

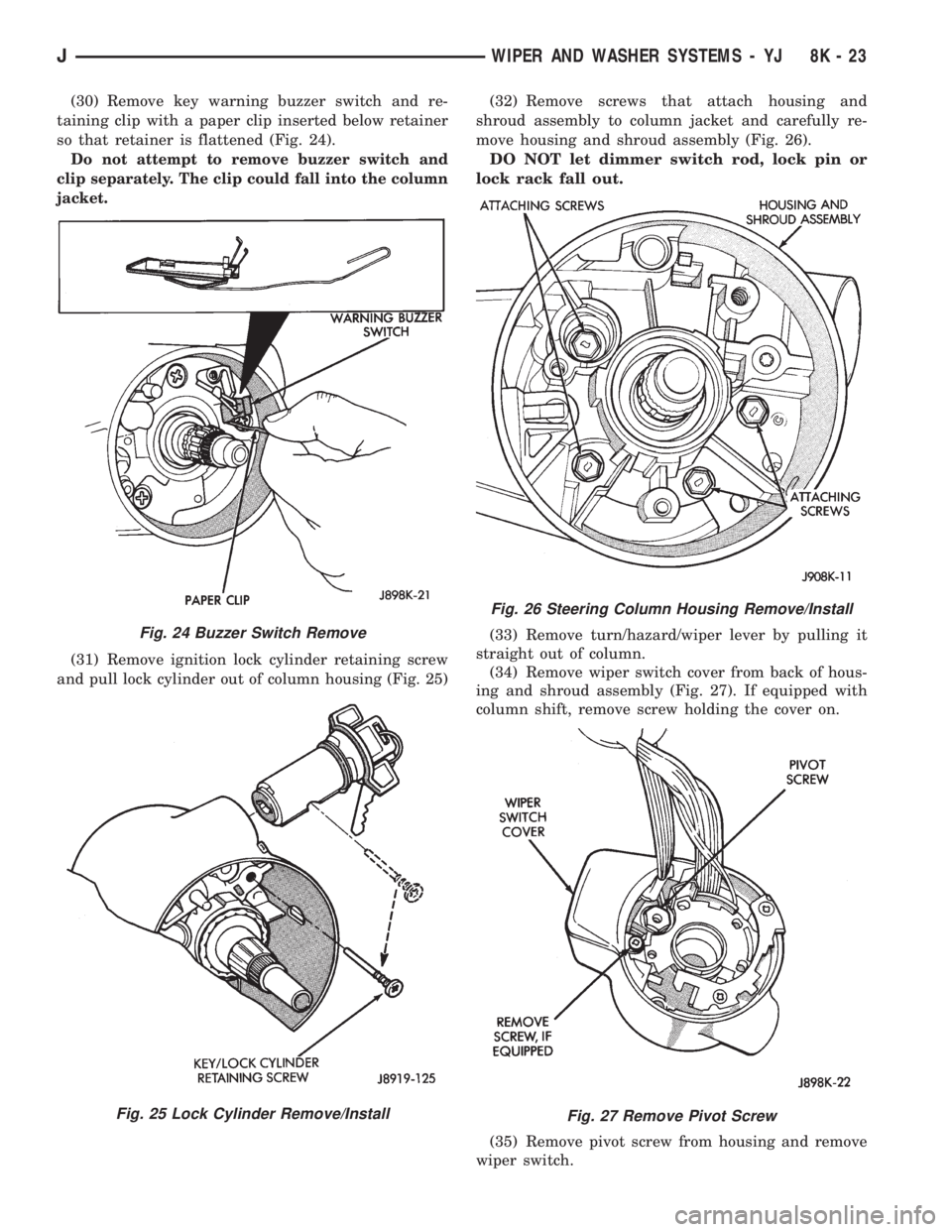

JEEP CHEROKEE 1995 Service Repair Manual (30) Remove key warning buzzer switch and re- taining clip with a paper clip inserted below retainer so that retainer is flattened (Fig. 24). Do not attempt to remove buzzer switch and clip separately

Page 445 of 2198

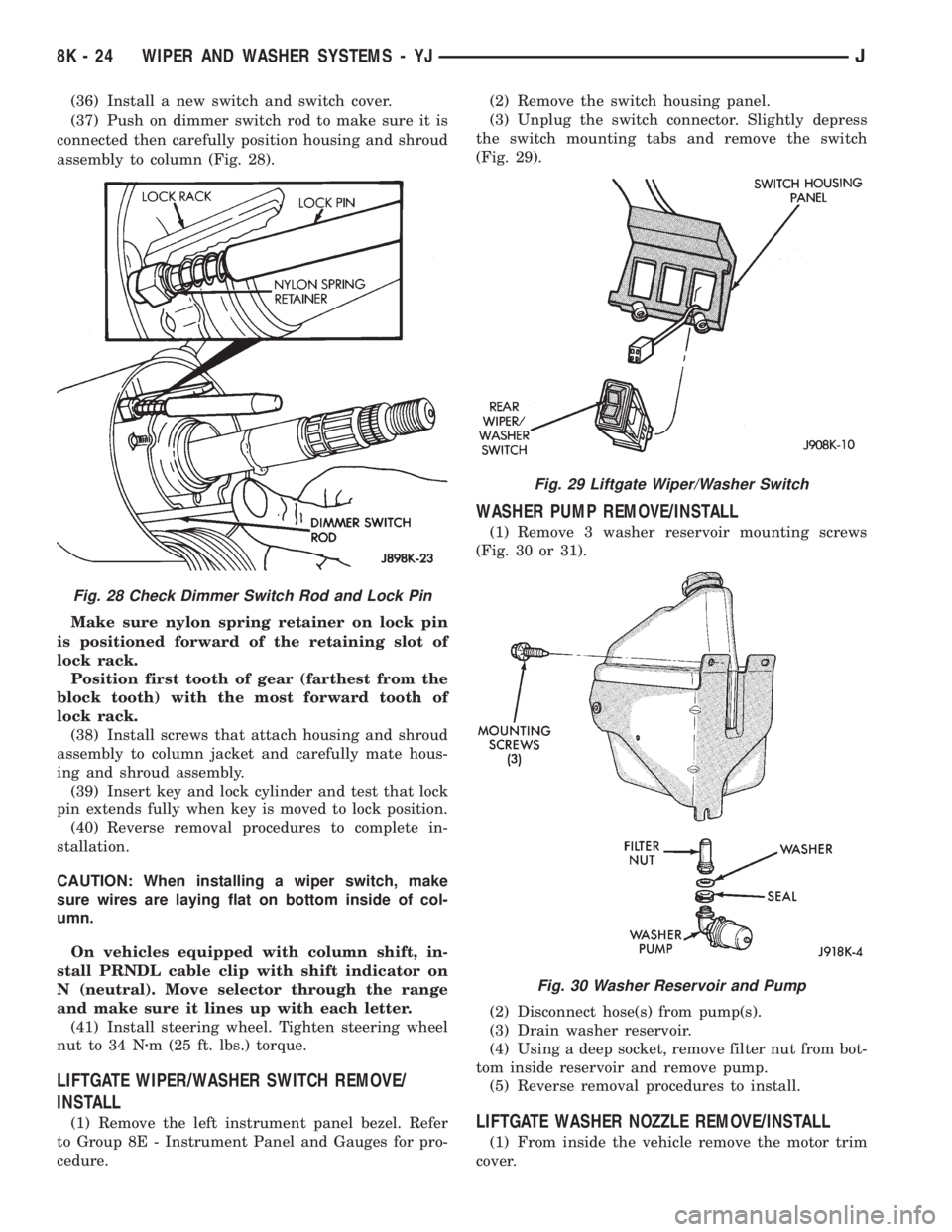

JEEP CHEROKEE 1995 Service Repair Manual (36) Install a new switch and switch cover. (37) Push on dimmer switch rod to make sure it is connected then carefully position housing and shroud assembly to column (Fig. 28). Make sure nylon spring

Page 446 of 2198

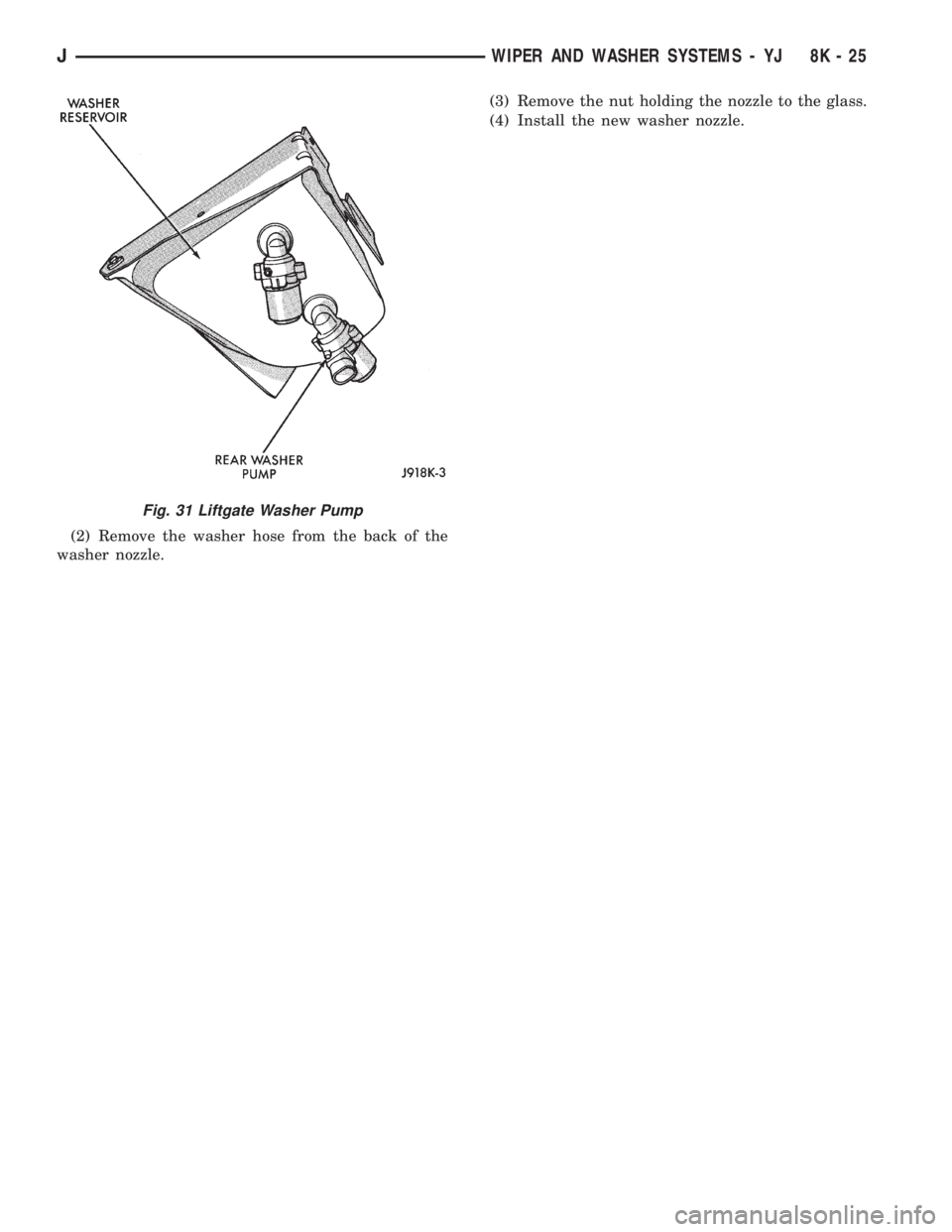

JEEP CHEROKEE 1995 Service Repair Manual (2) Remove the washer hose from the back of the washer nozzle.(3) Remove the nut holding the nozzle to the glass. (4) Install the new washer nozzle. Fig. 31 Liftgate Washer Pump JWIPER AND WASHER SYST

Page 447 of 2198

JEEP CHEROKEE 1995 Service Repair Manual

Page 448 of 2198

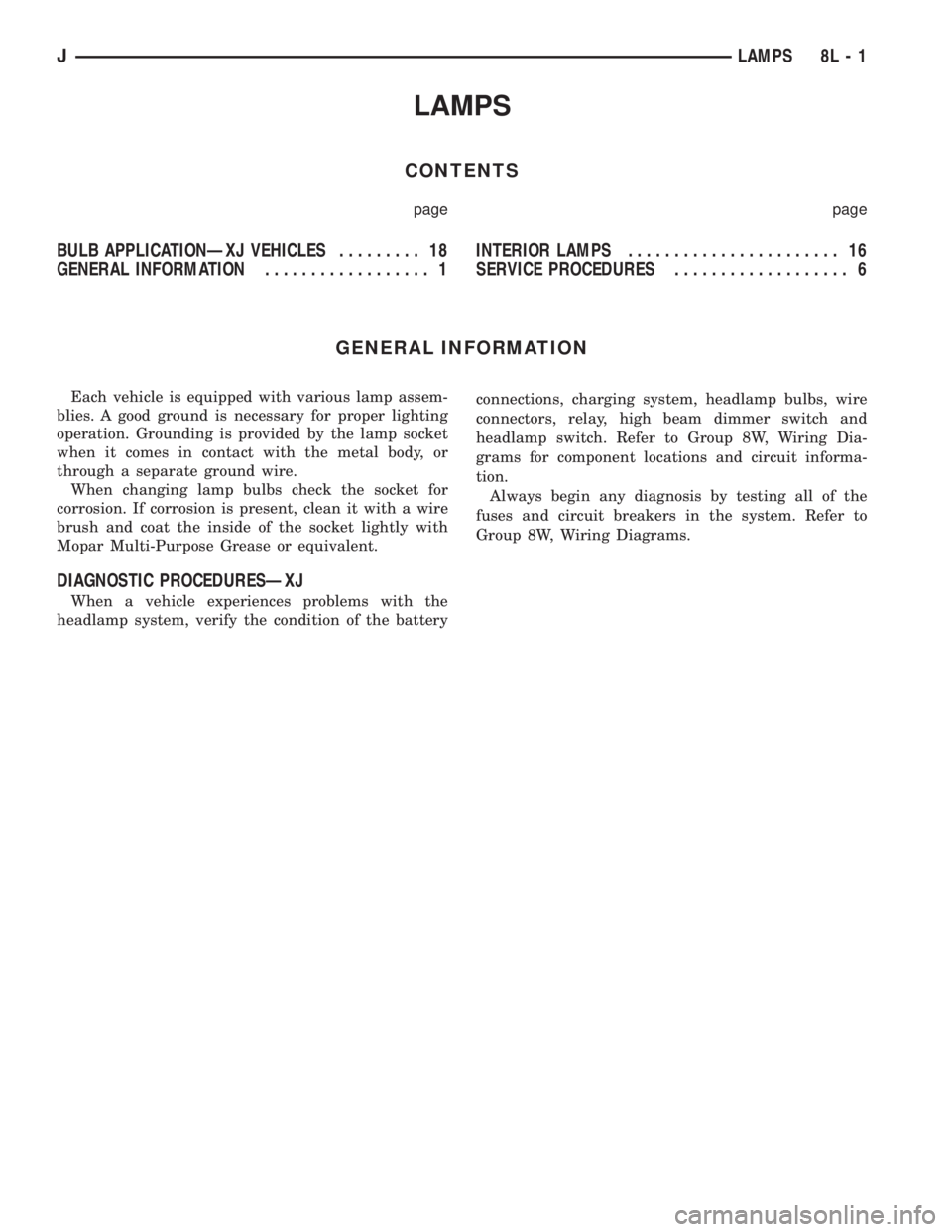

JEEP CHEROKEE 1995 Service Repair Manual LAMPS CONTENTS page page BULB APPLICATIONÐXJ VEHICLES......... 18 GENERAL INFORMATION.................. 1INTERIOR LAMPS....................... 16 SERVICE PROCEDURES................... 6 GENERAL INFOR
