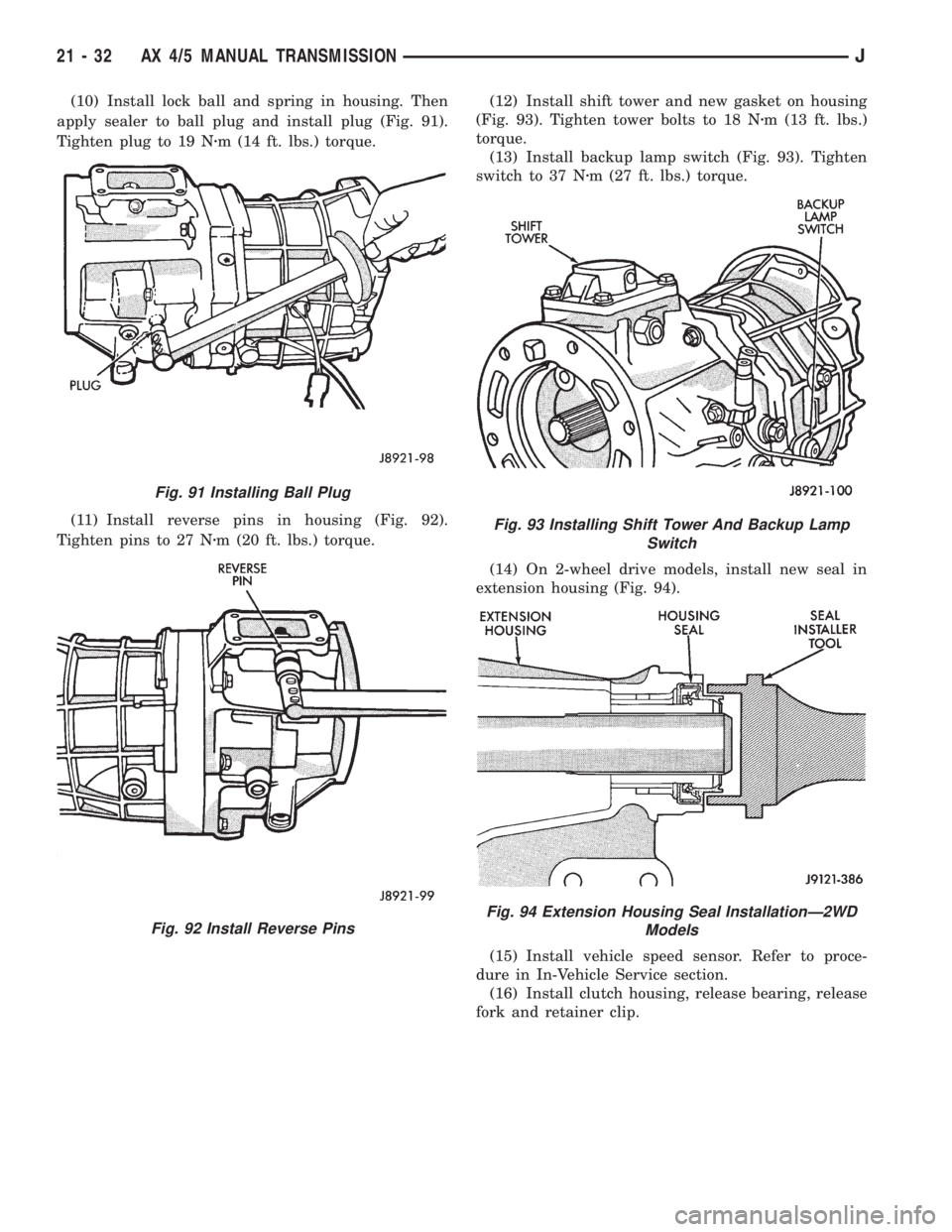

JEEP CHEROKEE 1995  Service Repair Manual (10) Install lock ball and spring in housing. Then
apply sealer to ball plug and install plug (Fig. 91).
Tighten plug to 19 Nzm (14 ft. lbs.) torque.
(11) Install reverse pins in housing (Fig. 92).
Ti

Page 1410 of 2198

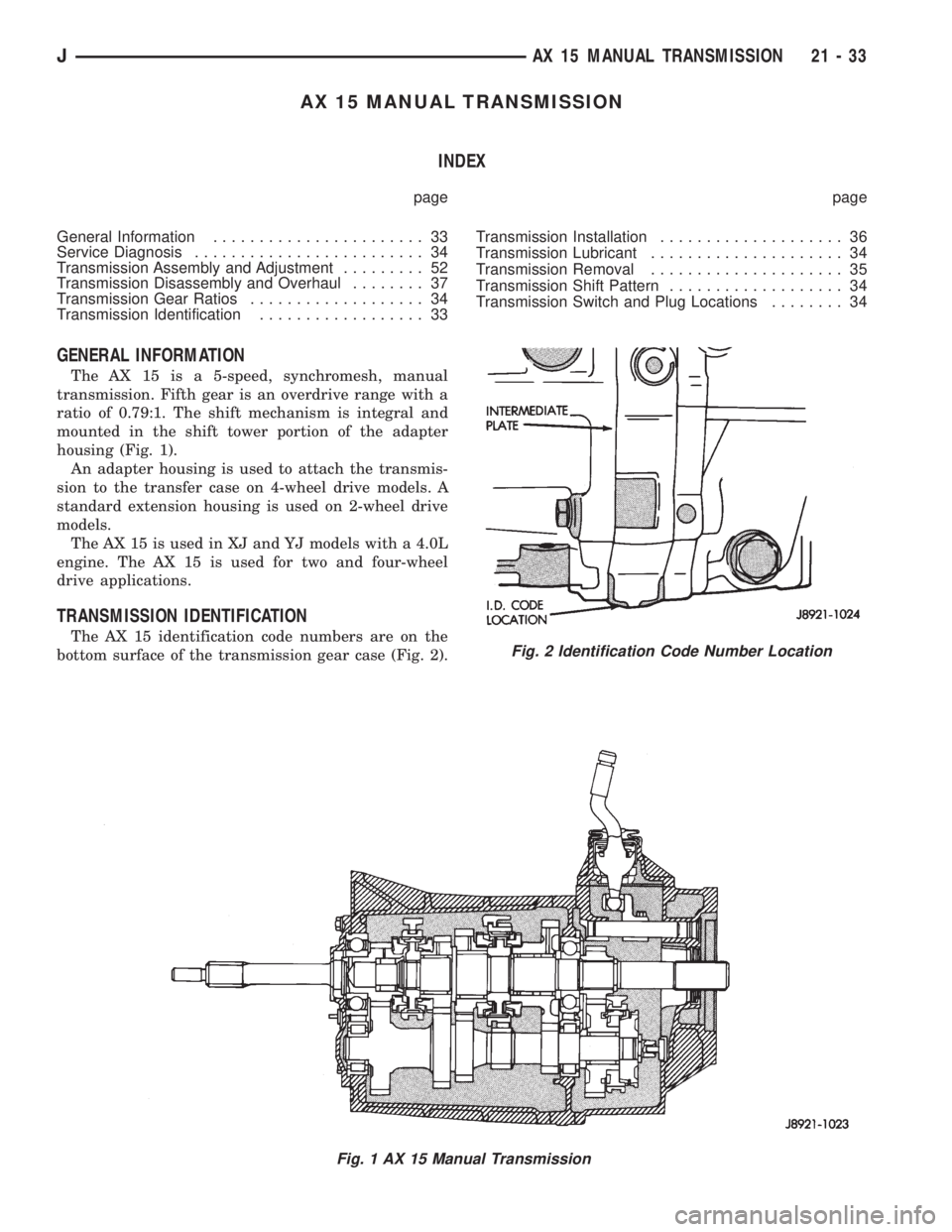

JEEP CHEROKEE 1995  Service Repair Manual AX 15 MANUAL TRANSMISSION
INDEX
page page
General Information....................... 33
Service Diagnosis......................... 34
Transmission Assembly and Adjustment......... 52
Transmission Disa

Page 1411 of 2198

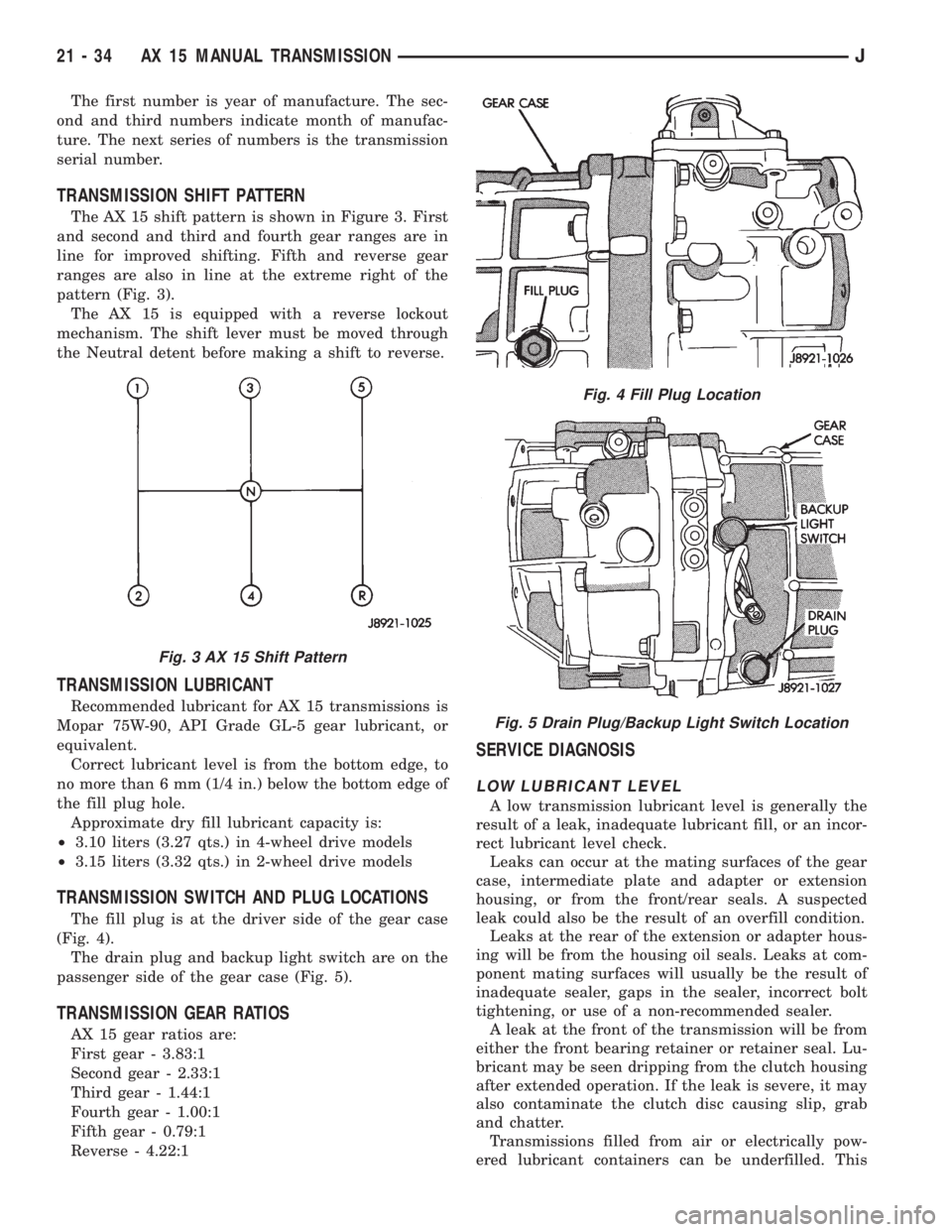

JEEP CHEROKEE 1995  Service Repair Manual The first number is year of manufacture. The sec-
ond and third numbers indicate month of manufac-
ture. The next series of numbers is the transmission
serial number.
TRANSMISSION SHIFT PATTERN
The AX

Page 1412 of 2198

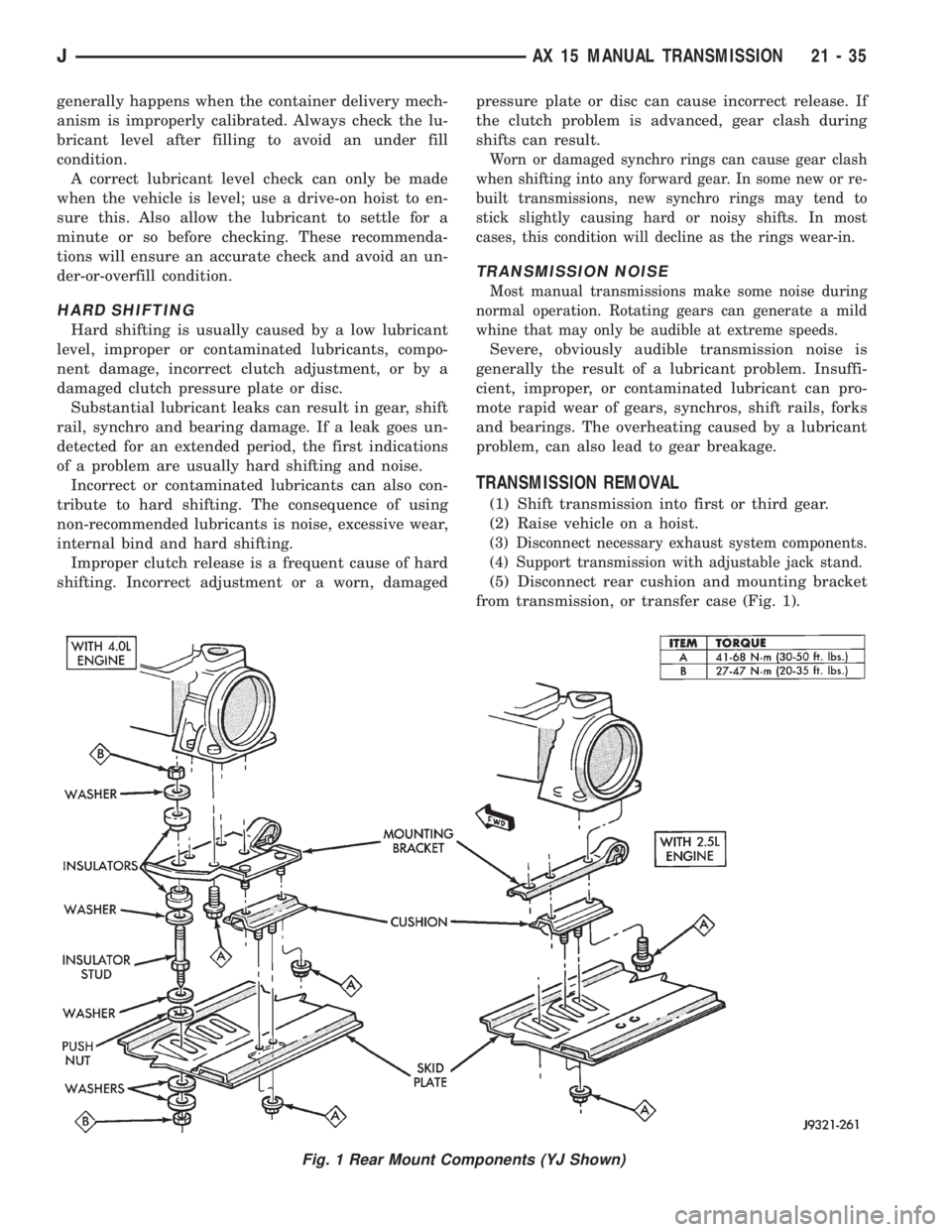

JEEP CHEROKEE 1995  Service Repair Manual generally happens when the container delivery mech-
anism is improperly calibrated. Always check the lu-
bricant level after filling to avoid an under fill
condition.
A correct lubricant level check c

Page 1413 of 2198

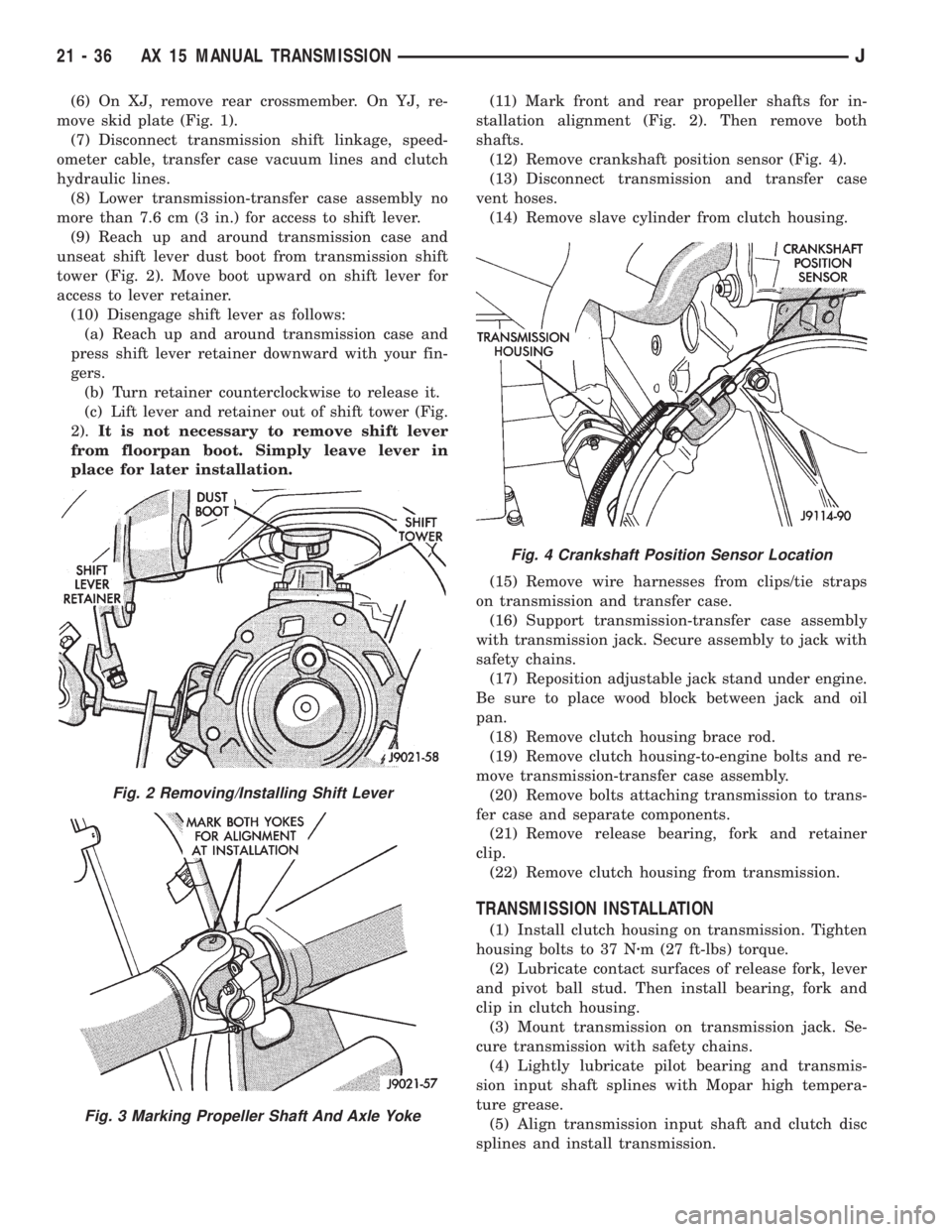

JEEP CHEROKEE 1995  Service Repair Manual (6) On XJ, remove rear crossmember. On YJ, re-
move skid plate (Fig. 1).
(7) Disconnect transmission shift linkage, speed-
ometer cable, transfer case vacuum lines and clutch
hydraulic lines.
(8) Lowe

Page 1414 of 2198

JEEP CHEROKEE 1995  Service Repair Manual (6) Install and tighten clutch housing-to-engine
bolts to 38 Nzm (28 ft. lbs.) torque.Be sure housing
is properly seated on engine before tightening
bolts.
(7) Lower transmission no more than 7.6 cm (

Page 1415 of 2198

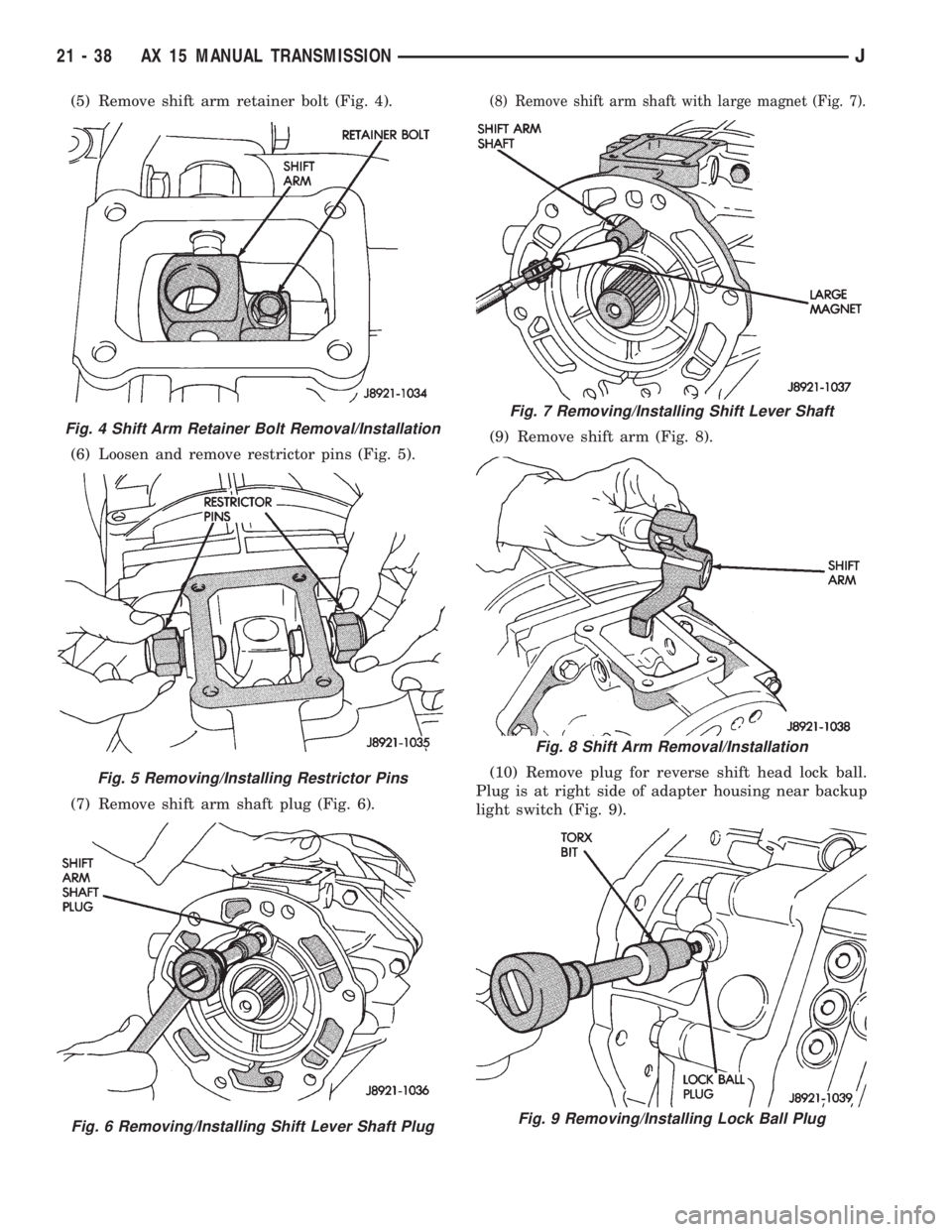

JEEP CHEROKEE 1995  Service Repair Manual (5) Remove shift arm retainer bolt (Fig. 4).
(6) Loosen and remove restrictor pins (Fig. 5).
(7) Remove shift arm shaft plug (Fig. 6).(8) Remove shift arm shaft with large magnet (Fig. 7).
(9) Remove

Page 1416 of 2198

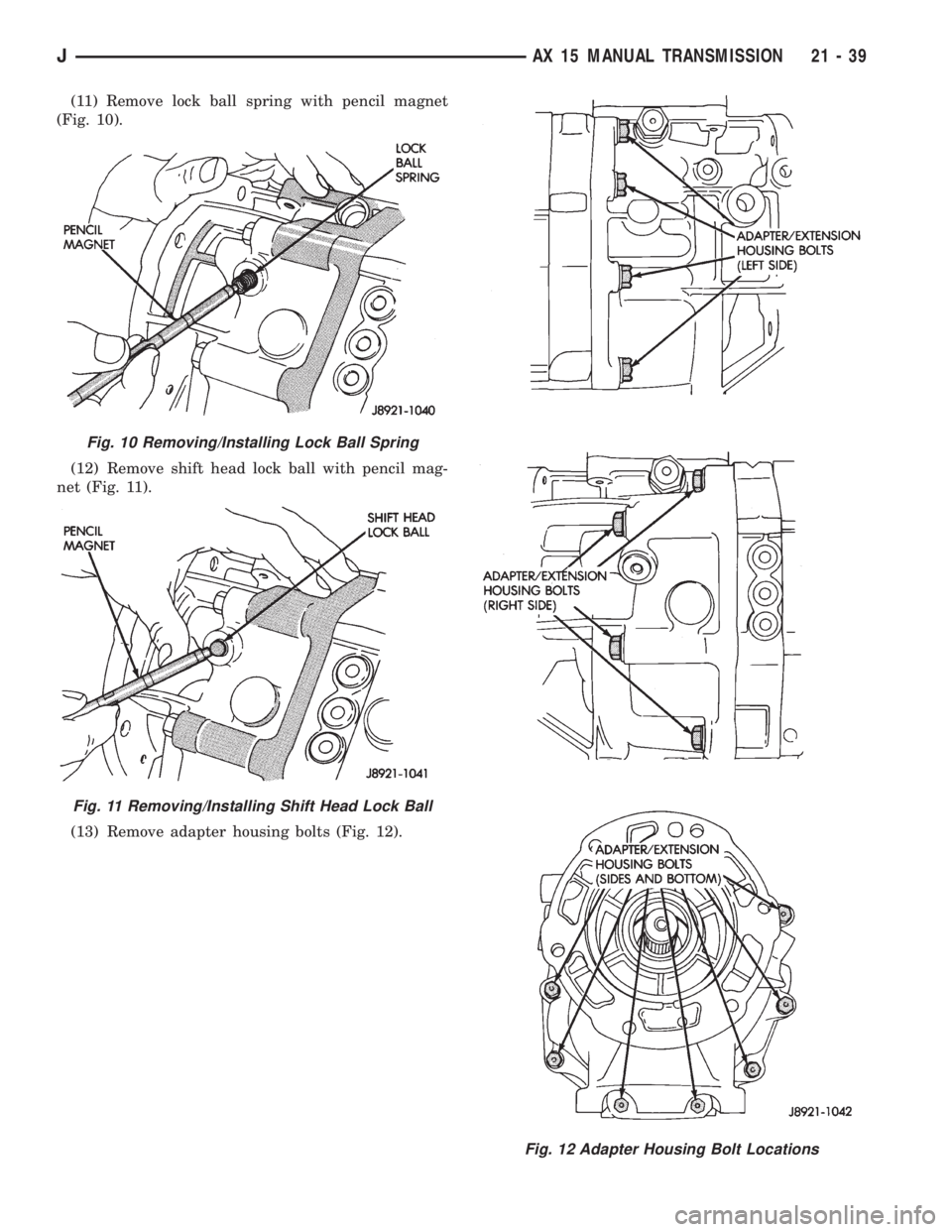

JEEP CHEROKEE 1995  Service Repair Manual (11) Remove lock ball spring with pencil magnet
(Fig. 10).
(12) Remove shift head lock ball with pencil mag-
net (Fig. 11).
(13) Remove adapter housing bolts (Fig. 12).
Fig. 10 Removing/Installing Loc
