Page 1305 of 2198

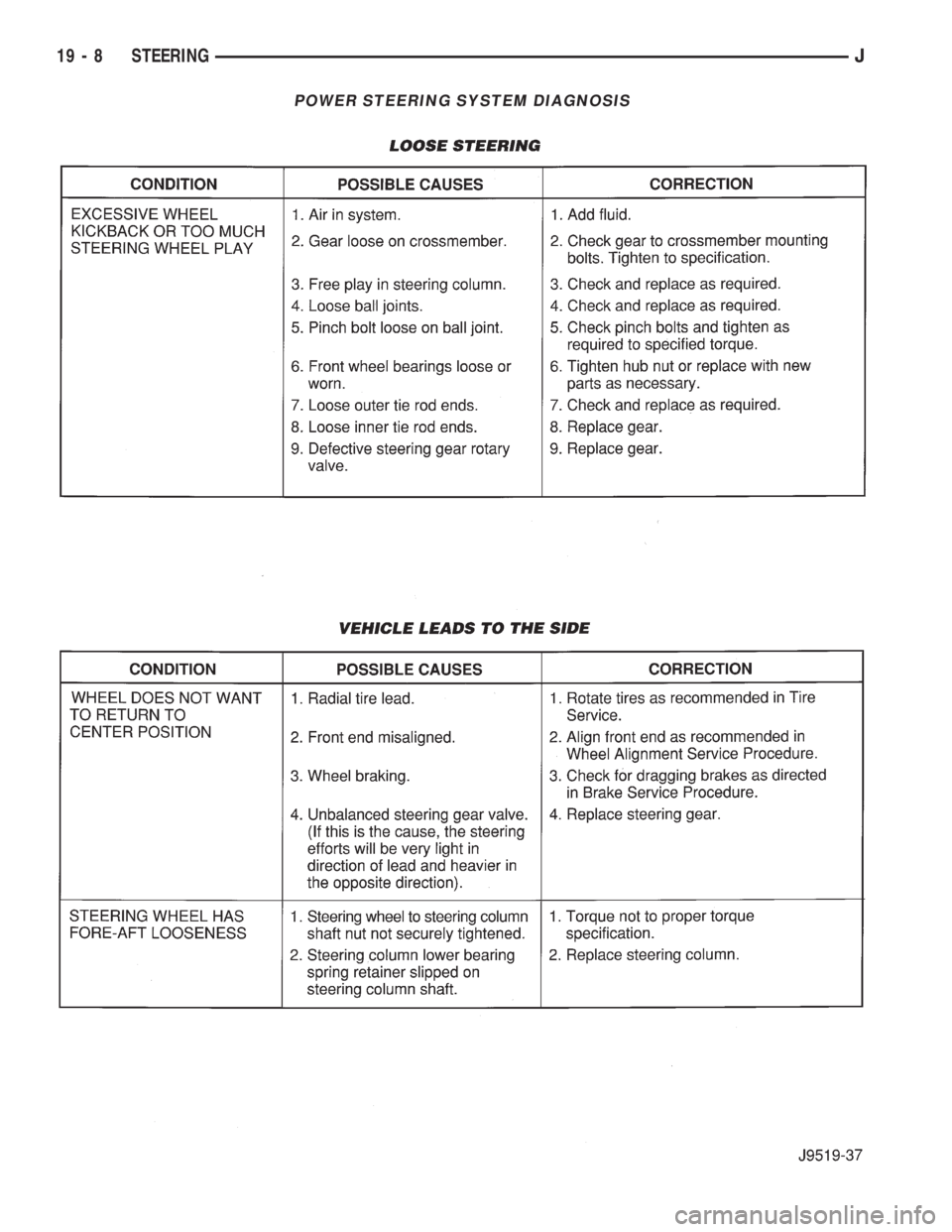

JEEP CHEROKEE 1995 Service Repair Manual POWER STEERING SYSTEM DIAGNOSIS 19 - 6 STEERINGJ

Page 1306 of 2198

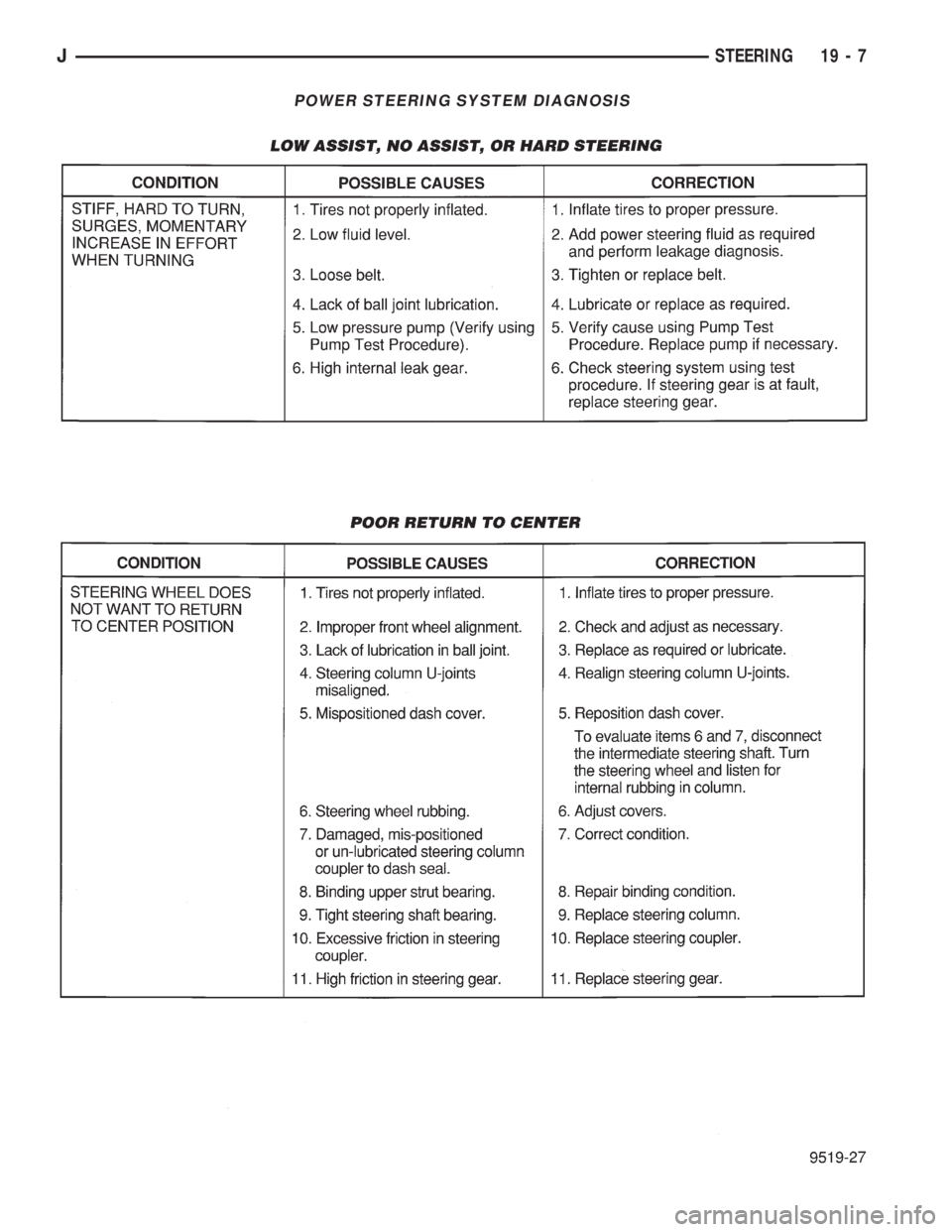

JEEP CHEROKEE 1995 Service Repair Manual POWER STEERING SYSTEM DIAGNOSIS JSTEERING 19 - 7

Page 1307 of 2198

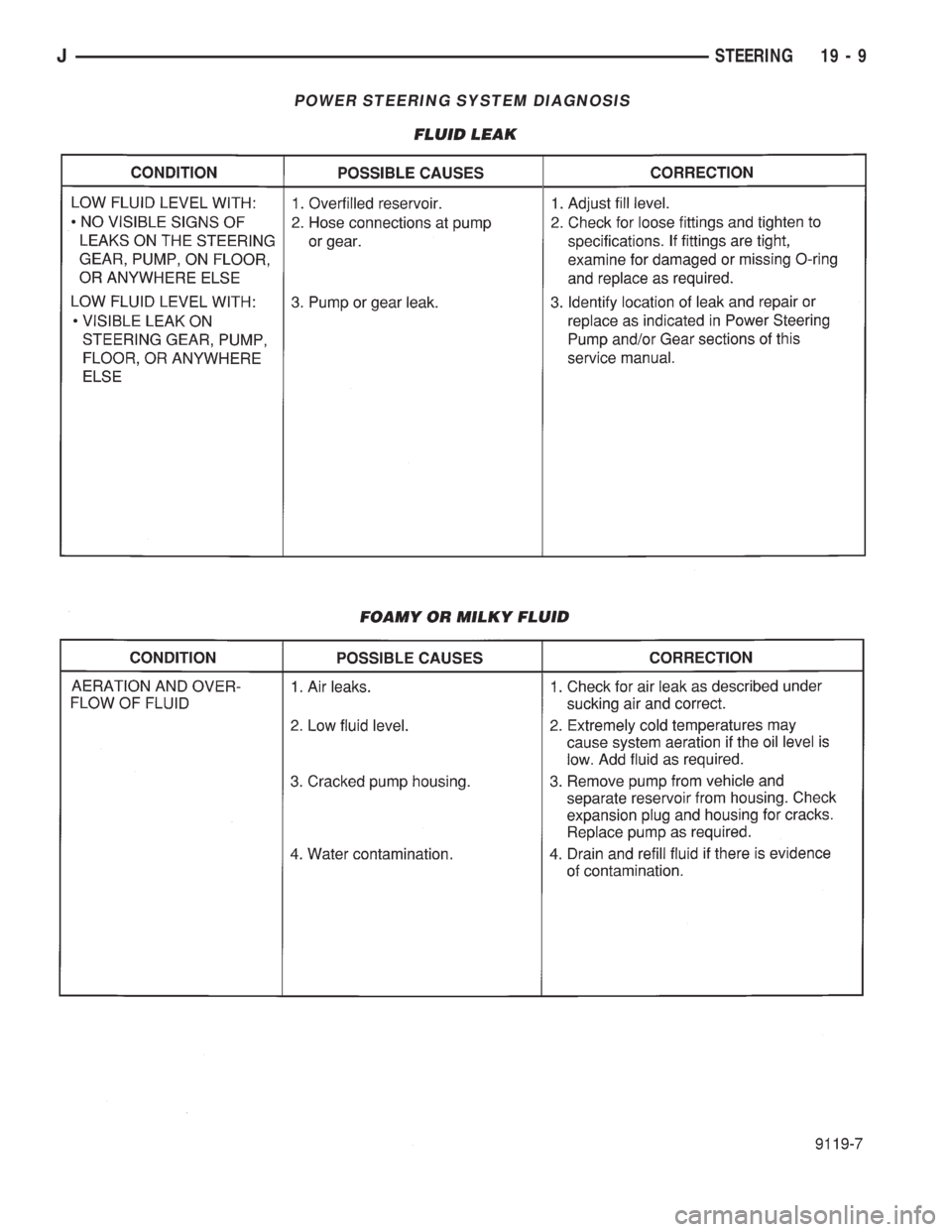

JEEP CHEROKEE 1995 Service Repair Manual POWER STEERING SYSTEM DIAGNOSIS 19 - 8 STEERINGJ

Page 1308 of 2198

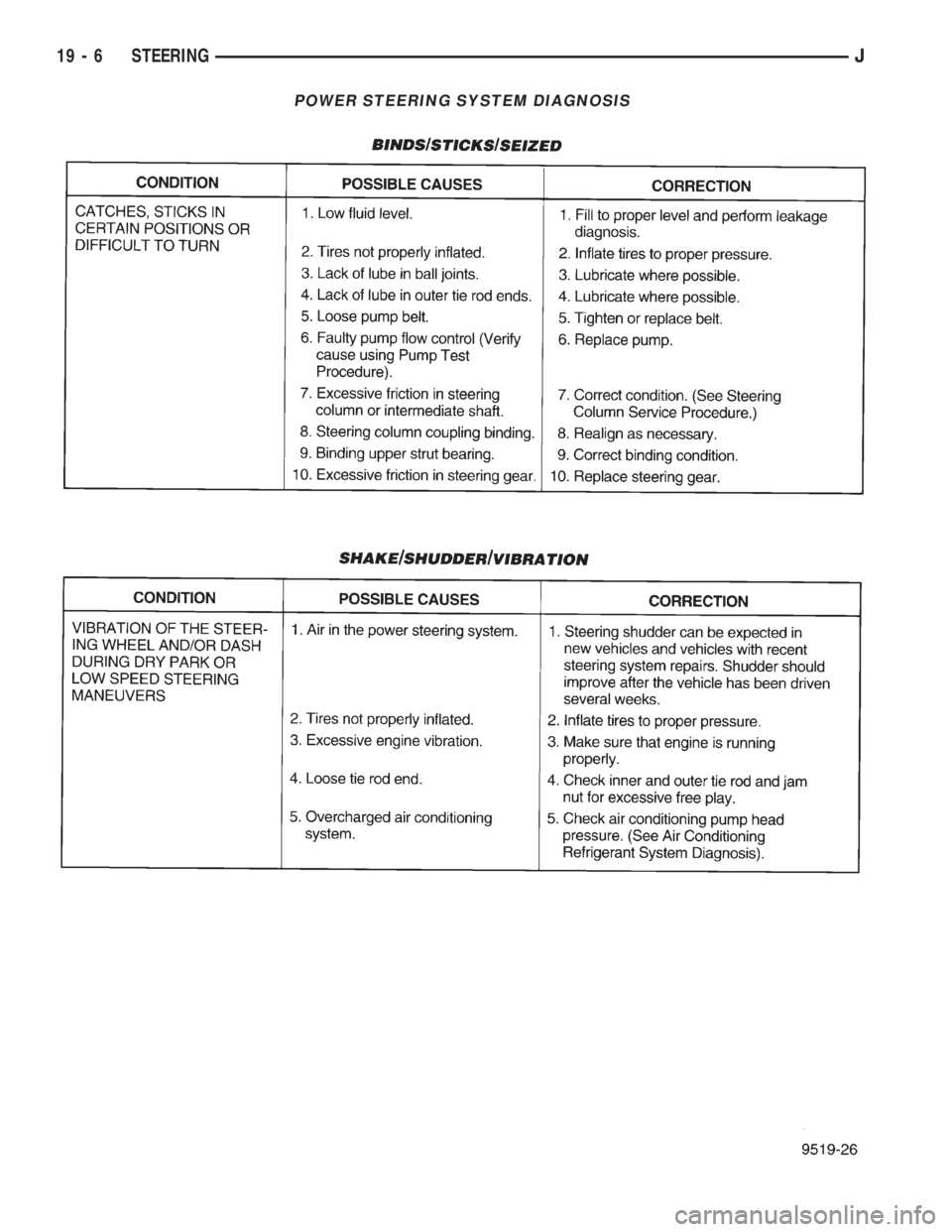

JEEP CHEROKEE 1995 Service Repair Manual POWER STEERING SYSTEM DIAGNOSIS JSTEERING 19 - 9

Page 1309 of 2198

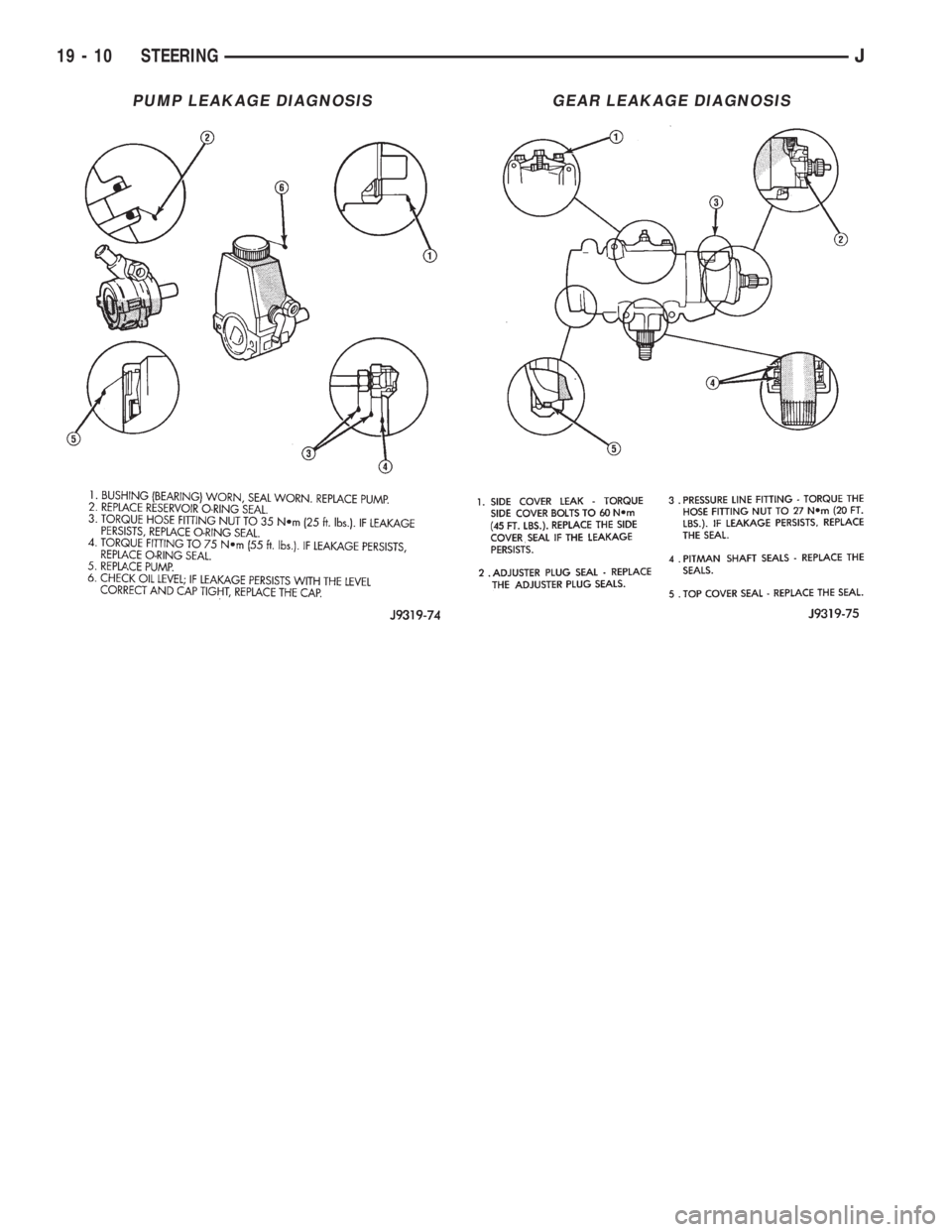

JEEP CHEROKEE 1995 Service Repair Manual PUMP LEAKAGE DIAGNOSISGEAR LEAKAGE DIAGNOSIS 19 - 10 STEERINGJ

Page 1310 of 2198

JEEP CHEROKEE 1995 Service Repair Manual POWER STEERING PUMP INDEX page page Drive Pulley Replacement................... 13 Flow Control Valve Fitting O-Ring Seal......... 14 Power Steering PumpÐInitial Operation........ 15 Pressure and Ret

Page 1311 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (5) Tighten fittings at pump and gear to 35 Nzm (25 ft. lbs.) torque. (6) Install clamps on return hose on gear, pump and reservoir.(7) After installation, inspect and test for fluid leaks. PUMP REPLA

Page 1312 of 2198

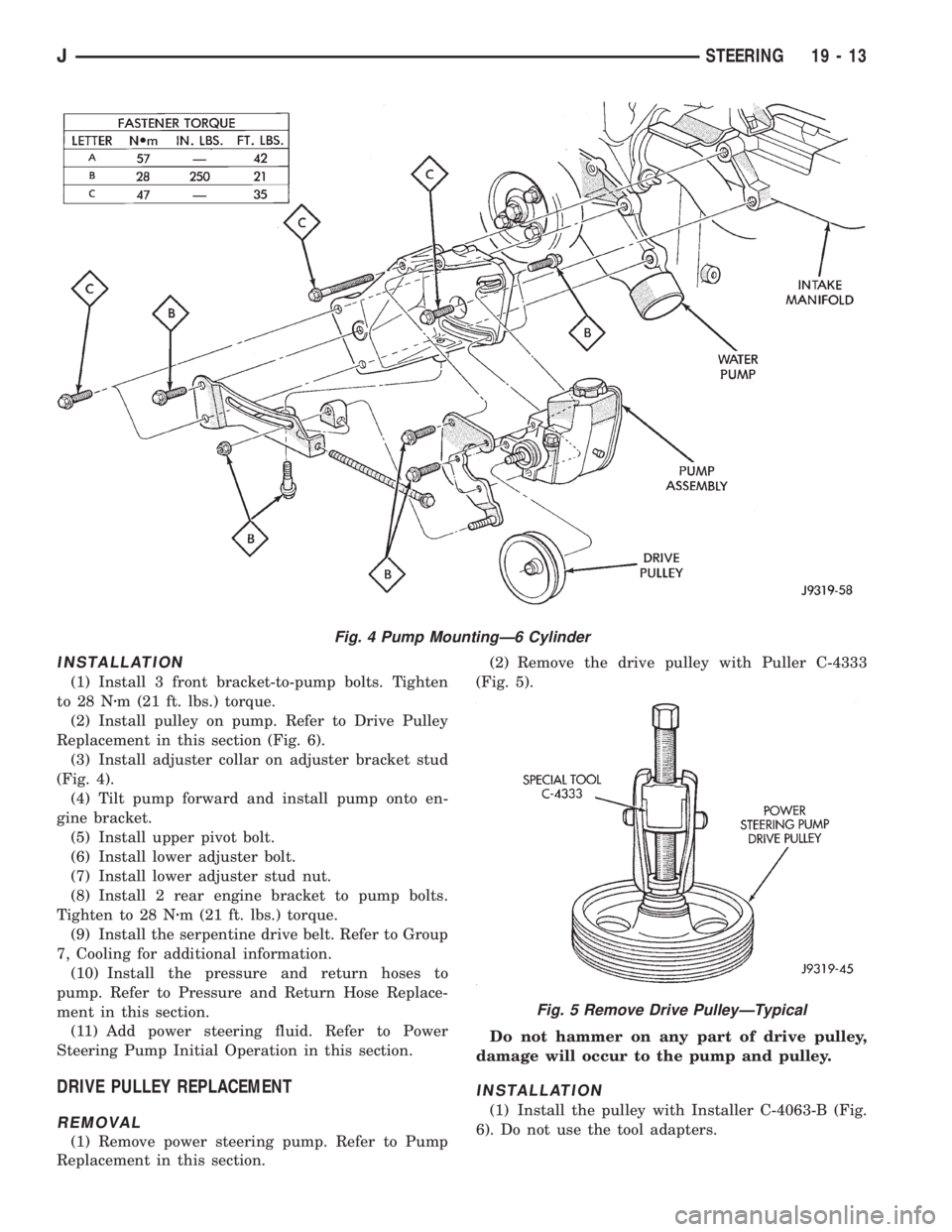

JEEP CHEROKEE 1995 Service Repair Manual INSTALLATION (1) Install 3 front bracket-to-pump bolts. Tighten to 28 Nzm (21 ft. lbs.) torque. (2) Install pulley on pump. Refer to Drive Pulley Replacement in this section (Fig. 6). (3) Install adju
