1995 JEEP CHEROKEE Service Repair Manual

Page 2025 of 2198

JEEP CHEROKEE 1995  Service Repair Manual

Page 2026 of 2198

JEEP CHEROKEE 1995  Service Repair Manual FUEL/IGNITION
INDEX
page page
Automatic Shut Down (ASD) Relay............. 1
Battery Feed.............................. 2
Brake Switch Input......................... 5
Camshaft Position Sensor........

Page 2027 of 2198

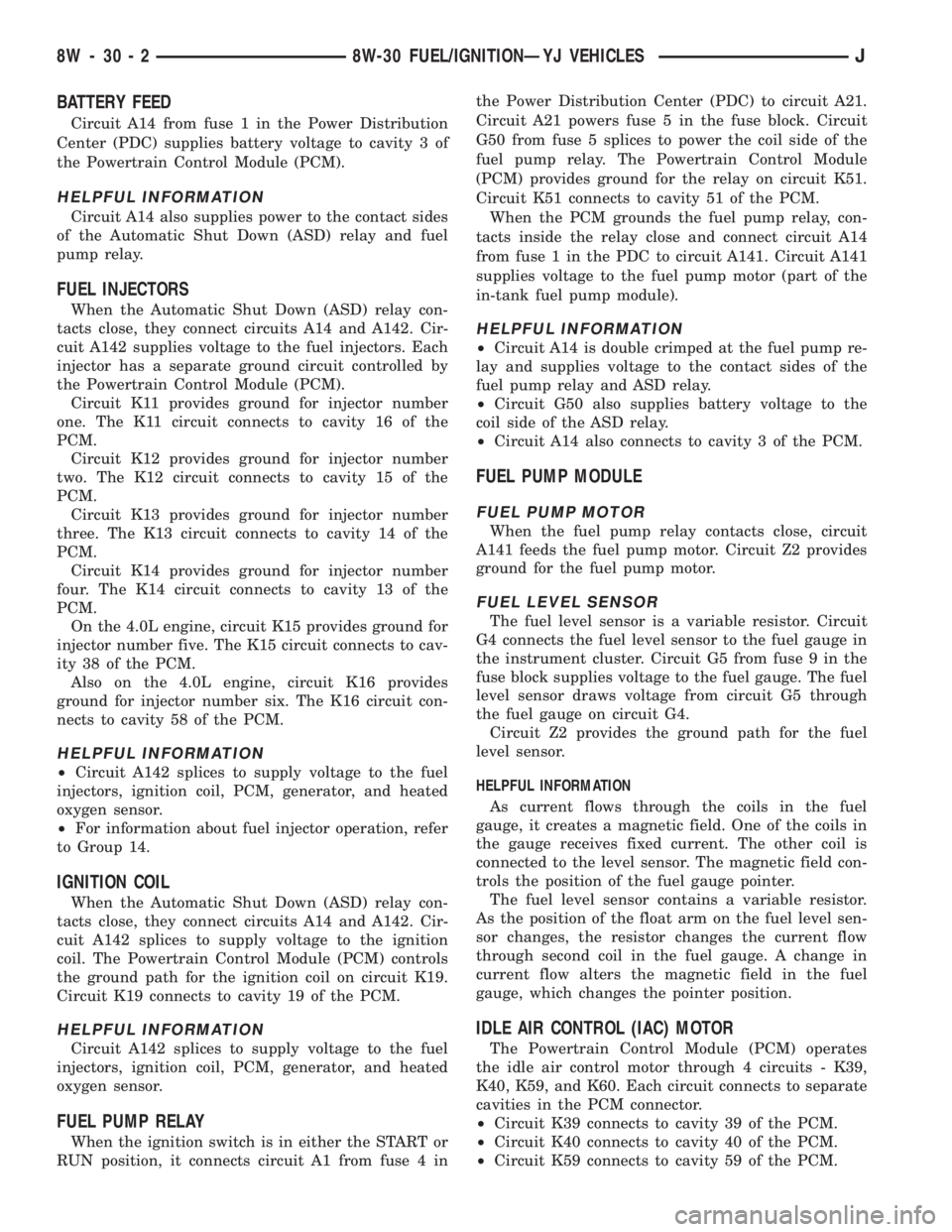

JEEP CHEROKEE 1995  Service Repair Manual BATTERY FEED
Circuit A14 from fuse 1 in the Power Distribution
Center (PDC) supplies battery voltage to cavity 3 of
the Powertrain Control Module (PCM).
HELPFUL INFORMATION
Circuit A14 also supplies p

Page 2028 of 2198

JEEP CHEROKEE 1995  Service Repair Manual ²Circuit K60 connects to cavity 60 of the PCM.
VEHICLE SPEED SENSOR
Circuit K7 supplies 8 volts from the Powertrain
Control Module (PCM) to the vehicle speed sensor.
The K7 circuit connects to cavity

Page 2029 of 2198

JEEP CHEROKEE 1995  Service Repair Manual The PCM provides a ground for the engine coolant
temperature sensor signal (circuit K2) through circuit
K4. Circuit K4 connects to cavity 4 of the PCM con-
nector.
HELPFUL INFORMATION
Circuit K4 splic

Page 2030 of 2198

JEEP CHEROKEE 1995  Service Repair Manual switch to ground on circuit Z1. The switch closes dur-
ing periods of high power steering pump load and
low engine speed; such as parking maneuvers. Cir-
cuit K10 connects to cavity 10 of the PCM.
TAC

Page 2031 of 2198

JEEP CHEROKEE 1995  Service Repair Manual

Page 2032 of 2198

JEEP CHEROKEE 1995  Service Repair Manual
