Page 793 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 12 Instrument Panel Wiring Connectors 8W - 90 - 14 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 794 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 13 Stop Lamp Switch, Blower Motor and ABS Control Module Wiring Connectors J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 15

Page 795 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 14 Steering Column, Fuse Panel and ABS Control Module Wiring Connectors 8W - 90 - 16 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 796 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 15 Body Wiring Connectors J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 17

Page 797 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 16 Dome Lamp and Overhead Console Wiring Connectors 8W - 90 - 18 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 798 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 17 Front Door Wiring Connectors J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 19

Page 799 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 18 Rear Door Wiring Connectors 8W - 90 - 20 8W-90 CONNECTOR LOCATIONSÐXJ VEHICLESJ

Page 800 of 2198

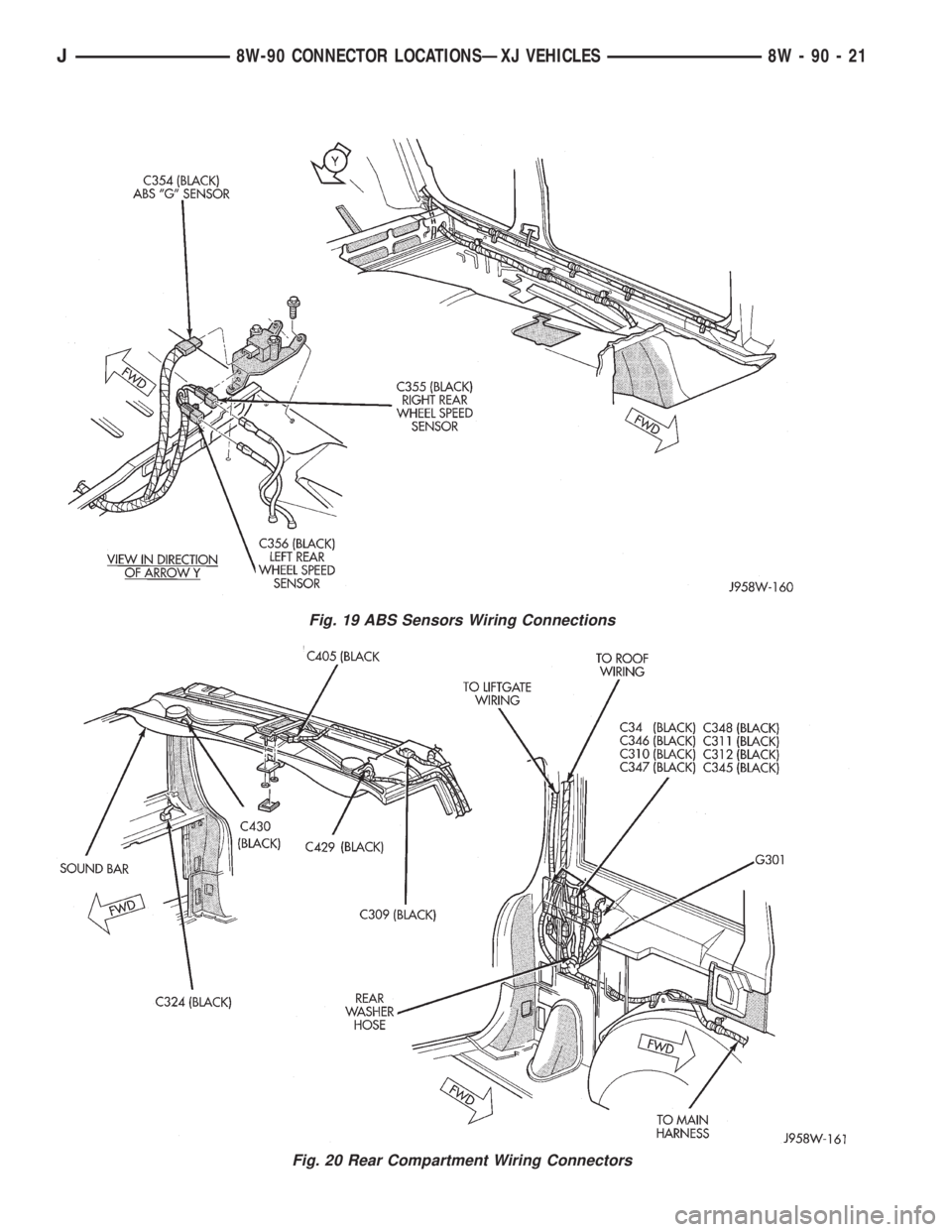

JEEP CHEROKEE 1995 Service Repair Manual Fig. 19 ABS Sensors Wiring Connections Fig. 20 Rear Compartment Wiring Connectors J8W-90 CONNECTOR LOCATIONSÐXJ VEHICLES 8W - 90 - 21
