JEEP CHEROKEE 1995 Service Repair Manual SPLICE LOCATIONS
GENERAL INFORMATION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
se

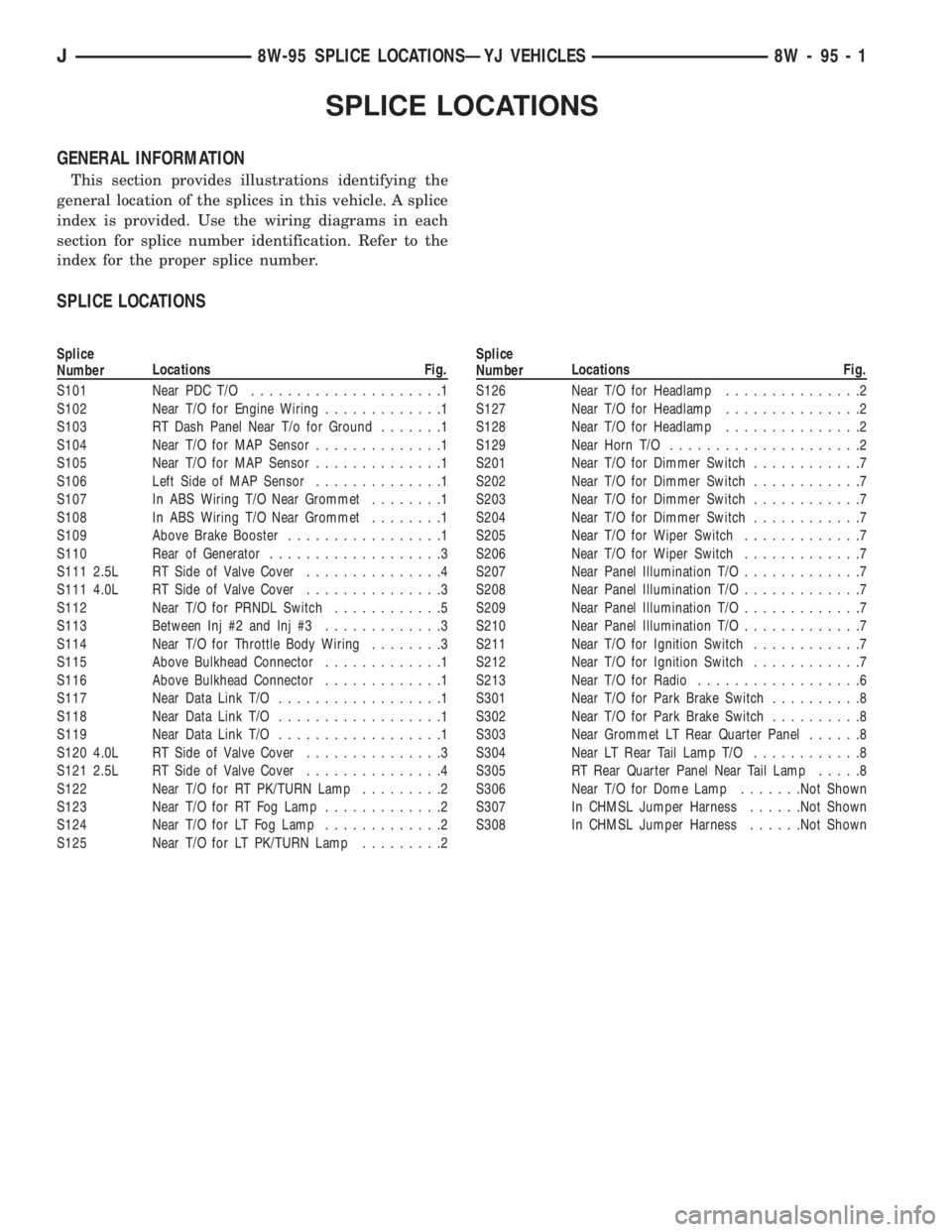

SPLICE LOCATIONS
GENERAL INFORMATION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for the proper splice number.
SPLICE LOCATIONS
Splice
NumberLocations Fig.
S101 Near PDC T/O.....................1
S102 Near T/O for Engine Wiring.............1
S103 RT Dash Panel Near T/o for Ground.......1
S104 Near T/O for MAP Sensor..............1
S105 Near T/O for MAP Sensor..............1
S106 Left Side of MAP Sensor..............1
S107 In ABS Wiring T/O Near Grommet........1
S108 In ABS Wiring T/O Near Grommet........1
S109 Above Brake Booster.................1
S110 Rear of Generator...................3
S111 2.5L RT Side of Valve Cover...............4
S111 4.0L RT Side of Valve Cover...............3
S112 Near T/O for PRNDL Switch............5
S113 Between Inj #2 and Inj #3.............3
S114 Near T/O for Throttle Body Wiring........3
S115 Above Bulkhead Connector.............1
S116 Above Bulkhead Connector.............1
S117 Near Data Link T/O..................1
S118 Near Data Link T/O..................1
S119 Near Data Link T/O..................1
S120 4.0L RT Side of Valve Cover...............3
S121 2.5L RT Side of Valve Cover...............4
S122 Near T/O for RT PK/TURN Lamp.........2
S123 Near T/O for RT Fog Lamp.............2
S124 Near T/O for LT Fog Lamp.............2
S125 Near T/O for LT PK/TURN Lamp.........2Splice
NumberLocations Fig.
S126 Near T/O for Headlamp...............2
S127 Near T/O for Headlamp...............2
S128 Near T/O for Headlamp...............2
S129 Near Horn T/O.....................2
S201 Near T/O for Dimmer Switch............7
S202 Near T/O for Dimmer Switch............7
S203 Near T/O for Dimmer Switch............7
S204 Near T/O for Dimmer Switch............7
S205 Near T/O for Wiper Switch.............7
S206 Near T/O for Wiper Switch.............7
S207 Near Panel Illumination T/O.............7
S208 Near Panel Illumination T/O.............7
S209 Near Panel Illumination T/O.............7
S210 Near Panel Illumination T/O.............7
S211 Near T/O for Ignition Switch............7
S212 Near T/O for Ignition Switch............7
S213 Near T/O for Radio..................6
S301 Near T/O for Park Brake Switch..........8
S302 Near T/O for Park Brake Switch..........8
S303 Near Grommet LT Rear Quarter Panel......8
S304 Near LT Rear Tail Lamp T/O............8
S305 RT Rear Quarter Panel Near Tail Lamp.....8
S306 Near T/O for Dome Lamp.......Not Shown
S307 In CHMSL Jumper Harness......Not Shown
S308 In CHMSL Jumper Harness......Not Shown
J8W-95 SPLICE LOCATIONSÐYJ VEHICLES 8W - 95 - 1

Page 2179 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 1 Engine Compartment Splices YJ
8W - 95 - 2 8W-95 SPLICE LOCATIONSÐYJ VEHICLESJ

Page 2180 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 2 Engine Compartment Splices YJ
J8W-95 SPLICE LOCATIONSÐYJ VEHICLES 8W - 95 - 3

Page 2181 of 2198

JEEP CHEROKEE 1995 Service Repair Manual Fig. 3 Engine Splices 4.0L YJ
8W - 95 - 4 8W-95 SPLICE LOCATIONSÐYJ VEHICLESJ

Page 2182 of 2198

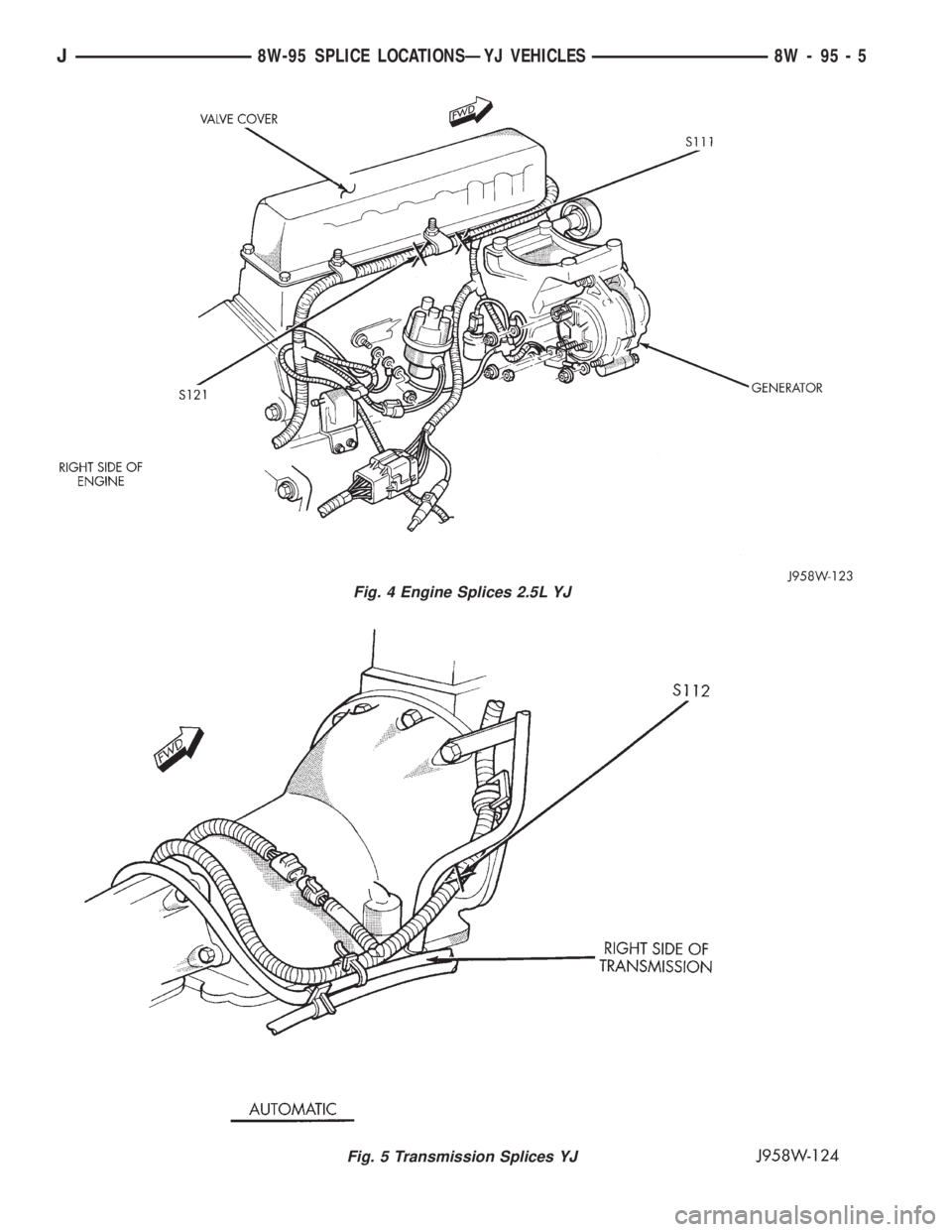

JEEP CHEROKEE 1995 Service Repair Manual Fig. 4 Engine Splices 2.5L YJ
Fig. 5 Transmission Splices YJ
J8W-95 SPLICE LOCATIONSÐYJ VEHICLES 8W - 95 - 5

Page 2183 of 2198

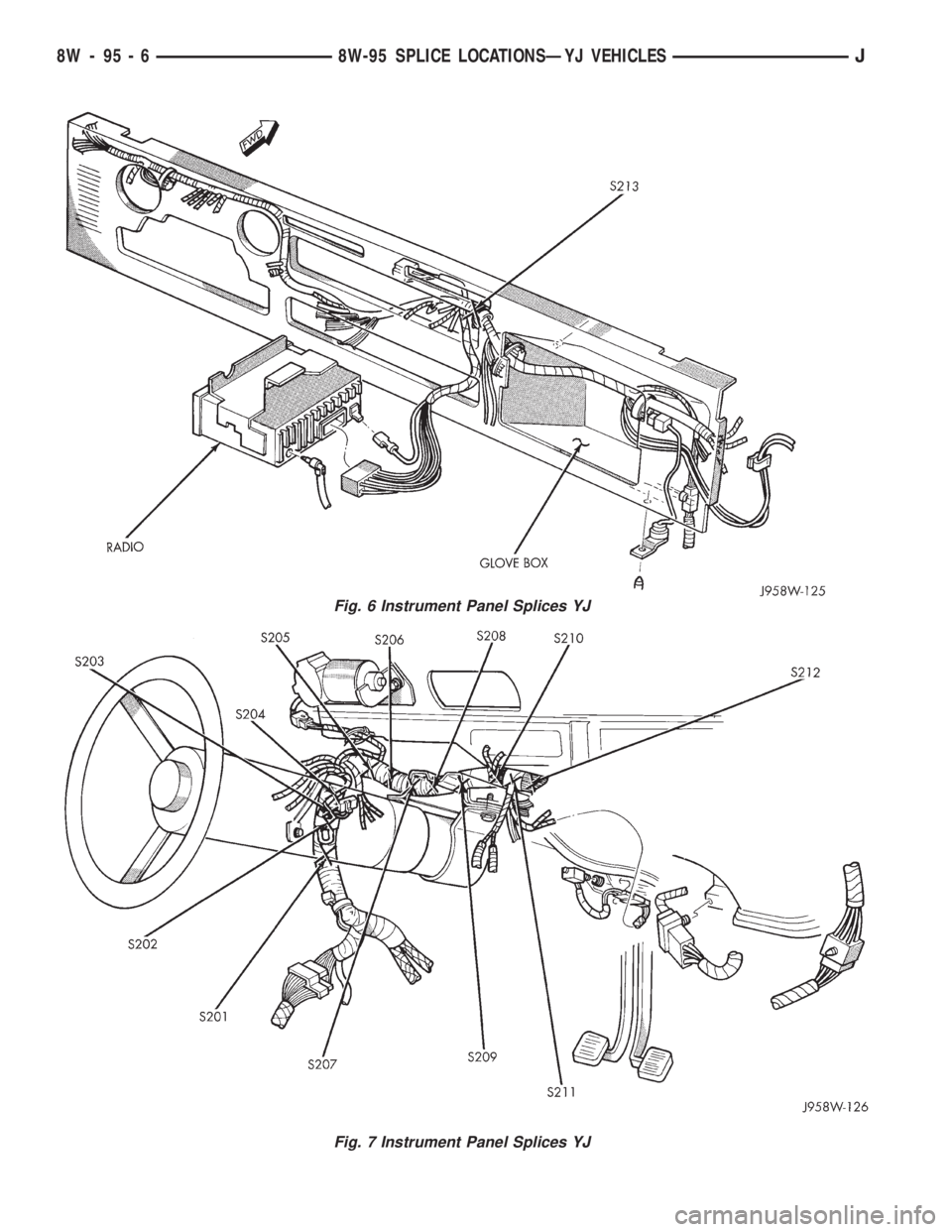

JEEP CHEROKEE 1995 Service Repair Manual Fig. 6 Instrument Panel Splices YJ
Fig. 7 Instrument Panel Splices YJ
8W - 95 - 6 8W-95 SPLICE LOCATIONSÐYJ VEHICLESJ

Page 2184 of 2198

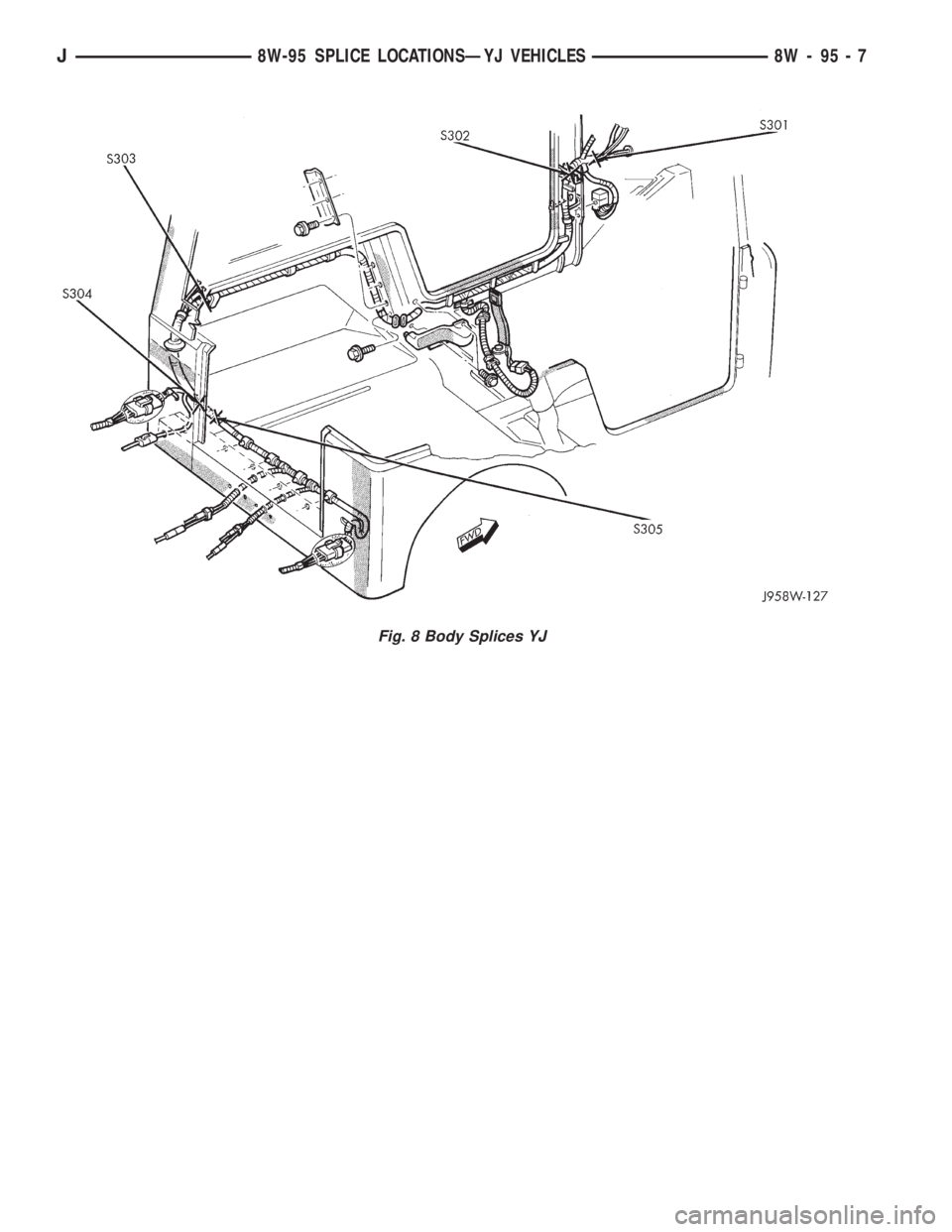

JEEP CHEROKEE 1995 Service Repair Manual Fig. 8 Body Splices YJ
J8W-95 SPLICE LOCATIONSÐYJ VEHICLES 8W - 95 - 7
