Page 1561 of 2198

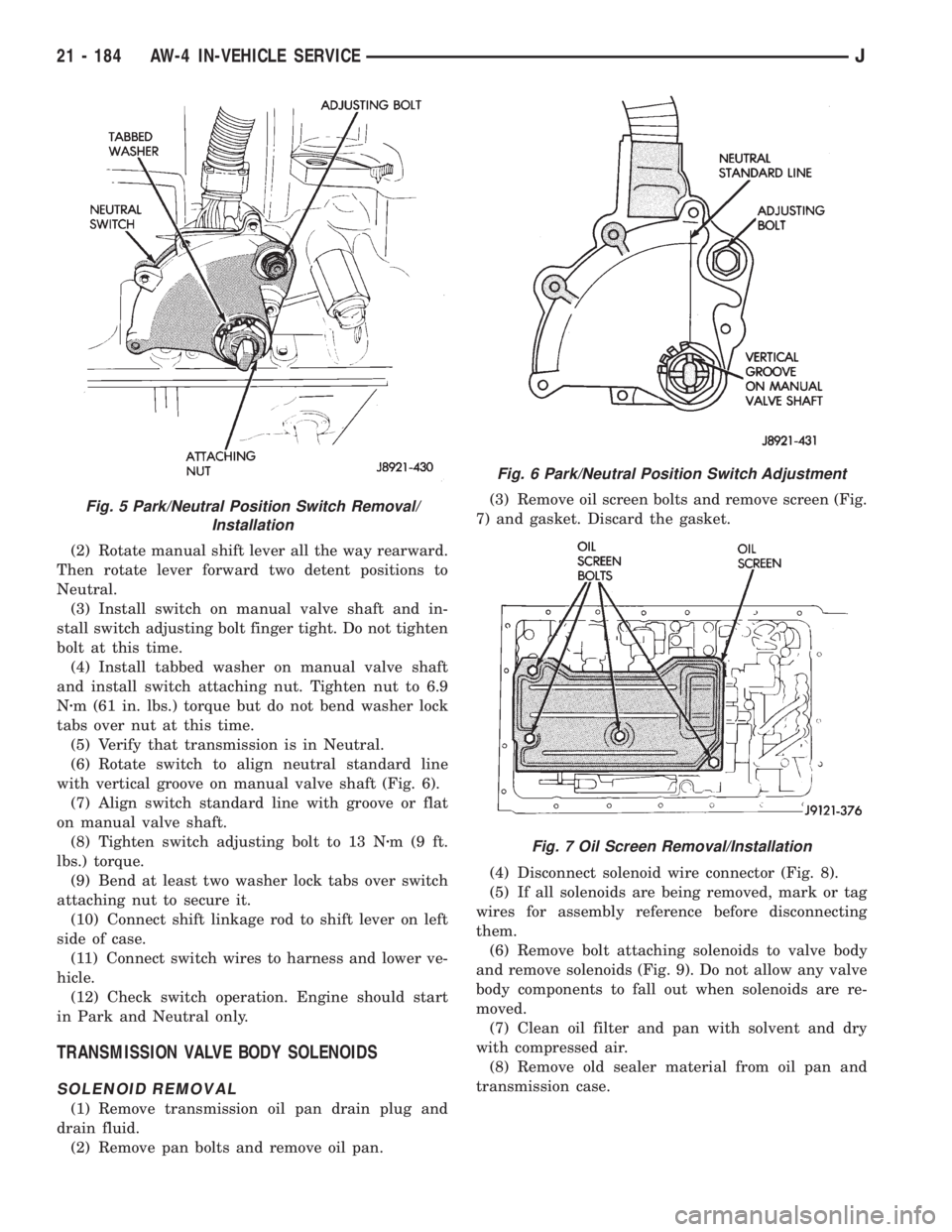

JEEP CHEROKEE 1995 Service Repair Manual (2) Rotate manual shift lever all the way rearward. Then rotate lever forward two detent positions to Neutral. (3) Install switch on manual valve shaft and in- stall switch adjusting bolt finger tight

Page 1562 of 2198

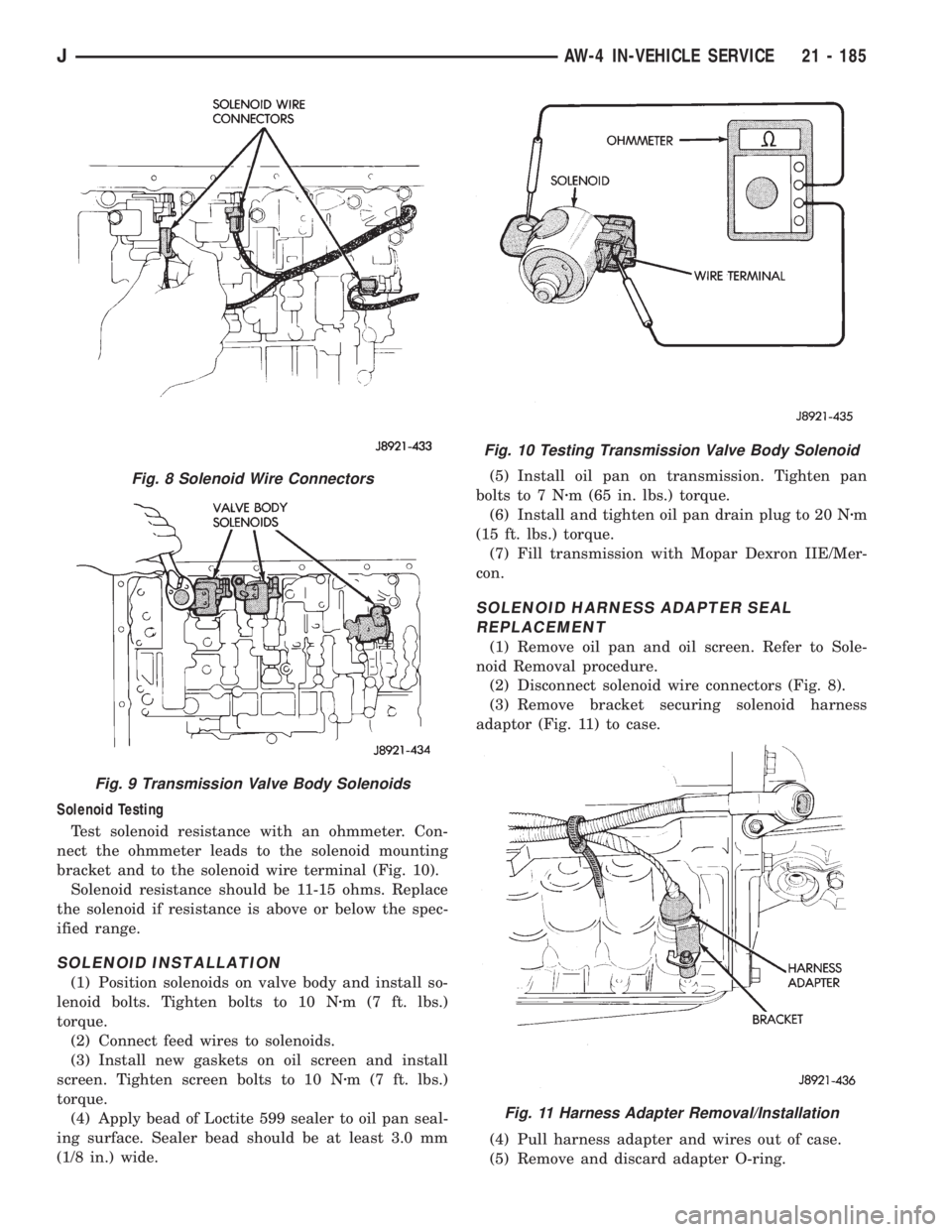

JEEP CHEROKEE 1995 Service Repair Manual Solenoid Testing Test solenoid resistance with an ohmmeter. Con- nect the ohmmeter leads to the solenoid mounting bracket and to the solenoid wire terminal (Fig. 10). Solenoid resistance should be 11-

Page 1563 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (6) Lubricate new O-ring and install it on adapter. (7) Install solenoid wire harness and adapter in case. (8) Install adapter bracket and bracket bolt. (9) Connect wires to solenoids. (10) Install oi

Page 1564 of 2198

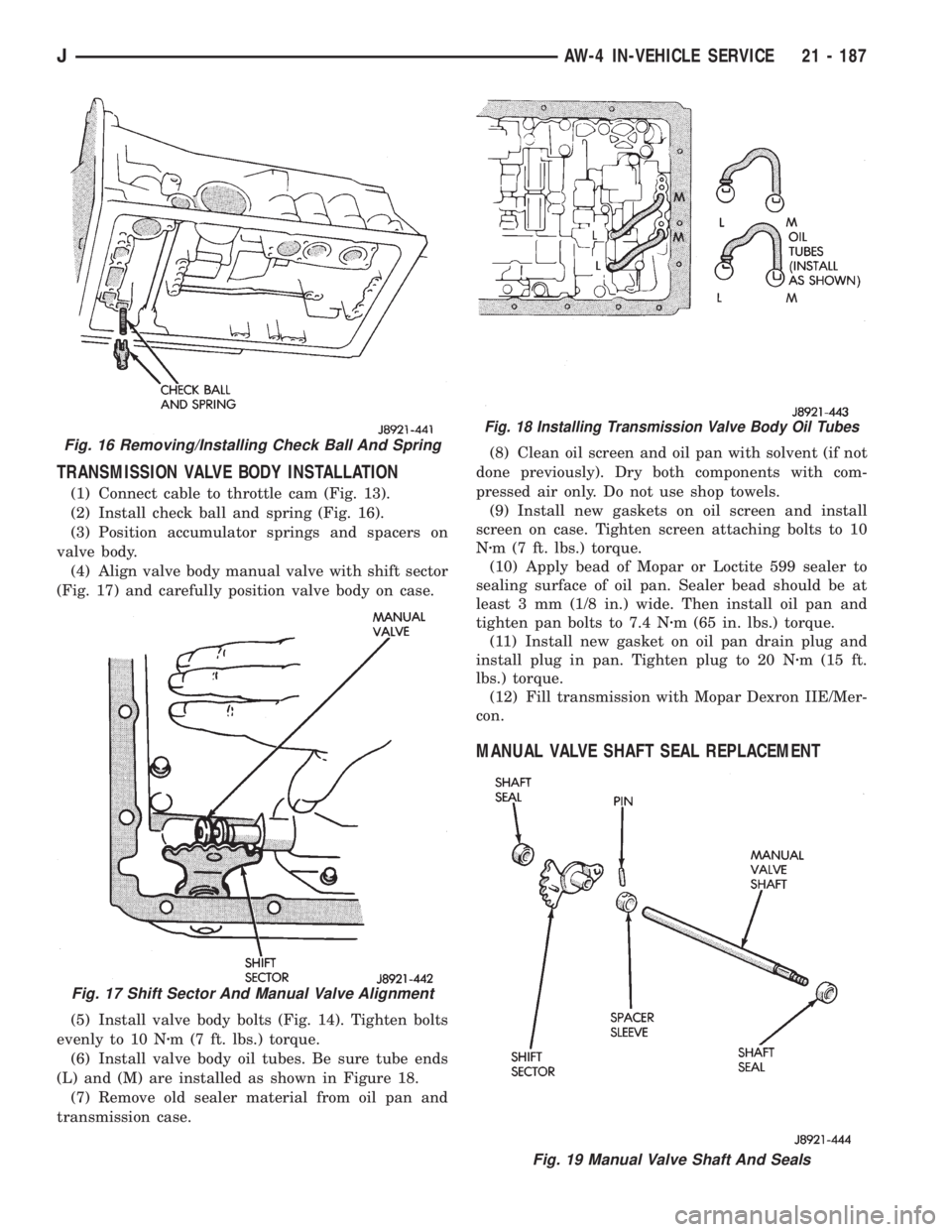

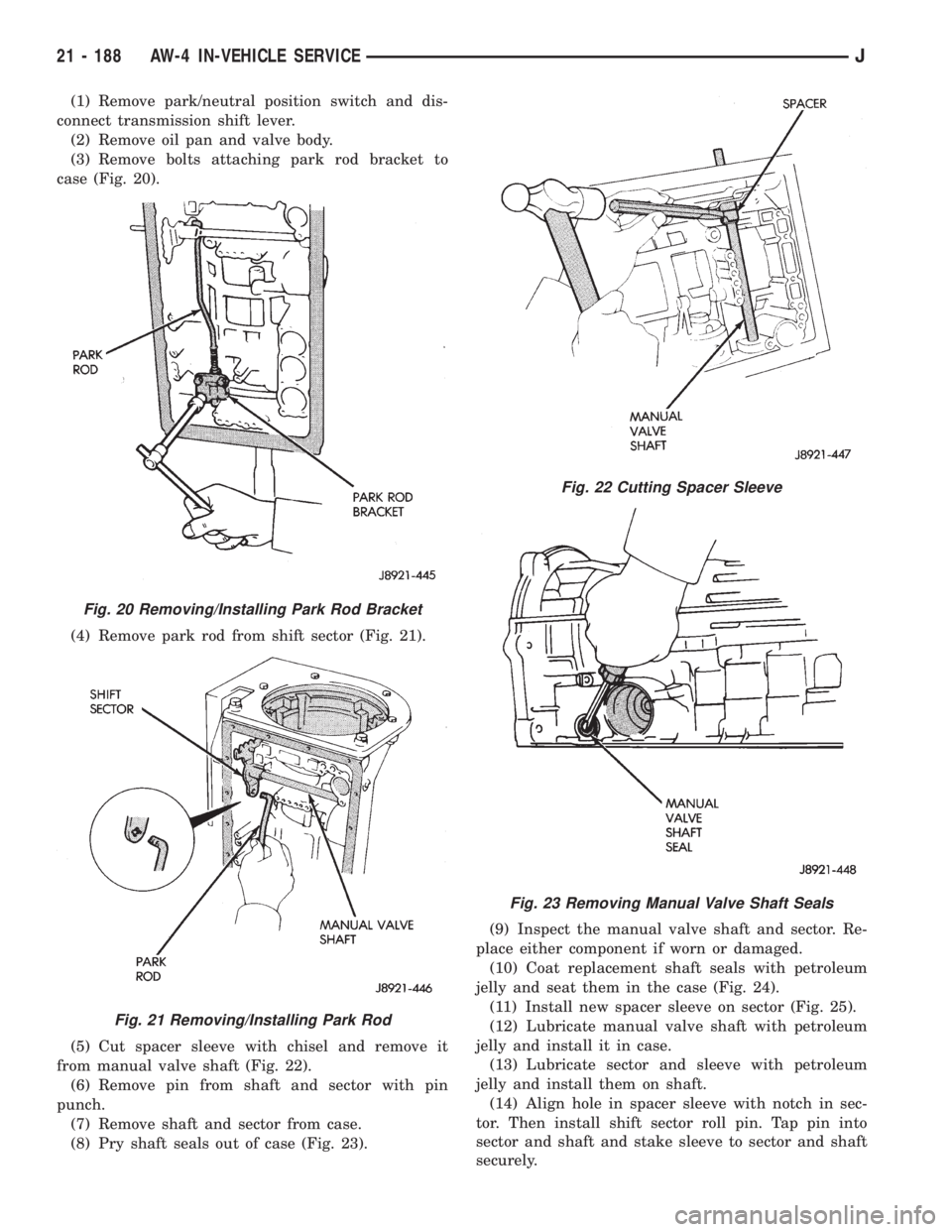

JEEP CHEROKEE 1995 Service Repair Manual TRANSMISSION VALVE BODY INSTALLATION (1) Connect cable to throttle cam (Fig. 13). (2) Install check ball and spring (Fig. 16). (3) Position accumulator springs and spacers on valve body. (4) Align val

Page 1565 of 2198

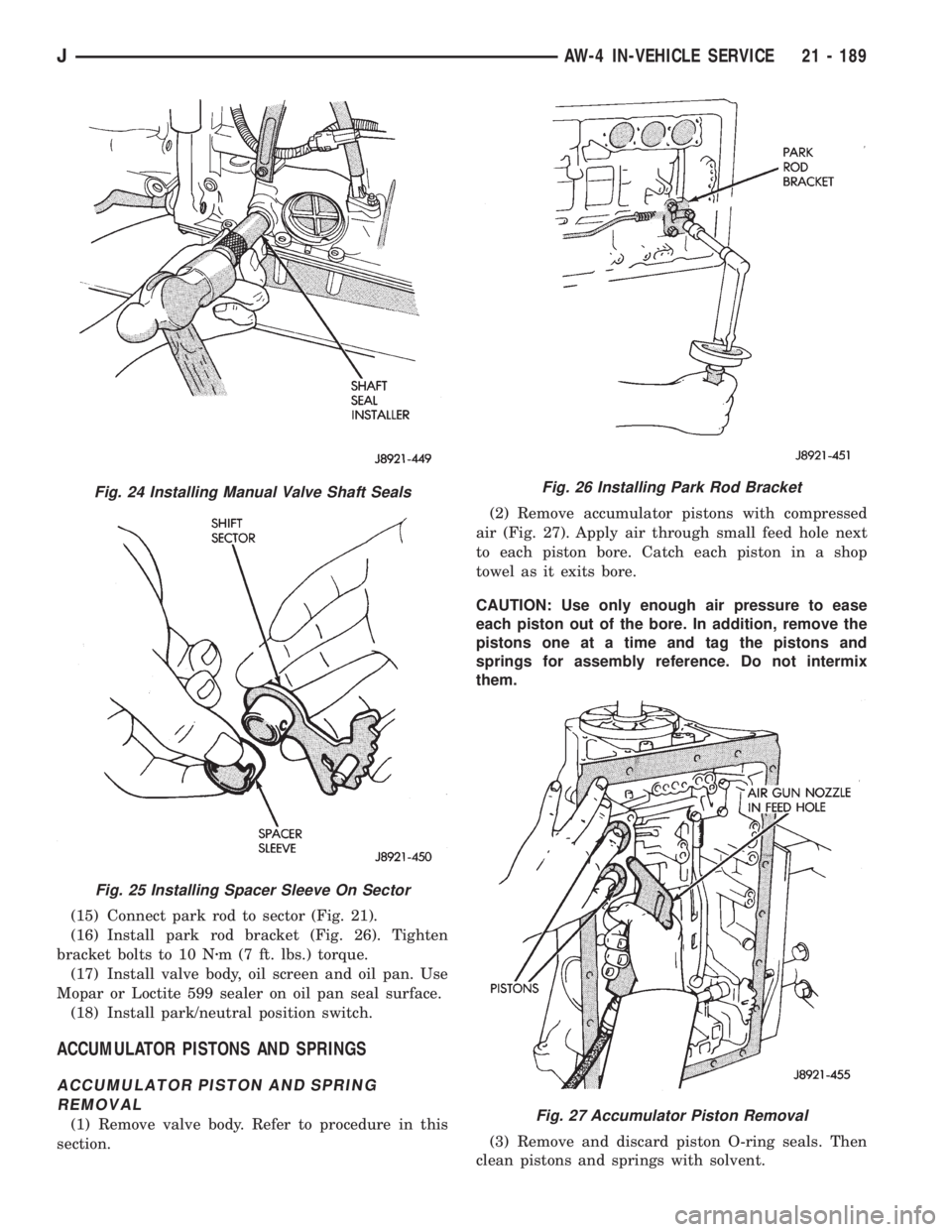

JEEP CHEROKEE 1995 Service Repair Manual (1) Remove park/neutral position switch and dis- connect transmission shift lever. (2) Remove oil pan and valve body. (3) Remove bolts attaching park rod bracket to case (Fig. 20). (4) Remove park rod

Page 1566 of 2198

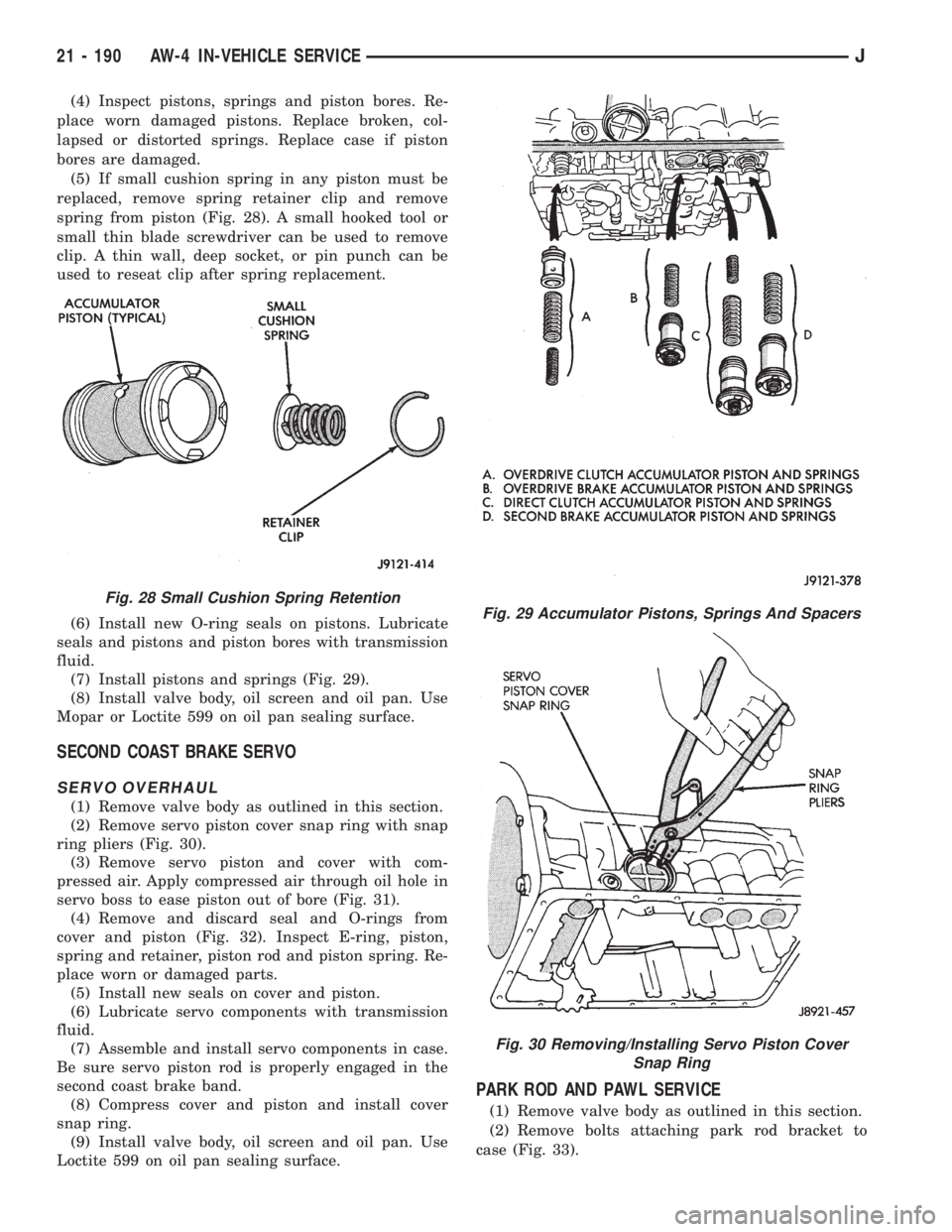

JEEP CHEROKEE 1995 Service Repair Manual (15) Connect park rod to sector (Fig. 21). (16) Install park rod bracket (Fig. 26). Tighten bracket bolts to 10 Nzm (7 ft. lbs.) torque. (17) Install valve body, oil screen and oil pan. Use Mopar or L

Page 1567 of 2198

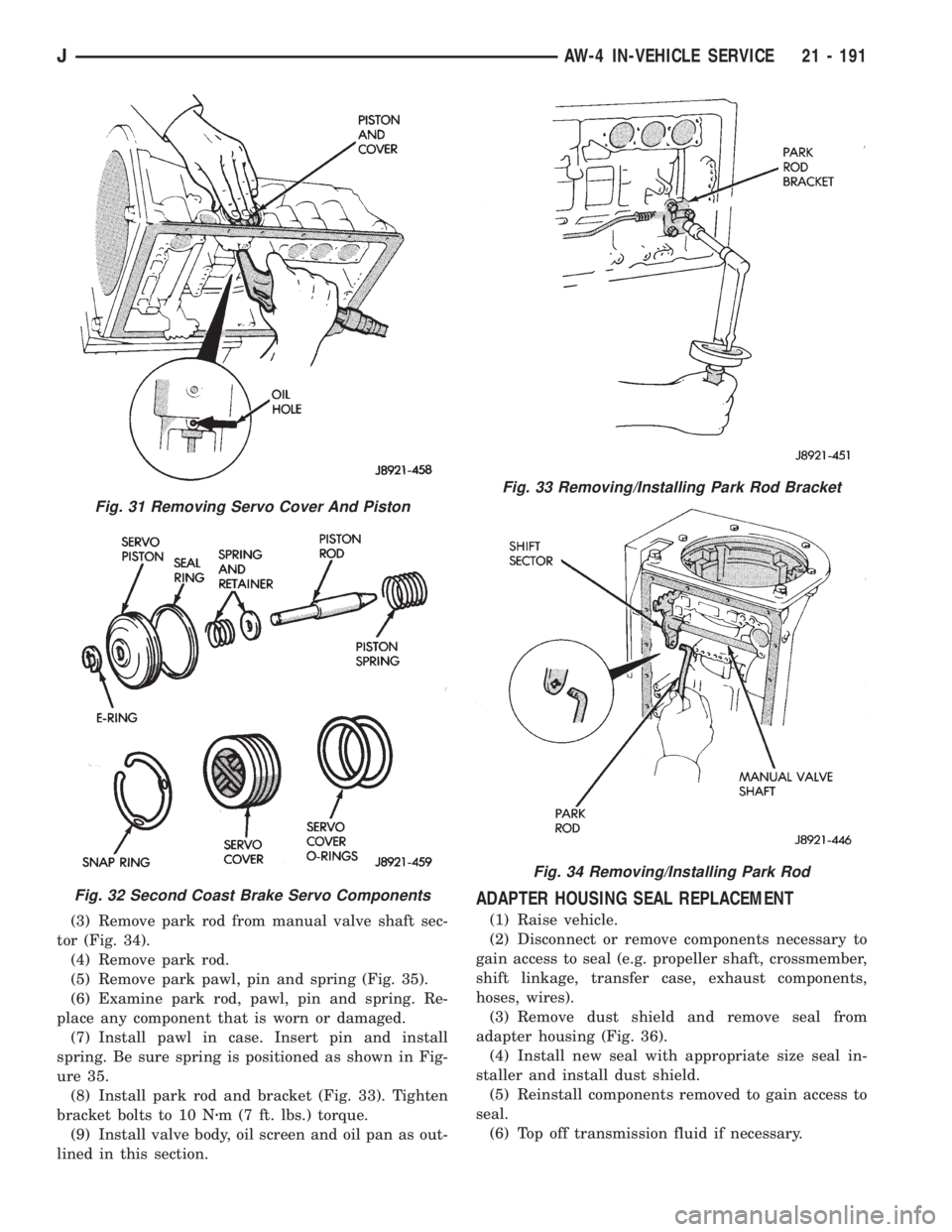

JEEP CHEROKEE 1995 Service Repair Manual (4) Inspect pistons, springs and piston bores. Re- place worn damaged pistons. Replace broken, col- lapsed or distorted springs. Replace case if piston bores are damaged. (5) If small cushion spring i

Page 1568 of 2198

JEEP CHEROKEE 1995 Service Repair Manual (3) Remove park rod from manual valve shaft sec- tor (Fig. 34). (4) Remove park rod. (5) Remove park pawl, pin and spring (Fig. 35). (6) Examine park rod, pawl, pin and spring. Re- place any component
