2023 TOYOTA C-HR Owners Manual

5034-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
NOTICE
●If the road surface has any dips or inclines, the target parking spot cannot
be correctly set. Therefore, the vehicle may be parked at an an gle or may
deviate from the parking spot. In these cases, do not use the p arallel park-
ing assist mode.
● When there is a wall or other obstacle on the inner side of the parking
space, or when another parked vehicle extends into the road fro m its park-
ing spot, the target parking spot may be set in a position that juts out
slightly into the road.
● Depending on the surrounding environment, such as other parked vehi-
cles, the vehicle may be parked at an angle or may deviate from the park-
ing spot. Manually adjust vehi cle alignment as necessary.
● The system provides assistance to guide the vehicle based on position of
adjacent vehicles, even if there are obstacles, bumps, drops or curb
stones in the parking space.
If it seems the vehicle may make contact, stop the vehicle by d epressing
the brake pedal, and then press the S-IPA switch to turn off th e system.
● It may not be possible to detect objects that are low to the ground.
Directly confirm the safety of your surroundings and, if it see ms the vehicle
may make contact with an obstacle, stop the vehicle by depressi ng the
brake pedal.
● When the other parked vehicle is nar-
row or parked extremely close to the
curb, assist control will also guide the
vehicle to a position close to the curb.
If it seems the vehicle may make con-
tact with the curb or any other obsta-
cles, or if it seems the tire position will
deviate from the intended parking spot,
stop the vehicle by depressing the
brake pedal, and then press the S-IPA
switch to turn off the system.

5044-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Function summary
When departing from a parallel parking position, select the dir ection
you would like to depart in, and steering wheel operation assis t con-
trol will be provided to guide the vehicle to a position from w hich
you can take off.
With the shift lever in P, press
the S-IPA switch, select exit
parallel parking assist mode,
and then operate the turn
signal lever to select the
desired departure direction.
Steering wheel auto opera-
tion starts when the shift
lever is changed according to
guidance provided by the
system.
A sound is issued and a dis-
play is shown to notify you
when the vehicle reaches a
position from which you can
take off.
Depending on the condition of the parking space, guidance to st arting
points for moving forward and backing up, as well as the steeri ng wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary from the time the steering wheel auto operation begins in up
until the vehicle reaches a posit ion from which it can take off.
How to depart from a parallel parking position (exit parallel park-
ing assist mode)

5054-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■Using the exit parallel parking assist mode to depart
With the shift lever in P, press
the S-IPA switch and check
that the display on the multi-
information display switches
to “Exit Parallel Parking”.
Operate the turn signal lever (P. 322) to select whether you
would like to depart to the left or right.
If there are any obstacles in the direction the vehicle is depa rting in, the
system determines that it is not possible to depart, and assist control is
stopped.
When the shift lever is changed to R (or D) according to the
advice display on the screen (P. 493), a high-pitched beep is
emitted and assist control will start.
Step and onward is for cases in which the advice display shows
“Back up” after operating the turn signal lever to select a dep arture
direction.
● When the steering wheel auto operation starts, the steering
wheel auto operation display and assistance level indicator
(P. 493) will be shown in the display area.
● To stop assist control, press the S-IPA switch.
1
2
3
4

5064-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le
and slowly back up while adjusting your speed by depressing the
brake pedal.
● When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (P. 493)
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).
Assume an ordinary driving posture, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
● When departure cannot be accomplished on the first try and
multi-turn maneuvering is necessary, proceed to step .
● When multi-turn maneuvering is not necessary, proceed to
step .
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
4
5
6
7
8
14
8

5074-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
Change the shift lever to R.
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, direc tly
confirm the safety of the area to the rear and around the vehic le
and slowly back up while adjusting your speed by depressing the
brake pedal.
Depending on the condition of the parking space, steps to may
need to be repeated.
When a level beep is emitted
and the stop display
(P. 493) is shown on the
display, stop the vehicle.
Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).
Assume an ordinary driving posture, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.
When the vehicle has nearly
reached the take-off point, a
high-pitched beep is emitted
and assist control finishes.
From there, grasp the steer-
ing wheel and proceed for-
ward.
9
10
510
11
12
13
14

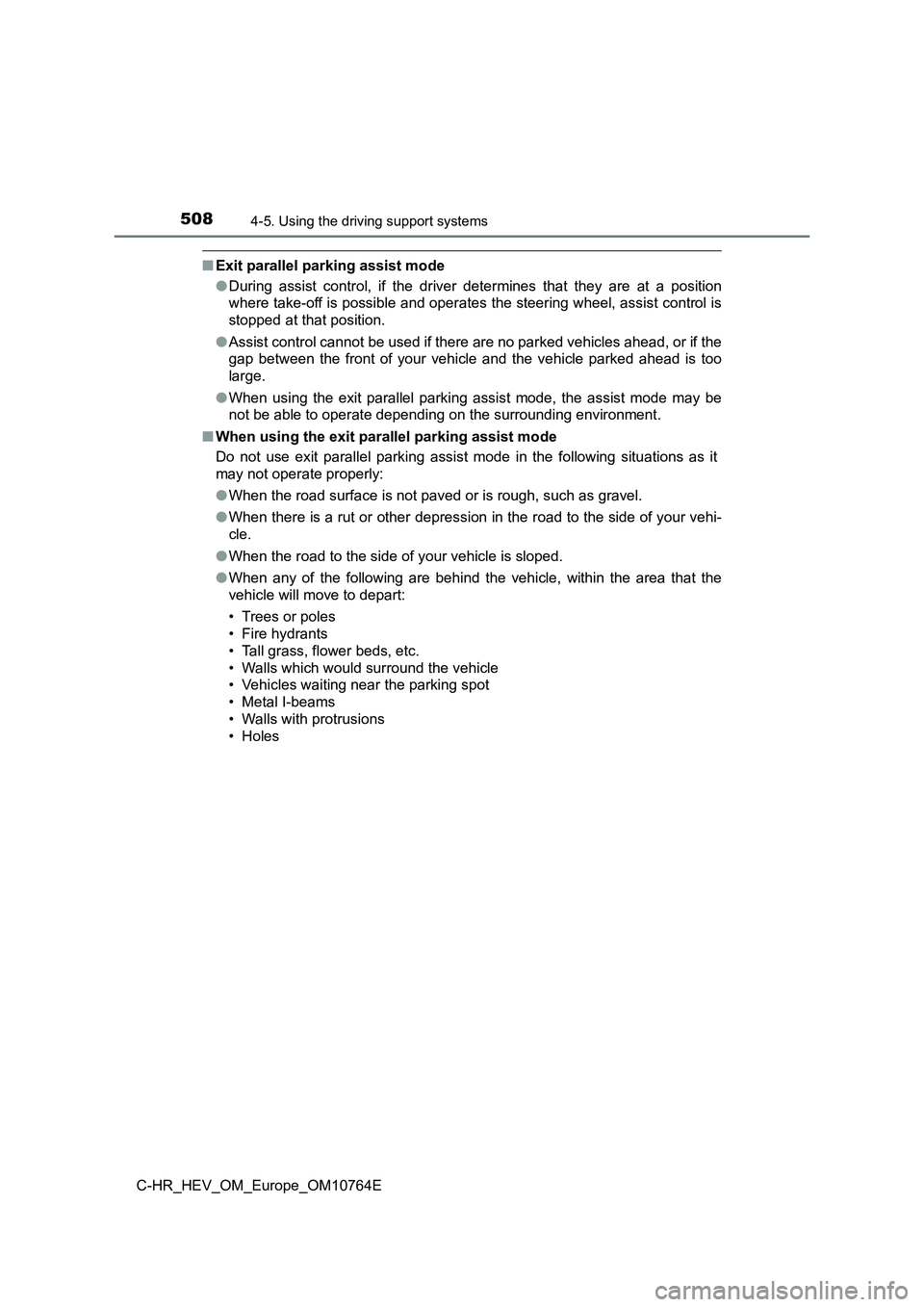

5084-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Exit parallel parking assist mode
● During assist control, if the driver determines that they are at a position
where take-off is possible and operates the steering wheel, ass ist control is
stopped at that position.
● Assist control cannot be used if there are no parked vehicles ahead, or if the
gap between the front of your vehicle and the vehicle parked ah ead is too
large.
● When using the exit parallel parking assist mode, the assist mode may be
not be able to operate depending on the surrounding environment .
■ When using the exit parallel parking assist mode
Do not use exit parallel parking assist mode in the following s ituations as it
may not operate properly:
● When the road surface is not paved or is rough, such as gravel.
● When there is a rut or other depression in the road to the side of your vehi-
cle.
● When the road to the side of your vehicle is sloped.
● When any of the following are behind the vehicle, within the area that the
vehicle will move to depart:
• Trees or poles
• Fire hydrants
• Tall grass, flower beds, etc.
• Walls which would surround the vehicle
• Vehicles waiting near the parking spot
• Metal I-beams
• Walls with protrusions
• Holes

5094-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When using exit parallel parking assist mode
In the following situation, be sure to drive carefully as the s ide sensors may
not be able to correctly detect objects, possibly leading to an accident.
NOTICE
●Do not use exit parallel parking assist mode in any situation other than
when departing a parallel parking spot.
If assist control is started unintentionally, depress the brake pedal and stop
the vehicle, then press the S-IPA switch to cancel the assist c ontrol.
● The detection range of the sensors (P. 459) is limited. Directly confirm
the safety of your surroundings, and if there is a possibility of a contact
accident, stop the vehicle by depressing the brake pedal.
● It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the ve hicle may
make contact with an obstacle, stop the vehicle by depressing t he brake
pedal.
● When departing for a position from which you can take off, directly confirm
the safety of your surroundings.
When an object is in an area which is out
of the detection range of the side sen-
sors.
Object

5104-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Function summary
Stop so that the center of the target parking spot appears near ly
perpendicular to the vehicle. If the space is detectable, the f orward
guidance function can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assi st
control is also provided if necessary.
Stop so that the center of the
target parking spot appears
nearly perpendicular to the
vehicle. Then, press the S-IPA
switch 2 times to select per-
pendicular parking assist
mode.
Steering wheel auto opera-
tion starts when the vehicle
begins to move.
A sound is issued and a dis-
play is shown to notify you
when the vehicle reaches the
position to start backing up
from.
If the detected parking space or
road width (distance to the side
of the road across from the park-
ing space) is narrow, or if there
are obstacles in front of the vehi-
cle, guidance will not be issued.
Parking is complete.
This completes the assist mode.
Depending on the condition of the parking space, guidance to st arting
points for moving forward and backing up, as well as the steeri ng wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary following from the time the vehicle begins backing up unt il park-
ing completes.
How to park next to other vehicles (perpendicular parking assis t
mode)
