2023 TOYOTA C-HR Owners Manual

7678-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
Fuel
Fuel type
When you find these types of fuel label at
the gas station, use only the fuel with one of
the following labels.

EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity
(Reference)43 L (11.4 gal., 9.5 lmp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output
2ZR-FXE engine
53 kW
M20A-FXS engine
80 kW
Maximum torque
2ZR-FXE engine
163 N·m (16.6 kgf·m, 120.2 ft·lbf)
M20A-FXS engine
202 N·m (20.6 kgf·m, 149 ft·lbf)

7688-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland)
2ZR-FXE engine (for Guadelope, Martinique, F. Guiana and Greenl and)
and M20A-FXS engine:
■Oil capacity (Drain and refill ― reference*)
*: The engine oil capacity is a reference quantity to be used whe n changing
the engine oil. Warm up the engine and turn off the hybrid syst em, wait
more than 5 minutes, and check the oil level on the dipstick.
Hybrid battery (traction battery)
Voltage3.7 V/cell
Capacity3.6 Ah (3HR)
Quantity56 cells
Nominal voltage207.2 V
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity
2ZR-FXE engine
28 modules
M20A-FXS engine
30 modules
Nominal voltage
2ZR-FXE engine
201.6 V
M20A-FXS engine
216 V
Lubrication system
With filter
2ZR-FXE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
M20A-FXS engine
4.3 L (4.5 qt., 3.8 Imp. qt.)
Without filter3.9 L (4.1 qt., 3.4 Imp.qt.)

7698-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications

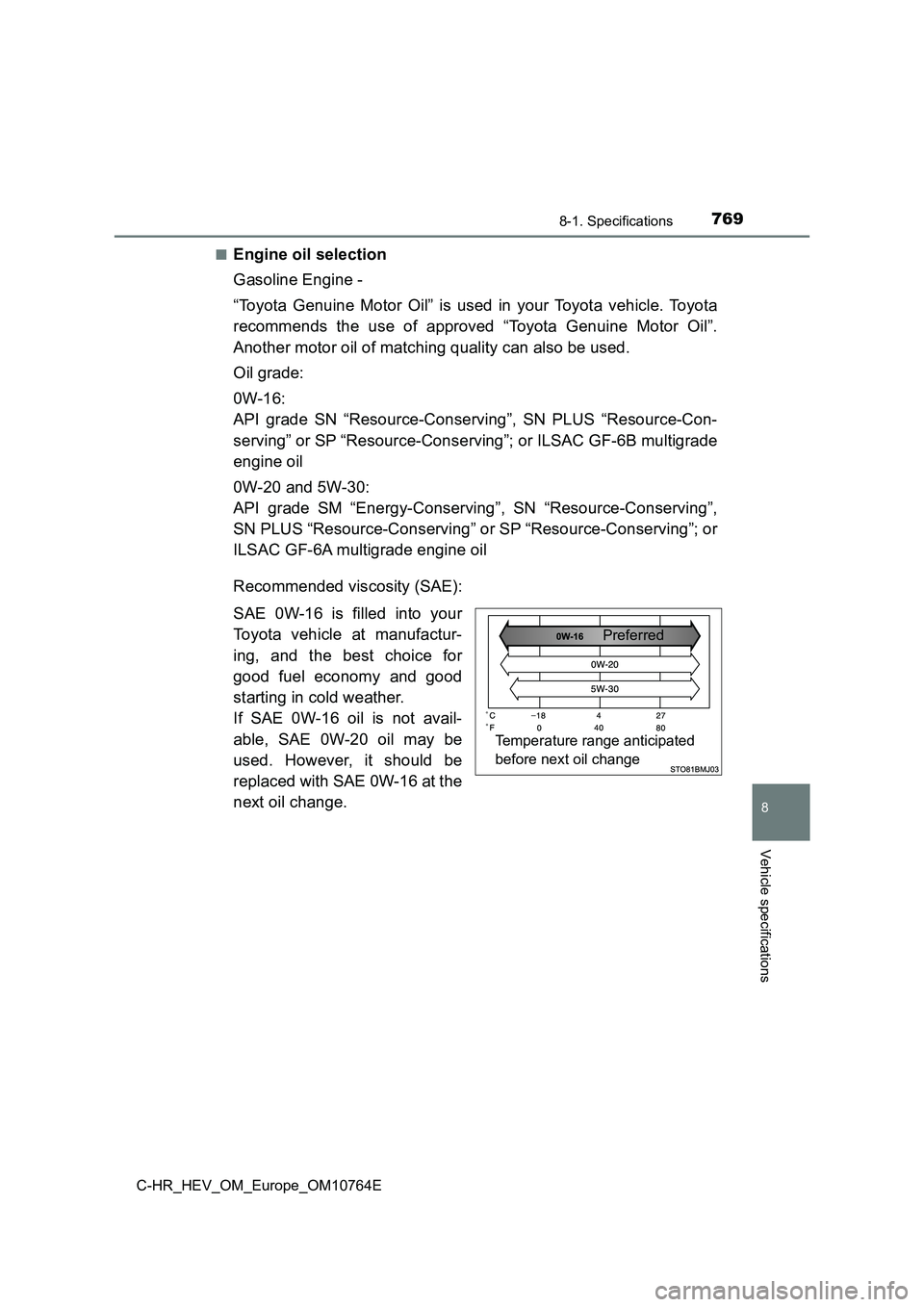

■Engine oil selection
Gasoline Engine -
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyo ta
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Con-
serving” or SP “Resource-Conserving”; or ILSAC GF-6B multigrade
engine oil
0W-20 and 5W-30:
API grade SM “Energy-Conserving”, SN “Resource-Conserving”,
SN PLUS “Resource-Conserving” or SP “Resource-Conserving”; or
ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-16 oil is not avail-
able, SAE 0W-20 oil may be
used. However, it should be
replaced with SAE 0W-16 at the
next oil change.
Temperature range anticipated
before next oil change
Preferred

7708-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
Oil viscosity (0W-16 is explained here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher visco sity
(one with a higher value) may be better suited if the vehicle i s
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil conta in-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SP”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-16”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
displayed on the front of the
container.

7718-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Cooling system
Capacity*
Gasoline
engine
2ZR-FXE engine
5.4 L (5.7 qt., 4.7 Imp.qt.)
M20A-FXS engine
5.9 L (6.2 qt., 5.2 Imp.qt.)
Power
control unit
2ZR-FXE engine
1.4 L (1.5 qt., 1.3 Imp.qt.)
M20A-FXS engine
1.6 L (1.7 qt., 1.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make
2ZR-FXE engine
DENSO FC16HR-CY9
M20A-FXS engine
DENSO FC16HR-Q8
Gap
2ZR-FXE engine
0.9 mm (0.035 in.)
M20A-FXS engine
0.8 mm (0.031 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark pl ug gap.

7728-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Electrical system (12-volt battery)
Battery
Specific voltage reading at
20 C (68F):
Specific gravity reading at
20 C (68F):
12.0 V or higher
(Turn the power switch to OFF and turn
on the high beam headlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the battery.
1.25 or higher
If the specific gravity is lower than the
standard value, charge the battery.
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Transmission
Fluid capacity*
2ZR-FXE engine
3.6 L (3.8 qt., 3.2 Imp.qt.)
M20A-FXS engine
3.8 L (4.0 qt., 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.

7738-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications

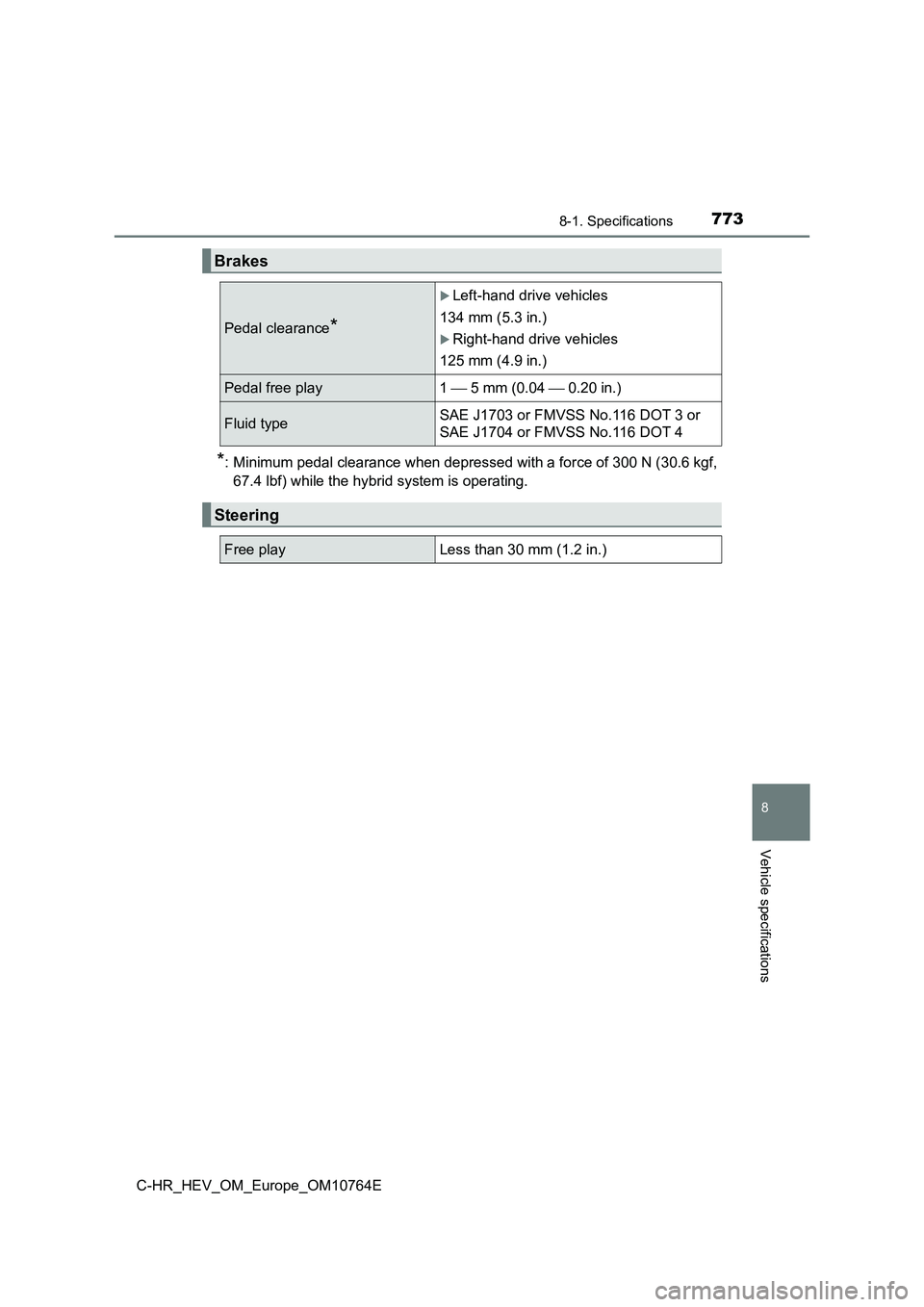

*: Minimum pedal clearance when depressed with a force of 300 N (30.6 kgf,
67.4 lbf) while the hybrid system is operating.
Brakes
Pedal clearance*
Left-hand drive vehicles
134 mm (5.3 in.)
Right-hand drive vehicles
125 mm (4.9 in.)
Pedal free play 1  5 mm (0.04  0.20 in.)
Fluid type SAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

7748-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
17-inch tires
18-inch tires
Tires and wheels
Tire size215/60R17 96H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)Rear
Spare
Wheel size17  6 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size225/50R18 95V
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size18  7J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
