2023 TOYOTA C-HR Owners Manual

2633-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

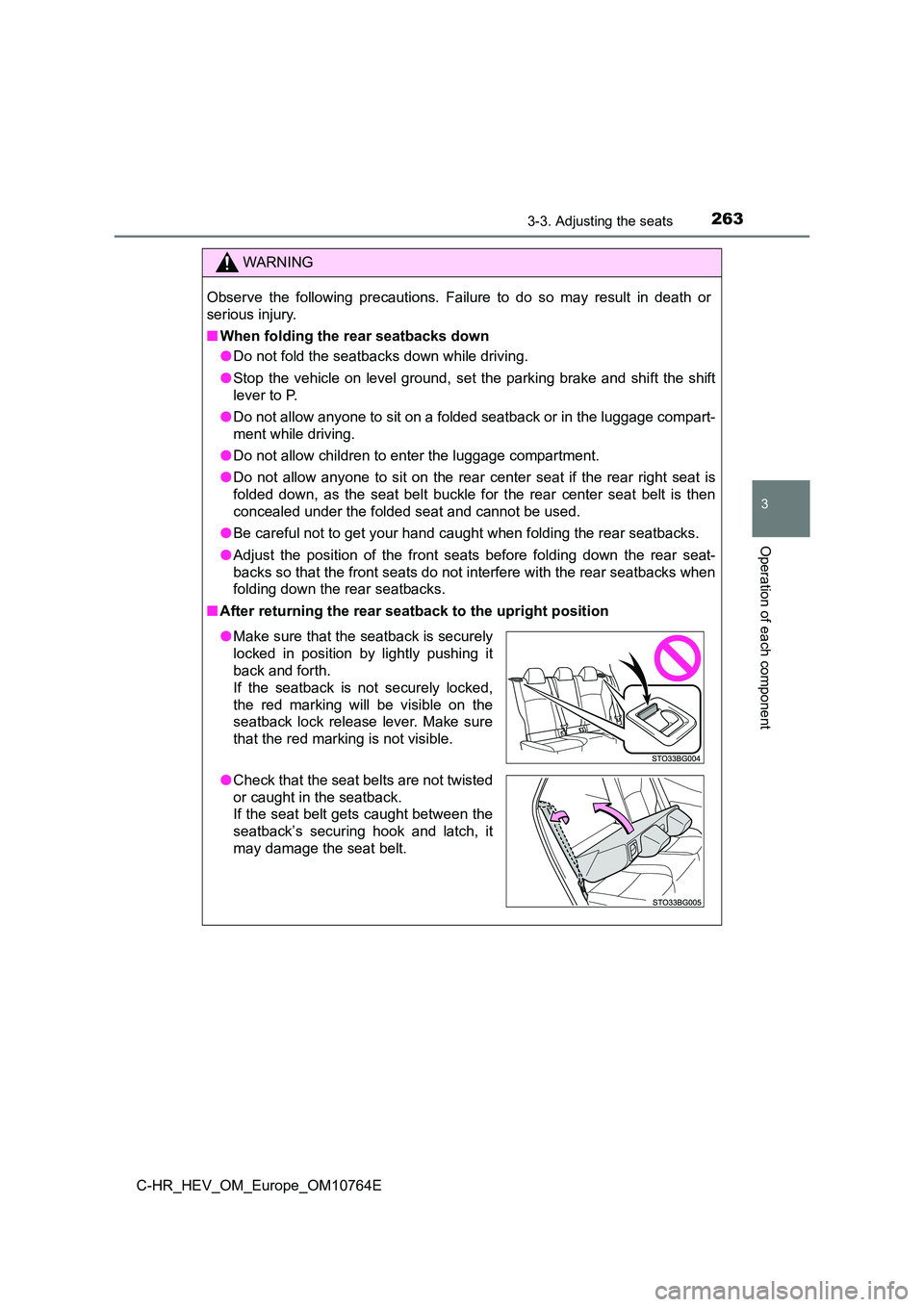

WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat b elt is then
concealed under the folded seat and cannot be used.
● Be careful not to get your hand caught when folding the rear seatbacks.
● Adjust the position of the front seats before folding down the rear seat-
backs so that the front seats do not interfere with the rear se atbacks when
folding down the rear seatbacks.
■ After returning the rear seatback to the upright position
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
● Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback’s securing hook and latch, it
may damage the seat belt.

2643-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E

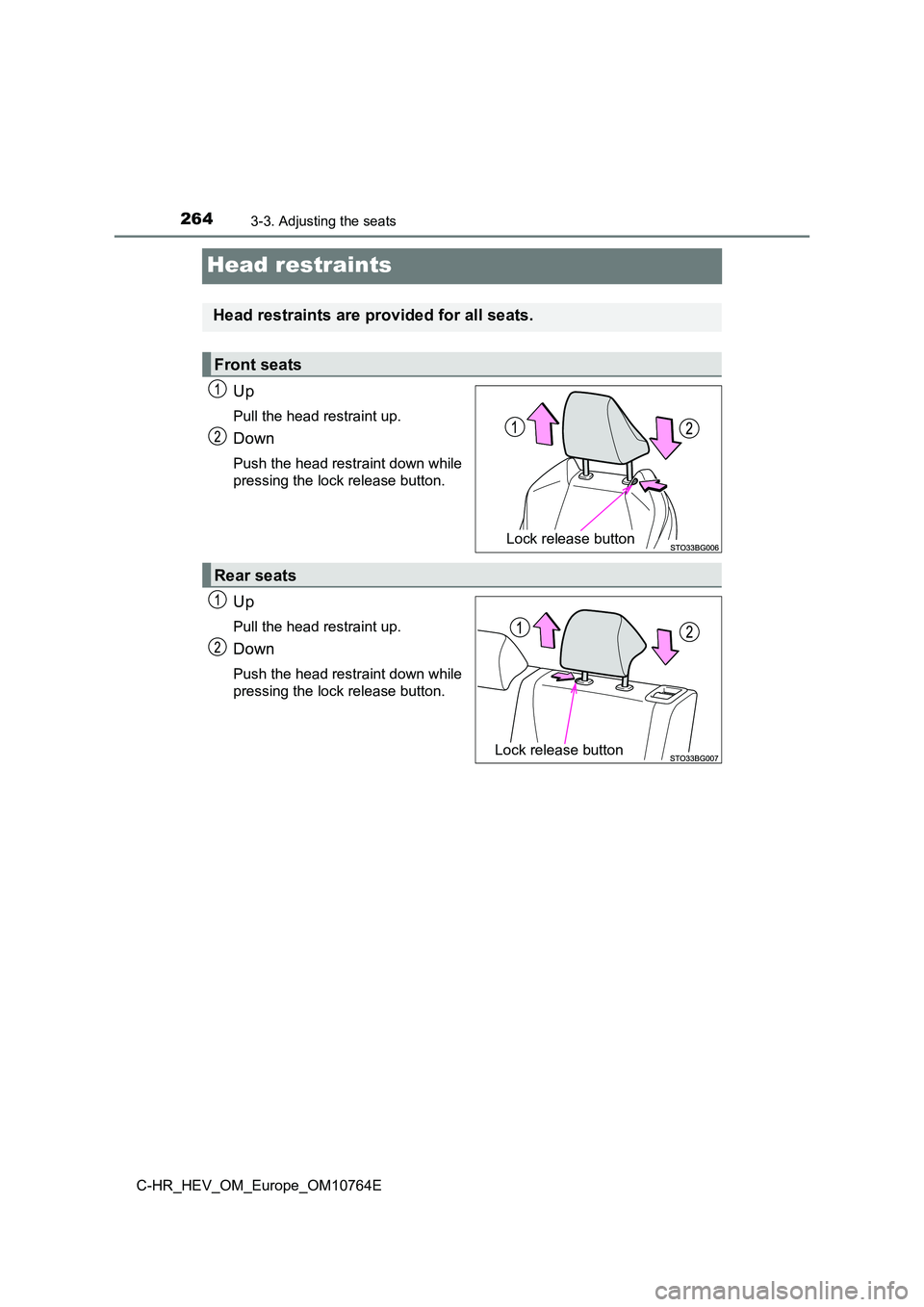

Head restraints
Up
Pull the head restraint up.
Down
Push the head restraint down while
pressing the lock release button.
Up
Pull the head restraint up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front seats
Lock release button
Rear seats
Lock release button

2653-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

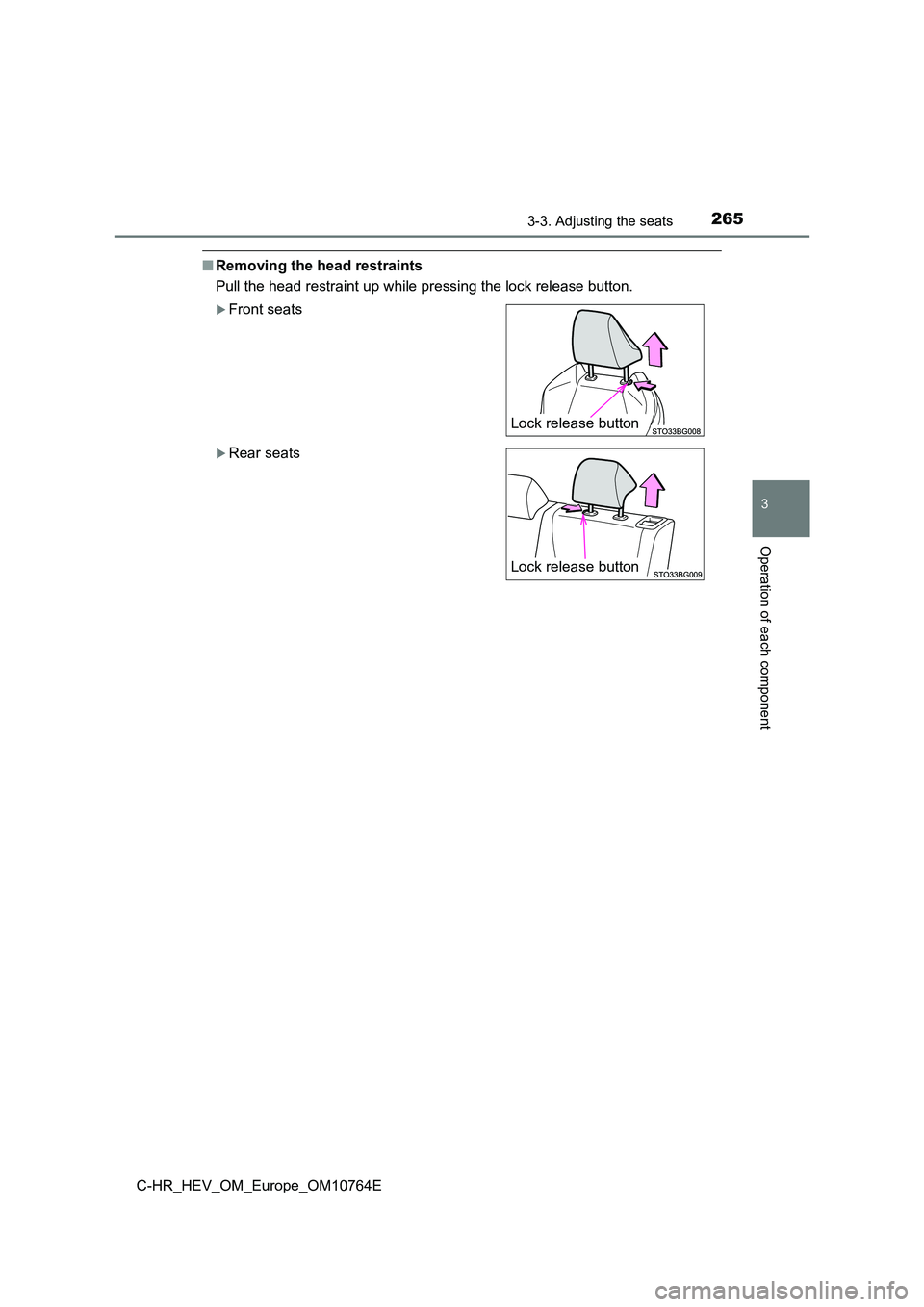

■Removing the head restraints
Pull the head restraint up while pressing the lock release butt on.
Front seats
Rear seats
Lock release button
Lock release button

2663-3. Adjusting the seats
C-HR_HEV_OM_Europe_OM10764E
■ Installing the head restraints
Align the head restraint with the installation holes and push i t down to the lock
position.
Press and hold the lock release button when lowering the head r estraint.
■ Adjusting the height of the front seat head restraints
■ Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed posit ion when
using.
Front seats
Rear seats
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button

2673-3. Adjusting the seats
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E

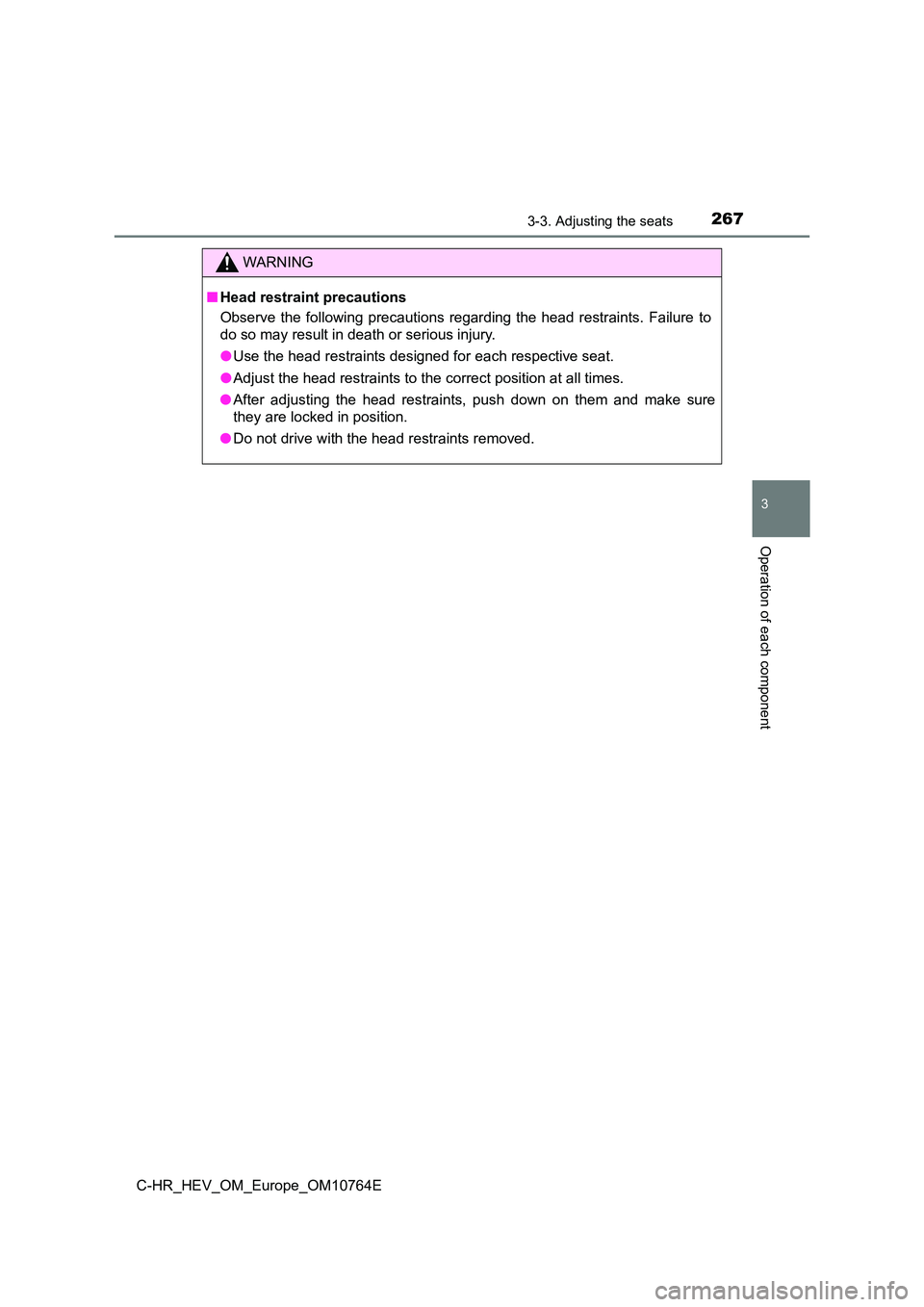

WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints . Failure to
do so may result in death or serious injury.
● Use the head restraints designed for each respective seat.
● Adjust the head restraints to the correct position at all times.
● After adjusting the head restraints, push down on them and make sure
they are locked in position.
● Do not drive with the head restraints removed.

2683-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn

2693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely lo cked.
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and caus e an acci-
dent, resulting in death or serious injury.
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causi ng an
accident, resulting in death or serious injury. Also, the horn may not sound if
the steering wheel is not securely locked.

2703-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be r educed
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi -
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
