3274-2. Driving procedures
4
Driving
C-HR_HEV_OM_Europe_OM10764E

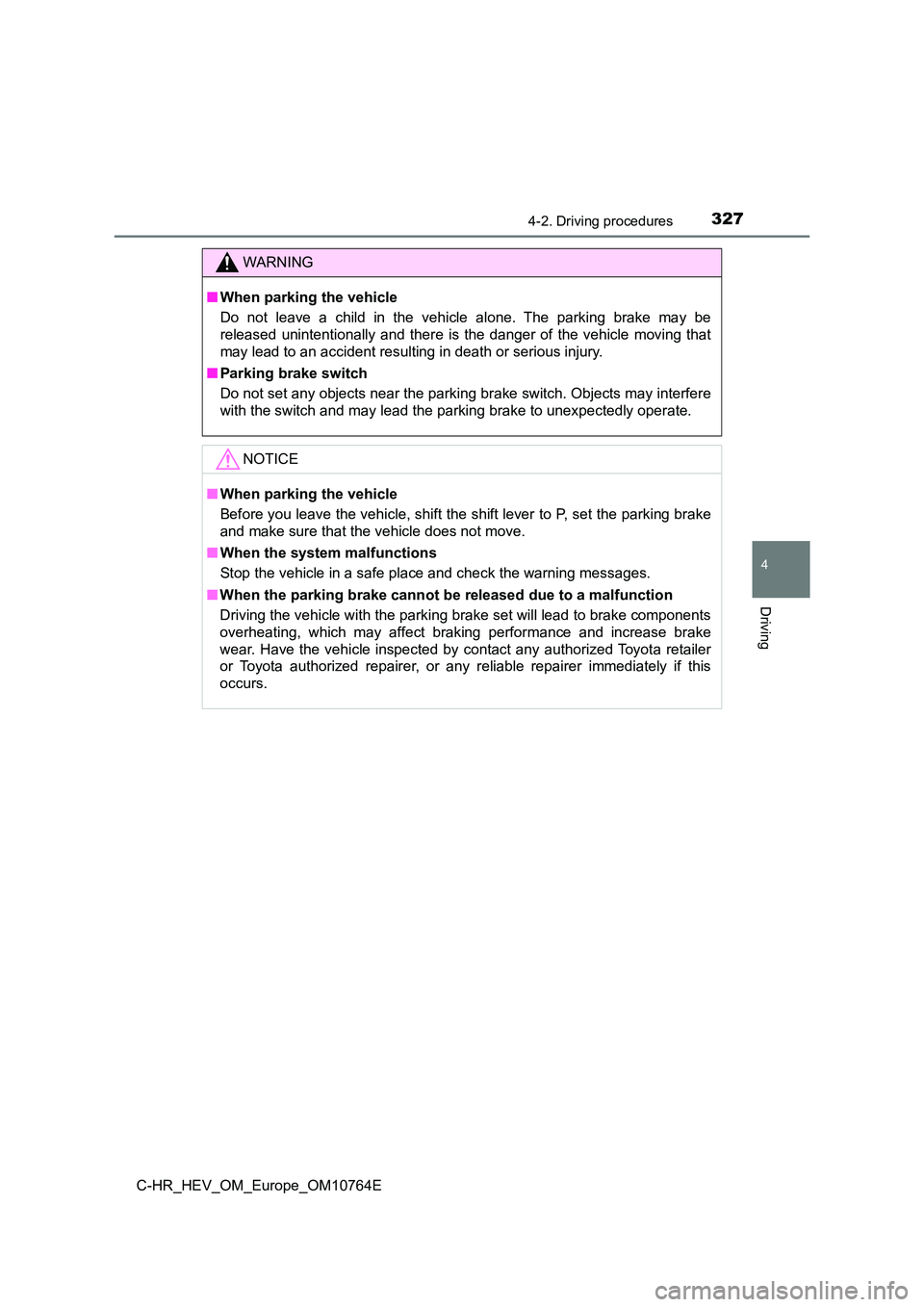

WARNING
■When parking the vehicle
Do not leave a child in the vehicle alone. The parking brake ma y be
released unintentionally and there is the danger of the vehicle moving that
may lead to an accident resulting in death or serious injury.
■ Parking brake switch
Do not set any objects near the parking brake switch. Objects m ay interfere
with the switch and may lead the parking brake to unexpectedly operate.
NOTICE
■When parking the vehicle
Before you leave the vehicle, shift the shift lever to P, set t he parking brake
and make sure that the vehicle does not move.
■ When the system malfunctions
Stop the vehicle in a safe place and check the warning messages .
■ When the parking brake cannot be released due to a malfunction
Driving the vehicle with the parking brake set will lead to bra ke components
overheating, which may affect braking performance and increase brake
wear. Have the vehicle inspected by contact any authorized Toyo ta retailer
or Toyota authorized repairer, or any reliable repairer immedia tely if this
occurs.

3284-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E
Brake Hold
Turns the brake hold system on
The brake hold standby indicator
(green) comes on. While the sys-
tem is holding the brake, the brake
hold operated indicator (yellow)
comes on.
■ Brake hold system operating conditions
The brake hold system cannot be turned on in the following cond itions:
● The driver’s door is not closed.
● The driver is not wearing the seat belt.
If any of the conditions above are detected when the brake hold system is
enabled, the system will turn off and the brake hold standby in dicator light will
go off. In addition, if any of the conditions are detected whil e the system is
holding the brake, a warning buzzer will sound and a message wi ll be shown
on the multi-information display. The parking brake will then b e set automati-
cally.
The brake hold system keeps the brake applied when the shift
lever in D, S (M20A-FXS engine) or N with the system on and the
brake pedal has been depressed to stop the vehicle. The system
releases the brake when the accelerator pedal is depressed with
the shift lever in D or S (M20A-FXS engine) to allow smooth sta rt
off.

3294-2. Driving procedures
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■ Brake hold function
● If the brake pedal is left released for a period of about 3 minutes after the
system has started holding the brake, the parking brake will be set automat-
ically. In this case, a warning buzzer sounds and a message is shown on the
multi-information display.
● To turn the system off while the system is holding the brake, firmly depress
the brake pedal and press the button again.
● The brake hold function may not hold the vehicle when the vehicle is on a
steep incline. In this situation, it may be necessary for the d river to apply the
brakes. A warning buzzer will sound and the multi-information d isplay will
inform the driver of this situation. If a warning message is sh own on the
multi-information display, read the message and follow the inst ructions.
■ When the parking brake is set automatically while the system is holding
the brakes
Perform any of the following operations to release the parking brake.
● Depress the accelerator pedal. (The parking brake will not be released auto-
matically if the seat belt is not fastened.)
● Operate the parking brake switch with the brake pedal depressed. Make
sure that the parking brake indicator light goes off. ( P. 323)
■ When an inspection at your Toyota dealer is necessary
When the brake hold standby indicator (green) does not illumina te even when
the brake hold switch is pressed with the brake hold system ope rating condi-
tions met, the system may be malfunctioning. Have the vehicle i nspected at
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer.
■ If “Brake Hold Fault Depress Brake to Deactivate Visit Your Dealer” is
displayed on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by contact
any authorized Toyota retailer or Toyota authorized repairer, o r any reliable
repairer immediately.
■ Warning messages and buzzers
Warning messages and buzzers are used to indicate a system malf unction or
to inform the driver of the need for caution. If a warning mess age is shown on
the multi-information display, read the message and follow the instructions.
■ If the brake hold operated indicator flashes
 P. 683

3304-2. Driving procedures
C-HR_HEV_OM_Europe_OM10764E

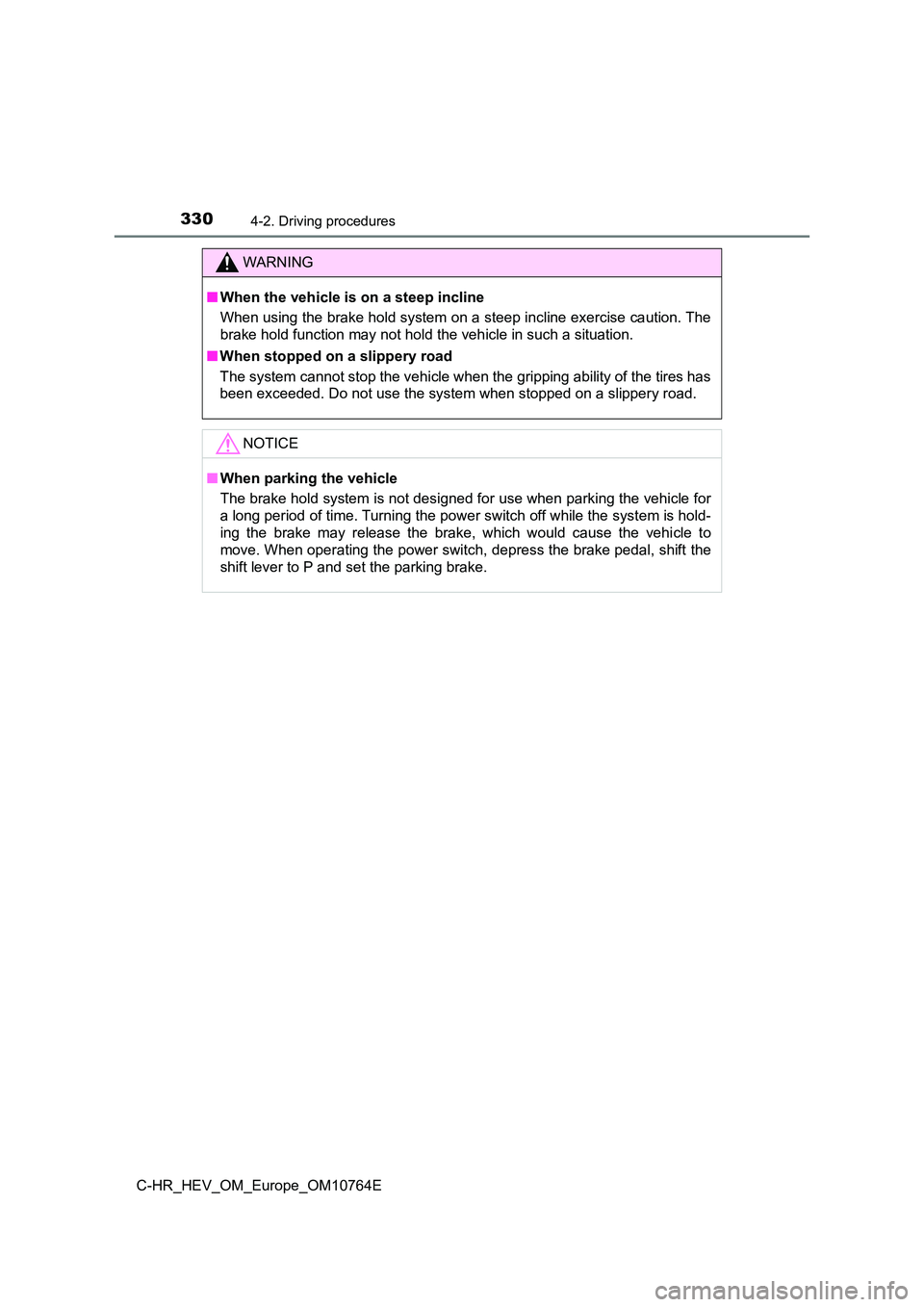

WARNING
■When the vehicle is on a steep incline
When using the brake hold system on a steep incline exercise ca ution. The
brake hold function may not hold the vehicle in such a situatio n.
■ When stopped on a slippery road
The system cannot stop the vehicle when the gripping ability of the tires has
been exceeded. Do not use the system when stopped on a slippery road.
NOTICE
■When parking the vehicle
The brake hold system is not designed for use when parking the vehicle for
a long period of time. Turning the power switch off while the s ystem is hold-
ing the brake may release the brake, which would cause the vehi cle to
move. When operating the power switch, depress the brake pedal, shift the
shift lever to P and set the parking brake.

331
4
4-3. Operating the lights and wipers
Driving
C-HR_HEV_OM_Europe_OM10764E
Headlight switch
Operating the switch turns on the lights as follows:
The headlights, daytime
running lights ( P. 3 3 4 )
and all the lights listed
below turn on and off
automatically.
(When the power switch
is in ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The headlights can be operated manually or automatically.
Operating instructions

3324-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
This system allows the headlights to be turned on for 30 second s
when the power switch is off.
Pull the lever toward you and
release it with the light switch is in
after turning the power
switch off.
The lights are turned off in the fol-
lowing situations.
• The power switch is turned to
ON mode.
• The light switch is turned on.
• The light switch is pulled toward you and then released.
Turning on the high beam headlights
Extended headlight lighting system

3334-3. Operating the lights and wipers
4
Driving
C-HR_HEV_OM_Europe_OM10764E
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
AFS (Adaptive Front-lighting System) secures excellent visibili ty at
intersections and on curves by automatically adjusting the dire ction of
the light axis of the headlights according to vehicle speed and the
degree of the tire’s angle as controlled by steering input.
AFS operates at speeds of 10 km/h (6 mph) or higher.
Manual headlight leveling dial (if equipped)
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
DriverNone0
Driver and front passengerNone0
All seats occupiedNone1.5
All seats occupiedFull luggage loading2
DriverFull luggage loading3.5
AFS (Adaptive Front-lighting System) (if equipped)

3344-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
■Daytime running light system
To make your vehicle more visible to other drivers during dayti me driving, the
daytime running lights turn on automatically whenever the hybri d system is
started and the parking brake is released with the headlight sw itch in .
(Illuminate brighter than the front position lights.) Daytime r unning lights are
not designed for use at night.
■ Headlight control sensor
■ Automatic light off system
● When the light switch is in or : The headlights and front fog
lights (if equipped) turn off automatically if the power switch is turned off.
● When the light switch is in : All lights turn off automatically if the power
switch is turned off.
To turn the lights on again, turn the power switch to ON mode, or turn the light
switch to once and then back to or .
■ Light reminder buzzer
A buzzer sounds and a message appears when the power switch is turned off
or turned to ACCESSORY mode and the driver’s door is opened whi le the
lights are turned on.
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the
windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
