2023 TOYOTA C-HR Owners Manual

1111-3. Emergency assistance
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

1121-3. Emergency assistance
C-HR_HEV_OM_Europe_OM10764E

1131-3. Emergency assistance
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

1141-3. Emergency assistance
C-HR_HEV_OM_Europe_OM10764E

1151-3. Emergency assistance
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

1161-3. Emergency assistance
C-HR_HEV_OM_Europe_OM10764E

117
1
1-4. Hybrid system
For safety and security
C-HR_HEV_OM_Europe_OM10764E

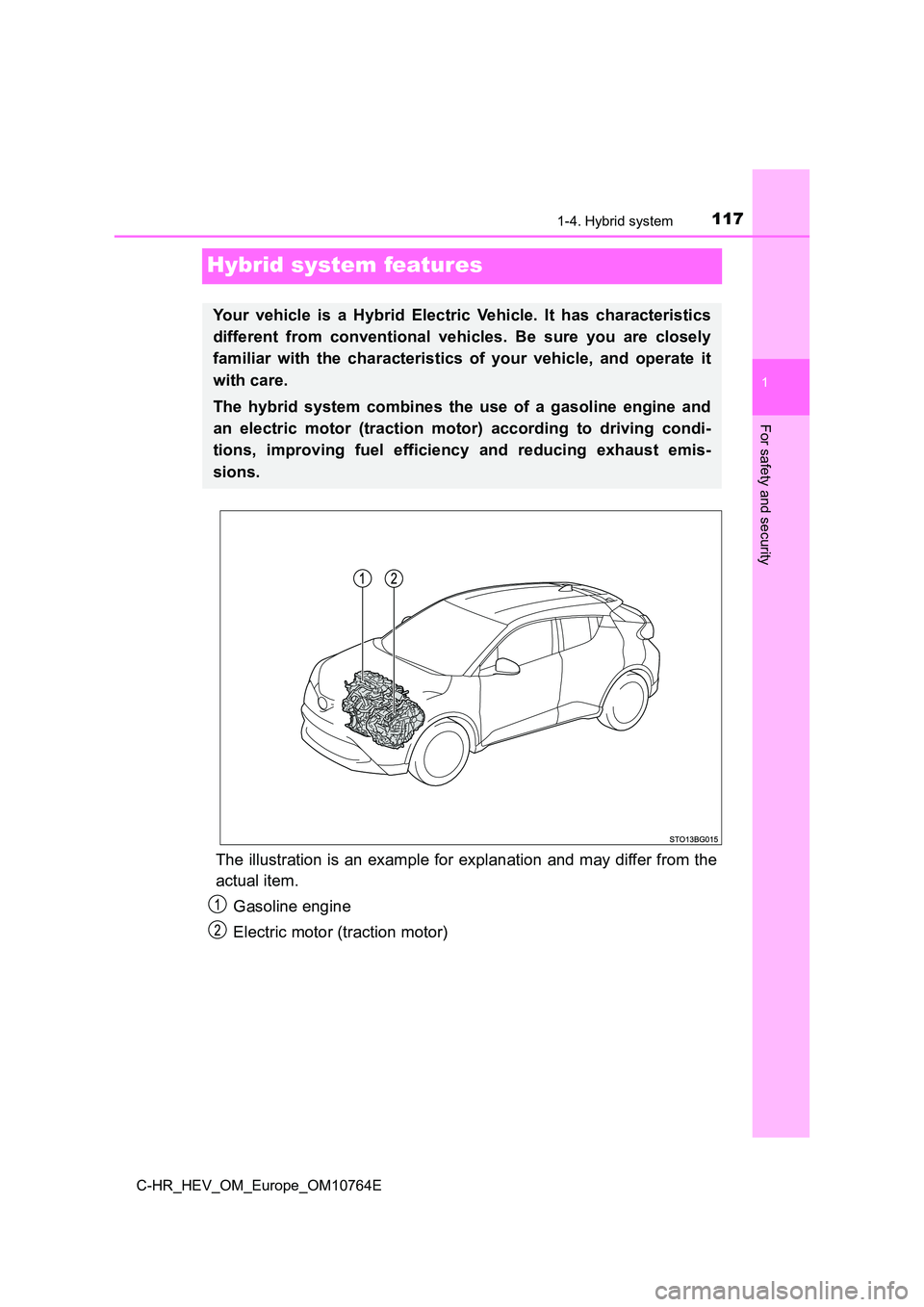

Hybrid system features
The illustration is an example for explanation and may differ from the
actual item.
Gasoline engine
Electric motor (traction motor)
Your vehicle is a Hybrid Electric Vehicle. It has characteristi cs
different from conventional vehicles. Be sure you are closely
familiar with the characteristics of your vehicle, and operate it
with care.
The hybrid system combines the use of a gasoline engine and
an electric motor (traction motor) according to driving condi-
tions, improving fuel efficiency and reducing exhaust emis-
sions.

1181-4. Hybrid system
C-HR_HEV_OM_Europe_OM10764E
◆When stopped/during start off
The gasoline engine stops* when the vehicle is stopped. During
start off, the electric motor (traction motor) drives the vehic le. At
slow speeds or when traveling down a gentle slope, the engine i s
stopped* and the electric motor (traction motor) is used.
When shift lever is in N, the hybrid battery (traction battery) is not
being charged.
*: When the hybrid battery (traction battery) requires charging o r the engine
is warming up, etc., the gasoline engine will not automatically stop.
( P. 1 1 9 )
◆During normal driving
The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery (traction battery) as nec-
essary.
◆When accelerating sharply
When the accelerator pedal is depressed heavily, the power of t he
hybrid battery (traction battery) is added to that of the gasol ine
engine via the electric motor (traction motor).
◆When braking (regenerative braking)
The wheels operate the electric motor (traction motor) as a pow er
generator, and the hybrid battery (traction battery) is charged .
When driving with the gasoline engine stopped, a sound, which
changes in accordance with the driving speed, will be played in order
to warn people nearby of the vehicle’s approach. The sound will stop
when the vehicle speed exceeds approximately 25 km/h (15 mph).
Acoustic vehicle alerting system
