2023 TOYOTA C-HR Owners Manual

1431-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1441-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the veh icle and
ensure that all the doors are closed.
Using the entry function (if equipped):
Touch the sensor area on the front outside door handle twice wi thin 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling th e
door unlocking function from both the interior and exterior of
the vehicle.
Setting the double locking system

1451-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
Using the entry function (if equipped): Hold the front outside door han-
dle or press the back door opener button.
Using the wireless remote control: Press .
Canceling the double locking system
WARNING
■ Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the veh icle.

1461-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
Alar m
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door or back door is unlocked or opened in any way other
than using the entry function (if equipped) or wireless remote con-
trol. (The doors will lock again automatically.)
● The hood is opened.
● Vehicles with the intrusion sensor: The intrusion sensor detects
something moving inside the vehicle. (An intruder gets in the v ehi-
cle.)
● Vehicles with the glass breakage sensor: The back door window is
tapped or broken.
Close the doors and hood, and
lock all the doors using the entry
function (if equipped) or wireless
remote control. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

1471-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
Do one of the following to deactivate or stop the alarm.
● Unlock the doors using the entry function (if equipped) or wireless
remote control.
● Start the hybrid system. (The alarm will be deactivated or stopped
after a few seconds.)
■ System maintenance
The vehicle has a maintenance-free type alarm system.
■ Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft , make sure of
the following.
● Nobody is in the vehicle.
● The side windows are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1481-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
■ Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● The 12-volt battery is recharged or replaced when the vehicle is locked.
( P. 747)
2ZR-FXE engine
M20A-FXS engine
● The doors are unlocked using the
mechanical key.
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using an
inside lock button.

1491-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

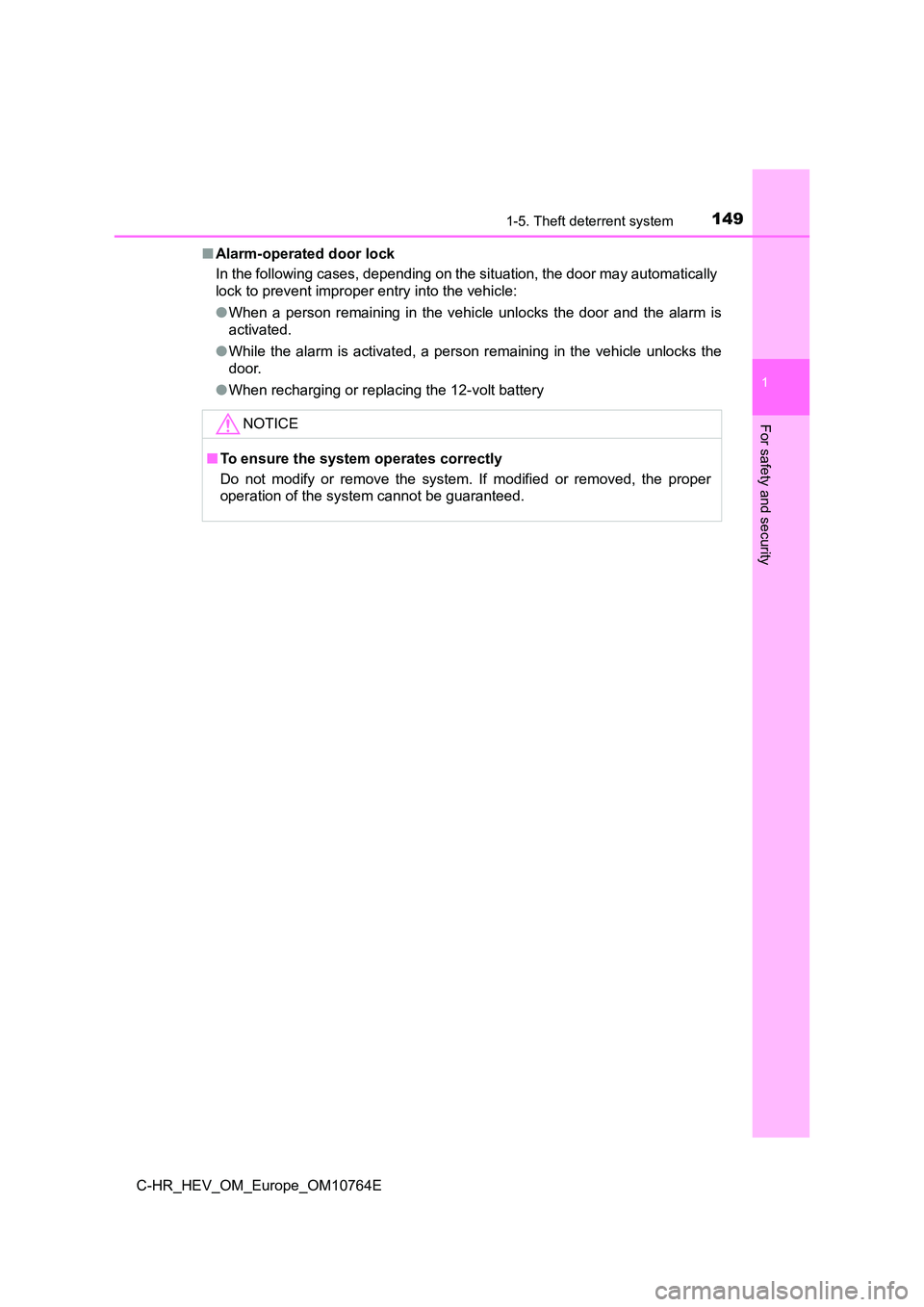

■ Alarm-operated door lock
In the following cases, depending on the situation, the door ma y automatically
lock to prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is
activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the
door.
● When recharging or replacing the 12-volt battery
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1501-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
■Setting the intrusion sensor
The intrusion sensor will be set automatically when the alarm i s set.
( P. 146)
■Canceling the intrusion sensor
If you are leaving pets or other moving things inside the vehic le,
make sure to disable the intrusion sensor before setting the al arm,
as it will respond to movement inside the vehicle.
Turn the power switch off.
Press the theft sensor off
switch.
A message will be shown on
the multi-information display.
The intrusion sensor will revert
to on each time the power
switch is turned to ON mode.
Intrusion sensor (if equipped)
1
2
