2023 TOYOTA C-HR Owners Manual

871-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

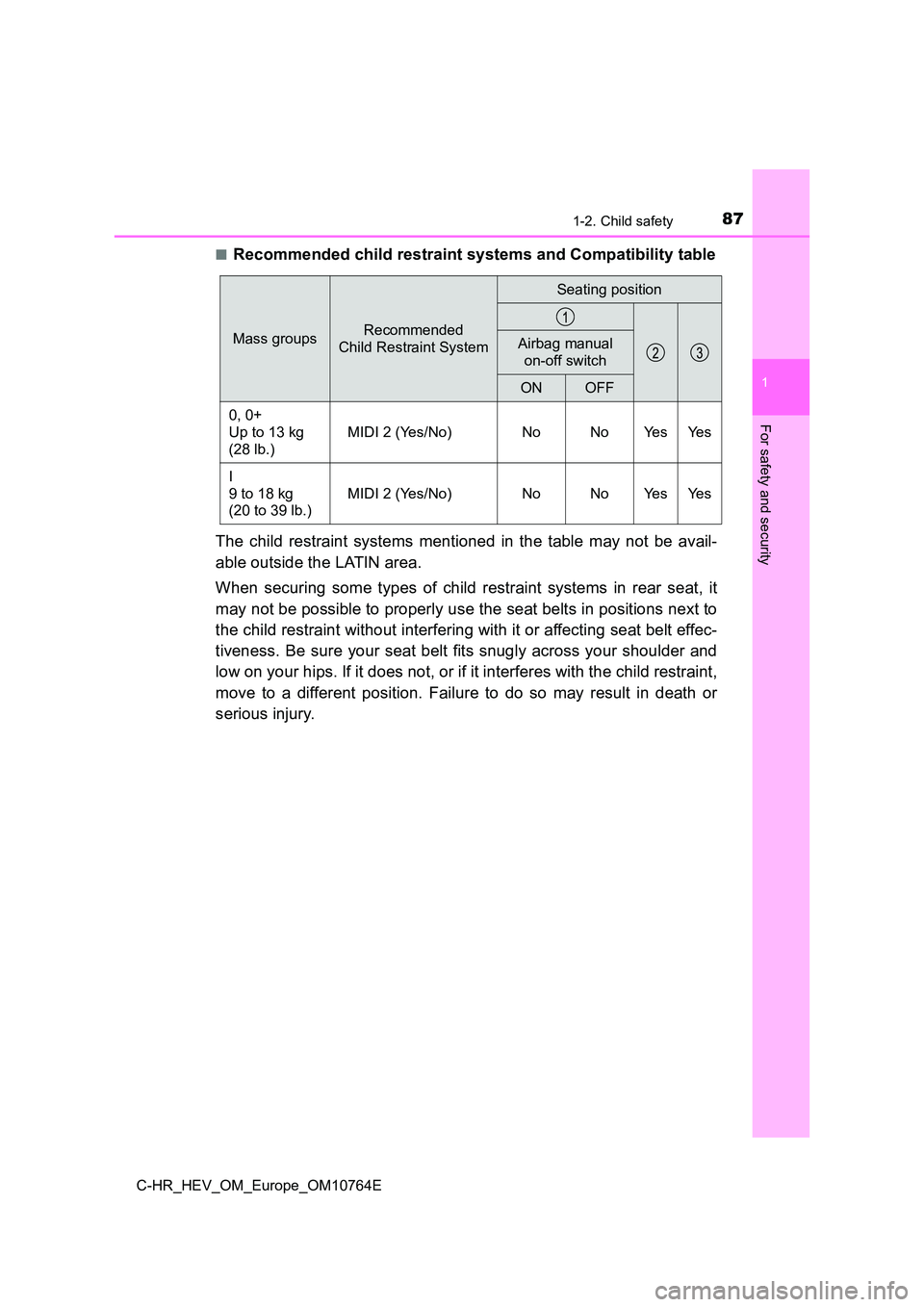

■Recommended child restraint systems and Compatibility table
The child restraint systems mentioned in the table may not be a vail-
able outside the LATIN area.
When securing some types of child restraint systems in rear sea t, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting se at belt effec-
tiveness. Be sure your seat belt fits snugly across your should er and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or
serious injury.
Mass groupsRecommended
Child Restraint System
Seating position
Airbag manual
on-off switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
MIDI 2 (Yes/No)NoNoYe sYe s
I
9 to 18 kg
(20 to 39 lb.)
MIDI 2 (Yes/No)NoNoYe sYe s

881-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

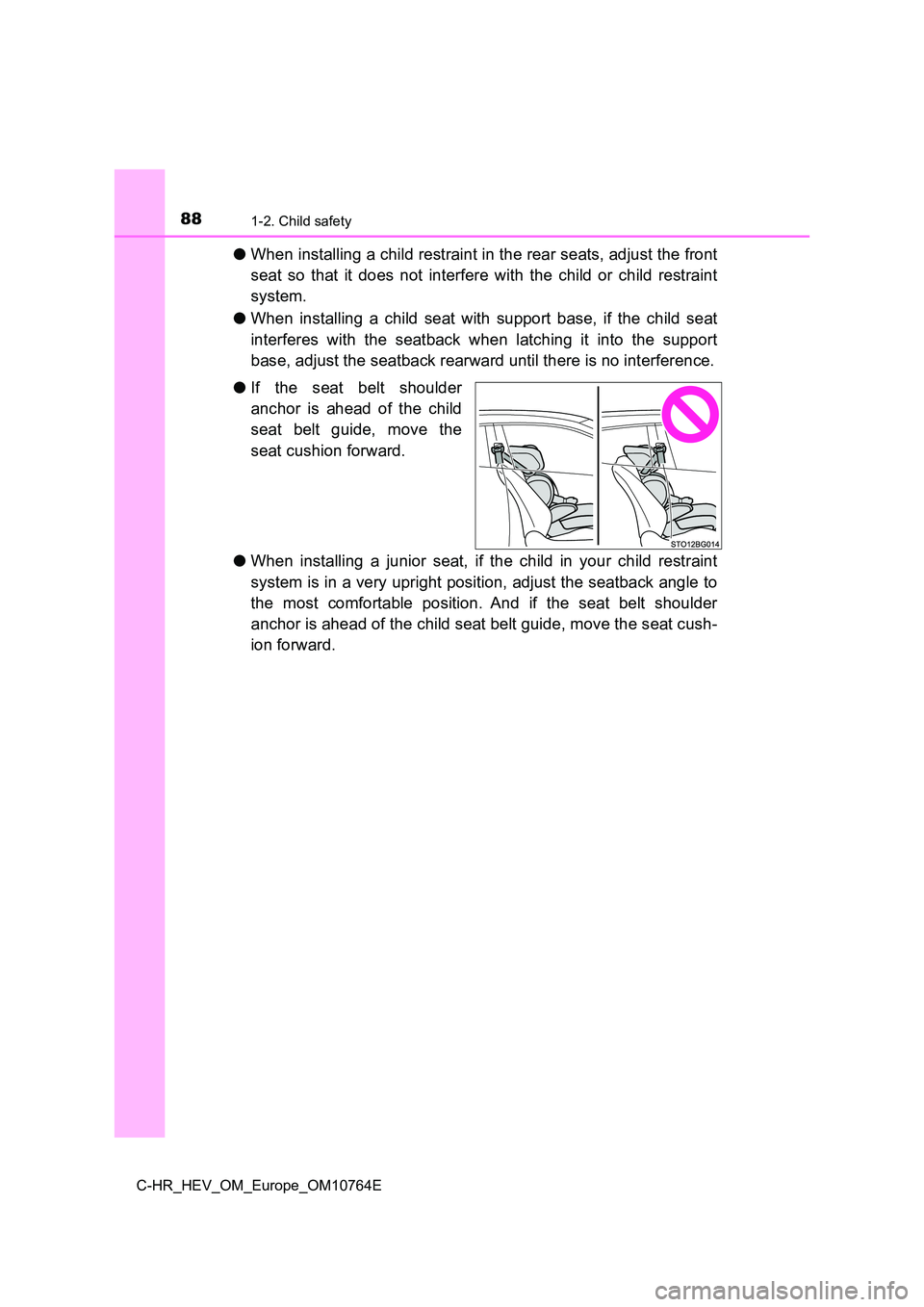

●When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.

891-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

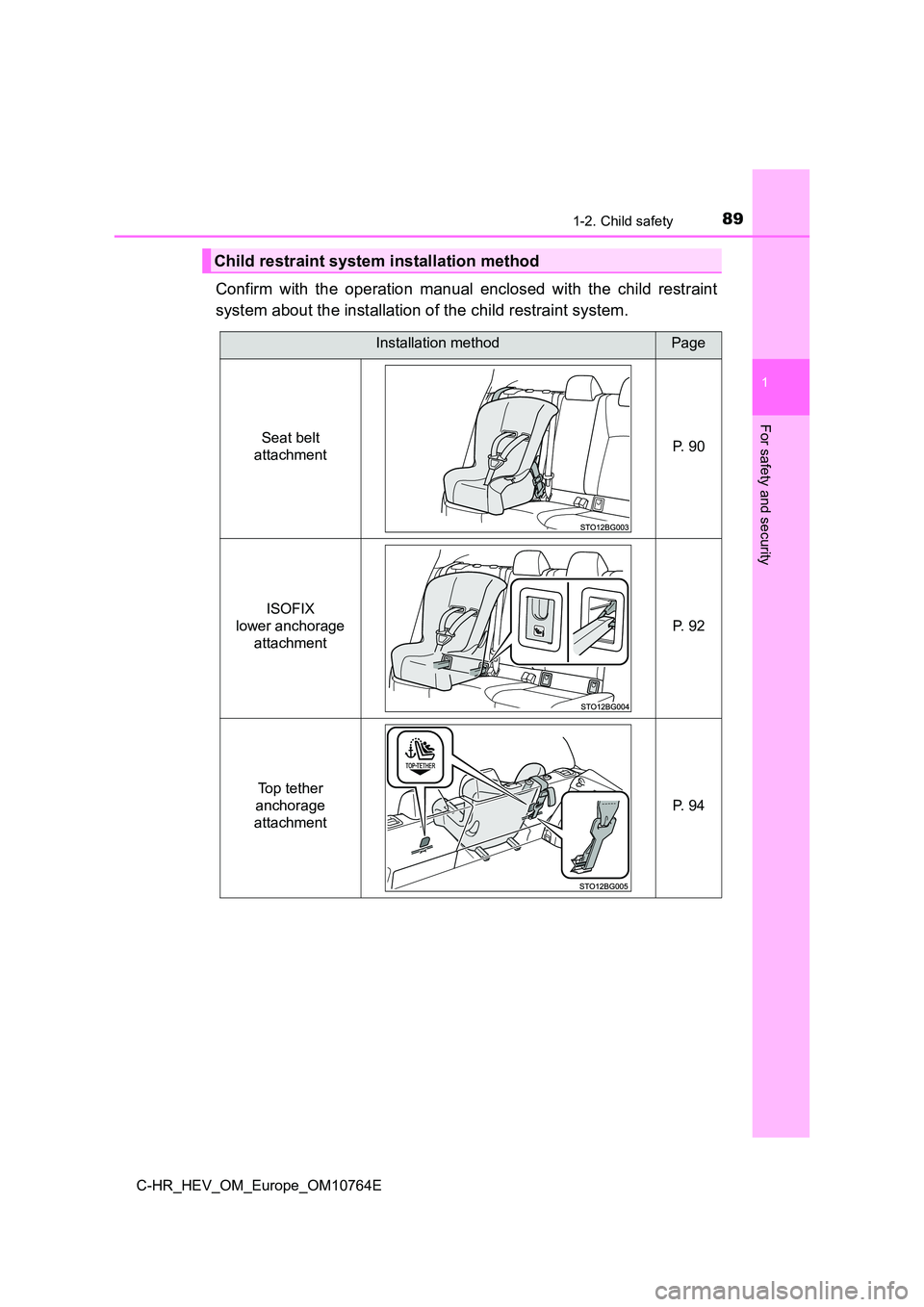

Confirm with the operation manual enclosed with the child restraint
system about the installation of the child restraint system.
Child restraint system installation method
Installation methodPage
Seat belt
attachment P. 90
ISOFIX
lower anchorage
attachment
P. 92
Top tether
anchorage
attachment
P. 94

901-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

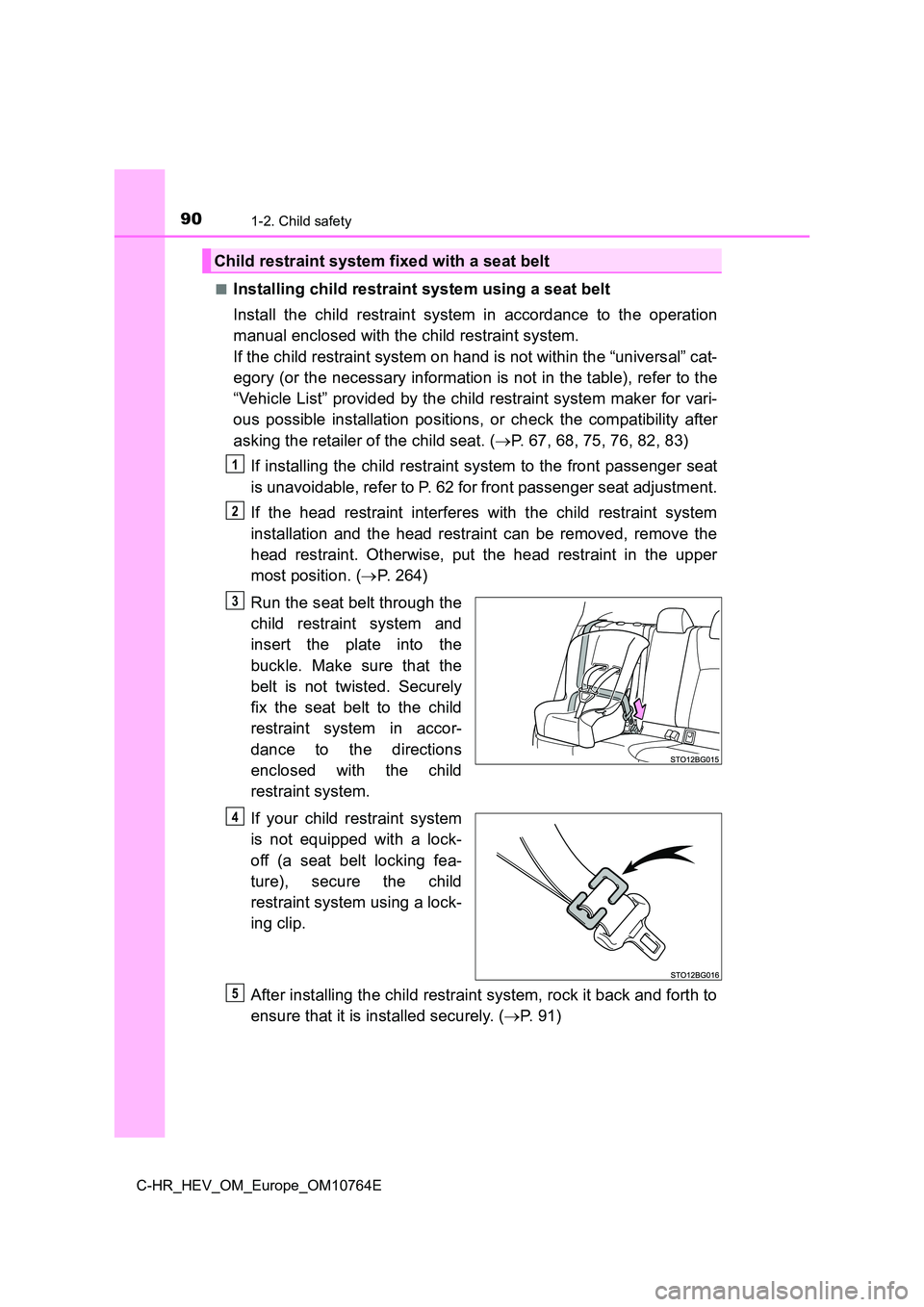

■Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “univer sal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. ( P. 67, 68, 75, 76, 82, 83)
If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 62 for front passenger seat adjustm ent.
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 264)
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted. Securely
fix the seat belt to the child
restraint system in accor-
dance to the directions
enclosed with the child
restraint system.
If your child restraint system
is not equipped with a lock-
off (a seat belt locking fea-
ture), secure the child
restraint system using a lock-
ing clip.
After installing the child restraint system, rock it back and f orth to
ensure that it is installed securely. ( P. 9 1 )
Child restraint system fixed with a seat belt
1
2
3
4
5

911-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

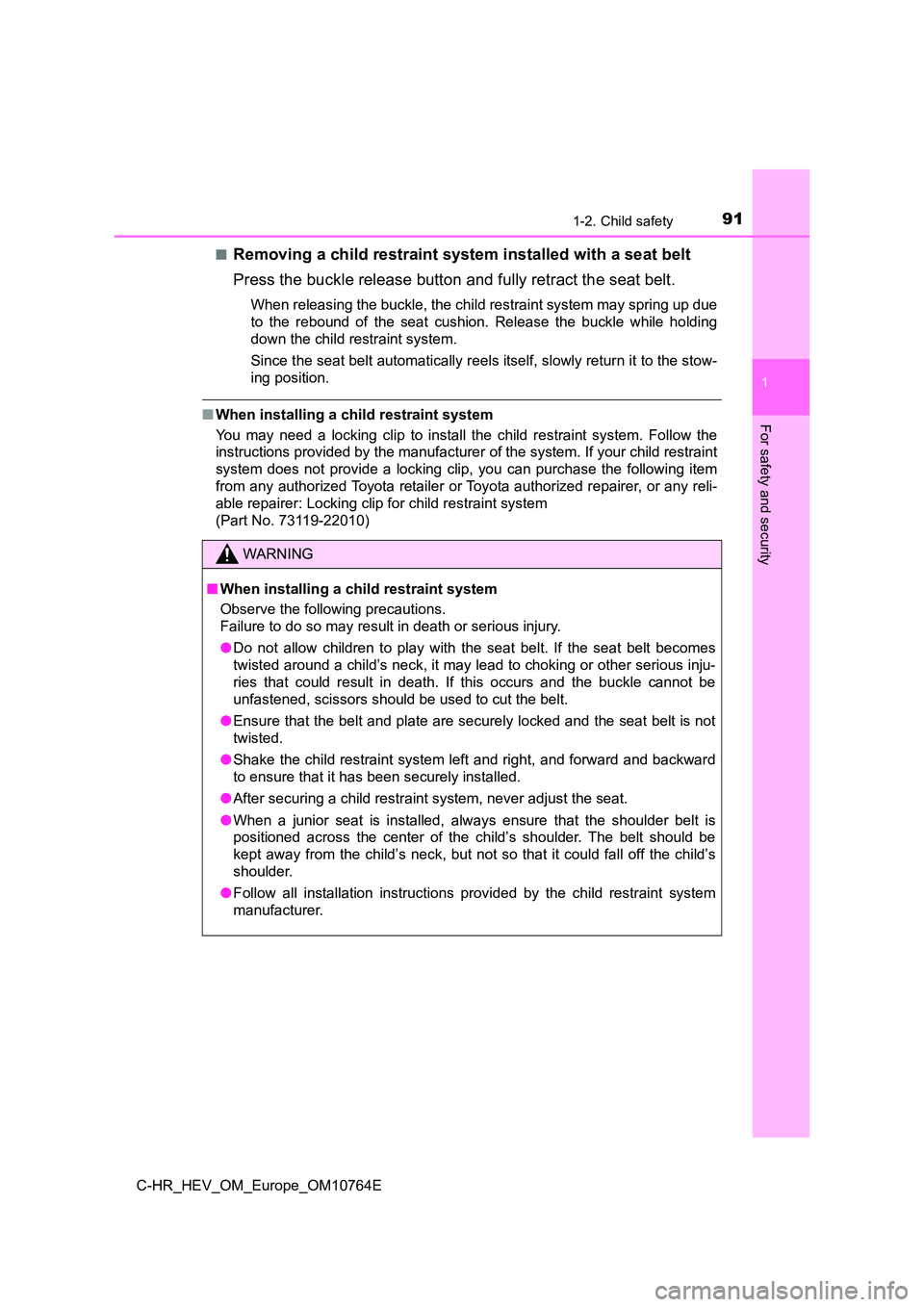

■Removing a child restraint system installed with a seat belt
Press the buckle release button and fully retract the seat belt .
When releasing the buckle, the child restraint system may spring up due
to the rebound of the seat cushion. Release the buckle while ho lding
down the child restraint system.
Since the seat belt automatically reels itself, slowly return i t to the stow-
ing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint syst em. Follow the
instructions provided by the manufacturer of the system. If you r child restraint
system does not provide a locking clip, you can purchase the fo llowing item
from any authorized Toyota retailer or Toyota authorized repair er, or any reli-
able repairer: Locking clip for child restraint system
(Part No. 73119-22010)
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death. If this occurs and the buckle cannot be
unfastened, scissors should be used to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Follow all installation instructions provided by the child restraint system
manufacturer.

921-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
■ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided
for the rear outboard seats.
(Marks displaying the location
of the anchorages are attached
to the seats.)
■Installation with ISOFIX lower anchorage (ISOFIX child
restraint system)
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
If the child restraint system on hand is not within the “univer sal” cat-
egory (or the necessary information is not in the table), refer to the
“Vehicle List” provided by the child restraint system maker for vari-
ous possible installation positions, or check the compatibility after
asking the retailer of the child seat. ( P. 67, 68, 75, 76, 82, 83)
If the head restraint interferes with the child restraint syste m
installation and the head restraint can be removed, remove the
head restraint. Otherwise, put the head restraint in the upper
most position. ( P. 264)
Remove the anchorage cov-
ers, and install the child
restraint system to the seat.
The bars are installed behind
the anchorage covers.
After installing the child restraint system, rock it back and f orth to
ensure that it is installed securely. ( P. 9 1 )
Child restraint system fixed with an ISOFIX lower anchorage
1
2
3

931-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

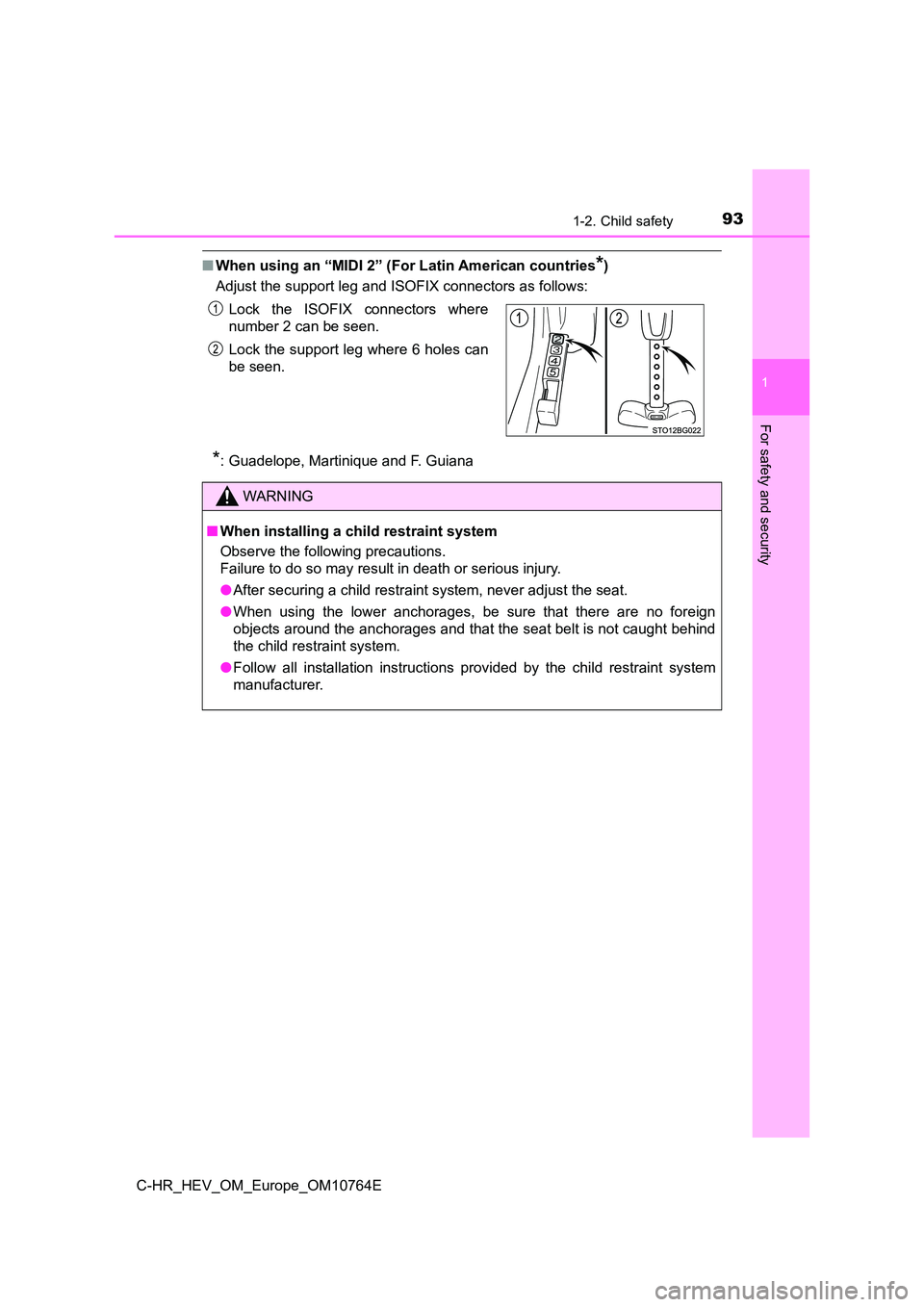

■When using an “MIDI 2” (For Latin American countries*)
Adjust the support leg and ISOFIX connectors as follows:
*: Guadelope, Martinique and F. Guiana
Lock the ISOFIX connectors where
number 2 can be seen.
Lock the support leg where 6 holes can
be seen.
WARNING
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchorages, be sure that there are no foreign
objects around the anchorages and that the seat belt is not cau ght behind
the child restraint system.
● Follow all installation instructions provided by the child restraint system
manufacturer.

941-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

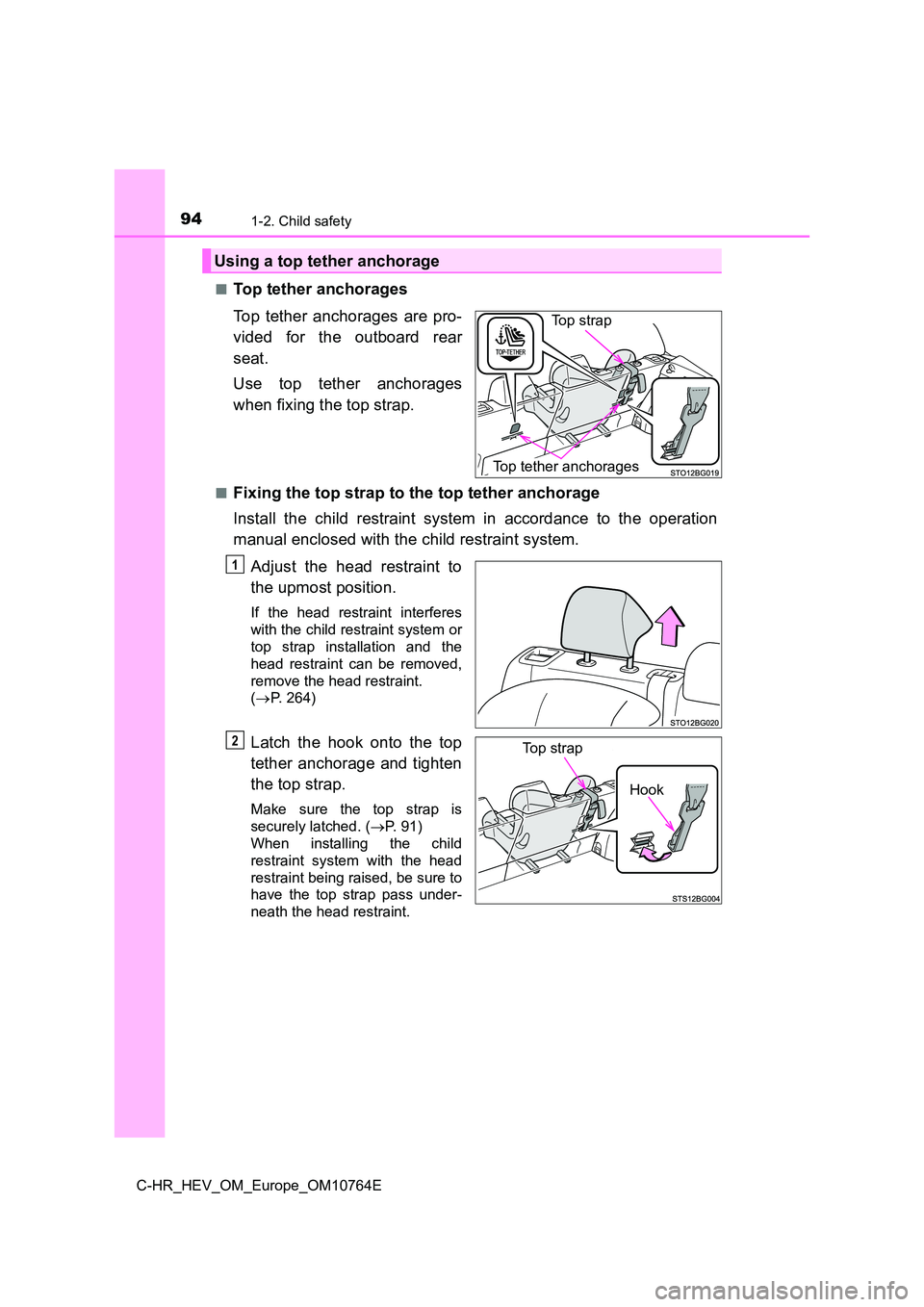

■Top tether anchorages
Top tether anchorages are pro-
vided for the outboard rear
seat.
Use top tether anchorages
when fixing the top strap.
■Fixing the top strap to the top tether anchorage
Install the child restraint system in accordance to the operati on
manual enclosed with the child restraint system.
Adjust the head restraint to
the upmost position.
If the head restraint interferes
with the child restraint system or
top strap installation and the
head restraint can be removed,
remove the head restraint.
( P. 264)
Latch the hook onto the top
tether anchorage and tighten
the top strap.
Make sure the top strap is
securely latched. ( P. 91)
When installing the child
restraint system with the head
restraint being raised, be sure to
have the top strap pass under-
neath the head restraint.
Using a top tether anchorage
Top tether anchorages
Top strap
1
Hook
Top strapO
