2023 TOYOTA C-HR Owners Manual

4234-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■ When the sensor may not be correctly detecting the vehicle ahead
In the case of the following and depending on the conditions, o perate the
brake pedal when deceleration of the system is insufficient or operate the
accelerator pedal when acceleration is required.
As the sensor may not be able to correctly detect these types o f vehicles, the
approach warning ( P. 418) may not be activated.
● Vehicles that cut in suddenly
● Vehicles traveling at low speeds
● Vehicles that are not moving in the same lane
● Vehicles with small rear ends (trailers with no load on board, etc.)
● Motorcycles traveling in the same lane
● When water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
● When your vehicle is pointing upwards
(caused by a heavy load in the luggage
compartment, etc.)
● Preceding vehicle has an extremely high
ground clearance

4244-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■ Conditions under which the vehicle-to-vehicle distance control mode
may not function correctly
In the case of the following conditions, operate the brake peda l (or accelera-
tor pedal, depending on the situation) as necessary.
As the sensor may not be able to correctly detect vehicles ahea d, the system
may not operate properly.
● When the vehicle ahead of you decelerates suddenly
● When driving on a road surrounded by a structure, such as in a tunnel or on
a bridge
● While the vehicle speed is decreasing to the set speed after the vehicle
accelerates by depressing the accelerator pedal
● When the road curves or when the lanes
are narrow
● When steering wheel operation or your
position in the lane is unstable

425
4
4-5. Using the driving support systems
Driving
C-HR_HEV_OM_Europe_OM10764E

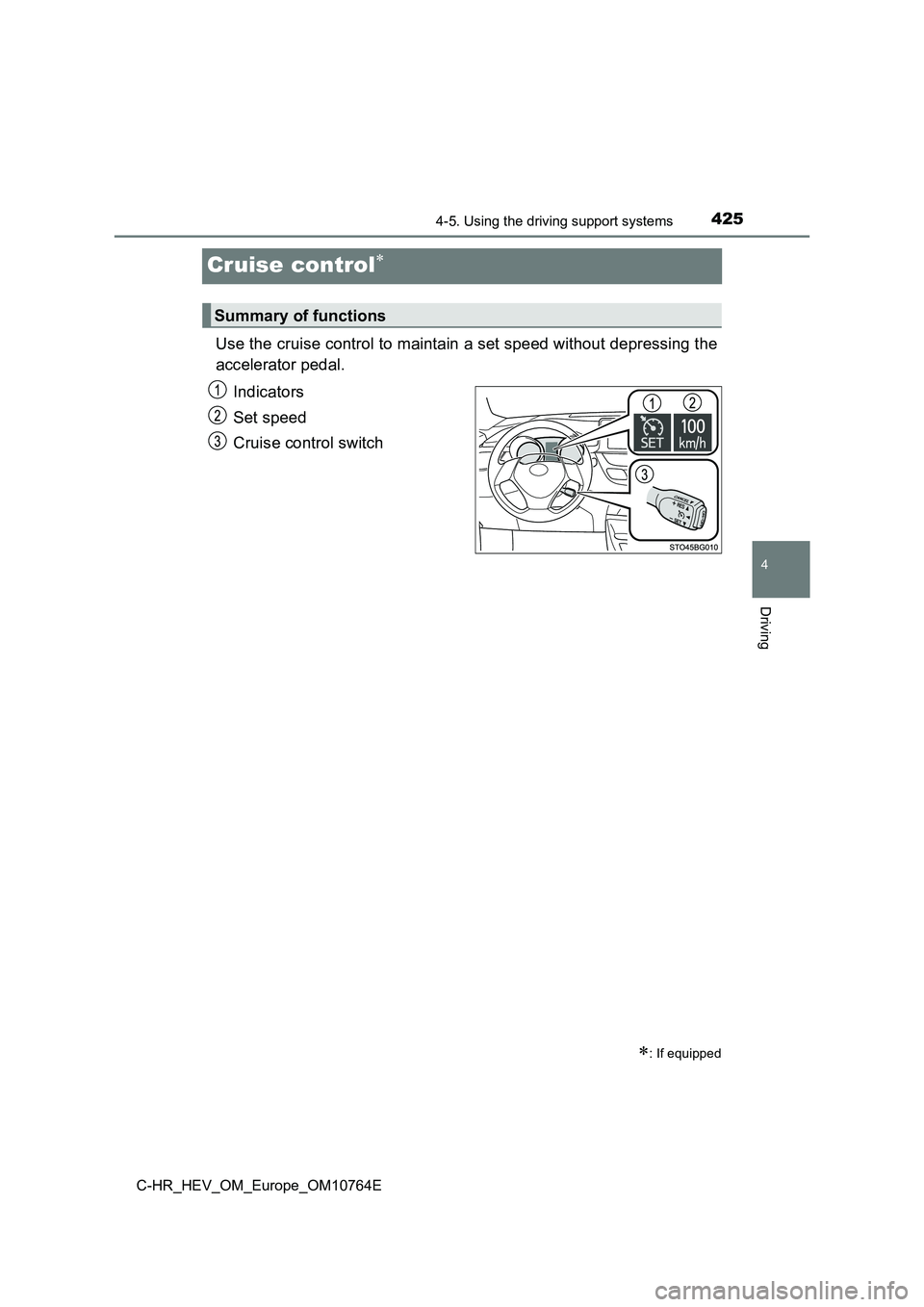

Cruise control
Use the cruise control to maintain a set speed without depressing the
accelerator pedal.
Indicators
Set speed
Cruise control switch
: If equipped
Summary of functions

4264-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will be dis-
played on the multi-information dis-
play.
Press the button again to deacti-
vate the cruise control.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed
(above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator and
set speed will be displayed on the
multi-information display.
The vehicle speed at the moment the lever is released becomes t he set
speed.
Setting the vehicle speed
1
2

4274-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
To change the set speed, operate the lever until the desired set speed
is obtained.
Increases the speed
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever
in the desired direction.
The set speed will be increased or
decreased as follows:
Fine adjustment: By approximately 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2
each time the lever is operated
Large adjustment: The set speed can be increased or decreased c ontinu-
ally until the lever is released.
*1: When the set speed is shown in “km/h”
*2: When the set speed is shown in “MPH”
Pulling the lever toward you
cancels the constant speed
control.
The speed setting is also canceled
when the brake pedal is
depressed.
Pushing the lever up resumes
the constant speed control.
However, resuming is available when the vehicle speed is more t han
approximately 30 km/h (20 mph).
Adjusting the set speed
Canceling and resuming the constant speed control

4284-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■Cruise control can be set when
● The shift lever is in D.
● Vehicle speed is above approximately 30 km/h (20 mph).
■ Accelerating after setting the vehicle speed
● The vehicle can be accelerated by operating accelerator pedal. After accel-
erating, the set speed resumes.
● Even without canceling the cruise control, the set speed can be increased
by first accelerating the vehicle to the desired speed and then pushing the
lever down to set the new speed.
■ Automatic cruise control cancelation
Cruise control is automatically canceled in any of the followin g situations.
● Actual vehicle speed falls more than approximately 16 km/h (10 mph) below
the set speed.
At this time, the memorized set speed is not retained.
● Actual vehicle speed is below approximately 30 km/h (20 mph).
● VSC is activated.
● TRC is activated for a period of time.
● When the VSC or TRC system is turned off by pressing the VSC off switch.
● Speed limiter is activated. (if equipped)
■ If “Check Cruise Control System Visit Your Dealer” is displayed on the
multi-information display
Press the “ON-OFF” button once to deactivate the system, and th en press the
button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise cont rol cancels immedi-
ately after being activated, there may be a malfunction in the cruise control sys-
tem. Have the vehicle inspected by any authorized Toyota retail er or Toyota
authorized repairer, or any reliable repairer.

4294-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

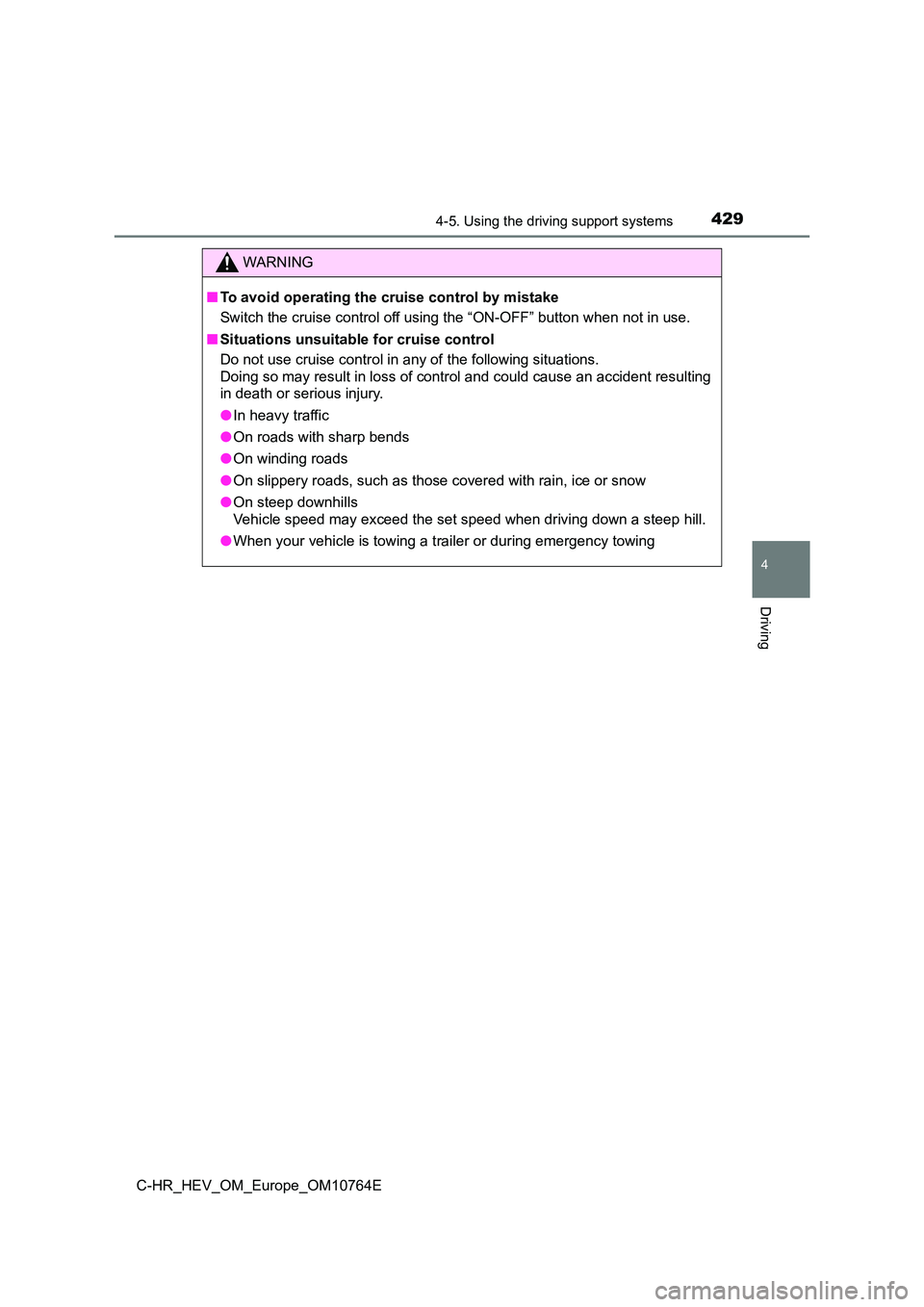

WARNING
■To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when no t in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accid ent resulting
in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On winding roads
● On slippery roads, such as those covered with rain, ice or snow
● On steep downhills
Vehicle speed may exceed the set speed when driving down a stee p hill.
● When your vehicle is towing a trailer or during emergency towing

4304-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Driving mode select
■Changing the driving mode
To select the drive mode, perform operations on the multi-infor mation
display.
Press “ ” or “” of the meter control switches and select .
Press “ ” or “” of the meter control switches, and select “Drive
Mode”.
Press “ ” or “” of the meter control switches, and select drive
mode.
■Driving modes
● “NORMAL” mode
Provides an optimal balance of fuel economy, quietness, and
dynamic performance. Suitable for city driving.
● “SPORT” mode
Controls the hybrid system to provide quick, smooth and quick
acceleration. This mode also changes the steering feel, making it
suitable for when agile driving response is desired, such as wh en
driving on roads with many curves.
When sport mode is selected, the “SPORT” indicator will illuminate
on the multi-information display.
In response to driving conditions, one of 3 drive modes can be
selected.
Select the drive mode
1
2
3
