2023 TOYOTA C-HR Owners Manual

6636-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care

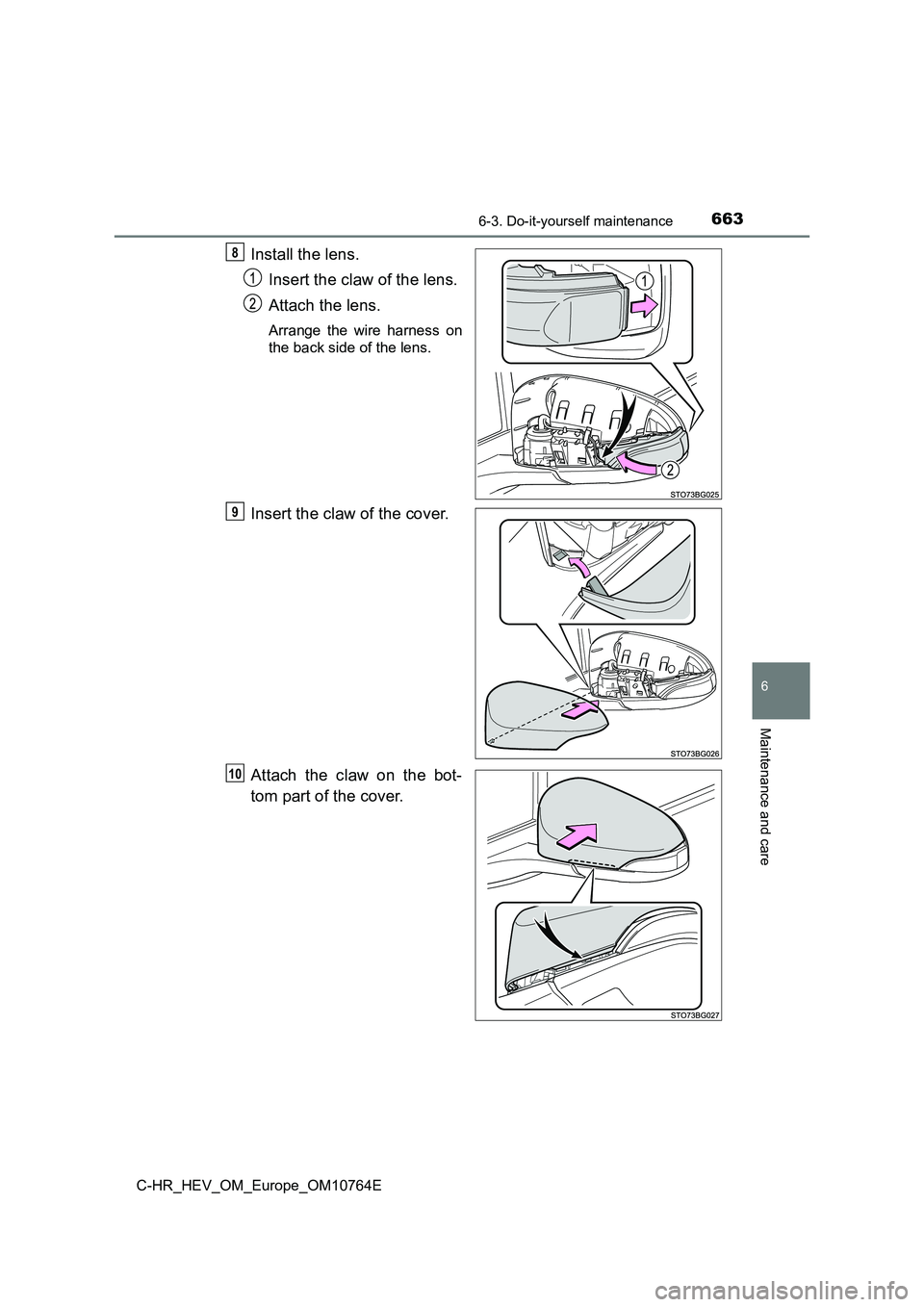

Install the lens.
Insert the claw of the lens.
Attach the lens.
Arrange the wire harness on
the back side of the lens.
Insert the claw of the cover.
Attach the claw on the bot-
tom part of the cover.
8
9
10

6646-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
Attach the cover claws span-
ning over the entire perime-
ter.
Finally, confirm that the outside
claw is securely fitted.
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replac ed by
any authorized Toyota retailer or Toyota authorized repairer, o r any
reliable repairer.
● Headlights
● Front position lights/daytime running lights
● Front turn signal lights (vehicles with LED type)
● Front fog lights (vehicles with LED type)
● Stop/tail lights (vehicles with LED type)
● Rear turn signal lights (vehicles with LED type)
● Back-up lights (vehicles with LED type)
● Rear fog light (vehicles with LED type)
● High mounted stoplight
● Outer mirror illumination (if equipped)
11

6656-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care
■LED light bulbs
The following lights consist of a number of LEDs. If any of the LEDs burn out,
take your vehicle to any authorized Toyota retailer or Toyota a uthorized
repairer, or any r eliable repairer.
● Headlights
● Front position lights/daytime running lights
● Front turn signal lights (vehicles with LED type)
● Front fog lights (vehicles with LED type)
● Stop/tail lights (vehicles with LED type)
● Rear turn signal lights (vehicles with LED type)
● Back-up lights (vehicles with LED type)
● Rear fog light (vehicles with LED type)
● High mounted stoplight
● Outer mirror illumination (if equipped)
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer for more information in the following situati ons:
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
 P. 650

6666-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or c rack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

667
7When trouble arises
C-HR_HEV_OM_Europe_OM10764E
7-1. Essential information
Emergency flashers ........... 668
If your vehicle has to be
stopped in
an emergency .................. 669
If the vehicle is submerged
or water on the road is
rising ................................ 670
7-2. Steps to
take in an emergency
If your vehicle needs to be
towed ............................... 672
If you think
something is wrong.......... 678
If a warning light turns on or
a warning buzzer
sounds ............................. 679
If a warning message is
displayed ......................... 690
If you have a flat tire
(vehicles with an
emergency tire puncture
repair kit).......................... 697
If you have a flat tire
(vehicles with a
spare tire) ........................ 727
If the hybrid system will not
start.................................. 742
If the electronic key does
not operate properly ........ 744
If the 12-volt battery is
discharged ....................... 747
If your vehicle overheats .... 755
If the vehicle becomes
stuck ................................ 760

6687-1. Essential information
C-HR_HEV_OM_Europe_OM10764E

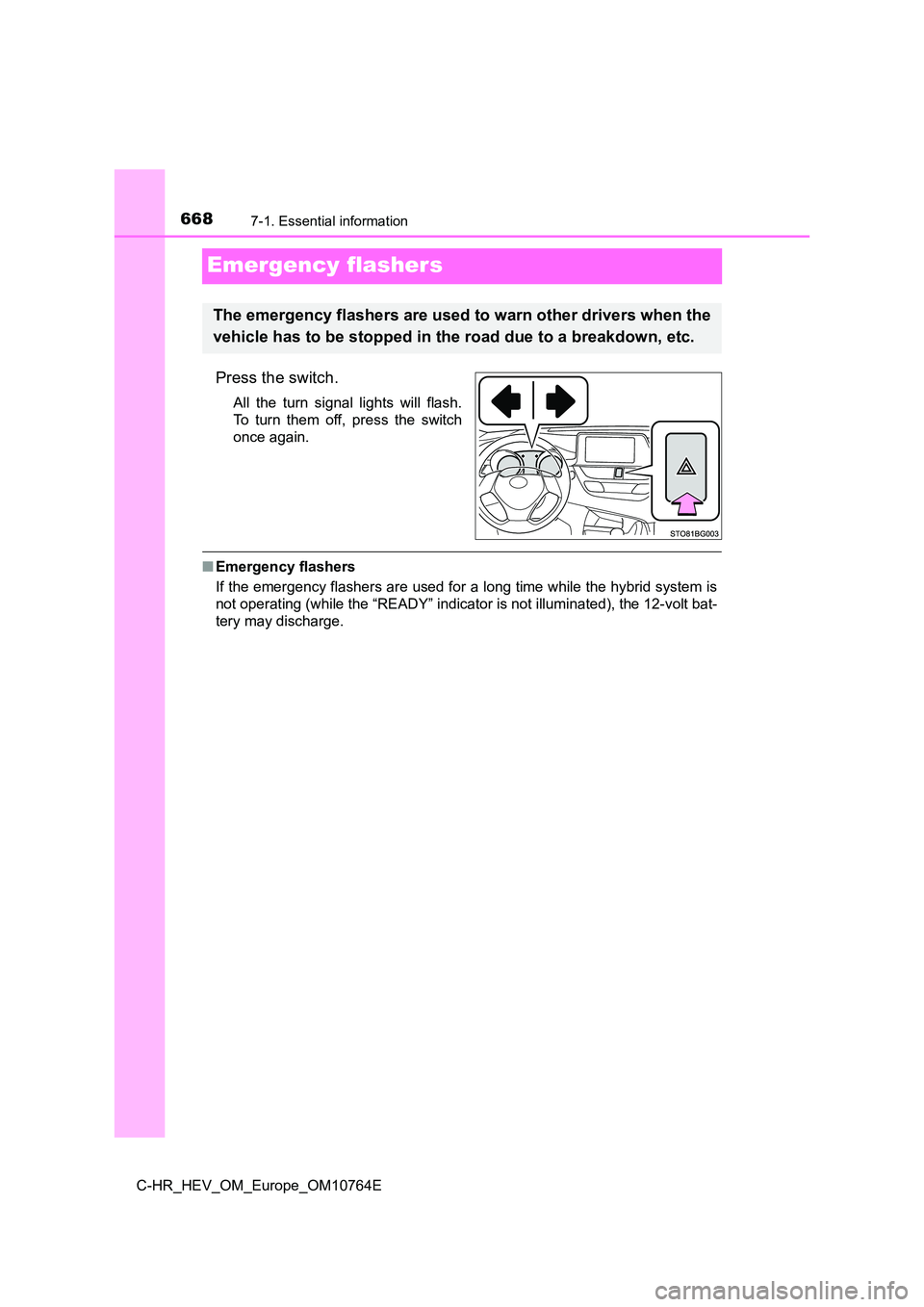

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the hy brid system is
not operating (while the “READY” indicator is not illuminated), the 12-volt bat-
tery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

6697-1. Essential information
C-HR_HEV_OM_Europe_OM10764E
7
When trouble arises

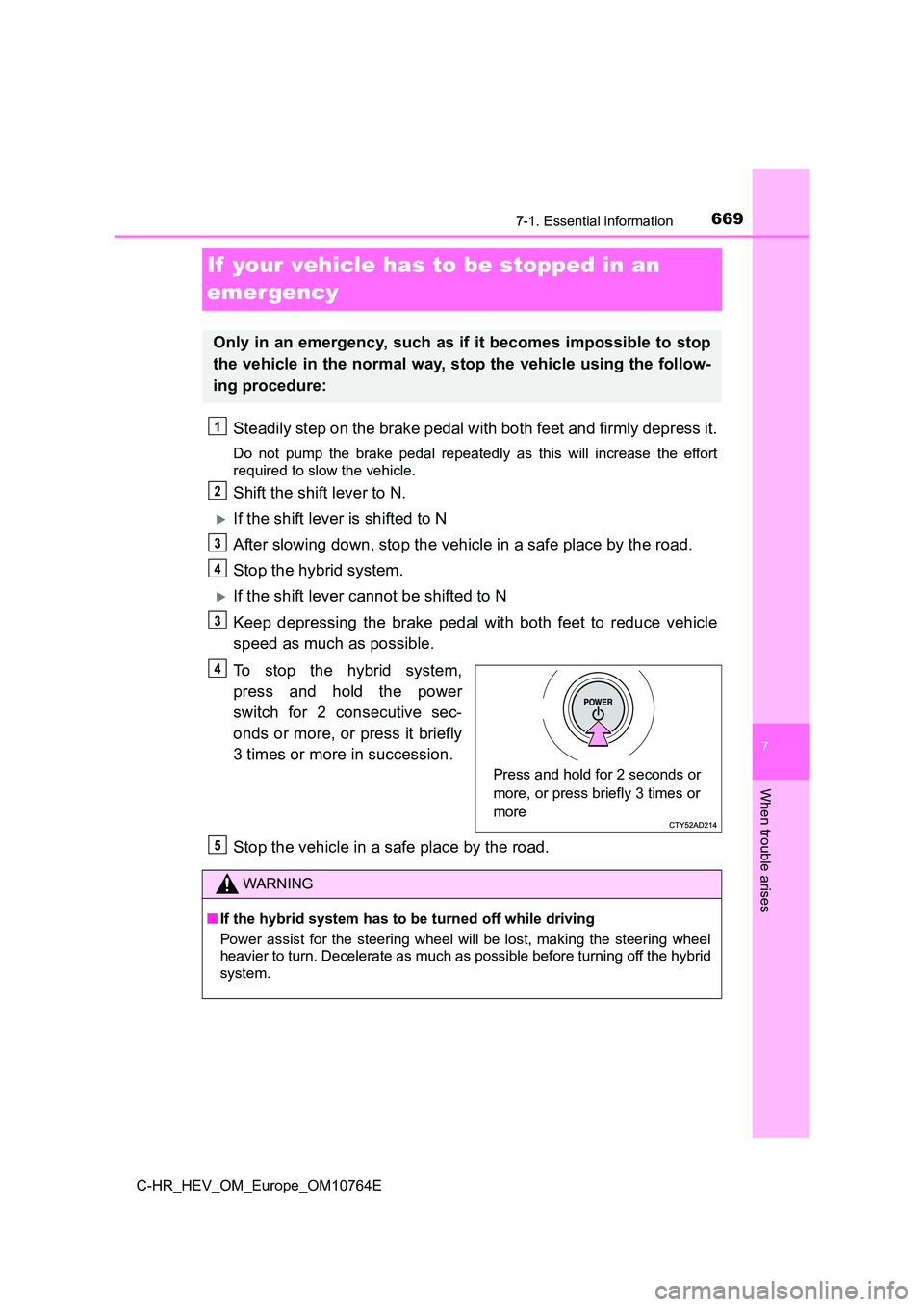

If your vehicle has to be stopped in an
emergency
Steadily step on the brake pedal with both feet and firmly depr ess it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the roa d.
Stop the hybrid system.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicl e
speed as much as possible.
To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it briefly
3 times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follo w-
ing procedure:
1
2
3
4
3
Press and hold for 2 seconds or
more, or press briefly 3 times or
more
Q
WARNING
■ If the hybrid system has to be turned off while driving
Power assist for the steering wheel will be lost, making the st eering wheel
heavier to turn. Decelerate as much as possible before turning off the hybrid
system.
5

6707-1. Essential information
C-HR_HEV_OM_Europe_OM10764E
If the vehicle is submerged or water on the
road is rising
● If the door can be opened, open the door and exit the vehicle.
● If the door can not be opened, open the window using the power
window switch and ensure an escape route.
● If the window can be opened, exit the vehicle through the window.
● If the door and window cannot be opened due to the rising water,
remain calm, wait until the water level inside the vehicle rise s to the
point that the water pressure inside of the vehicle equals the water
pressure outside of the vehicle and then open the door after wa iting
for the rising water to enter the vehicle, and exit the vehicle . When
the outside water level exceeds half the height of the door, th e door
cannot be opened from the inside due to water pressure.
This vehicle is not designed to be able to drive on roads that are
deeply flooded with water. Do not drive on roads where the
roads may be submerged or the water may be rising. It is dan-
gerous to remain in the vehicle, if it anticipated that the veh icle
will be flooded or set a drift. Remain calm and follow the foll ow-
ing.
