2023 TOYOTA C-HR Owners Manual

7758-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
19-inch tires
Compact spare tire (if equipped)
■When towing a trailer
Add 20.0 kPa (0.2 kgf/cm2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size225/45R19 96W
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
230 kPa (2.3 kgf/cm2 or bar, 33 psi)
Rear
Wheel size19  7 1/2J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire sizeT145/90D16 106M,
T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size16  4T, 18  4T
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)

7768-1. Specifications
C-HR_HEV_OM_Europe_OM10764E

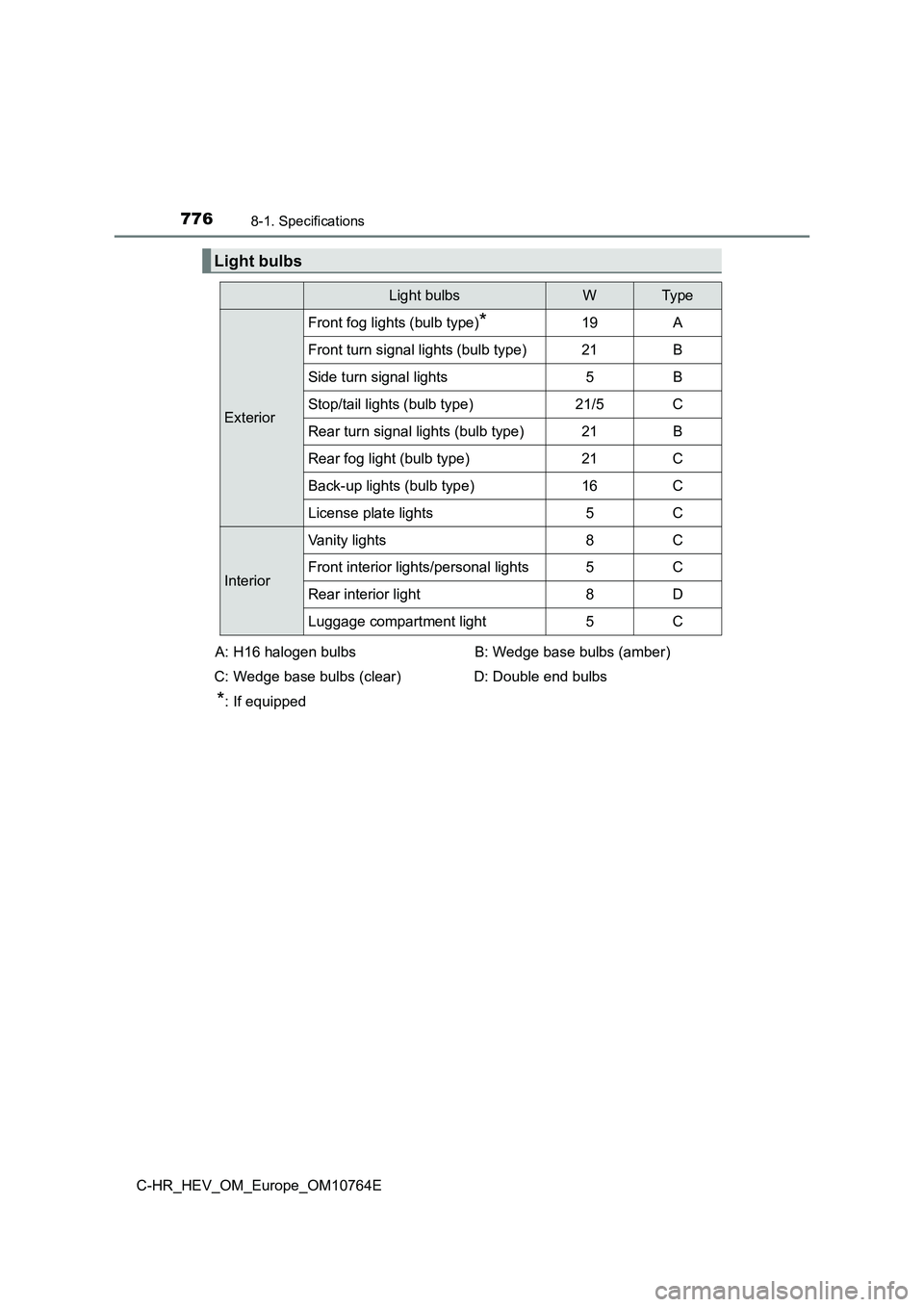

Light bulbs
Light bulbsWTyp e
Exterior
Front fog lights (bulb type)*19A
Front turn signal lights (bulb type)21B
Side turn signal lights5B
Stop/tail lights (bulb type)21/5C
Rear turn signal lights (bulb type)21B
Rear fog light (bulb type)21C
Back-up lights (bulb type)16C
License plate lights5C
Interior
Vanity lights8C
Front interior lights/personal lights5C
Rear interior light8D
Luggage compartment light5C
A: H16 halogen bulbs
C: Wedge base bulbs (clear)
*: If equipped
B: Wedge base bulbs (amber)
D: Double end bulbs

7778-1. Specifications
8
Vehicle specifications
C-HR_HEV_OM_Europe_OM10764E

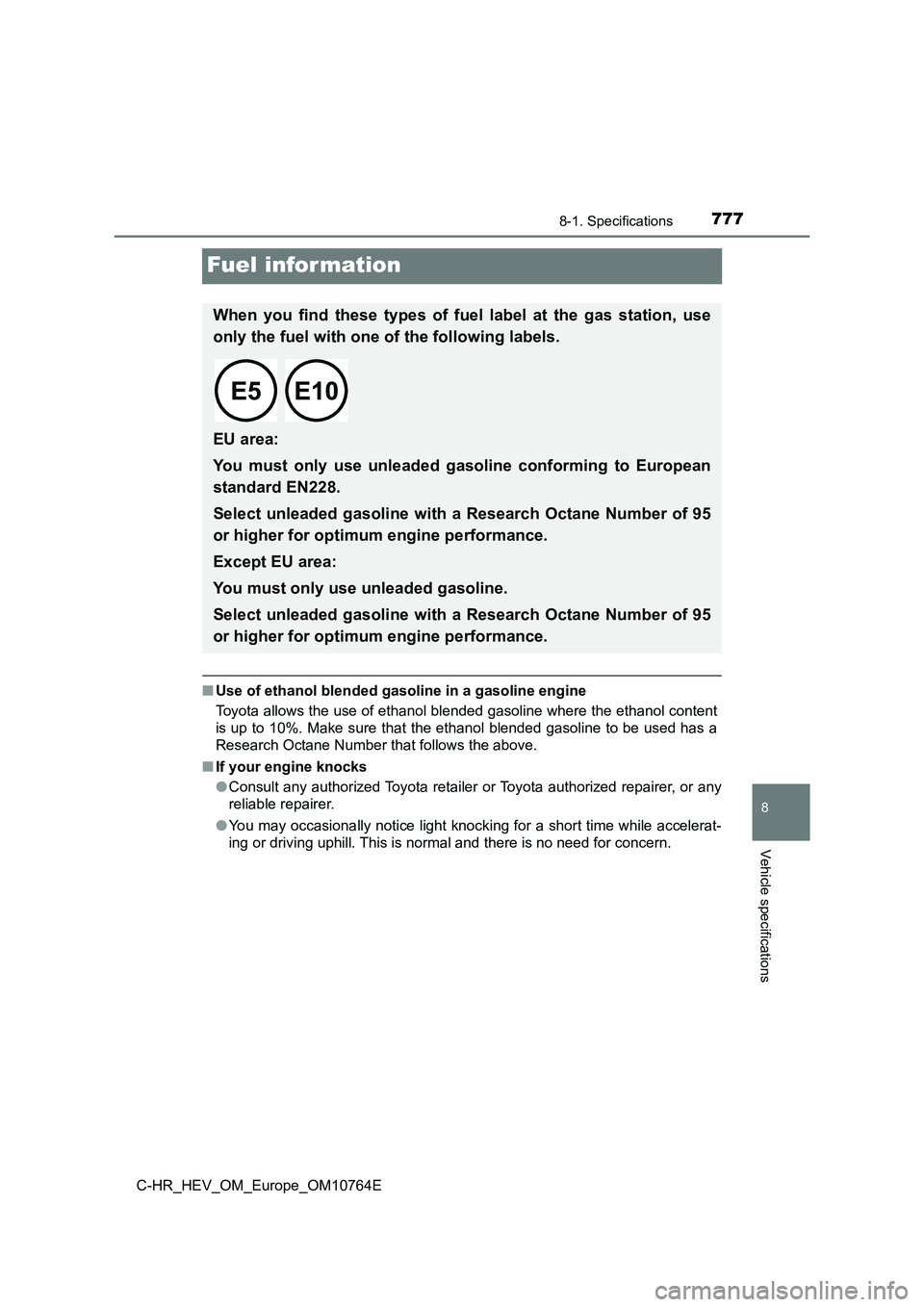

Fuel infor mation
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the eth anol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
When you find these types of fuel label at the gas station, use
only the fuel with one of the following labels.

EU area:
You must only use unleaded gasoline conforming to European
standard EN228.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.
Except EU area:
You must only use unleaded gasoline.
Select unleaded gasoline with a Research Octane Number of 95
or higher for optimum engine performance.

7788-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■Notice on fuel quality
● Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
● Do not use gasoline with metallic additives, for example manganese, iron
or lead, otherwise it may cause damage on your engine or emissi on con-
trol system.
● Do not add aftermarket fuel additives which contain metallic additives.
● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and
fuel containing a large amount of ethanol should not be used. T he use of
these fuels will damage the vehi cle’s fuel system. In case of any doubt,
ask any authorized Toyota retailer or Toyota authorized repaire r, or any
reliable repairer.
● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”
and fuel containing a large amount of ethanol should not be use d. Your
vehicle can use gasoline mixed with 10% max ethanol. The use of fuel
with more than 10% ethanol content (E10) will damage the vehicl e’s fuel
system. You must ensure that refueling is carried out only from a source
where fuel specification and quality can be guaranteed. In case of any
doubt, any authorized Toyota retailer or Toyota authorized repa irer, or any
reliable repairer.
● Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or
failure.

7798-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
Customizable features
■Changing using the multi-information display
Press “ ” or “” of the meter control switches, select .
Press “ ” or “” of the meter control switches, select “Meter
Settings”, and then press .
Press “ ” or “” of the meter control switches, select the item,
and then press .
Press “ ” or “” of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode,
press .
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. The settings of these fe a-
tures can be changed using the multi-information display, on th e
navigation/multimedia system, or at any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repaire r.
Customizing vehicle features
1
2
3
4

7808-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Changing on the navigation/multimedia system screen (if
equipped)
Ty pe A
Press the “MENU” button.
Select “Setup” on the menu screen and select “Vehicle”.
Select “Vehicle customisation”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Ty pe B
Select on the main menu.
Select “Vehicle customize”.
Various settings can be changed. Refer to the list of settings that
can be changed for details.
Some function settings are changed simultaneously with other fu nc-
tions when customized. Contact any authorized Toyota retailer o r
Toyota authorized repairer, or any reliable repairer for furthe r details.
Settings that can be changed using the multi-information displa y
Settings that can be changed using the navigation/multimedia sy s-
tem screen (if equipped)
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
Customizable features
1
2
3
1
2

7818-2. Customization
C-HR_HEV_OM_Europe_OM10764E
8
Vehicle specifications
■Gauges, meters and multi-information display (P. 168)
*1: The default setting varies according to country.
*2: German, French, Spanish, Italian, Portuguese, Dutch, Swedish, Norwegian,
Danish, Russian, Finnish, Greek, Polish, Ukrainian, Turkish, Hu ngarian,
Czech, Slovak, Romanian
*3: 2 of the following items: current fuel consumption (gauge disp lay), current
fuel consumption (numerical display), average fuel economy (aft er reset),
average fuel economy (after start), average fuel economy (after refuel),
average vehicle speed (after reset), average vehicle speed (aft er start),
elapsed time (after reset), elapsed time (after start), distanc e (driving
range), distance (after start), blank.
*4: For type A navigation/multimedia systems only
FunctionDefault settingCustomized
setting
Language*1English*2OO*4–
Units*1km (L/100 km)km (km/L)OO*4–miles (MPG)
EV IndicatorOn
(Self-lighting)OffO––
Drive information 1
Current fuel
consumption
(gauge display)
*3O––Average fuel
economy (after
reset)
Drive information 2
Distance
(driving range)
*3O––Average vehi-
cle speed (after
reset)
Pop-up displayOnOffO––

7828-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Instrument cluster ( P. 171)
■Smart entry & start system and wireless remote control
( P. 191, 199, 205)
FunctionDefault settingCustomized
setting
Sensor sensitivity for
darkening the brightness
of the instrument cluster
depending on the outside
brightness
Standard-2 to 2––O
Sensor sensitivity for
returning the brightness of
the instrument cluster to
the original level depend-
ing on the outside bright-
ness
Standard-2 to 2––O
FunctionDefault settingCustomized
setting
Operation signal (emer-
gency flashers)OnOff–OO
Unlocking operation
All doors
unlocked in
one step
Driver’s door
unlocked in
one step, all
doors
unlocked in
two step
–OO
Time elapsed before the
automatic door lock func-
tion is activated if a door is
not opened after being
unlocked
30 seconds
60 seconds
–OO
120 seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff––O
