2023 TOYOTA C-HR Owners Manual

2713-4. Adjusting the steering wheel and mirrors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehi cles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in on mode, the indica-
tor illuminates.
The function will be set to on mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to off mode. (The indicator also
turns off.)
■ To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an ac cident,
resulting in death or serious injury.

2723-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Adjustment procedure
1
2

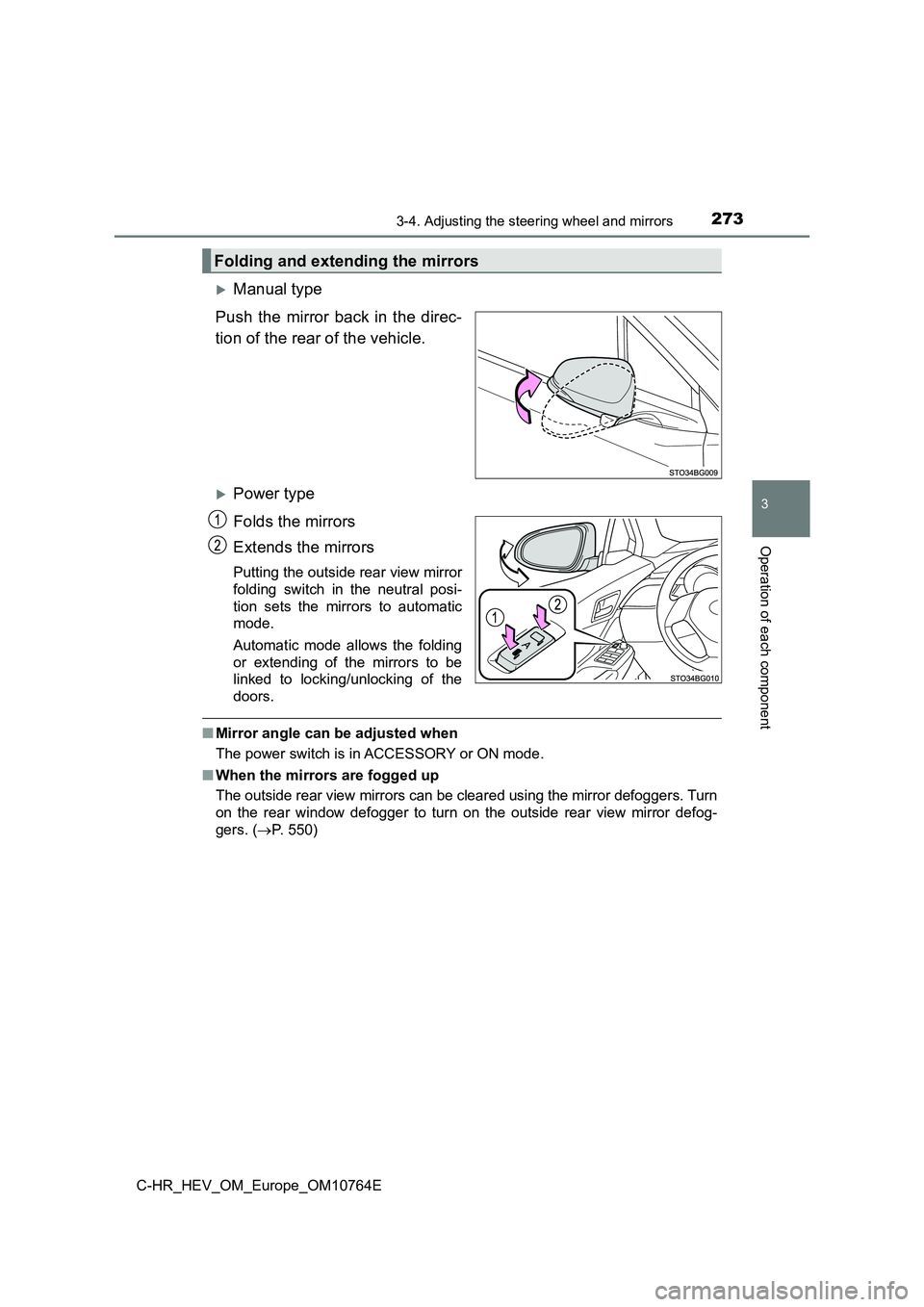

2733-4. Adjusting the steering wheel and mirrors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Manual type
Push the mirror back in the direc-
tion of the rear of the vehicle.
Power type
Folds the mirrors
Extends the mirrors
Putting the outside rear view mirror
folding switch in the neutral posi-
tion sets the mirrors to automatic
mode.
Automatic mode allows the folding
or extending of the mirrors to be
linked to locking/unlocking of the
doors.
■ Mirror angle can be adjusted when
The power switch is in ACCESSORY or ON mode.
■ When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror d efoggers. Turn
on the rear window defogger to turn on the outside rear view mi rror defog-
gers. ( P. 550)
Folding and extending the mirrors

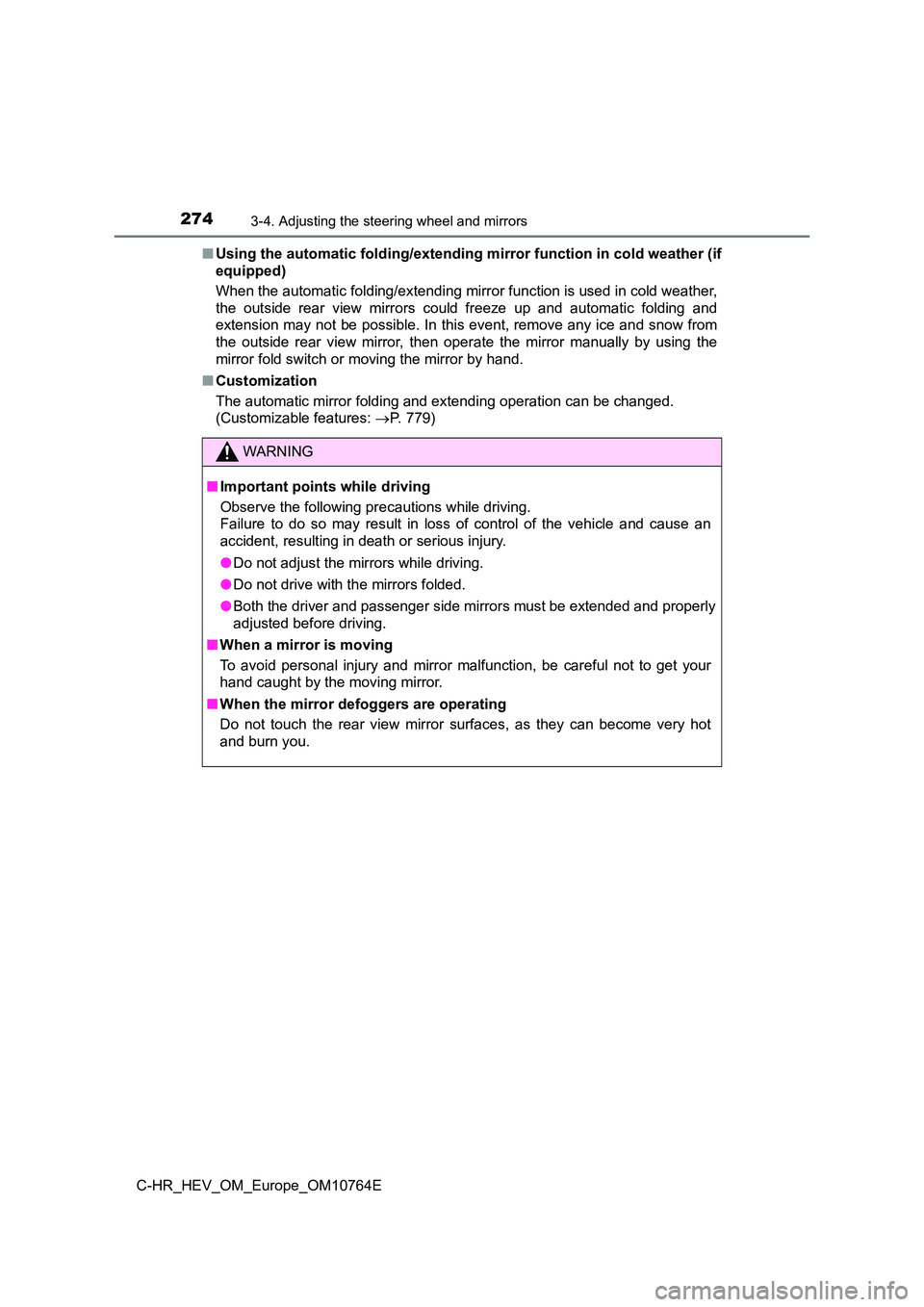

2743-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
■ Using the automatic folding/extending mirror function in cold weather (if
equipped)
When the automatic folding/ext ending mirror function is used in cold weather,
the outside rear view mirrors could freeze up and automatic fol ding and
extension may not be possible. In this event, remove any ice an d snow from
the outside rear view mirror, then operate the mirror manually by using the
mirror fold switch or moving the mirror by hand.
■ Customization
The automatic mirror folding and extending operation can be cha nged.
(Customizable features: P. 779)
WARNING
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle a nd cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

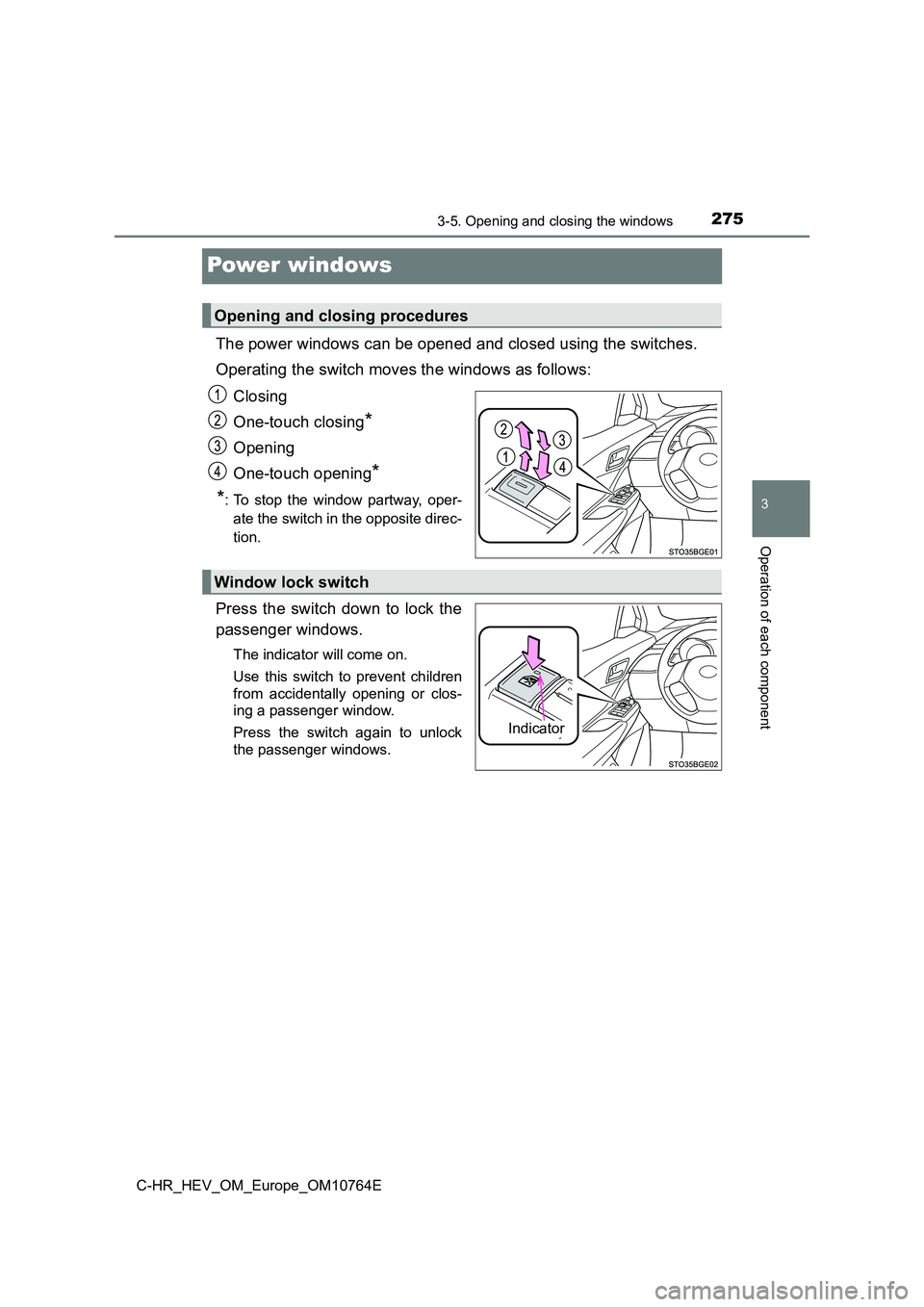

275
3
3-5. Opening and closing the windows
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing*
Opening
One-touch opening*
*: To stop the window partway, oper-
ate the switch in the opposite direc-
tion.
Press the switch down to lock the
passenger windows.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
Press the switch again to unlock
the passenger windows.
Opening and closing procedures
Window lock switch
Indicator

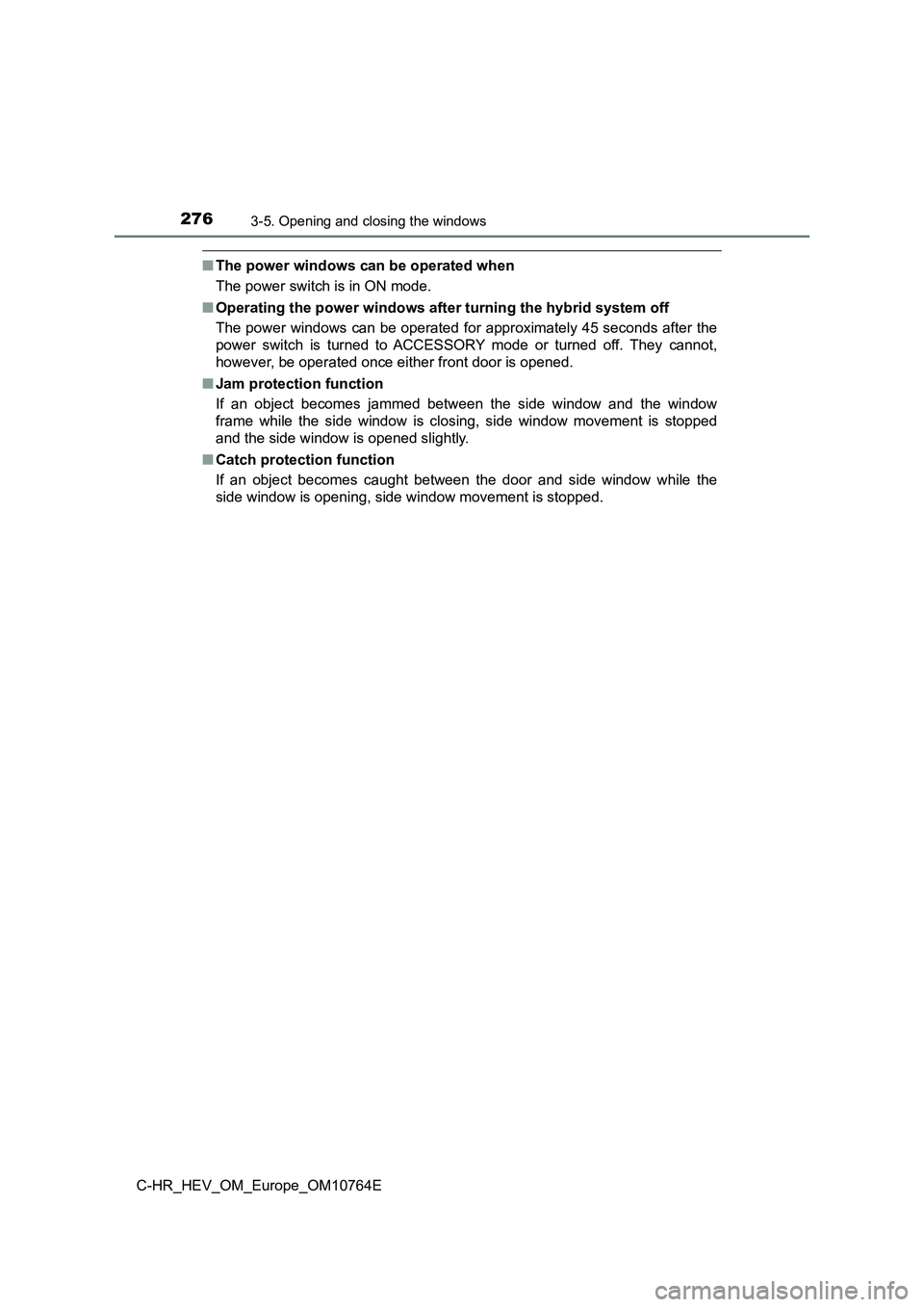

2763-5. Opening and closing the windows
C-HR_HEV_OM_Europe_OM10764E
■The power windows can be operated when
The power switch is in ON mode.
■ Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 45 seconds after the
power switch is turned to ACCESSORY mode or turned off. They ca nnot,
however, be operated once either front door is opened.
■ Jam protection function
If an object becomes jammed between the side window and the win dow
frame while the side window is closing, side window movement is stopped
and the side window is opened slightly.
■ Catch protection function
If an object becomes caught between the door and side window wh ile the
side window is opening, side window movement is stopped.

2773-5. Opening and closing the windows
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
■ When the side window cannot be opened or closed
When the jam protection function or catch protection function o perates
unusually and the side window cannot be opened or closed, perfo rm the fol-
lowing operations with the power window switch of that door.
● Stop the vehicle. With the power switch in ON mode, within 4 seconds of the
jam protection function or catch protection function activating , continuously
operate the power window switch in the one-touch closing direct ion or one-
touch opening direction so that the side window can be opened a nd closed.
● If the side window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.
Turn the power switch to ON mode.
Pull and hold the power window switch in the one-touch closing direction
and completely close the side window.
Release the power window switch for a moment, resume pulling th e
switch in the one-touch closing direction, and hold it there fo r approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After the side window is completely opened, continue hold ing the
switch for an additional 1 second or more.
Release the power window switch for a moment, resume pushing th e
switch in the one-touch opening direction, and hold it there fo r approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the side window is completely closed, continue hol ding the
switch for a further 1 second or more.
If you release the switch while the window is moving, start aga in from the
beginning. If the window reverses and cannot be fully closed or opened,
have the vehicle inspected by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
1
2
3
4
5
6

2783-5. Opening and closing the windows
C-HR_HEV_OM_Europe_OM10764E
■ Door lock linked window operation
● The power windows can be opened and closed using the mechanical key.*
(P. 744)
● The power windows can be opened and closed using the wireless remote
control.* ( P. 192)
*: These settings must be customized at any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
■ Power window open reminder function
The buzzer sounds and a message is shown on the multi-informati on display
in the instrument cluster when the power switch is turned off a nd the driver’s
door is opened with the power windows open.
■ Customization
Some functions can be changed. ( P. 779)
