2023 TOYOTA C-HR Owners Manual

3354-3. Operating the lights and wipers
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■ Automatic headlight leveling system (vehicles without manual headlight
leveling dial)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensur e that the
headlights do not interfere with other road users.
■ 12-volt battery-saving function
In the following conditions, the remaining lights will go off a utomatically after
20 minutes in order to prevent the vehicle 12-volt battery from being dis-
charged:
● The headlights and/or tail lights are on.
● The power switch is turned to ACCESSORY mode or turned off.
● The light switch is in or .
This function will be canceled in any of the following situatio ns:
● When the power switch is turned to ON mode.
● When the light switch is operated.
● When a door is opened or closed.
■ If “Headlight System Malfunction Visit Your Dealer” is displayed on the
multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 779)
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybri d system is
off.

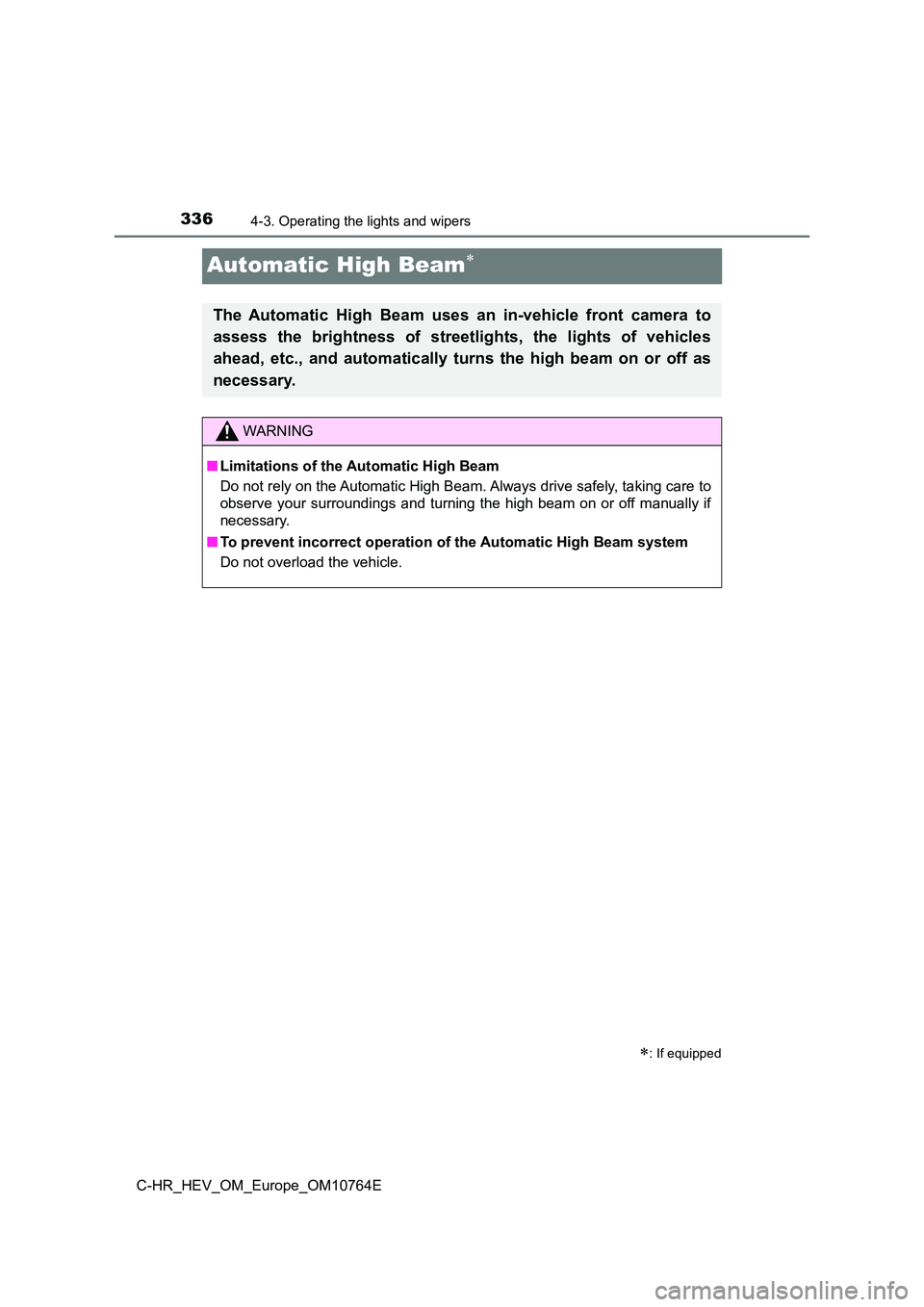

3364-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
Automatic High Beam
: If equipped
The Automatic High Beam uses an in-vehicle front camera to
assess the brightness of streetlights, the lights of vehicles
ahead, etc., and automatically turns the high beam on or off as
necessary.
WARNING
■ Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, ta king care to
observe your surroundings and turning the high beam on or off m anually if
necessary.
■ To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.

3374-3. Operating the lights and wipers
4
Driving
C-HR_HEV_OM_Europe_OM10764E
Push the lever away from you
with the headlight switch in the
or position.
Press the Automatic High Beam switch.
The Automatic High Beam indicator will come on when the headlig hts are
turned on automatically to indicate that the system is active.
Activating the Automatic High Beam system
1
Left-hand drive vehiclesRight-hand drive vehicles
2

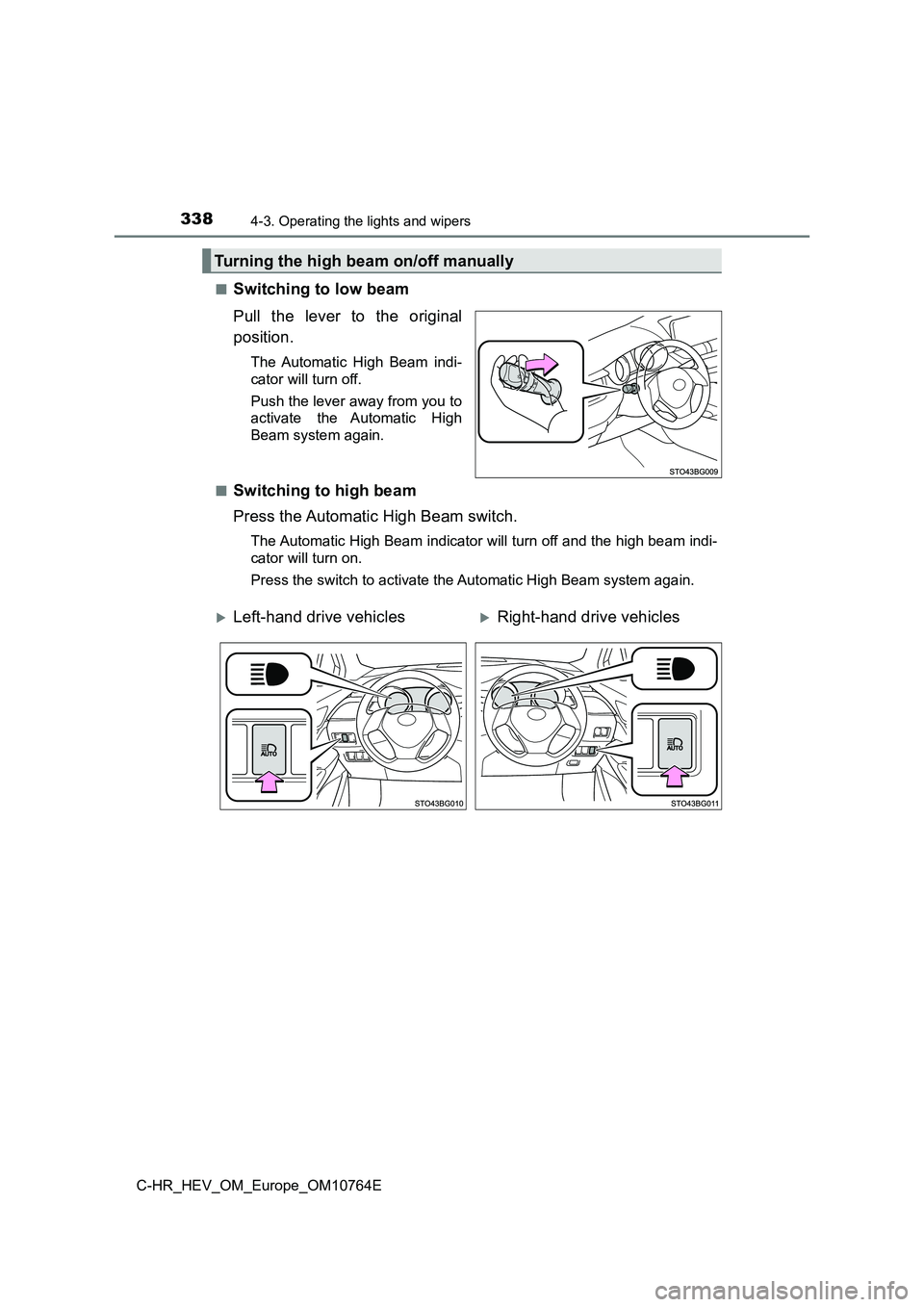

3384-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
■Switching to low beam
Pull the lever to the original
position.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.
■Switching to high beam
Press the Automatic High Beam switch.
The Automatic High Beam indicator will turn off and the high be am indi-
cator will turn on.
Press the switch to activate the Automatic High Beam system aga in.
Turning the high beam on/off manually
Left-hand drive vehiclesRight-hand drive vehicles

3394-3. Operating the lights and wipers
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■High beam automatic turning on or off conditions
● When all of the following conditions are fulfilled, the high beam will be auto-
matically turned on (after approximately 1 second):
• Vehicle speed is above approximately 40 km/h (25 mph).
• The area ahead of the vehicle is dark.
• There are no vehicles ahead with headlights or tail lights tur ned on.
• There are few streetlights on the road ahead.
● If any of the following conditions are fulfilled, the high beam will be automat-
ically turned off:
• Vehicle speed drops below approximately 30 km/h (19 mph).
• The area ahead of the vehicle is not dark.
• Vehicles ahead have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
■ Front camera detection information
● The high beam may not be automatically turned off in the following situa-
tions:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curv es, road
dividers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead vehicles have no lights
● The high beam may be turned off if a vehicle ahead that is using fog lights
without using the headlights is detected.
● House lights, street lights, traffic signals, and illuminated billboards or signs
may cause the high beam to switch to the low beams, or the low beams to
remain on.
● The following factors may affect the amount of time taken to turn the high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of v ehicles ahead
• The movement and direction of vehicles ahead
• When a vehicle ahead only has operational lights on one side
• When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the r oad surface,
etc.)
• The number of passengers and amount of luggage
● The high beam may be turned on or off when the driver does not expect it.
● Bicycles or similar objects may not be detected.

3404-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
● In the situations shown below, the system may not be able to accurately
detect surrounding brightness levels. This may cause the low be ams to
remain on or the high beams to cause problems for pedestrians, vehicles
ahead or other parties. In these cases, manually switch between the high
and low beams.
• In bad weather (rain, snow, fog, sandstorms, etc.)
• The windshield is obscured by fog, mist, ice, dirt, etc.
• The windshield is cracked or damaged.
• The front camera is deformed or dirty.
• The front camera temperat ure is extremely high.
• Surrounding brightness levels are equal to those of headlights , tail lights
or fog lights.
• Vehicles ahead have headlights that are either switched off, d irty, are
changing color, or are not aimed properly.
• When driving through an area of intermittently changing brightness and
darkness.
• When frequently and repeatedly driving ascending/descending ro ads, or
roads with rough, bumpy or uneven surfaces (such as stone-paved
roads, gravel tracks, etc.).
• When frequently and repeatedly taking curves or driving on a w inding
road.
• There is a highly reflective object ahead of the vehicle, such as a sign or
a mirror.
• The back of a vehicle ahead is highly reflective, such as a co ntainer on a
truck.
• The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or tilting, due to a flat tire, a trail er being towed, etc.
• The high beam and low beam are repeatedly being switched betwe en in
an abnormal manner.
• The driver believes that the high beam may be causing problems or dis-
tress to other drivers or pedestrians nearby.
■ If “Headlight System Malfunction. Visit Your Dealer.” is displayed on the
multi-information display
The system may be malfunctioning. Have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer.

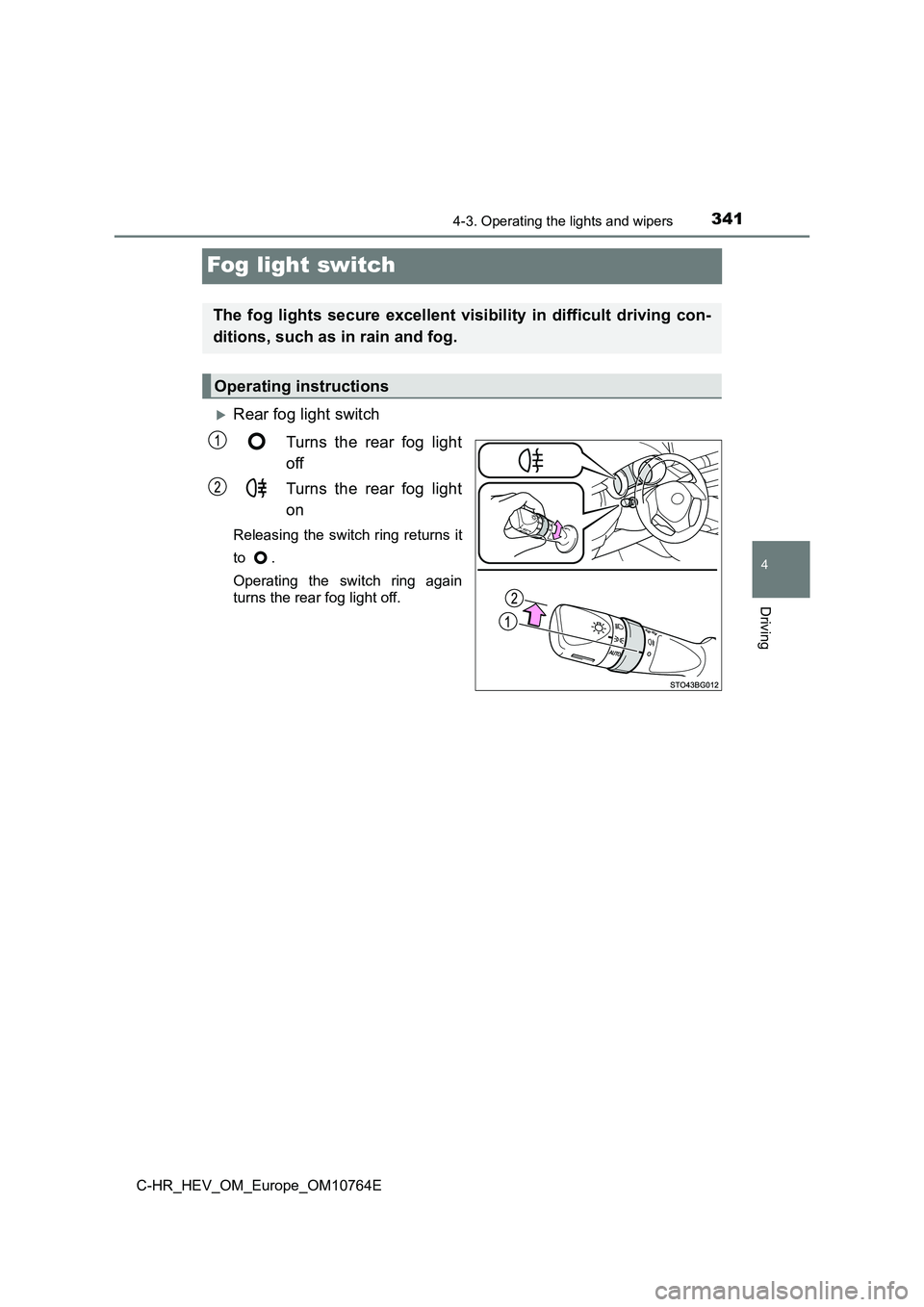

341
4
4-3. Operating the lights and wipers
Driving
C-HR_HEV_OM_Europe_OM10764E
Fog light switch
Rear fog light switch
Turns the rear fog light
off
Turns the rear fog light
on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns the rear fog light off.
The fog lights secure excellent visibility in difficult driving con-
ditions, such as in rain and fog.
Operating instructions

3424-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
Front and rear fog light switch
Turns the front and rear
fog lights off
Turns the front fog lights
on
Turns both front and
rear fog lights on
Releasing the switch ring returns it
to .
Operating the switch ring again
turns only the rear fog light off.
■ Fog lights can be used when
Vehicles with a rear fog light switch
The headlights are turned on.
Vehicles with a front and rear fog light switch
Front fog lights: The headlights or the front position lights a re turned on.
Rear fog light: The front fog lights are turned on.
