2023 TOYOTA C-HR Owners Manual

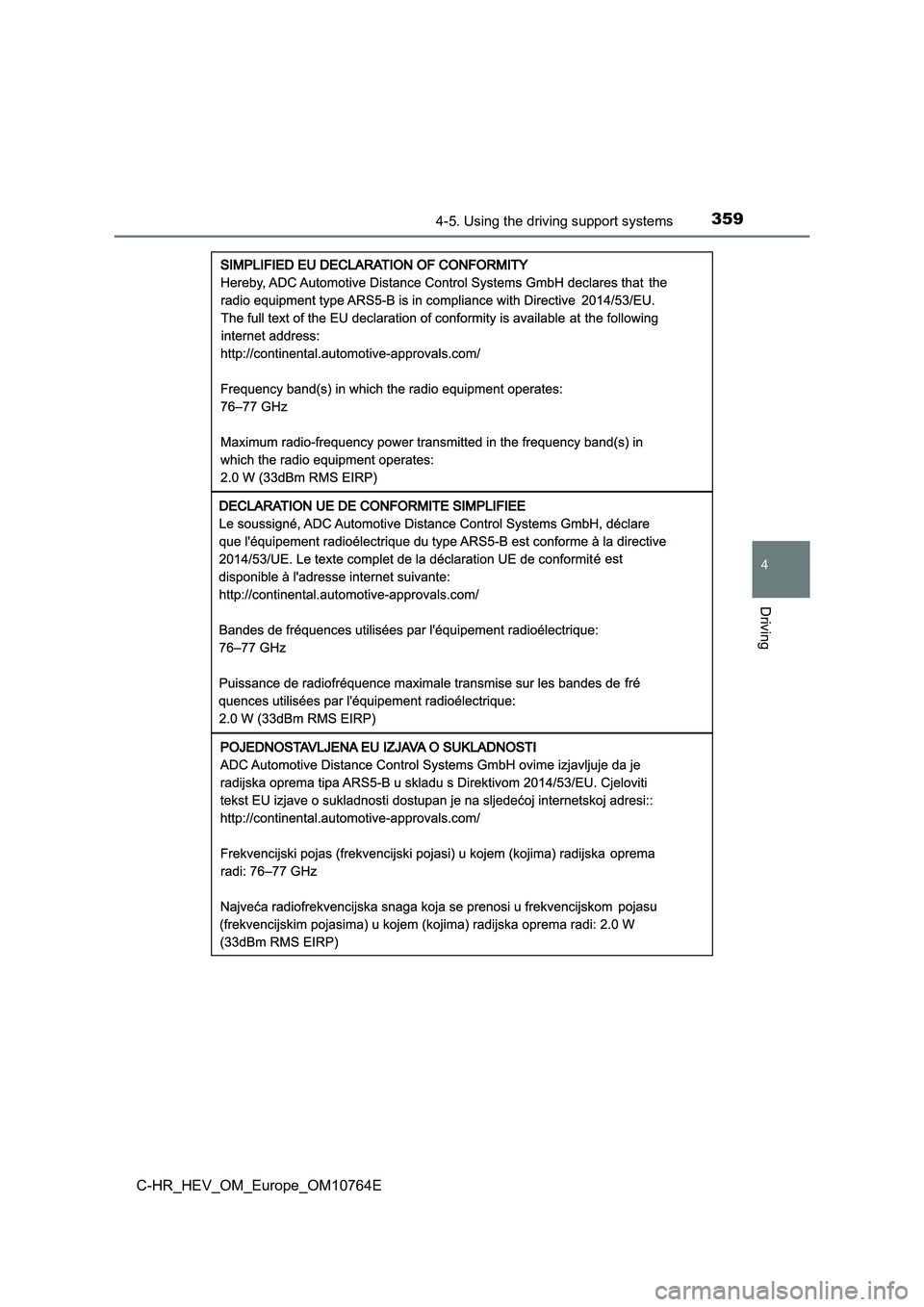

3594-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

3604-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E

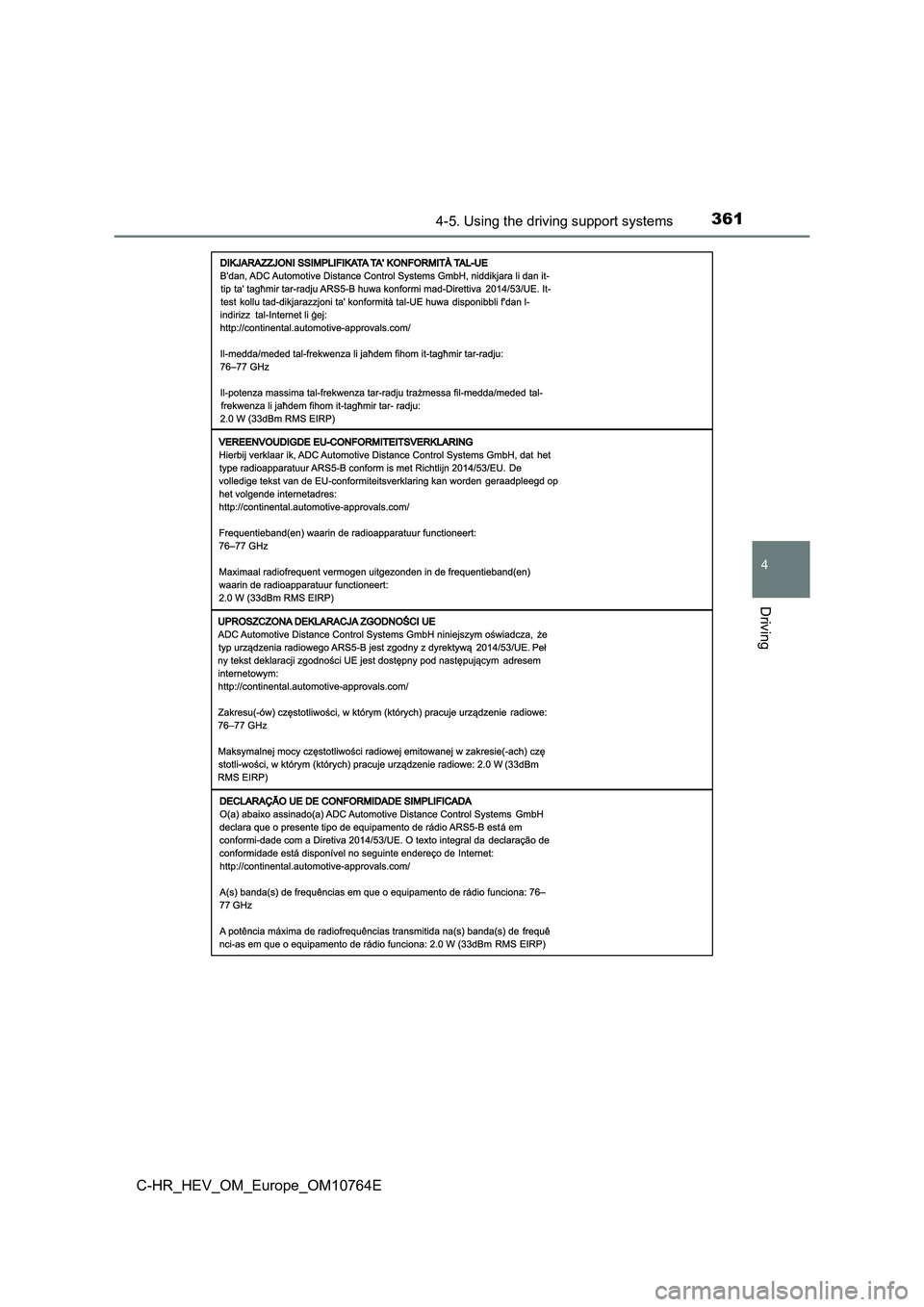

3614-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

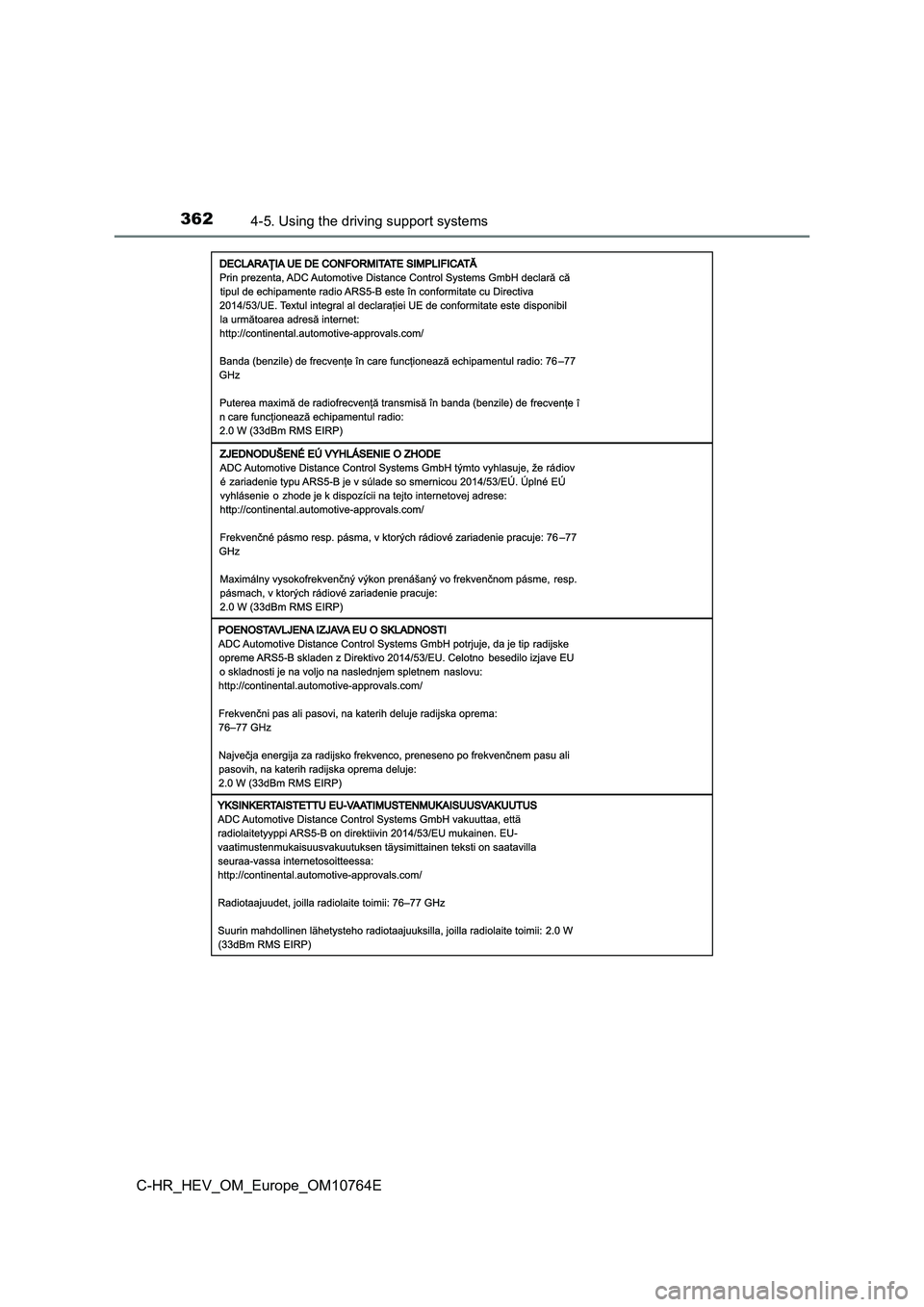

3624-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E

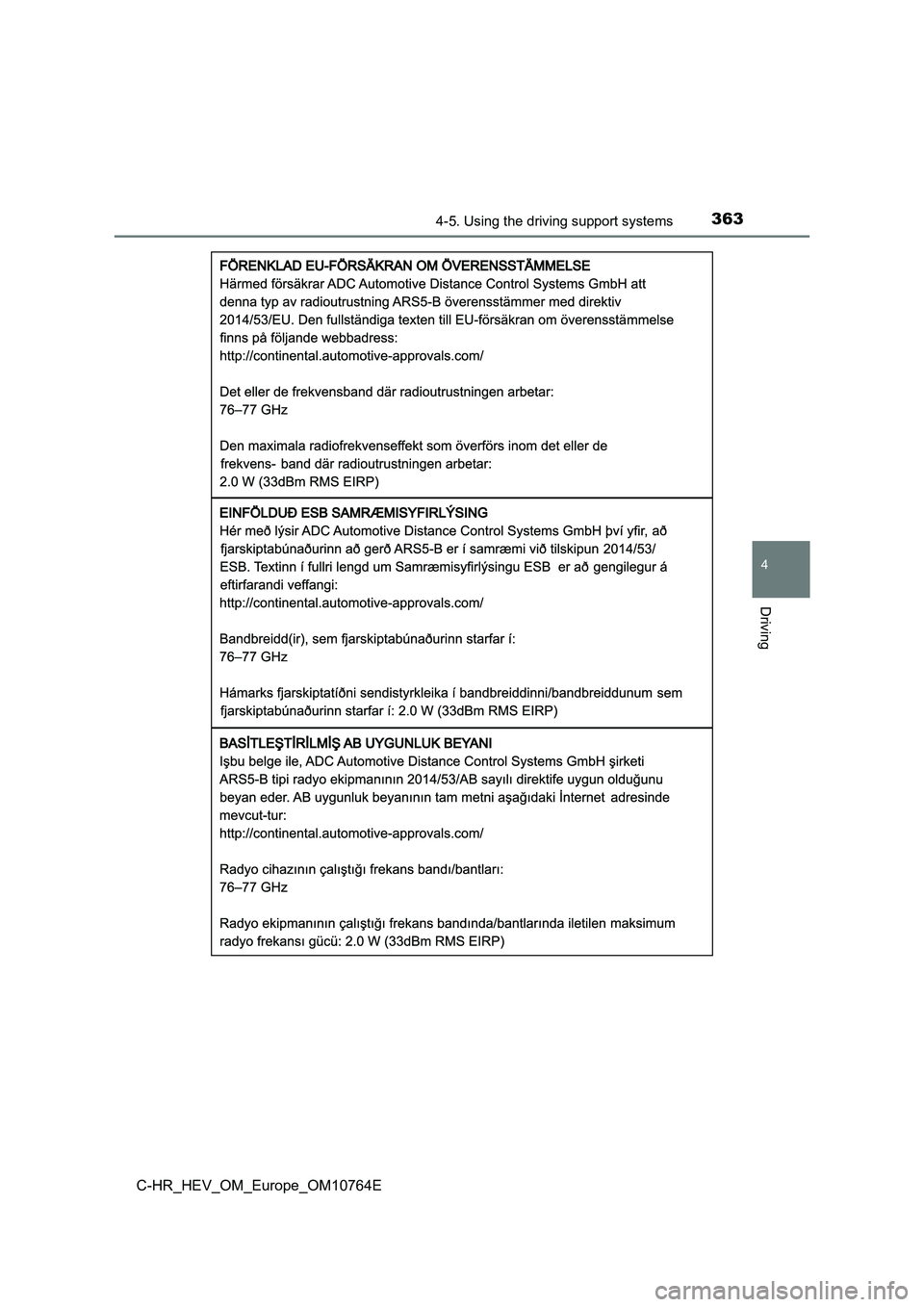

3634-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E

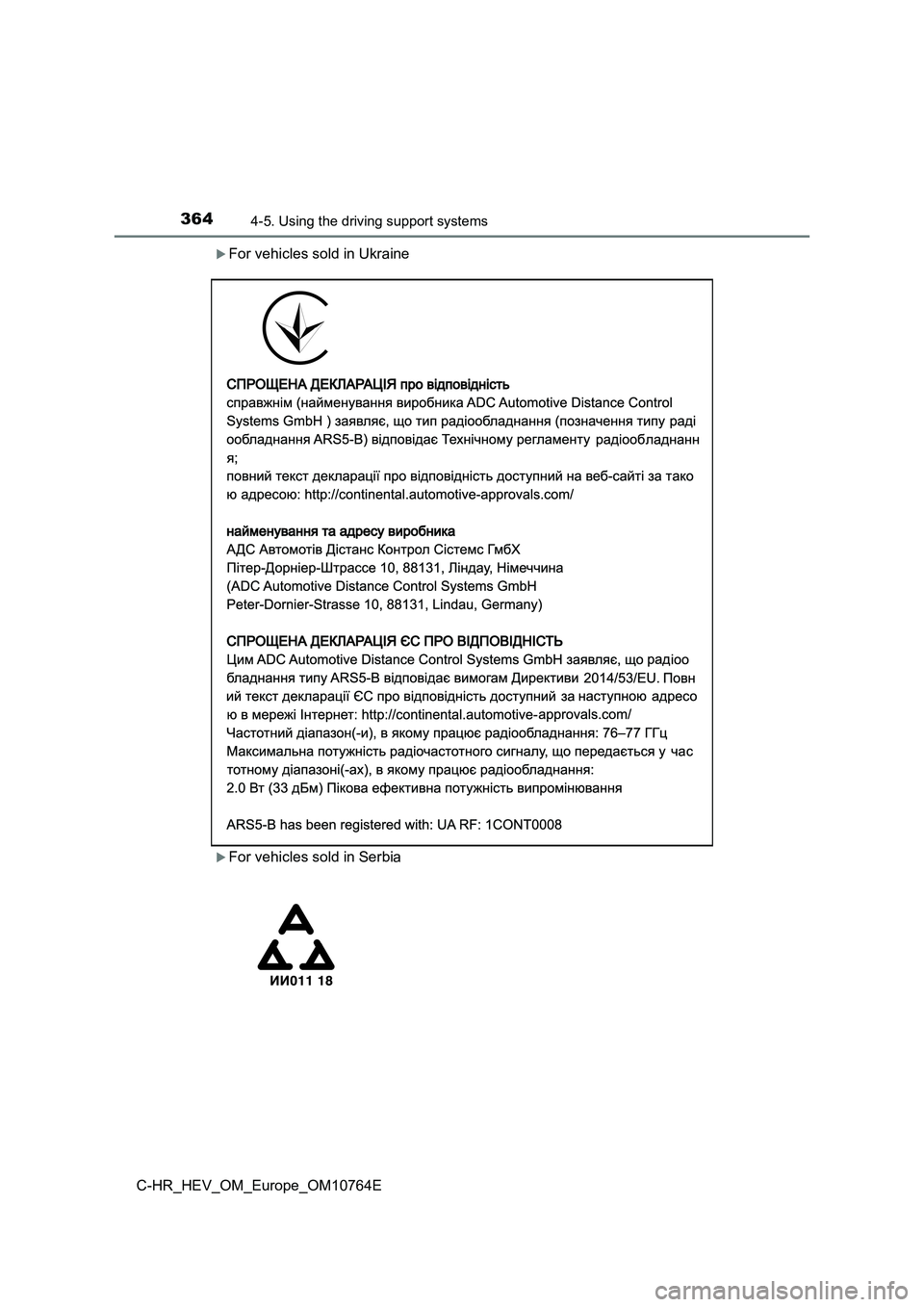

3644-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
For vehicles sold in Ukraine
For vehicles sold in Serbia

3654-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■ If a warning message is displayed on the multi-information display
A system may be temporarily unavailable or there may be a malfu nction in
the system.
● In the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact any authorized Toyot a retailer or
Toyota authorized repairer, or any reliable repairer.
SituationActions
When the area around a camera is
covered with dirt, moisture (fogged
up, covered with condensation, ice,
etc.), or other foreign matter
Using the wiper and A/C function,
remove the dirt and other attached
matter. (P. 549)
When the temperature around the
front camera is outside of the opera-
tional range, such as when the vehi-
cle is in the sun or in an extremely
cold environment
If the front camera is hot, such as
after the vehicle had been parked in
the sun, use the air conditioning sys-
tem to decrease the temperature
around the front camera.
If a sunshade was used when the
vehicle was parked, depending on its
type, the sunlight reflected from the
surface of the sunshade may cause
the temperature of the front camera to
become excessively high.
If the front camera is cold, such after
the vehicle is parked in an extremely
cold environment, use the air condi-
tioning system to increase the tem-
perature around the front camera.
The area in front of the front camera
is obstructed, such as when the hood
is open or a sticker is attached to the
part of the windshield in front of the
front camera.
Close the hood, remove the sticker,
etc. to clear the obstruction.
When “Pre-Collision System Radar in
self calibration Unavailable See
owner’s manual.” is displayed.
Check whether there is attached
materials on the radar and radar
cover, and if there is, remove it.

3664-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
● In the following situations, if the situation has changed (or the vehicle has
been driven for some time) and the normal operating conditions are
detected, the message will disappear and the system will become opera-
tional.
If the message does not disappear, contact any authorized Toyot a retailer or
Toyota authorized repairer, or any reliable repairer.
• When the temperature around the radar sensor is outside of the opera-
tional range, such as when the vehicle is in the sun or in an e xtremely
cold environment
• When the front camera cannot detect objects in front of the ve hicle, such
as when driving in the dark, snow, or fog, or when bright light s are shining
into the front camera
• Depending on the conditions in the vicinity of the vehicle, th e radar may
judge the surrounding environment can not be properly recognize d. In
that case, “Pre-Collision System Unavailable See owner’s manual .” is
displayed.
