2023 TOYOTA C-HR Owners Manual

5434-6. Driving tips
4
Driving
C-HR_HEV_OM_Europe_OM10764E
17-inch tires
Use the correct tire chain size when mounting the tire chains. Chain
size is regulated for each tire size.
Side chain
3 mm (0.12 in.) in diameter
10 mm (0.39 in.) in width
30 mm (1.18 in.) in length
Cross chain
4 mm (0.16 in.) in diameter
14 mm (0.55 in.) in width
25 mm (0.98 in.) in length
18-inch tires or 19-inch tires
Tire chains cannot be mounted as the space between the tire and
body is too narrow.
Snow tires should be used instead.
Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before in stalling
chains.
■ Tire chain installation
Observe the following precautions when installing and removing chains:
● Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install tire chains on the rear
tires.
● Install tire chains on front tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
● Install tire chains following the instructions provided with the tire chains.
Selecting tire chains
Regulations on the use of tire chains

5444-6. Driving tips
C-HR_HEV_OM_Europe_OM10764E

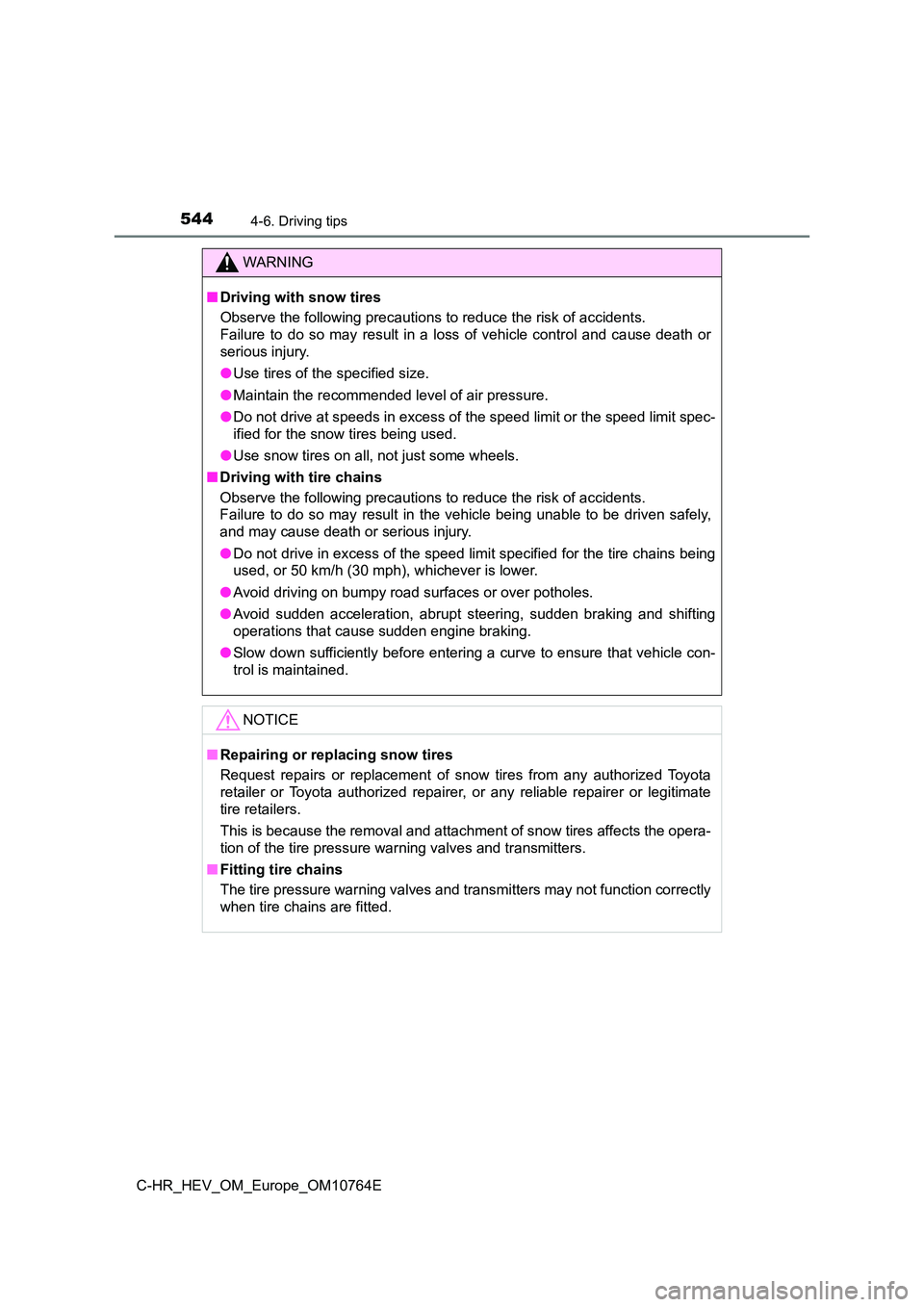

WARNING
■Driving with snow tires
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in a loss of vehicle control and ca use death or
serious injury.
● Use tires of the specified size.
● Maintain the recommended level of air pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Use snow tires on all, not just some wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of acciden ts.
Failure to do so may result in the vehicle being unable to be d riven safely,
and may cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■ Repairing or replacing snow tires
Request repairs or replacement of snow tires from any authorize d Toyota
retailer or Toyota authorized repairer, or any reliable repaire r or legitimate
tire retailers.
This is because the removal and attachment of snow tires affect s the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains
The tire pressure warning valves and transmitters may not funct ion correctly
when tire chains are fitted.

545
5Interior features
C-HR_HEV_OM_Europe_OM10764E
5-1. Using the air conditioning
system and defogger
Air conditioning system ...... 546
Heated steering wheel/
seat heaters ..................... 555
5-2. Using the interior lights
Interior lights list ................. 557
• Interior lights .................. 558
• Personal lights ............... 558
5-3. Using the
storage features
List of storage features ...... 560
• Glove box ...................... 561
• Console box .................. 561
• Bottle holders ................ 562
• Cup holders ................... 563
Luggage compartment
features............................ 564
5-4. Using the
other interior features
Other interior features ........ 572
• Sun visors...................... 572
• Vanity mirrors ................ 572
• Clock ............................. 573
• Power outlet .................. 574
• Assist grips .................... 575

5465-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E

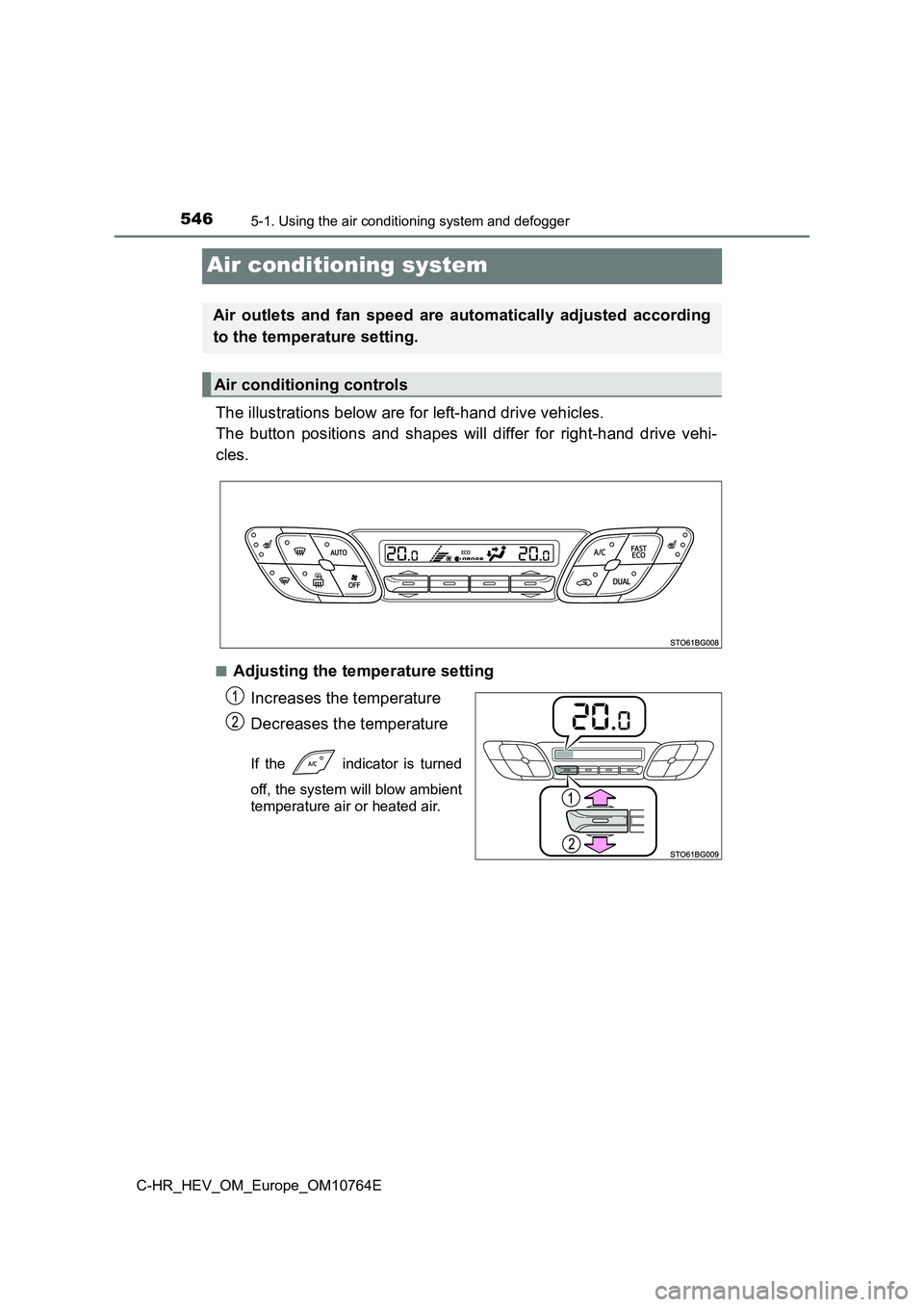

Air conditioning system
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand driv e vehi-
cles.
■Adjusting the temperature setting
Increases the temperature
Decreases the temperature
If the indicator is turned
off, the system will blow ambient
temperature air or heated air.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

5475-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E
5
Interior features
■Fan speed setting
Increases the fan speed
Decreases the fan speed
Press to turn the fan off.
■Change the airflow mode
To change the airflow mode,
move the airflow change knob
upward or downward.
The air outlets used are
changed each time the knob is
operated.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger oper-
ates.

5485-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E

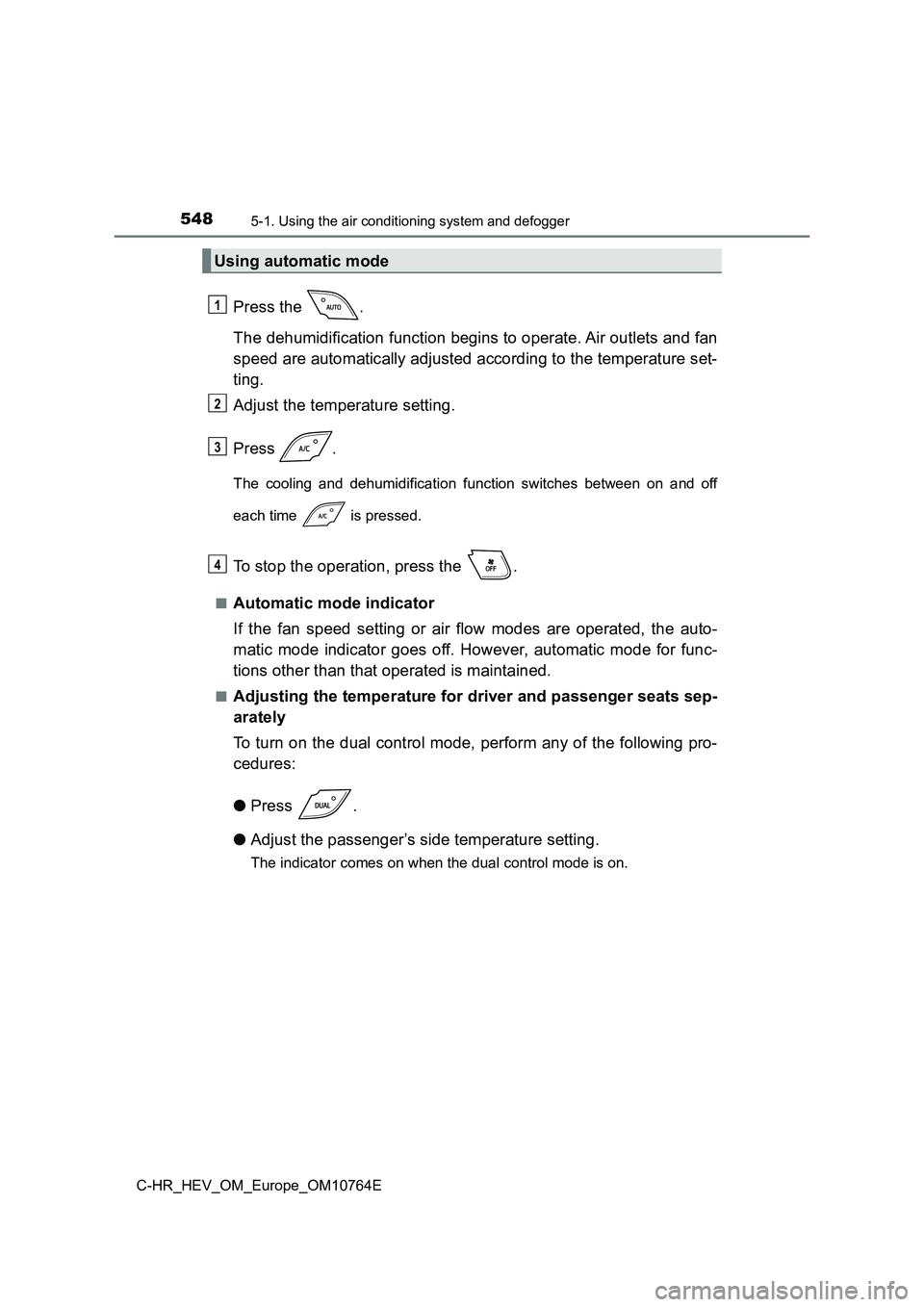

Press the .
The dehumidification function begins to operate. Air outlets an d fan
speed are automatically adjusted according to the temperature s et-
ting.
Adjust the temperature setting.
Press .
The cooling and dehumidification function switches between on a nd off
each time is pressed.
To stop the operation, press the .
■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the au to-
matic mode indicator goes off. However, automatic mode for func -
tions other than that operated is maintained.
■Adjusting the temperature for driver and passenger seats sep-
arately
To turn on the dual control mode, perform any of the following pro-
cedures:
● Press .
● Adjust the passenger’s side temperature setting.
The indicator comes on when the dual control mode is on.
Using automatic mode
1
2
3
4

5495-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E
5
Interior features

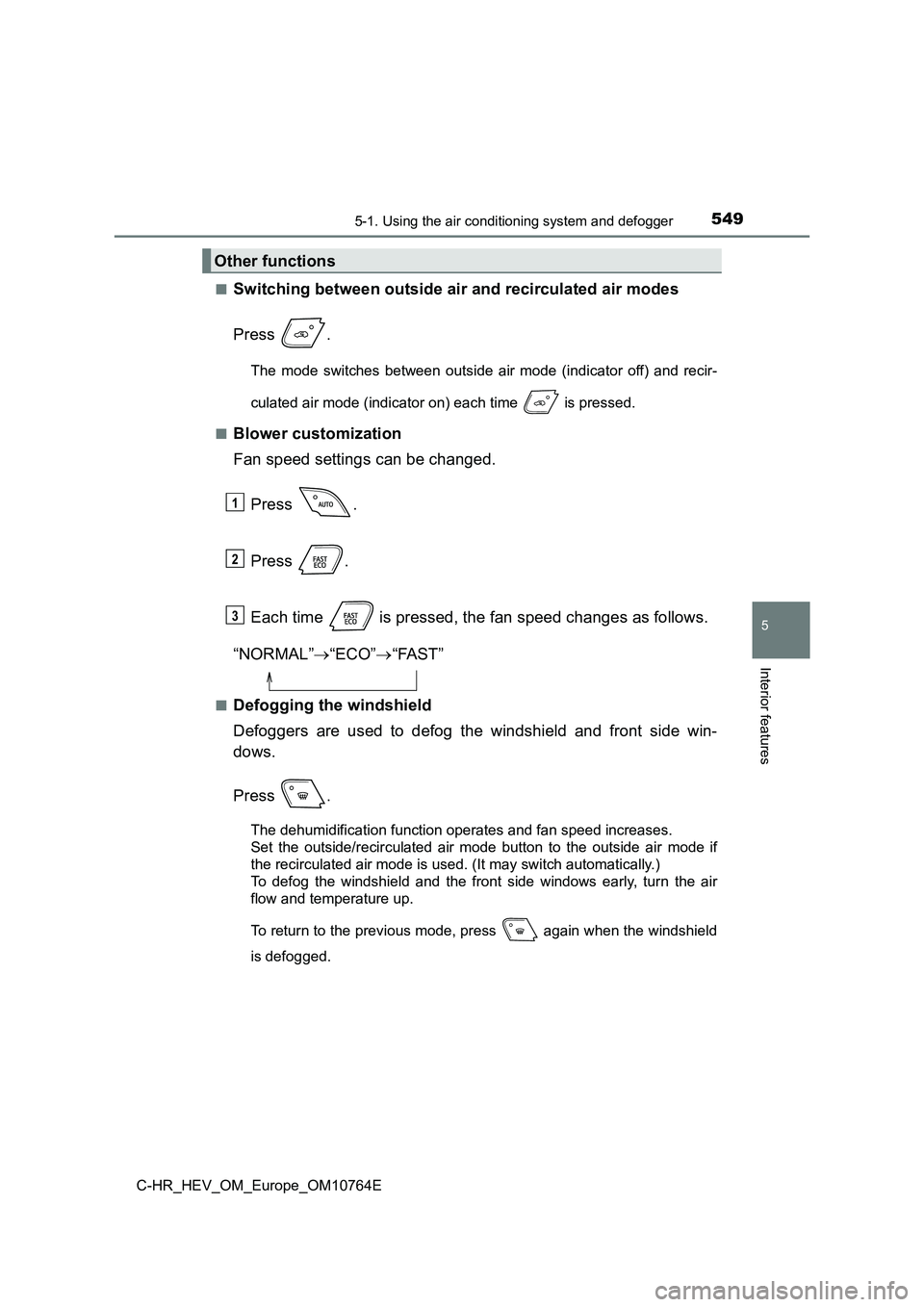

■Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■Blower customization
Fan speed settings can be changed.
Press .
Press .
Each time is pressed, the fan speed changes as follows.
“NORMAL” “ECO”“FAST”
■Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press .
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to the outside air mode if
the recirculated air mode is used. (It may switch automatically .)
To defog the windshield and the front side windows early, turn the air
flow and temperature up.
To return to the previous mode, press again when the windshiel d
is defogged.
Other functions
1
2
3

5505-1. Using the air conditioning system and defogger
C-HR_HEV_OM_Europe_OM10764E

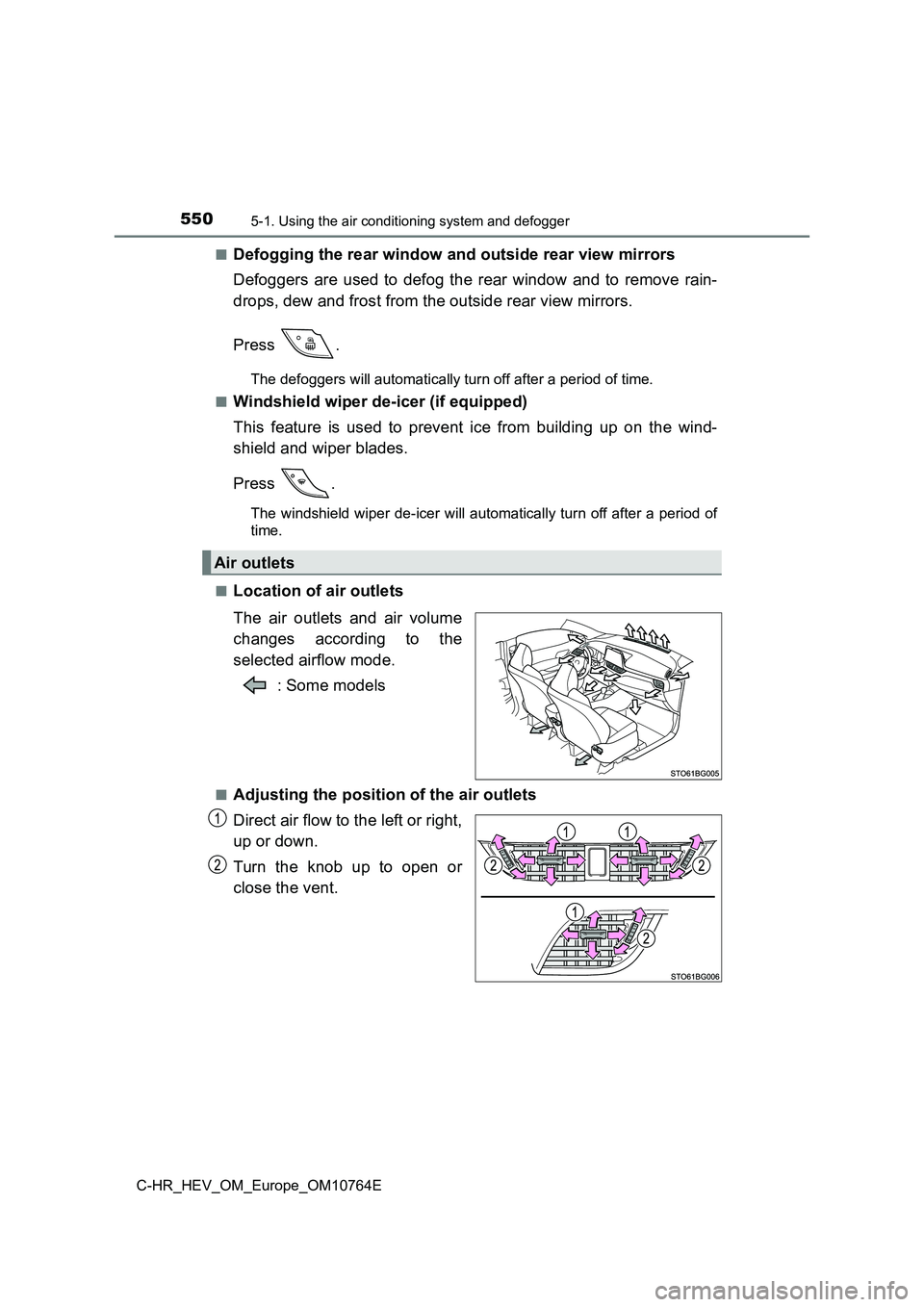

■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of tim e.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from building up on the win d-
shield and wiper blades.
Press .
The windshield wiper de-icer will automatically turn off after a period of
time.
■Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
: Some models
■Adjusting the position of the air outlets
Direct air flow to the left or right,
up or down.
Turn the knob up to open or
close the vent.
Air outlets
