2023 TOYOTA C-HR Owners Manual

5755-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E
5
Interior features

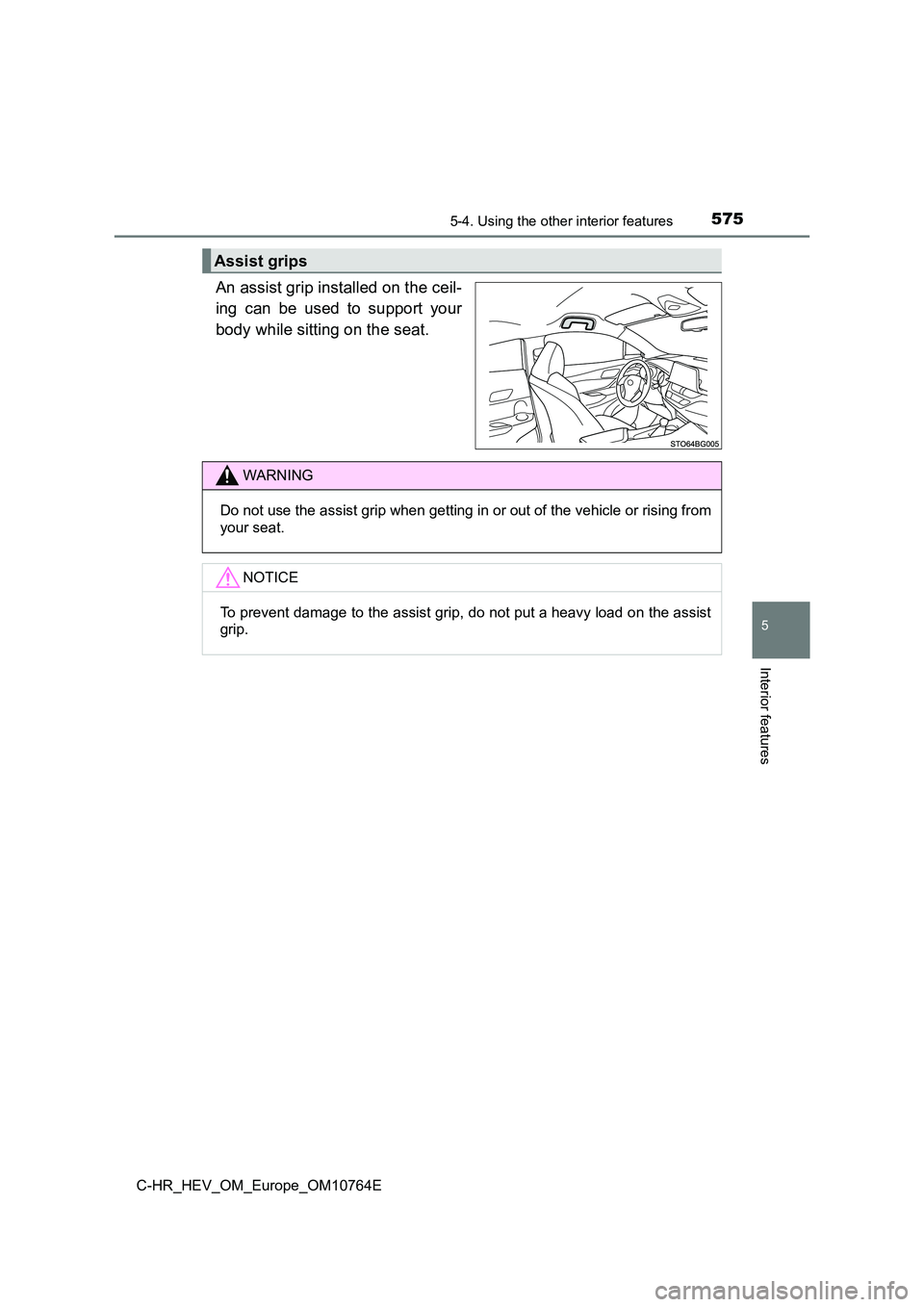

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicl e or rising from
your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load o n the assist
grip.

5765-4. Using the other interior features
C-HR_HEV_OM_Europe_OM10764E

577
6Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................ 578
Cleaning and protecting the
vehicle interior ................. 584
6-2. Maintenance
Maintenance
requirements.................... 588
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ...................... 591
Hood .................................. 594
Positioning a floor jack ....... 596
Engine compartment.......... 597
12-volt battery
(M20A-FXS engine) ......... 610
Tires ................................... 614
Tire inflation pressure ........ 630
Wheels ............................... 632
Air conditioning filter .......... 635
Hybrid battery
(traction battery) air intake
vent and filter ................... 638
Electronic key battery ........ 643
Checking and replacing
fuses ................................ 646
Light bulbs ......................... 651

5786-1. Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
Cleaning and protecting the vehicle exterior
●Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any di rt
and dust.
● Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly
with water.
● Wipe away any water.
● Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
■ Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface
scratches caused in a car wash, etc.
● The coating lasts for 5 to 8 years from when the vehicle is delivered from the
plant.
● The restoration time differs depending on the depth of the scratch and out-
side temperature.
The restoration time may become shorter when the coating is war med by
applying warm water.
● Deep scratches caused by keys, coins, etc., cannot be restored.
● Do not use wax that contain abrasives.
Perform the following to protect the vehicle and maintain it in
prime condition:

5796-1. Maintenance and care
6
Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
■ Automatic car washes
● Fold the mirrors before washing the vehicle. Start washing from the front of
the vehicle. Make sure to extend the mirrors before driving.
● Brushes used in automatic car washes may scratch the vehicle surface,
parts (wheel, etc.) and harm your vehicle’s paint.
● Rear spoiler may not be washable in some automatic car washes. There
may also be an increased risk of damage to vehicle.
■ High pressure car washes
As water may enter the cabin, do not bring the nozzle tip near the gaps
around the doors or perimeter of the windows, or spray these ar eas continu-
ously.
■ Note for a smart entry & start system
If the door handle becomes wet while the electronic key is with in the effective
range, the door may lock and unlock repeatedly. In that case, f ollow the fol-
lowing correction procedures to wash the vehicle:
● Place the key in a position 2 m (6 ft.) or more separate from the vehicle
while the vehicle is being washed. (Take care to ensure that th e key is not
stolen.)
● Set the electronic key to battery-saving mode to disable the smart entry &
start system. ( P. 207)
■ Wheels and wheel ornaments (vehicles without matte black painted
wheels)
● Remove any dirt immediately by using a neutral detergent.
● Wash detergent off with water immediately after use.
● To protect the paint from damage, make sure to observe the following pre-
cautions.
• Do not use acidic, alkaline or abrasive detergent
• Do not use hard brushes
• Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather

5806-1. Maintenance and care
C-HR_HEV_OM_Europe_OM10764E

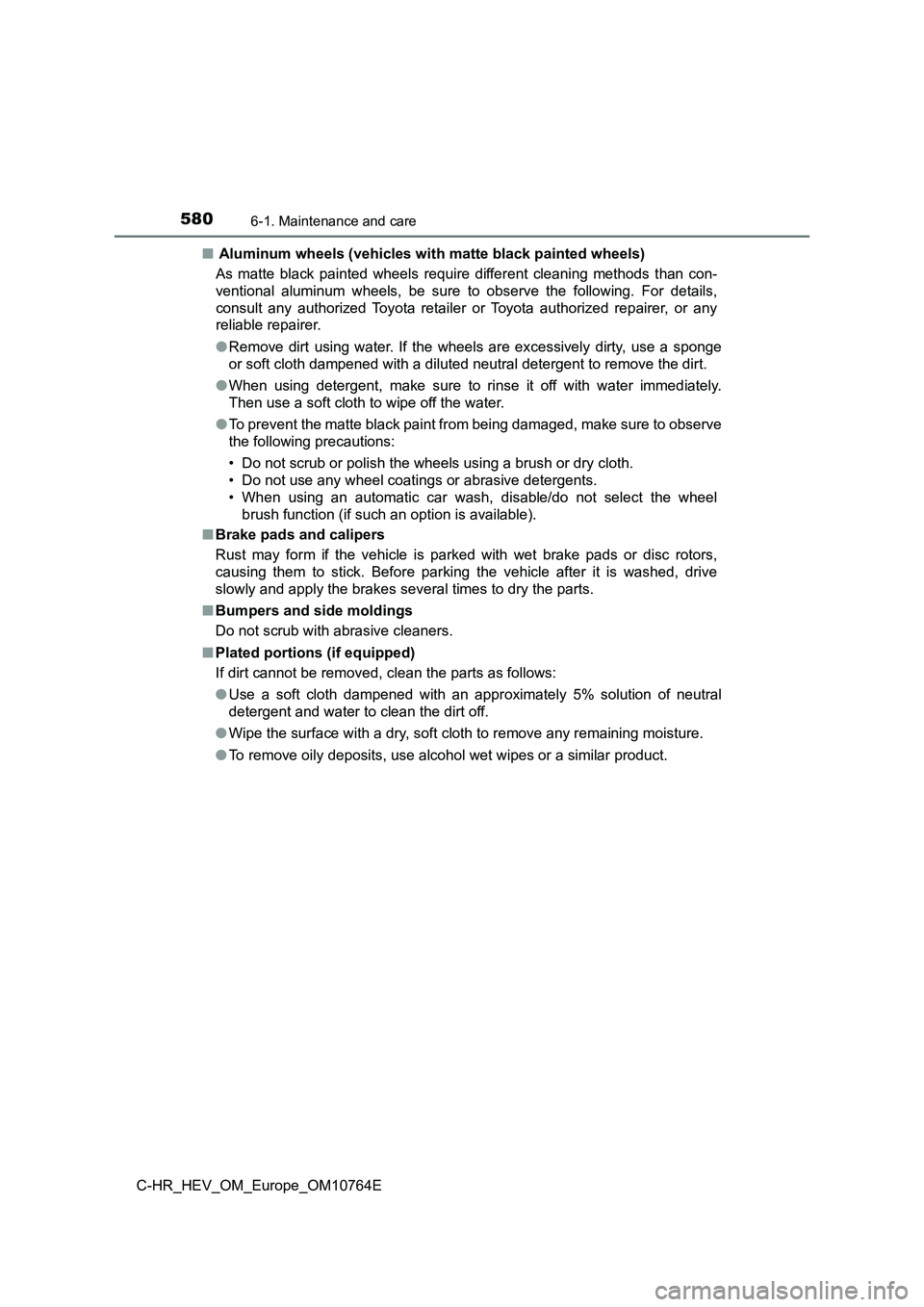

■ Aluminum wheels (vehicles with matte black painted wheels)
As matte black painted wheels require different cleaning method s than con-
ventional aluminum wheels, be sure to observe the following. Fo r details,
consult any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.
● Remove dirt using water. If the wheels are excessively dirty, use a sponge
or soft cloth dampened with a diluted neutral detergent to remo ve the dirt.
● When using detergent, make sure to rinse it off with water immediately.
Then use a soft cloth to wipe off the water.
● To prevent the matte black paint from being damaged, make sure to observe
the following precautions:
• Do not scrub or polish the wheels using a brush or dry cloth.
• Do not use any wheel coatings or abrasive detergents.
• When using an automatic car wash, disable/do not select the wh eel
brush function (if such an option is available).
■ Brake pads and calipers
Rust may form if the vehicle is parked with wet brake pads or d isc rotors,
causing them to stick. Before parking the vehicle after it is w ashed, drive
slowly and apply the brakes several times to dry the parts.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
■ Plated portions (if equipped)
If dirt cannot be removed, clean the parts as follows:
● Use a soft cloth dampened with an approximately 5% solution of neutral
detergent and water to clean the dirt off.
● Wipe the surface with a dry, soft cloth to remove any remaining moisture.
● To remove oily deposits, use alcohol wet wipes or a similar product.

5816-1. Maintenance and care
6
Maintenance and care
C-HR_HEV_OM_Europe_OM10764E
WARNING
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doi ng so may
cause the electrical components, etc., to catch fire.
■ When cleaning the windshield
● When a wet rag or similar is held close to the raindrop sensor
● If something bumps against the windshield
● If you directly touch the raindrop sensor body or if something bumps into
the raindrop sensor
■ Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the exhaust p ipe until it
has cooled sufficiently, as touching a hot exhaust pipe can cau se burns.
■ Precaution regarding the rear bumper with Blind Spot Monitor (if
equipped)
If the paint of the rear bumper is chipped or scratched, the sy stem may mal-
function. If this occurs, consult any authorized Toyota retaile r or Toyota
authorized repairer, or any reliable repairer.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wip-
ers may operate unexpectedly in the fol-
lowing situations, and may result in
hands being caught or other serious inju-
ries and cause damage to the wiper
blades.
● When the upper part of the windshield
where the raindrop sensor is located is
touched by hand
Off

5826-1. Maintenance and care
C-HR_HEV_OM_Europe_OM10764E

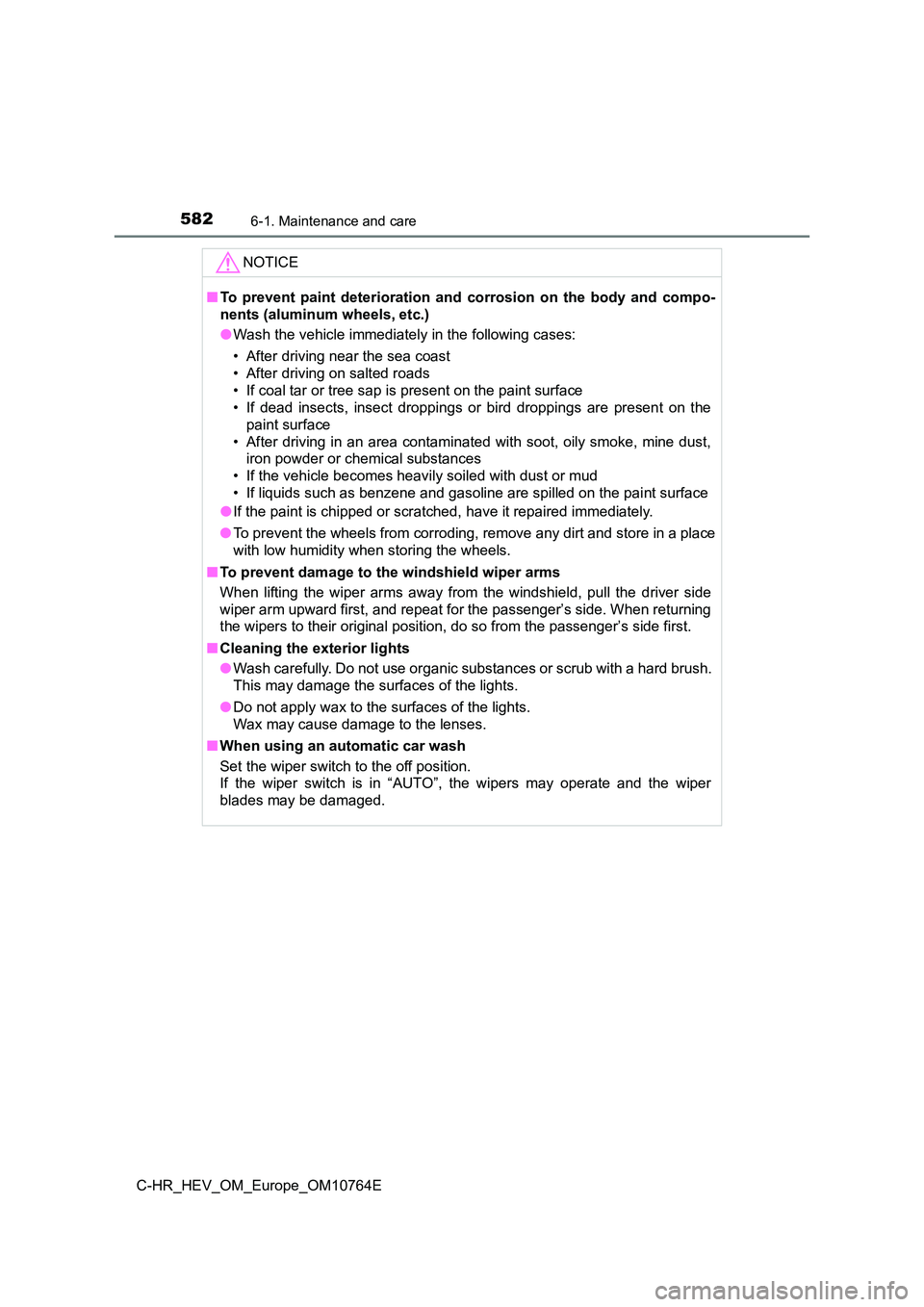

NOTICE
■To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels, etc.)
● Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are presen t on the
paint surface
• After driving in an area contaminated with soot, oily smoke, m ine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the pai nt surface
● If the paint is chipped or scratched, have it repaired immediately.
● To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
■ To prevent damage to the windshield wiper arms
When lifting the wiper arms away from the windshield, pull the driver side
wiper arm upward first, and repeat for the passenger’s side. Wh en returning
the wipers to their original position, do so from the passenger ’s side first.
■ Cleaning the exterior lights
● Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
● Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■ When using an automatic car wash
Set the wiper switch to the off position.
If the wiper switch is in “AUTO”, the wipers may operate and th e wiper
blades may be damaged.
