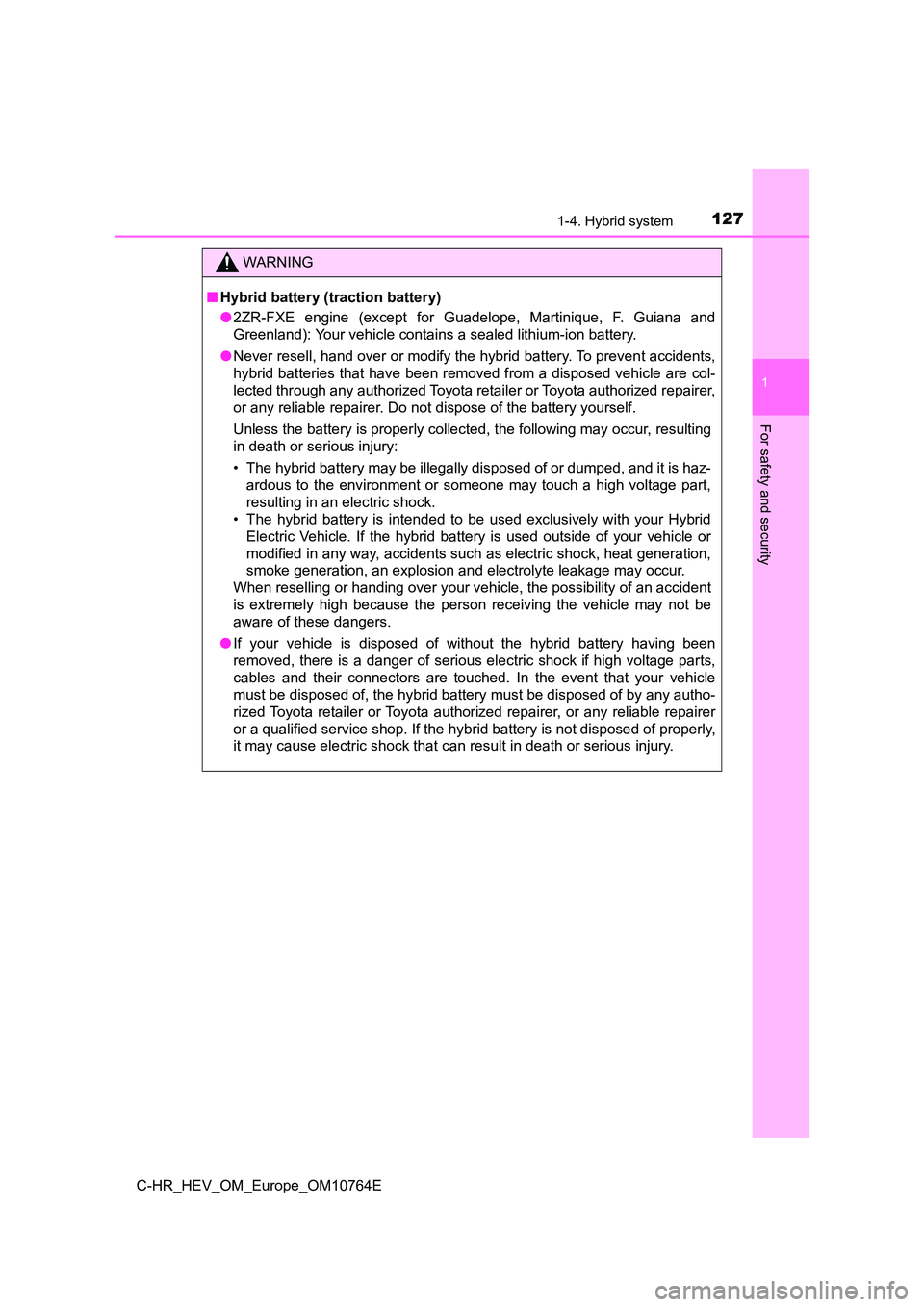

2023 TOYOTA C-HR Owners Manual

1271-4. Hybrid system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
WARNING
■Hybrid battery (traction battery)
● 2ZR-FXE engine (except for Guadelope, Martinique, F. Guiana and
Greenland): Your vehicle contains a sealed lithium-ion battery.
● Never resell, hand over or modify the hybrid battery. To prevent accidents,
hybrid batteries that have been removed from a disposed vehicle are col-
lected through any authorized Toyota retailer or Toyota authori zed repairer,
or any reliable repairer. Do not dispose of the battery yoursel f.
Unless the battery is properly collected, the following may occ ur, resulting
in death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is haz-
ardous to the environment or someone may touch a high voltage p art,
resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with you r Hybrid
Electric Vehicle. If the hybrid battery is used outside of your vehicle or
modified in any way, accidents such as electric shock, heat gen eration,
smoke generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident
is extremely high because the person receiving the vehicle may not be
aware of these dangers.
● If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high vo ltage parts,
cables and their connectors are touched. In the event that your vehicle
must be disposed of, the hybrid battery must be disposed of by any autho-
rized Toyota retailer or Toyota authorized repairer, or any rel iable repairer
or a qualified service shop. If the hybrid battery is not dispo sed of properly,
it may cause electric shock that can result in death or serious injury.

1281-4. Hybrid system
C-HR_HEV_OM_Europe_OM10764E
NOTICE
■Hybrid battery (traction battery) air intake vent
● Make sure not to block the air intake vent with anything, such as a seat
cover, plastic cover, or luggage. The hybrid battery (traction battery) may
overheat and be damaged.
● When dust, etc., has accumulated in the air intake vent, clean it with a vac-
uum cleaner to prevent the vent from clogging.
● Do not get water or foreign materials in the air intake vent as this may
cause a short circuit and damage the hybrid battery (traction b attery).
● Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction batt ery), the battery
may be damaged. Have the vehicle inspected by any authorized To yota
retailer or Toyota authorized repairer, or any reliable repaire r.
● There is a filter installed to the air intake vent. When the filter remains
noticeably dirty even after cleaning the air intake vent, filte r cleaning or
replacement is recommended. For information regarding filter cl eaning or
replacement, refer to P. 638.
● If “Maintenance required for Traction battery cooling parts. See owner’s
manual.” is shown on the multi-information display, the air int ake vent and
filter may be clogged. Refer to P. 638 for information on how t o clean the
air intake vent.

129
1
1-5. Theft deterrent system
For safety and security
C-HR_HEV_OM_Europe_OM10764E
Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
The vehicle’s keys have built-in transponder chips that prevent
the hybrid system from starting if a key has not been previousl y
registered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi -
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

1301-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security
system (key with a built-in transponder chip) of another vehicl e

1311-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

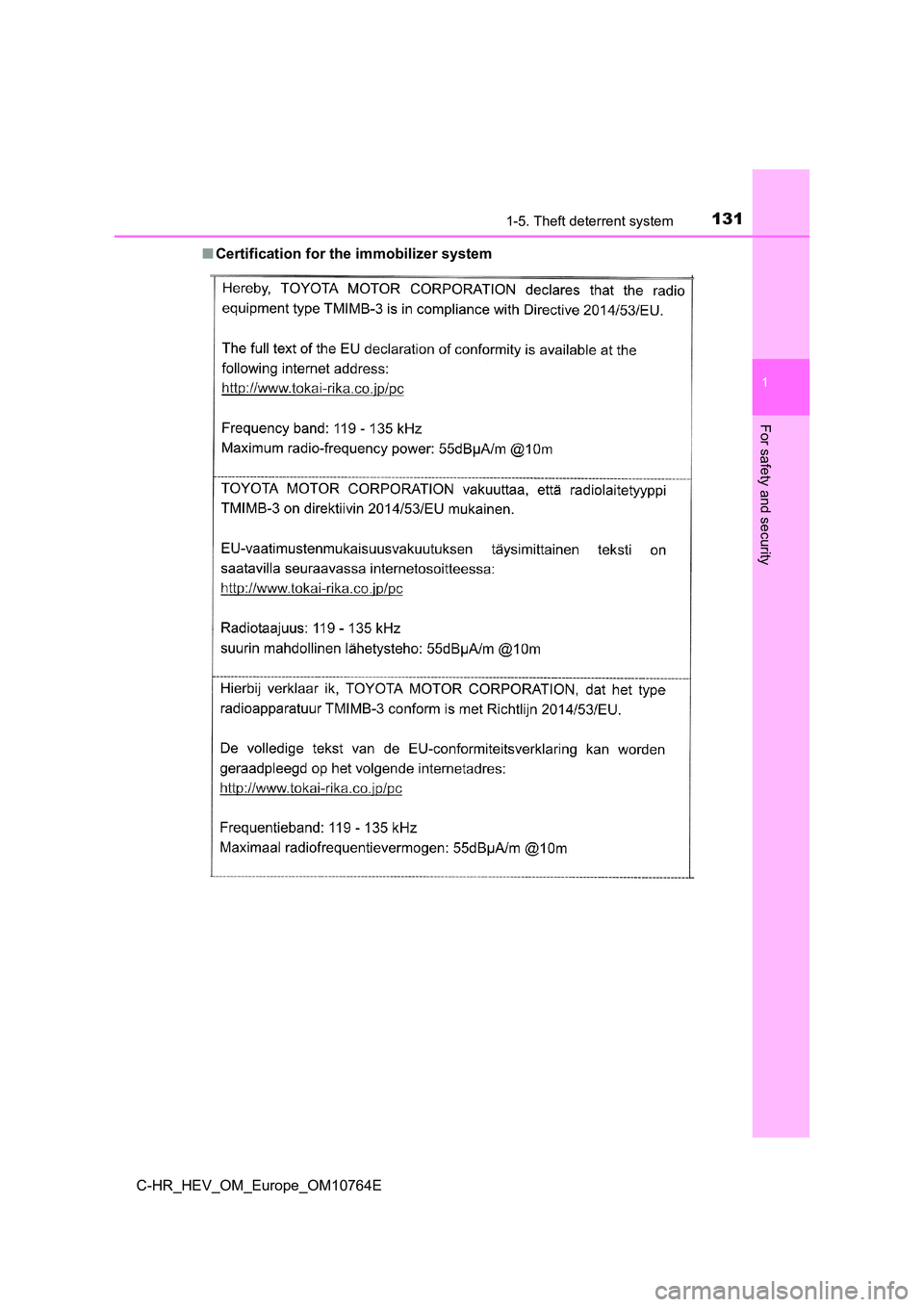

■ Certification for the immobilizer system

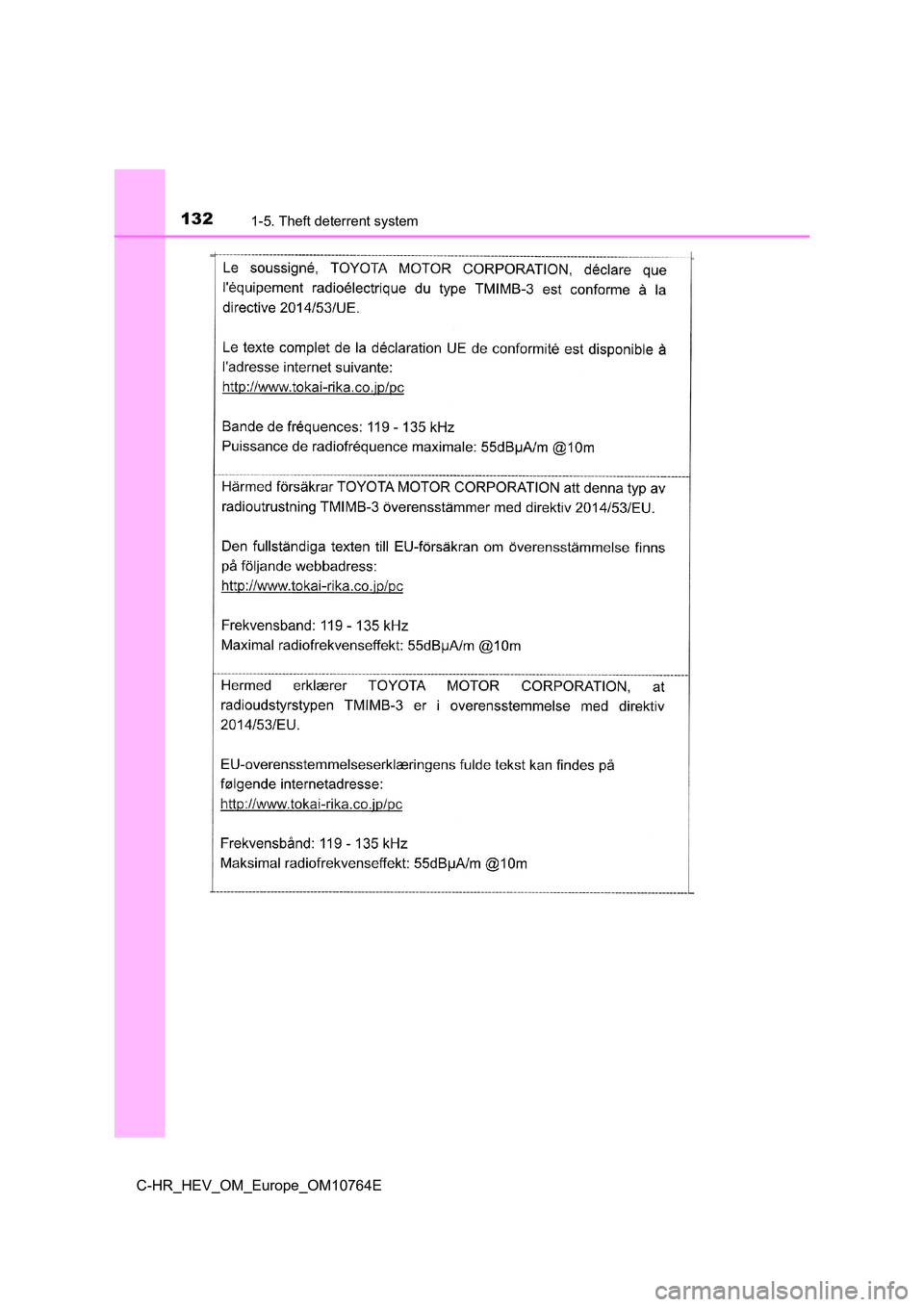

1321-5. Theft deterrent system
C-HR_HEV_OM_Europe_OM10764E

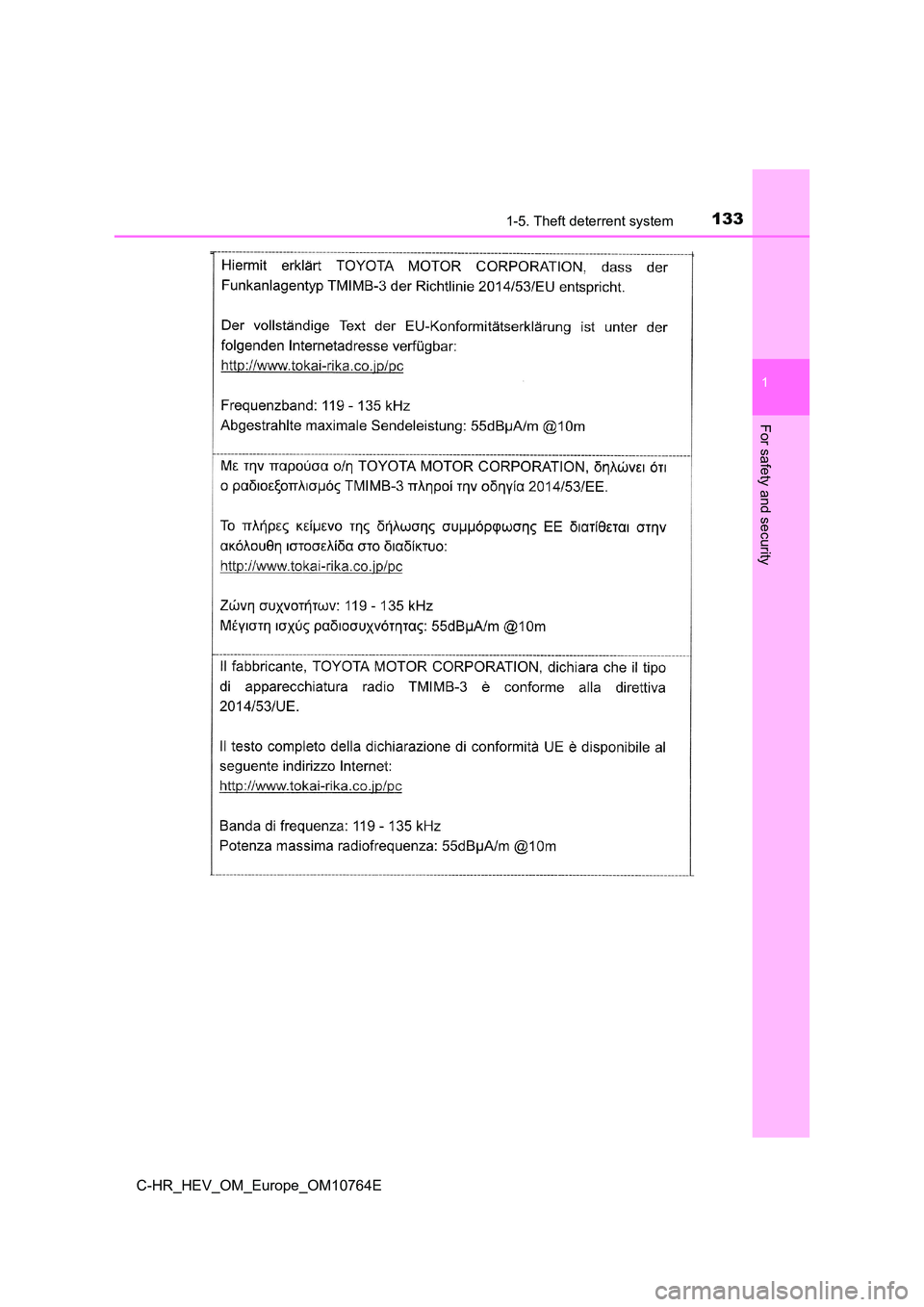

1331-5. Theft deterrent system
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

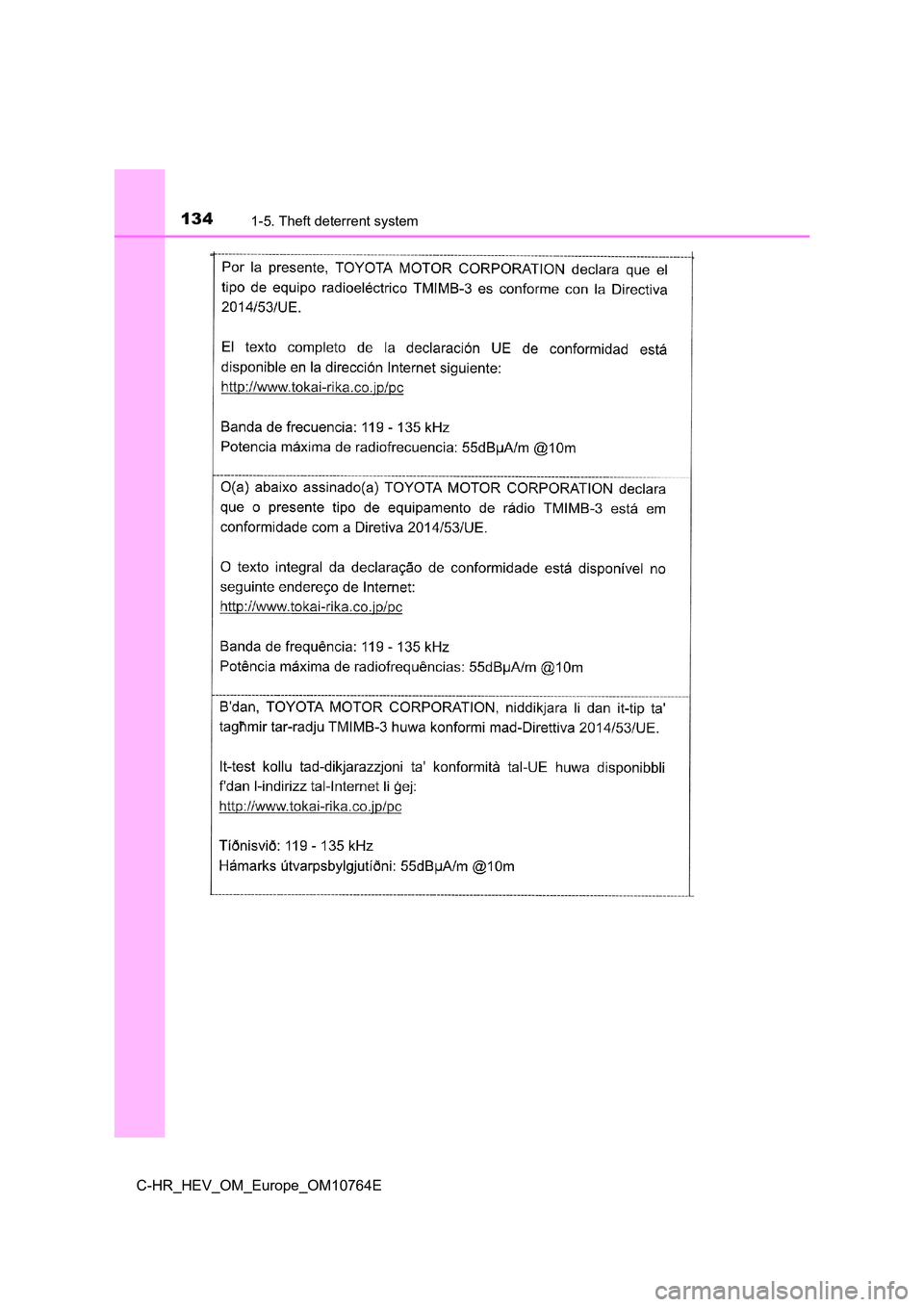

1341-5. Theft deterrent system
