2023 TOYOTA C-HR Owners Manual

4154-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
●Adjusting the set speed by the lever
To change the set speed, operate the lever until the desired se t
speed is displayed.
Increases the speed
(Except when the vehicle has
been stopped by system control
in vehicle-to-vehicle distance
control mode)
Decreases the speed
Fine adjustment: Momentarily
move the lever in the desired
direction.
Large adjustment: Hold the lever up or down to change the speed ,
and release when the desired speed is reached.
In the vehicle-to-vehicle distance control mode, the set speed will
be increased or decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2 each
time the lever is operated
Large adjustment: Increases or decreases in 5 km/h (3.1 mph)*1 or
5mph (8 km/h)*2 increments for as long as the lever is held
In the constant speed control mode ( P. 419), the set speed will be
increased or decreased as follows:
Fine adjustment: By 1 km/h (0.6 mph)*1 or 1 mph (1.6 km/h)*2 each
time the lever is operated
Large adjustment: The speed will continue to change while the l ever is
held.
*1: When the set speed is shown in “km/h”
*2: When the set speed is shown in “MPH”
● Increasing the set speed by the accelerator pedal
Accelerate with accelerator pedal operation to the desired vehi -
cle speed
Push the lever down
Adjusting the set speed
1
2

4164-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
Pressing the switch changes the
vehicle-to-vehicle distance as fol-
lows:
Long
Medium
Short
If a vehicle is running ahead of
you, the preceding vehicle mark
will also be displayed.
Select a distance from the table below. Note that the distances shown
correspond to a vehicle speed of 80 km/h (50 mph). Vehicle-to-v ehicle
distance increases/decreases in accordance with vehicle speed.
When the vehicle is stopped by system control, the vehicle stop s at a
certain vehicle-to-vehicle distance depending on the situation.
Changing the vehicle-to-vehicle distance (vehicle-to-vehicle di s-
tance control mode)
Preceding vehicle mark
Vehicle-to-vehicle distance settings (vehicle-to-vehicle distan ce
control mode)
Distance optionsVehicle-to-vehicle distance
LongApproximately 50 m (160 ft.)
MediumApproximately 40 m (130 ft.)
ShortApproximately 30 m (100 ft.)

4174-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
After the vehicle ahead of you
starts off, push the lever up.
Your vehicle will also resume fol-
low-up cruising if the accelerator
pedal is depressed after the vehi-
cle ahead of you starts off.
Pulling the lever toward you
cancels the speed control.
The speed control is also canceled
when the brake pedal is
depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)
Pushing the lever up resumes the cruise control and returns veh icle
speed to the set speed.
Resuming follow-up cruising when the vehicle has been stopped
by system control (vehicle-to-vehicle distance control mode)
Canceling and resuming the speed control

4184-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
When your vehicle is too close to
a vehicle ahead, and sufficient
automatic deceleration via the
cruise control is not possible, the
display will flash and the buzzer
will sound to alert the driver. An
example of this would be if
another driver cuts in front of you
while you are following a vehicle.
Depress the brake pedal to
ensure an appropriate vehicle-to-
vehicle distance.
■Warnings may not occur when
In the following instances, warnings may not occur even when th e
vehicle-to-vehicle distance is small.
● When the speed of the preceding vehicle matches or exceeds
your vehicle speed
● When the preceding vehicle is traveling at an extremely slow
speed
● Immediately after the cruise control speed was set
● When depressing the accelerator pedal
Approach warning (vehicle-to-vehicle distance control mode)

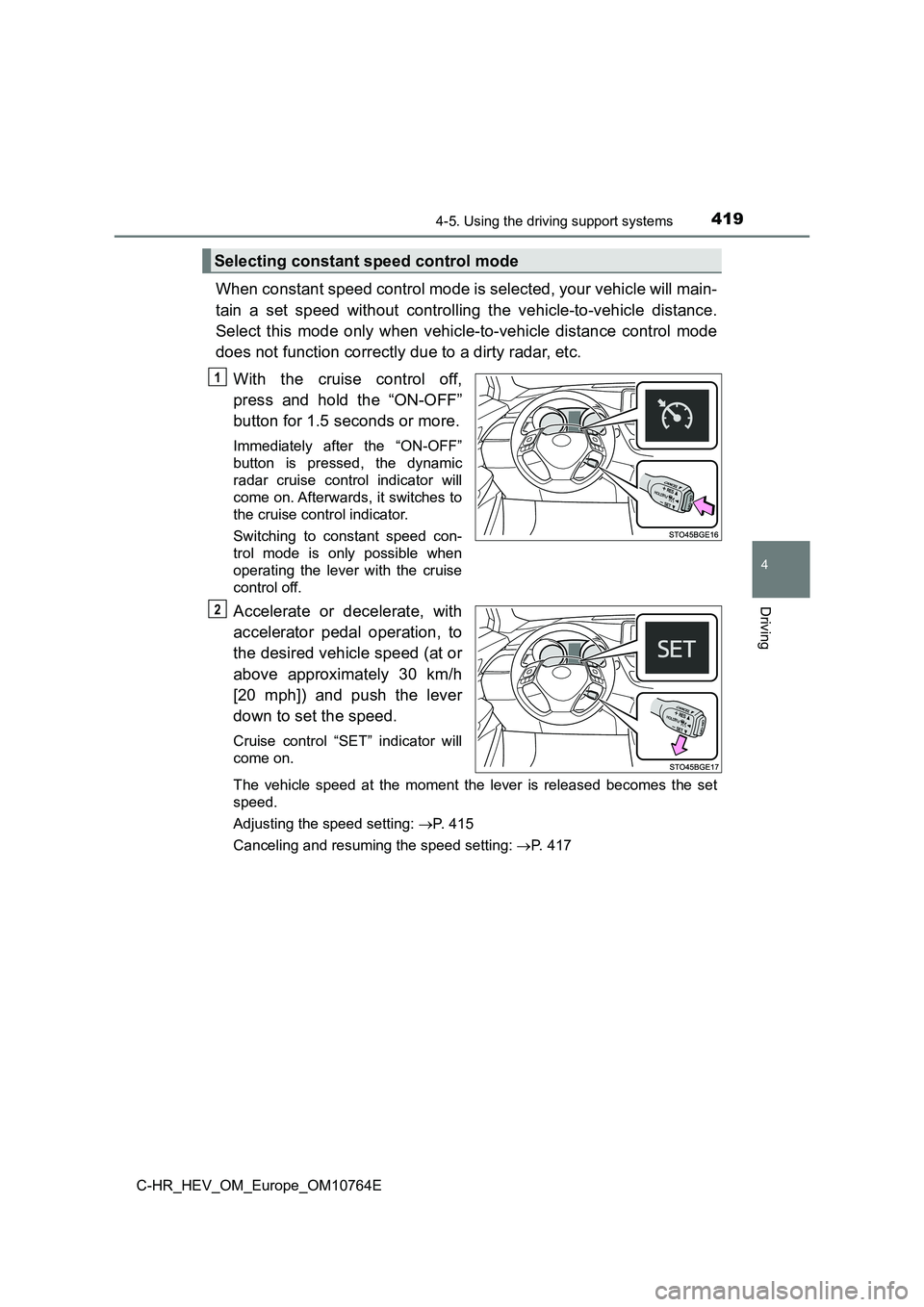

4194-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
When constant speed control mode is selected, your vehicle will main-
tain a set speed without controlling the vehicle-to-vehicle dis tance.
Select this mode only when vehicle-to-vehicle distance control mode
does not function correctly due to a dirty radar, etc.
With the cruise control off,
press and hold the “ON-OFF”
button for 1.5 seconds or more.
Immediately after the “ON-OFF”
button is pressed, the dynamic
radar cruise control indicator will
come on. Afterwards, it switches to
the cruise control indicator.
Switching to constant speed con-
trol mode is only possible when
operating the lever with the cruise
control off.
Accelerate or decelerate, with
accelerator pedal operation, to
the desired vehicle speed (at or
above approximately 30 km/h
[20 mph]) and push the lever
down to set the speed.
Cruise control “SET” indicator will
come on.
The vehicle speed at the moment the lever is released becomes t he set
speed.
Adjusting the speed setting: P. 415
Canceling and resuming the speed setting: P. 417
Selecting constant speed control mode
1
2

4204-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
When this function is enabled and the system is operating in vehicle-
to-vehicle distance control mode (P. 412), when a speed limit sign is
detected, the recognized speed limit will be displayed with an up/
down arrow. The set speed can be increased/reduced to the recog -
nized speed limit by pressing and holding the “+RES”/“-SET” swi tch.
● When the current set speed is lower than the recognized speed
limit
Push the lever up
● When the current set speed is higher than the recognized speed
limit
Push the lever down
Dynamic Radar Cruise Control with Road Sign Assist can be enabl ed/
disabled in on the multi-information display. (P. 788)
When the Dynamic Radar Cruise Control with Road Sign Assist is
operating, while driving down a hill, the vehicle speed may exc eed the
set speed.
In this case, the displayed set vehicle speed will be highlight ed and a
buzzer will sound to alert the driver.
Dynamic Radar Cruise Control with Road Sign Assist
Enabling/Disabling the Dynamic Radar Cruise Control with Road
Sign Assist

4214-5. Using the driving support systems
4
Driving
C-HR_HEV_OM_Europe_OM10764E
■Dynamic radar cruise control with full-speed range can be set when
● The shift lever is in D.
● The desired set speed can be set when the vehicle speed is approximately
30 km/h (20 mph) or more.
(However, when the vehicle speed is set while driving at below approxi-
mately 30 km/h [20 mph], the set speed will be set to approxima tely 30 km/h
[20 mph].)
■ Accelerating after setting the vehicle speed
The vehicle can accelerate by operating the accelerator pedal. After acceler-
ating, the set speed resumes. However, during vehicle-to-vehicl e distance
control mode, the vehicle speed may decrease below the set spee d in order
to maintain the distance to the preceding vehicle.
■ When the vehicle stops while follow-up cruising
● Pushing the lever up while the vehicle ahead stops will resume follow-up
cruising if the vehicle ahead starts off within approximately 3 seconds after
the lever is pushed up.
● If the vehicle ahead starts off within 3 seconds after your vehicle stops, fol-
low-up cruising will be resumed.
■ Automatic cancelation of vehicle-to-vehicle distance control mode
Vehicle-to-vehicle distance control mode is automatically cance led in the fol-
lowing situations:
● VSC is activated.
● TRC is activated for a period of time.
● When the VSC or TRC system is turned off.
● The sensor cannot detect correctly because it is covered in some way.
● Pre-collision braking is activated.
● The parking brake is operated.
● The vehicle is stopped by system control on a steep incline.
● The following are detected when the vehicle has been stopped by system
control:
• The driver is not wearing a seat belt.
• The driver’s door is opened.
• The vehicle has been stopped for about 3 minutes.
If vehicle-to-vehicle distance control mode is automatically ca nceled for any
reasons other than the above, there may be a malfunction in the system.
Contact any authorized Toyota retailer or Toyota authorized rep airer, or any
reliable repairer.

4224-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
■ Automatic cancelation of constant speed control mode
Constant speed control mode is automatically canceled in the fo llowing situa-
tions:
● Actual vehicle speed is more than approximately 16 km/h (10 mph) below
the set vehicle speed.
● Actual vehicle speed falls below approximately 30 km/h (20 mph).
● VSC is activated.
● TRC is activated for a period of time.
● When the VSC or TRC system is turned off.
● Pre-collision braking is activated.
If constant speed control mode is automatically canceled for an y reasons
other than the above, there may be a malfunction in the system. Contact any
authorized Toyota retailer or Toyota authorized repairer, or an y reliable
repairer.
■ The Dynamic Radar Cruise Control with Road Sign Assist may not oper-
ate properly when
As the Dynamic Radar Cruise Control with Road Sign Assist may n ot operate
properly in conditions in which RSA may not operate or detect c orrectly
( P. 406), when using this function, make sure to check the speed limit sign
displayed.
In the following situations, the set speed may not be changed t o the recog-
nized speed limit by pressing and holding the “+RES”/“-SET” swi tch.
● If speed limit information is not available
● When the recognized speed limit is the same as the set speed
● When the recognized speed limit is outside of the speed range that the
dynamic radar cruise control system can operate
■ Brake operation
A brake operation sound may be heard and the brake pedal respon se may
change, but these are not malfunctions.
■ Warning messages and buzzers for dynamic radar cruise control with
full-speed range
Warning messages and buzzers are used to indicate a system malf unction or
to inform the driver of the need for caution while driving. If a warning message
is shown on the multi-information display, read the message and follow the
instructions. ( P. 365, 690)
