Maintenance and care
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
12-volt battery
condition
( P. 604)
2ZR-FXE engine
• Warm water • Baking soda • Grease
• Conventional wrench (for terminal clamp bolts)
M20A-FXS engine
• Grease
• Conventional wrench (for terminal clamp bolts)
Engine/power
control unit
coolant level
( P. 602)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 599)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 6 4 6 )• Fuse with same amperage rating as original
Hybrid battery
(traction battery)
air intake vent
( P. 638)
• Vacuum cleaner, etc.
• Phillips screwdriver
Light bulbs
( P. 651)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator and
condenser
( P. 604)


5926-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
Tire inflation
pressure
( P. 630)
• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 609)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
● Make sure that the “ACCESSORY” or “IGNITION ON” on the multi-infor-
mation display and the “READY” indicator are both off.
● Keep hands, clothing and tools away from the moving fan.
● Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc., right after driving as they may be hot. Oil and other fluids
may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the 12-volt
battery. Fuel and 12-volt battery fumes are flammable.
● Be extremely cautious when working on the 12-volt battery. It contains poi-
sonous and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately. If you still experi ence discom-
fort, consult a doctor.
■ When working near the electric cooling fans or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coo lant temperature
is high. ( P. 604)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, flui d spray, etc.,
from getting in your eyes.
ItemsParts and tools

5936-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care

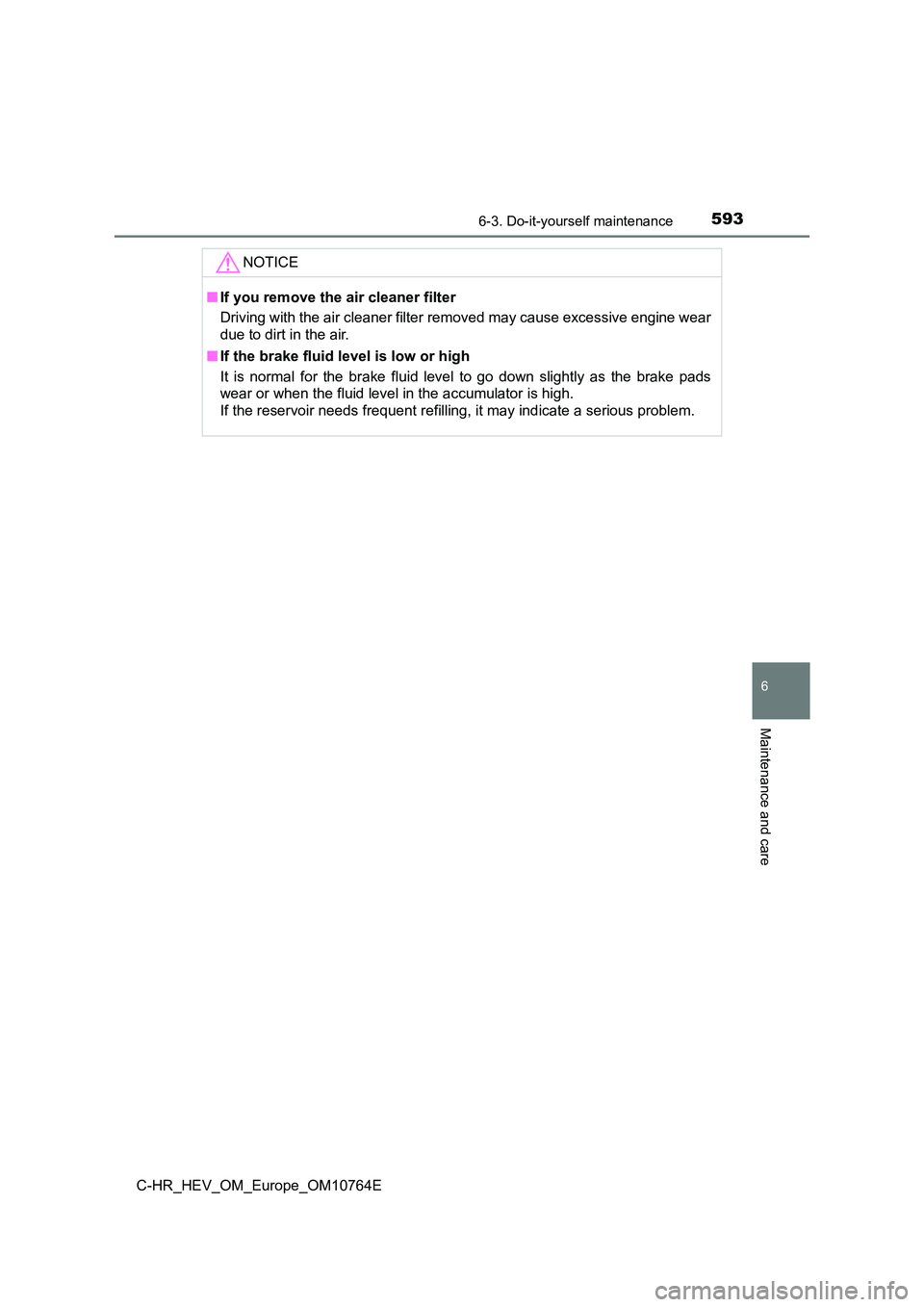

NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
■ If the brake fluid level is low or high
It is normal for the brake fluid level to go down slightly as t he brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a se rious problem.

5946-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E

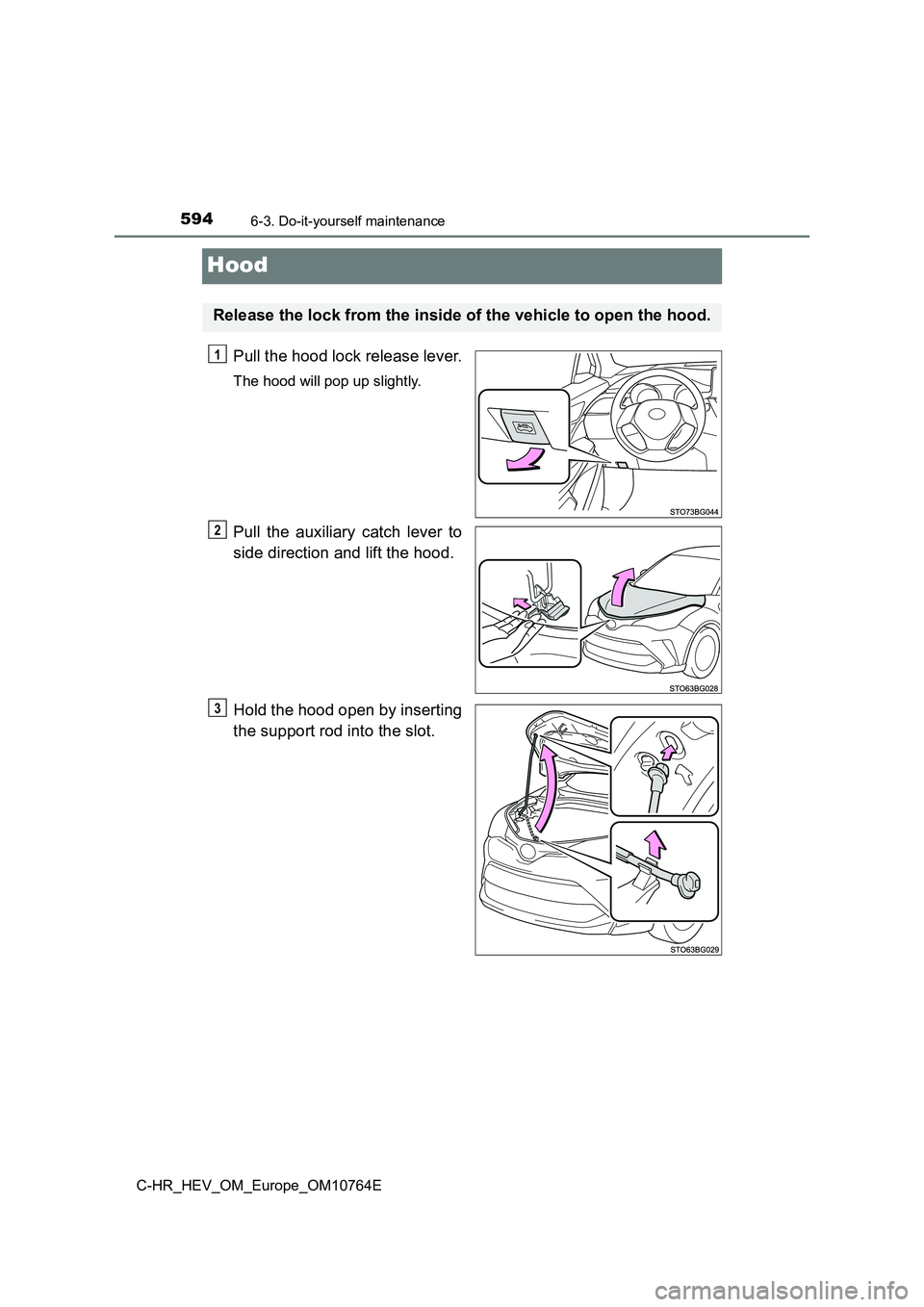

Hood
Pull the hood lock release lever.
The hood will pop up slightly.
Pull the auxiliary catch lever to
side direction and lift the hood.
Hold the hood open by inserting
the support rod into the slot.
Release the lock from the inside of the vehicle to open the hoo d.
1
2
3

5956-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care

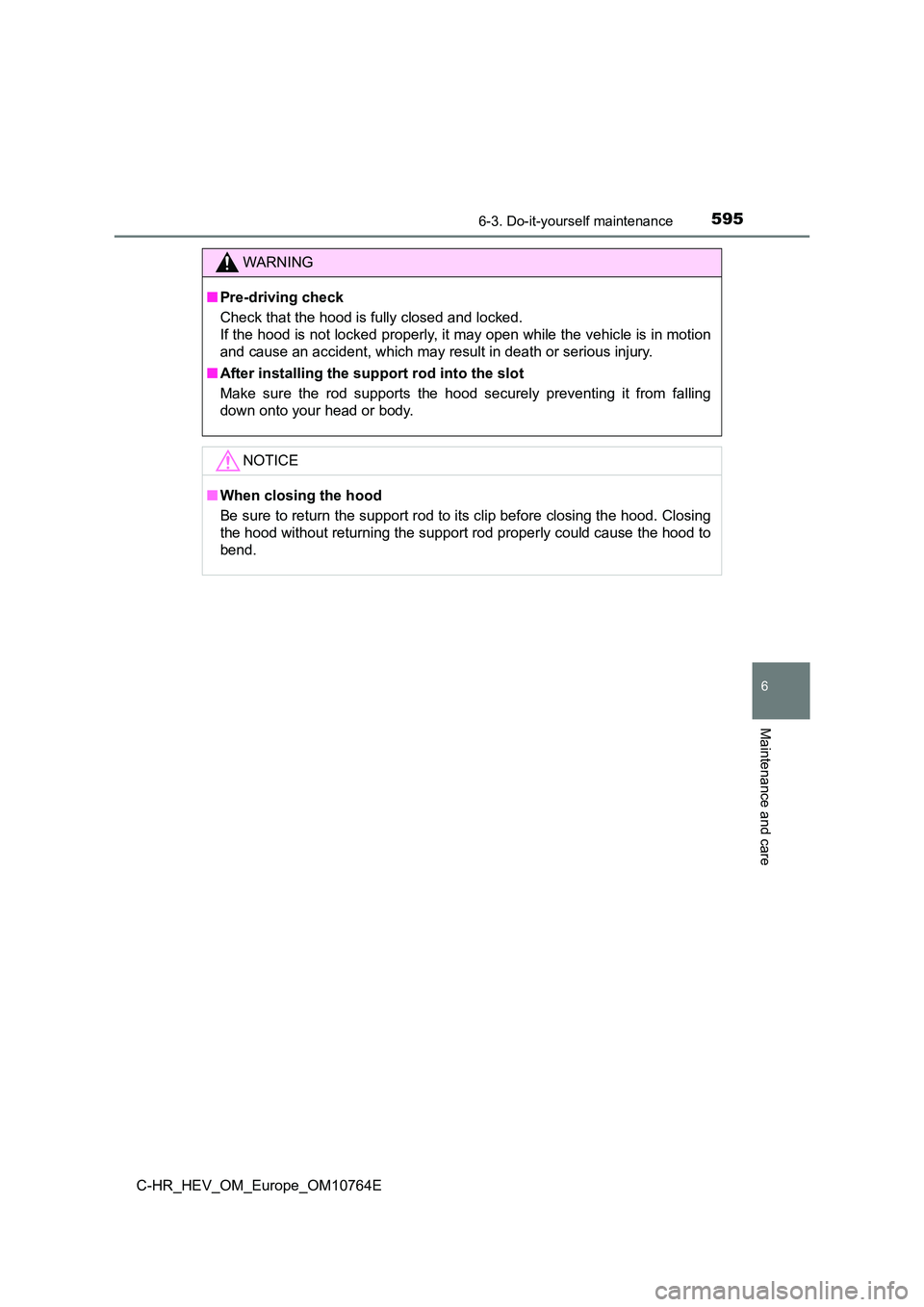

WARNING
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehic le is in motion
and cause an accident, which may result in death or serious inj ury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely preventing it from falling
down onto your head or body.
NOTICE
■ When closing the hood
Be sure to return the support rod to its clip before closing th e hood. Closing
the hood without returning the support rod properly could cause the hood to
bend.

5966-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E

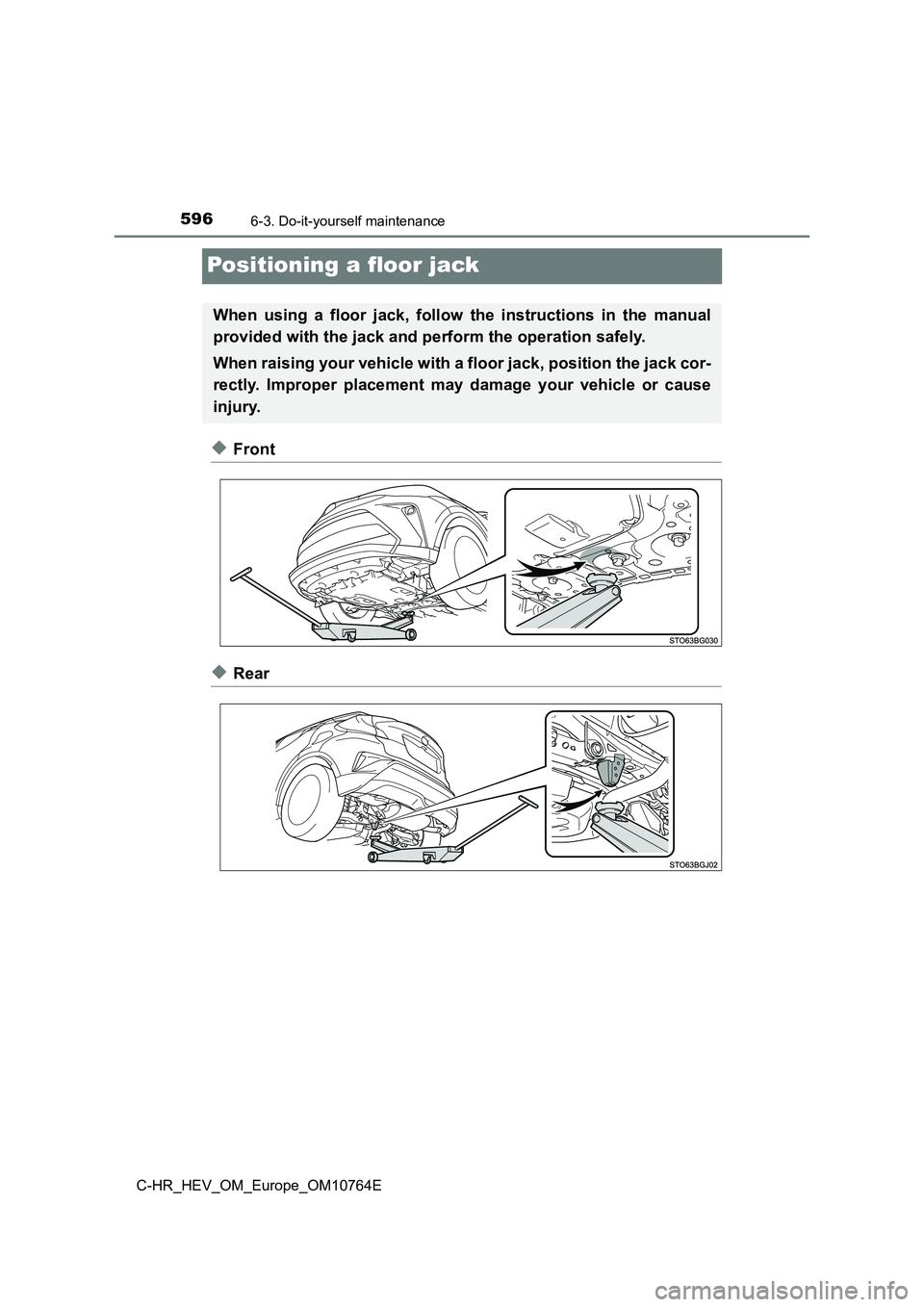

Positioning a floor jack
◆Front
◆Rear
When using a floor jack, follow the instructions in the manual
provided with the jack and perform the operation safely.
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause
injury.

5976-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
6
Maintenance and care
Engine compar tment
2ZR-FXE engine
Washer fluid tank (P. 609)
Engine coolant reservoir
( P. 602)
Fuse boxes ( P. 646)
Engine oil level dipstick
( P. 599)
Engine oil filler cap ( P. 600)
Power control unit coolant
reservoir ( P. 6 0 2 )
12-volt battery ( P. 6 0 4 )
Radiator ( P. 6 0 4 )
Condenser ( P. 6 0 4 )
Electric cooling fans

5986-3. Do-it-yourself maintenance
C-HR_HEV_OM_Europe_OM10764E
M20A-FXS engine
■12-volt battery (M20A-FXS engine)
 P. 610
Washer fluid tank (P. 609)
Engine coolant reservoir
( P. 602)
Fuse boxes ( P. 646)
Power control unit coolant res-
ervoir ( P. 602)
Engine oil filler cap ( P. 6 0 0 )
Engine oil level dipstick
( P. 5 9 9 )
Radiator ( P. 6 0 4 )
Condenser ( P. 6 0 4 )
Electric cooling fans
