2023 TOYOTA C-HR Owners Manual

631-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

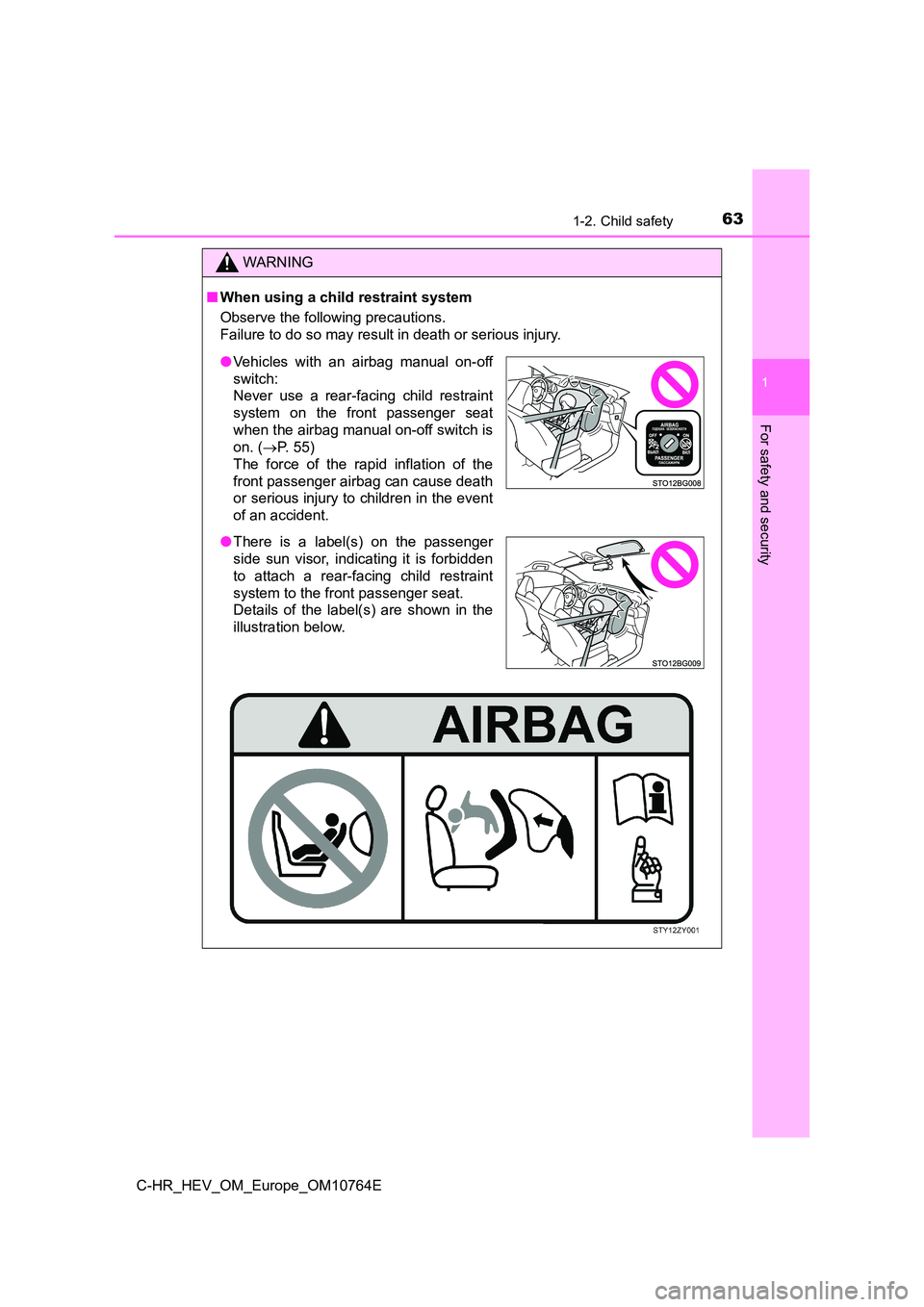

WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Vehicles with an airbag manual on-off
switch:
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. ( P. 55)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
● There is a label(s) on the passenger
side sun visor, indicating it is forbidden
to attach a rear-facing child restraint
system to the front passenger seat.
Details of the label(s) are shown in the
illustration below.

641-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

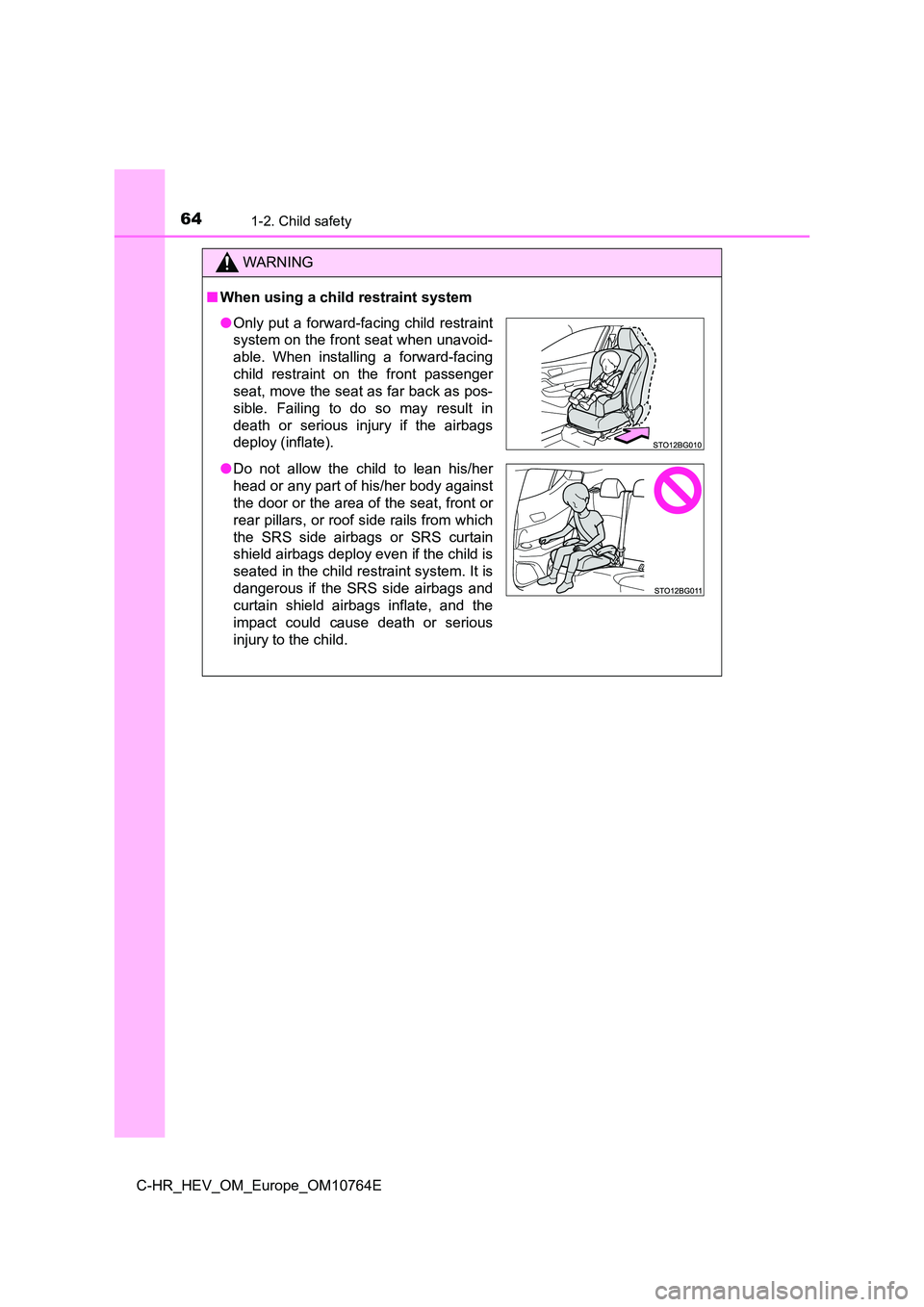

WARNING
■When using a child restraint system
●Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible. Failing to do so may result in
death or serious injury if the airbags
deploy (inflate).
● Do not allow the child to lean his/her
head or any part of his/her body against
the door or the area of the seat, front or
rear pillars, or roof side rails from which
the SRS side airbags or SRS curtain
shield airbags deploy even if the child is
seated in the child restraint system. It is
dangerous if the SRS side airbags and
curtain shield airbags inflate, and the
impact could cause death or serious
injury to the child.

651-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

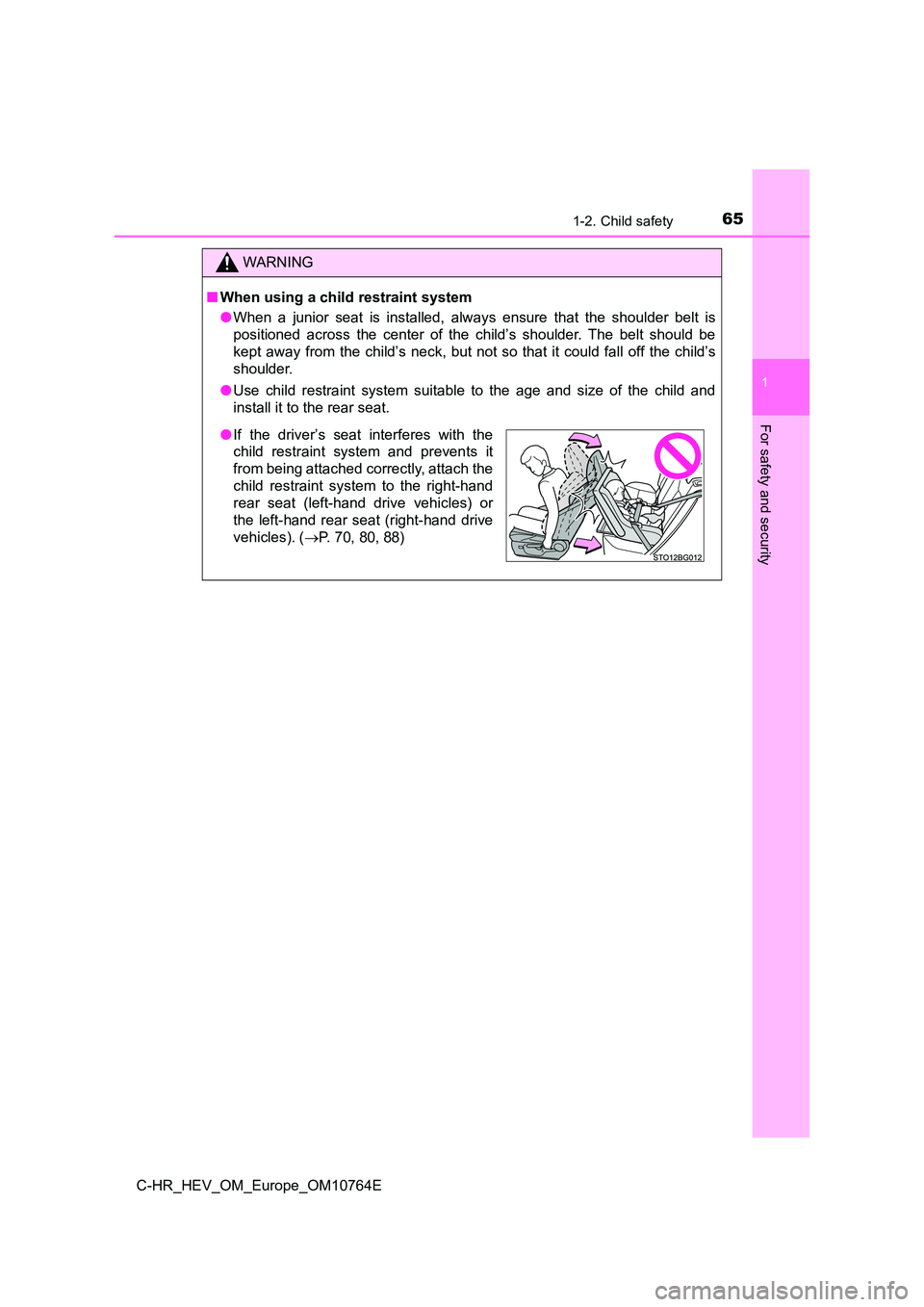

WARNING
■When using a child restraint system
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
● Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach the
child restraint system to the right-hand
rear seat (left-hand drive vehicles) or
the left-hand rear seat (right-hand drive
vehicles). ( P. 70, 80, 88)

661-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
*: Guadelope, Martinique and F. Guiana
■Child restraint system compatibility for each seating position
Compatibility of each seating position with child restraint sys tems
( P. 68) displays the type of child restraint systems that can be
used and possible seating positions for installation using symb ols.
Also, the recommended child restraint system that is suitable f or
your child can be selected.
Otherwise, check [Recommended child restraint systems and Com-
patibility table] for recommended child restraint systems. ( P. 7 3 )
Check the selected child restraint system together with the fol low-
ing [Before confirming the compatibility of each seating positi on
with child restraint systems].
■Before confirming the compatibility of each seating position
with child restraint systems
Checking the child restraint system standards.
Use a child restraint system that conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is displayed on child restraint sys -
tems which are conformed.
Check for an approval mark attached to the child restraint sys-
tem.
Child restraint system compatibility for each seating position
(Except for Reunion and Latin American countries*)
1

671-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E
Example of the displayed
regulation number
UN(ECE) R44 approval
mark*3
The weight range of the
child who is applicable for
an UN(ECE) R44 approval
mark is indicated.
UN(ECE) R129 approval
mark*3
The height range of the
child who is applicable as
well as available weights
for an UN(ECE) R129
approval mark is indicated.
*1: UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child
restraint systems.
*2: The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
*3: The displayed mark may differ depending on the product.
Checking the category of the child restraint system.
Check the approval mark of the child restraint system for which
of the following categories the child restraint system is suita ble.
Also, if there are any uncertainties, check the user’s guide
included with the child restraint system or contact the retaile r of
the child restraint system.
•“universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
2

681-2. Child safety
C-HR_HEV_OM_Europe_OM10764E

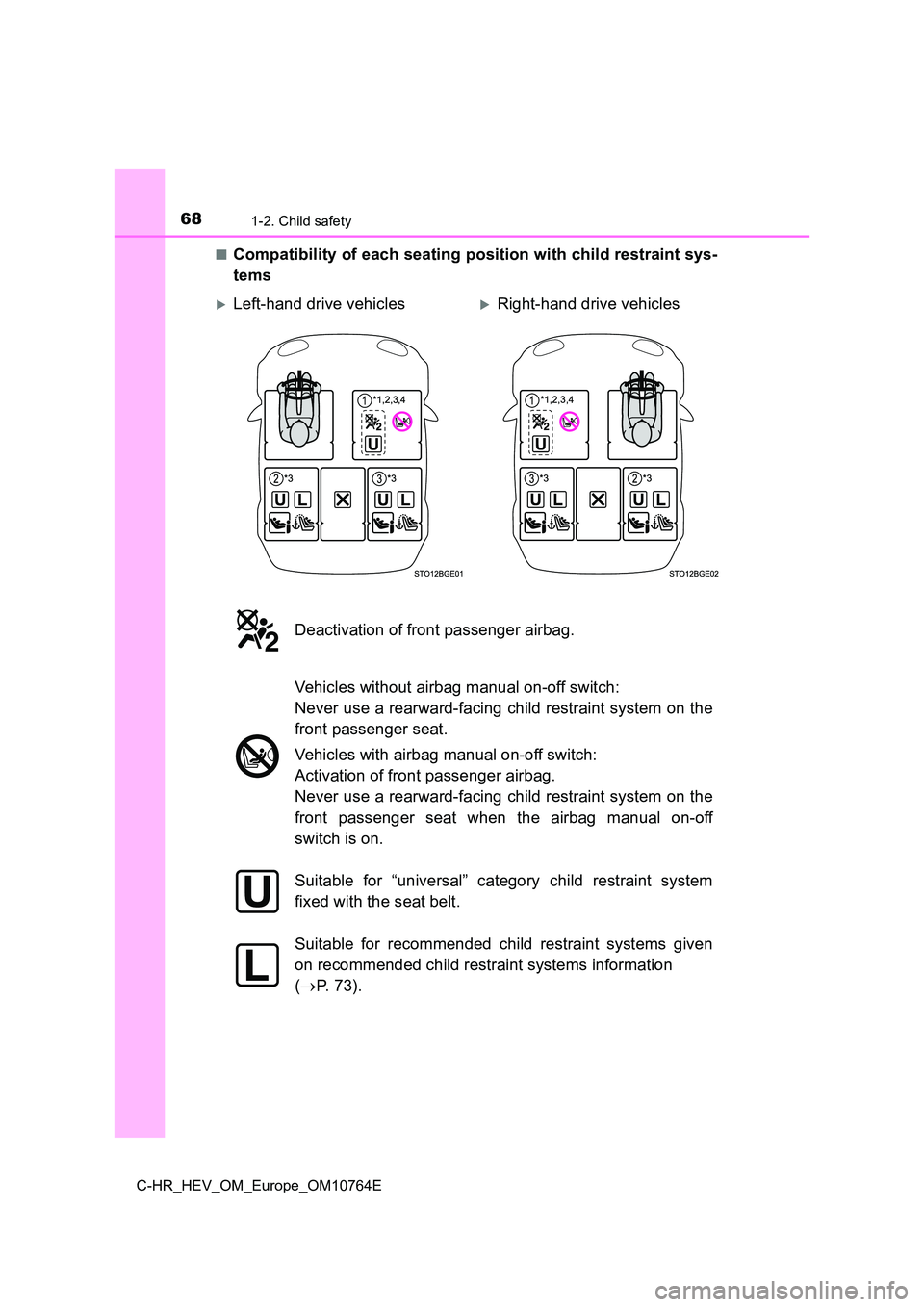

■Compatibility of each seating position with child restraint sys -
tems
Left-hand drive vehiclesRight-hand drive vehicles
Deactivation of front passenger airbag.
Vehicles without airbag manual on-off switch:
Never use a rearward-facing child restraint system on the
front passenger seat.
Vehicles with airbag manual on-off switch:
Activation of front passenger airbag.
Never use a rearward-facing child restraint system on the
front passenger seat when the airbag manual on-off
switch is on.
Suitable for “universal” category child restraint system
fixed with the seat belt.
Suitable for recommended child restraint systems given
on recommended child restraint systems information
( P. 73).

691-2. Child safety
1
For safety and security
C-HR_HEV_OM_Europe_OM10764E

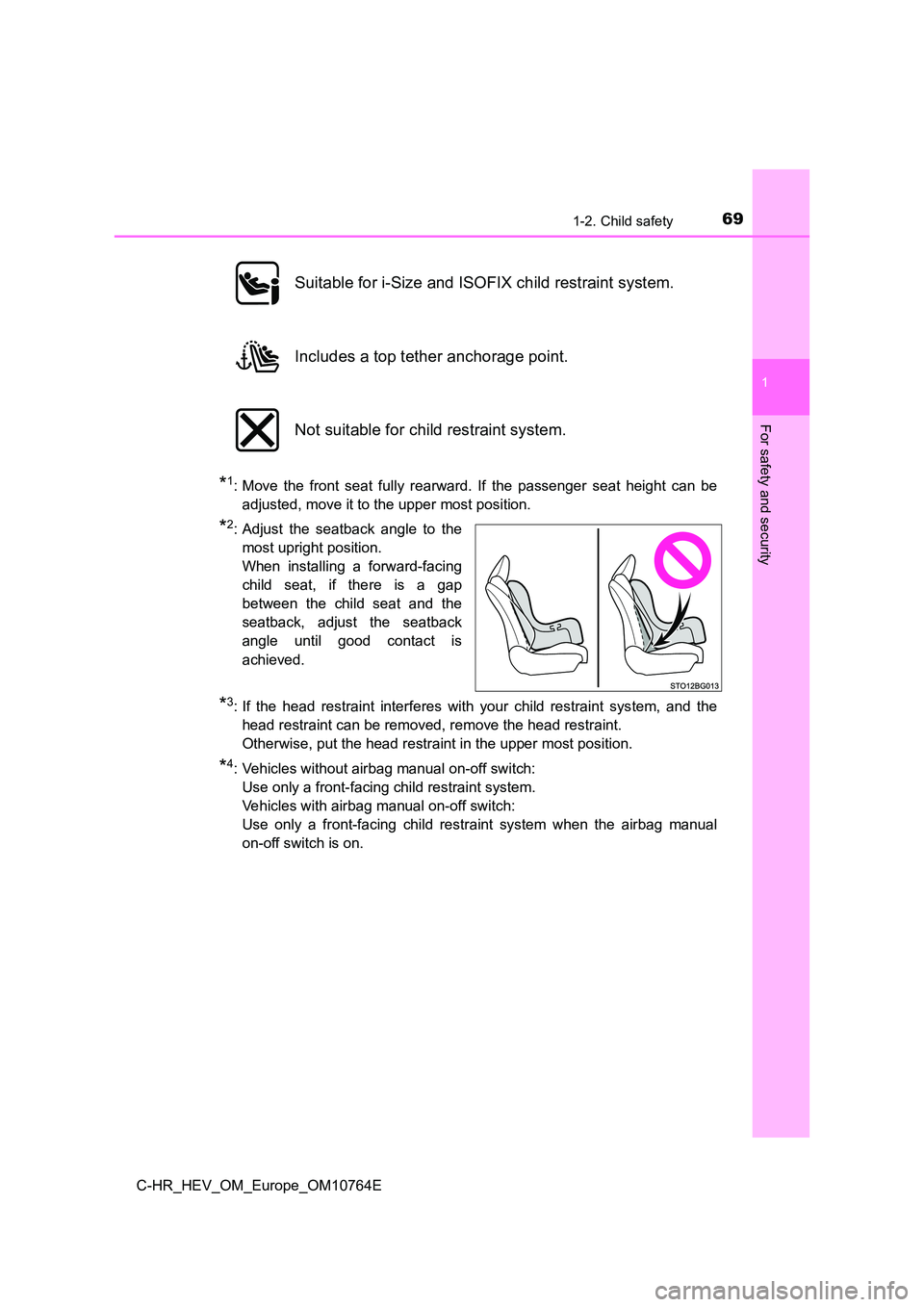

*1: Move the front seat fully rearward. If the passenger seat height can be
adjusted, move it to the upper most position.
*2: Adjust the seatback angle to the
most upright position.
When installing a forward-facing
child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback
angle until good contact is
achieved.
*3: If the head restraint interferes with your child restraint sys tem, and the
head restraint can be removed, remove the head restraint.
Otherwise, put the head restraint in the upper most position.
*4: Vehicles without airbag manual on-off switch:
Use only a front-facing child restraint system.
Vehicles with airbag manual on-off switch:
Use only a front-facing child restraint system when the airbag manual
on-off switch is on.
Suitable for i-Size and ISOFIX child restraint system.
Includes a top tether anchorage point.
Not suitable for child restraint system.

701-2. Child safety
C-HR_HEV_OM_Europe_OM10764E
When securing some types of child restraint systems in rear seat, it
may not be possible to properly use the seat belts in positions next to
the child restraint without interfering with it or affecting se at belt effec-
tiveness. Be sure your seat belt fits snugly across your should er and
low on your hips. If it does not, or if it interferes with the child restraint,
move to a different position. Failure to do so may result in de ath or
serious injury.
● When installing a child restraint in the rear seats, adjust the front
seat so that it does not interfere with the child or child rest raint
system.
● When installing a child seat with support base, if the child seat
interferes with the seatback when latching it into the support
base, adjust the seatback rearward until there is no interferen ce.
● If the seat belt shoulder
anchor is ahead of the child
seat belt guide, move the
seat cushion forward.
● When installing a junior seat, if the child in your child restraint
system is in a very upright position, adjust the seatback angle to
the most comfortable position. And if the seat belt shoulder
anchor is ahead of the child seat belt guide, move the seat cus h-
ion forward.
