2023 TOYOTA C-HR Owners Manual

7
1
5
4
3
2
C-HR_HEV_OM_Europe_OM10764E
8
7
6
8-1. Specifications
Maintenance data
(fuel, oil level, etc.)...........764
Fuel information .................777
8-2. Customization
Customizable features .......779
8-3. Initialization
Items to initialize ................791
What to do if...
(Troubleshooting) .....................794
Alphabetical index ......................798
8Vehicle specifications
Index
For vehicles with navigation/multimedia system, refer to the
“Navigation and multimedia system Owner’s manual” or “Multimedi a
owner’s manual” for information regarding the equipment listed
below.
• Audio/visual system
• Navigation system
• Rear view monitor system
• Hands-free system
(for cellular phone)
Toyota Motor Europe NV/SA, Avenue du Bourget 60 - 1140 Brussels ,
Belgium www.toyota-europe.com
Toyota (GB) PLC
Great Burgh, Burgh Heath, Epsom, Surrey, KT18 5UX, UK

8
C-HR_HEV_OM_Europe_OM10764E
For your infor mation
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations fo r equipment
not installed on your vehicle.
All specifications provided in this manual are current at the t ime of printing.
However, because of the Toyota policy of continual product impr ovement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrat ions may differ
from your vehicle in terms of equipment.
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Shou ld it be deter-
mined that any of the genuine Toyota parts or accessories suppl ied with the
vehicle need to be replaced, Toyota recommends that genuine Toy ota parts
or accessories, be used to replace them. Other parts or accesso ries of
matching quality can also be used.
Toyota cannot accept any liability or guarantee spare parts and accessories
which are not genuine Toyota products, nor for replacement or i nstallation
involving such parts. In addition, damage or performance proble ms resulting
from the use of non-genuine Toyota spare parts or accessories m ay not be
covered under warranty.
Also, remodeling like this will have an effect on advanced safe ty equipment
such as Toyota Safety Sense (if equipped) and there is a danger that it will
not work properly or the danger that it may work in situations where it should
not be working.
Main Owner’s Manual
Accessories, spare parts and modification of your Toyota

9
C-HR_HEV_OM_Europe_OM10764E
The installation of an RF-transmitter system in your vehicle co uld affect elec-
tronic systems such as:
● Hybrid system
● Multiport fuel injection system/sequential multiport fuel injection system
● Toyota Safety Sense (if equipped)
● Cruise control system (if equipped)
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures o r special
instructions regarding installation of an RF-transmitter system .
Further information regarding frequency bands, power levels, an tenna posi-
tions and installation provisions for the installation of RF-tr ansmitters, is avail-
able on request at any authorized Toyota retailer or Toyota aut horized
repairer, or any r eliable repairer.
High voltage parts and cables on the Hybrid Electric Vehicles e mit approxi-
mately the same amount of electromagnetic waves as the conventi onal gaso-
line powered vehicles or home electronic appliances despite of their
electromagnetic shielding.
Unwanted noise may occur in the reception of the radio frequenc y transmitter
(RF-transmitter).
Installation of an RF-transmitter system

10
C-HR_HEV_OM_Europe_OM10764E

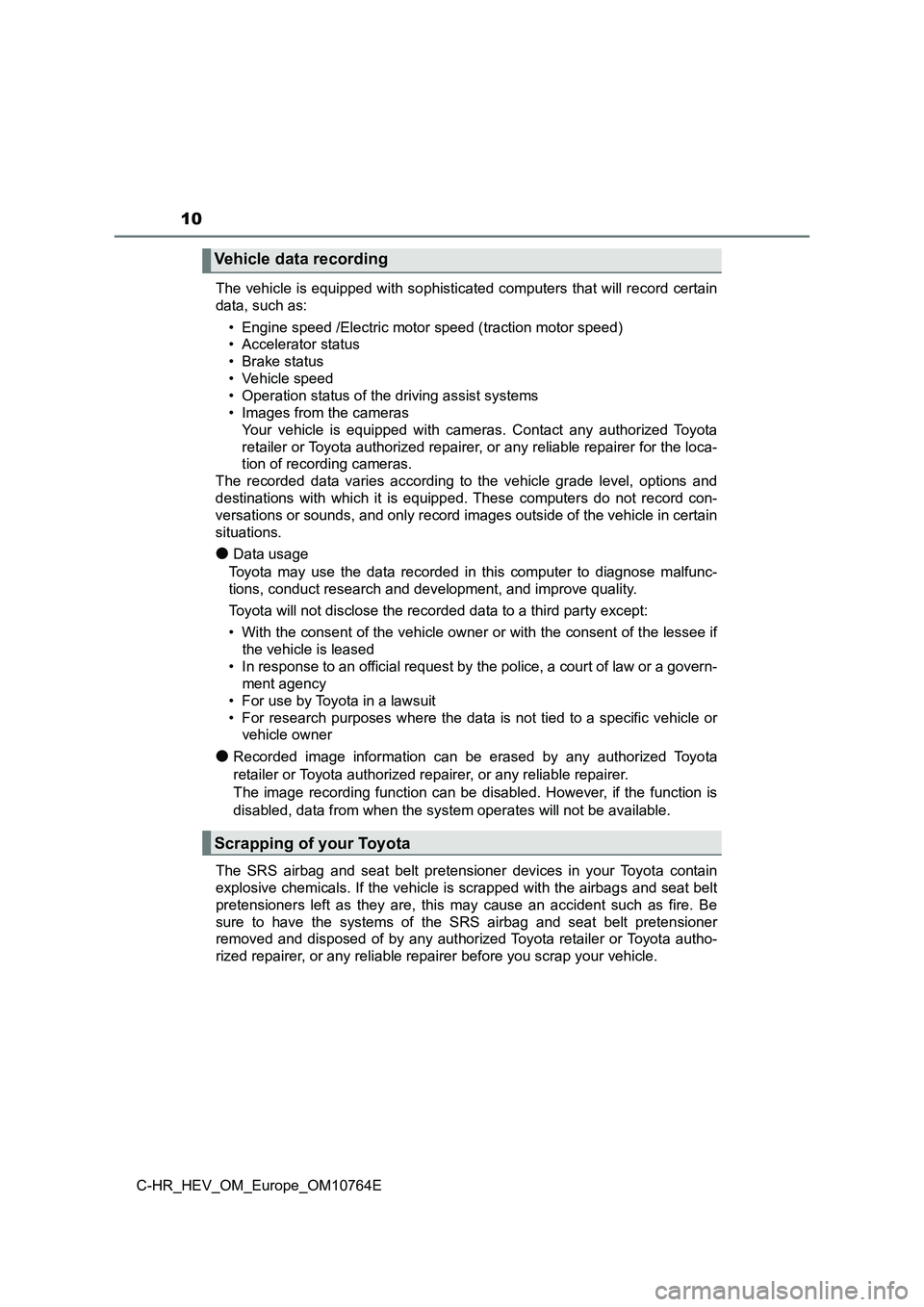

The vehicle is equipped with sophisticated computers that will record certain
data, such as:
• Engine speed /Electric motor speed (traction motor speed)
• Accelerator status
• Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras
Your vehicle is equipped with cameras. Contact any authorized T oyota
retailer or Toyota authorized repairer, or any reliable repaire r for the loca-
tion of recording cameras.
The recorded data varies according to the vehicle grade level, options and
destinations with which it is equipped. These computers do not record con-
versations or sounds, and only record images outside of the veh icle in certain
situations.
●Data usage
Toyota may use the data recorded in this computer to diagnose m alfunc-
tions, conduct research and development, and improve quality.
Toyota will not disclose the recorded data to a third party exc ept:
• With the consent of the vehicle owner or with the consent of t he lessee if
the vehicle is leased
• In response to an official request by the police, a court of l aw or a govern-
ment agency
• For use by Toyota in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or
vehicle owner
●Recorded image information can be erased by any authorized Toyo ta
retailer or Toyota authorized repairer, or any reliable repaire r.
The image recording function can be disabled. However, if the f unction is
disabled, data from when the system operates will not be availa ble.
The SRS airbag and seat belt pretensioner devices in your Toyot a contain
explosive chemicals. If the vehicle is scrapped with the airbag s and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt preten sioner
removed and disposed of by any authorized Toyota retailer or To yota autho-
rized repairer, or any reliable repairer before you scrap your vehicle.
Vehicle data recording
Scrapping of your Toyota

11
C-HR_HEV_OM_Europe_OM10764E
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when unde r the influ-
ence of alcohol or drugs that have impaired your ability to ope rate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistake s that other
drivers or pedestrians might m ake and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serio us injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by p laying with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures insi de the vehicle can be fatal to children.

12
C-HR_HEV_OM_Europe_OM10764E

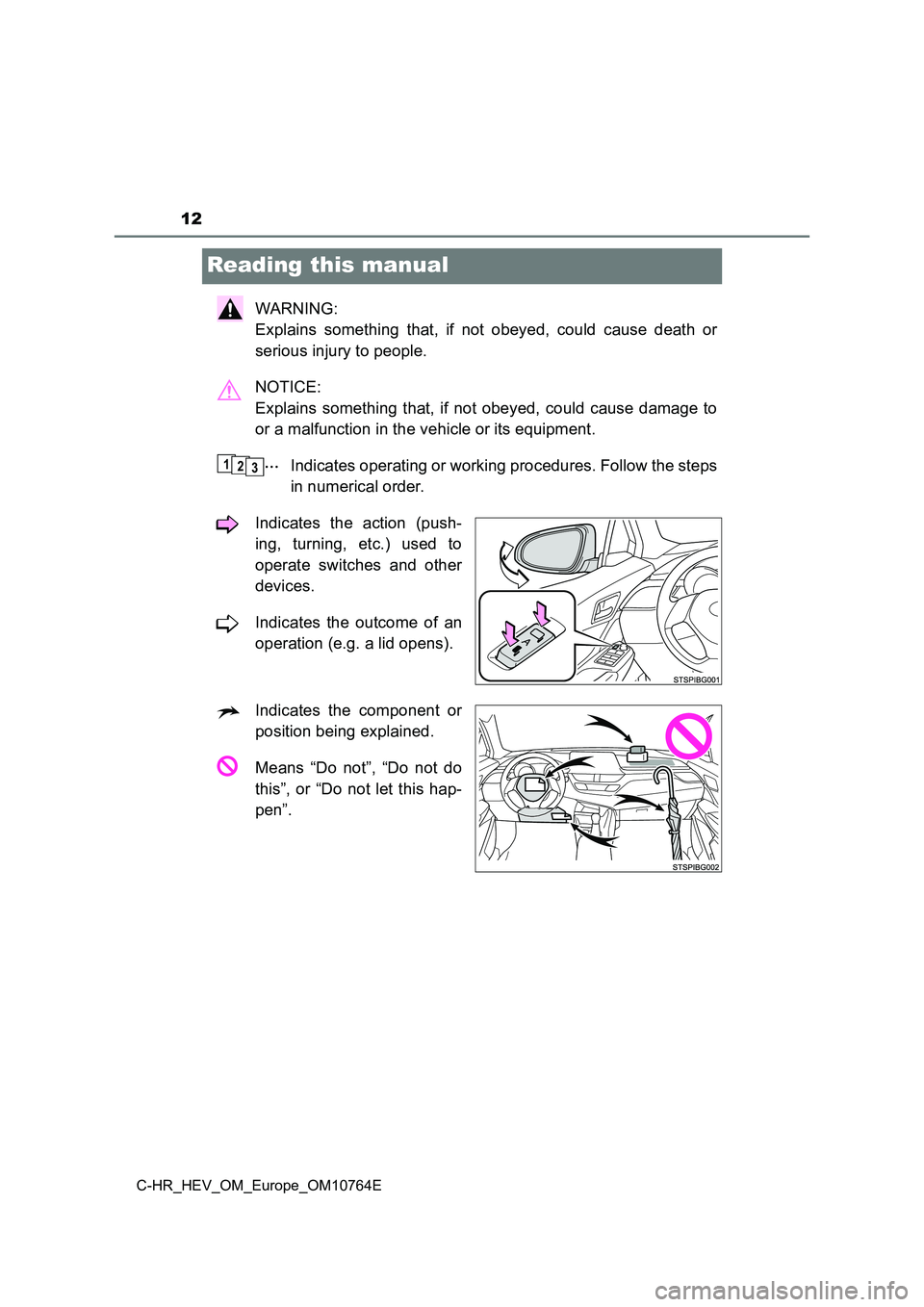

Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

13
C-HR_HEV_OM_Europe_OM10764E

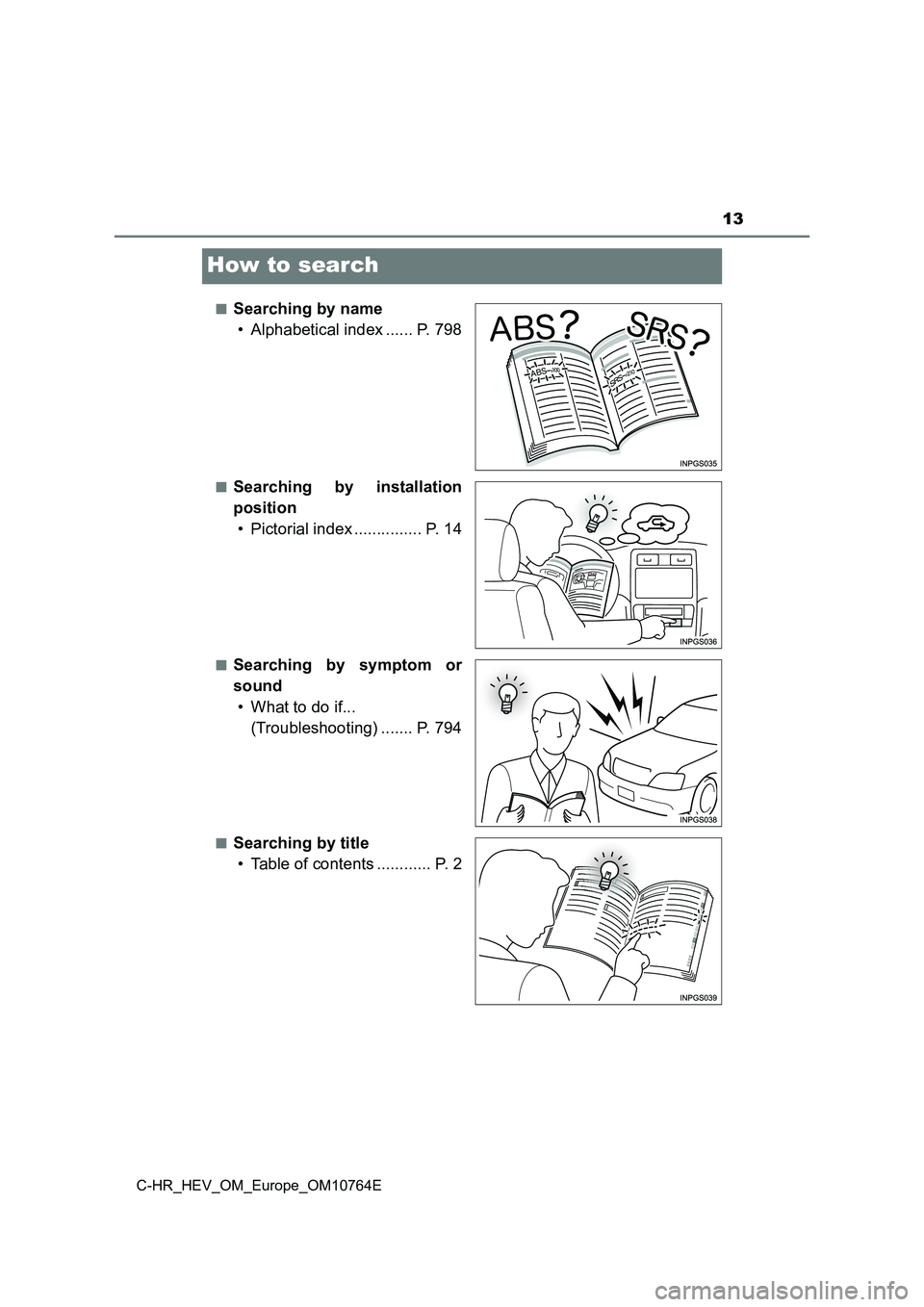

How to search
■Searching by name
• Alphabetical index ...... P. 798
■Searching by installation
position
• Pictorial index ............... P. 14
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 794
■Searching by title
• Table of contents ............ P. 2

14Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. (P. 651)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 275
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 744
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
