2023 TOYOTA C-HR headlights

14Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc. (P. 651)
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 275
Locking/unlocking by using the mechanical key . . . . . . . . . . . P. 744
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550

15Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
To prevent freezing (windshield wiper de-icer*1) . . . . . . . . . . . P. 550
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 581
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 767
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 774
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 614
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 697, 727
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 768
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 755
Camera*1, 2
Headlights/front position lights/
daytime running lights/turn sig nal lights . . . . . . . . . . P. 322, 331
Front fog lights*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Tail lights/turn signal lights . . . . . . . . . . . . . . . . . . . . . P. 322, 331
Tail lights (LED type)
Turn signal lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Back-up light (bulb type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Back-up light (LED type)
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 313
Light bulbs of the exterior lights for driving
(Replacing method: P. 651, Watts: P. 776)
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

17Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
If a warning message or indicator is displayed . . . . . . . . . . . . P. 690
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Headlights/front position lights/
tail lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . P. 331
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 343
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 346
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343, 346
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Headlight cleaners*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 668
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 268
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Seat heaters*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Navigation/multimedia system*1, 2
Energy monitor/consumption screen . . . . . . . . . . . . . . . . . . . . P. 177
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

25Pictorial index
C-HR_HEV_OM_Europe_OM10764E
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
If a warning message or indicator is displayed . . . . . . . . . . . . P. 690
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Headlights/front position lights/
tail lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . P. 331
Front fog lights*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 341
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 343
Rear window wiper and washer switch . . . . . . . . . . . . . . . . P. 346
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 343, 346
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 609
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 668
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 268
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Seat heaters*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 555
Navigation/multimedia system*1, 2
Energy monitor/consumption screen . . . . . . . . . . . . . . . . . . . . P. 177
*1: If equipped
*2: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or “Multimedi a owner’s manual”.

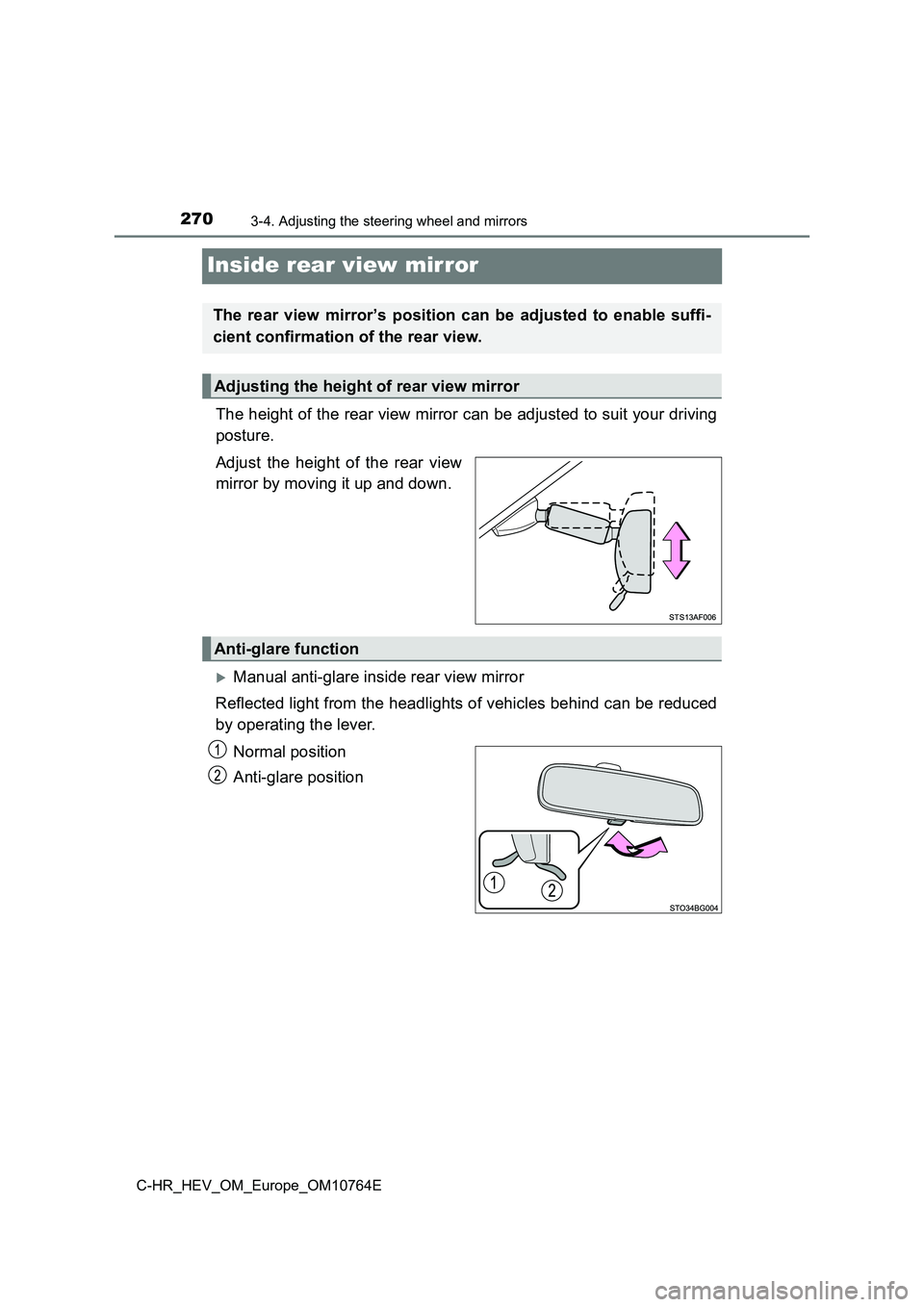

2703-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Manual anti-glare inside rear view mirror
Reflected light from the headlights of vehicles behind can be r educed
by operating the lever.
Normal position
Anti-glare position
The rear view mirror’s position can be adjusted to enable suffi -
cient confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function

2713-4. Adjusting the steering wheel and mirrors
3
Operation of each component
C-HR_HEV_OM_Europe_OM10764E
Auto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehi cles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
On/off
When the automatic anti-glare
function is in on mode, the indica-
tor illuminates.
The function will be set to on mode
each time the power switch is
turned to ON mode.
Pressing the button turns the func-
tion to off mode. (The indicator also
turns off.)
■ To prevent sensor error (vehicles with an auto anti-glare inside rear view
mirror)
Indicator
To ensure that the sensors operate prop-
erly, do not touch or cover them.
WARNING
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an ac cident,
resulting in death or serious injury.

331
4
4-3. Operating the lights and wipers
Driving
C-HR_HEV_OM_Europe_OM10764E

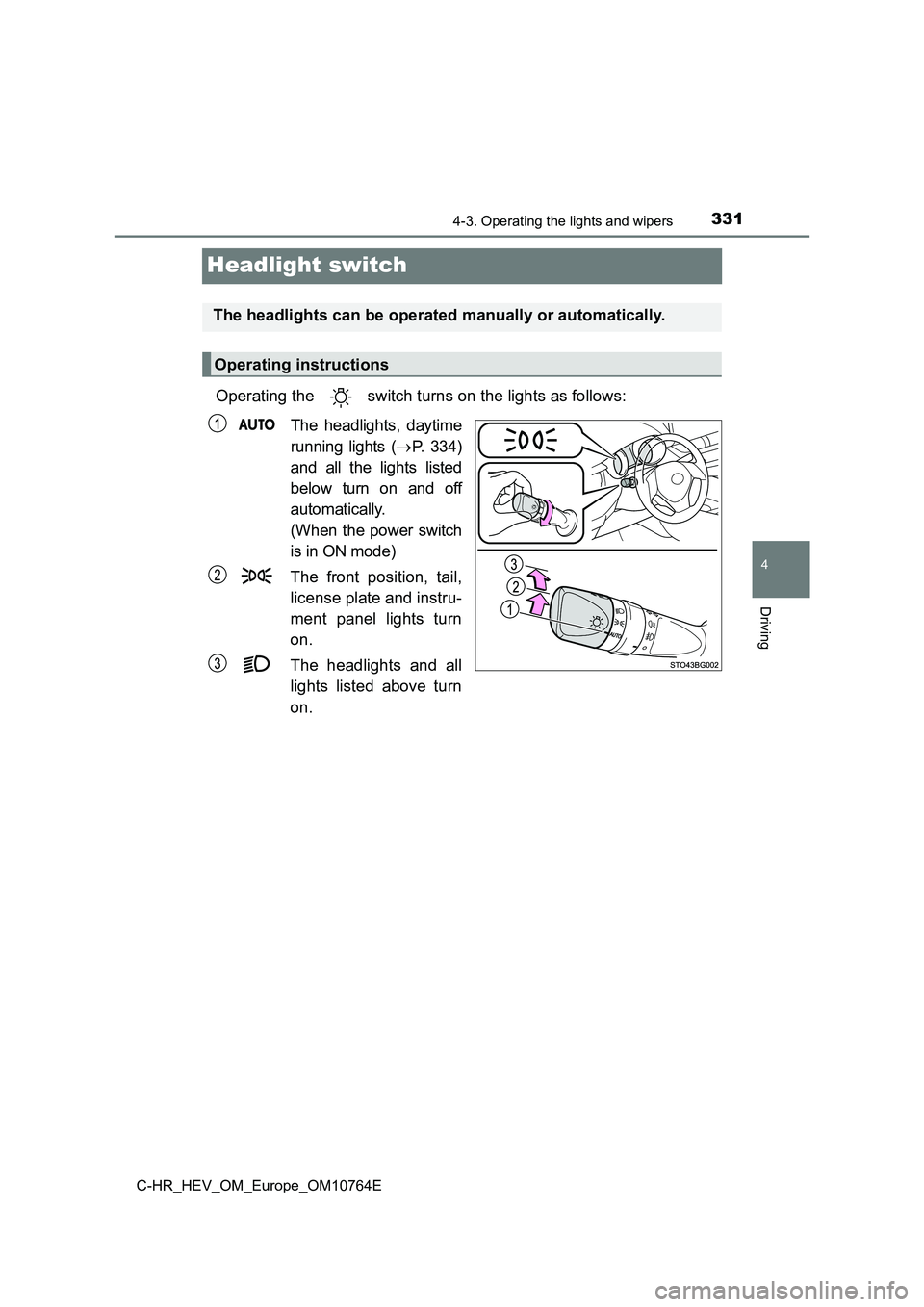

Headlight switch
Operating the switch turns on the lights as follows:
The headlights, daytime
running lights ( P. 3 3 4 )
and all the lights listed
below turn on and off
automatically.
(When the power switch
is in ON mode)
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The headlights can be operated manually or automatically.
Operating instructions

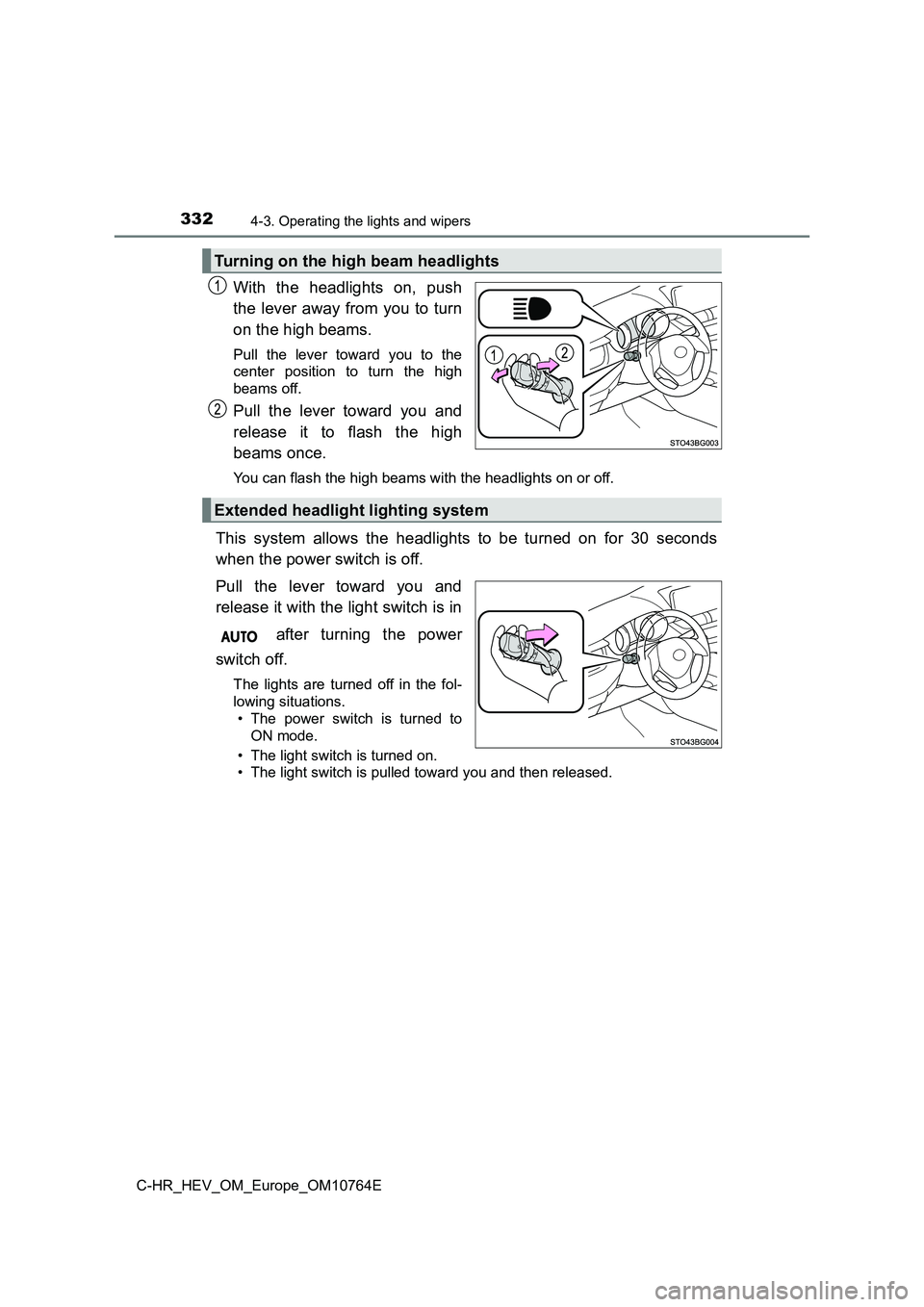

3324-3. Operating the lights and wipers
C-HR_HEV_OM_Europe_OM10764E
With the headlights on, push
the lever away from you to turn
on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the headlights on or off.
This system allows the headlights to be turned on for 30 second s
when the power switch is off.
Pull the lever toward you and
release it with the light switch is in
after turning the power
switch off.
The lights are turned off in the fol-
lowing situations.
• The power switch is turned to
ON mode.
• The light switch is turned on.
• The light switch is pulled toward you and then released.
Turning on the high beam headlights
Extended headlight lighting system
