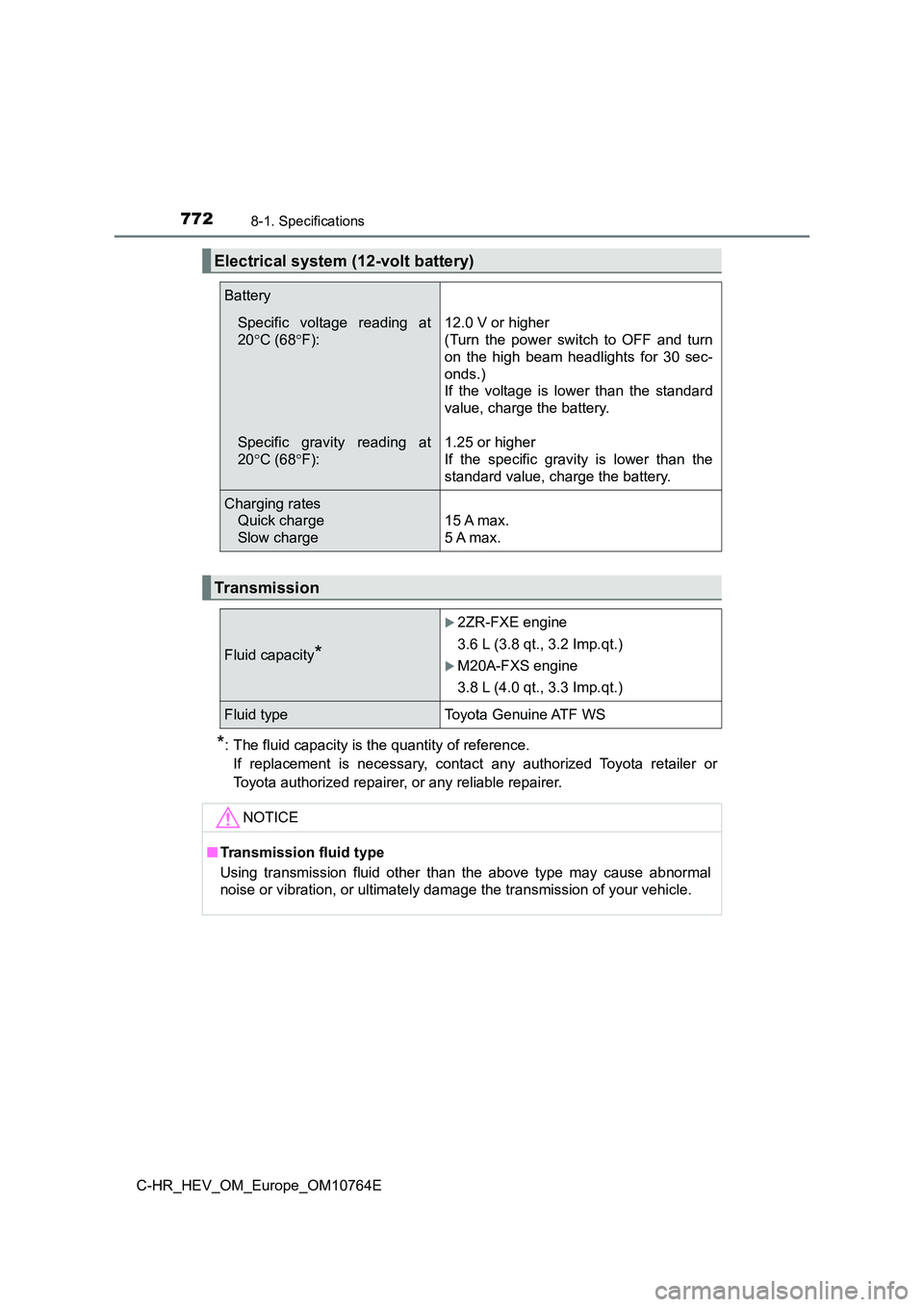

7728-1. Specifications
C-HR_HEV_OM_Europe_OM10764E
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota reta iler or
Toyota authorized repairer, or any reliable repairer.
Electrical system (12-volt battery)
Battery
Specific voltage reading at
20 C (68F):
Specific gravity reading at
20 C (68F):
12.0 V or higher
(Turn the power switch to OFF and turn
on the high beam headlights for 30 sec-
onds.)
If the voltage is lower than the standard
value, charge the battery.
1.25 or higher
If the specific gravity is lower than the
standard value, charge the battery.
Charging rates
Quick charge
Slow charge
15 A max.
5 A max.
Transmission
Fluid capacity*
2ZR-FXE engine
3.6 L (3.8 qt., 3.2 Imp.qt.)
M20A-FXS engine
3.8 L (4.0 qt., 3.3 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than the above type may cause ab normal
noise or vibration, or ultimately damage the transmission of yo ur vehicle.
7848-2. Customization
C-HR_HEV_OM_Europe_OM10764E
■Power windows ( P. 275)
■Turn signal lever (P. 322)
■Automatic light control system (P. 331)
FunctionDefault settingCustomized
setting
Mechanical key linked
operation (open)OffOn––O
Mechanical key linked
operation (close)OffOn––O
Wireless remote control
linked operation (open)OffOn––O
Wireless remote control
linked operation (close)OffOn––O
Mechanical key, wireless
remote control linked
operation signal (buzzer)
OnOff––O
FunctionDefault settingCustomized
setting
Times of flashing of the
lane change signal flash-
ers
3
Off
––O5
7
FunctionDefault settingCustomized
setting
Light sensor sensitivityLevel 0Level -2 to 2–OO
Time elapsed before
headlights turn off
(extended headlight light-
ing system)
30 seconds
60 seconds
––O90 seconds
120 seconds
803Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Fuel
Capacity ................................ 767
Emergency
shut off system ................... 123
Fuel gauge ............................ 164
Gas station information ......... 812
Information ............................ 777
Refueling ............................... 348
Type ...................................... 767
Warning light ......................... 683
Fuel filler door .......................... 350
Opener .................................. 350
Refueling ............................... 348
When the fuel filler door
cannot be opened ............... 351
Fuses ........................................ 646
Gas station information .......... 812
Gauges...................................... 164
Glove box ................................. 561
GPF (Gasoline Particulate
Filter) system ......................... 529
Grocery bag hooks .................. 564
Hands-free system
(for cellular phone)*
Head restraints ........................ 264
Headlight cleaners................... 343
Headlights ................................ 331
Automatic headlight
leveling ............................... 335
Automatic High Beam ........... 336
Extended headlight lighting
system ................................ 332
Light switch ........................... 331
Manual headlight leveling
dial...................................... 333
Replacing light bulbs............. 664
Heated steering wheel............. 555
Heaters
Automatic air conditioning
system ................................ 546
Heated steering wheel .......... 555
Outside rear view mirrors...... 550
Seat heaters ......................... 555
High coolant temperature
warning light .......................... 684
High mounted stoplight
Replacing .............................. 664
Hill-start assist control............ 531
Hood ......................................... 594
Hooks
Cargo hooks ......................... 564
Grocery bag hook ................. 564
Retaining hooks (floor mat)..... 32
Horn .......................................... 268
G
H
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
