2023 TOYOTA C-HR steering wheel adjustment

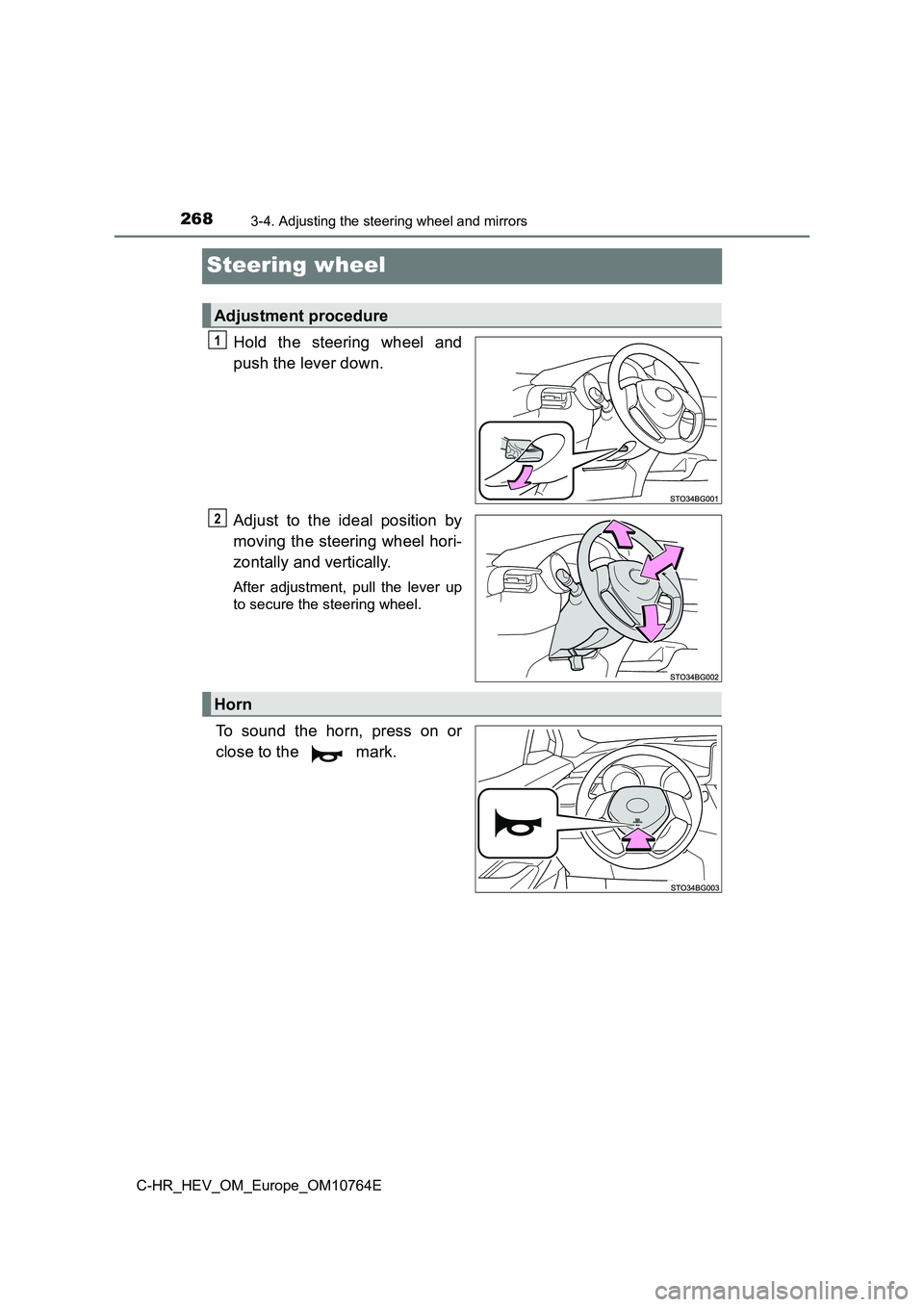

2683-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Steering wheel
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up
to secure the steering wheel.
To sound the horn, press on or
close to the mark.
Adjustment procedure
1
2
Horn

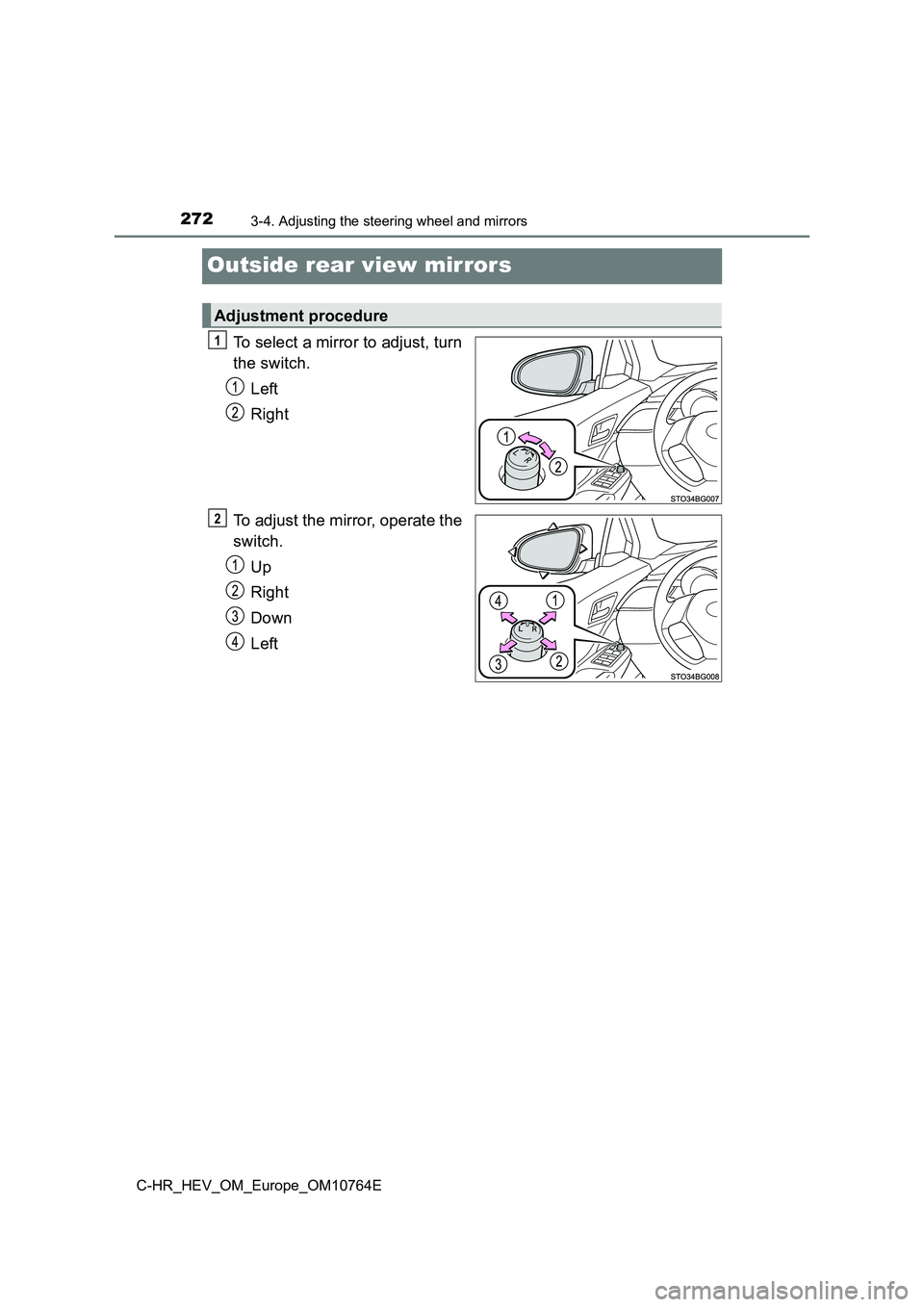

2723-4. Adjusting the steering wheel and mirrors
C-HR_HEV_OM_Europe_OM10764E
Outside rear view mirrors
To select a mirror to adjust, turn
the switch.
Left
Right
To adjust the mirror, operate the
switch.
Up
Right
Down
Left
Adjustment procedure
1
2

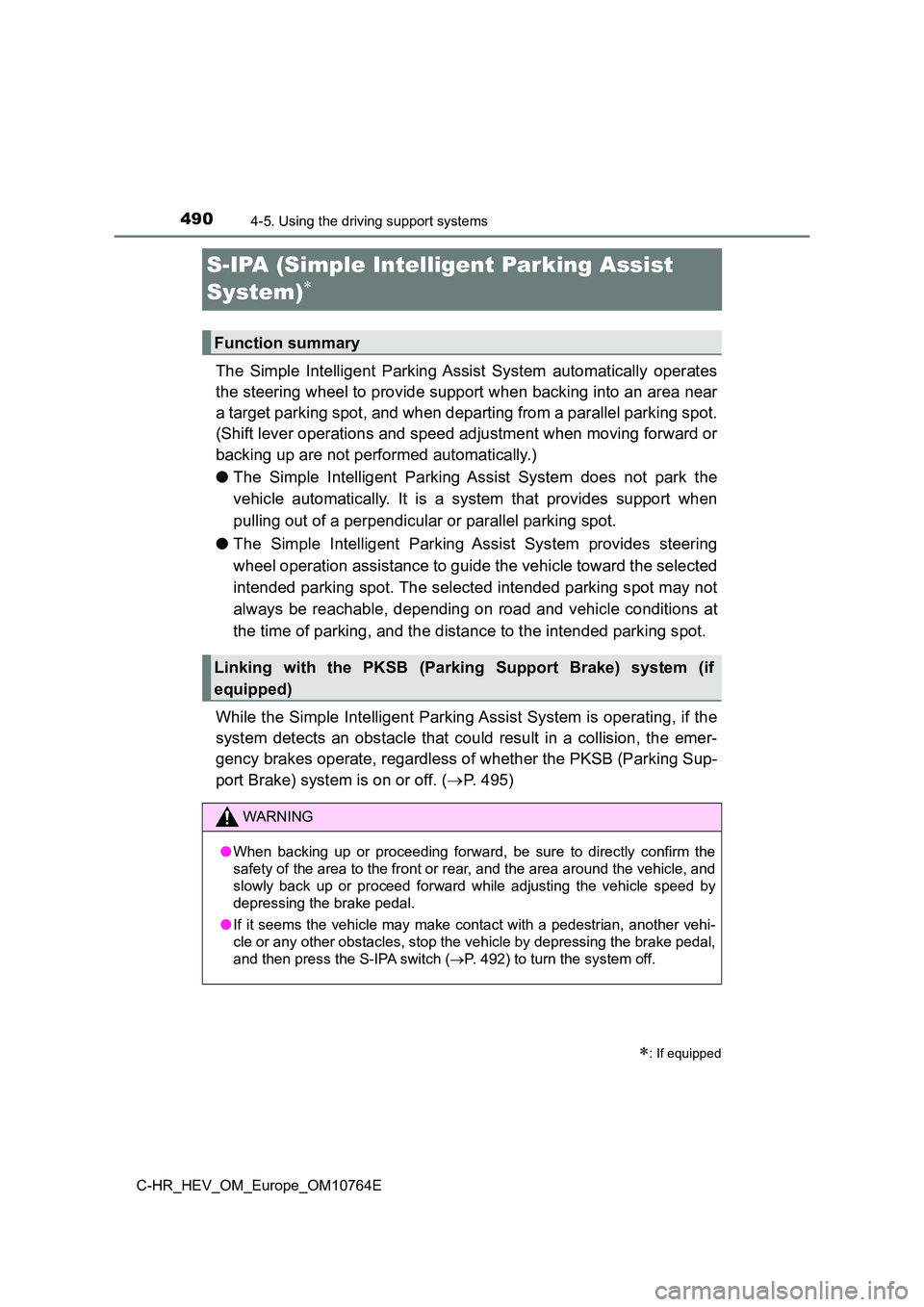

4904-5. Using the driving support systems
C-HR_HEV_OM_Europe_OM10764E
S-IPA (Simple Intelligent Parking Assist
System)
The Simple Intelligent Parking Assist System automatically oper ates
the steering wheel to provide support when backing into an area near
a target parking spot, and when departing from a parallel parki ng spot.
(Shift lever operations and speed adjustment when moving forwar d or
backing up are not performed automatically.)
● The Simple Intelligent Parking Assist System does not park the
vehicle automatically. It is a system that provides support whe n
pulling out of a perpendicular or parallel parking spot.
● The Simple Intelligent Parking Assist System provides steering
wheel operation assistance to guide the vehicle toward the sele cted
intended parking spot. The selected intended parking spot may n ot
always be reachable, depending on road and vehicle conditions a t
the time of parking, and the distance to the intended parking s pot.
While the Simple Intelligent Parking Assist System is operating , if the
system detects an obstacle that could result in a collision, th e emer-
gency brakes operate, regardless of whether the PKSB (Parking S up-
port Brake) system is on or off. ( P. 495)
: If equipped
Function summary
Linking with the PKSB (Parking Support Brake) system (if
equipped)
WARNING
● When backing up or proceeding forward, be sure to directly confirm the
safety of the area to the front or rear, and the area around th e vehicle, and
slowly back up or proceed forward while adjusting the vehicle s peed by
depressing the brake pedal.
● If it seems the vehicle may make contact with a pedestrian, another vehi-
cle or any other obstacles, stop the vehicle by depressing the brake pedal,
and then press the S-IPA switch ( P. 492) to turn the system off.

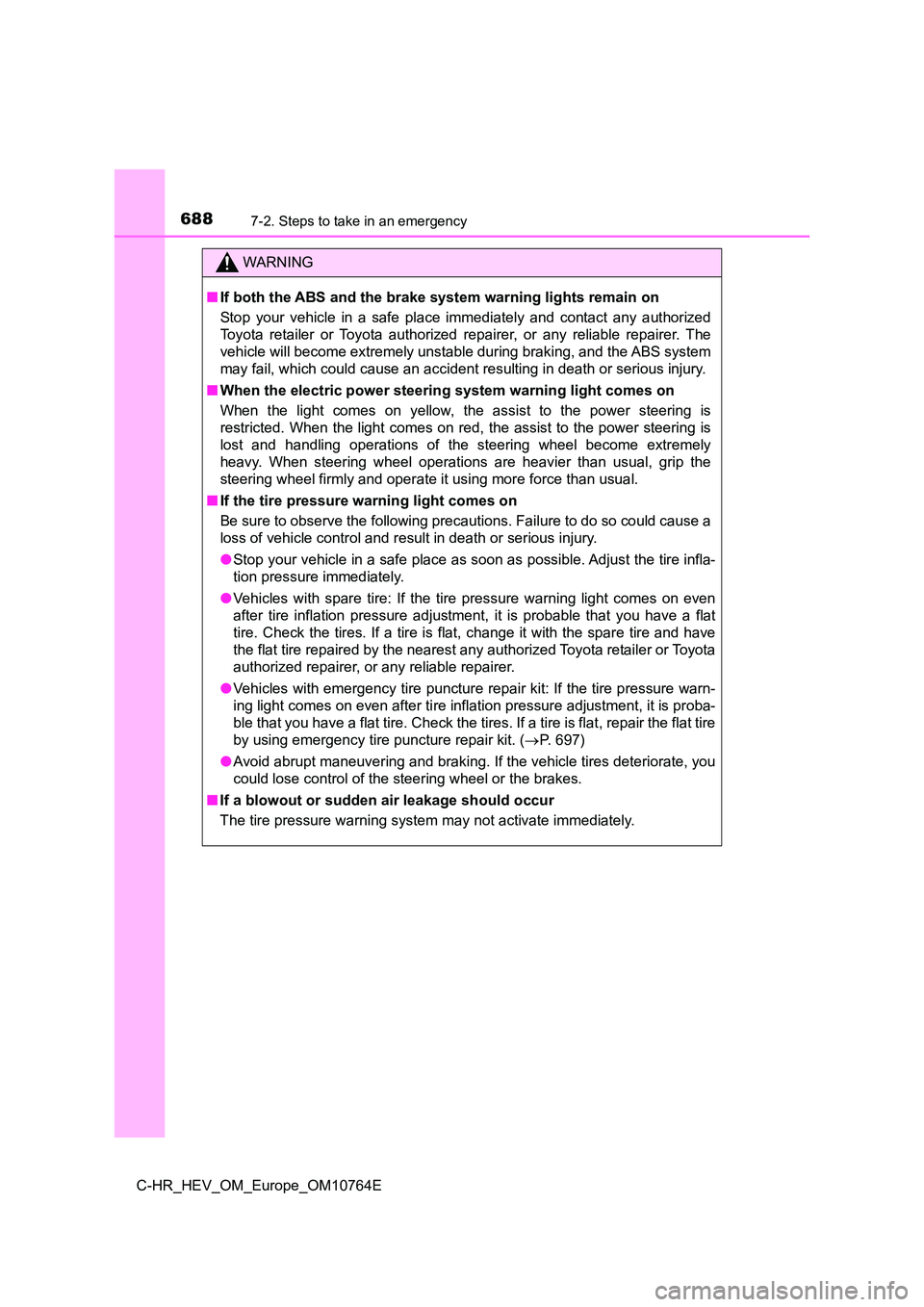

6887-2. Steps to take in an emergency
C-HR_HEV_OM_Europe_OM10764E
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any a uthorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or s erious injury.
■ When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steerin g is
restricted. When the light comes on red, the assist to the powe r steering is
lost and handling operations of the steering wheel become extre mely
heavy. When steering wheel operations are heavier than usual, g rip the
steering wheel firmly and operate it using more force than usua l.
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● Vehicles with spare tire: If the tire pressure warning light comes on even
after tire inflation pressure adjustment, it is probable that y ou have a flat
tire. Check the tires. If a tire is flat, change it with the sp are tire and have
the flat tire repaired by the nearest any authorized Toyota ret ailer or Toyota
authorized repairer, or any reliable repairer.
● Vehicles with emergency tire puncture repair kit: If the tire pressure warn-
ing light comes on even after ti re inflation pressure adjustment, it is proba-
ble that you have a flat tire. Check the tires. If a tire is fl at, repair the flat tire
by using emergency tire puncture repair kit. ( P. 697)
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

809Alphabetical index
C-HR_HEV_OM_Europe_OM10764E
Spark plug ................................ 771
Specifications .......................... 764
Speech command system*
Speed limiter ............................ 432
Speedometer ............................ 164
Sport mode ............................... 430
SRS airbags................................ 41
Steering lock ............................ 306
Column lock release ............. 306
Steering wheel
Adjustment ............................ 268
Audio switches*
Meter control switches .......... 169
Telephone switches*
“TRIP” switch ........................ 165
Stop/tail lights .......................... 664
Storage feature ........................ 560
Storage precautions ................ 560
Stuck
If the vehicle becomes
stuck ................................... 760
Sun visors ................................ 572
Switch
Airbag manual on-off switch.... 55
Audio remote control
switches*
Automatic High Beam
switch.................................. 337
Brake hold switch .................. 328
Cruise control switch ..... 408, 425
Door lock switches ................ 194
Emergency flashers switch ... 668
Engine switch ........................ 303
EV drive mode switch ........... 310
Fog light switch ..................... 341
Fuel filler door opener
switch ................................. 350
Heated steering wheel
switch ................................. 556
Ignition switch ....................... 303
Theft sensor off switch .......... 150
Light switch ........................... 331
LTA (Lane Tracing Assist)
switch ................................. 385
Meter control switches .......... 169
Outside rear view mirror
switches............................. 272
Parking brake switch............. 323
Power door lock switches ..... 194
Power switch......................... 303
Power window switch............ 275
Rear window wiper and
washer switch ..................... 346
Rear window and
outside rear view mirror
defoggers switch ................ 550
Seat heater switches ............ 556
Speed limiter ......................... 432
S-IPA switch ......................... 492
Talk switch*
Telephone switches*
“TRIP” switch ........................ 165
Vehicle-to-vehicle distance
switch ................................. 416
VSC off switch ...................... 532
Window lock switch............... 275
Windshield wipers and
washer switch ..................... 343
*: For vehicles with navigation/multimedia system, refer to
“Navigation and multimedia system Owner’s manual” or
“Multimedia owner’s manual”.
