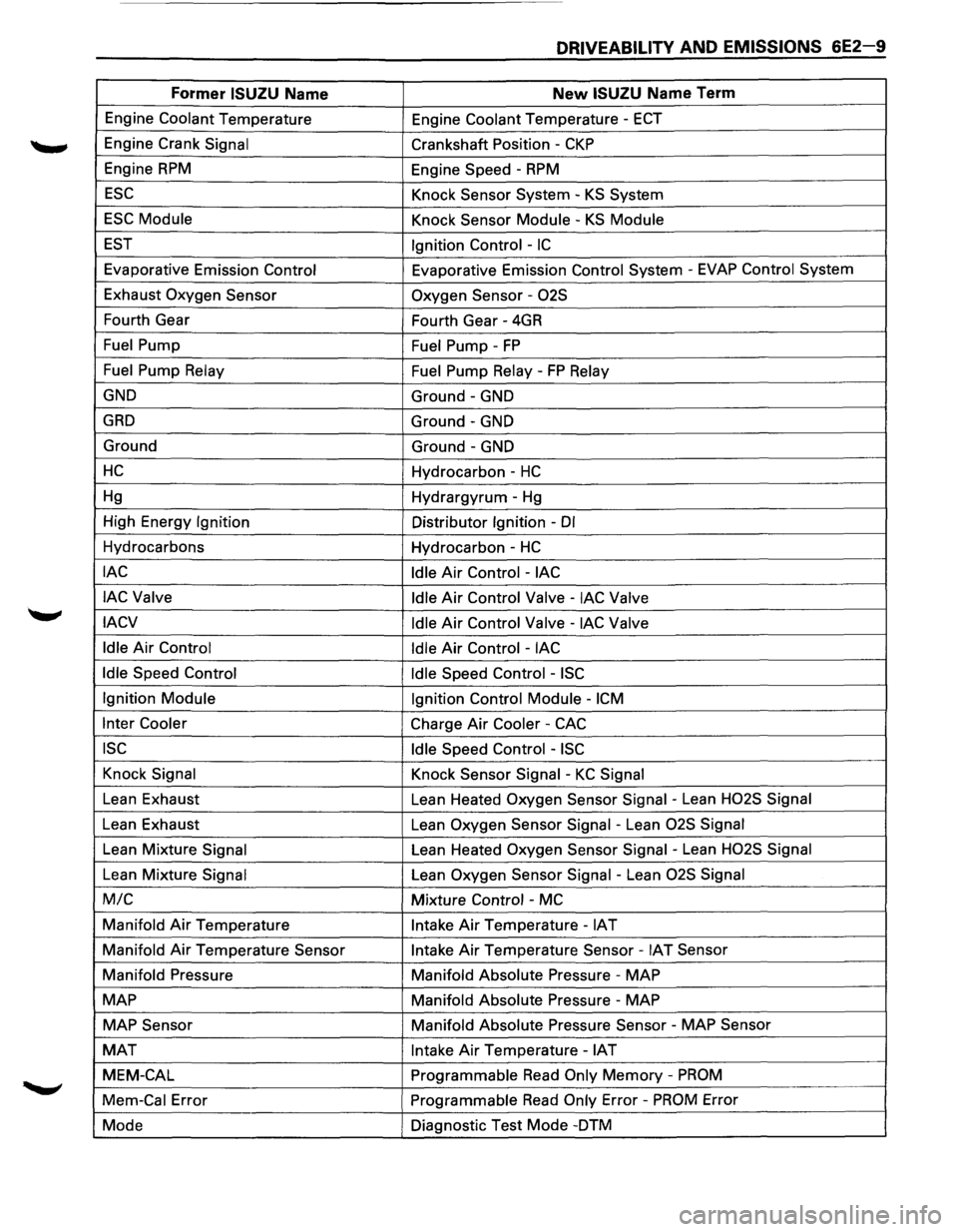

ISUZU TROOPER 1995 Workshop Manual DRIVEABILITY AND EMISSIONS 6E2-9
Former ISUZU Name New ISUZU Name Term
Engine Coolant Temperature
Engine Coolant Temperature -ECT
Engine Crank Signal Crankshaft Position -CKP
Engine RPM Engine S

Page 706 of 1928

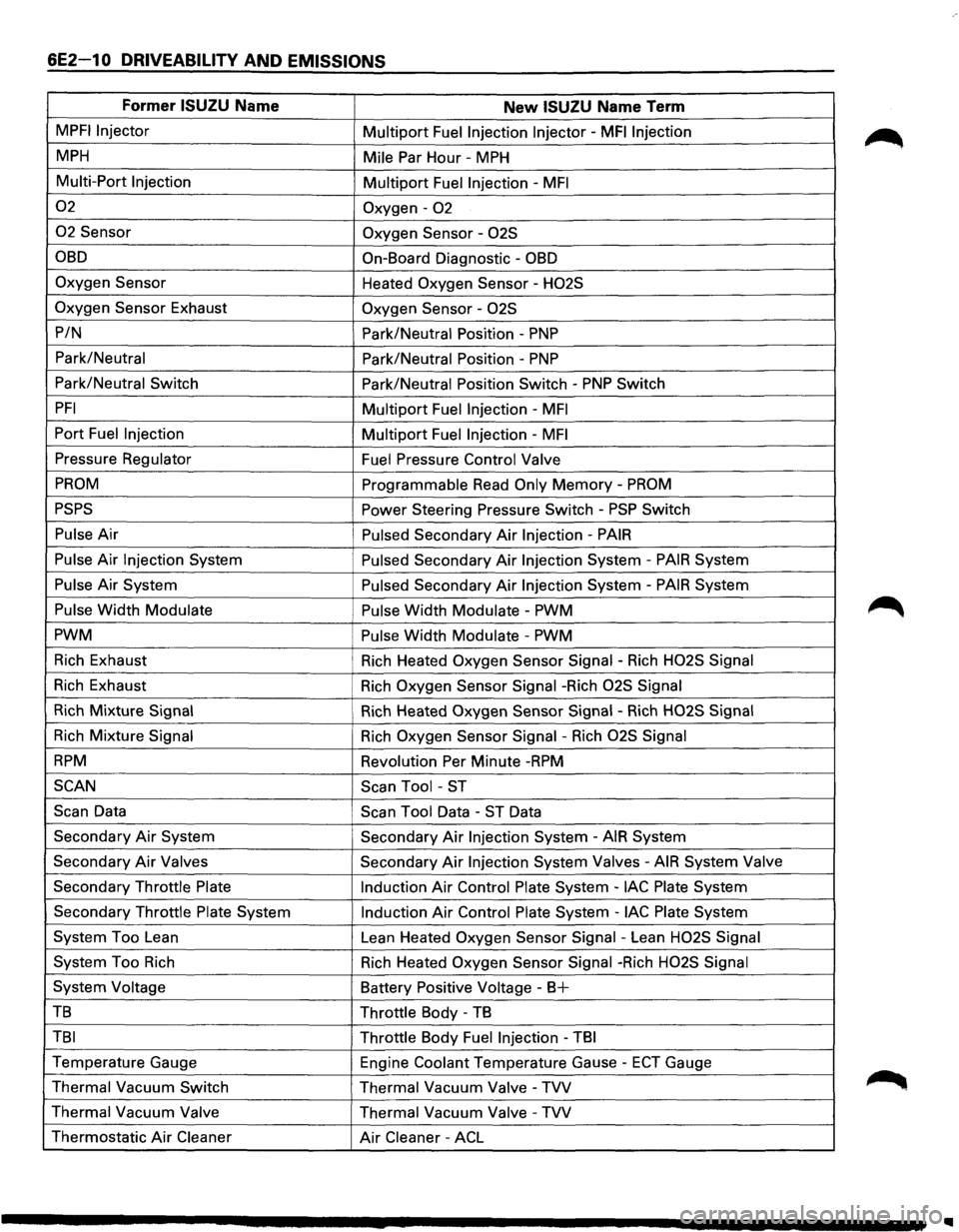

ISUZU TROOPER 1995 Workshop Manual 6E2-10 DRIVEABILITY AND EMISSIONS
Former ISUZU Name New ISUZU Name Term
MPFI Injector Multiport Fuel Injection Injector -MFI Injection
MPH Mile Par Hour -MPH
Multi-Port Injection
Multiport Fu

6E2-10 DRIVEABILITY AND EMISSIONS
Former ISUZU Name New ISUZU Name Term
MPFI Injector Multiport Fuel Injection Injector -MFI Injection
MPH Mile Par Hour -MPH
Multi-Port Injection
Multiport Fuel Injection -MFI
02 Oxygen-02
02 Sensor Oxygen Sensor -02S
OBD On-Board Diagnostic -OBD
Oxygen Sensor
Heated Oxygen Sensor -H02S
Oxygen
Sensor Exhaust Oxygen Sensor -02S
P/N
Park/Neutral Position -PNP
Park/Neutral
Park/Neutral Position -PNP
Park/Neutral Switch Park/Neutral Position Switch -PNP Switch
PFI Multiport Fuel Injection -MFI
Port Fuel Injection Multiport Fuel Injection -MFI
Pressure Regulator
Fuel Pressure Control Valve
PROM Programmable Read Only Memory -PROM
PSPS Power Steering Pressure Switch-PSP Switch
Pulse Air Pulsed Secondary Air Injection -PAIR
Pulse Air Injection System Pulsed Secondary Air Injection System -PAIR System
Pulse Air System Pulsed Secondary Air Injection System -PAIR System
Pulse Width Modulate Pulse Width Modulate -PWM
PWM Pulse
Width Modulate -PWM
Rich Exhaust
Rich Heated Oxygen Sensor Signal -Rich H02S Signal
Rich Exhaust
Rich Oxygen Sensor Signal -Rich 02S Signal
Rich Mixture Signal Rich Heated Oxygen Sensor Signal -Rich H02S Signal
Rich Mixture Signal Rich Oxygen Sensor Signal -Rich 02S Signal
RPM Revolution Per Minute -RPM
SCAN
Scan Tool -ST
Scan Data Scan Tool Data -ST Data
Secondary
Air System Secondary Air Injection System -AIR System
Secondary
Air Valves Secondary Air Injection System Valves -AIR System Valve
Secondary Throttle Plate
Induction Air Control Plate System -lAC Plate System
Secondary Throttle
Plate System Induction Air Control Plate System -lAC Plate System
System Too Lean
Lean Heated
Oxygen Sensor Signal -Lean H02S Signal
System Too Rich
Rich Heated Oxygen Sensor Signal -Rich H02S Signal
System Voltage Battery Positive Voltage -B+
TB Throttle Body -TB
TBI Throttle Body Fuel Injection -TBI
Temperature Gauge
Engine Coolant Temperature Gause -ECT Gauge
Thermal Vacuum Switch
Thermal Vacuum
Valve -TVV
Thermal Vacuum Valve Thermal Vacuum Valve -TVV
Thermostatic Air Cleaner Air Cleaner -ACL

Page 707 of 1928

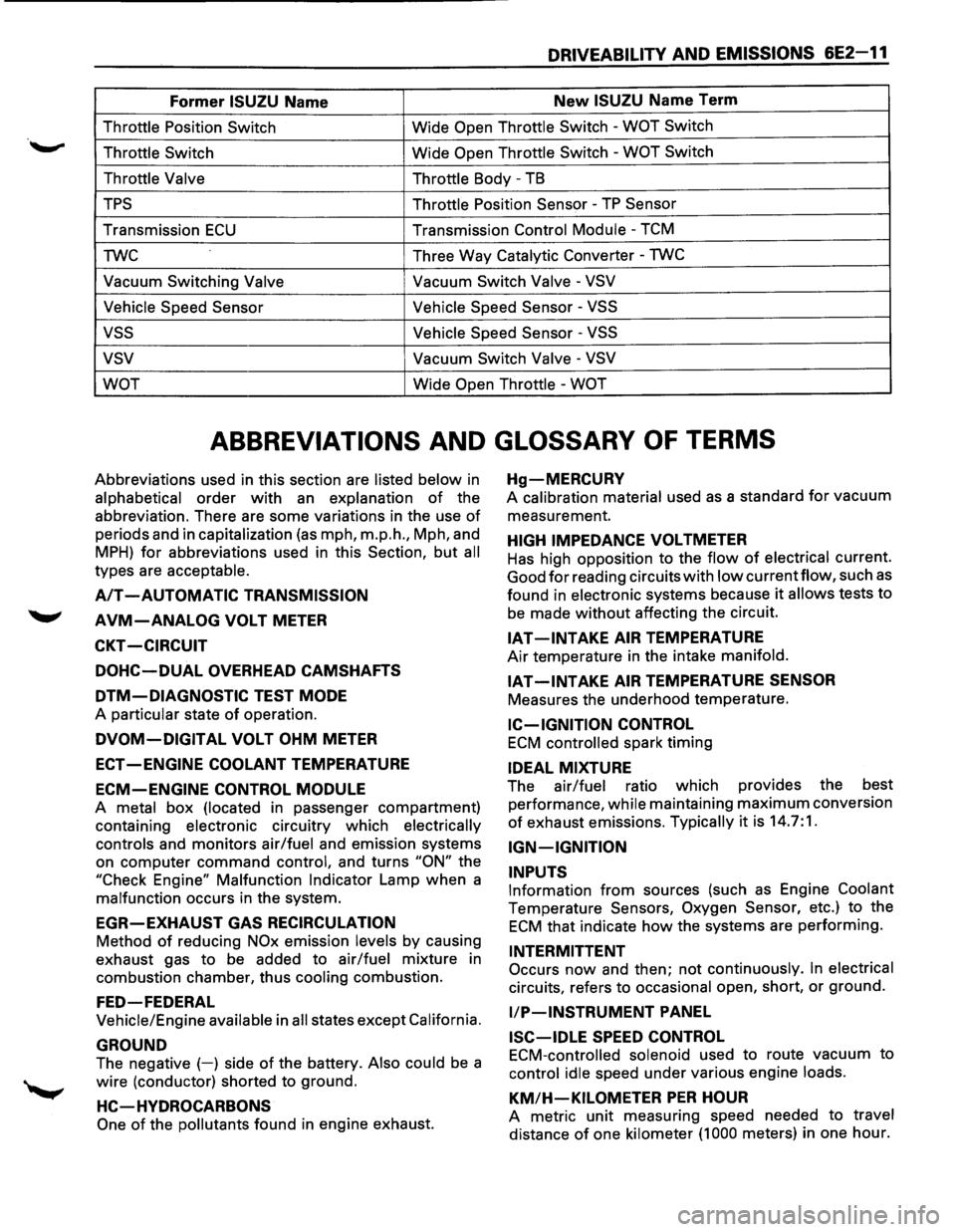

ISUZU TROOPER 1995 Workshop Manual DRIVEABILITY AND EMISSIONS 6E2-11
Former ISUZU Name New ISUZU Name Term
Throttle Position Switch Wide Open Throttle Switch -WOT Switch
Throttle Switch
Wide Open Throttle Switch -WOT Switch
Thr

DRIVEABILITY AND EMISSIONS 6E2-11
Former ISUZU Name New ISUZU Name Term
Throttle Position Switch Wide Open Throttle Switch -WOT Switch
Throttle Switch
Wide Open Throttle Switch -WOT Switch
Throttle Valve Throttle
Body -TB
TPS Throttle Position Sensor -TP Sensor
Transmission ECU Transmission Control Module -TCM
TWC Three
Way
Catalytic Converter -TWC
Vacuum Switching Valve Vacuum Switch Valve -VSV
Vehicle Speed Sensor Vehicle
Speed Sensor
-VSS
vss Vehicle Speed Sensor -VSS
vsv Vacuum Switch Valve -VSV
WOT
Wide Open Throttle -WOT
ABBREVIATIONS AND GLOSSARY OF TERMS
Abbreviations used in this section are listed below in
alphabetical order with an explanation of the
abbreviation. There are some variations in the use
of
periods and in capitalization (as mph, m.p.h., Mph, and
MPH) for abbreviations used in this Section, but all
types are acceptable.
A/T -AUTOMATIC TRANSMISSION
AVM-ANALOG VOLT METER
CKT -CIRCUIT
DOHC-DUAL OVERHEAD CAMSHAFTS
DTM-DIAGNOSTIC TEST MODE
A particular state of operation.
DVOM-DIGITAL VOLT OHM METER
ECT -ENGINE COOLANT TEMPERATURE
ECM-ENGINE CONTROL MODULE
A metal box (located in passenger compartment)
containing
electronic circuitry which electrically
controls
and monitors air/fuel and emission systems
on
computer command control, and turns "ON" the
"Check Engine"
Malfunction Indicator Lamp when a
malfunction occurs in the system.
EGR-EXHAUST GAS RECIRCULATION
Method of reducing NOx emission levels by causing
exhaust gas
to be added to air/fuel mixture in
combustion chamber, thus
cooling combustion.
FED-FEDERAL
Vehicle/Engine available in all states except California.
GROUND
The negative (-) side of the battery. Also could be a
wire (conductor) shorted to ground.
HC-HVDROCARBONS
One of the pollutants found in engine exhaust.
Hg-MERCURV
A calibration material used as a standard for vacuum
measurement.
HIGH IMPEDANCE VOLTMETER
Has high opposition to the flow of electrical current.
Good
for reading circuits with low currentflow, such as
found in electronic systems because it allows tests to
be made without affecting the circuit.
IAT -INTAKE AIR TEMPERATURE
Air temperature in the intake manifold.
IAT-INTAKE AIR TEMPERATURE SENSOR
Measures the underhood temperature.
IC-IGNITION CONTROL
ECM controlled spark timing
IDEAL MIXTURE
The air/fuel ratio which provides the best
performance,
while maintaining maximum conversion
of exhaust emissions. Typically it is 14.7:1.
IGN-IGNITION
INPUTS
Information from sources (such as Engine Coolant
Temperature Sensors, Oxygen Sensor, etc.) to the
ECM that indicate how the systems are performing.
INTERMITTENT
Occurs now and then; not continuously. In electrical
circuits, refers to occasional open, short, or ground.
liP-INSTRUMENT PANEL
ISC-IDLE SPEED CONTROL
ECM-controlled solenoid used to route vacuum to
control idle speed under various engine loads.
KM/H-KILOMETER PER HOUR
A metric unit measuring speed needed to travel
distance of one kilometer (1 000 meters) in one hour.

Page 708 of 1928

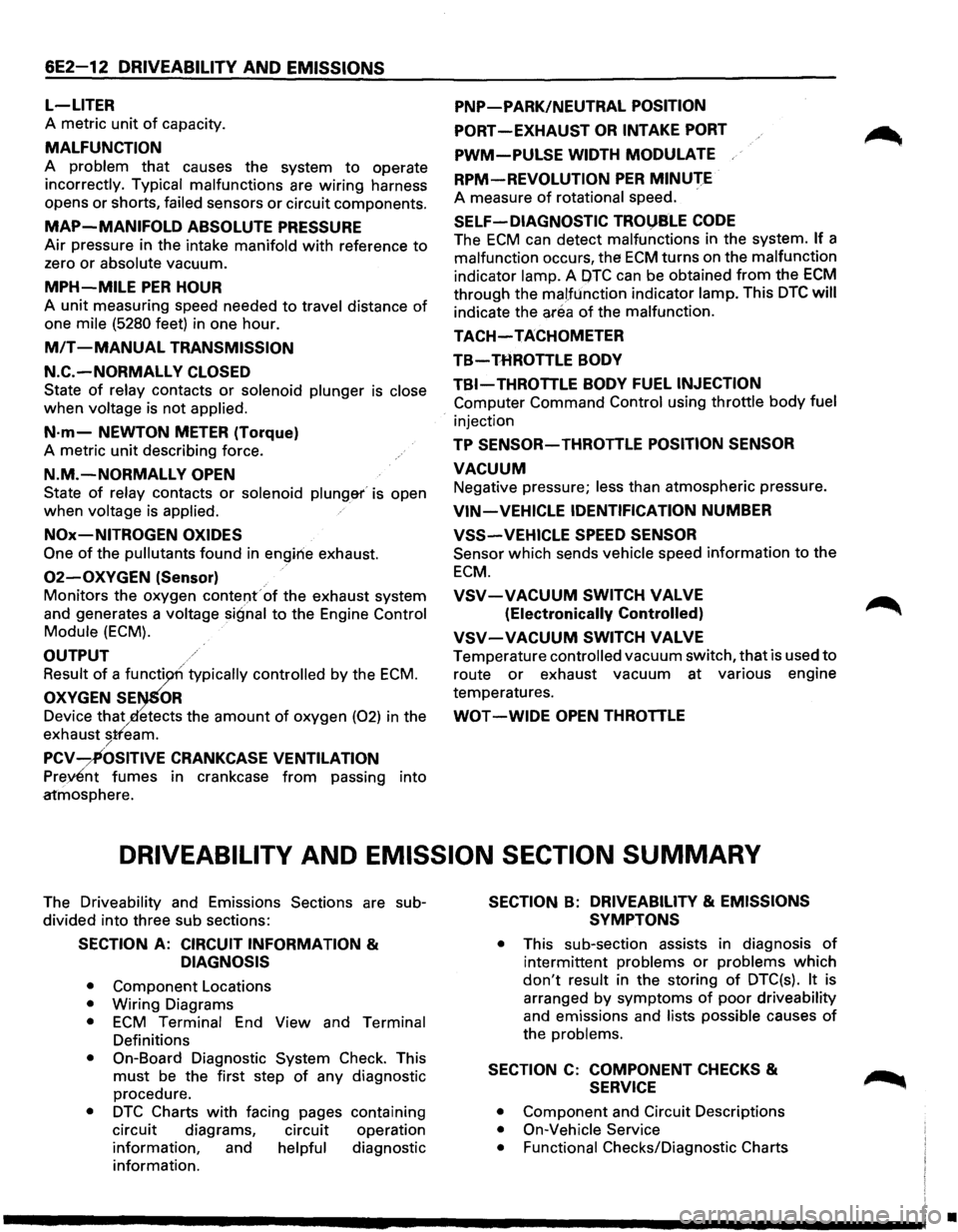

ISUZU TROOPER 1995 Workshop Manual 6E2-12 DRIVEABILITY AND EMISSIONS
L-LITER
A metric unit of capacity.
MALFUNCTION
A problem that causes the system to operate
incorrectly. Typical malfunctions are wiring harness
opens
or sho

6E2-12 DRIVEABILITY AND EMISSIONS
L-LITER
A metric unit of capacity.
MALFUNCTION
A problem that causes the system to operate
incorrectly. Typical malfunctions are wiring harness
opens
or shorts, failed sensors or circuit components.
MAP-MANIFOLD ABSOLUTE PRESSURE
Air pressure in the intake manifold with reference to
zero or absolute vacuum.
MPH-MILE PER HOUR
A unit measuring speed needed to travel distance of
one mile (5280 feet) in one hour.
MIT -MANUAL TRANSMISSION
N.C.-NORMALLY CLOSED
State of relay contacts or solenoid plunger is close
when voltage is not applied.
N·m-NEWTON METER (Torque)
A metric unit describing force.
N.M.-NORMALLY OPEN
State of relay contacts or solenoid plung&r' is open
when voltage is applied.
NOx-NITROGEN OXIDES
One of the pullutants found in engirie exhaust.
02-0XYGEN (Sensor)
Monitors the oxygen contel)f of the exhaust system
and generates a
voltage signal to the Engine Control
Module (ECM).
OUTPUT
Result of a functi typically controlled by the ECM.
OXYGEN SE OR
Device that etects the amount of oxygen (02) in the
exhaust
stfeam. /
PCV-~OSITIVE CRANKCASE VENTILATION
Prey£nt fumes in crankcase from passing into
atmosphere.
PNP-PARK/NEUTRAL POSITION
PORT-EXHAUST OR INTAKE PORT
PWM-PULSE WIDTH MODULATE
RPM-REVOLUTION PER MINUTE
A measure of rotational speed.
SELF-DIAGNOSTIC TROl)SLE CODE
The ECM can detect malfunctions in the system. If a
malfunction occurs, the ECM turns on the malfunction
indicator lamp. A OTC can be obtained from the ECM
through the malfunction indicator lamp. This DTC will
indicate the area of the malfunction.
TACH-TACHOMETER
TB-THROTTLE BODY
TBI-THROTTLE BODY FUEL INJECTION
Computer Command Control using throttle body fuel
injection
TP SENSOR-THROTTLE POSITION SENSOR
VACUUM
Negative pressure; less than atmospheric pressure.
VIN-VEHICLE IDENTIFICATION NUMBER
VSS-VEHICLE SPEED SENSOR
Sensor which sends vehicle speed information to the
ECM.
VSV-VACUUM SWITCH VALVE
(Electronically Controlled)
VSV-VACUUM SWITCH VALVE
Temperature controlled vacuum switch, that is used to
route or exhaust vacuum at various engine
temperatures.
WOT -WIDE OPEN THROTTLE
DRIVEABILITV AND EMISSION SECTION SUMMARY
The Driveability and Emissions Sections are sub
divided into three sub sections:
SECTION A: CIRCUIT INFORMATION &
DIAGNOSIS
• Component Locations
• Wiring Diagrams
• ECM Terminal End View and Terminal
Definitions
• On-Board Diagnostic System Check. This
must be the first step of any diagnostic
procedure.
• DTC Charts with facing pages containing
circuit diagrams, circuit operation
information, and
helpful diagnostic
information.
SECTION B: DRIVEABILITY & EMISSIONS
SYMPTONS
• This sub-section assists in diagnosis of
intermittent problems or problems which
don't result in the storing of DTC(s). It is
arranged
by symptoms of poor driveability
and emissions and lists possible causes of
the problems.
SECTION C: COMPONENT CHECKS &
SERVICE
• Component and Circuit Descriptions
• On-Vehicle Service
• Functional
Checks/Diagnostic Charts
•

Page 709 of 1928

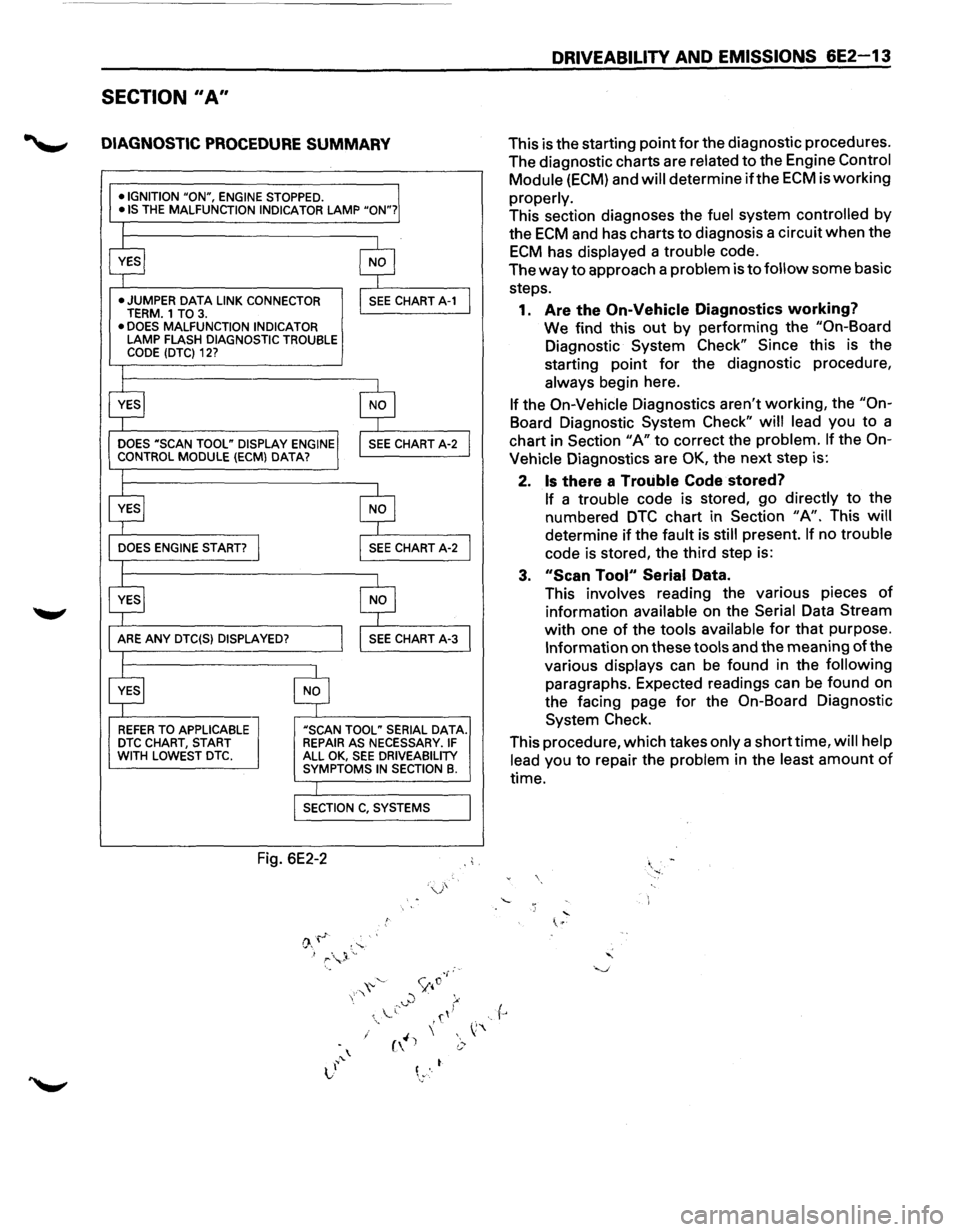

ISUZU TROOPER 1995 Workshop Manual SECTION II A"
DIAGNOSTIC PROCEDURE SUMMARY
•IGNITION "ON", ENGINE STOPPED. •IS THE MALFUNCTION INDICATOR LAMP "ON"?
•
JUMPER DATA LINK CONNECTOR TERM. 1 TO 3. • DOES MALFUNCTION INDICATOR

SECTION II A"
DIAGNOSTIC PROCEDURE SUMMARY
•IGNITION "ON", ENGINE STOPPED. •IS THE MALFUNCTION INDICATOR LAMP "ON"?
•
JUMPER DATA LINK CONNECTOR TERM. 1 TO 3. • DOES MALFUNCTION INDICATOR LAMP FLASH DIAGNOSTIC TROUBLE CODE (DTC) 12?
REFER TO APPLICABLE DTC CHART, START WITH LOWEST DTC.
"SCAN TOOL" SERIAL DATA. REPAIR AS NECESSARY. IF ALL OK, SEE DRIVEABILITY SYMPTOMS IN SECTION B.
Fig. 6E2-2
r
DRIVEABILITY AND EMISSIONS 6E2-13
This is the starting point for the diagnostic procedures.
The diagnostic charts are
related to the Engine Control
Module
(ECM) and will determine if the ECM is working
properly.
This section diagnoses the fuel system controlled by
the
ECM and has charts to diagnosis a circuit when the
ECM has displayed a trouble code.
The
way to approach a problem is to follow some basic
steps.
1.
Are the On-Vehicle Diagnostics working?
We find this out by performing the "On-Board
Diagnostic System Check" Since this is the
starting point
for the diagnostic procedure,
always
begin here.
If the On-Vehicle Diagnostics aren't working, the "On
Board Diagnostic System Check" will lead you to a
chart in Section
"A" to correct the problem. If the On
Vehicle
Diagnostics are OK, the next step is:
2.
Is there a Trouble Code stored?
If a trouble code is stored, go directly to the
numbered
DTC chart in Section "A". This will
determine if the fault is still present. If no trouble
code is stored, the third step is:
3. "Scan Tool" Serial Data.
This
involves reading the various pieces of
information available on the Serial Data Stream
with one of the tools available for that purpose.
Information on these tools and the meaning of the
various
displays can be found in the following
paragraphs. Expected readings can be found on
the facing page
for the On-Board Diagnostic
System Check.
This procedure, which takes
only a short time, will help
lead
you to repair the problem in the least amount of
time.

Page 710 of 1928

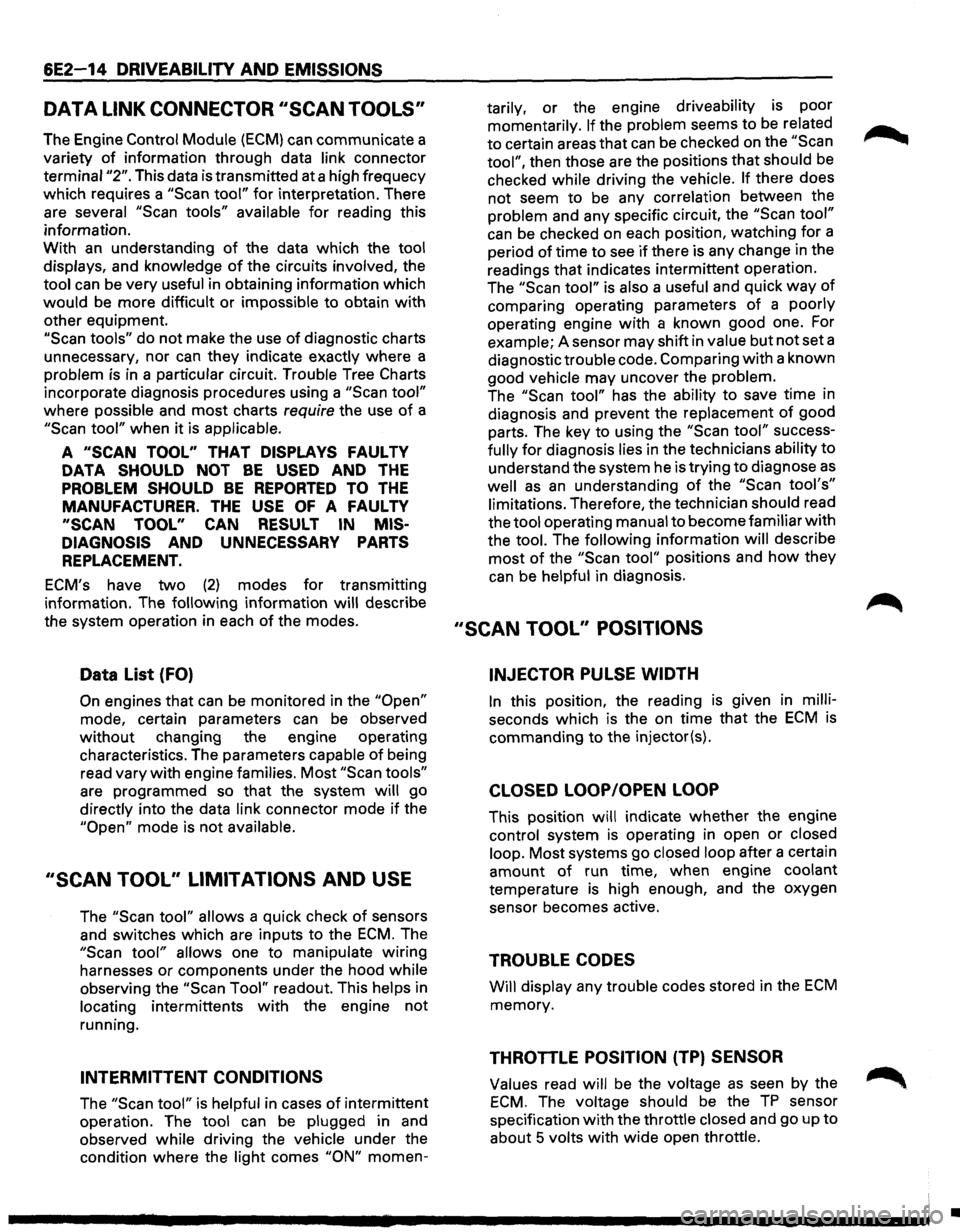

ISUZU TROOPER 1995 Workshop Manual 6E2-14 DRIVEABILITY AND EMISSIONS
DATA LINK CONNECTOR SCAN TOOLS
The Engine Control Module (ECM) can communicate a
variety
of information through data link connector
terminal
"2". This d

6E2-14 DRIVEABILITY AND EMISSIONS
DATA LINK CONNECTOR ''SCAN TOOLS''
The Engine Control Module (ECM) can communicate a
variety
of information through data link connector
terminal
"2". This data is transmitted at a high frequecy
which requires a
"Scan tool" for interpretation. There
are several
"Scan tools" available for reading this
information.
With an understanding
of the data which the tool
displays, and knowledge of the circuits involved, the
tool can be
very useful in obtaining information which
would be more difficult or impossible to obtain with
other equipment.
"Scan tools" do not make the use of diagnostic charts
unnecessary, nor
can they indicate exactly where a
problem is in a particular circuit. Trouble Tree
Charts
incorporate diagnosis procedures using a "Scan tool"
where possible and most charts require the use of a
"Scan tool" when it is applicable.
A "SCAN TOOL" THAT DISPLAYS FAUL TV
DATA SHOULD NOT BE USED AND THE
PROBLEM SHOULD BE REPORTED TO THE
MANUFACTURER. THE USE OF A FAUL TV
"SCAN TOOL" CAN RESULT IN MIS
DIAGNOSIS
AND UNNECESSARY PARTS
REPLACEMENT.
ECM's have two (2) modes for transmitting
information. The
following information will describe
the system operation in each
of the modes.
Data List (FO)
On engines that can be monitored in the "Open"
mode, certain parameters can be observed
without changing the engine operating
characteristics. The parameters capable
of being
read vary with engine families.
Most "Scan tools"
are programmed so that the system will go
directly into the data link connector mode
if the
"Open" mode is not available.
''SCAN TOOL'' LIMITATIONS AND USE
The "Scan tool" allows a quick check of sensors
and switches which are inputs
to the ECM. The
"Scan tool" allows one to manipulate wiring
harnesses or components under the hood while
observing the "Scan Tool" readout. This helps in
locating intermittents
with the engine not
running.
INTERMITTENT CONDITIONS
The "Scan tool" is helpful in cases of intermittent
operation. The
tool can be plugged in and
observed while driving the vehicle under the
condition
where the light comes "ON" momen- tarily,
or the
engine driveability is poor
momentarily.
If the problem seems to be related
to certain areas
that can be checked on the "Scan ~
tool", then those are the positions that should be
checked while driving the vehicle. If there does
not seem to
be any correlation between the
problem and any specific circuit, the
"Scan tool"
can be checked on each position, watching for a
period
of time to see if there is any change in the
readings that indicates intermittent operation.
The
"Scan tool" is also a useful and quick way of
comparing operating parameters of a poorly
operating engine with a known good one. For
example; A sensor may shift in
value but not set a
diagnostic trouble code. Comparing with a known
good vehicle may uncover the problem.
The
"Scan tool" has the ability to save time in
diagnosis and prevent the replacement
of good
parts. The key to using the
"Scan tool" success
fully
for diagnosis lies in the technicians ability to
understand the system he is trying to diagnose as
well as an understanding of the "Scan tool's"
limitations. Therefore, the technician should read
the tool operating manual to become familiar
with
the tool. The following information will describe
most of the "Scan tool" positions and how they
can be helpful in diagnosis.
"SCAN TOOL" POSITIONS
INJECTOR PULSE WIDTH
In this position, the reading is given in milli
seconds which is the on time that the ECM is
commanding to the injector(s).
CLOSED LOOP/OPEN LOOP
This position will indicate whether the engine
control system
is operating in open or closed
loop. Most systems go closed loop after a certain
amount of run time, when engine coolant
temperature
is high enough, and the oxygen
sensor becomes active.
TROUBLE CODES
Will display any trouble codes stored in the ECM
memory.
THROTTLE POSITION (TP) SENSOR
Values read will be the voltage as seen by the ~
ECM. The voltage should be the TP sensor
specification
with the throttle closed and go up to
about 5 volts with
wide open throttle.
•

Page 711 of 1928

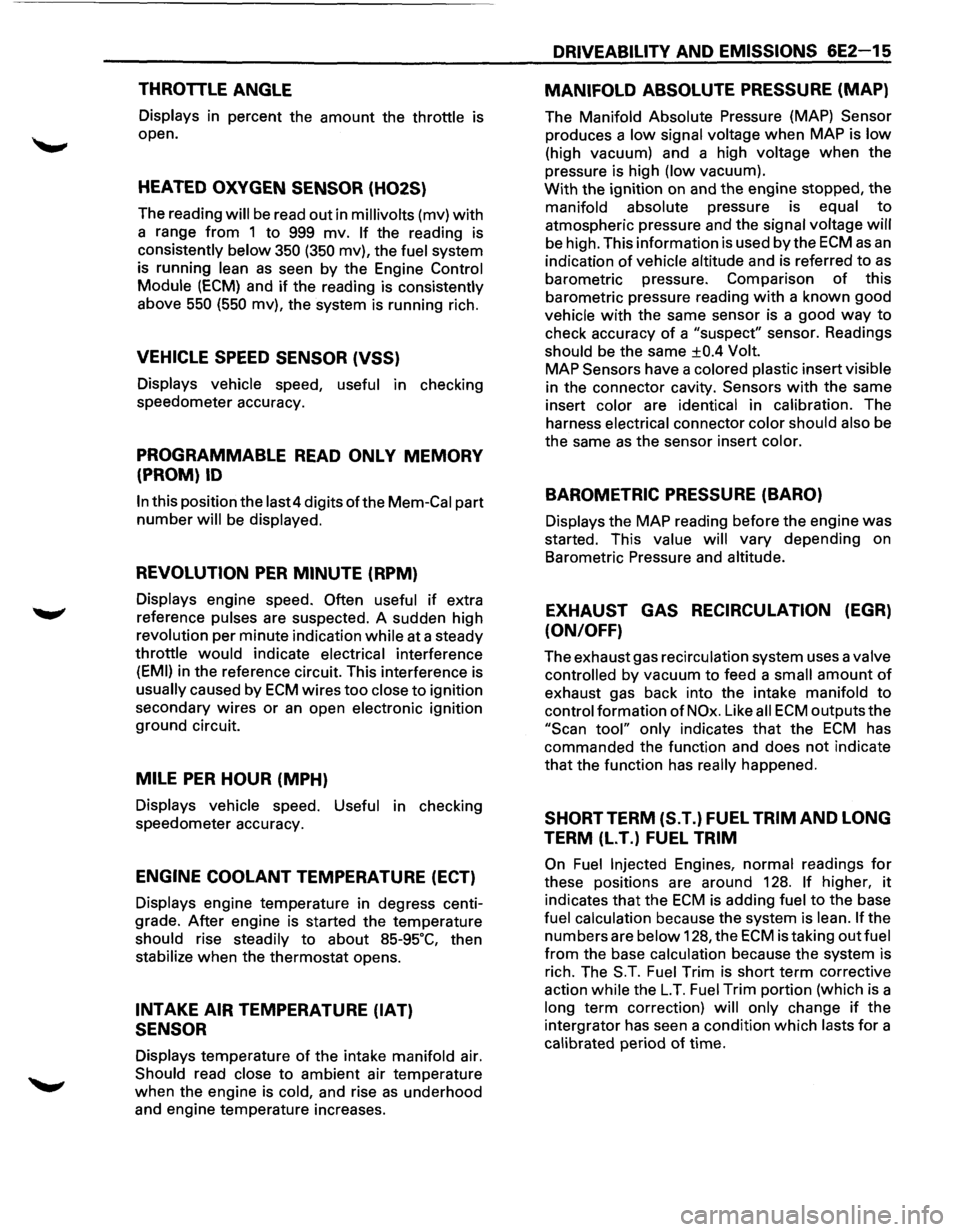

ISUZU TROOPER 1995 Workshop Manual THROTTLE ANGLE
Displays in percent the amount the throttle is
open.
HEATED OXYGEN SENSOR (H02S)
The reading will be read out in millivolts (mv) with
a range from 1 to 999 mv. If the readin

THROTTLE ANGLE
Displays in percent the amount the throttle is
open.
HEATED OXYGEN SENSOR (H02S)
The reading will be read out in millivolts (mv) with
a range from 1 to 999 mv. If the reading is
consistently
below 350 (350 mv), the fuel system
is running
lean as seen by the Engine Control
Module
(ECM) and if the reading is consistently
above
550 (550 mv), the system is running rich.
VEHICLE SPEED SENSOR (VSS)
Displays vehicle speed, useful in checking
speedometer accuracy.
PROGRAMMABLE READ ONLY MEMORY
(PROM)
ID
In this position the last4 digits of the Mem-Cal part
number will be displayed.
REVOLUTION PER MINUTE (RPM)
Displays engine speed. Often useful if extra
reference pulses are suspected. A sudden high
revolution per minute indication while at a steady
throttle
would indicate electrical interference
(EMI) in the reference circuit. This interference is
usually caused by ECM wires too close to ignition
secondary wires
or an open electronic ignition
ground circuit.
MILE PER HOUR (MPH)
Displays vehicle speed. Useful in checking
speedometer accuracy.
ENGINE COOLANT TEMPERATURE (ECT)
Displays engine temperature in degress centi
grade.
After engine is started the temperature
should rise steadily to about
85-95·c, then
stabilize
when the thermostat opens.
INTAKE AIR TEMPERATURE (IAT)
SENSOR
Displays temperature of the intake manifold air.
Should read close to ambient air temperature
when the engine is cold, and rise
as underhood
and engine temperature increases.
DRIVEABILITY AND EMISSIONS 6E2-15
MANIFOLD ABSOLUTE PRESSURE (MAP)
The Manifold Absolute Pressure (MAP) Sensor
produces a low signal voltage when MAP is low
(high vacuum) and a high voltage when the
pressure is high (low vacuum).
With the ignition on and the engine stopped, the
manifold absolute pressure is equal
to
atmospheric pressure and the signal voltage will
be high. This information is used by the ECM as an
indication of vehicle altitude and is referred to as
barometric pressure. Comparison of this
barometric pressure reading
with a known good
vehicle
with the same sensor is a good way to
check accuracy
of a "suspect" sensor. Readings
should be the same
±0.4 Volt.
MAP
Sensors have a colored plastic insert visible
in the connector cavity.
Sensors with the same
insert color are identical in calibration. The
harness electrical connector color should also be
the same
as the sensor insert color.
BAROMETRIC PRESSURE (BARO)
Displays the MAP reading before the engine was
started. This value
will vary depending on
Barometric Pressure and altitude.
EXHAUST GAS RECIRCULATION (EGR)
(ON/OFF)
The exhaust gas recirculation system uses a valve
controlled by vacuum to feed a small amount of
exhaust gas back into the intake manifold to
control formation
of NOx. Like all ECM outputs the
"Scan tool" only indicates that the ECM has
commanded the function and does
not indicate
that the function has
really happened.
SHORT TERM (S.T.) FUEL TRIM AND LONG
TERM (L.T.) FUEL TRIM
On Fuel Injected Engines, normal readings for
these positions are around 128. If higher, it
indicates that the ECM is adding fuel to the base
fuel calculation because the system is lean.
If the
numbers are below 128, the
ECM is taking out fuel
from the base calculation because the system is
rich. The
S.T. Fuel Trim is short term corrective
action while the
L.T. Fuel Trim portion (which is a
long term correction)
will only change if the
intergrator has seen a condition which lasts
for a
calibrated period
of time.

Page 712 of 1928

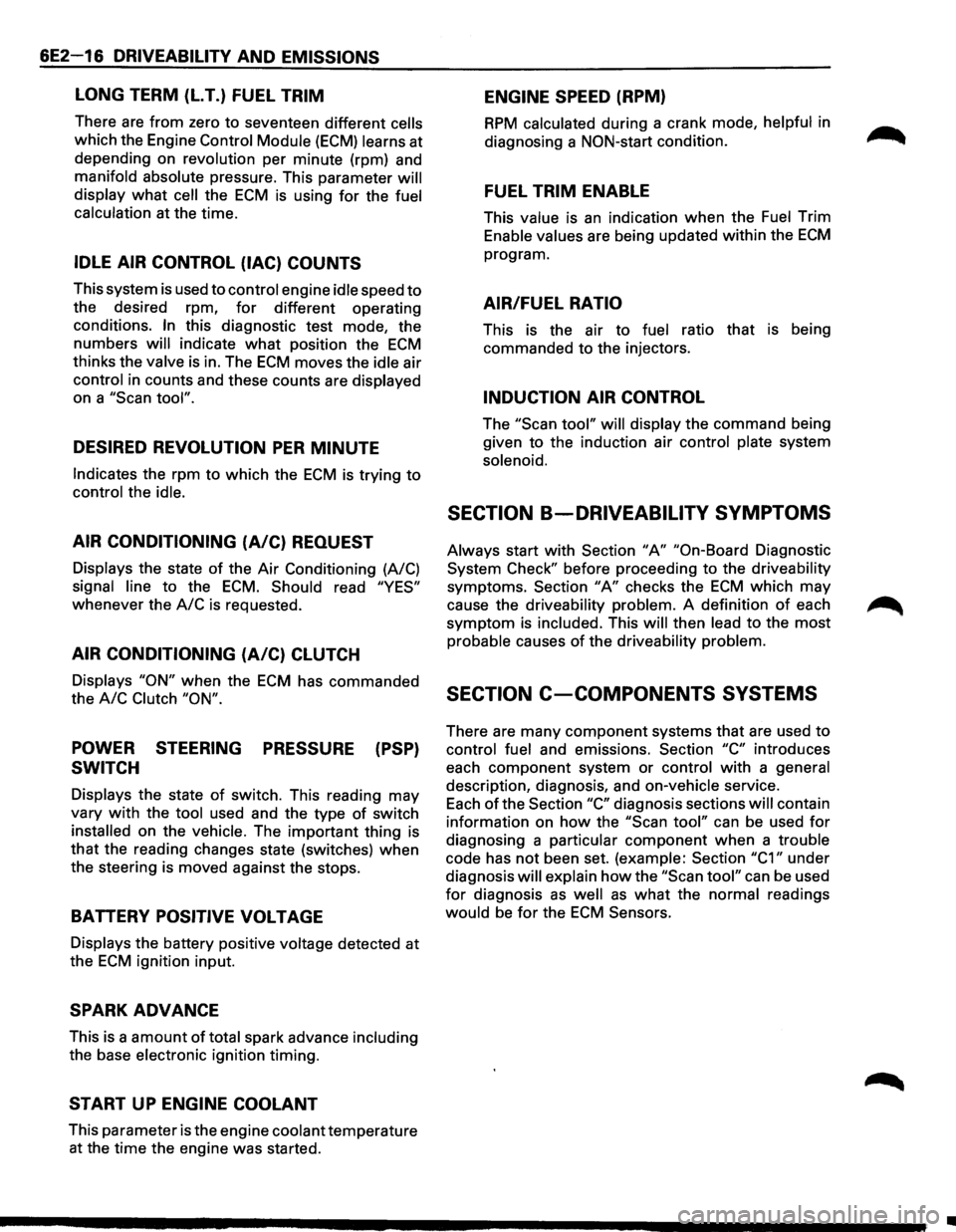

ISUZU TROOPER 1995 Workshop Manual 6E2-16 DRIVEABILITV AND EMISSIONS
LONG TERM (LT.) FUEL TRIM
There are from zero to seventeen different cells
which the Engine Control Module (ECM) learns at
depending on revolution per minute

6E2-16 DRIVEABILITV AND EMISSIONS
LONG TERM (LT.) FUEL TRIM
There are from zero to seventeen different cells
which the Engine Control Module (ECM) learns at
depending on revolution per minute (rpm) and
manifold absolute pressure. This parameter
will
display what cell the ECM is using for the fuel
calculation at the time.
IDLE AIR CONTROL (lAC) COUNTS
This system is used to control engine idle speed to
the desired rpm, for different operating
conditions.
In this diagnostic test mode, the
numbers
will indicate what position the ECM
thinks the valve is in. The ECM moves the idle air
control in counts and these counts are displayed
on a
"Scan tool".
DESIRED REVOLUTION PER MINUTE
Indicates the rpm to which the ECM is trying to
control the idle.
AIR CONDITIONING (A/C) REQUEST
Displays the state of the Air Conditioning (A/C)
signal line to the ECM. Should read "YES"
whenever the A/C is requested.
AIR CONDITIONING {A/C) CLUTCH
Displays "ON" when the ECM has commanded
the
A/C Clutch "ON".
POWER STEERING PRESSURE (PSP)
SWITCH
Displays the state of switch. This reading may
vary
with the tool used and the type of switch
installed on the vehicle. The important thing is
that the reading changes state (switches) when
the steering is moved against the stops.
BA TTERV POSITIVE VOLTAGE
Displays the battery positive voltage detected at
the
ECM ignition input.
SPARK ADVANCE
This is a amount of total spark advance including
the base electronic ignition timing.
START UP ENGINE COOLANT
This parameter is the engine coolant temperature
at the
time the engine was started.
ENGINE SPEED (RPM)
RPM calculated during a crank mode, helpful in
diagnosing a NON-start condition.
FUEL TRIM ENABLE
This value is an indication when the Fuel Trim
Enable values are being updated within the ECM
program.
AIR/FUEL RATIO
This is the air to fuel ratio that is being
commanded to the injectors.
INDUCTION AIR CONTROL
The "Scan tool" will display the command being
given to the induction air control
plate system
solenoid.
SECTION B-DRIVEABILITY SYMPTOMS
Always start with Section "A" "On-Board Diagnostic
System Check" before proceeding to the driveability
symptoms.
Section "A" checks the ECM which may
cause the driveability problem. A definition
of each
symptom is included. This will then lead to the most
probable causes of the driveability problem.
SECTION C-COMPONENTS SYSTEMS
There are many component systems that are used to
control fuel and emissions. Section "C" introduces
each component system or control
with a general
description, diagnosis, and on-vehicle service.
Each
of the Section "C" diagnosis sections will contain
information on
how the "Scan tool" can be used for
diagnosing a particular component when a trouble
code has
not been set. (example: Section "C1" under
diagnosis
will explain how the "Scan tool" can be used
for diagnosis as well as what the normal readings
would be for the ECM Sensors.
•

Load next 8 pages

Page: < prev 1-10 ... 673-680 681-688 689-696 697-704 705-712 713-720 721-728 729-736 737-744 ... 1928 next >

stop start open bonnet gas tank size apple carplay wheel size cooling
