Page 1809 of 1928

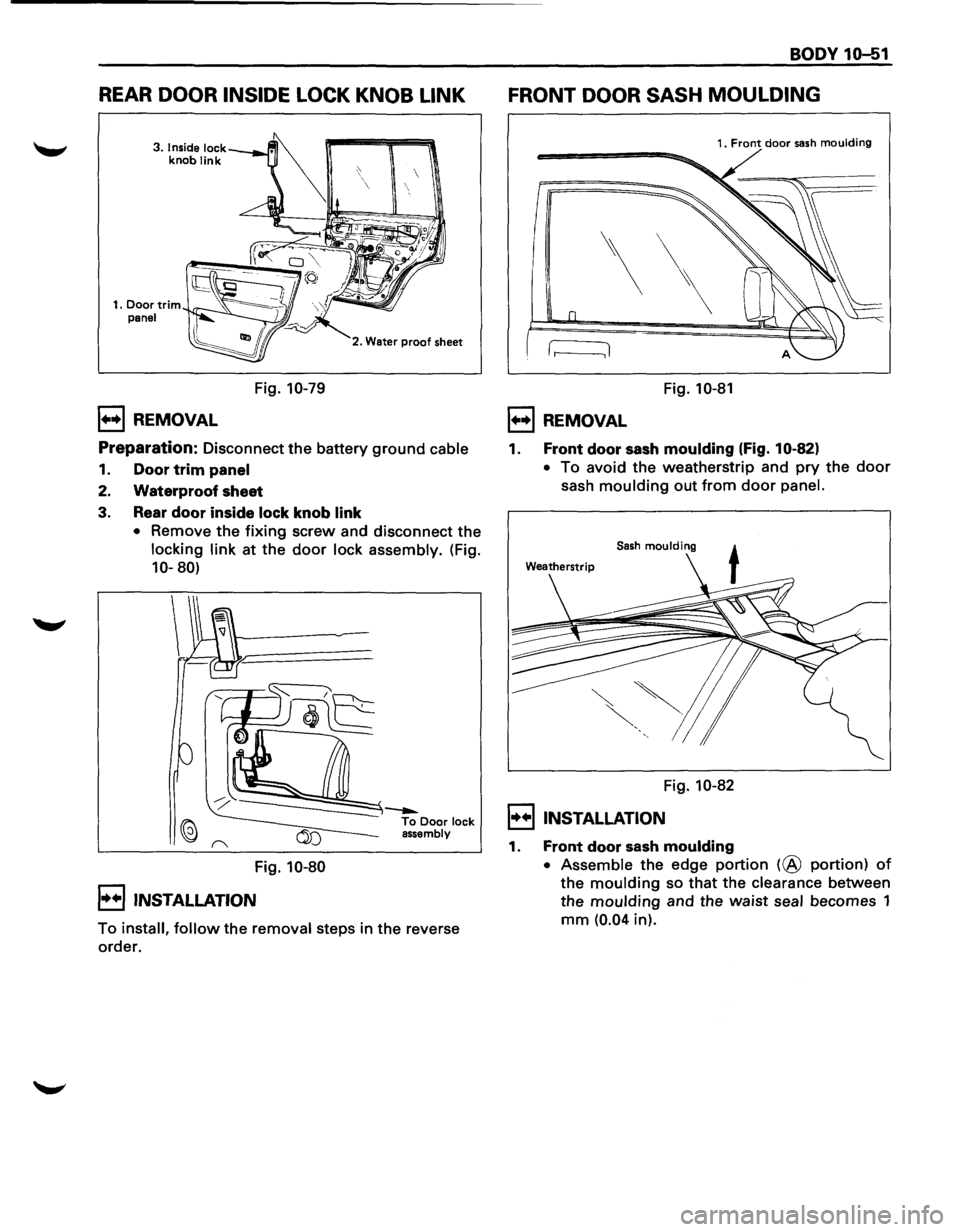

REAR DOOR INSIDE LOCK KNOB LINK
3. Inside lock knob link
1••1 REMOVAL
Fig. 10-79
2. Water proof sheet
Preparation: Disconnect the battery ground cable
1. Door trim panel
2. Waterproof sheet
3. Rear door inside lock knob link
• Remove the fixing screw and disconnect the
locking link at the door lock assembly. (Fig.
10-80)
Fig. 10-80
I••IINSTALLATION
To install, follow the removal steps in the reverse
order.
BODY 10-51
FRONT DOOR SASH MOULDING
'\
r----:1
1. Front door sash moulding
Fig. 10-81
l••l REMOVAL
1. Front door sash moulding (Fig. 10-82)
• To avoid the weatherstrip and pry the door
sash moulding out from door panel.
Sash moulding
Fig. 10-82
I••IINSTALLATION
1. Front door sash moulding
• Assemble the edge portion (@ portion) of
the moulding so that the clearance between
the
moulding and the waist seal becomes 1
mm (0.04 in).
Page 1810 of 1928

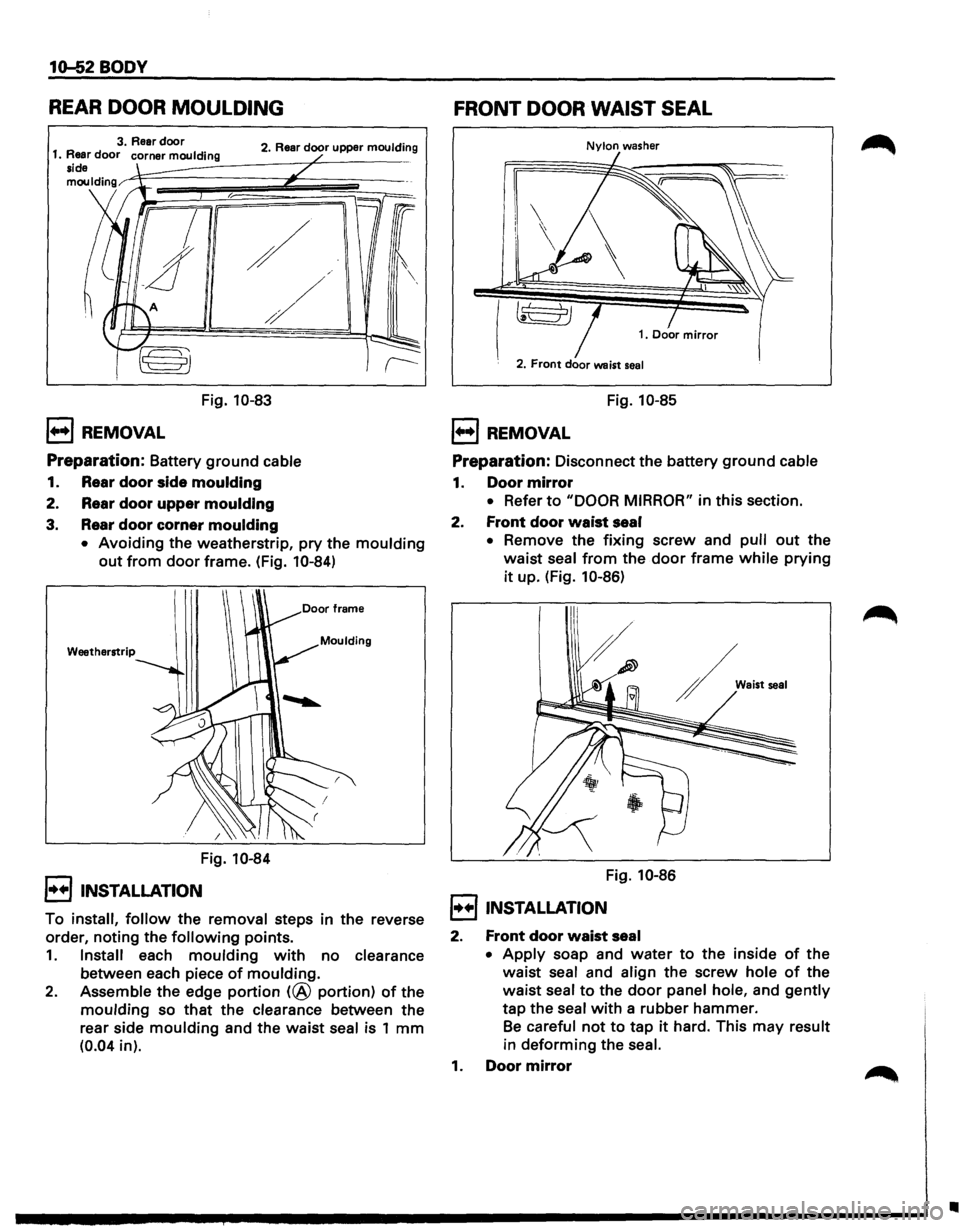

10-52 BODY
REAR DOOR MOULDING
2. Rear door upper moulding
1••1 REMOVAL
/
/
/
Fig. 10-83
Preparation: Battery ground cable
1. Rear door side moulding
2. Rear door upper moulding
3. Rear door corner moulding
/
• Avoiding the weatherstrip, pry the moulding
out from door frame. (Fig. 10-84)
Weatherstrip
Fig. 10-84
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following points.
1. Install each moulding with no clearance
between each piece of moulding.
2. Assemble the edge portion (@ portion) of the
moulding so that the clearance between the
rear side
moulding and the waist seal is 1 mm
(0.04 in).
FRONT DOOR WAIST SEAL
Nylon washer
2. Front door waist seal
Fig. 10-85
1••1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Door mirror
• Refer to "DOOR MIRROR" in this section.
2. Front door waist seal
• Remove the fixing screw and pull out the
waist seal from the door frame while prying
it up. (Fig. 10-86)
Fig. 10-86
I••! INSTALLATION
2. Front door waist seal
~., ..... ,
• Apply soap and water to the inside of the
waist
seal and align the screw hole of the
waist seal to the door panel hole, and gently
tap the seal with a rubber hammer.
Be careful not to tap it hard. This may result
in deforming the seal.
1. Door mirror
•
Page 1811 of 1928

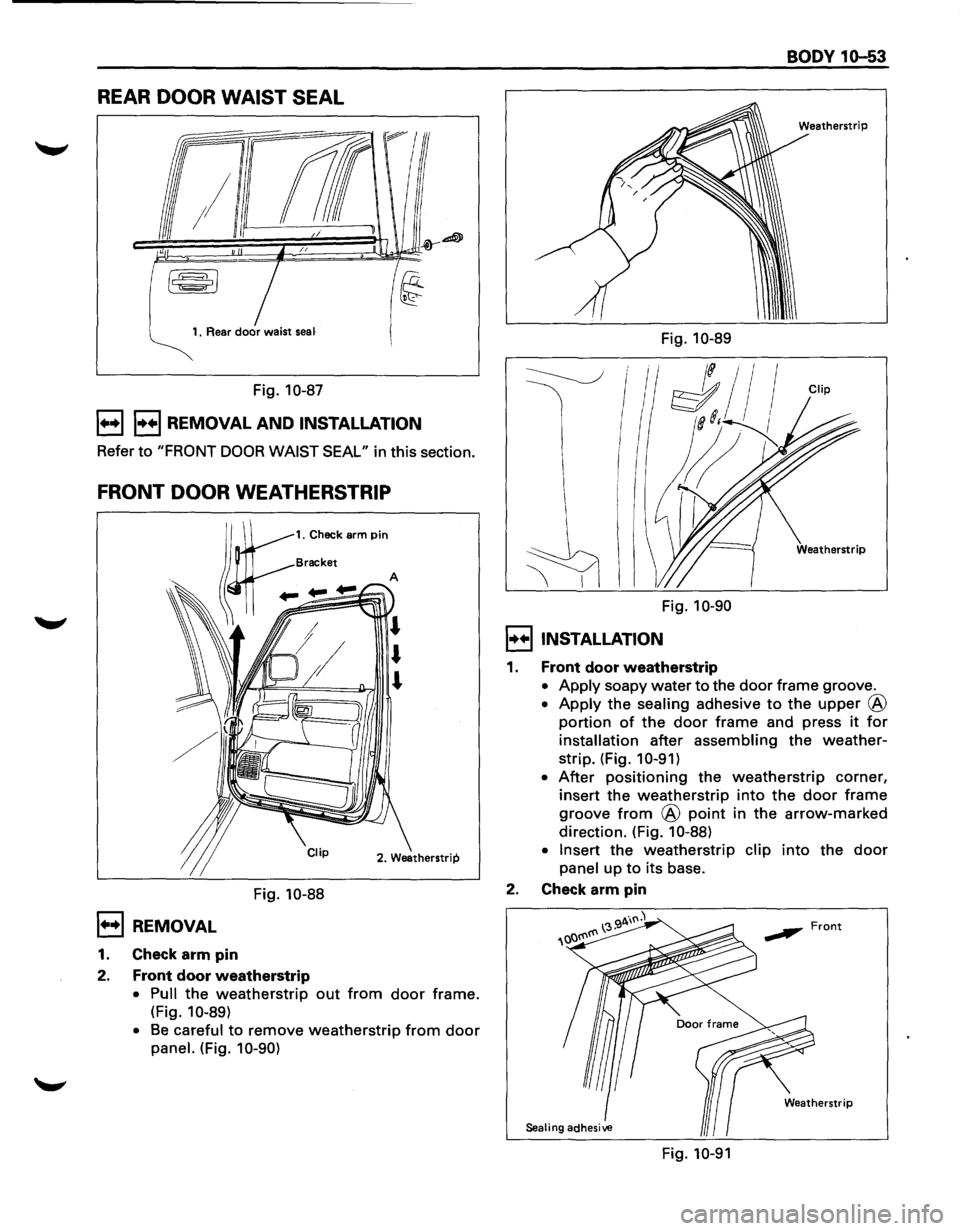

REAR DOOR WAIST SEAL
1. Rear door waist seaf
Fig. 10-87
1++11++1 REMOVAL AND INSTALLATION
Refer to "FRONT DOOR WAIST SEAL" in this section.
FRONT DOOR WEATHERSTRIP
1. Check arm Pin
Fig. 10-88
1++1 REMOVAL
1. Check arm pin
2. Front door weatherstrip
• Pull the weatherstrip out from door frame.
{Fig.
10-89)
•
Be careful to remove weatherstrip from door
panel. {Fig. 10-90)
Fig. 10-89
Fig. 10-90
I++IINSTALLATION
1. Front door weatherstrip
BODY 1Q-53
Clip
Weatherstrip
• Apply soapy water to the door frame groove.
• Apply the sealing adhesive to the upper ®
portion of the door frame and press it for
installation after assembling the weather
strip. {Fig. 10-91)
•
After positioning the weatherstrip corner,
insert
the weatherstrip into the door frame
groove from @ point in the arrow-marked
direction. {Fig. 10-88)
• Insert
the weatherstrip clip into the door
panel up to its base.
2. Check arm pin
___, Front
Weatherstrip
Sealing adhesive
Fig. 10-91
Page 1812 of 1928

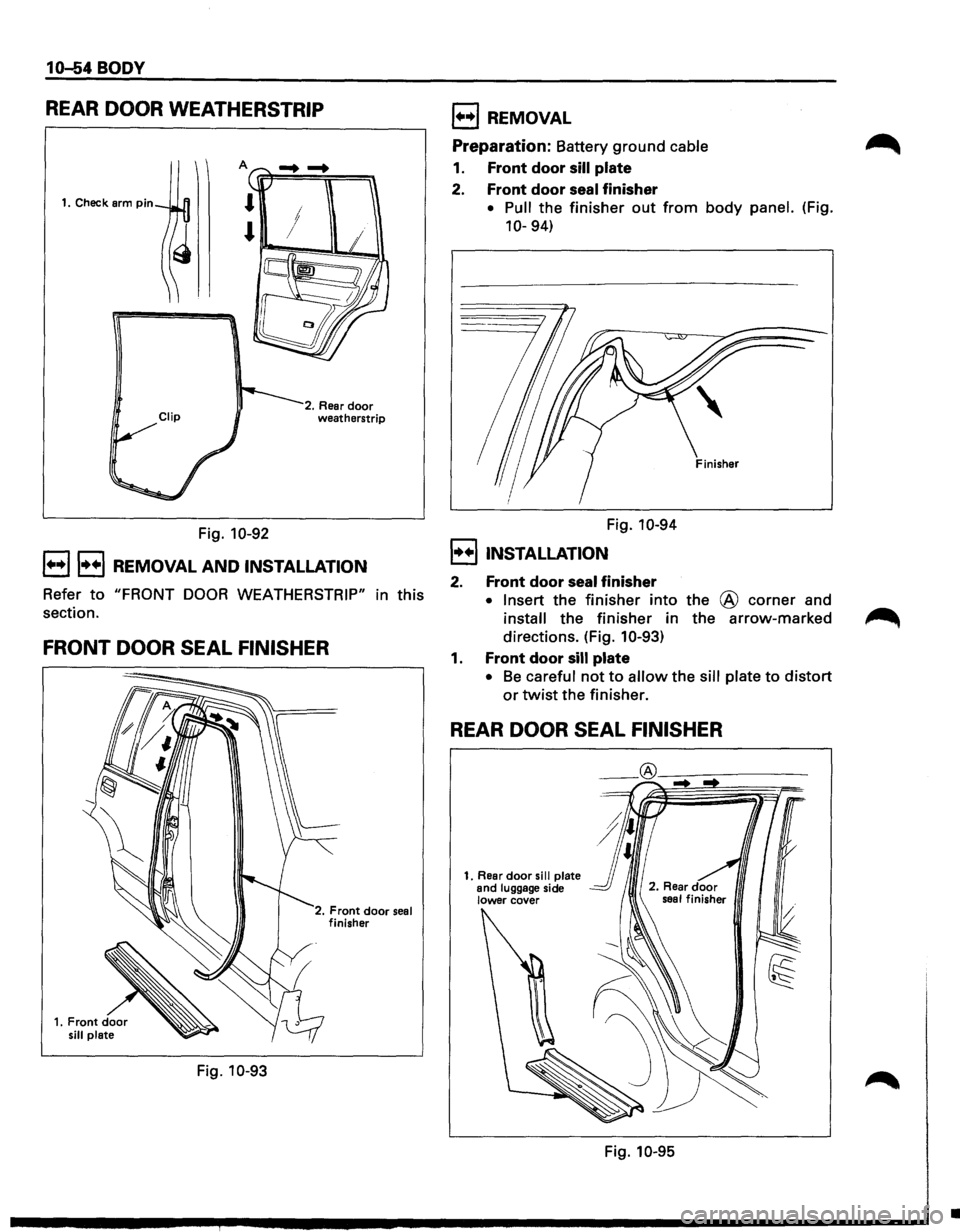

10-54 BODY
REAR DOOR WEATHERSTRIP
A
Fig. 10-92
2. Rear door weatherstrip
1++11++1 REMOVAL AND INSTALLATION
Refer to "FRONT DOOR WEATHERSTRIP" in this
section.
FRONT DOOR SEAL FINISHER
Fig. 10-93
2. Front door seal finisher
1++1 REMOVAL
Preparation: Battery ground cable
1. Front door sill plate
2. Front door seal finisher
• Pull the finisher out from body panel. (Fig.
10-94)
Fig.
10-94
!••I INSTALLATION
2. Front door seal finisher
• Insert the finisher into the @ corner and
install the finisher in the arrow-marked
directions. (Fig.
10-93)
1. Front door sill plate
• Be careful not to allow the sill plate to distort
or twist the finisher.
REAR DOOR SEAL FINISHER
1. Rear door sill plate
and luggage side
lower cover
Fig. 10-95
•
Page 1813 of 1928

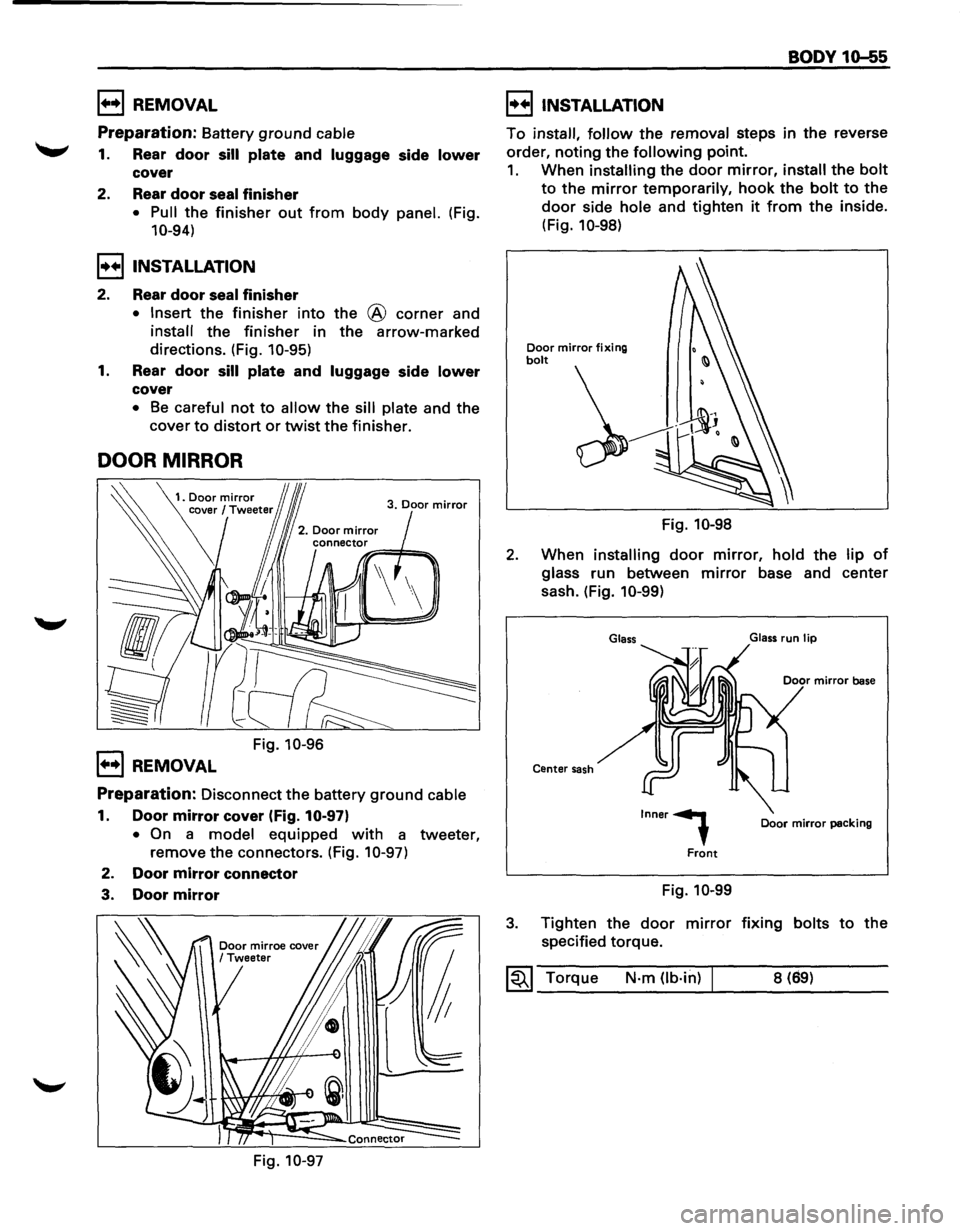

1••1 REMOVAL
Preparation: Battery ground cable
1. Rear door sill plate and luggage side lower
cover
2. Rear
door seal finisher
• Pull the finisher out from body panel. (Fig.
10-94)
I++IINSTALLATION
2. Rear door seal finisher
• Insert the finisher into the @ corner and
install the finisher in the arrow-marked
directions. (Fig.
10-95)
1. Rear door sill plate and luggage side lower
cover
• Be careful not to allow the sill plate and the
cover
to distort or twist the finisher.
DOOR MIRROR
3. Door mirror
1+•1 REMOVAL
Fig. 10-96
Preparation: Disconnect the battery ground cable
1. Door mirror cover (Fig. 10-97)
• On a model equipped with a tweeter,
remove
the connectors. (Fig. 10-97)
2. Door mirror connector
3. Door mirror
Fig. 10-97
BODY 10-55
I++IINSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. When installing the door mirror, install the bolt
to the mirror temporarily, hook the bolt to the
door side hole and tighten it from the inside.
(Fig.
10-98)
Door mirror fixing bolt
Fig. 10-98
2. When installing door mirror, hold the lip of
glass run between mirror base and center
sash. (Fig.
10-99)
Glass
Center sash
Inner,
Front
Fig. 10-99
Glass run lip
Door mirror packing
3. Tighten the door mirror fixing bolts to the
specified torque.
~~~ Torque N·m Ob·hl) 8 (69)
Page 1814 of 1928

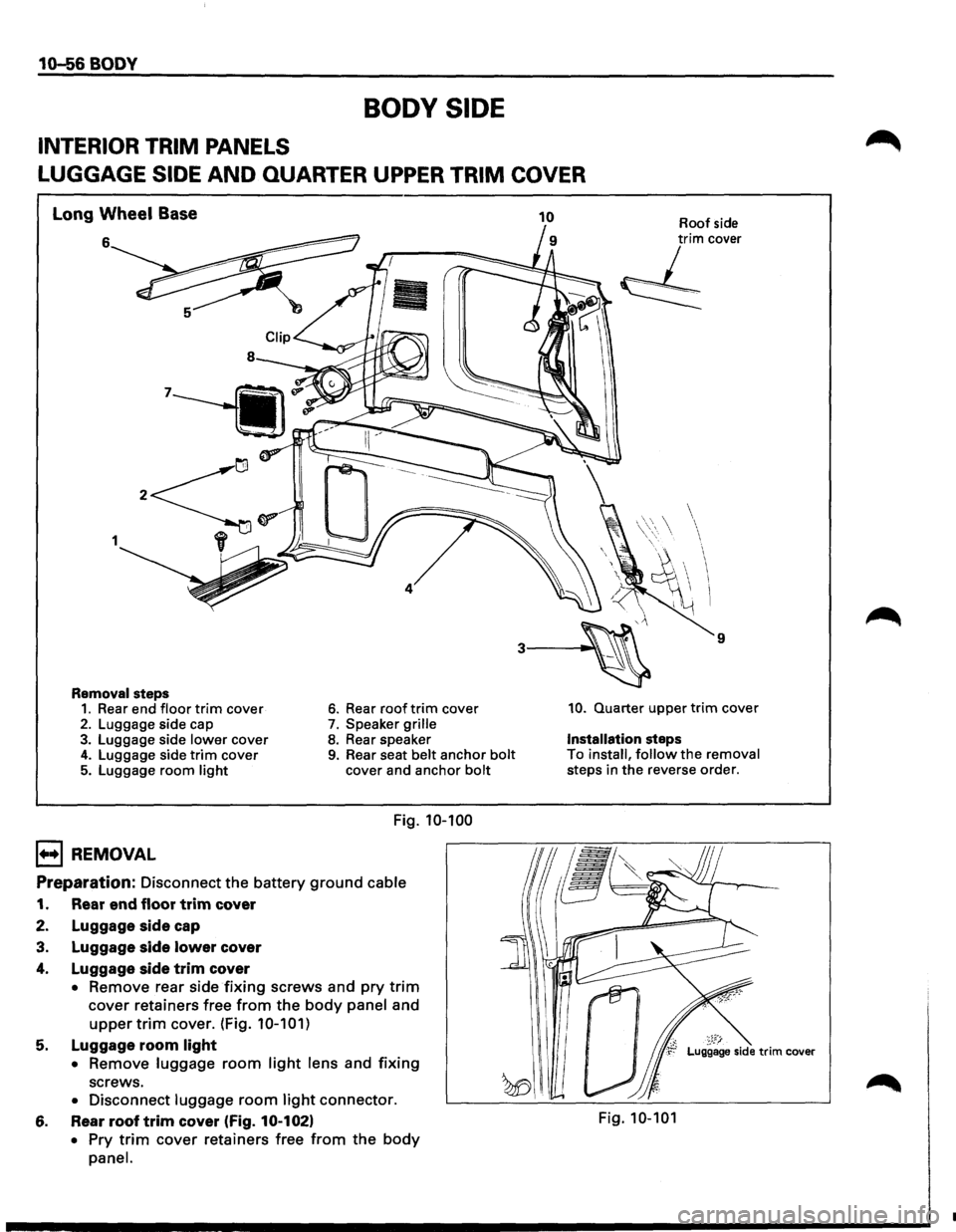

10-56 BODY
BODY SIDE
INTERIOR TRIM PANELS
LUGGAGE
SIDE AND QUARTER UPPER TRIM COVER
Long Wheel Base
6
1
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage side trim cover 5. Luggage room light
1+•1 REMOVAL
6. Rear roof trim cover
7. Speaker grille 8. Rear speaker 9. Rear seat belt anchor bolt cover and anchor bolt
Fig. 10-100
Preparation: Disconnect the battery ground cable
1. Rear end floor trim cover
2. Luggage side cap
3. Luggage side lower cover
4. Luggage side trim cover
• Remove rear side fixing screws and pry trim
cover retainers free from the body panel and
upper trim cover. (Fig. 10-101)
5. Luggage room light
• Remove luggage room light lens and fixing
screws.
• Disconnect luggage room light connector.
6. Rear roof trim cover (Fig. 10-102)
• Pry trim cover retainers free from the body
panel.
Roof side trim cover
, _ _.,,..~
~
9
10. Quarter upper trim cover
Installation steps
To install, follow the removal
steps in
the reverse order.
~~F:r Luggage side trim cover
Fig. 10-101
•
Page 1815 of 1928

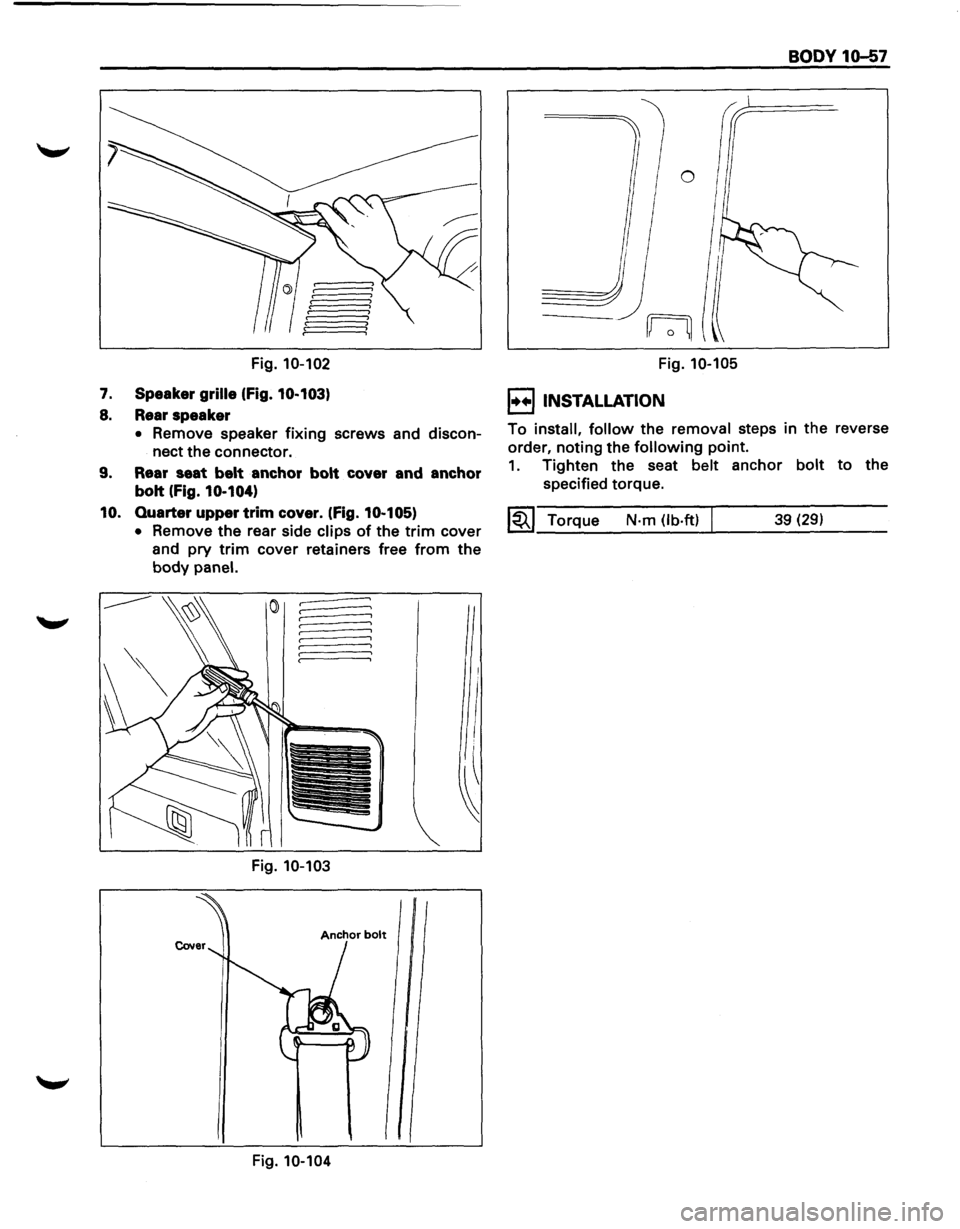

Fig. 10-102
7. Speaker grille (Fig. 10-103)
8. Rear speaker
• Remove speaker fixing screws and discon
nect
the connector.
9. Rear seat belt anchor bolt cover and anchor
bolt
(Fig. 10-104)
10.
Quarter upper trim cover. (Fig. 10-105)
• Remove the rear side clips of the trim cover
and
pry trim cover retainers free from the
body panel.
Fig. 10-103
Anchor bolt
Fig. 10-104
I
~
Fig. 10-105
I+•IINSTALLATION
BODY 10-57
To install, follow the removal steps in the reverse
order, noting the
following point.
1. Tighten the seat belt anchor bolt to the
specified torque.
~~~ Torque N·m (lb·ftl 39 (29)
Page 1816 of 1928

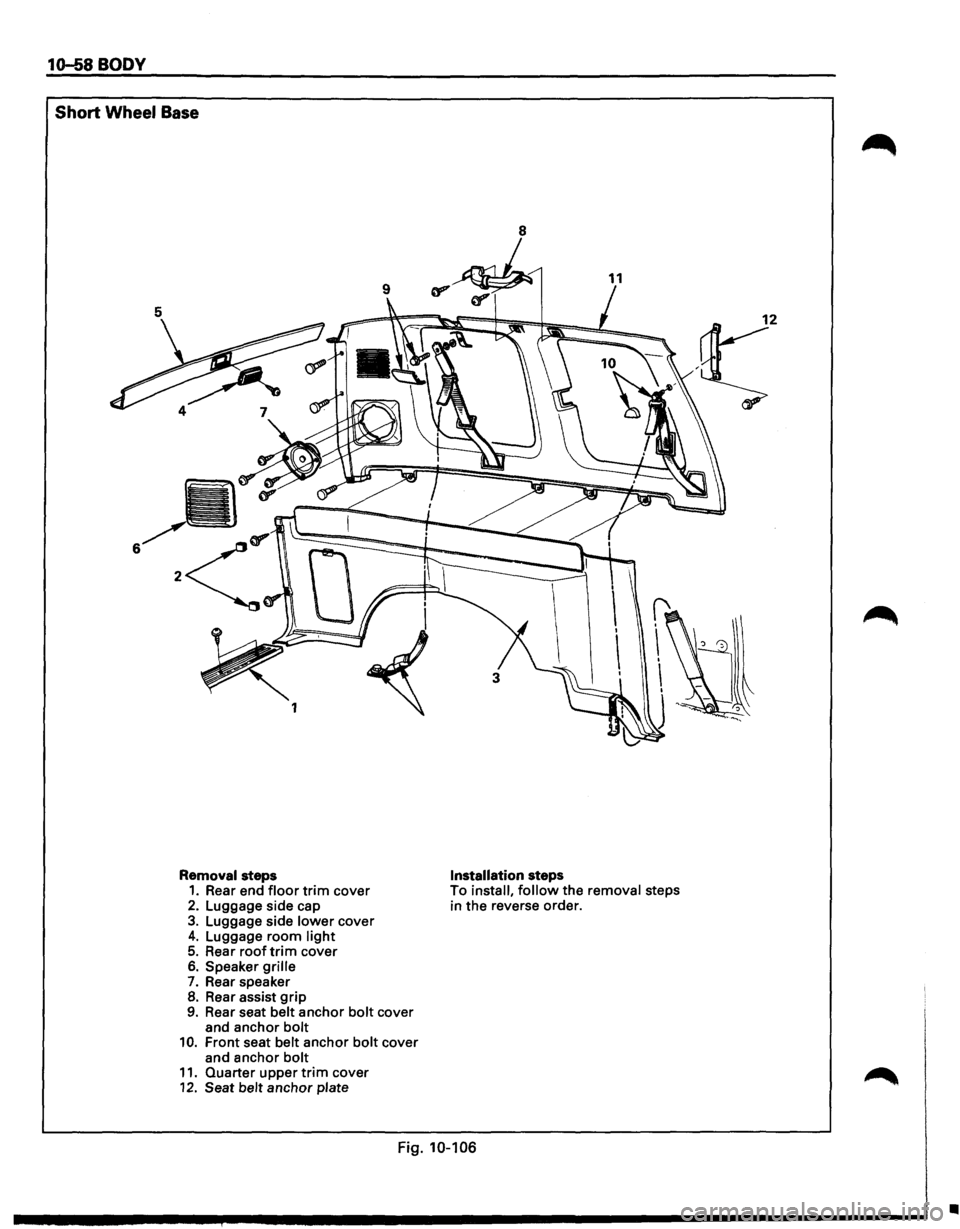

10-58 BODY
Short Wheel Base
Removal steps 1. Rear end floor trim cover 2. Luggage side cap 3. Luggage side lower cover 4. Luggage room light 5. Rear roof trim cover 6. Speaker grille
7. Rear speaker 8. Rear assist grip 9. Rear seat belt anchor bolt cover
and anchor bolt 10. Front seat belt anchor bolt cover
and anchor bolt 11. Quarter upper trim cover 12. Seat belt anchor plate
Installation steps To install, follow the removal steps
in the reverse order.
Fig. 10-106
•
