1995 ISUZU TROOPER Workshop Manual

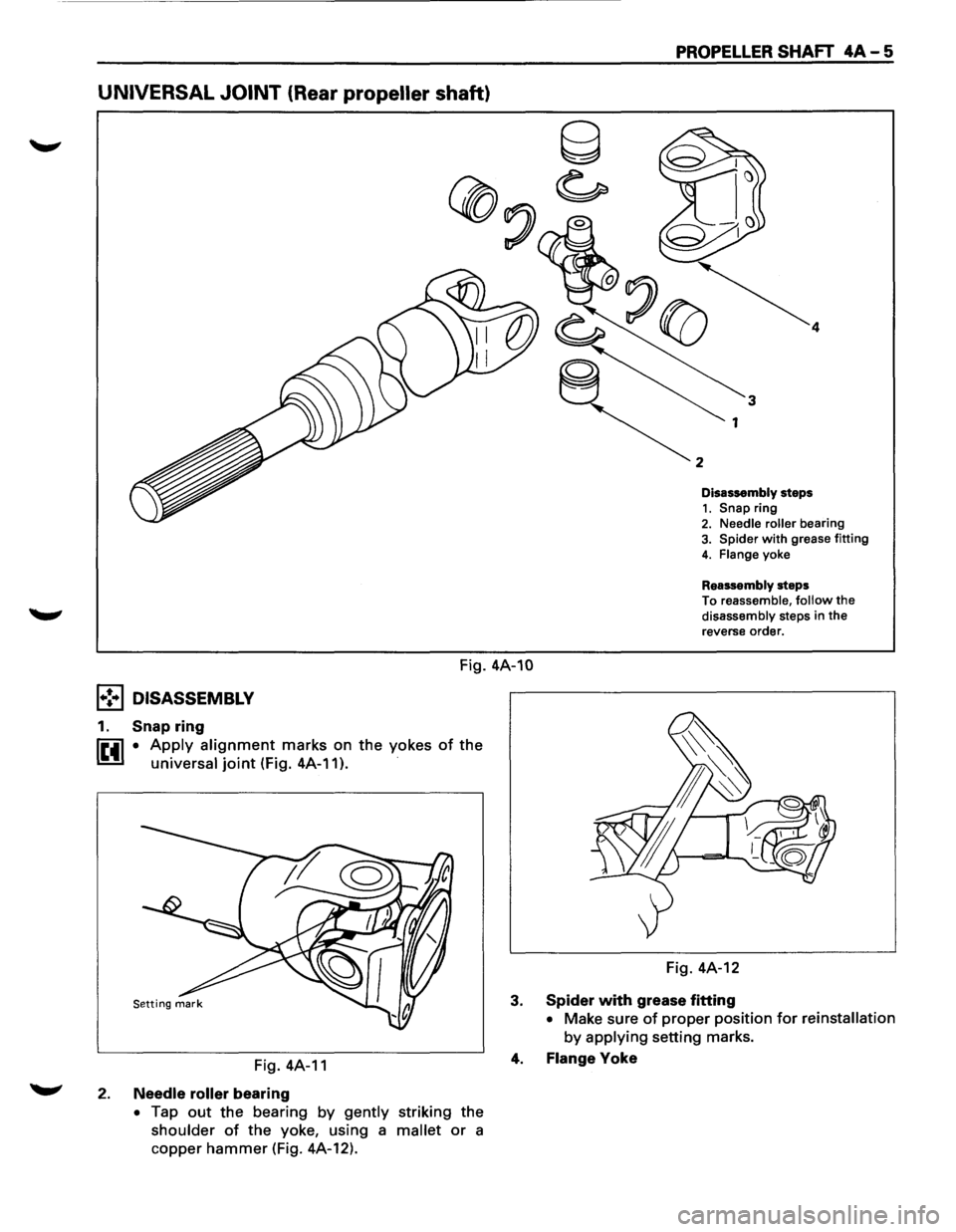

UNIVERSAL JOINT (Rear propeller shaft)
PROPELLER SHAFT 4A-5
2
Disassembly steps 1. Snap ring 2. Needle roller bearing 3. Spider with grease fitting
4. Flange yoke
Reassembly steps
To reassemble, follow the
disassembly steps in the
reverse order.
Fig. 4A-10
l•!•l DISASSEMBLY
1. Snap ring
lttl • Apply alignment marks on the yokes of the
universal joint (Fig. 4A-11 ). ·
Fig. 4A-11
2. Needle roller bearing
• Tap out the bearing by gently striking the
shoulder of the yoke, using a mallet or a
copper
hammer (Fig. 4A-12). Fig.
4A-12
3.
Spider with grease fitting
• Make sure of proper position for reinstallation
by applying setting marks.
4. Flange Yoke

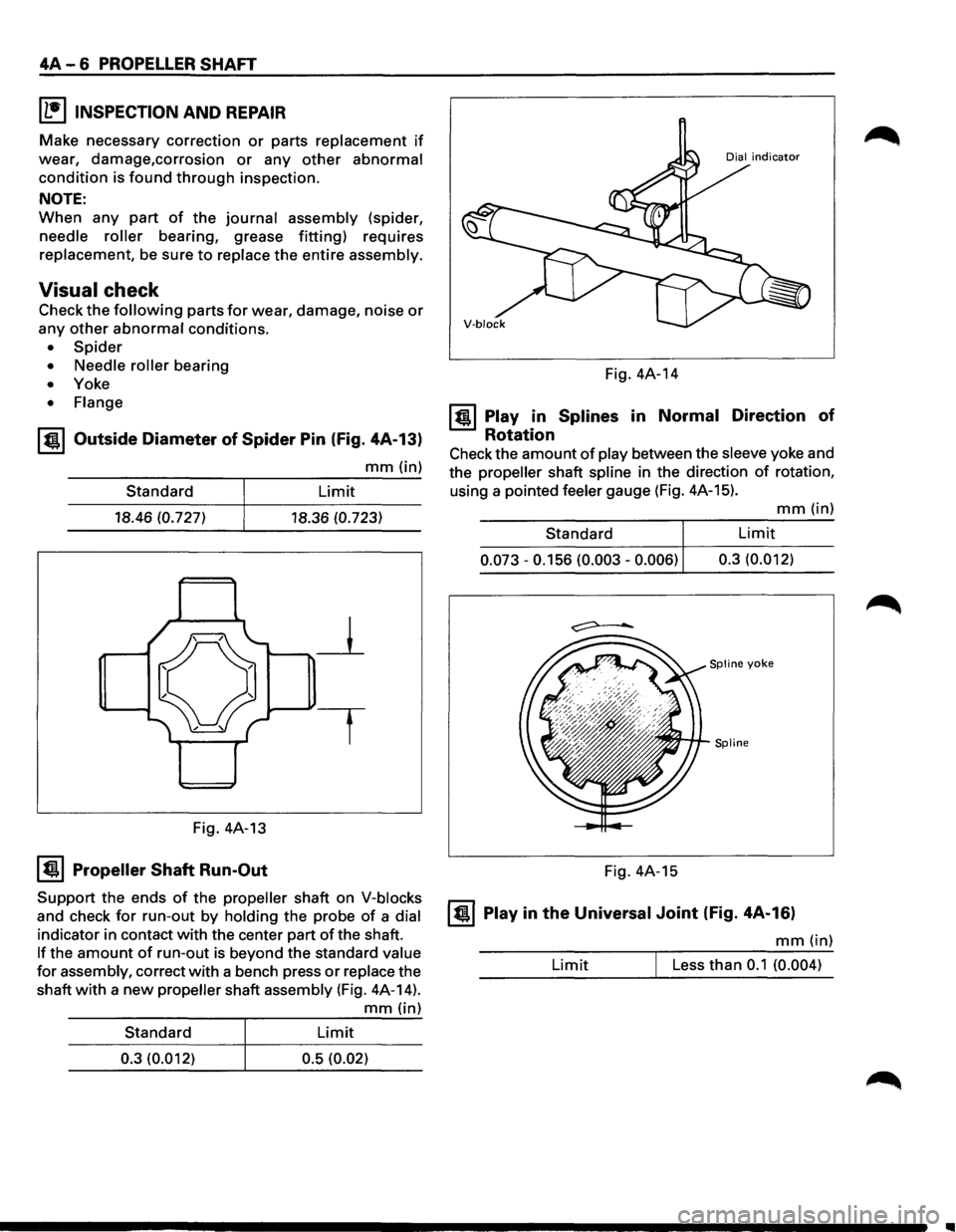

4A-6 PROPELLER SHAFT
IL•IINSPECTION
AND REPAIR
Make necessary correction or parts replacement if
wear, damage,corrosion or any other abnormal
condition is found through inspection.
NOTE:
When any part of the journal assembly (spider,
needle roller bearing, grease fitting) requires
replacement, be sure to replace the entire assembly.
Visual check
Check the following parts for wear, damage, noise or
any other abnormal conditions.
• Spider
• Needle roller bearing
• Yoke
• Flange
I til Outside Diameter of Spider Pin (fig. 4A-13)
mm (in)
Standard
18.46 (0.727)
Fig. 4A-13
I tJ I Propeller Shaft Run-Out
Limit
18.36 (0.723)
Support the ends
of the propeller shaft on V-blocks
and check for run-out by holding the probe of a dial
indicator in contact with the center part of the shaft.
If the amount of run-out is beyond the standard value
for assembly, correct with a bench press or replace the
shaft
with a new propeller shaft assembly (Fig. 4A-14).
mm (in)
Standard
Limit
0.3 (0.012) 0.5 (0.02) Fig.
4A-14
ltil Play in Splines in Normal Direction of
Rotation
Check the amount of play between the sleeve yoke and
the
propeller shaft spline in the direction of rotation,
using a pointed
feeler gauge (Fig. 4A-15).
mm(in)
Standard Limit
0.073 -0.156 (0.003 -0.006) 0.3
(0.012)
Spline yoke
Spline
Fig. 4A-15
I til Play in the Universal Joint (fig. 4A-16)
mm (in)
Limit Less than 0.1 (0.004)
..

Fig. 4A-16

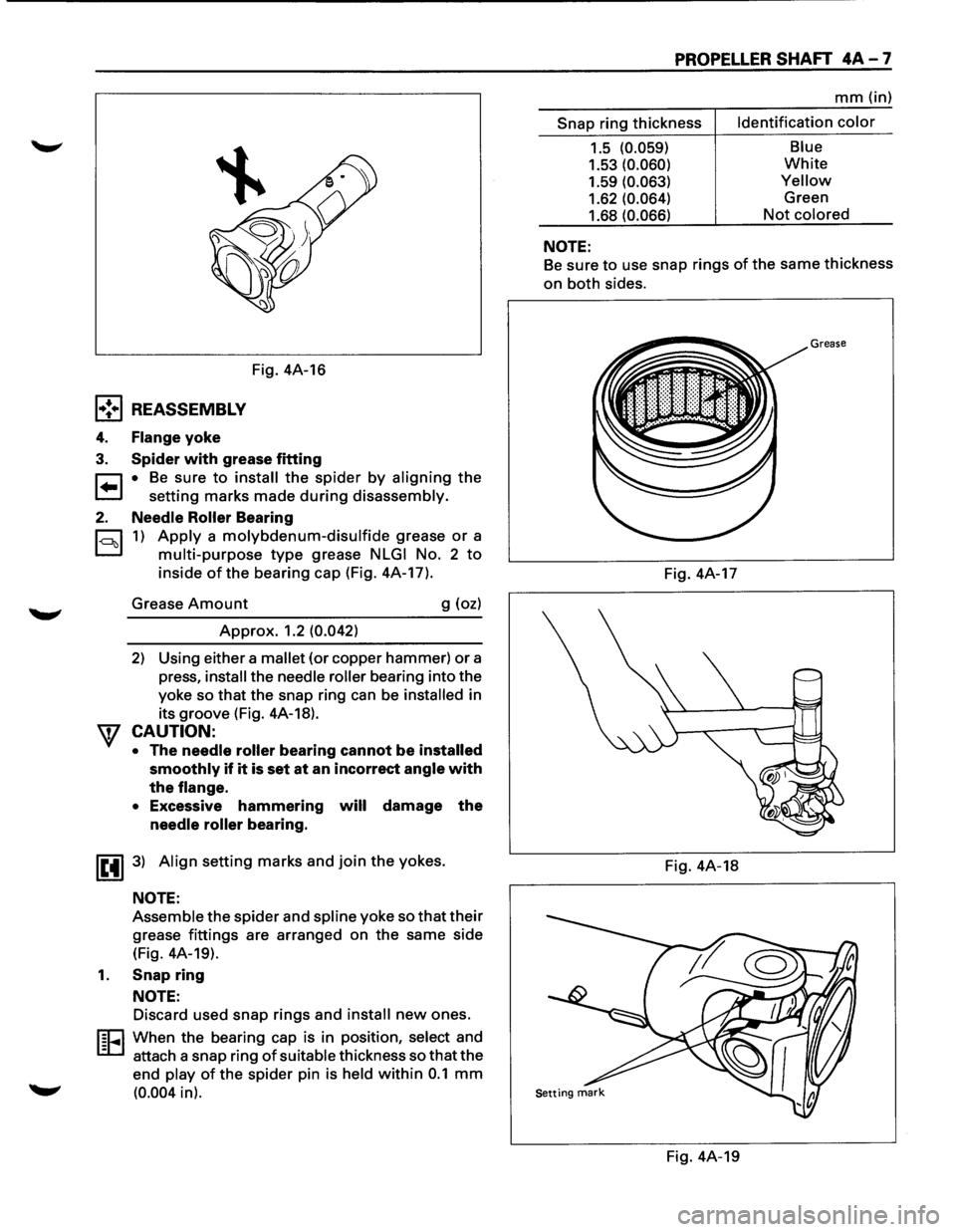

l•!•l REASSEMBLY
4. Flange yoke
3. Spider with grease fitting
r:::1 • Be sure to install the spider by aligning the
t.=.l setting marks made during disassembly.
2. Needle Roller Bearing
c=::l 1) Apply a molybdenum-disulfide grease or a
D multi-purpose type grease NLGI No. 2 to
inside of the bearing cap (Fig. 4A-17).
Grease
Amount g (oz)
Approx. 1.2 (0.042)
2) Using either a mallet (or copper hammer) or a
press,
install the needle roller bearing into the
yoke so
that the snap ring can be installed in
its groove (Fig. 4A-18).
CAUTION:
• The needle roller bearing cannot be installed
smoothly
if it is set at an incorrect angle with
the
flange.
•
Excessive hammering will damage the
needle roller bearing.
IE41 3) Align setting marks and join the yokes.
NOTE:
Assemble the spider and spline yoke so that their
grease fittings are arranged on the same side
(Fig. 4A-19).
1. Snap ring
NOTE:
Discard used snap rings and install new ones.
I§EI When the bearing cap is in position, select and
- attach a snap ring
of suitable thickness so that the
end play
of the spider pin is held within 0.1 mm
(0.004 in).
PROPELLER SHAFT 4A-7
mm (in)
Snap ring thickness Identification
color
1.5 (0.059)
1.53 (0.060)
1.59 (0.063)
1.62 (0.064)
1.68 (0.066)
NOTE:
Blue
White
Yellow
Green
Not colored
Be sure
to use snap rings of the same thickness
on both sides.
Grease
Fig. 4A-17
Fig. 4A-18
Fig. 4A-19

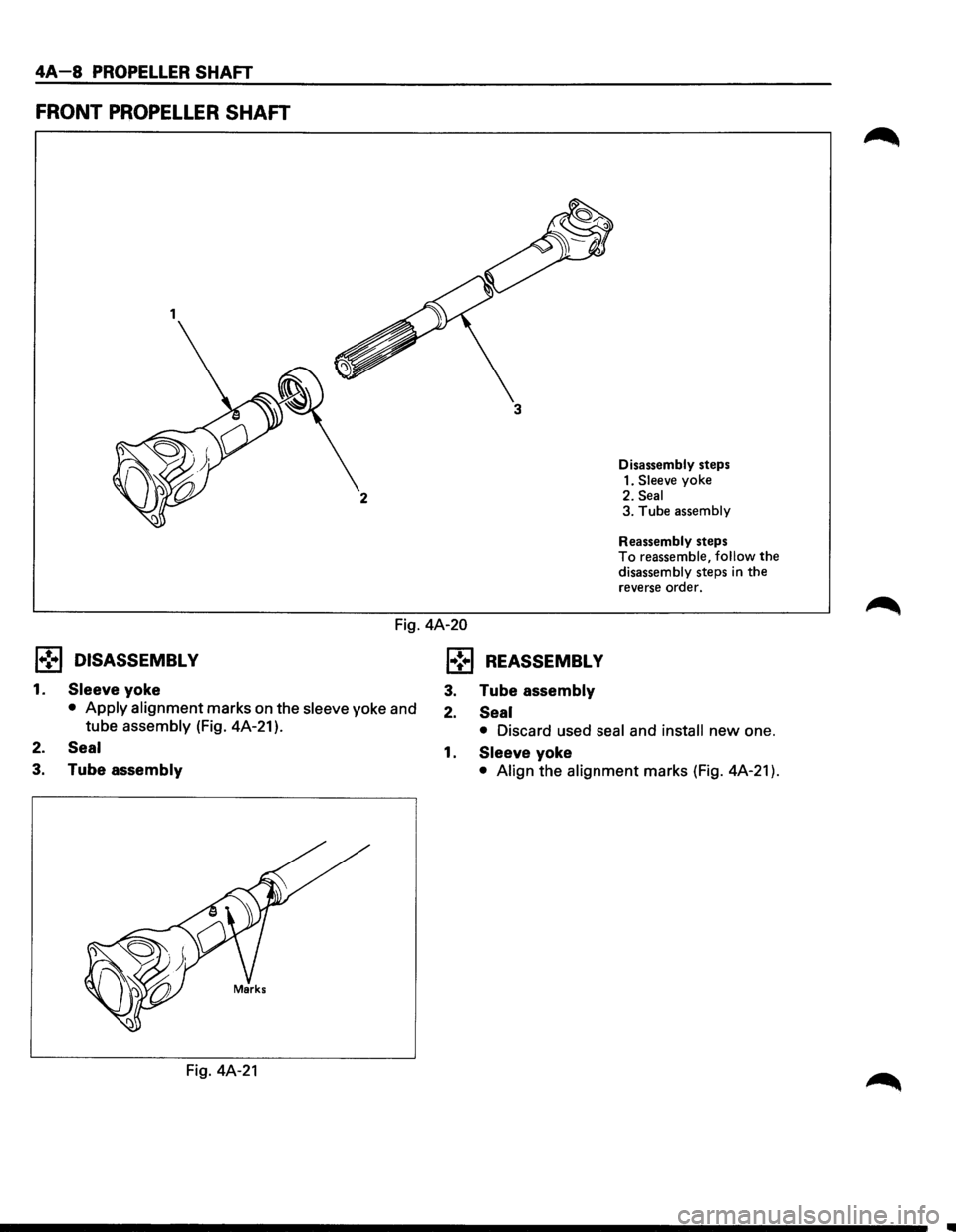

4A-8 PROPELLER SHAFT
FRONT PROPELLER SHAFT
1
3
2
Disassembly steps
1.
Sleeve yoke
2. Seal 3. Tube assembly
Reassembly
steps To reassemble, follow the disassembly steps in the reverse order.
Fig. 4A-20
l•!•l DISASSEMBLY
1. Sleeve yoke
• Apply alignment marks on the sleeve yoke and
tube
assembly (Fig. 4A-21 ).
2. Seal
3. Tube assembly
Fig. 4A-21
l•!•l REASSEMBLY
3. Tube assembly
2. Seal
• Discard used seal and install new one.
1. Sleeve yoke
• Align the alignment marks (Fig. 4A-21 ).

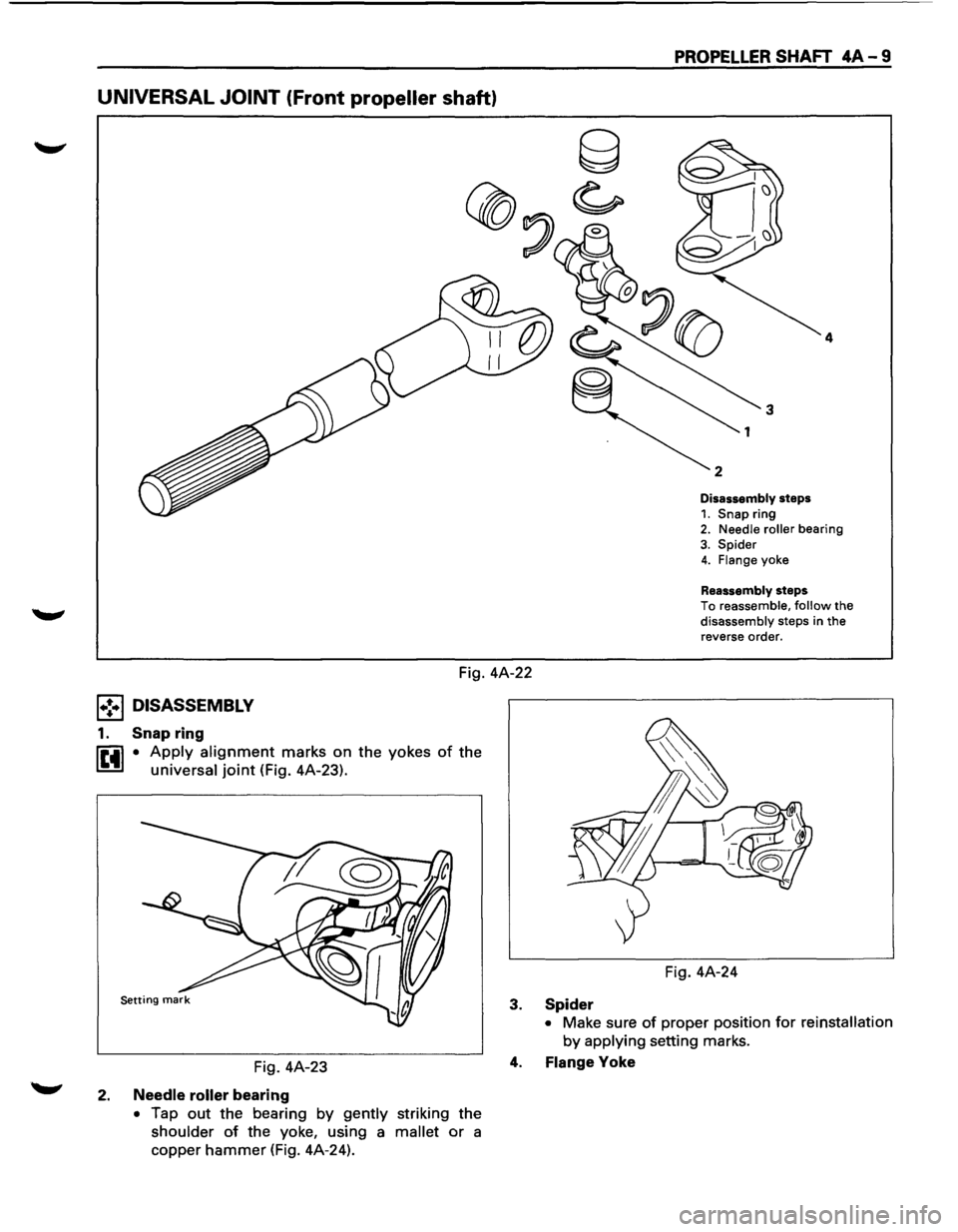

UNIVERSAL JOINT (Front propeller shaft)
PROPELLER SHAFT 4A-9
4
Disassembly steps
1. Snap ring 2. Needle roller bearing
3. Spider 4. Flange yoke
Reassembly steps
To reassemble, follow the
disassembly steps in the
reverse order.
Fig. 4A-22
l•!•l DISASSEMBLY
1. Snap ring
~ • Apply alignment marks on the yokes of the
~ universal joint (Fig. 4A-23).
Fig. 4A-23
2. Needle roller bearing
• Tap out the bearing by gently striking the
shoulder of the yoke, using a mallet or a
copper
hammer (Fig. 4A-24). Fig.
4A-24
3. Spider
• Make sure of proper position for reinstallation
by applying setting marks.
4. Flange
Yoke

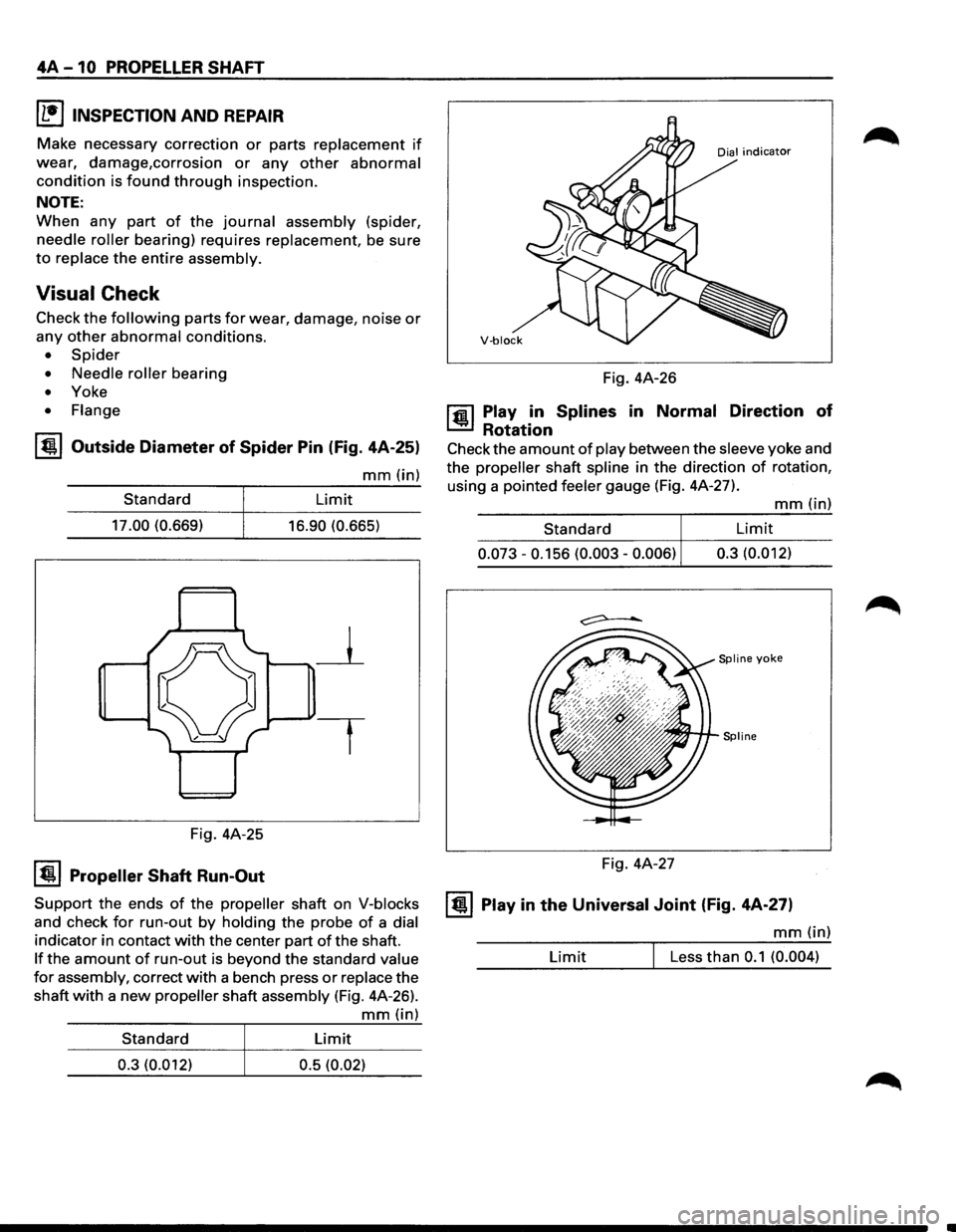

4A -10 PROPELLER SHAFT
I L•IINSPECTION AND REPAIR
Make necessary correction or parts replacement if
wear, damage,corrosion or any other abnormal
condition is found through inspection.
NOTE:
When any part of the journal assembly (spider,
needle roller bearing) requires replacement, be sure
to replace the entire assembly.
Visual Check
Check the following parts for wear, damage, noise or
any other abnormal conditions.
• Spider
• Needle roller bearing
• Yoke
• Flange
I til!, I Outside Diameter of Spider Pin (Fig. 4A-25)
mm(in)
Standard
17.00 (0.669)
Fig. 4A-25
I til!. I Propeller Shaft Run-Out
Limit
16.90 (0.665)
Support the ends of the propeller shaft on V-blocks
and check for run-out by holding the probe of a dial
indicator in contact with the center part of the shaft.
If the amount of run-out is beyond the standard value
for assembly, correct with a bench press or replace the
shaft
with a new propeller shaft assembly (Fig. 4A-26).
mm(in)
Standard Limit
0.3 (0.012)
0.5 (0.02)
V·block
Fig. 4A-26
1 til!, 1 Play in Splines in Normal Direction of
Rotation
Check the amount of play between the sleeve yoke and
the
propeller shaft spline in the direction of rotation,
using a pointed
feeler gauge (Fig. 4A-27).
mm (in)
Standard
Limit
0.073 - 0.156 (0.003 -0.006) 0.3 (0.012)
Spline yoke
Fig.
4A-27
ltil!.l Play in the Universal Joint (Fig. 4A-27)
mm (in)
Limit Less than 0.1 (0.004)
