~ INSPECTION
I 4131 2 1 i~~j
l~ 101918 71615 jJ [ill]
~
s 6 7 8 2 3 s position
CD
OFF
~ ON o-~
...... ~ ~ ...... OFF
CD ~ ON o-~
Fig. 8-263

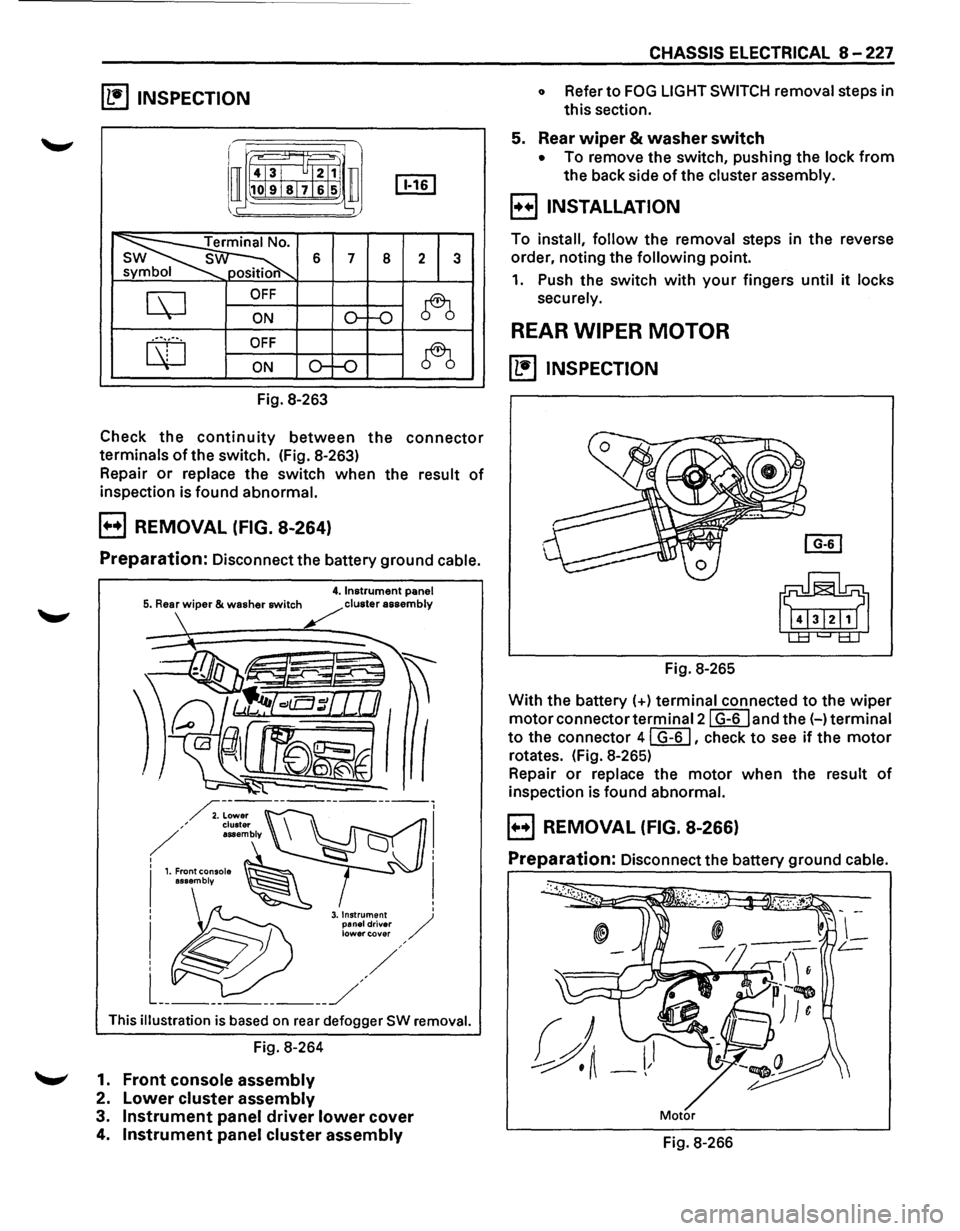

Check
the continuity between the connector
terminals of the switch. (Fig. 8-263)
Repair
or replace the switch when the result of
inspection is found abnormal.
E) REMOVAL (FIG. 8-264)
Preparation: Disconnect the battery ground cable.
This illustration is based on rear defogger SW removal.
Fig. 8-264
'-"' 1. Front console assembly
2. lower cluster assembly
3. Instrument panel driver lower cover
4. Instrument panel cluster assembly
CHASSIS ELECTRICAL 8-227
o Refer to FOG LIGHT SWITCH removal steps in
this section.
5. Rear wiper & washer switch
• To remove the switch, pushing the lock from
the back side of the cluster assembly.
B INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following point.
1. Push the switch with your fingers until it locks
securely.
REAR WIPER MOTOR
~ INSPECTION
Fig. 8-265
With the battery
(+)terminal connected to the wiper
motor connector termina12l G-6 land the H terminal
to the connector 41 G-6 I, check to see if the motor
rotates. (Fig. 8-265)
Repair
or replace the motor when the result of
inspection is found abnormal.
E) REMOVAL (FIG. 8-266)
Preparation: Disconnect the battery ground cable.
-,
Fig. 8-266

8-228 CHASSIS ELECTRICAL

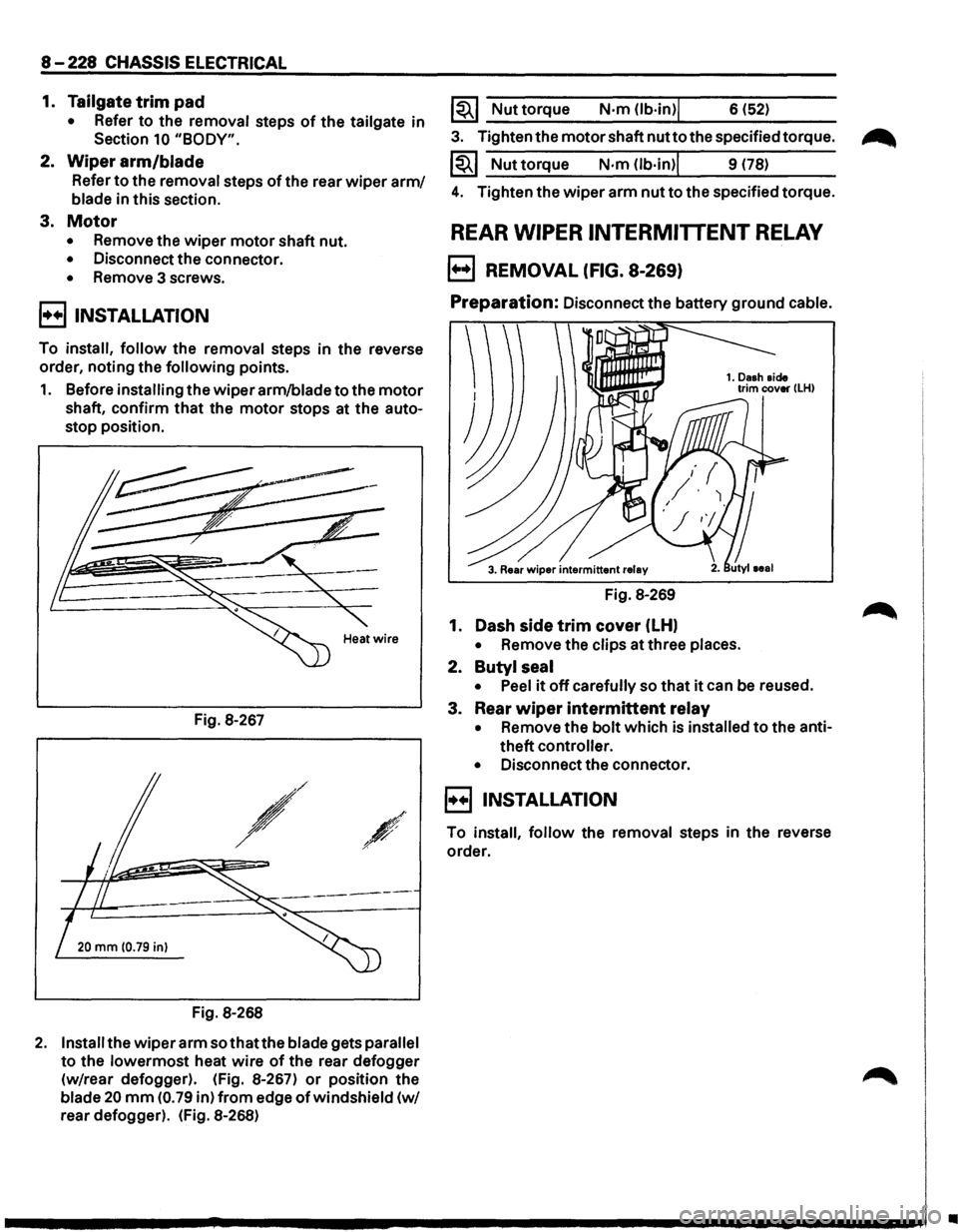

1. Tailgate trim pad
• Refer to the removal steps of the tailgate in
Section
10 "BODY".
2. Wiper arm/blade
Refer to the removal steps of the rear wiper arm/
blade in this section.
3.
Motor
• Remove the wiper motor shaft nut.
• Disconnect the connector.
• Remove 3 screws.
E) INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points.
1. Before installing the wiperarm/bladetothe motor
shaft, confirm that the motor stops at the auto­
stop position.
Fig. 8-267
,/
/
20 mm (0.79 in)
Fig. 8-268
2. Install the wiper arm sothatthe blade gets parallel
to the lowermost heat wire of the rear defogger
(w/rear defogger). (Fig. 8-267)
or position the
blade 20 mm (0. 79 in) from edge of windshield (w/
rear defogger). (Fig. 8-268)
1~1 Nut torque N·m (lb·in)j 6 (52)
3. Tighten the motor shaft nutto the specified torque.
1~1 Nuttorque N·m (lb·in)l 9 (78)
4. Tighten the wiper arm nut to the specified torque.
REAR WIPER INTERMITTENT RELAY
B REMOVAL (FIG. 8-269)
Preparation: Disconnect the battery ground cable.
Fig. 8-269
1. Dash
side trim cover (LH)
• Remove the clips at three places.
2. Butyl seal
•
Peel it off carefully so that it can be reused.
3. Rear
wiper intermittent relay
• Remove the bolt which is installed to the anti­
theft
controller.
•
Disconnect the connector.
E) INSTALLATION
To install, follow the removal steps in the reverse
order.
•

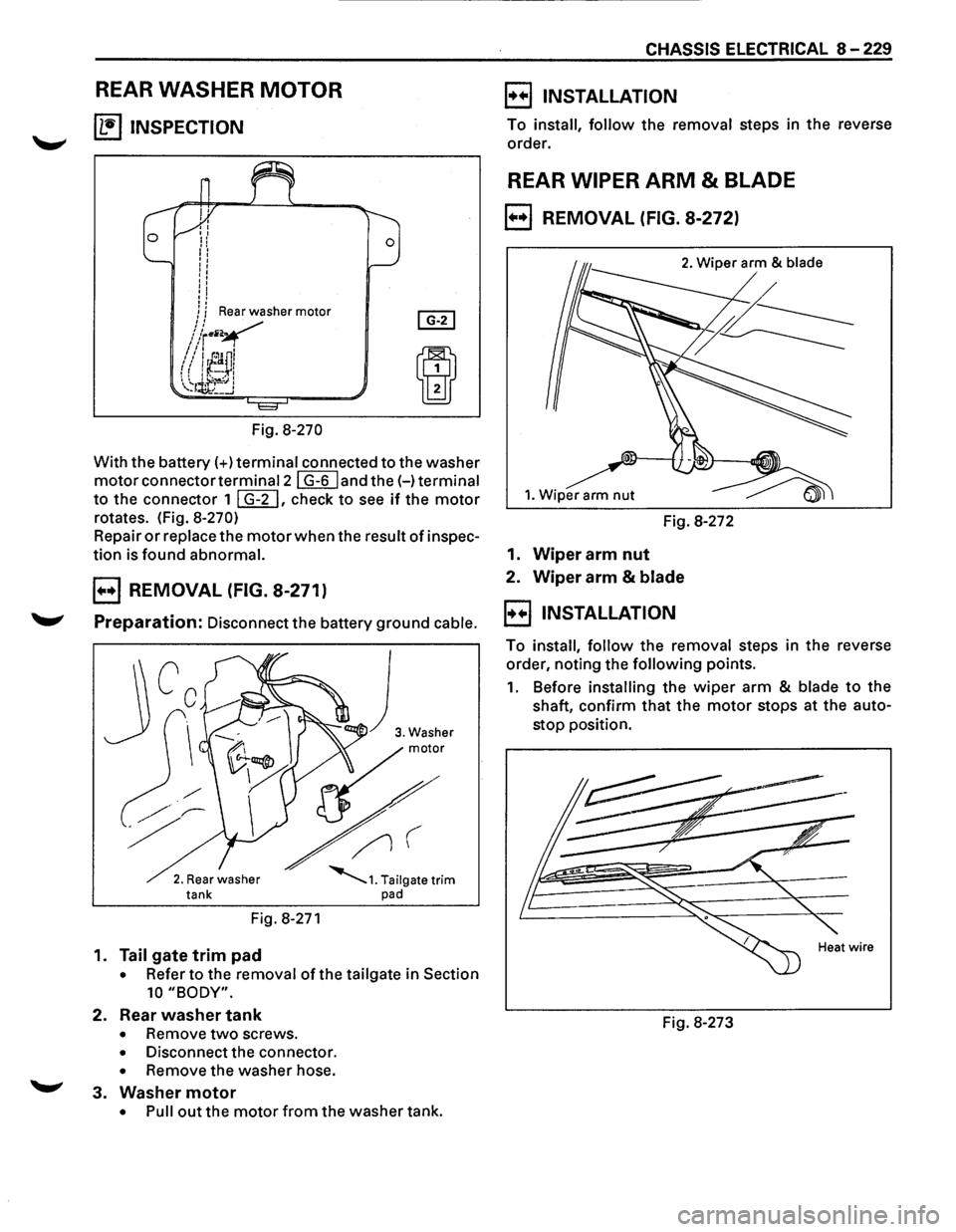

REAR WASHER MOTOR
~ INSPECTION
Fig. 8-270
With the battery(+) terminal connected to the washer
motorconnectortermina12l G-6 land the(-) terminal
to the connector 1 I G-2 I, check to see if the motor
rotates. (Fig. 8-270)
Repair or replace the motor when the result of inspec­
tion is found abnormal.
B REMOVAL (FIG. 8-271)
Preparation: Disconnect the battery ground cable.
2. Rear washer tank
Fig. 8-271
1. Tail gate trim pad
• Refer to the removal of the tailgate in Section
10 "BODY".
2. Rear washer tank
• Remove two screws.
• Disconnect the connector.
• Remove the washer hose.
~ 3. Washer motor
• Pull out the motor from the washer tank.
CHASSIS ELECTRICAL 8-229
B INSTALLATION
To install, follow the removal steps in the reverse
order.
REAR WIPER ARM & BLADE
B REMOVAL (FIG. 8-272)
2. Wiper arm & blade
1. Wiper arm nut
Fig. 8-272
1.
Wiper arm nut
2. Wiper arm & blade
B INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points.
1. Before installing the wiper arm & blade to the
shaft, confirm
that the motor stops at the auto­
stop position.
Fig. 8-273

8-230 CHASSIS ELECTRICAL
-~ ~-
20 mm 10.79 in)
Fig. 8-274
2. Install the wiper arm & blade so that the blade is
parallel to the lowermost heat wire of the rear
defogger (w/rear defogger). (Fig. 273)
or position
the
blade 20 mm (0.79 in) from edge of windshield
(w/o rear defogger). (Fig. 8-274)
~~~ Nut torque N·m Ob·in)l 9 (78)
3. Tighten the wiper arm nut to the specified torque.

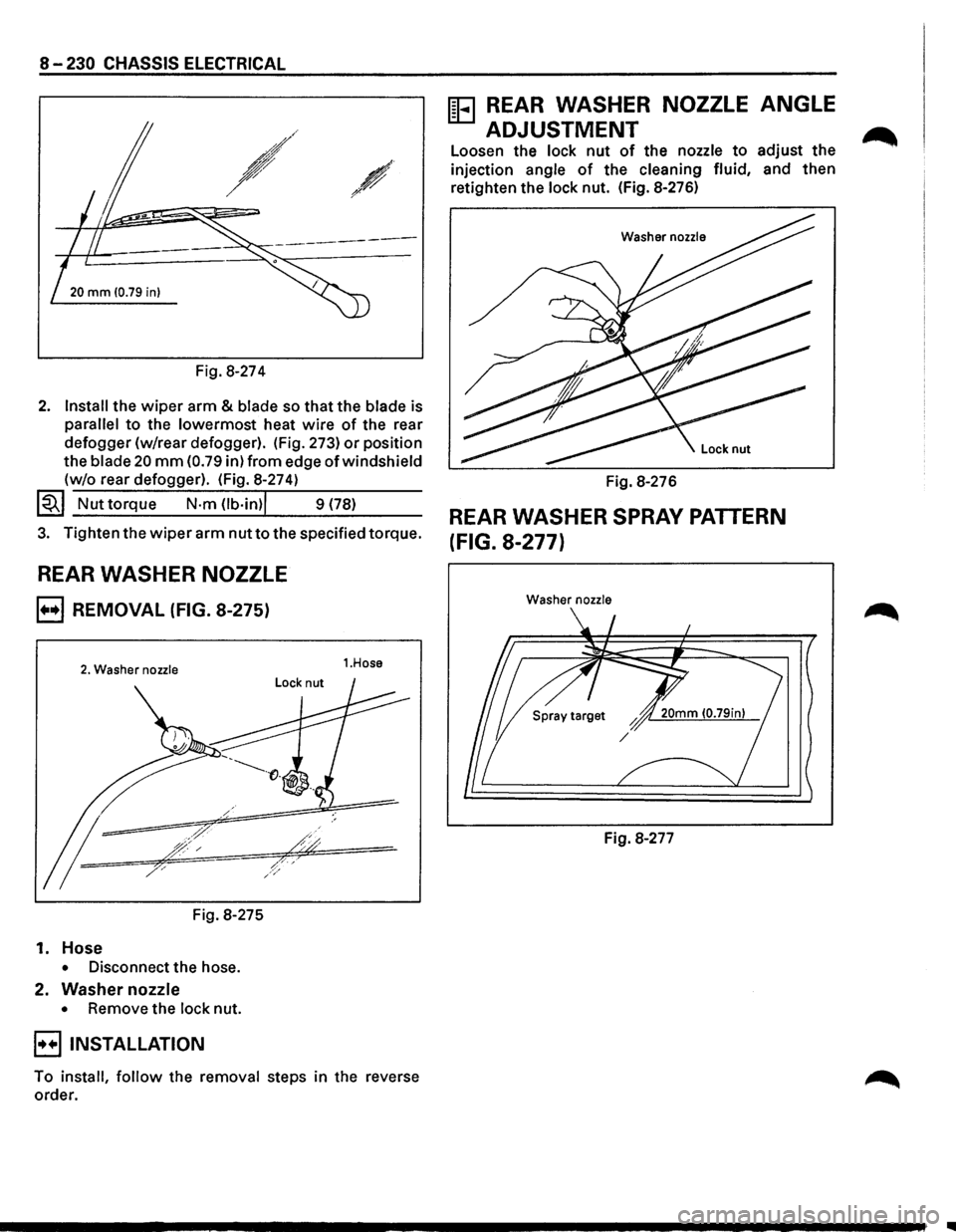

REAR WASHER NOZZLE
B REMOVAL (FIG. 8-275)
2. Washer nozzle
Fig. 8-275
1. Hose
• Disconnect the hose.
2. Washer nozzle
• Remove the lock nut.
B INSTALLATION
1.Hose
To install, follow the removal steps in the reverse
order.
ffi3 REAR WASHER NOZZLE ANGLE
ADJUSTMENT
Loosen the lock nut of the nozzle to adjust the
injection angle of the cleaning fluid, and then
retighten the lock nut. (Fig. 8-276)
Washer nozzle
Fig. 8-276
REAR WASHER SPRAY PATTERN
(FIG. 8-277)
Washer nozzle
Fig. 8-277
..

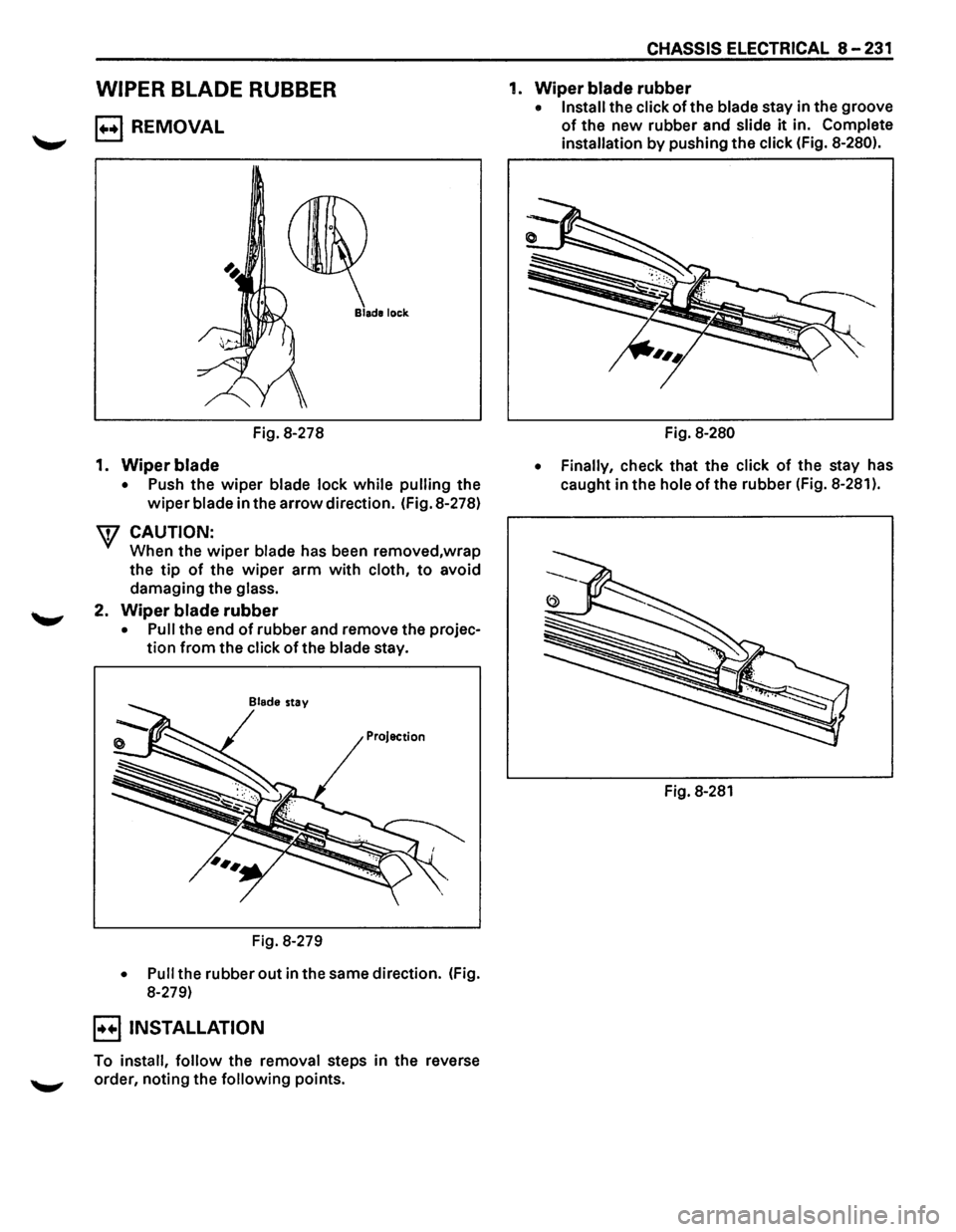

WIPER BLADE RUBBER
B REMOVAL
Fig. 8-278
1. Wiper blade
• Push the wiper blade lock while pulling the
wiper blade in the arrow direction. (Fig. 8-278)
W CAUTION:
When the wiper blade has been removed,wrap
the
tip of the wiper arm with cloth, to avoid
damaging the
glass.
2. Wiper blade rubber
• Pull the end of rubber and remove the projec­
tion from the click of the blade stay.
Blade stay
Projection
Fig. 8-279
• Pull the rubber out in the same direction. (Fig.
8-279)
B INSTALLATION
To install, follow the removal steps in the reverse
'--"' order, noting the following points.
CHASSIS ELECTRICAL 8-231
1. Wiper blade rubber
• Install the click of the blade stay in the groove
of the new rubber and slide it in. Complete
installation by pushing the click (Fig. 8-280).
Fig. 8-280
• Finally,
check that the click of the stay has
caught in the
hole of the rubber (Fig. 8-281 ).
Fig. 8-281
