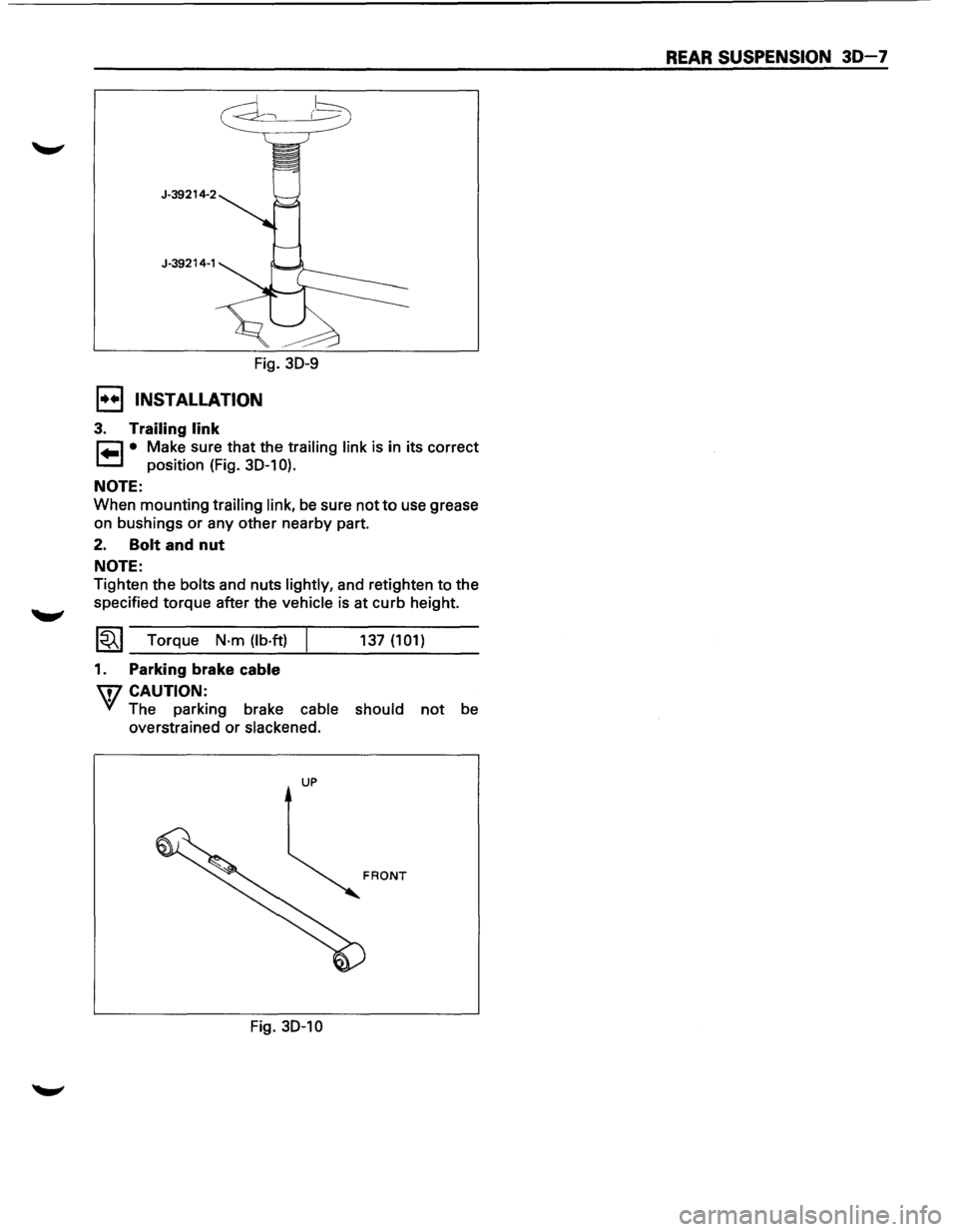

1995 ISUZU TROOPER Workshop Manual

J-39214-2 J-39214-1
Fig. 30-9
1••1 INSTALLATION
3. Trailing link
~ • Make sure that the trailing link is in its correct
1.=.1 position (Fig. 30-1 0).
NOTE:
When mounting trailing link, be sure not to use grease
on bushings or any other nearby part.
2. Bolt and nut
NOTE:
Tighten the bolts and nuts lightly, and retighten to the
specified torque after the
vehicle is at curb height.
1~1 Torque N·m (lb·ft)
1. Parking brake cable
W CAUTION:
137 (101)
VI The parking brake cable should not be
overstrained or
slackened.
UP
Fig. 30-10
REAR SUSPENSION 30-7

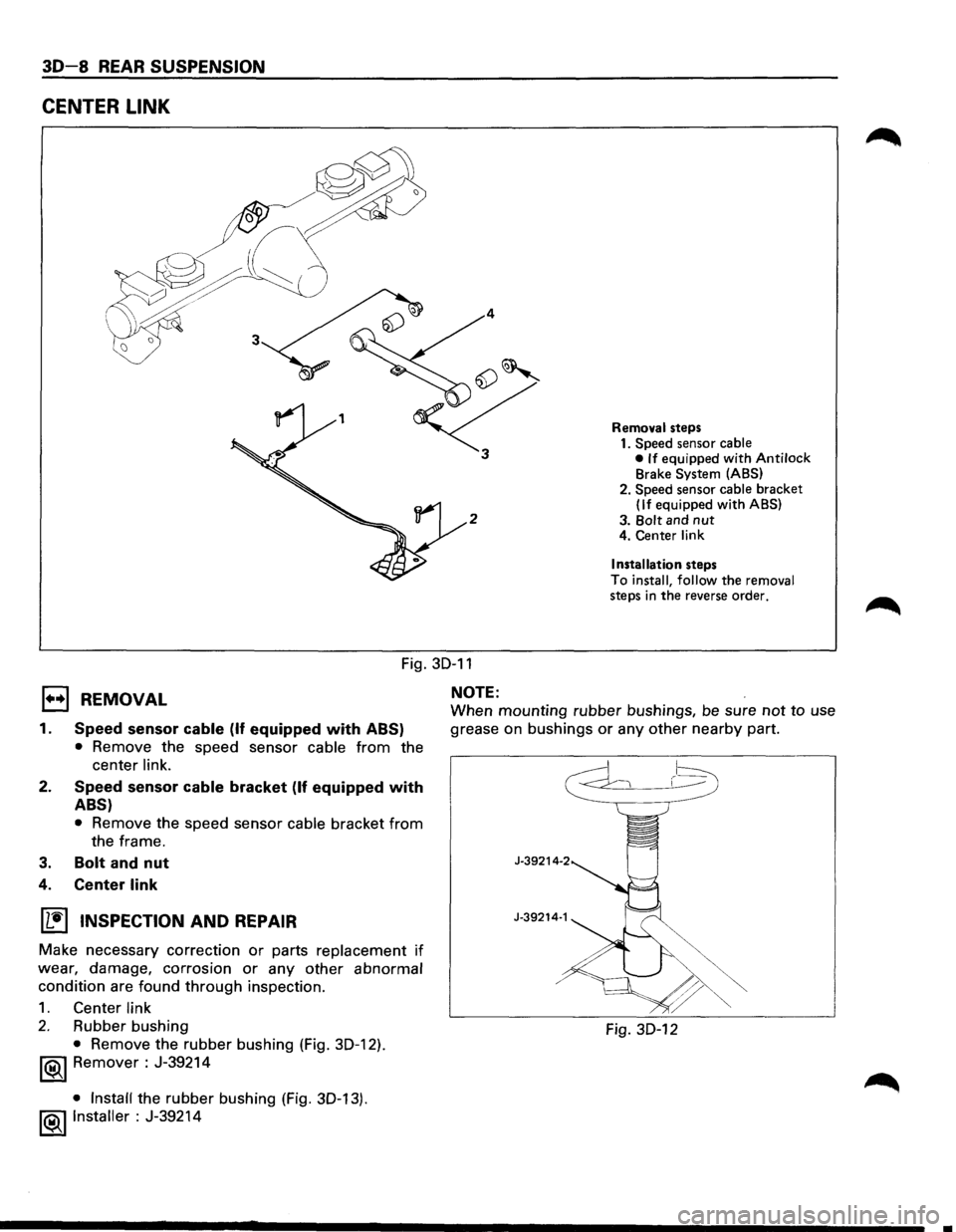

30-8 REAR SUSPENSION
CENTER LINK
2
Removal steps
1. Speed sensor cable
• If equipped with Antilock Brake System (ABS)
2. Speed sensor
cable bracket (If equipped with ABS)
3.
Bolt and nut 4. Center link
Installation
steps
To
install, follow the removal steps in the reverse order.
1•+1 REMOVAL
Fig. 30-11
NOTE:
1.
2.
3.
Speed sensor cable (If equipped with ABS)
• Remove the speed sensor cable from the
center
link.
Speed sensor cable bracket (If equipped with
ABS)
• Remove the speed sensor cable bracket from
the frame.
Bolt and nut
4. Center link
~ INSPECTION AND REPAIR
Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
1. Center link
2. Rubber bushing
• Remove the rubber bushing (Fig. 30-12).
1®1 Remover : J-39214
• Install the rubber bushing (Fig. 30-13).
!®..I Installer : J-39214
When mounting rubber bushings, be sure not to use
grease on bushings
or any other nearby part.
J-39214-2
J-39214·1
Fig. 30-12
..

r-:::::1 )--~

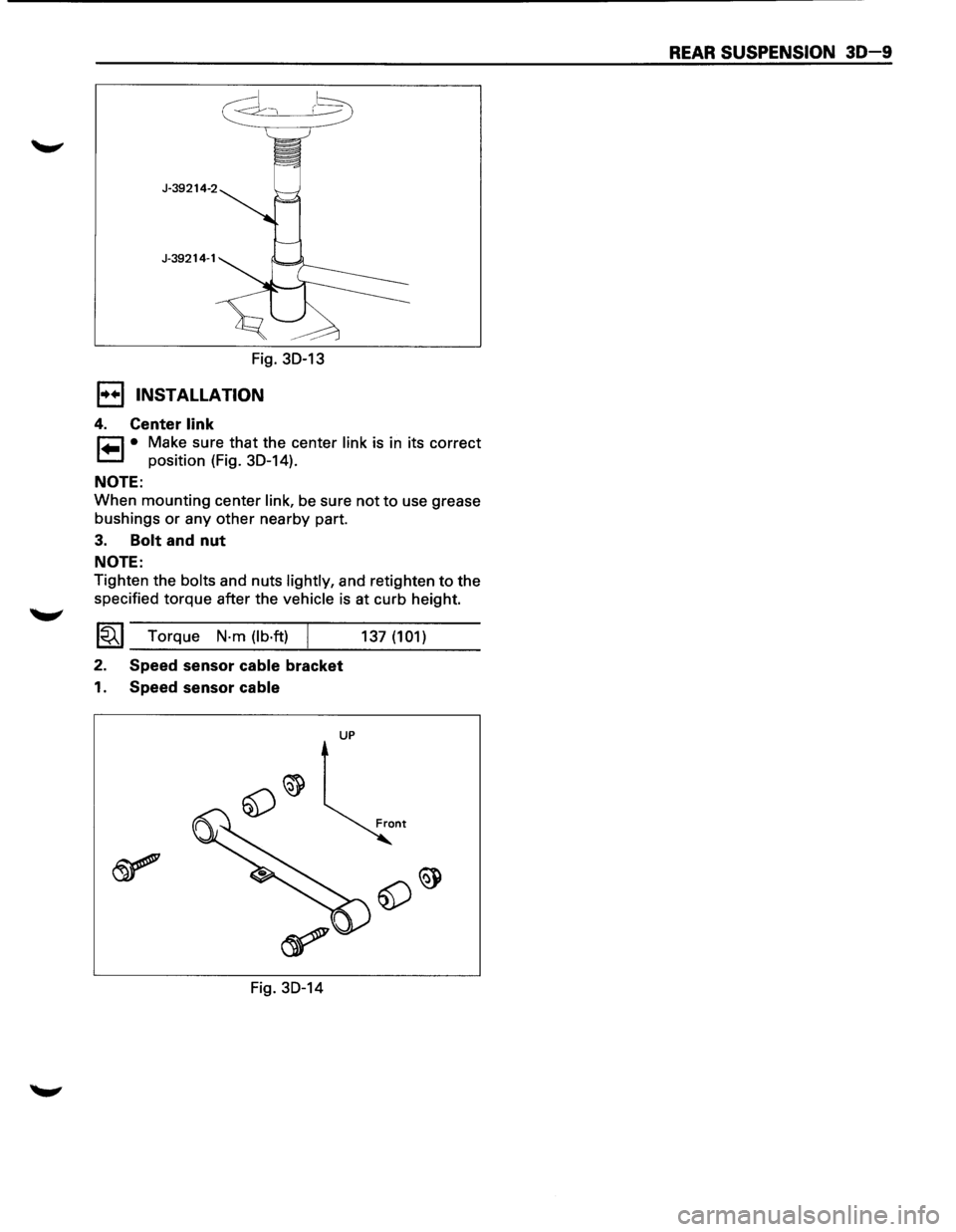

Fig. 30-13
I•+ I INSTALLATION
4. Center link
r=l • Make sure that the center link is in its correct
1.=.1 position (Fig. 30-14).
NOTE:
When mounting center link, be sure not to use grease
bushings
or any other nearby part.
3. Bolt and nut
NOTE:
Tighten the bolts and nuts lightly, and retighten to the
specified torque after the
vehicle is at curb height.
~~~ Torque N·m (lb·ft) /
2. Speed sensor cable bracket
1. Speed sensor cable
UP
Fig. 30-14 137
(101)
REAR SUSPENSION 30-9

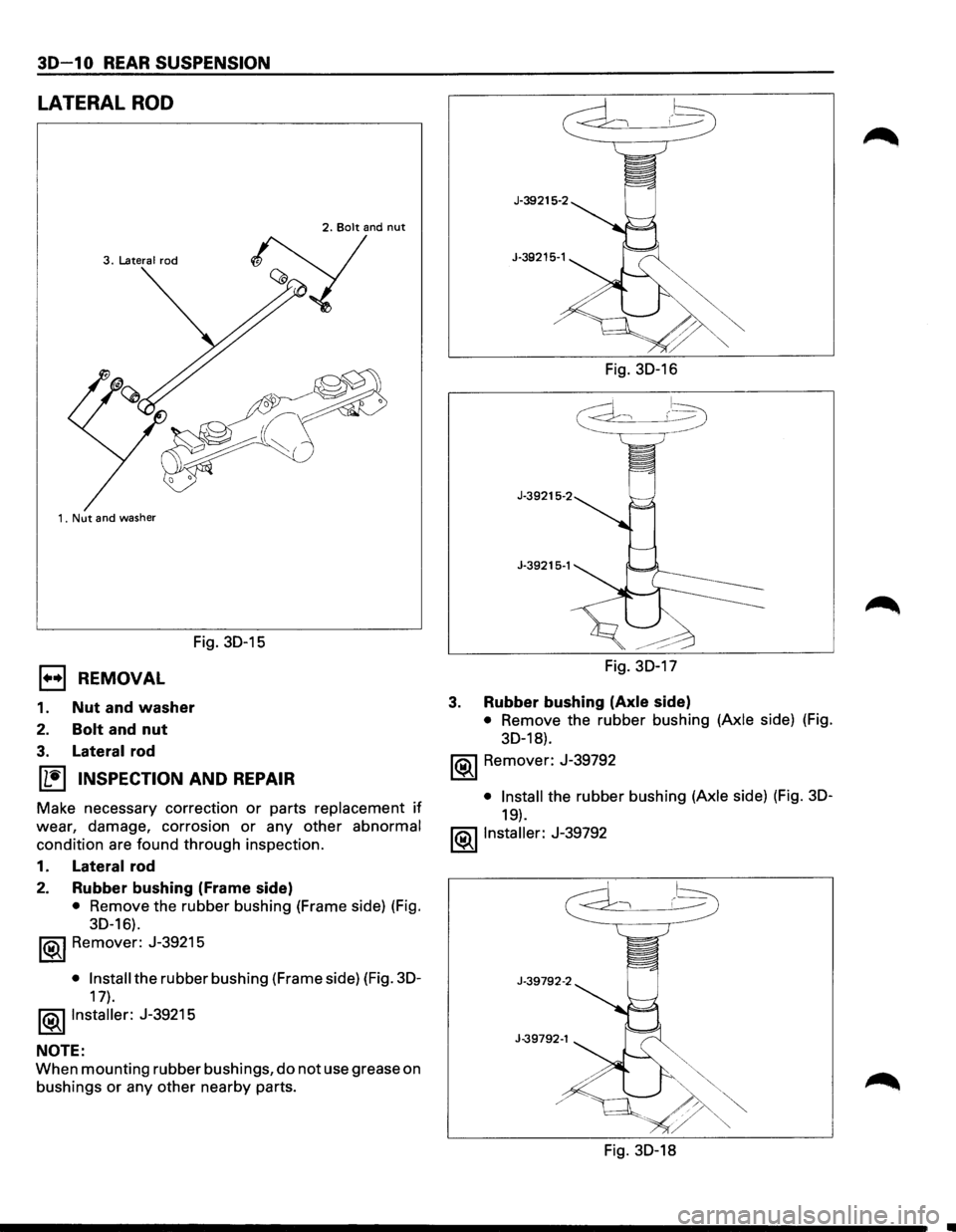

30-10 REAR SUSPENSION
LATERAL ROD
3. Latera I rod
1. Nut
and washer
Fig. 30-15
EJ REMOVAL
1. Nut and washer
2. Bolt and nut
3. Lateral rod
~ INSPECTION AND REPAIR
Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
1.
Lateral rod
2. Rubber bushing (Frame side)
• Remove the rubber bushing (Frame side) (Fig.
30-16).
1®..1 Remover: J-39215
• Install the rubber bushing (Frame side) (Fig. 30-
17).
l®..llnstaller: J-39215
NOTE:
When mounting rubber bushings, do not use grease on
bushings
or any other nearby parts. Fig.
30-16
J-39215-2
J-39215·1
Fig. 30-17
3. Rubber bushing (Axle side)
• Remove the rubber bushing (Axle side) (Fig.
30-18).
1®..1 Remover: J-39792
• Install the rubber bushing (Axle side) (Fig. 30-
19).
l®..llnstaller: J-39792

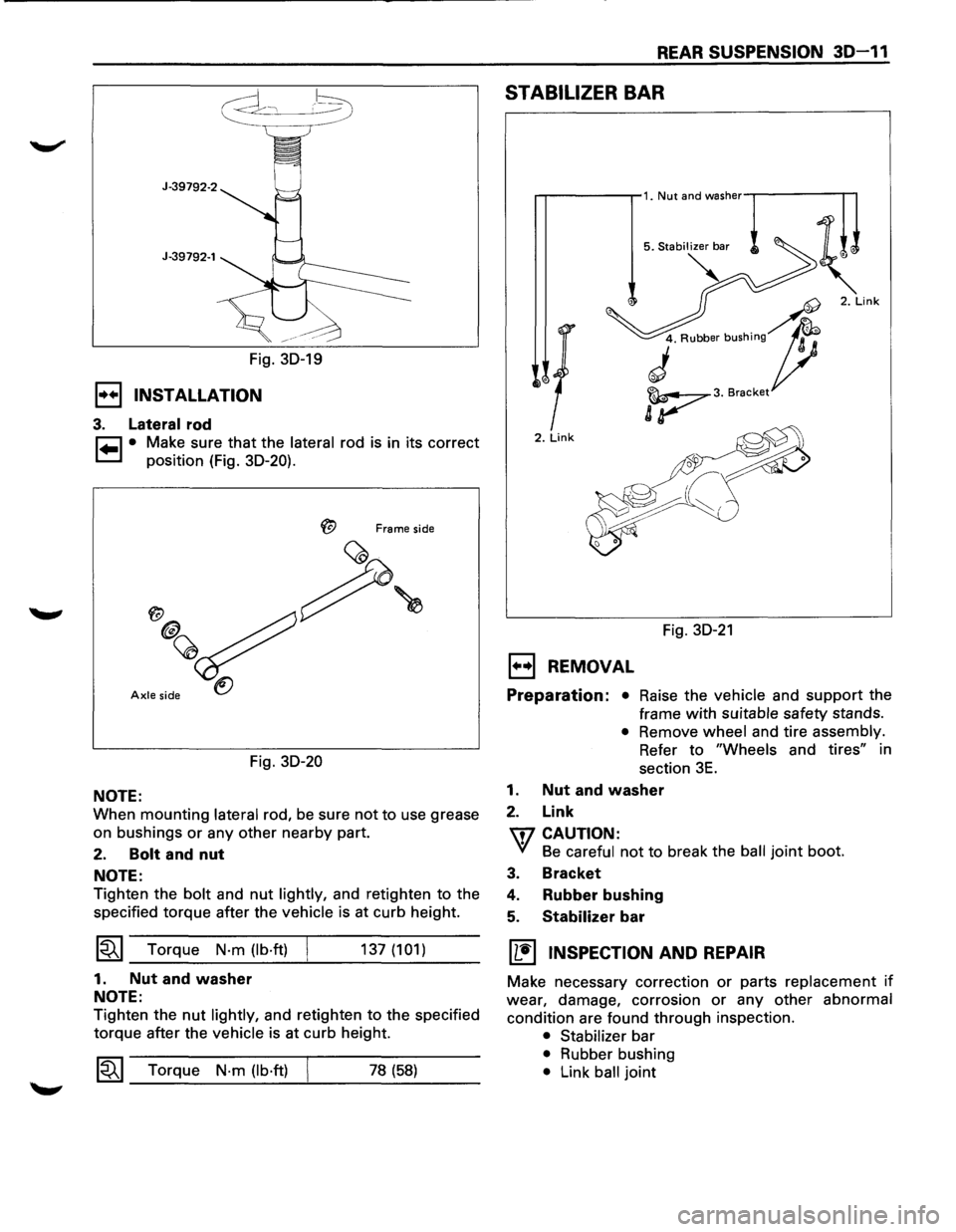

Fig. 30-18

J-39792-1
Fig. 30-19
1•+1 INSTALLATION
3. Lateral rod
~ • Make sure that the lateral rod is in its correct
~ position (Fig. 30-20).
Frame side
Axle side
Fig. 30-20
NOTE:
When mounting lateral rod, be sure not to use grease
on bushings
or any other nearby part.
2. Bolt and nut
NOTE:
Tighten the bolt and nut lightly, and retighten to the
specified torque after the
vehicle is at curb height.
~~~ Torque N·m (lb·ft)
1. Nut and washer
NOTE:
137 (101)
Tighten the nut lightly, and retighten to the specified
torque after the
vehicle is at curb height.
1~1 Torque N·m (lb·ft) 78 (58)
REAR SUSPENSION 30-11
STABILIZER BAR
2. Link
Fig. 30-21
EJ REMOVAL
Preparation: • Raise the vehicle and support the
frame
with suitable safety stands.
• Remove wheel and tire assembly.
Refer
to "Wheels and tires" in
section
3E.
1. Nut and washer
2. Link
\fl CAUTION:
VI Be careful not to break the ball joint boot.
3. Bracket
4. Rubber bushing
5. Stabilizer bar
[!] INSPECTION AND REPAIR
Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
• Stabilizer bar
• Rubber bushing
• Link ball joint

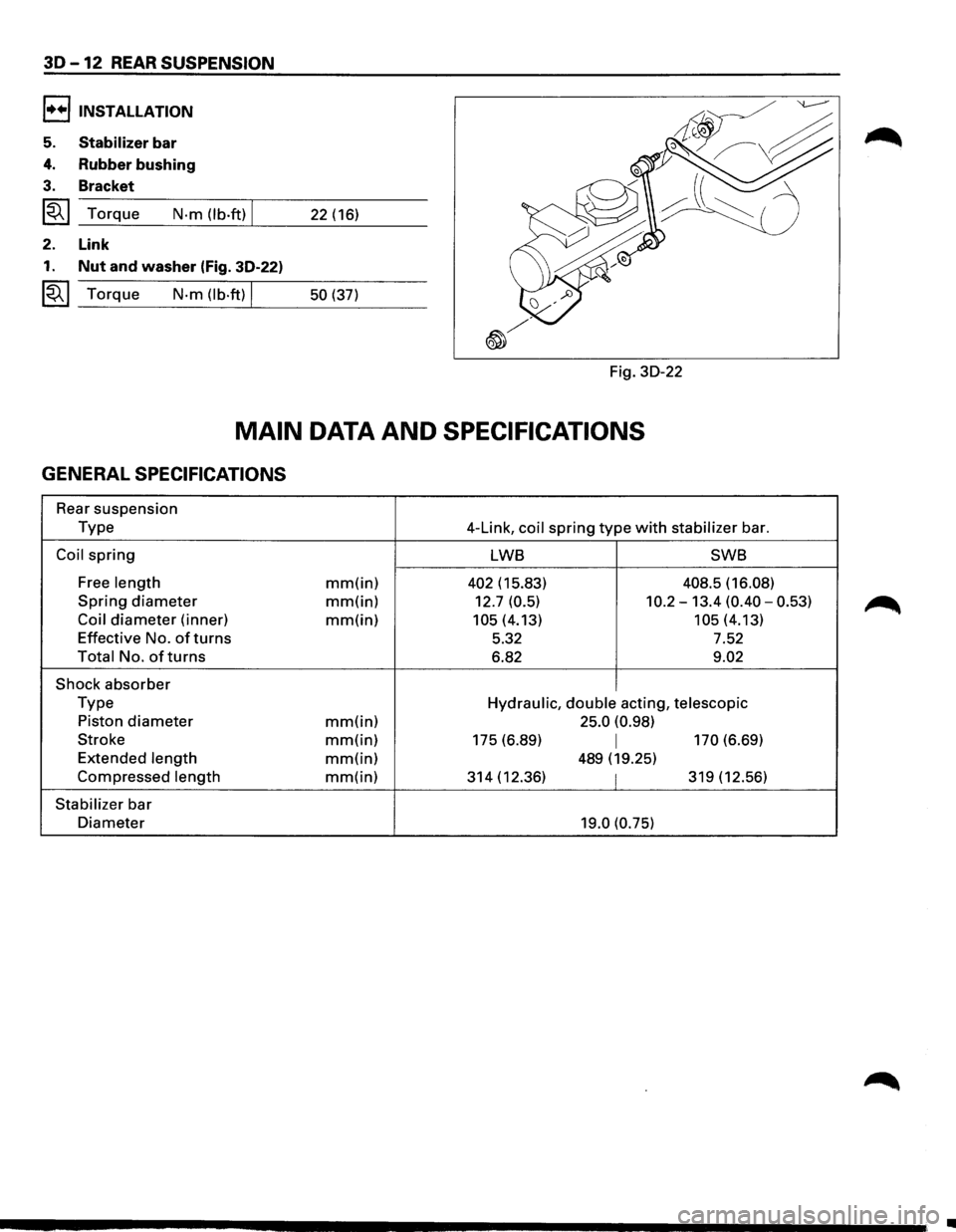

3D -12 REAR SUSPENSION
l+•liNSTALLATION
5. Stabilizer bar
4. Rubber bushing
3. Bracket
~~~ Torque N·m (lb.ft) I 22 (16)
2. Link
1. Nut and washer (Fig. 30-22)
~~~ Torque N-m (lb·ft) I 50 (37)
Fig.
30-22
MAIN DATA AND SPECIFICATIONS
GENERAL SPECIFICATIONS
Rear suspension
Type 4-Link, coil spring type with stabilizer bar.
Coil spring LWB SWB
Free
length mm(in) 402 (15.83) 408.5 (16.08)
Spring diameter mm(in) 12.7 (0.5) 10.2-13.4 (0.40-0.53)
Coil diameter (inner) mm(in) 105 (4.13) 105(4.13)
Effective No.
of turns 5.32 7.52
Total No. of turns 6.82 9.02
Shock absorber
Type Hydraulic, double acting, telescopic
Piston diameter mm(in) 25.0
(0.98)
Stroke
mm(in) 175 (6.89) I 170 (6.69)
Extended
length mm(in) 489 (19.25)
Compressed length mm(in) 314 (12.36) I 319 (12.56)
Stabilizer bar
Diameter 19.0 (0.75)
•
