1995 ISUZU TROOPER Workshop Manual

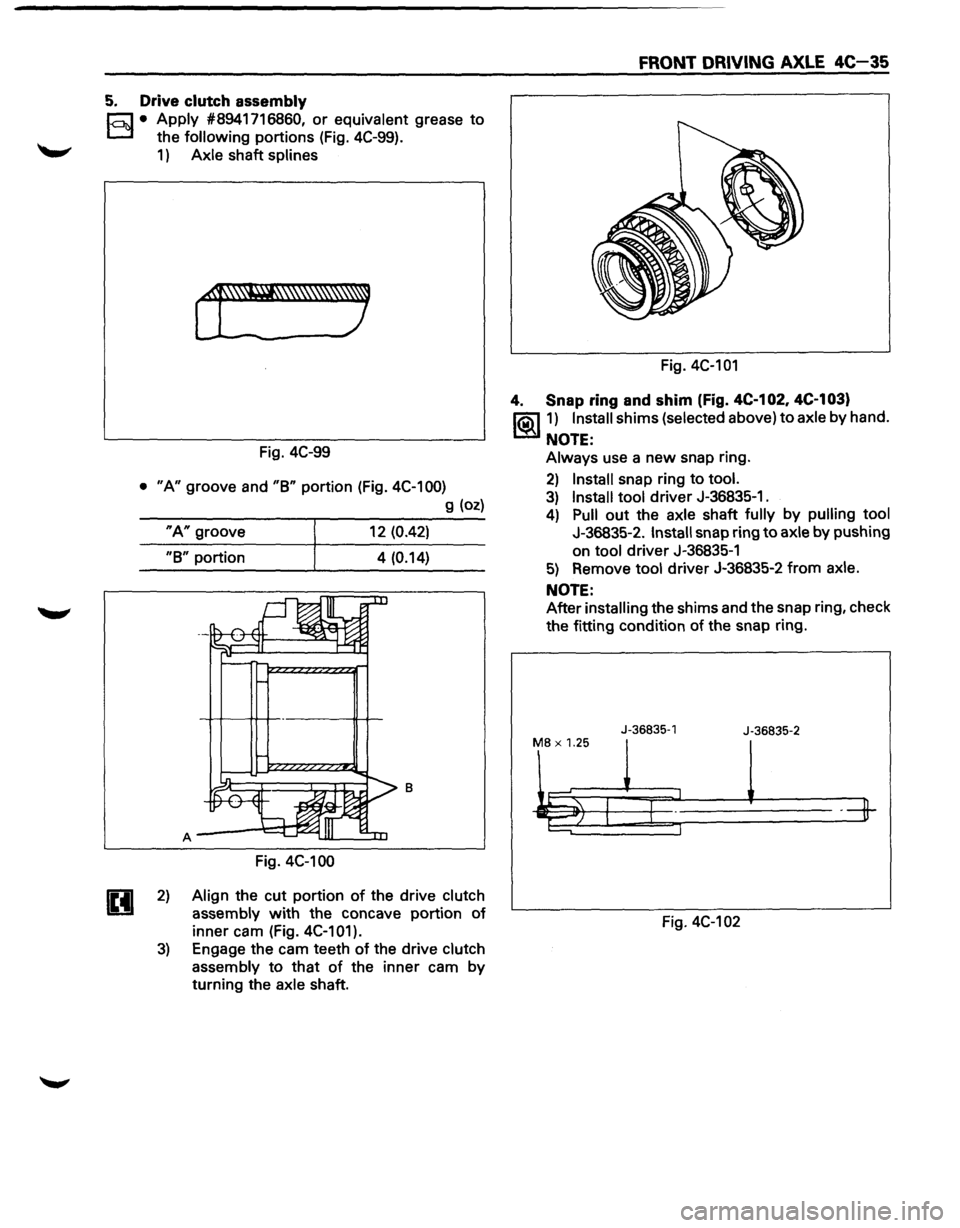

5. Drive clutch assembly
E3 • Apply #8941716860, or equivalent grease to
the following portions (Fig. 4C-99).
1) Axle shaft splines
Fig. 4C-99
• "A" groove and "B" portion (Fig. 4C-100)
g (oz)
"A" groove 12 (0.42)
"B" portion 4 (0.14)
8
Fig. 4C-100
2) Align the cut portion of the drive clutch
assembly with the concave portion of
inner cam (Fig. 4C-101).
3) Engage the cam teeth of the drive clutch
assembly to that of the inner cam by
turning the
axle shaft.
FRONT DRIVING AXLE 4C-35
Fig. 4C-101
4. Snap ring and shim (Fig. 4C-1 02, 4C·1 03)
1®..11) Install shims (selected above) to axle by hand.
NOTE:
Always use a new snap ring.
2) Install snap ring to tool.
3) Install tool driver J-36835-1.
4) Pull out the axle shaft fully by pulling tool
J-36835-2. Install snap ring to axle by pushing
on
tool driver J-36835-1
5) Remove tool driver J-36835-2 from axle.
NOTE:
After installing the shims and the snap ring, check
the fitting condition of the snap ring.
J-36835-1
J-36835-2
MB X 1.25
Fig. 4C-102

4C-36 FRONT DRIVING AXLE

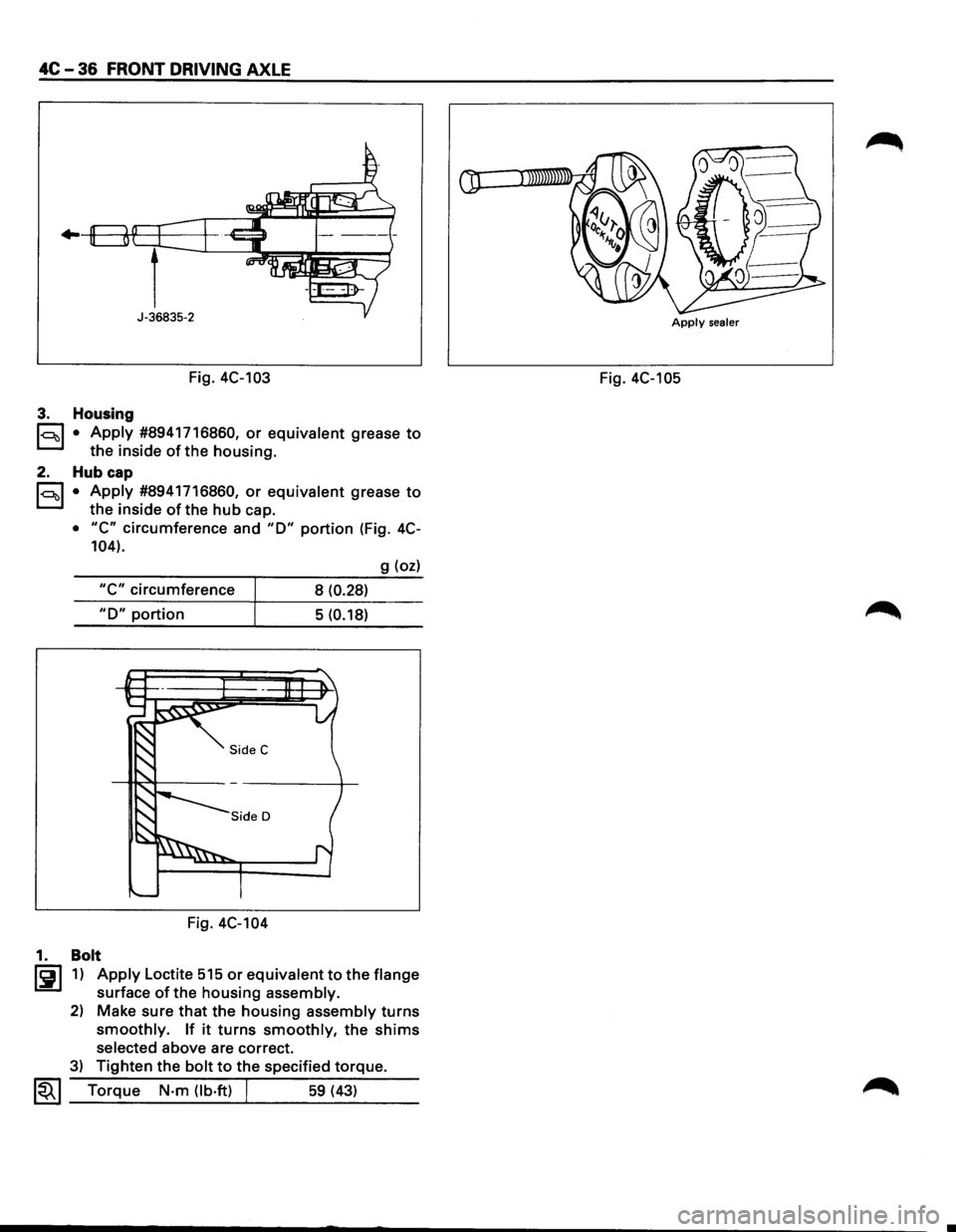

Fig. 4C-103
3. Housing
l<:::~t>l • Apply #8941716860, or equivalent grease to
the inside of the housing.
2. Hub cap
l<:::~t>l • Apply #8941716860, or equivalent grease to
the inside of the hub cap.
• "C" circumference and "D" portion (Fig. 4C-
104).
g (oz)
"C" circumference
8 (0.28)
"D" portion 5 (0.18)
Fig. 4C-104
1. Bolt
l!i!l 1) Apply Loctite 515 or equivalent to the flange
surface of the housing assembly.
2) Make sure that the housing assembly turns
smoothly. If it turns smoothly, the shims
selected above are correct.
3) Tighten the bolt to the specified torque.
~~~ Torque N·m (lb.ft) J 59 (43)
Apply sealer
Fig. 4C-105

FRONT DRIVING AXLE 4C-37

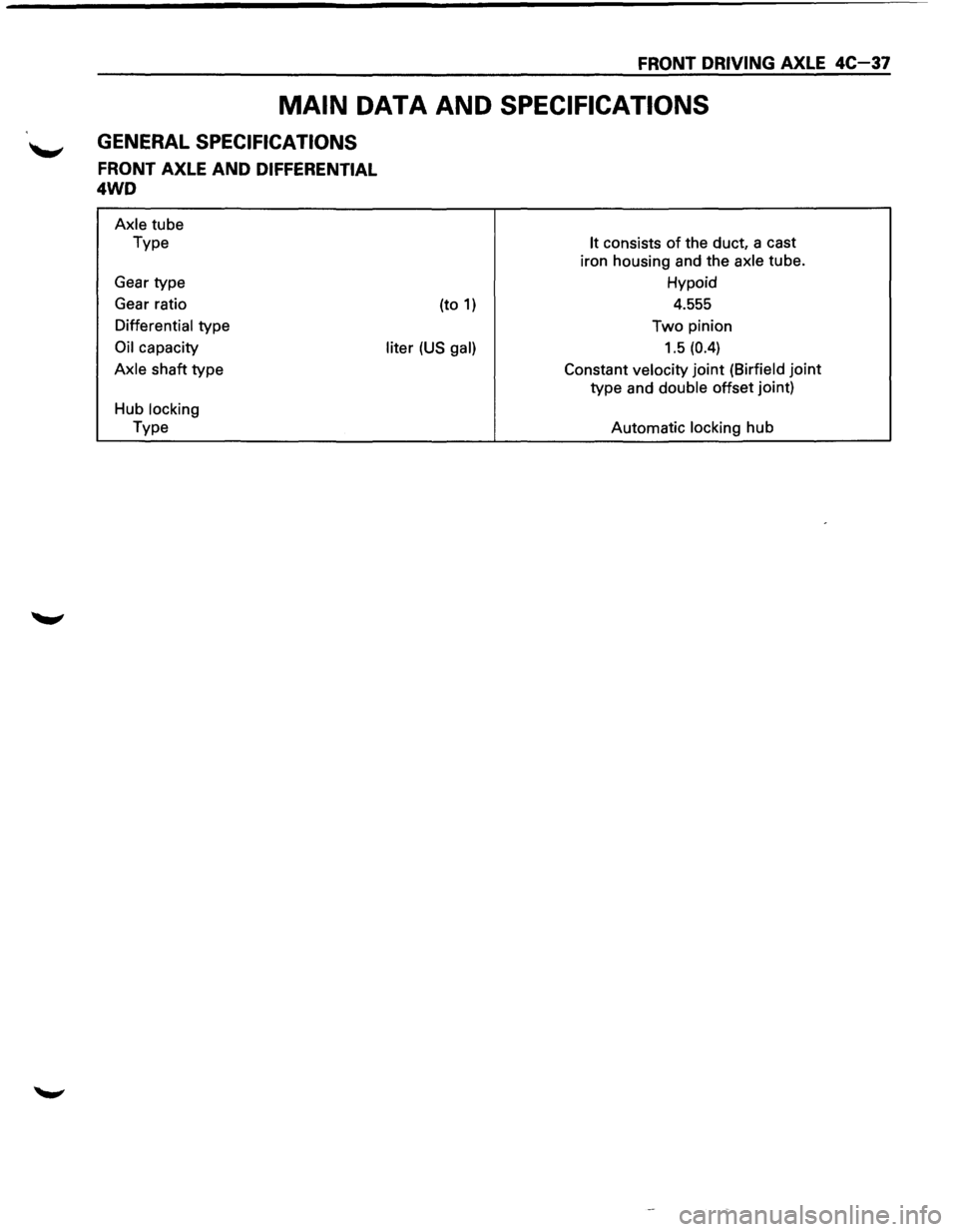

MAIN DATA AND SPECIFICATIONS
GENERAL SPECIFICATIONS
FRONT AXLE AND DIFFERENTIAL
4WD
Axle tube
Type
Gear type
Gear ratio
Differential type
Oil capacity
Axle shaft type
Hub locking
Type (to
1)
liter (US gal)
It consists of the
duct, a cast
iron housing and the axle tube.
Hypoid
4.555
Two pinion
1.5 (0.4)
Constant velocity joint (Birfield joint
type and double offset joint)
Automatic locking
hub

4C-38 FRONT DRIVING AXLE

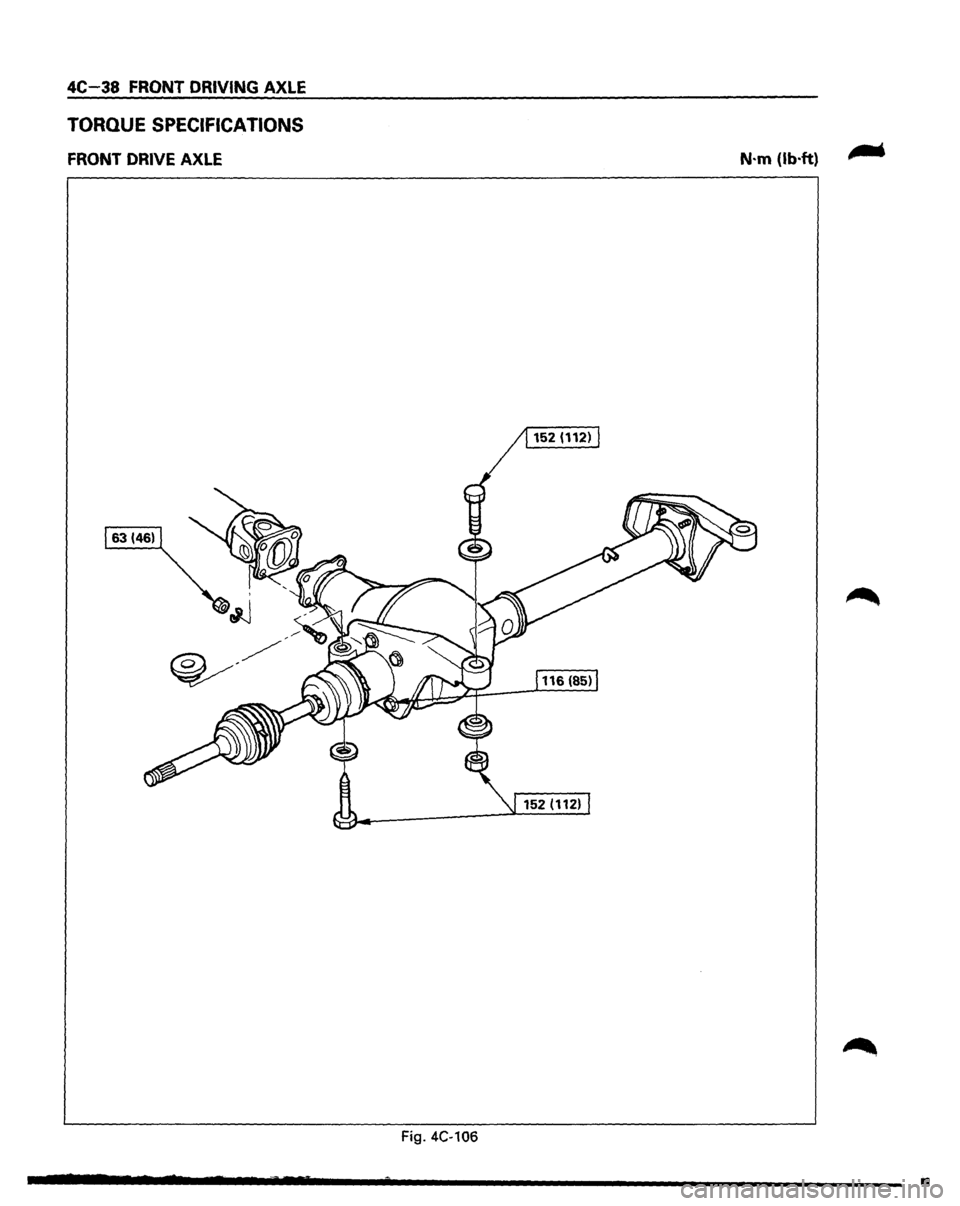

TORQUE SPECIFICATIONS
FRONT DRIVE AXLE
Fig. 4C-106
N·m (lb·ft)
•

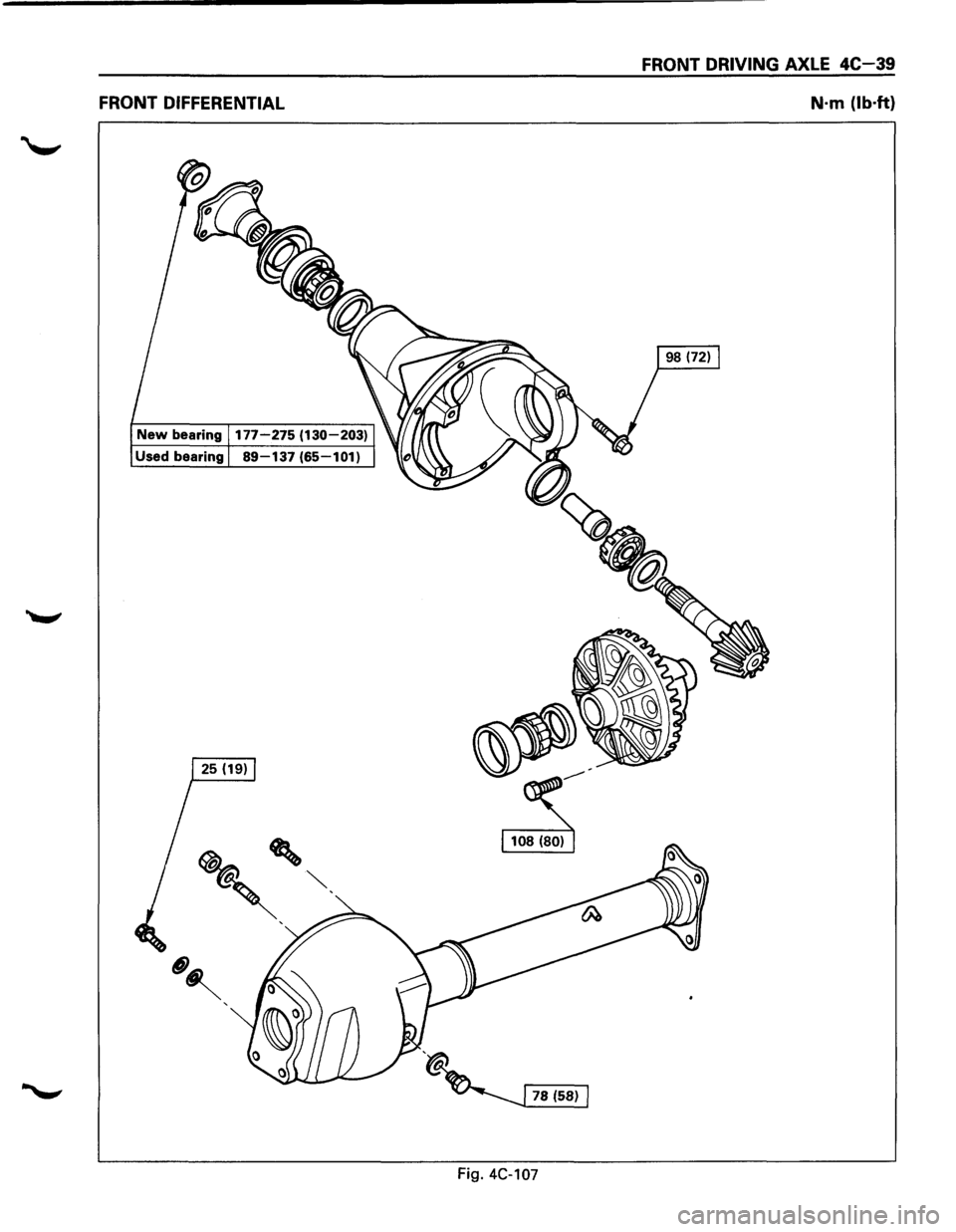

FRONT DIFFERENTIAL
New bearing 177-275 (130-203)
Used bearing 89-137 (65-101)
FRONT DRIVING AXLE 4C-39
N·m (lb·ft}
Fig. 4C-107

4C-40 FR _ __;,.=... • ONT DRIVING -=~~~~~A~X~L~E __ __

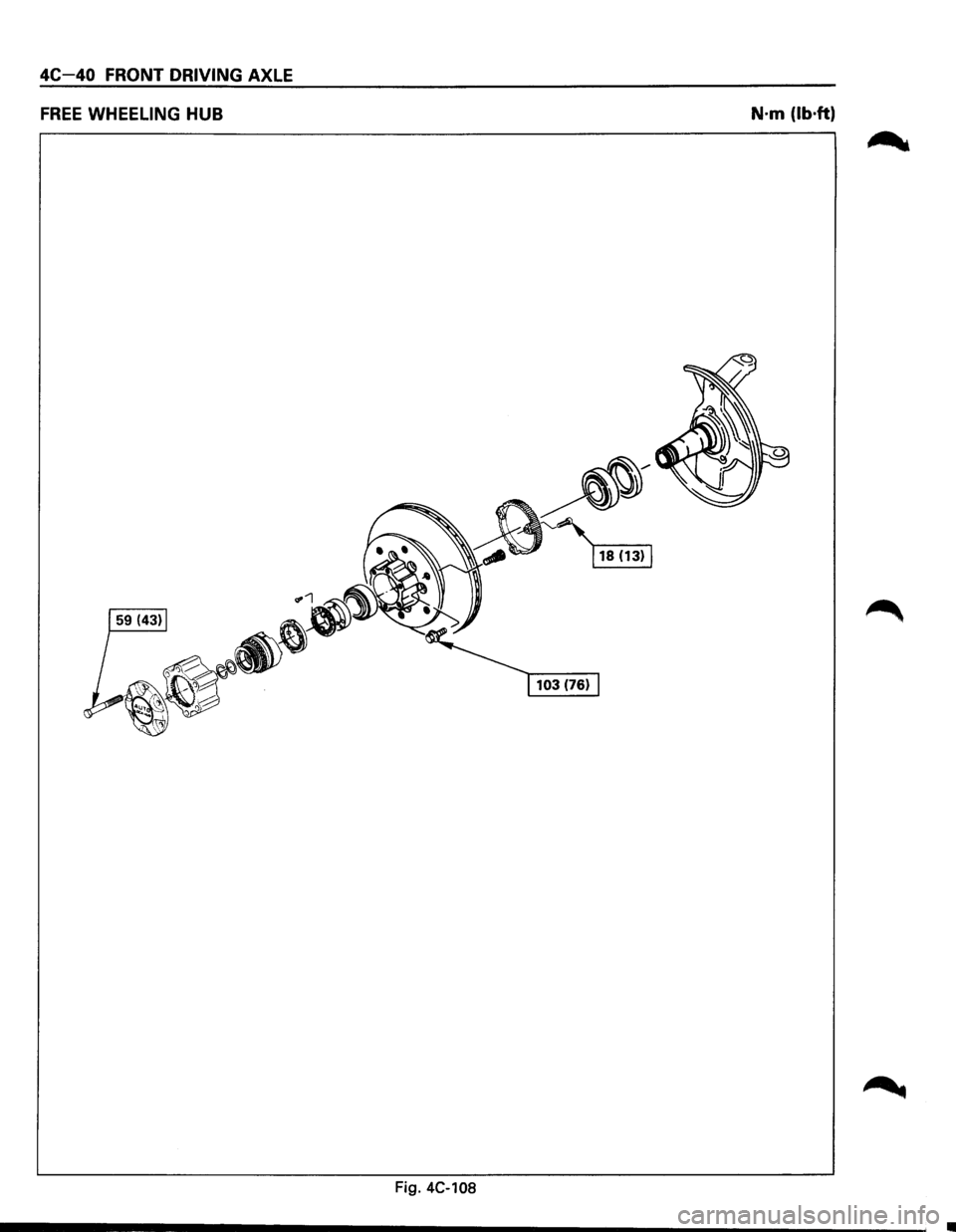

FREE WHEELING HUB ------------------N·m (lb·ft)
Fig. 4C-108

FRONT DRIVING AXLE 4C-41

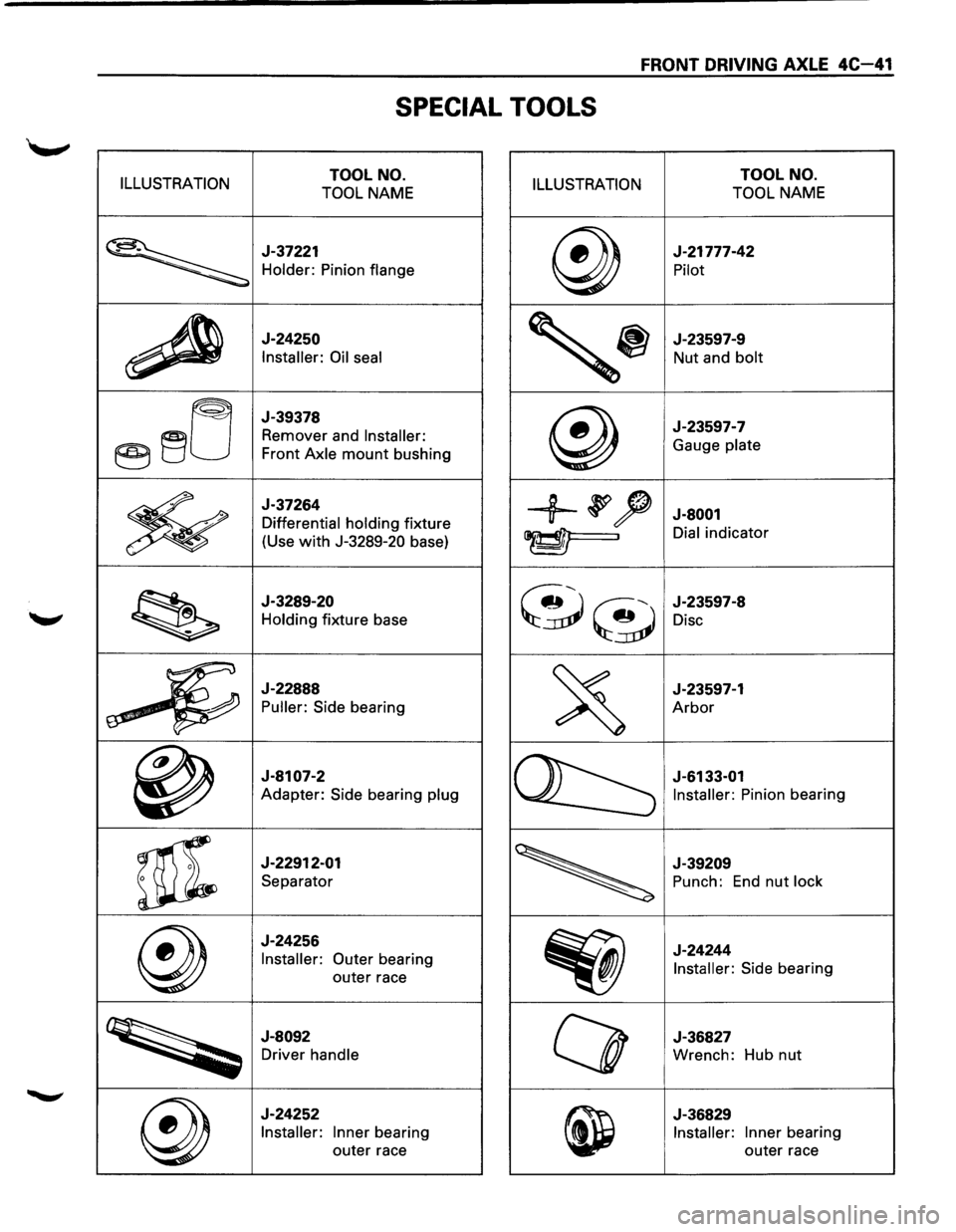

SPECIAL TOOLS
ILLUSTRATION TOOL NO.
TOOL NAME ILLUSTRATION TOOL NO.
TOOL NAME
~
J-37221
Holder: Pinion flange @)
J-21777-42
Pilot
~
J-24250
Installer: Oil seal
'~
J-23597-9
Nut and bolt
@~lj
J-39378
Remover and Installer:
Front Axle mount bushing @
J-23597-7
Gauge plate
*
J-37264
Differential holding fixture
(Use
with J-3289-20 base)
+~? J-8001
~. Dial indicator
~
J-3289-20
Holding fixture base ~~
J-23597-8
Disc
"'"~
t>'"""_j~
J-22888
Puller: Side bearing
~
J-23597-1
Arbor
~
J-8107-2
Adapter: Side bearing plug
~
J-6133-01
Installer: Pinion bearing
~
J-22912-01
Separator
~
J-39209
Punch: End nut lock
@
J-24256
Installer:
Outer bearing
outer race
Eiij)
J-24244
Installer: Side bearing
~
J-8092
Driver handle Q
J-36827
Wrench: Hub nut
@)
J-24252
Installer: Inner bearing
outer race
~
J-36829
Installer: Inner bearing
outer race

4C-42 FRONT DRIVING AXLE

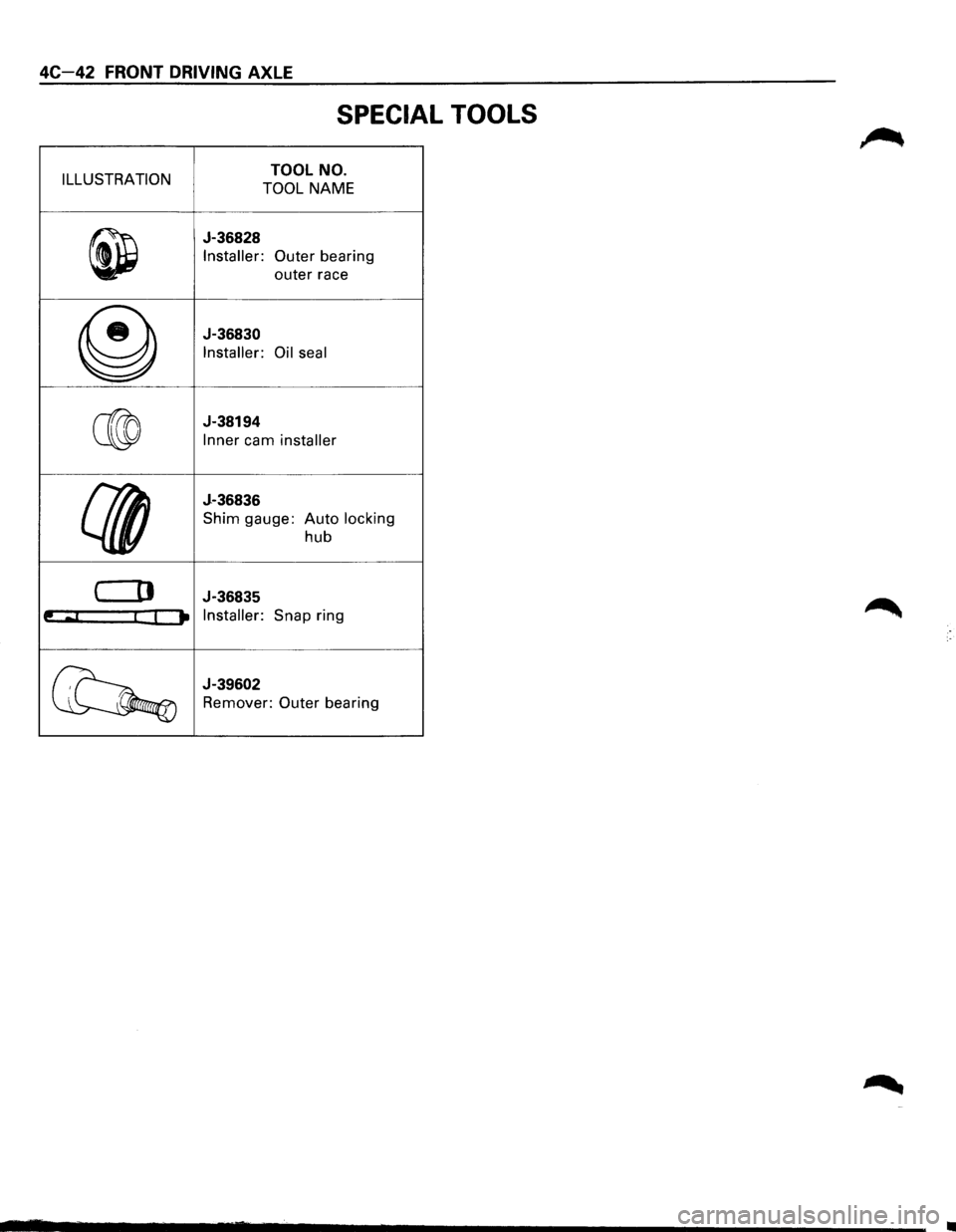

SPECIAL TOOLS
ILLUSTRATION TOOL NO.
TOOL NAME
~
J-36828
Installer:
Outer bearing
outer race
@
J-36830
Installer:
Oil seal
C®
J-38194
Inner cam installer
{{(I
J-36836
Shim gauge: Auto locking
hub
( [I J-36835
t! aJ I I It Installer: Snap ring
~
J-39602
Remover:
Outer bearing
