1995 ISUZU TROOPER Workshop Manual

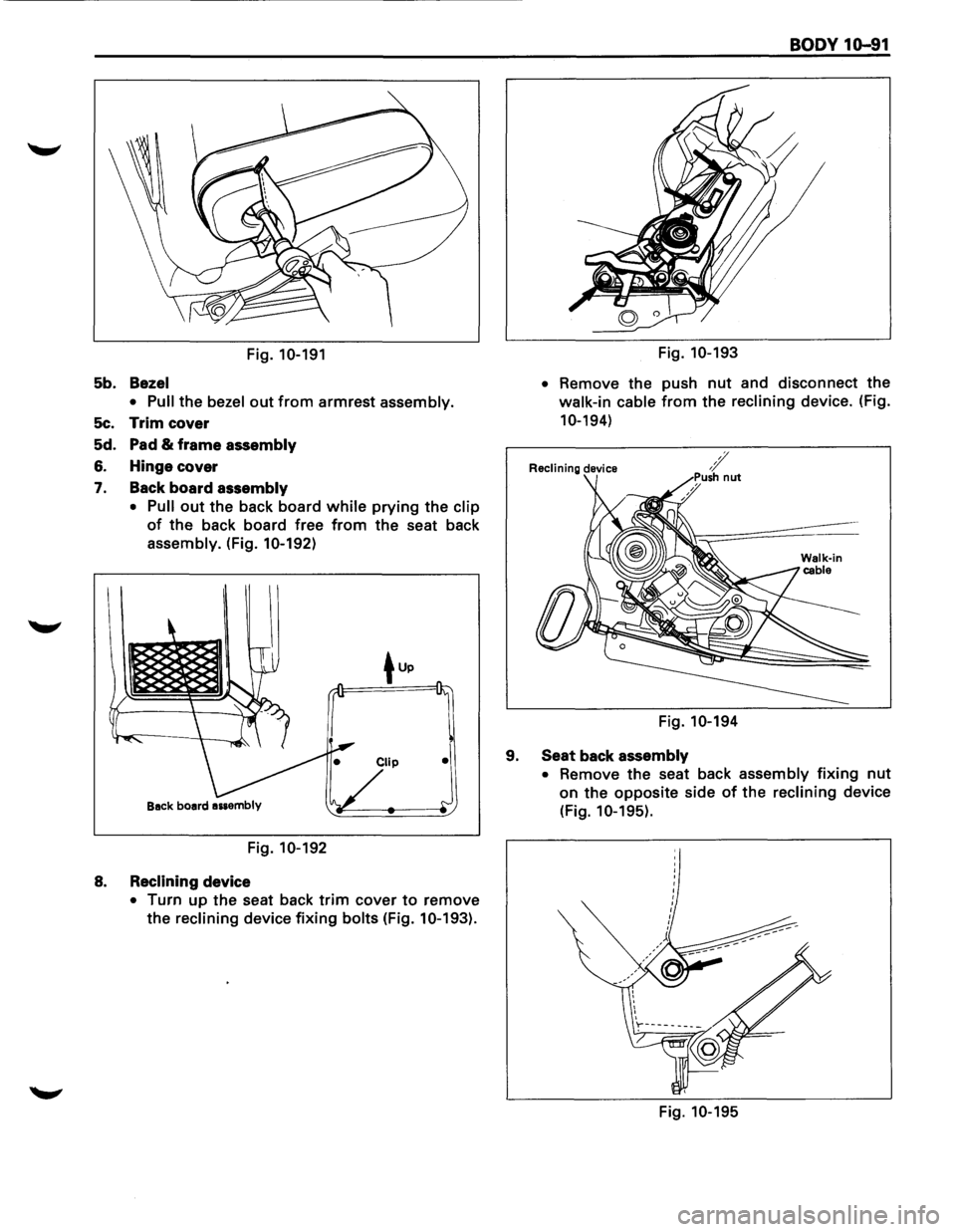

Fig. 10-191
5b. Bezel
• Pull
the bezel out from armrest assembly.
5c. Trim cover
5d. Pad
& frame assembly
6. Hinge cover
7. Back board assembly
• Pull
out the back board while prying the clip
of the back board free from the seat back
assembly. (Fig. 10-192)
•
Fig. 10-192
8. Reclining device
• Turn up the seat back trim cover to remove
the
reclining device fixing bolts (Fig. 10-193).
BODY 10-91
Fig. 10-193
•
Remove the push nut and disconnect the
walk-in cable from the reclining device. (Fig.
10-194)
Reclining device
Fig. 10-194
9. Seat back assembly
•
Remove the seat back assembly fixing nut
on the opposite side of the reclining device
(Fig.
10-195).
Fig. 10-195

10-92 BODY

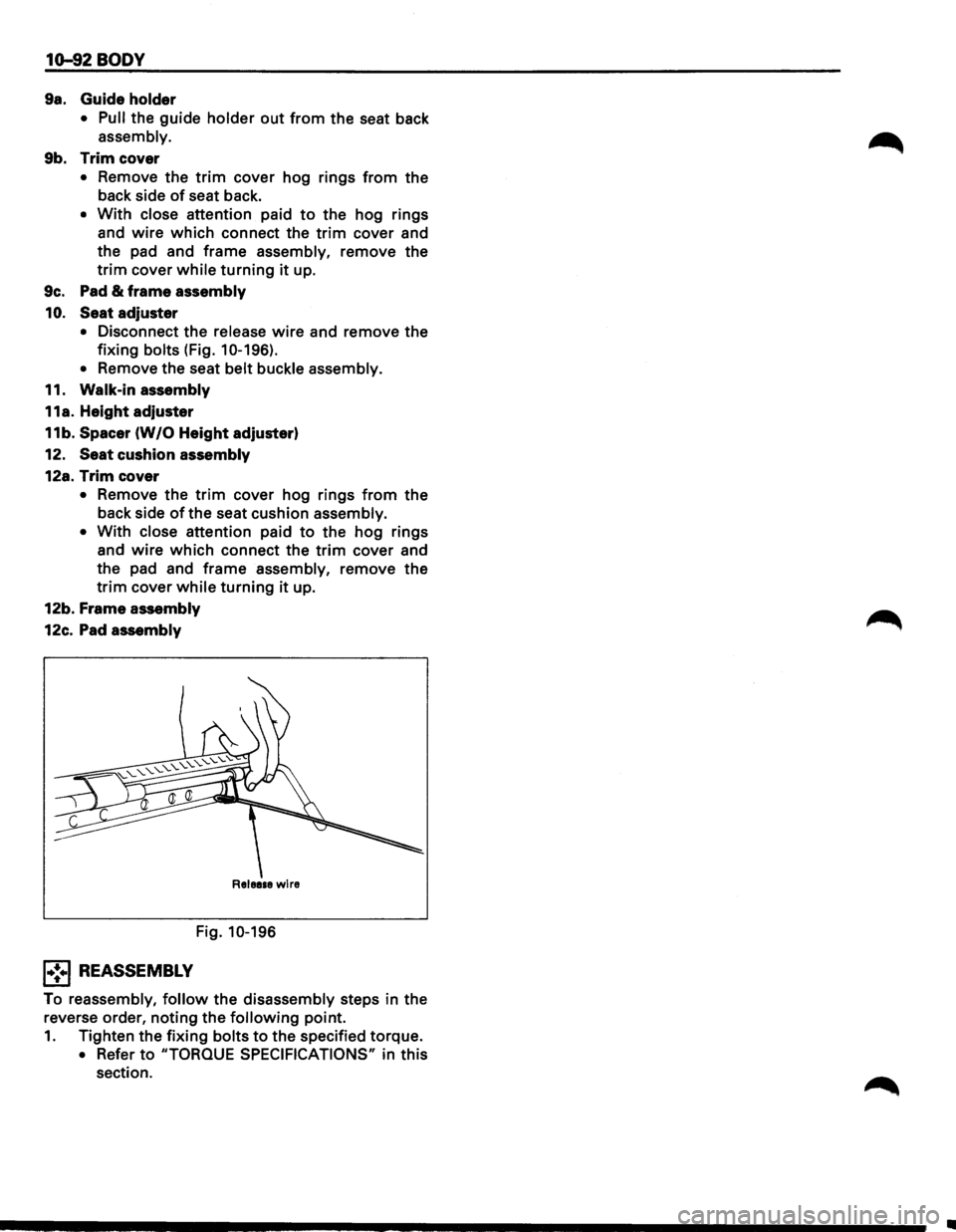

9a. Guide holder
• Pull the guide holder out from the seat back
assembly.
9b. Trim cover
• Remove the trim cover hog rings from the
back side
of seat back.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad and
frame assembly, remove the
trim cover while turning it up.
9c. Pad
& frame assembly
10.
Seat adjuster
• Disconnect the release wire and remove the
fixing bolts (Fig. 10-196).
•
Remove the seat belt buckle assembly.
11. Walk-in assembly
11a. Height adjuster
11 b. Spacer (W /0 Height adjuster)
12. Seat cushion
assembly
12a. Trim cover
• Remove the trim cover hog rings from the
back side
of the seat cushion assembly.
•
With close attention paid to the hog rings
and
wire which connect the trim cover and
the pad and
frame assembly, remove the
trim cover while turning it up.
12b. Frame
assembly
12c. Pad assembly
Release wire
Fig. 10-196
1•!+1 REASSEMBLY
To reassembly, follow the disassembly steps in the
reverse order,
noting the following point.
1. Tighten the fixing bolts to the specified torque.
• Refer to "TORQUE SPECIFICATIONS" in this
section.
•

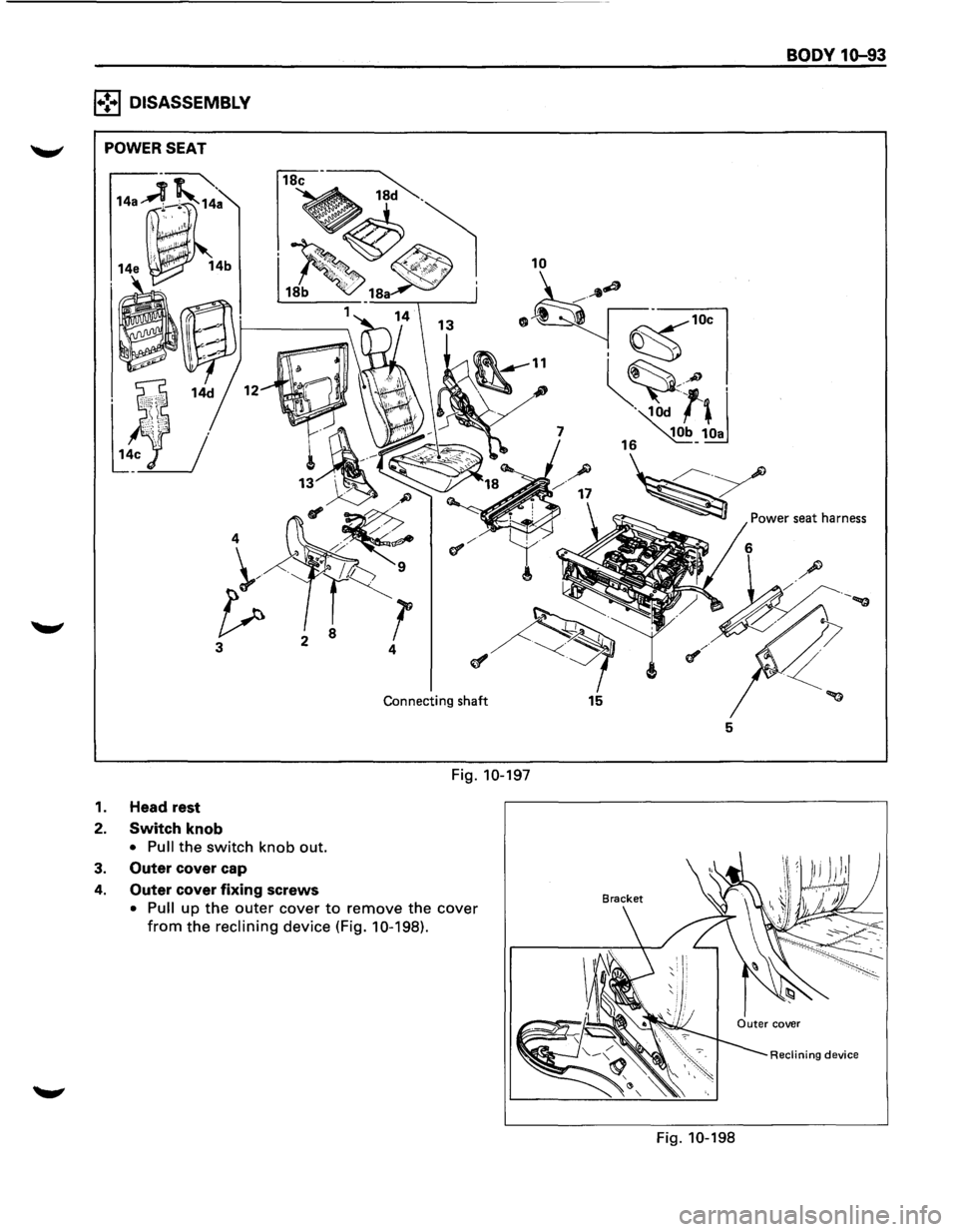

B3 DISASSEMBLY~-------
1.
2.
3.
4.
3
Connecting shaft
Fig. 10-197
Head rest
Switch knob
"t h knob out. • Pull the SWI c
over cap
Outet' c . lng screws ove the cover
Outer
cov~~=:uter cov~r ~~;;:m10·198). • Pull up lining dev1ce from the rec
---
BODY 10-93
5
Fig. 10-198

1Q-94 BODY

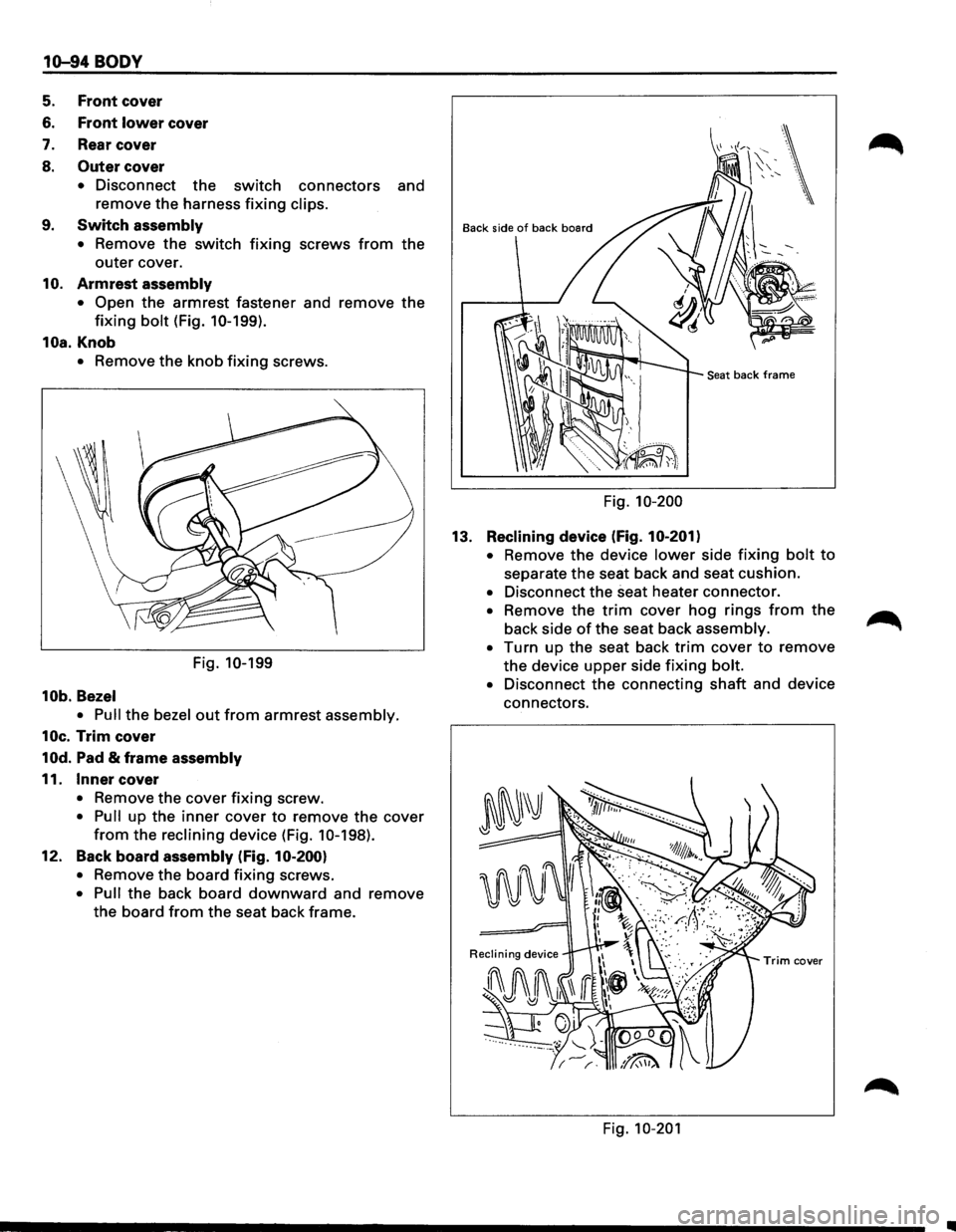

5. Front cover
6. Front lower cover
7. Rear cover
8. Outer cover
• Disconnect the switch connectors and
remove the harness
fixing clips.
9. Switch assembly
•
Remove the switch fixing screws from the
outer cover.
10. Armrest assembly
• Open the armrest fastener and remove the
fixing bolt (Fig. 10-199).
10a.Knob
• Remove the knob fixing screws.
Fig.
10-199
10b. Bezel
• Pull
the bezel out from armrest assembly.
10c. Trim cover
10d. Pad & frame assembly
11. Inner cover
• Remove the cover fixing screw.
• Pull up the inner cover to remove the cover
from the reclining device (Fig. 10-198).
12. Back
board assembly (Fig. 10-200)
•
Remove the board fixing screws.
• Pull the back board downward and remove
the board from the seat back frame.
Back side of back board
Seat back frame
Fig. 10-200
13.
Reclining device (Fig. 10-201)
•
Remove the device lower side fixing bolt to
separate the seat back and seat cushion.
• Disconnect the seat heater connector.
• Remove the trim cover hog rings from the
back side of the seat back assembly.
• Turn up the seat back trim cover to remove
the device upper side fixing bolt.
• Disconnect the connecting shaft and device
connectors.
Fig. 10-201

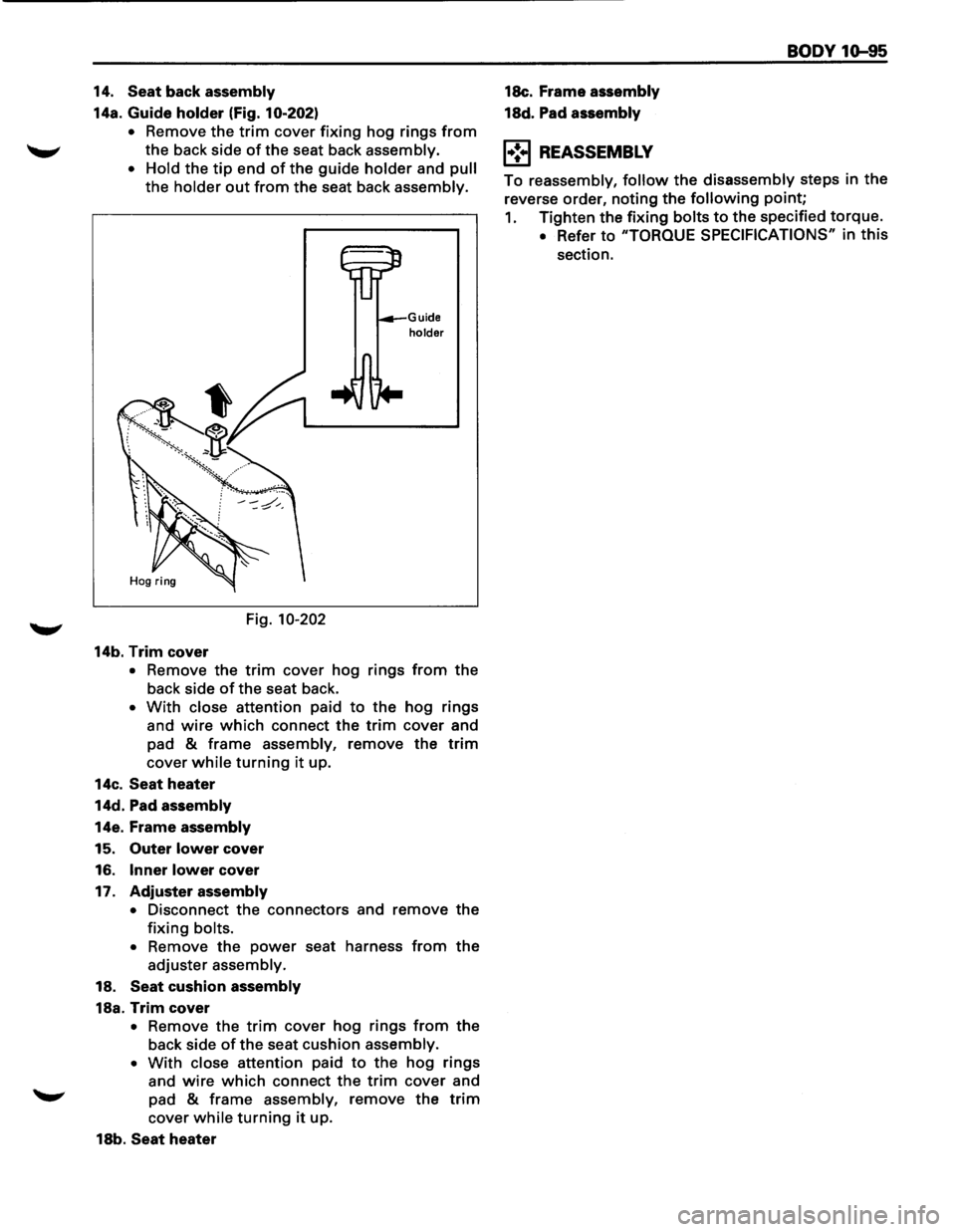

14. Seat back assembly
14a. Guide holder (Fig. 10-202)
•
Remove the trim cover fixing hog rings from
the back side of the seat back assembly.
•
Hold the tip end of the guide holder and pull
the holder out from the seat back assembly.
Fig.
10-202
14b. Trim cover
Guide holder
• Remove the trim cover hog rings from the
back side of the seat back.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
pad
& frame assembly, remove the trim
cover while turning it up.
14c.
Seat heater
14d. Pad assembly
14e. Frame assembly
15. Outer lower cover
16.
Inner lower cover
17.
Adjuster assembly
•
Disconnect the connectors and remove the
fixing bolts.
• Remove the power seat harness from the
adjuster assembly.
18.
Seat cushion assembly
18a. Trim cover
• Remove the trim cover hog rings from the
back side of the seat cushion assembly.
• With close attention paid to the hog rings
and
wire which connect the trim cover and
"-"" pad & frame assembly, remove the trim
cover while turning it up.
18b.
Seat heater 18c.
Frame
assembly
18d. Pad assembly
1•:.1 REASSEMBLY
BODY 1Q-95
To reassembly, follow the disassembly steps in the
reverse order, noting
the following point;
1. Tighten the fixing bolts to the specified torque.
• Refer to "TORQUE SPECIFICATIONS" in this
section.
