1995 ISUZU TROOPER Workshop Manual

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) STEERING WHEEL & COLUMN 3F4-15

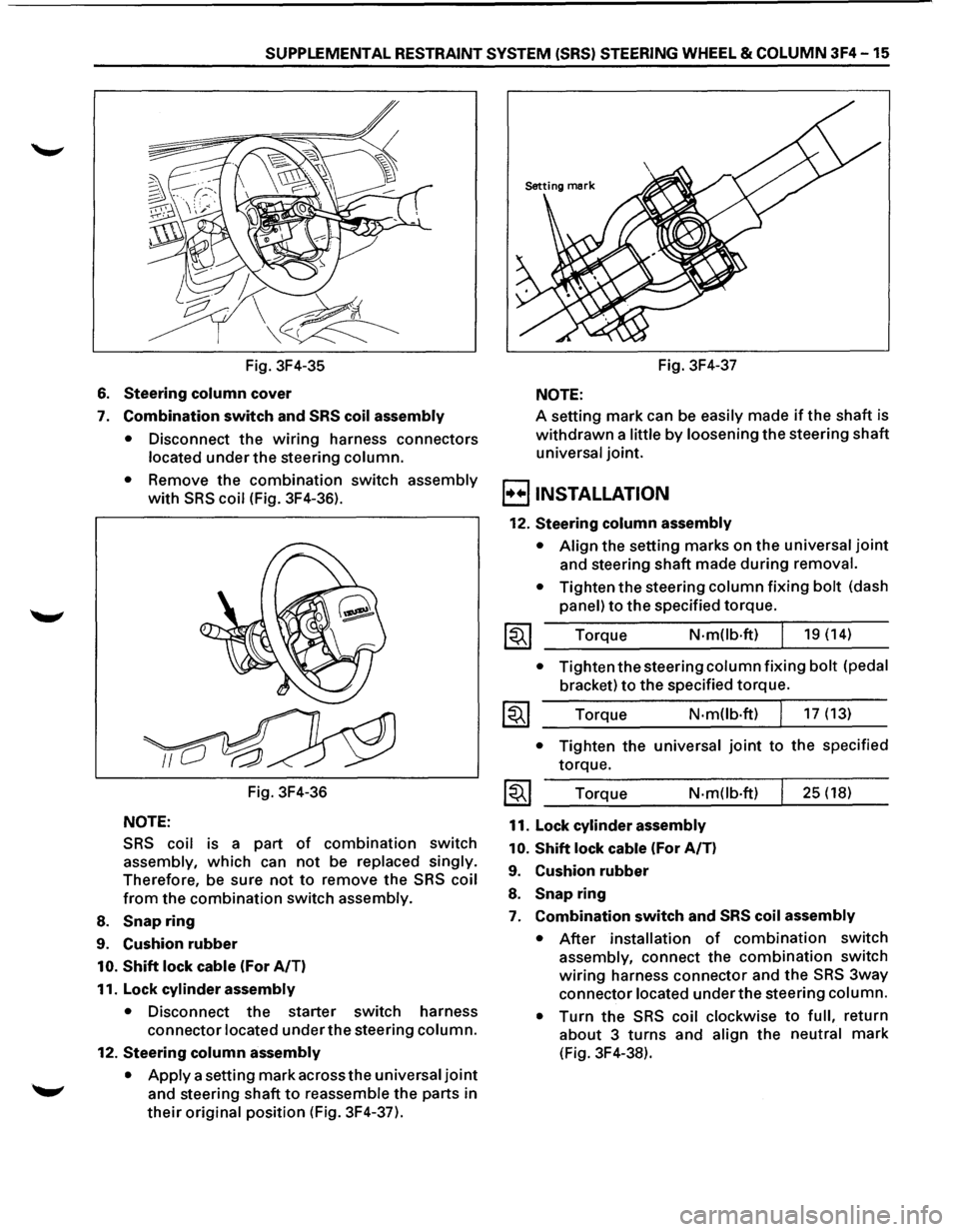

Fig. 3F4-35
6. Steering column cover
7. Combination switch and SRS coil assembly
•
Disconnect the wiring harness connectors
located under the steering column.
• Remove the combination switch assembly
with SRS coil (Fig. 3F4-36).
Fig. 3F4-36
NOTE:
SRS coil is a part of combination switch
assembly, which can not be replaced singly.
Therefore, be sure not to remove the SRS coil
from the combination switch assembly.
8. Snap ring
9. Cushion rubber
10. Shift lock cable (For A/T)
11. Lock
cylinder assembly
• Disconnect the starter switch harness
connector located under the steering column.
12. Steering column assembly
•
Apply a setting mark across the universal joint
and steering shaft to reassemble the parts in
their original position (Fig. 3F4-37). Fig.
3F4-37
NOTE:
A setting mark can be easily made if the shaft is
withdrawn a little by loosening the steering shaft
universal joint.
B INSTALLATION
12. Steering column assembly
• Align the setting marks on the universal joint
and steering shaft made during removal.
•
Tighten the steering column fixing bolt (dash
panel) to the specified torque.
Torque
N-mOb·ft) 19 (14)
• Tighten the steering column fixing bolt (pedal
bracket) to the specified torque.
Torque N·m(lb·ft) 17 (13)
• Tighten the universal joint to the specified
torque.
Torque
N-m(lb·ft)
11. Lock cylinder assembly
10.
Shift lock cable (For A/T)
9. Cushion rubber
8. Snap ring
25 (18)
7. Combination switch and SRS coil assembly
• After installation of combination switch
assembly, connect the combination switch
wiring harness connector and the SRS 3way
connector located under the steering column.
•
Turn the SRS coil clockwise to full, return
about 3 turns and align the neutral mark
(Fig. 3F4-38).

3F4-16 SUPPLEMENTAL RESTRAINT SYSTEM (SRS) STEERING WHEEL & COLUMN
Alignment mark

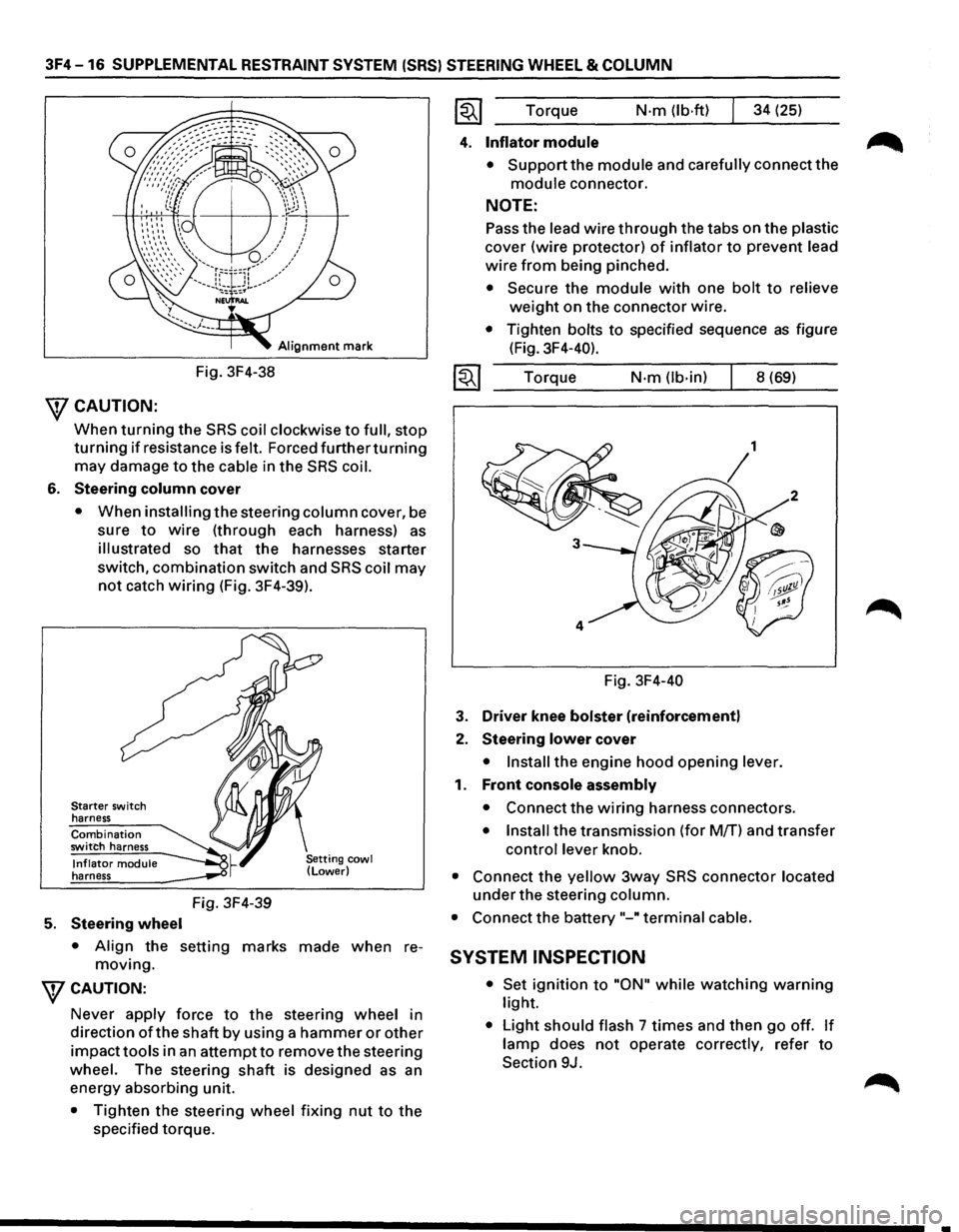

Fig. 3F4-38
\fCAUTION:
When turning the SRS coil clockwise to full, stop
turning if resistance is felt. Forced furtherturning
may damage to the cable in the SRS coil.
6. Steering column cover
• When installing the steering column cover, be
sure
to wire (through each harness) as
illustrated so that the harnesses starter
switch,
combination switch and SRS coil may
not catch wiring (Fig. 3F4-39).
Starter switch
harness
Combination switch harness
Inflator module harness
5. Steering wheel
Fig. 3F4-39
• Align the setting marks made when re­
moving.
WCAUTION:
Never apply force to the steering wheel in
direction
ofthe shaft by using a hammer or other
impacttools in an attempt to remove the steering
wheel. The steering
shaft is designed as an
energy absorbing unit.
• Tighten the steering wheel fixing nut to the
specified torque. Torque
N·m (lb·ftl 34
(25)
4. Inflator module
• Support the module and carefully connect the
module connector.
NOTE:
Pass the lead wire through the tabs on the plastic
cover (wire protector) of inflator to prevent lead
wire from being pinched.
• Secure the module with one bolt to relieve
weight on the connector wire.
• Tighten bolts to specified sequence as figure
(Fig. 3F4-40).
Torque
N·m (lb-in) 8 (69)
Fig. 3F4-40
3. Driver knee bolster (reinforcement)
2. Steering lower cover
• Install the engine hood opening lever.
1. Front console assembly
• Connect the wiring harness connectors.
• Install the transmission (for M/T) and transfer
control lever knob.
• Connect the yellow 3way SRS connector located
under the steering column.
• Connect the battery "-"terminal cable.
SYSTEM INSPECTION
• Set ignition to "ON" while watching warning
light.
• Light should flash 7 times and then go off. If
lamp does not operate correctly, refer to
Section 9J.
•

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) STEERING WHEEL & COLUMN 3F4-17
MAIN DATA AND SPECIFICATIONS
TORQUE SPECIFICATIONS

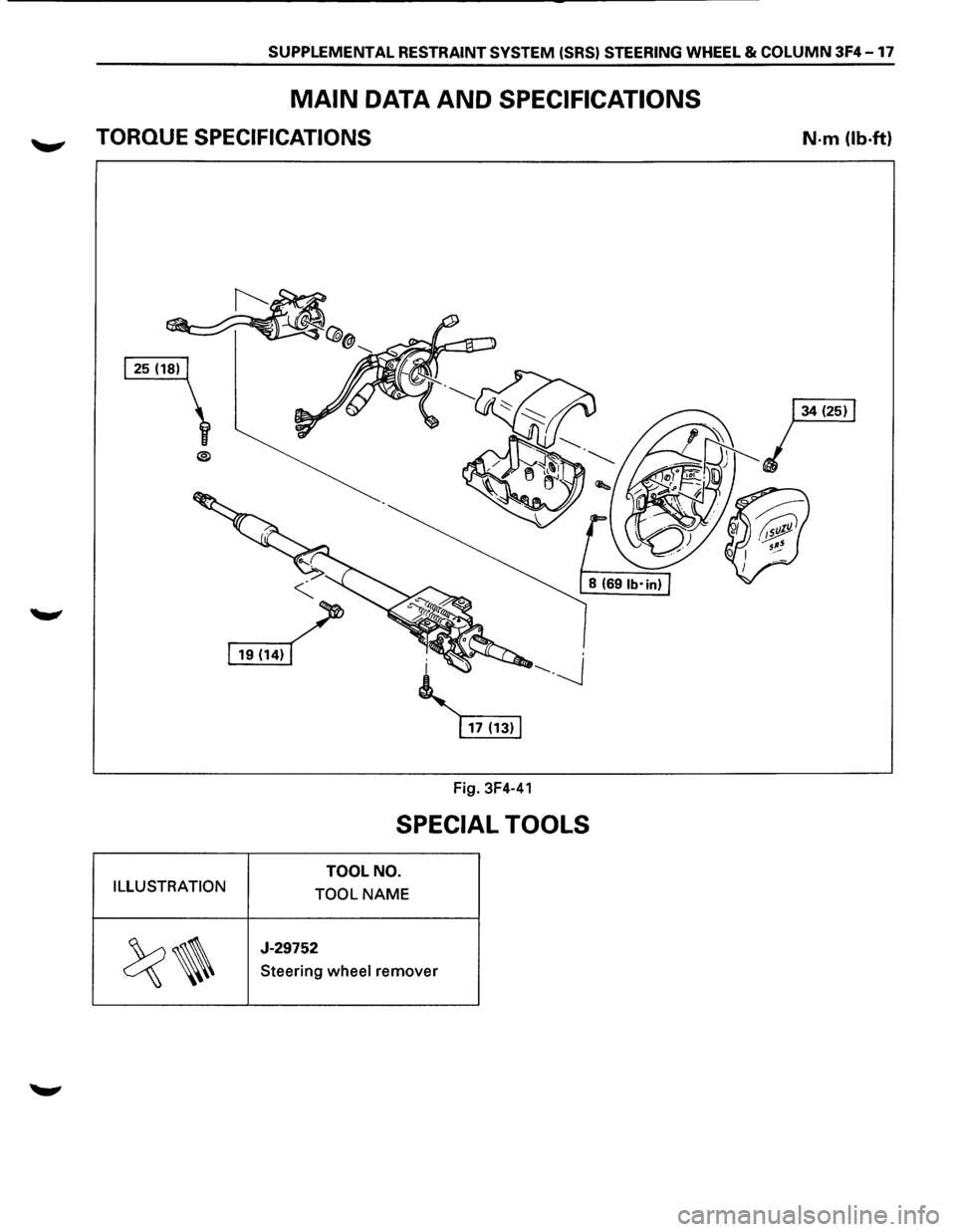

Fig. 3F4-41
SPECIAL TOOLS
TOOL NO.
ILLUSTRATION TOOL
NAME
~~
J-29752
Steering wheel remover
N-m (lb.ft)

MEMO

PROPELLER SHAFT 4A-1
SECTION 4A
PROPELLER SHAFT AND AXLE
CONTENTS
Propeller Shaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section 4A
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section 48
Front Driving Axle . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section 4C
SECTION 4A
PROPELLER SHAFT
\fl CAUTION:
VI When fasteners are removed, always reinstall them at the same location from which they were removed. If a
fastener needs
to be replaced, use the correct part number fastener for that application. If the correct part
number fastener is
not available, a fastener of equal size and strength (or stronger) may be used. Fasteners
that are
not reused, and those requiring thread locking compound, will be called out. The correct torque
values must be used when installing fasteners that require torque. If the above conditions are not followed, •
parts or system damage could result.
CONTENTS
General Description . . . . . . . . . . . . . . . . . . . . . 4A-1
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 4A-2
Rear
Propeller Shaft . . . . . . . . . . . . . . . . . . 4A-2
Front Propeller Shaft . . . . . . . . . . . . . . . . . . 4A-3
Unit Repair ............................ 4A-4
Rear
Propeller Shaft . . . . . . . . . . . . . . . . . . 4A-4
Universal Joint (Rear Propeller Shaft) .... 4A-5
Front Propeller Shaft .................. 4A-8
Universal Joint (Front Propeller Shaft) ... 4A-9
Main Data and Specifications ............ 4A-12
General Specifications ................ 4A-12
Torque Specifications ................ 4A-13
GENERAL DESCRIPTION
Since the propeller shaft is total balanced carefully,
welding
or any other modifications are not permitted.
Rear
propeller shaft
Front propeller shaft
Alignment marks should be applied to each propeller
shaft before removal.

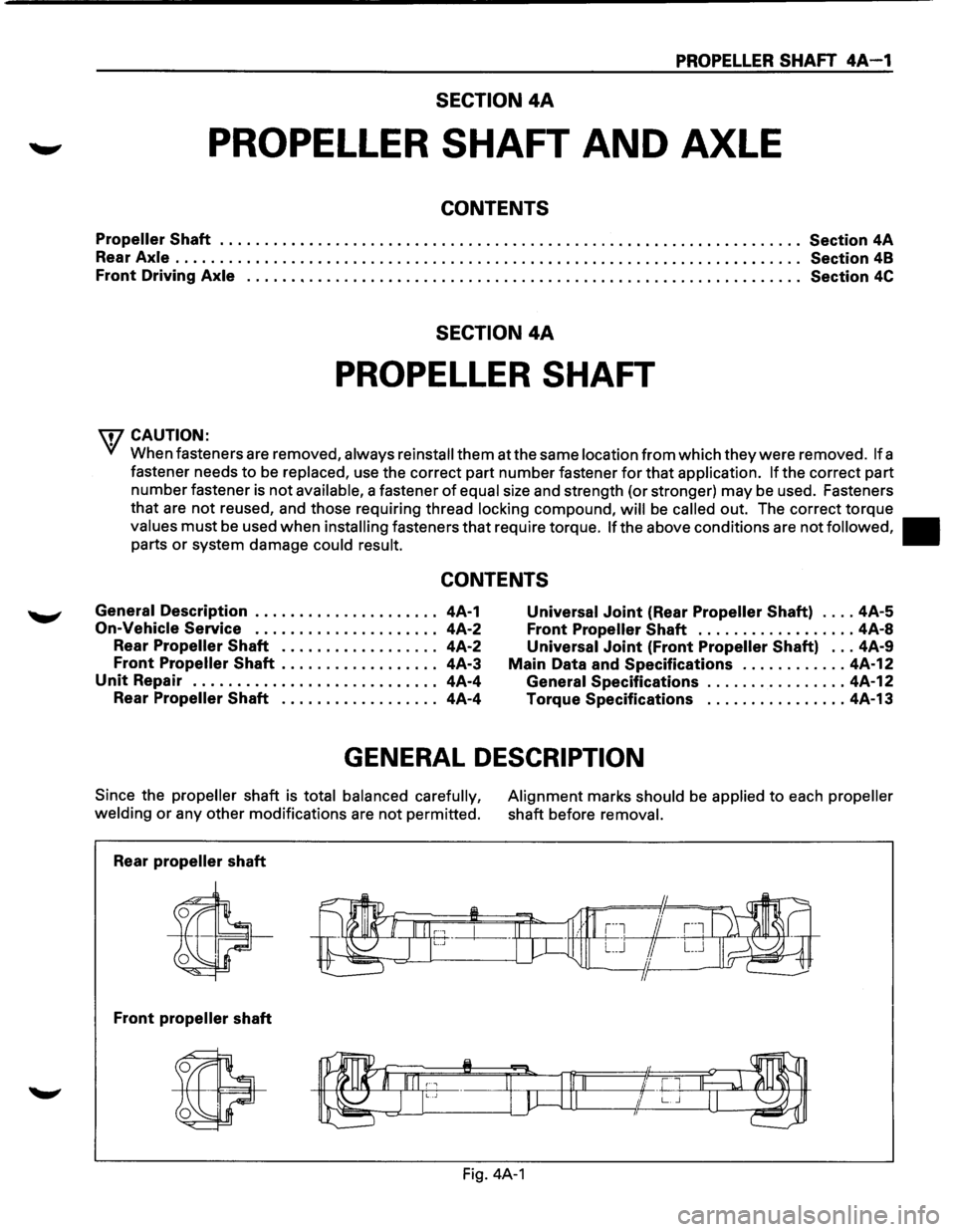

Fig. 4A-1

4A-2 PROPELLER SHAFT
ON-VEHICLE SERVICE
Preparation:
• Jack up the vehicle and support it on the chassis •
stands. Gear
shift
lever should be placed in neutral
position and parking brake released.
REAR PROPELLER SHAFT
1. Bolt, nut and washer
3. Rear propeller shaft
~
Transfer side
Rear axle side

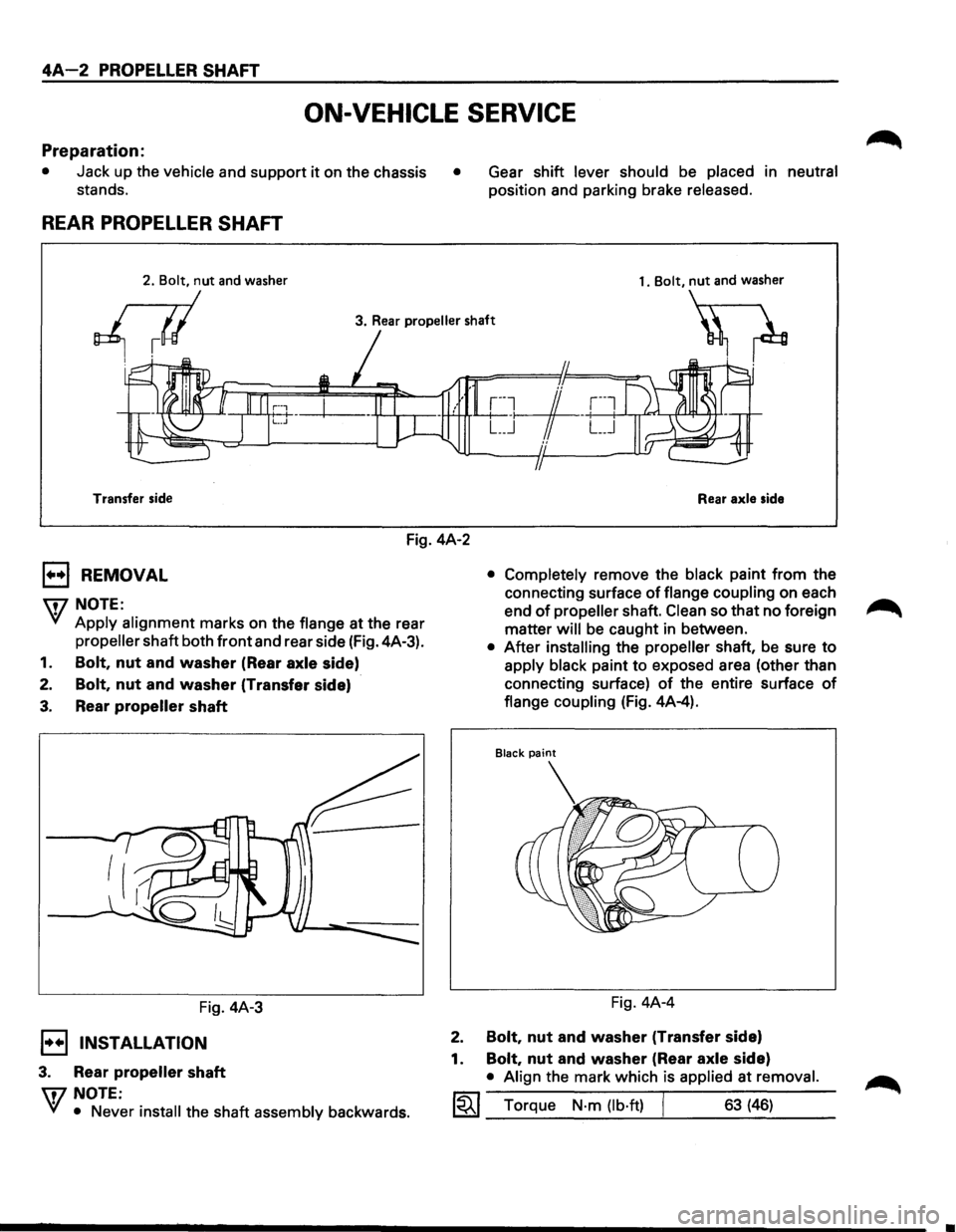

Fig. 4A-2
B REMOVAL
\fl NOTE:
VI Apply alignment marks on the flange at the rear
propeller shaft both front and rear side (Fig. 4A-3).
1. Bolt, nut and washer (Rear axle side)
2. Bolt, nut and washer (Transfer side)
3. Rear propeller shaft
Fig. 4A-3
1••1 INSTALLATION
3. Rear propeller shaft
\flNOTE:
VI • Never install the shaft assembly backwards.
• Completely remove the black paint from the
connecting surface
of flange coupling on each
end
of propeller shaft. Clean so that no foreign ~
matter will be caught in between.
• After installing the propeller shaft, be sure to
apply black paint to exposed area (other than
connecting surface)
of the entire surface of
flange coupling (Fig. 4A-4).
Fig. 4A-4
2. Bolt, nut and washer (Transfer side)
1.
Bolt, nut and washer (Rear axle side)
• Align the mark which is applied at removal.
~~~ Torque N·m (lb·ft) I 63 (46)
•
