1995 ISUZU TROOPER Workshop Manual

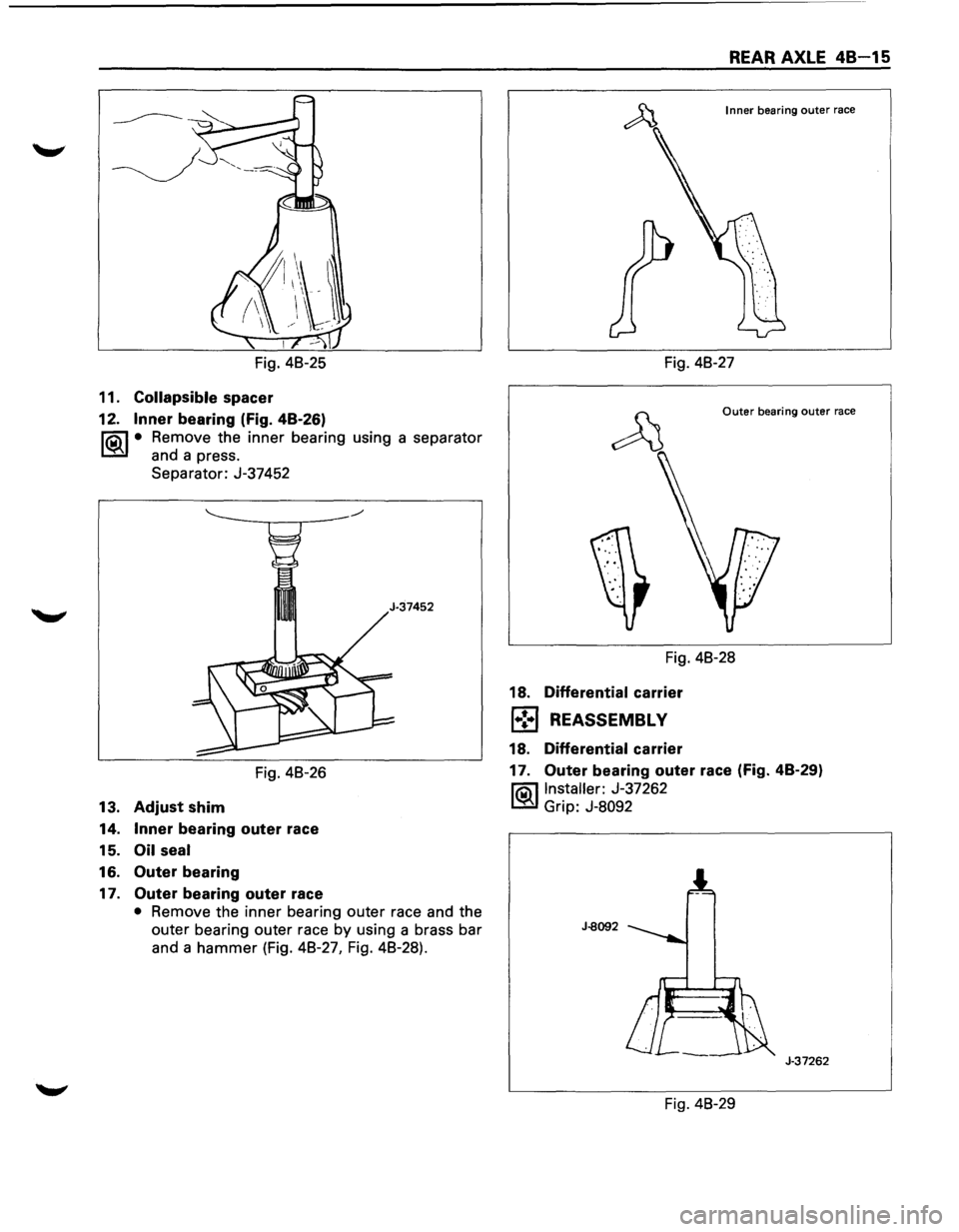

Fig. 48-25
11.
Collapsible spacer
12. Inner bearing (Fig. 48-26)
l?.iil • Remove the inner bearing using a separator
~ and a press.
Separator: J-37452
Fig. 48-26
13.
Adjust shim
14. Inner bearing outer race
15.
Oil seal
16. Outer bearing
17. Outer bearing outer race
• Remove the inner bearing outer race and the
outer bearing outer race by using a brass bar
and a
hammer (Fig. 48-27, Fig. 48-28).
REAR AXLE 48-15
Inner bearing outer race
Fig. 48-27
Outer bearing outer race
Fig. 48-28
18.
Differential carrier
1•:-1 REASSEMBL V
18. Differential carrier
17. Outer bearing outer race (Fig. 48-29)
l?.iil Installer: J-37262
~ Grip: J-8092
J-8092
J-37262
Fig. 48-29

48 -16 REAR AXLE

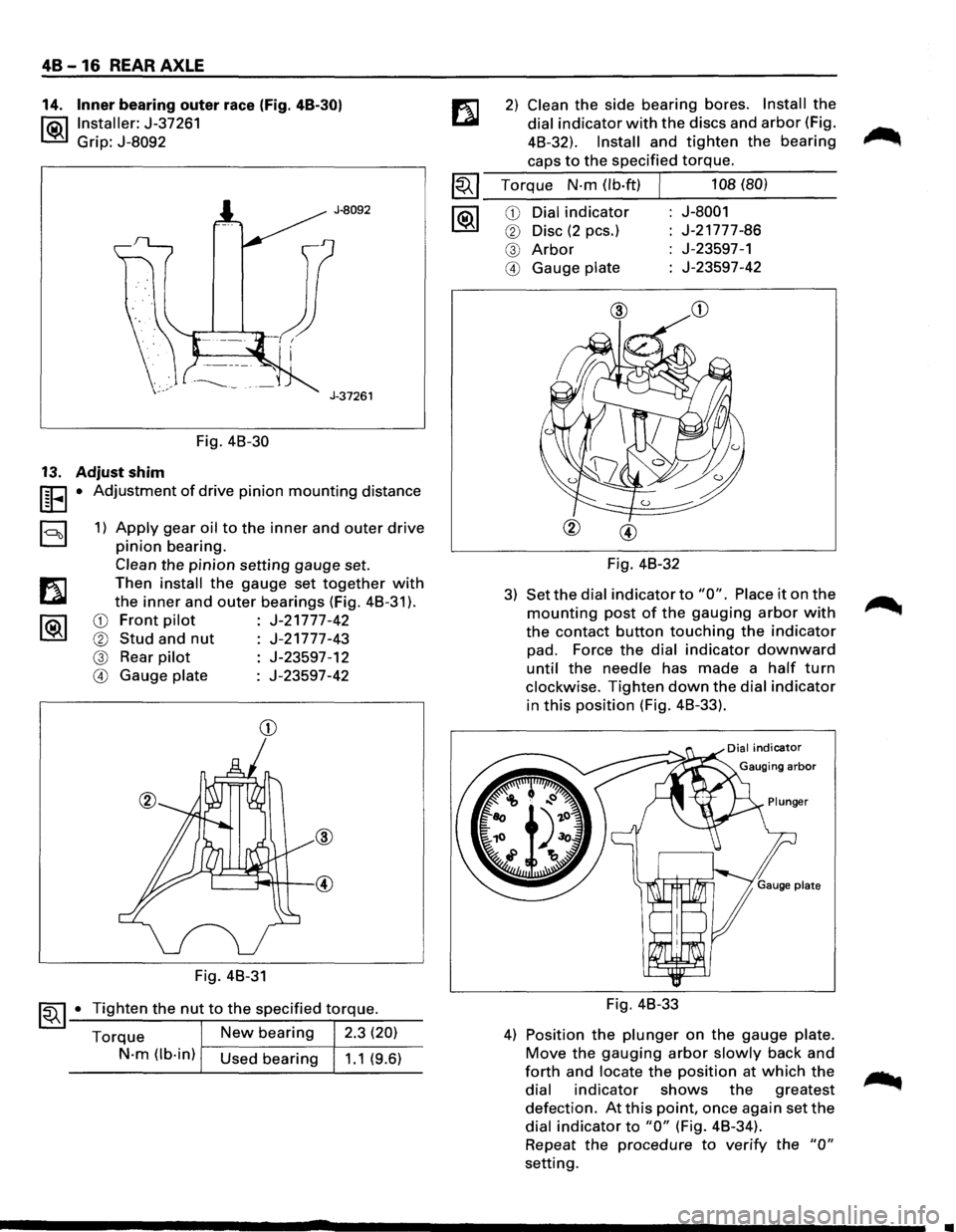

14. Inner bearing outer race (Fig. 48-30)
l®.llnstaller: J-37261
Grip: J-8092
J-8092
J-37261
Fig. 48-30
13. Adjust shim
UEI • Adjustment of drive pinion mounting distance
a 1) Apply gear oil to the inner and outer drive
pinion bearing.
Clean the pinion setting gauge set.
Then
install the gauge set together with
the inner and outer bearings (Fig. 48-31 ).
CD Front pilot J-21777-42
® Stud and nut J-21777-43
@ Rear pilot J-23597-12
@ Gauge plate J-23597-42
CD
Fig. 48-31
~~ 1-•-T_i..::..g_h_te_n_t_h_e_n_u...,t_t_o_t_h_e_s..:..p_e_c_if_ie_d_t-\
.-o_rq....:..._ue_. __
Torque New bearing 2.3 (20)
N-m (lb-in) Used bearing 1.1 (9.6)
2) Clean the side bearing bores. Install the
dial indicator with the discs and arbor (Fig.
48-32).
Install and tighten the bearing
caps to the specified torque.
~~~ Torque N-m (lb·ft) J 108 (80)
--------~----------1®.1 CD Dial indicator J-8001
® Disc (2 pes.) J-21777-86
@ Arbor J-23597-1
@ Gauge plate J-23597-42
Fig. 48-32
3) Set the dial indicator to "0". Place it on the
mounting post of the gauging arbor with
the contact button touching the indicator
pad. Force the dial indicator downward
until the needle has made a half turn
clockwise. Tighten down the dial indicator
in this position (Fig. 48-33).
Fig. 48-33
4) Position the plunger on the gauge plate.
Move the gauging arbor slowly back and
forth and locate the position at which the
dial indicator shows the greatest
defection. At this point, once again set the
dial indicator to "0" (Fig. 48-34).
Repeat
the procedure to verify the "0"
setting.
•

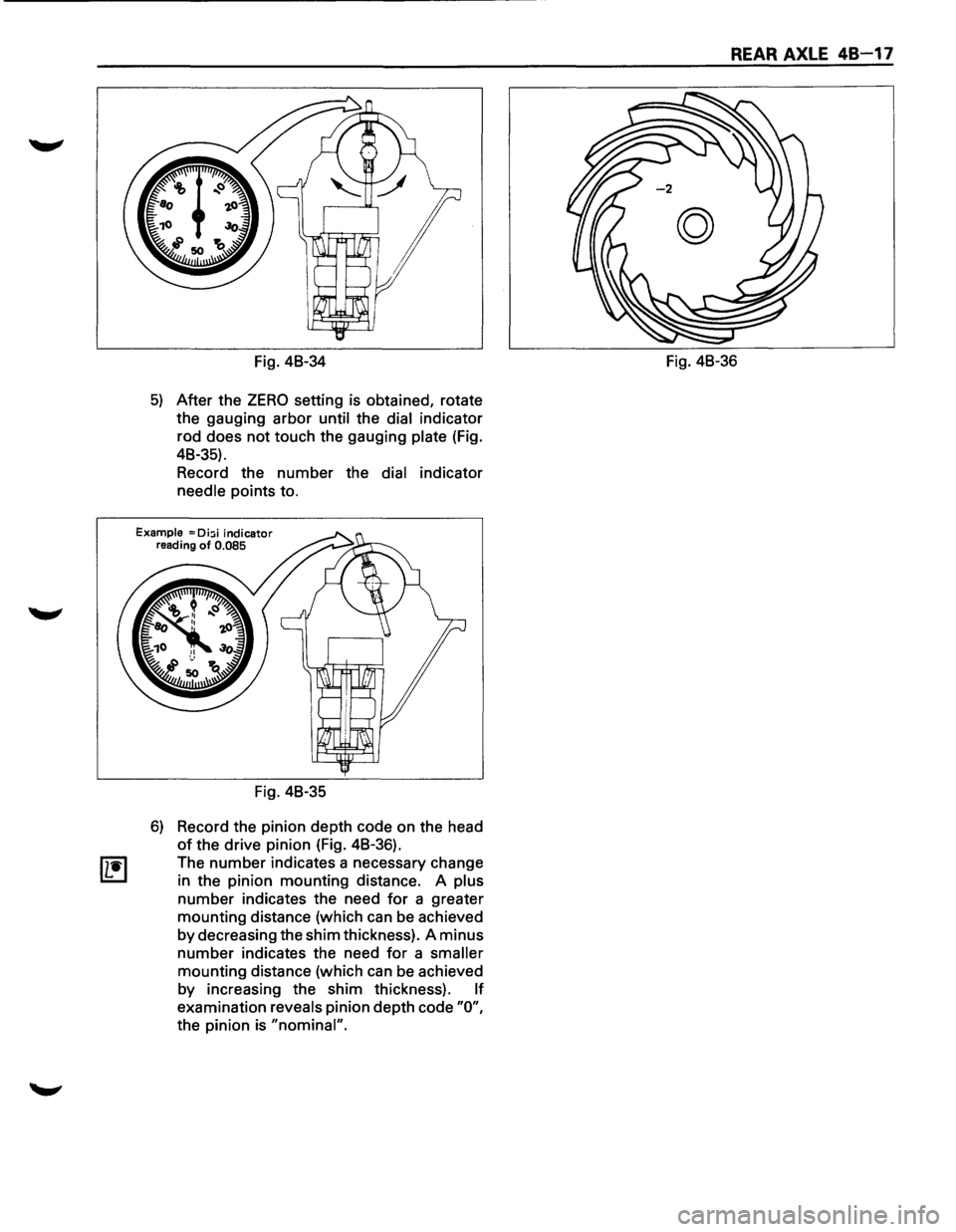

Fig. 48-34
5) After the ZERO setting is obtained, rotate
the gauging arbor
until the dial indicator
rod does
not touch the gauging plate (Fig.
48-35).
Record the number the
dial indicator
needle points to.
Example = Di:;i indicator reading of 0.085
Fig. 48-35
6) Record the pinion depth code on the head
of the drive pinion (Fig. 48-36).
The
number indicates a necessary change
in the pinion mounting distance. A
plus
number indicates the need for a greater
mounting distance (which can be achieved
by decreasing the shim thickness). A minus
number indicates the need for a smaller
mounting distance (which can be achieved
by increasing the shim thickness).
If
examination reveals pinion depth code "0",
the pinion is "nominal".
REAR AXLE 48-17
Fig. 48-36

48-18 REAR AXLE

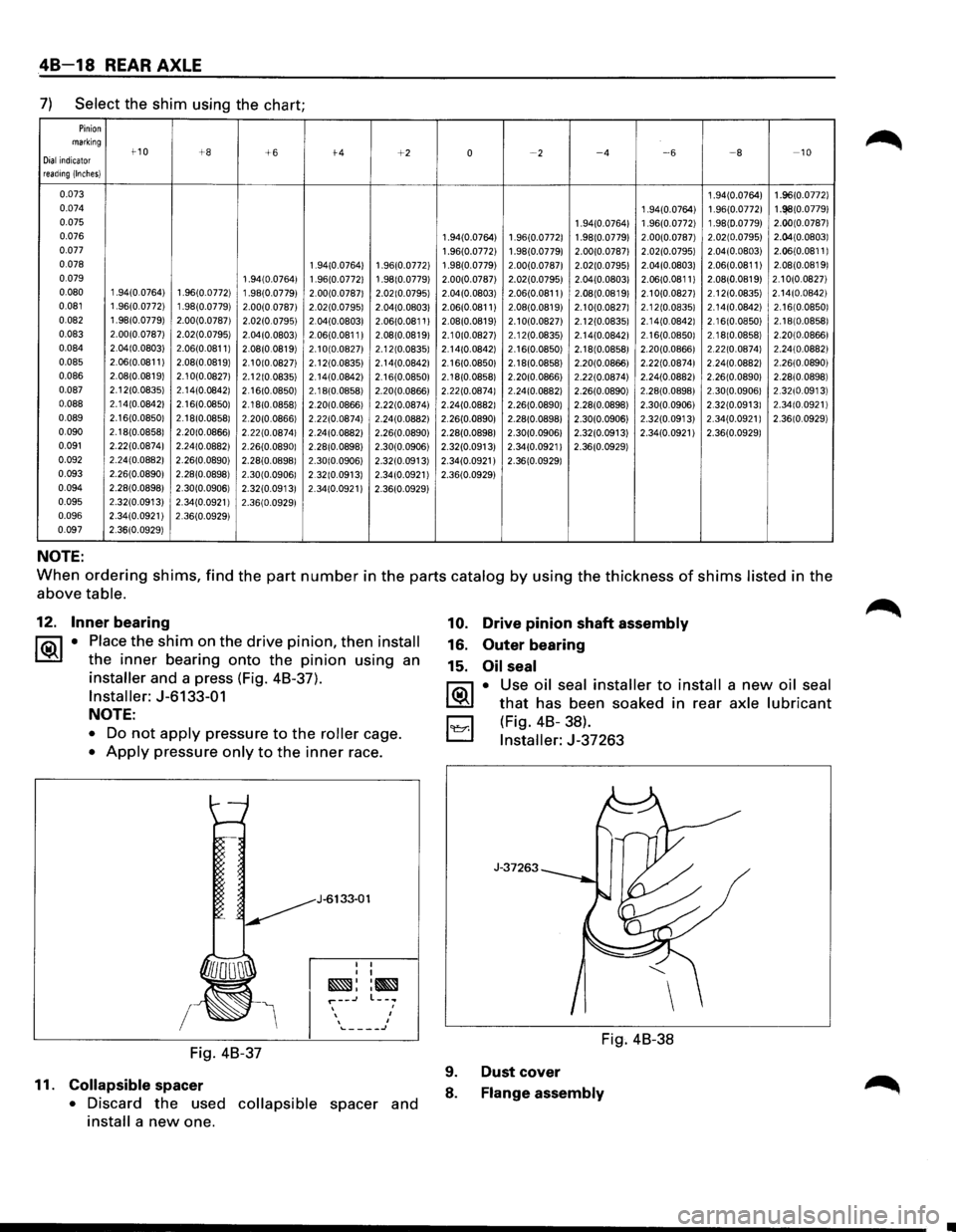

7) Select the shim using the chart;
Pinion marking t-10 +8 Dial indicator +6 t-4 +2 0 ~2 ~4 ~6 ~a -10
reading (Inches}
0.073 1 .94(0.0764} 1 .96(0.0772}
0.074 1 .94(0.0764} 1 .96(0.0772} 1.!~8(0.0779} 0.075 1 .94(0.0764} 1 .96(0.0772) 1 .98(0.0779) 2.00(0.0787}
0.076 1 .94(0.0764) 1 .96(0.0772) 1 .98(0.0779} 2.00(0.0787) 2.02(0.0795)
2.04(0.08031
0.077 1 .96(0.0772) 1 .98(0.07791 2.00(0.07871 2.02(0.07951 2.04(0.0803)
2.06(0.0811 I
0.078 1 .94(0.0764) 1 .96(0.0772) 1 .98(0.0779) 2.00(0.07871 2.02(0.07951 2.04(0.0803} 2.06(0.0811)
2.08(0.08191
0.079 1 .94(0.0764} 1 .96(0.0772} 1 .98(0.0779) 2.00(0.0787) 2.02(0.0795) 2.04(0.0803} 2.06(0.0811 I 2.08(0.0819) 2.1 0(0.0827)
0.080 1 .94(0.0764) 1 .96(0.0772} 1 .98(0.0779) 2.00(0.07871 2.02(0.07951 2.04(0.0803)
2.06(0.0811 I 2.08(0.08191 2.10(0.08271 2. 12(0.0835) 2.14(0.08421
0.081 1 .96(0.0772} 1 .98(0.0779} 2.00(0 07871 2.02(0.07951 2.04(0.08031 2.06(0.0811 I 2.08(0.08191 2.1 0(0.08271 2. 12(0.08351 2. 14(0.08421 2. 16(0.08501
0.082 1 .98(0.0779) 2.00(0.07871 2.02(0.07951 2.04(0.08031 2.06(0.0811 I
2.08(0.08191 2.1 0(0.08271 2. 12(0.08351 2. 14(0.0842} 2.16(0.08501 2. 18(0.08581
0.083 2.00(0.07871
2.02(0.07951 2.04(0.0803}
2.06(0.0811 I 2.08(0.08191 2.1 0(0.0827} 2. 12(0.0835} 2. 14(0.0842} 2. 16(0.08501 2.18(0.0858}
2.20(0.0866}
0.084 2.04(0.08031 2.06(0.0811 I
2.08(0.0819} 2.1 0(0.08271 2. 12(0.08351 2.14(0.0842} 2. 16(0.0850) 2. 18(0.08581 2.20(0.0866}
2.22(0.08741 2.24(0.08821
0.085 2.06(0.0811} 2.08(0.0819} 2.1 0(0.0827} 2. 12(0.08351 2. 14(0.0842}
2.16(0.08501 2. 18(0.0858} 2.20(0.0866} 2.22(0.0874} 2.24(0.0882} 2.26(0.0890}
0.086 2.08(0.0819} 2.1 0(0.0827} 2. 12(0.0835} 2.14(0.0842} 2.16(0.0850} 2.18(0.0858} 2.20(0.0866)
2.22(0.0874) 2.24(0.0882)
2.26(0.0890} 2.28(0.0898)
0.087 2. 12(0.0835) 2.14(0.0842) 2.16(0.08501 2. 18(0.0858) 2.20(0.0866) 2.22(0.0874) 2.24(0.0882) 2.26(0.0890) 2.28(0.08981 2.30(0.09061 2.32(0.0913)
0.088 2. 14(0.0842} 2.16(0.0850)
2.18(0.0858} 2.20(0.0866) 2.22(0.0874)
2.24(0.08821 2.26(0.0890)
2.28(0.0898) 2.30(0.0906) 2.32(0.09131 2.34(0.0921 I
0.089 2. 16(0.08501 2.18(0.08581
2.20(0.08661 2.22(0.0874)
2.24(0.0882) 2.26(0.0890) 2.28(0.0898) 2.30(0.0906) 2.32(0.0913) 2.34(0.0921)
2.36(0.0929)
0.090 2.18(0.0858) 2.20(0.0866)
2.22(0.08741 2.24(0.0882) 2.26(0.0890) 2.28(0.0898)
2.30(0.09061 2.32(0.0913)
2.34(0.0921) 2.36(0.0929)
0.091 2.22(0.0874)
2.24(0.0882)
2.26(0.08901 2.28(0.0898) 2.30(0.0906) 2.32(0.0913)
2.34(0.09211 2.36(0.0929)
0.092 2.24(0.0882) 2.26(0.0890)
2.28(0.08981 2.30(0.0906) 2.32(0.0913) 2.34(0.0921) 2.36(0.0929)
0.093 2.26(0.0890)
2.28(0.0898)
2.30(0.09061 2.32(0.0913) 2.34(0.0921) 2.36(0.0929)
0.094 2.28(0.08981 2.30(0.0906)
2.32(0.0913)
2.34(0.0921) 2.36(0.0929)
0.095 2.32(0.0913)
2.34(0.0921)
2.36(0.09291
0.096 2.34(0.0921)
2.36(0.0929)
0.097 2.36(0.0929)
NOTE:
When ordering shims, find the part number in the parts catalog by using the thickness of shims listed in the
above
table.
12. Inner bearing
1®.1 • Place the shim on the drive pinion, then install
the inner bearing onto the pinion using an
installer and a press (Fig. 48-37).
Installer: J-6133-01
NOTE:
• Do not apply pressure to the roller cage.
• Apply pressure only to the inner race.
I
Fig. 48-37
11.
Collapsible spacer
J-6133-01
I I I I
~::~ r--~ l--.. ' , , .._ ____ J
• Discard the used collapsible spacer and
install a new one.
10. Drive pinion shaft assembly
16. Outer bearing
15.
Oil seal
~·
B
Use oil seal installer to install a new oil seal
that has been soaked in rear axle lubricant
(Fig.
48-38).
Installer: J-37263
J-37263
Fig. 48-38
9.
8. Dust
cover Flange assembly

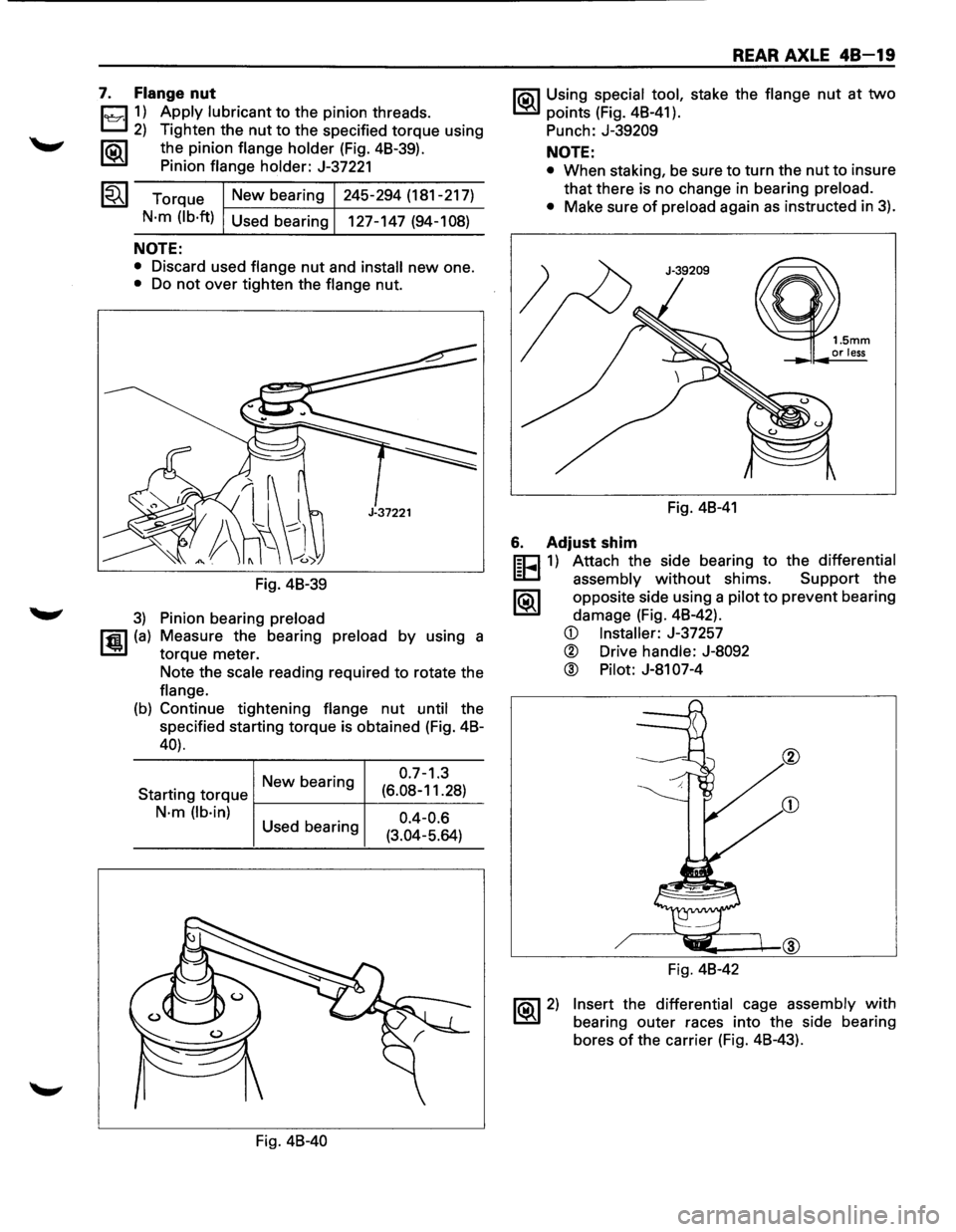

7. Flange nut
1~11) Apply lubricant to the pinion threads.
2) Tighten the nut to the specified torque using
1®.1 the pinion flange holder (Fig. 48-39).
Pinion
flange holder: J-37221
Torque
New bearing 245-294
(181-217)
N·m (lb·ft) Used bearing
127-147 (94-108)
NOTE:
• Discard used flange nut and install new one.
• Do not over tighten the flange nut.
Fig. 48-39
3) Pinion bearing preload
rfiil (a) Measure the bearing preload by using a
1..!!.1 torque meter.
Note the
scale reading required to rotate the
flange.
(b) Continue tightening flange nut until the
specified starting torque is obtained (Fig. 48-
40).
New bearing 0
·7
-1
·3
Starting
torque f-------+--(6_._08_-_1_1_.2_8_) _
N·m (lb·in) 0.4-0.6 Used bearing
(3.04-5.64)
Fig.
48-40
REAR AXLE 48-19
1'?.3\1 Using special tool, stake the flange nut at two
~points (Fig. 48-41).
Punch:
J-39209
NOTE:
• When staking, be sure to turn the nut to insure
that there is no change in bearing
preload.
•
Make sure of preload again as instructed in 3).
Fig. 48-41
6. Adjust shim
m=J 1) Attach the side bearing to the differential
~ assembly without shims. Support the
1®.1 opposite side using a pilot to prevent bearing
damage (Fig. 48-42).
~ 2)
CD Installer: J-37257
® Drive handle: J-8092
® Pilot: J-81 07-4
Fig. 48-42

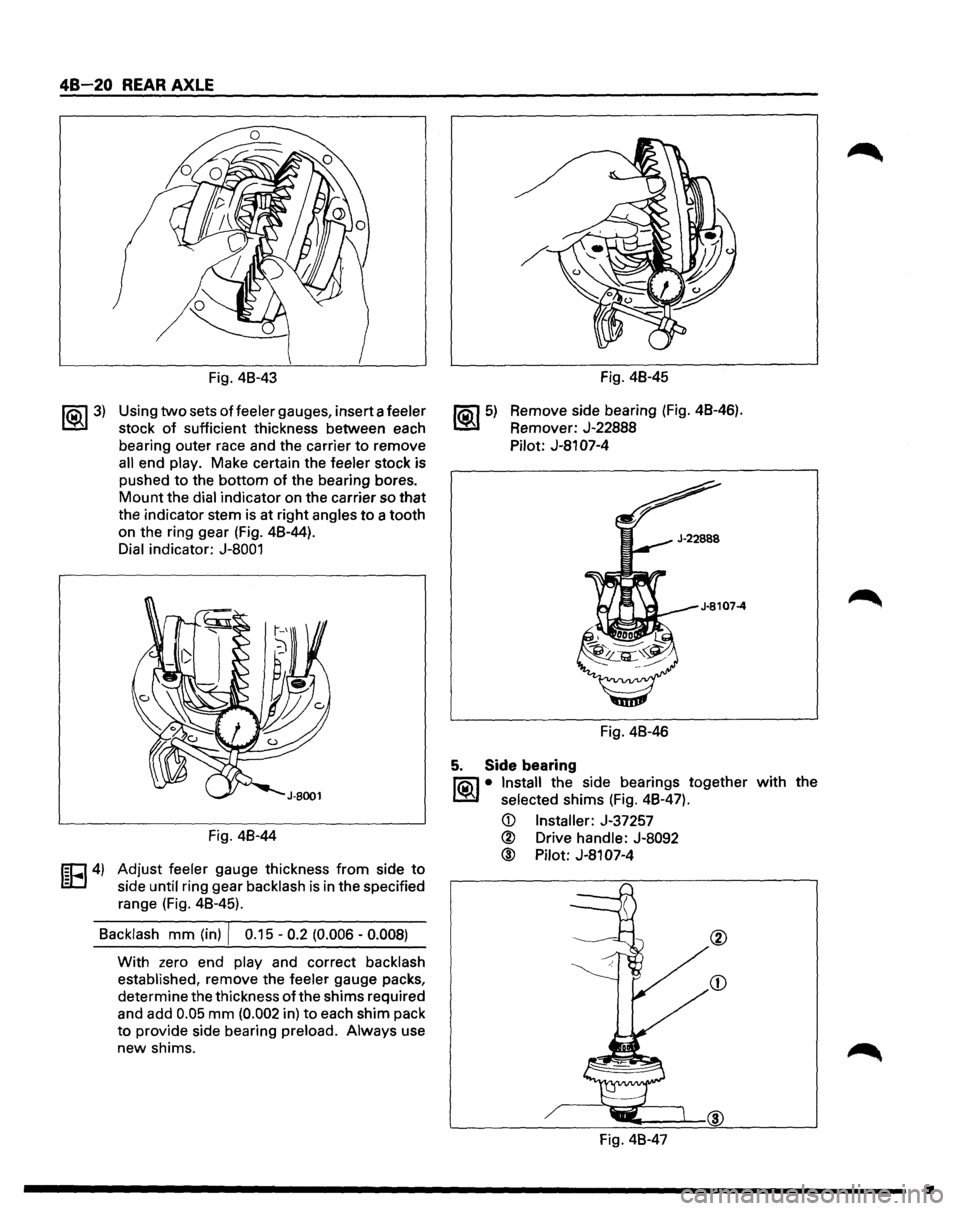

Insert the differential cage assembly with
bearing outer races into the side bearing
bores
of the carrier (Fig. 48-43).
