1995 ISUZU TROOPER Workshop Manual

COMPRESSOR OVERHAUL 1 D-9

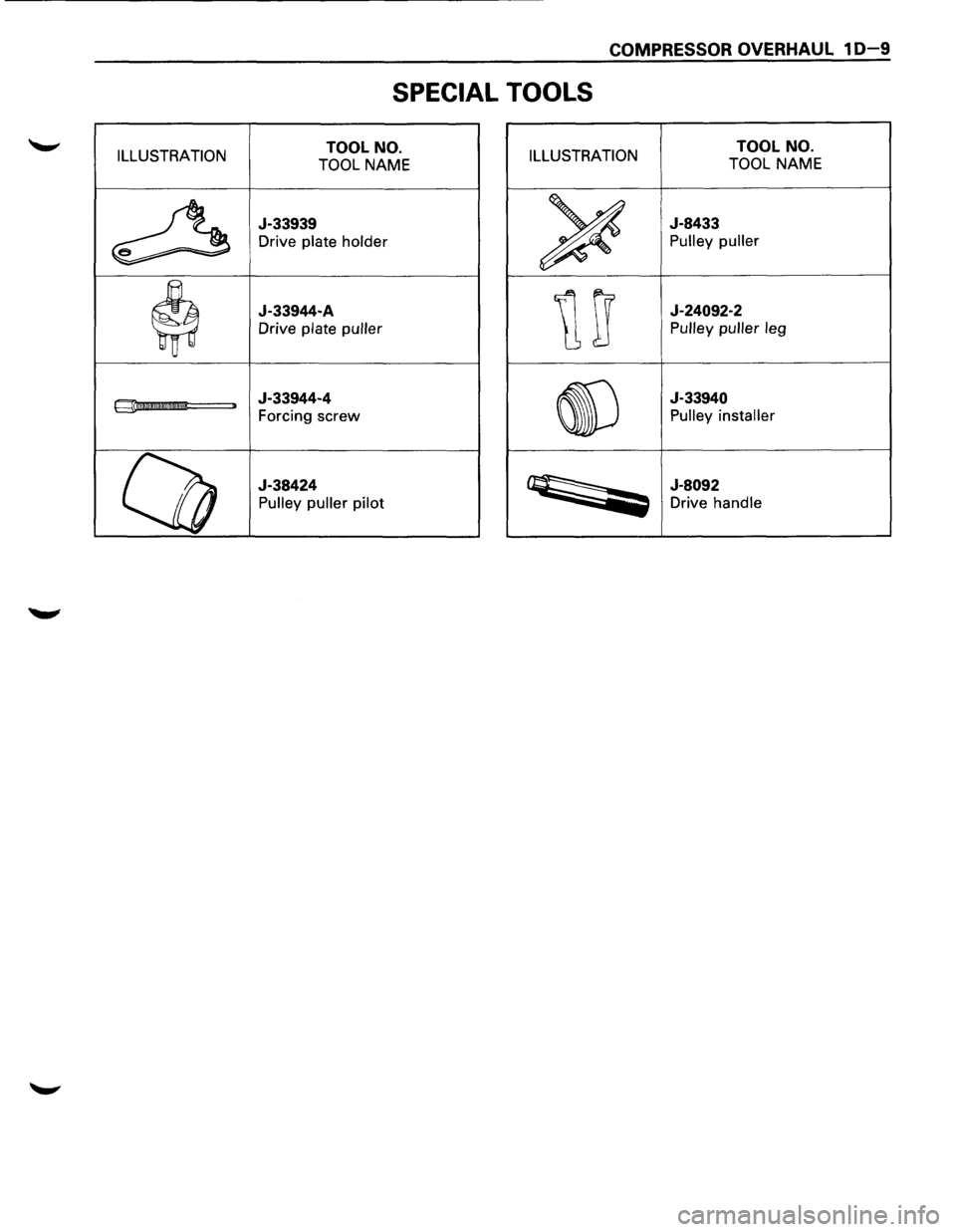

SPECIAL TOOLS
ILLUSTRATION TOOL NO.
TOOL NAME ILLUSTRATION TOOL NO.
TOOL NAME
~
J-33939
Drive plate holder
~
J-8433
Pulley puller
$
J-33944-A
Drive plate puller urr
J-24092-2
Pulley puller leg
gii!I!II!I!I!DII!Im!l!llll!! ,. J-33944-4
Forcing screw
~
J-33940
Pulley installer
(lJ
J-38424
Pulley puller pilot ~
J-8092
Drive handle

MEMO
•

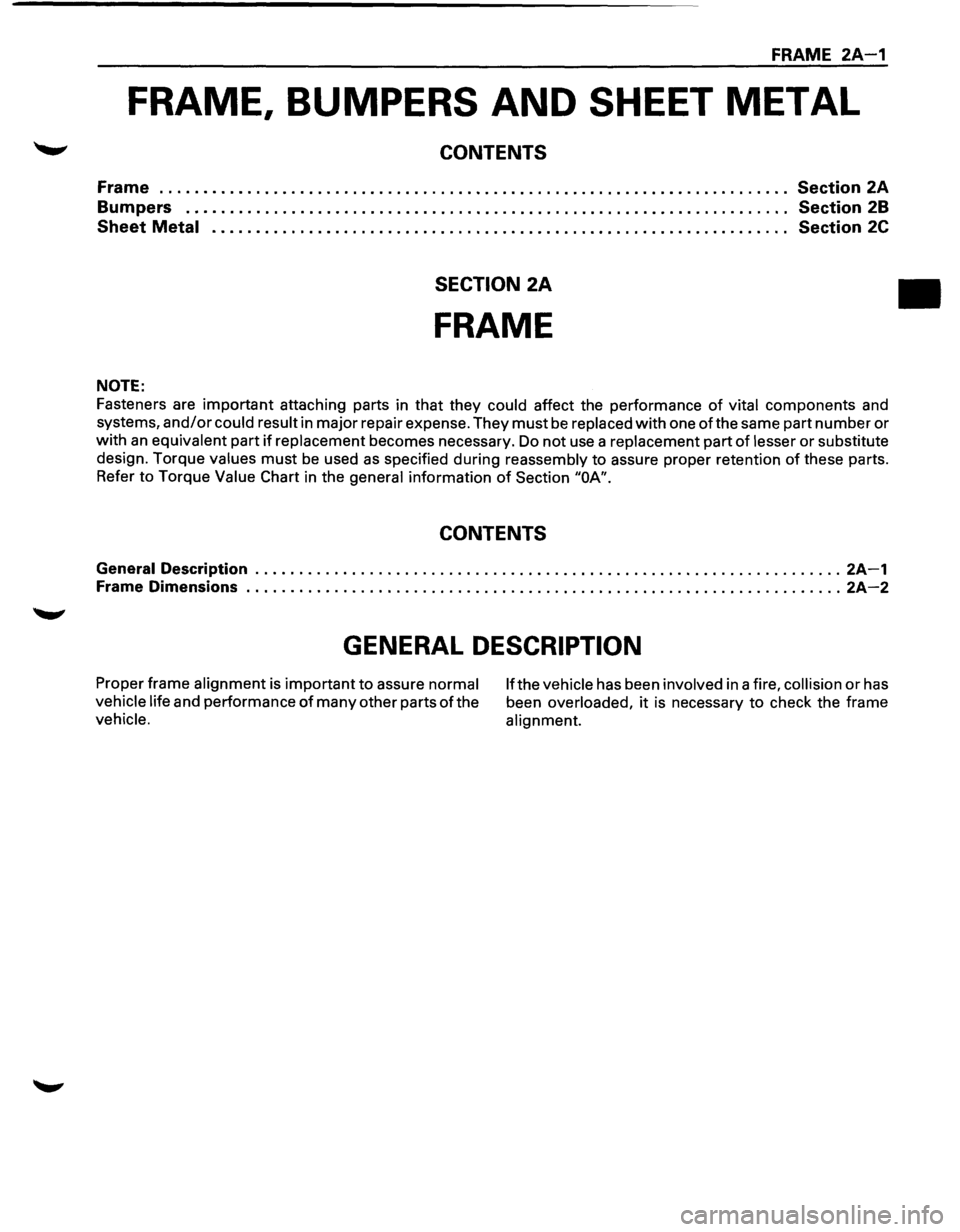

FRAME 2A-1
FRAME, BUMPERS AND SHEET METAL
CONTENTS
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section 2A
Bumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section
28
Sheet Metal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section 2C
SECTION 2A
FRAME
NOTE:
Fasteners are important attaching parts in that they could affect the performance of vital components and
systems,
and/or could result in major repair expense. They must be replaced with one of the same part number or
with an equivalent part if replacement becomes necessary. Do not use a replacement part of lesser or substitute
design. Torque
values must be used as specified during reassembly to assure proper retention of these parts.
Refer to Torque
Value Chart in the general information of Section "OA".
CONTENTS
General Description ................................................................... 2A-1
Frame Dimensions .................................................................... 2A-2
GENERAL DESCRIPTION
Proper frame alignment is important to assure normal
vehicle life
and performance of many other parts of the
vehicle. If
the vehicle has
been involved in a fire, collision or has
been
overloaded, it is necessary to check the frame
alignment.
•

2A-2 FRAME

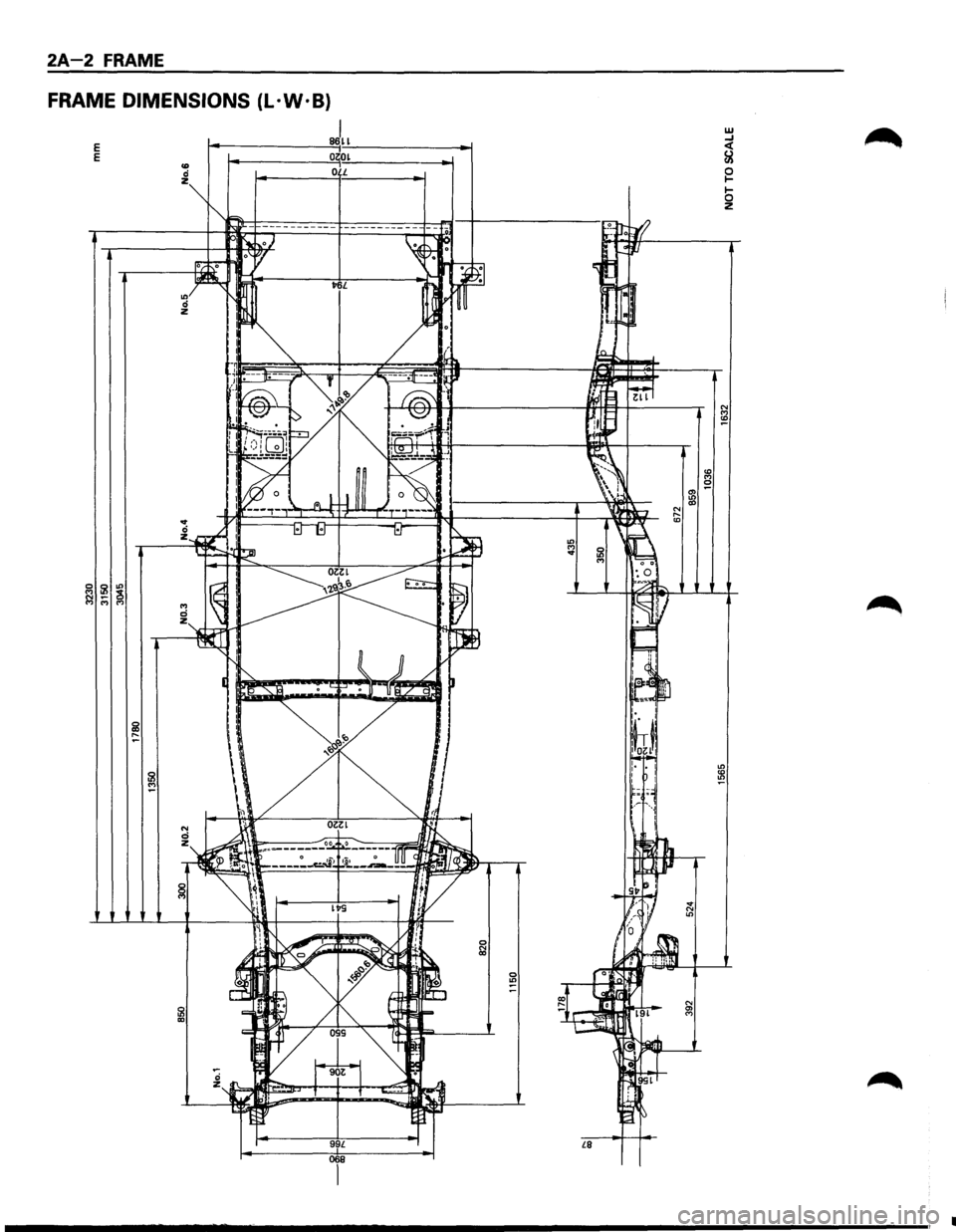

FRAME DIMENSIONS (L · W ·B)
E E
I 86~1
0 0~ 0 L
99L 068 £8
w ...J < &!
~ 1-0 z
.............................. _______________________________________ , .

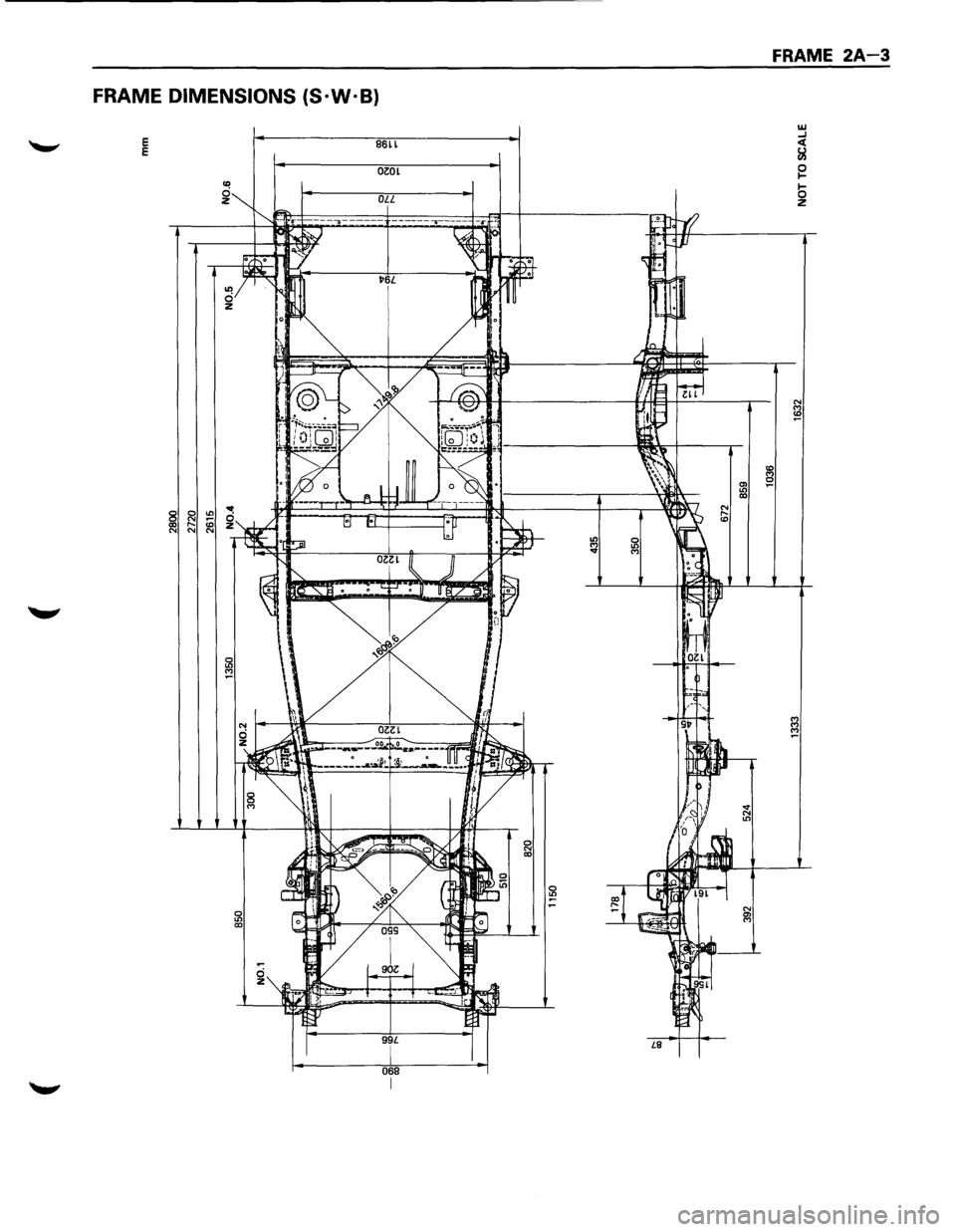

FRAME DIMENSIONS (S·W·B)
E E B6ll
OZOL
068
FRAME 2A-3
w ....1 <( &l
~
b z

MEMO
•

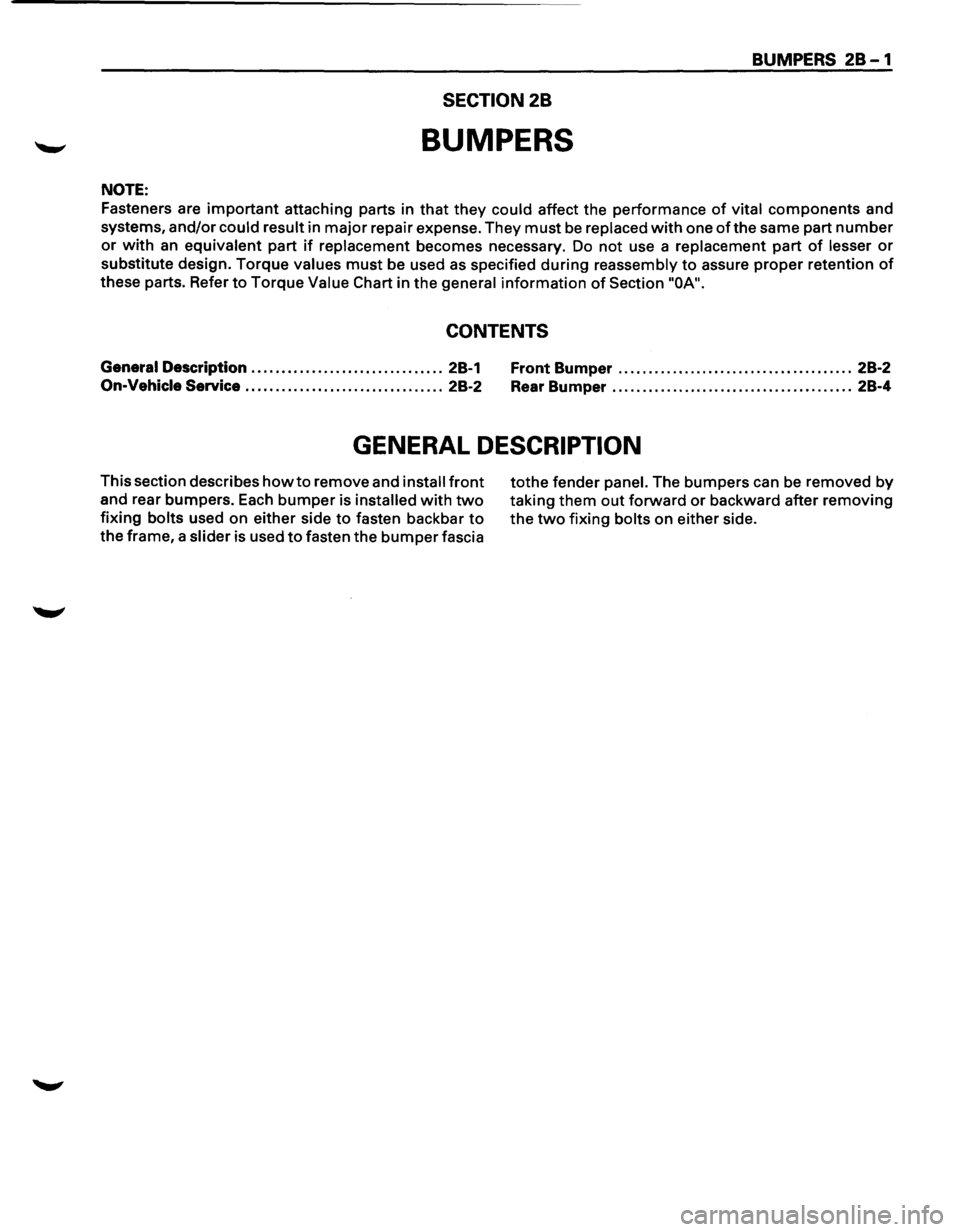

BUMPERS 28-1
SECTION 28
BUMPERS
NOTE:
Fasteners are important attaching parts in that they could affect the performance of vital components and
systems,
and/or could result in major repair expense. They must be replaced with one ofthe same part number
or with an equivalent part if replacement becomes necessary. Do not use a replacement part of lesser or
substitute design. Torque values must be used as specified during reassembly to assure proper retention of
these parts. Refer to Torque Value Chart in the general information of Section "OA".
CONTENTS
General Description ................................ 2B-1 Front Bumper ....................................... 2B-2
On-Vehicle Service ................................. 2B-2
Rear Bumper ........................................ 2B-4
GENERAL DESCRIPTION
This section describes how to remove and install front
and rear bumpers. Each bumper is installed with two
fixing bolts used on either side to fasten backbar to
the frame, a slider is used to fasten the bumper fascia
tothe fender panel. The bumpers can be removed by
taking them out forward or backward after removing
the two fixing bolts on either side.

28-2 BUMPERS

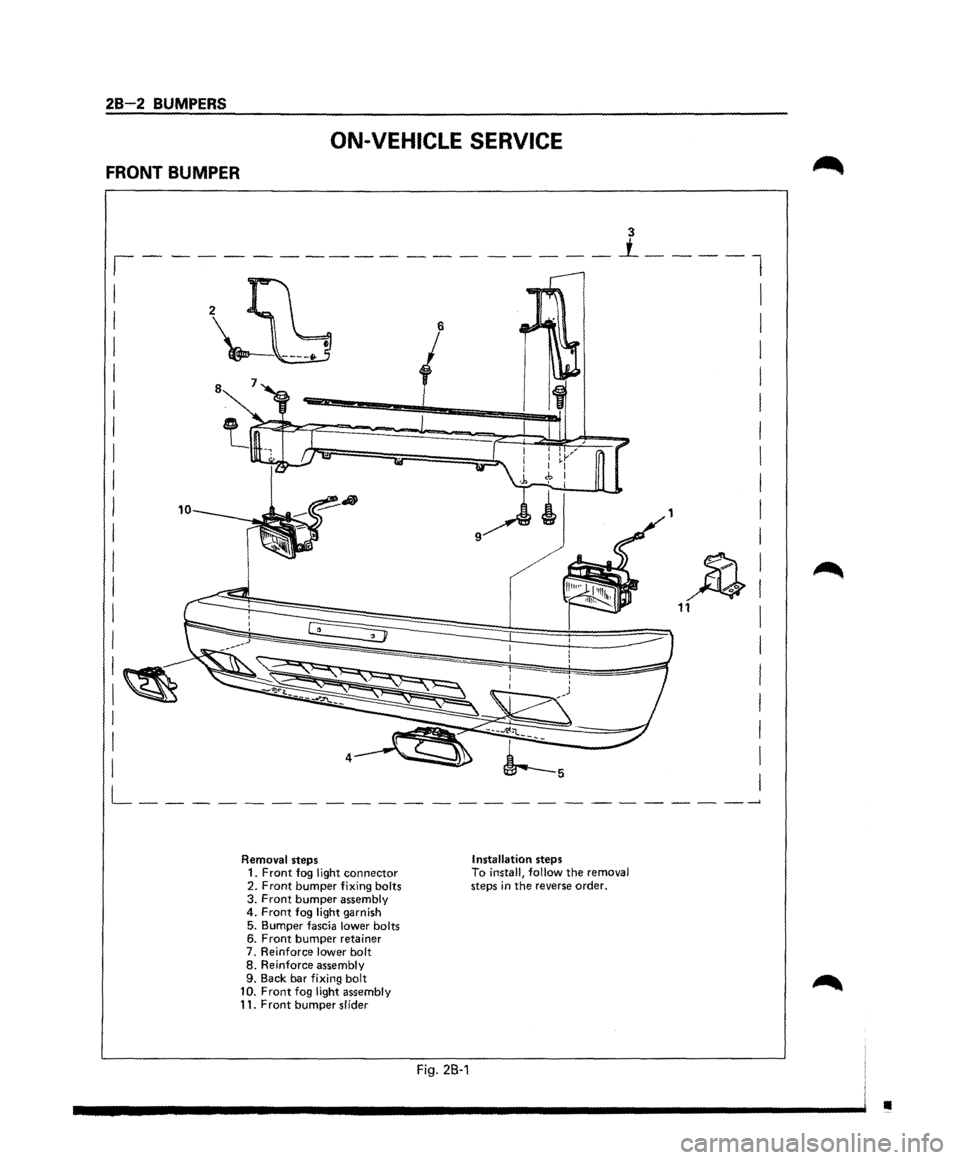

FRONT BUMPER
ON-VEHICLE SERVICE
Removal steps 1. Front fog llght connector 2. Front bumper fixing bolts 3. Front bumper assembly 4. Front fog light garnish
5. Bumper fascia lower bolts 6. Front bumper retainer 7. Reinforce lower bolt 8. Reinforce assembly
9. Back bar fixing bolt
10. Front fog light assembly 11. Front bumper slider
Fig. 2B-1
Installation steps To install, follow the removal steps in the reverse order.
•
