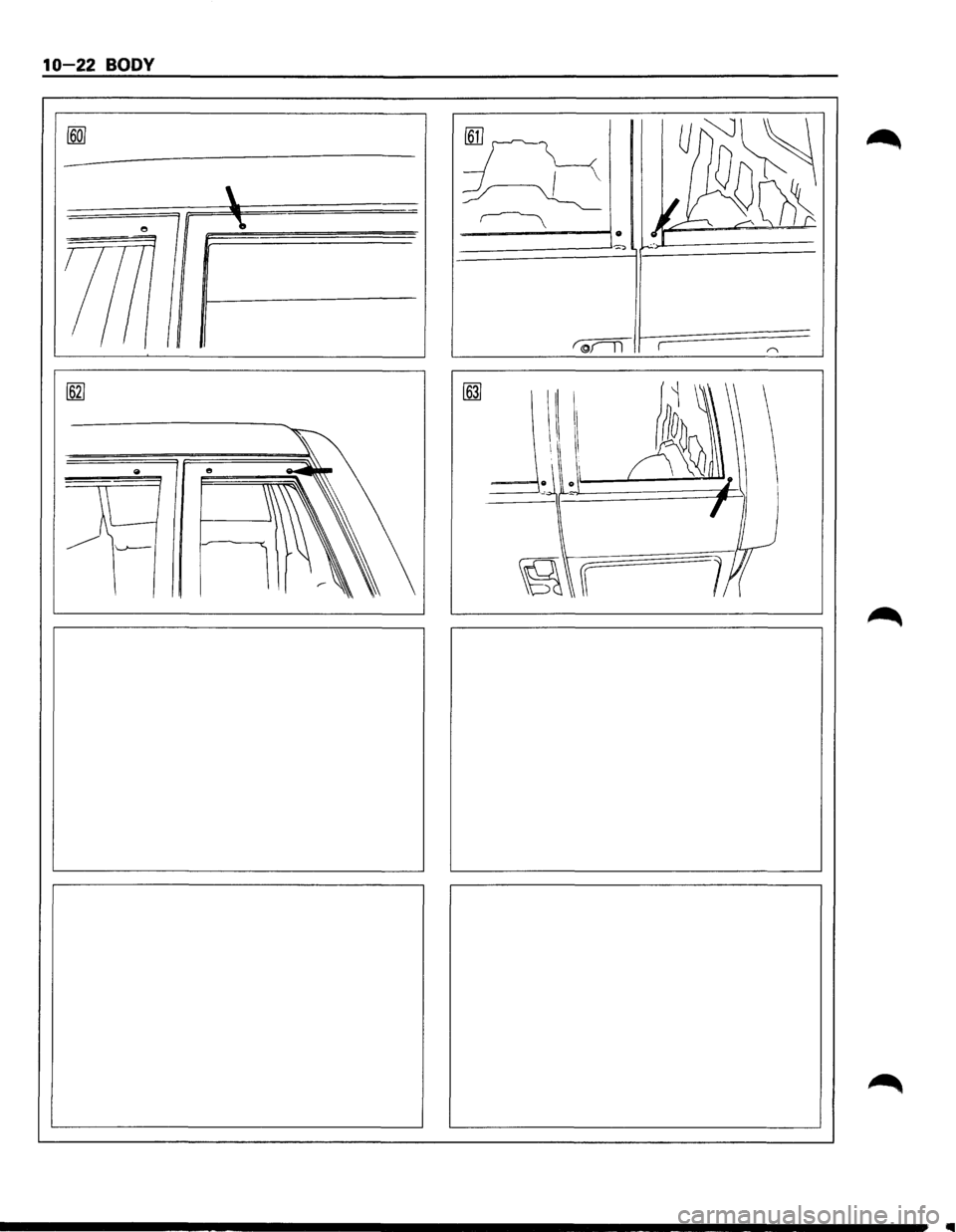

10-22 BODY

BODY 1Q-23

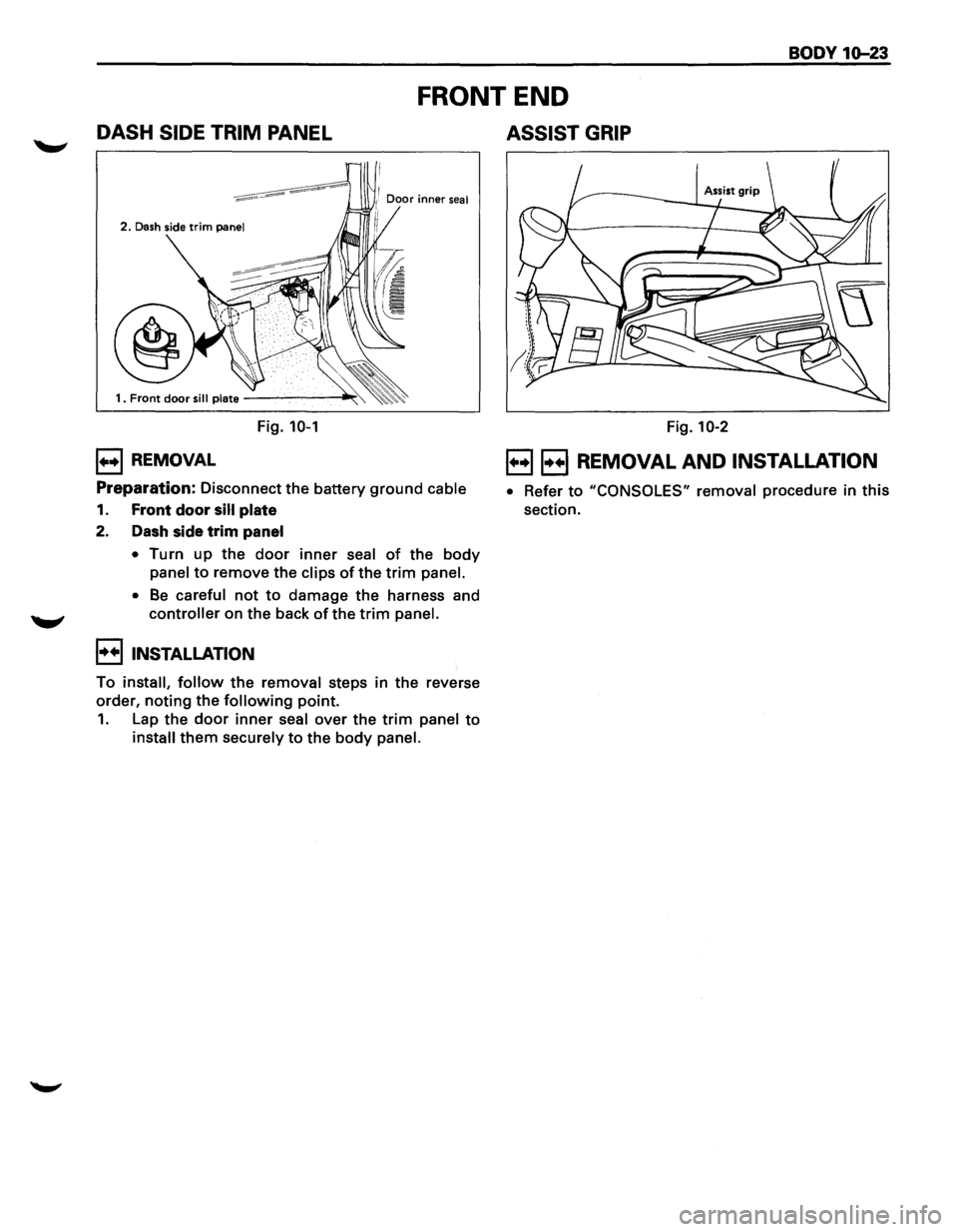

DASH SIDE TRIM PANEL
FRONT END
ASSIST GRIP
2. Dash side trim panel
Fig. 10-1
1++1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Front door sill plate
2. Dash side trim panel
• Turn up the door inner seal of the body
panel to remove the clips of the trim panel.
•
Be careful not to damage the harness and
controller on the back of the trim panel.
I••! INSTALLATION
To install, follow the removal steps in the reverse
order,
noting the following point.
1. Lap the door inner seal over the trim panel to
install them securely to the body panel.
Fig. 10-2
B 8 REMOVAL AND INSTALLATION
• Refer to "CONSOLES" removal procedure in this
section.

10-24 BODY

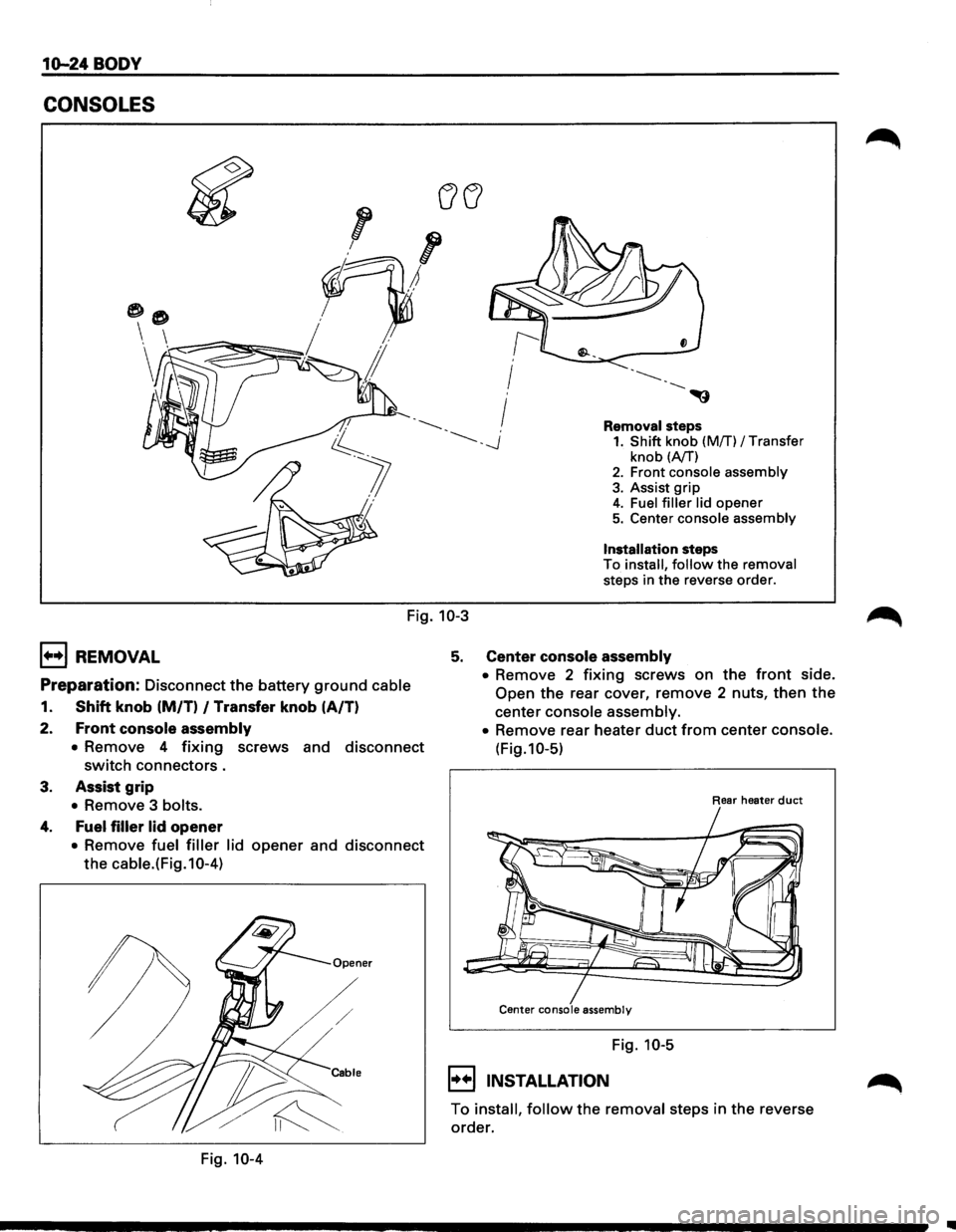

CONSOLES
Removal steps 1. Shift knob (Mff) I Transfer
knob (A/T) 2. Front console assembly
3. Assist grip 4. Fuel filler lid opener 5. Center console assembly
Installation steps
To install, follow the removal
steps in the reverse order.
Fig. 10-3
1+•1 REMOVAL
Preparation: Disconnect the battery ground cable
1. Shift knob (M/T) I Transfer knob (A/T)
2.
Front console assembly
• Remove 4 fixing screws and disconnect
switch connectors.
3. Assist grip
• Remove 3 bolts.
4. Fuel filler lid opener
• Remove fuel filler lid opener and disconnect
the cable.(Fig.10-4)
Fig. 10-4
5. Center console assembly
• Remove 2 fixing screws on the front side.
Open the rear cover, remove 2 nuts, then the
center console assembly.
•
Remove rear heater duct from center console.
(Fig.10-5)
Rear heater duct
Center console assembly
Fig. 10-5
I••IINSTALLATION
To install, follow the removal steps in the reverse
order.

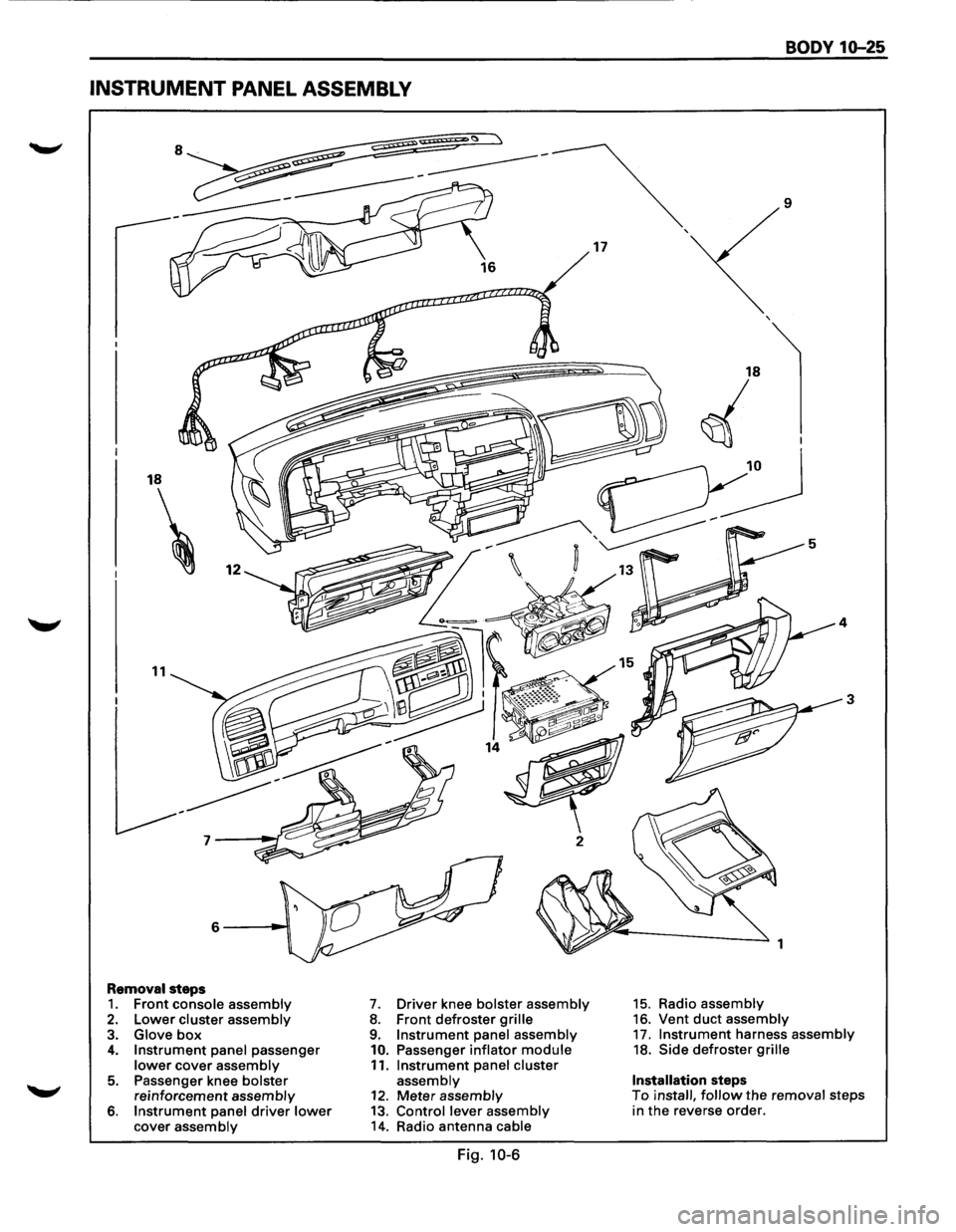

INSTRUMENT PANEL ASSEMBLY
18

11
Removal steps 1. Front console assembly 2. Lower cluster assembly 3. Glove box 4. Instrument panel passenger lower cover assembly
5. Passenger knee bolster reinforcement assembly 6. Instrument panel driver lower cover assembly
7. Driver knee bolster assembly 8. Front defroster grille 9. Instrument panel assembly
10. Passenger inflator module 11. Instrument panel cluster assembly 12. Meter assembly 13. Control lever assembly 14. Radio antenna cable
Fig. 10-6
17
BODY 10-25
9
3
1
15. Radio assembly 16. Vent duct assembly 17. Instrument harness assembly 18. Side defroster grille
Installation steps To install, follow the removal steps
in the reverse order.

10-26 BODY

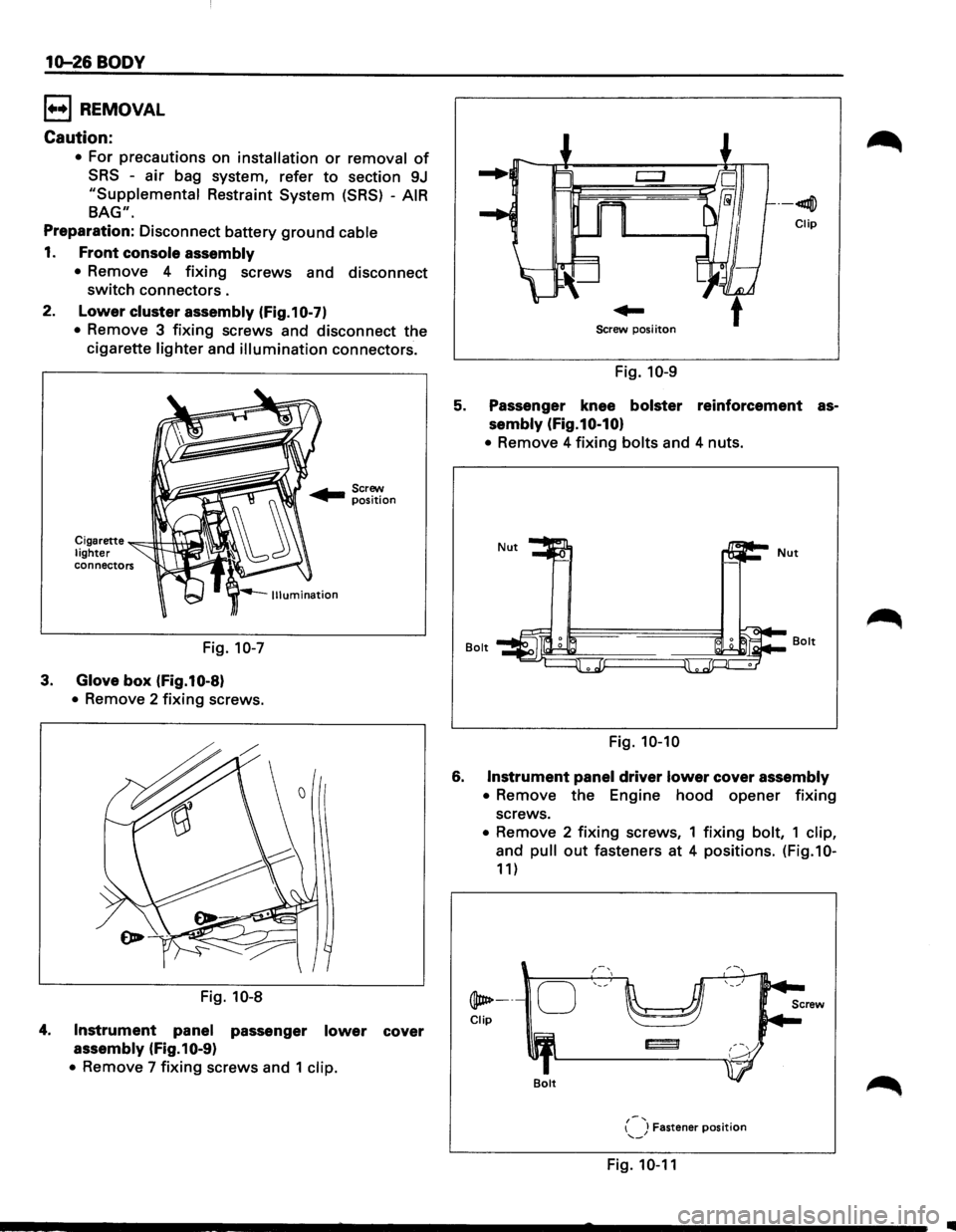

l••l REMOVAL
Caution:
• For precautions on installation or removal of
SRS -air bag system, refer to section 9J
"Supplemental Restraint System (SRS) -AIR
BAG".
Preparation: Disconnect battery ground cable
1. Front console assembly
•
Remove 4 fixing screws and disconnect
switch connectors .
2. Lower cluster assembly (Fig.10-7)
• Remove 3 fixing screws and disconnect the
cigarette
lighter and illumination connectors.
Cigarette ~c--!H---1\.+.....,. lighter connectors
Fig. 10-7
3. Glove box (Fig.10-8)
• Remove 2 fixing screws.
Fig.
10-8
4. Instrument panel passenger lower cover
assembly (Fig.10-9)
• Remove 7 fixing screws and 1 clip.
--41llj])
Clip
Screw posi iton
Fig. 10-9
5. Passenger knee bolster reinforcement as­
sembly (Fig.10-10)
• Remove 4 fixing bolts and 4 nuts.
Bolt
Fig. 10-10
6. Instrument panel driver lower cover assembly
•
Remove the Engine hood opener fixing
screws.
• Remove 2 fixing screws, 1 fixing bolt, 1 clip,
and pull out fasteners at 4 positions. (Fig.10-
11)
@ate----
Clip
Bolt
{-J Fastener position '--
Fig. 10-11
..
