1995 ISUZU TROOPER Workshop Manual

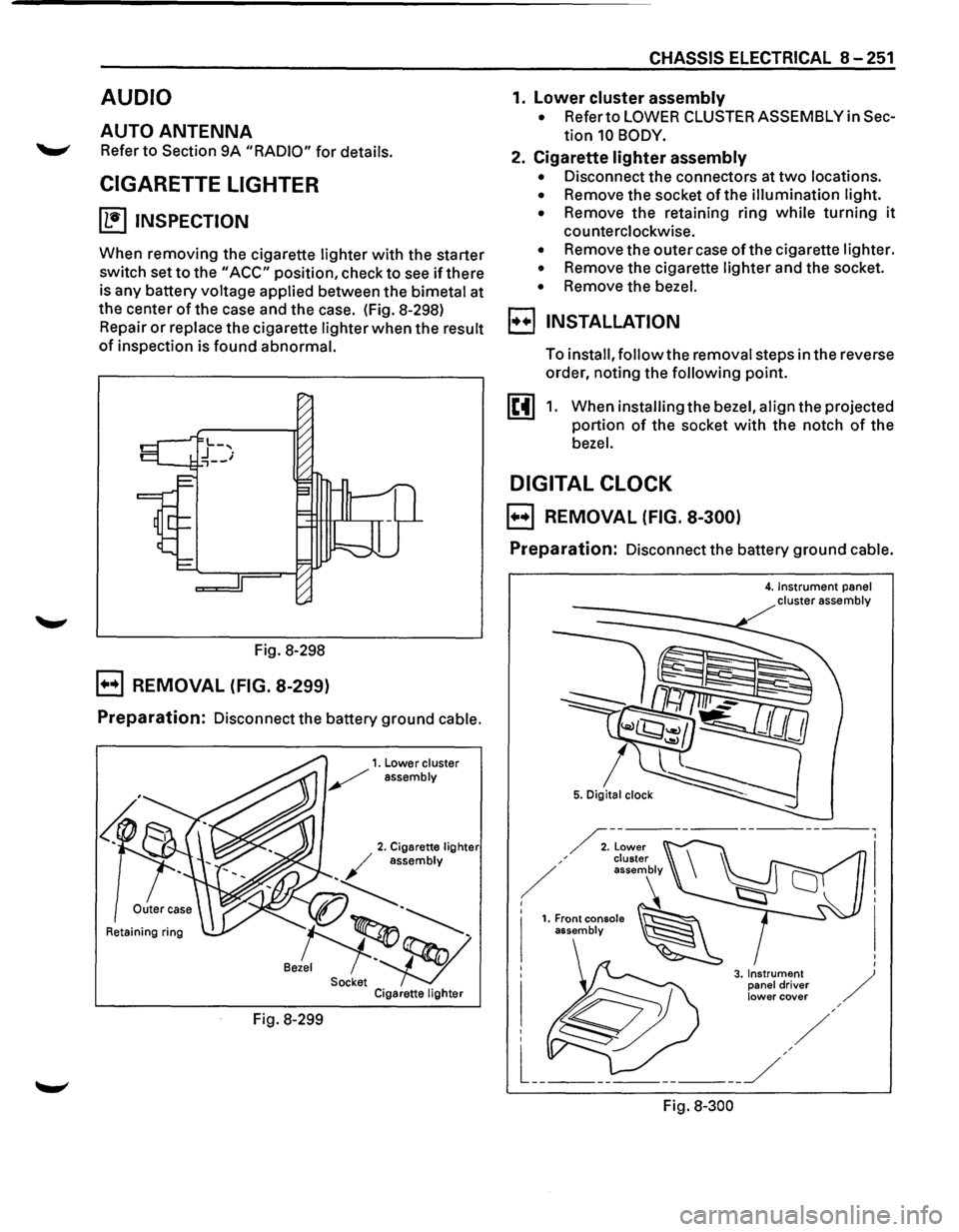

AUDIO
AUTO ANTENNA
Refer to Section 9A "RADIO" for details.
CIGARETTE LIGHTER
~ INSPECTION
When removing the cigarette lighter with the starter
switch set
to the "ACC" position, check to see if there
is any battery voltage applied between the bimetal at
the center
of the case and the case. (Fig. 8-298)
Repair
or replace the cigarette lighter when the result
of inspection is found abnormal.
Fig. 8-298
B REMOVAL (FIG. 8-299)
Preparation: Disconnect the battery ground cable.
Retaining ring
Fig. 8-299
CHASSIS ELECTRICAL 8-251
1. lower cluster assembly
• Refer to LOWER CLUSTER ASSEMBLY in Sec­
tion 10 BODY.
2. Cigarette lighter assembly
• Disconnect the connectors at two locations.
• Remove the socket of the illumination light.
•
Remove the retaining ring while turning it
counterclockwise.
• Remove the outer case of the cigarette lighter.
• Remove the cigarette lighter and the socket.
• Remove the bezel.
I••! INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following point.
1. When installing the bezel, align the projected
portion
of the socket with the notch of the
bezel.
DIGITAL CLOCK
B REMOVAL (FIG. 8-300)
Preparation: Disconnect the battery ground cable.
Fig.
8-300
4. Instrument panel cluster assembly

8-252 CHASSIS ELECTRICAL

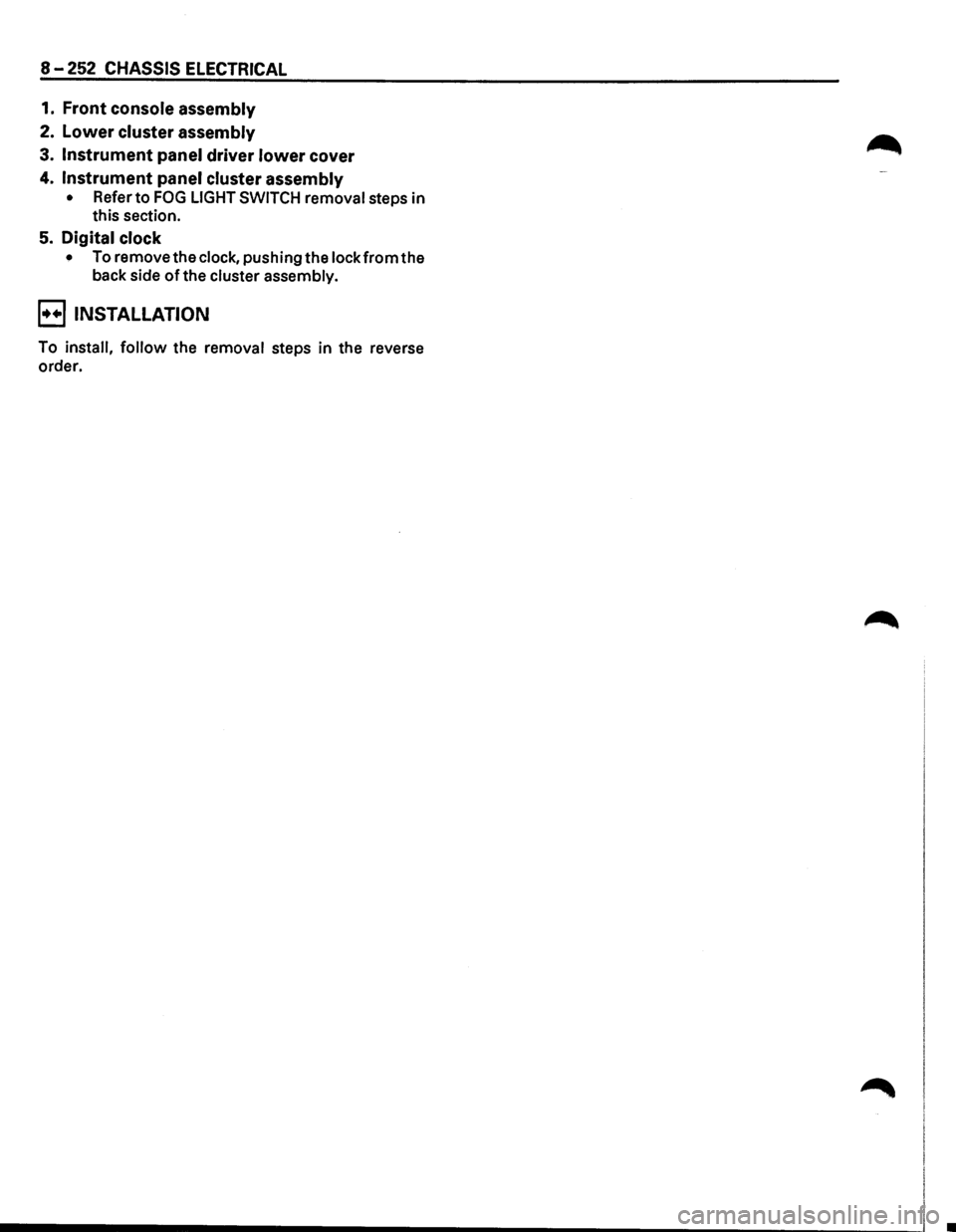

1. Front console assembly
2. Lower cluster assembly
3. Instrument panel driver lower cover
4. Instrument panel cluster assembly
• Refer to FOG LIGHT SWITCH removal steps in
this section.
5. Digital clock
• To remove the clock, pushing the lock from the
back side
of the cluster assembly.
E) INSTALLATION
To install, follow the removal steps in the reverse
order.

CHASSIS ELECTRICAL 8-253

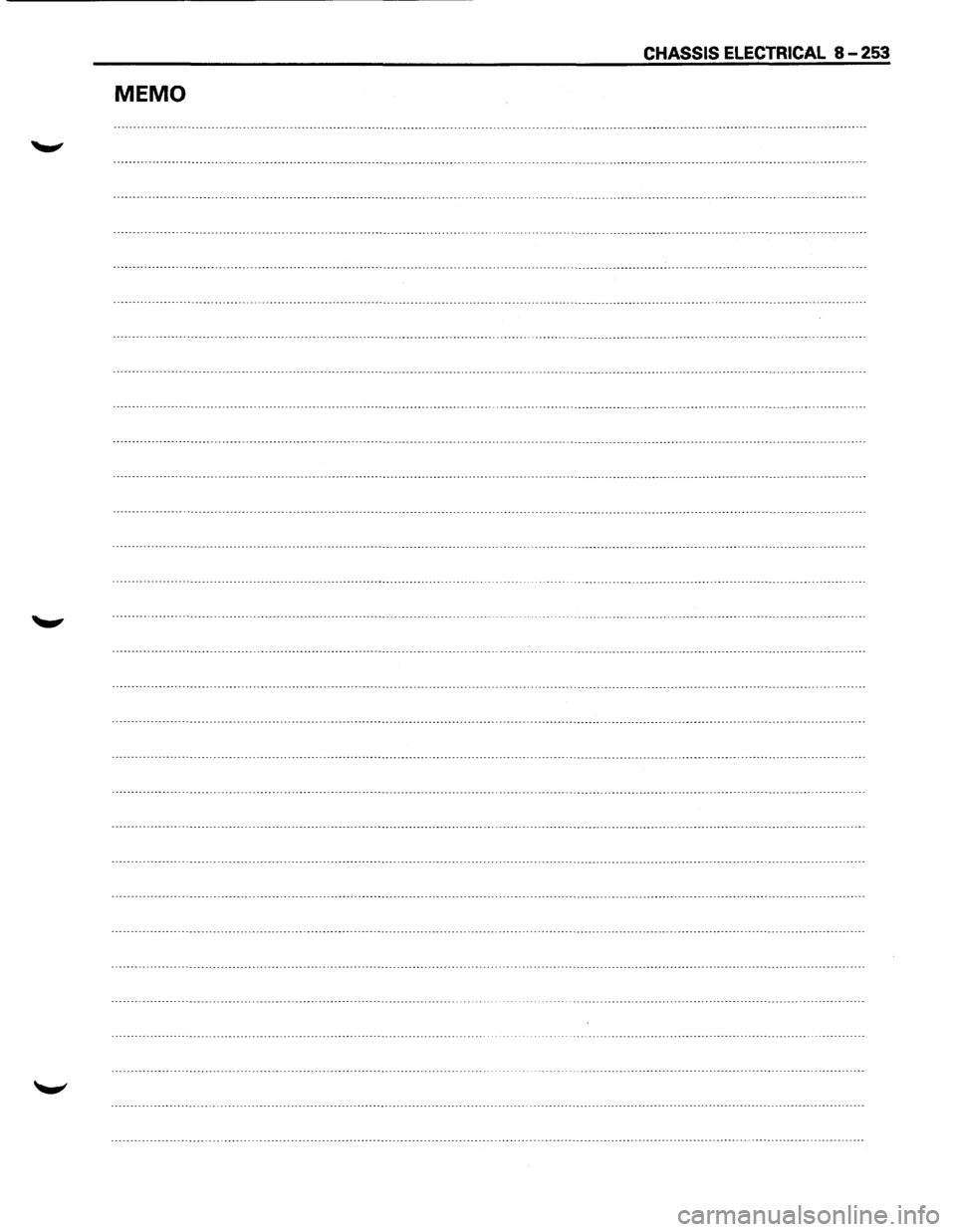

MEMO

8-254 CHASSIS ELECTRICAL

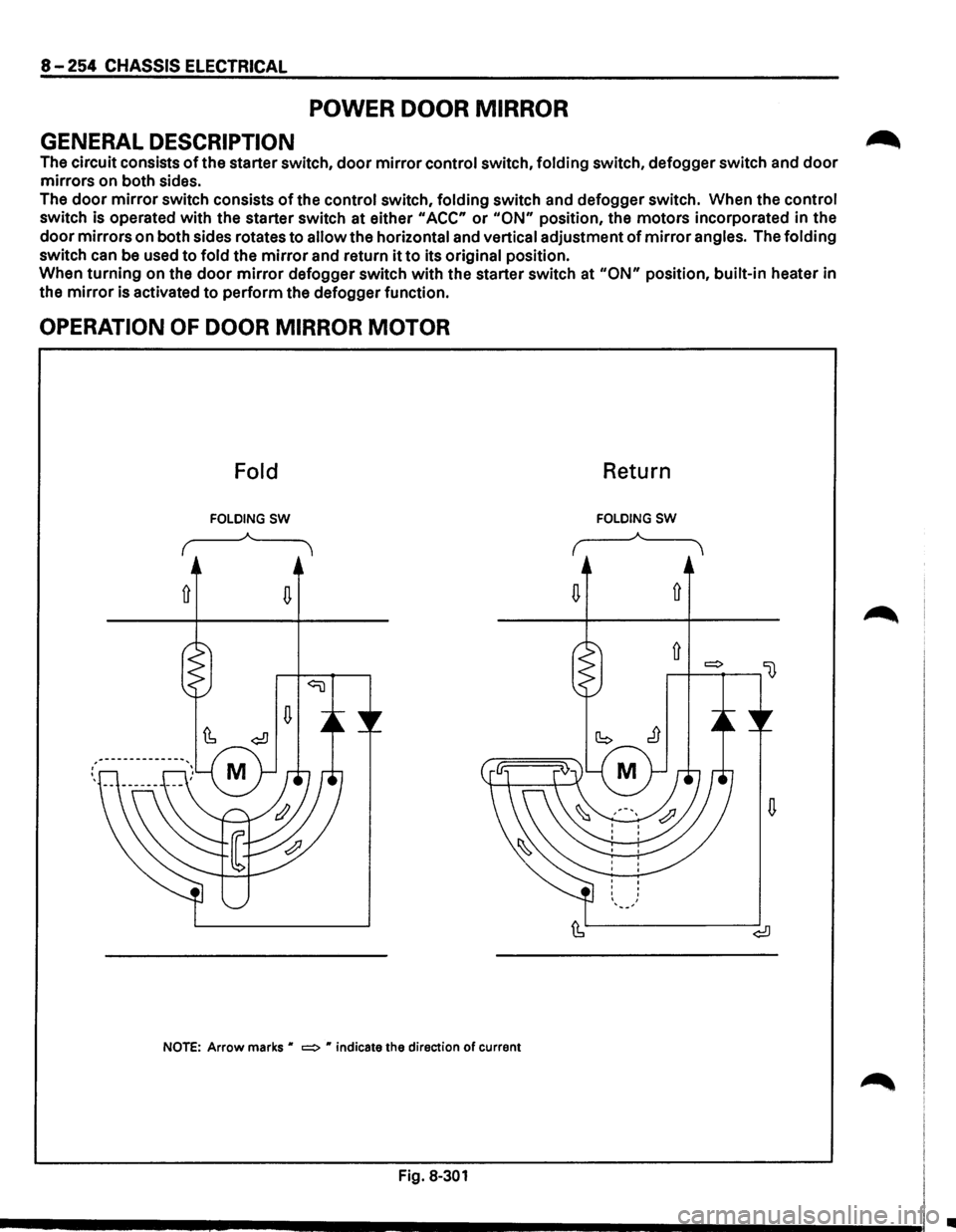

POWER DOOR MIRROR
GENERAL DESCRIPTION
The circuit consists of the starter switch, door mirror control switch, folding switch, defogger switch and door
mirrors on both sides.
The
door mirror switch consists of the control switch, folding switch and defogger switch. When the control
switch is operated with the starter switch at either
"ACC" or "ON" position, the motors incorporated in the
door mirrors on both sides rotates to allow the horizontal and vertical adjustment of mirror angles. The folding
switch can
be used to fold the mirror and return it to its original position.
When turning on the
door mirror defogger switch with the starter switch at "ON" position, built-in heater in
the
mirror is activated to perform the defogger function.
OPERATION OF DOOR MIRROR MOTOR
Fold Return
FOLDING SW FOLDING SW
..---~A"""--
( '
---~.A.'---
( '
NOTE: Arrow marks " ~ " indicate the direction of current
Fig. 8-301
•

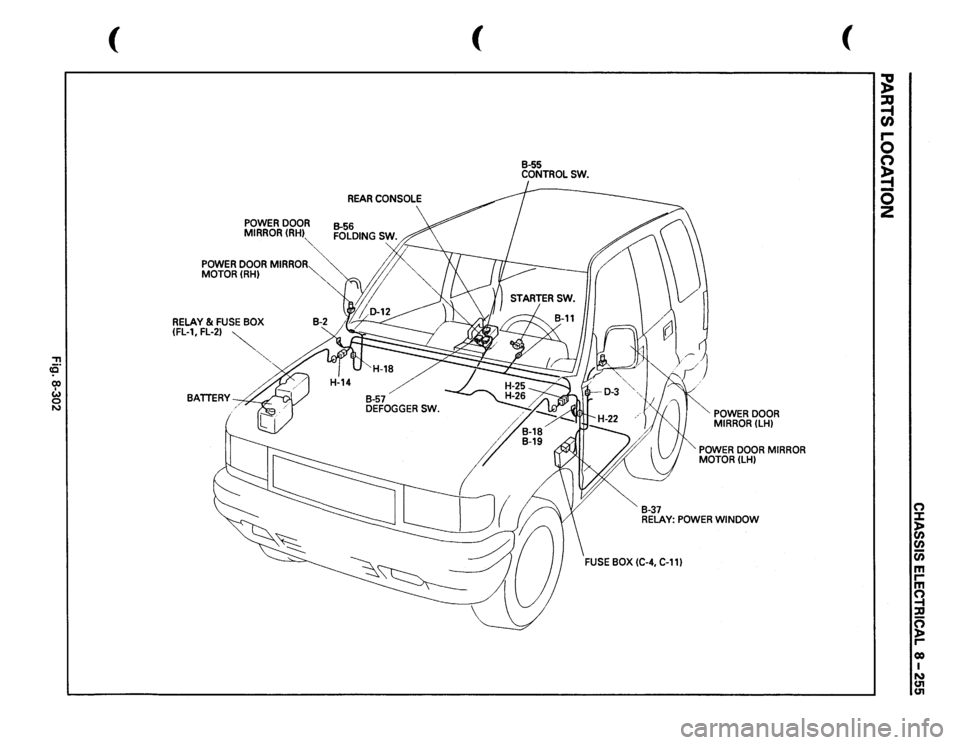

-n ce· 0) I w 0 N
(
POWER
DOOR
MIRROR(RHI
""~
POWER
DOOR
MIRROR
MOTOR(RH)
RELAY
& FUSE
BOX
(FL-1,
FL-2)
~
"",
BATTERY~
(
REAR
CONSOLE
B-55 CONTROLSW.
B-37
POWER
DOOR
MIRROR
(LH)
". POWER
DOOR
MIRROR
MOTOR(LH)
RELAY:
POWER
WINDOW
(
~ ~ r-0 (') ~ -0 z
(") ::I: )> en
en iii m r­m ~ :a n )> r-eo I N U'1 U'1

8 -256 CHASSIS ELECTRICAL

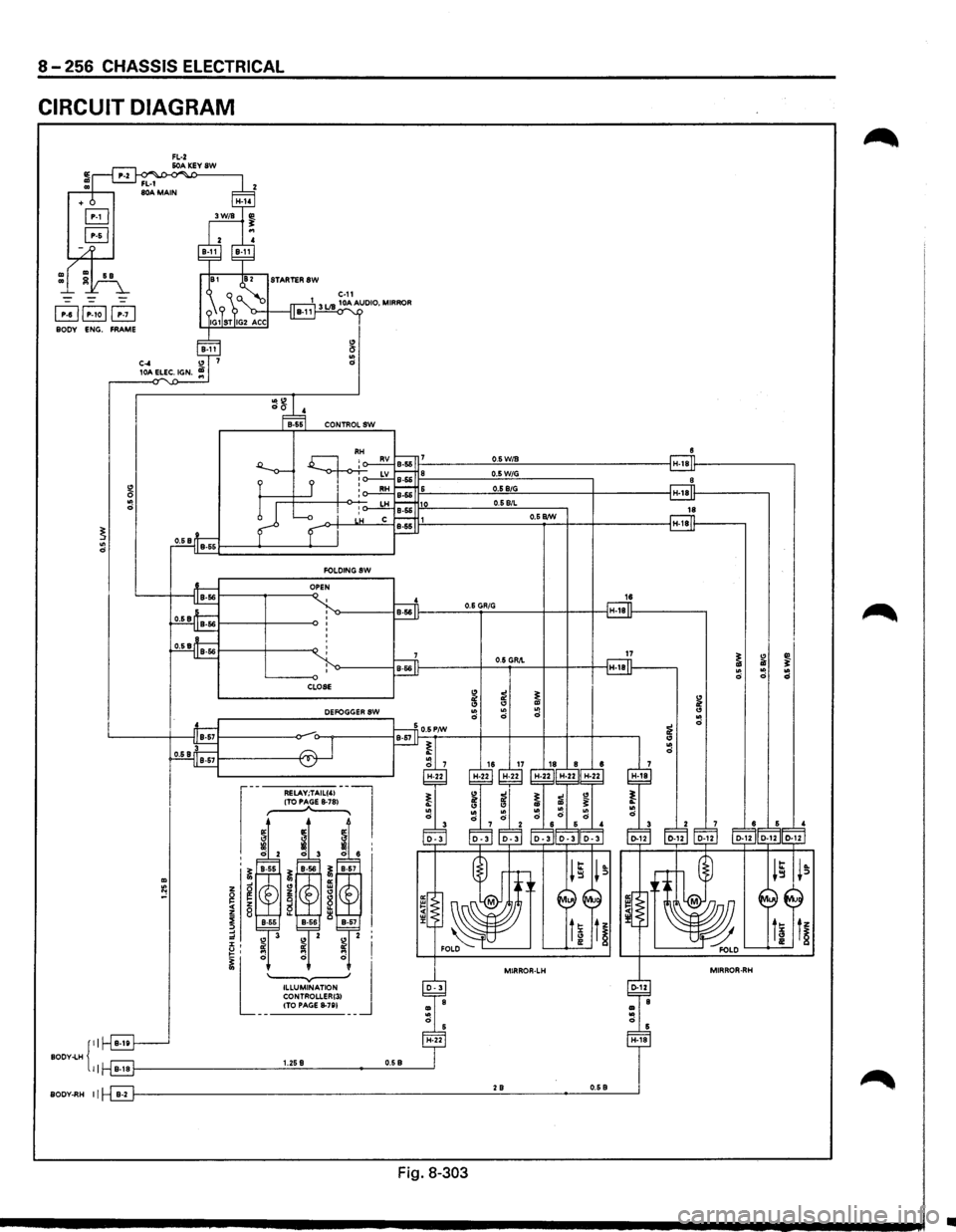

CIRCUIT DIAGRAM
"' ..
~RB BODY ENG. FRAME
g .. d
~ .. d
{
II BODY-LH II
BODY-RH II
g .. d
DEFOGGERSW
0.6W/9 0.6W/G
0.69/G 0.69/L
0.6
GR/G
0.6 GR,\.
)£ II!
" " .. .. d d
28
Fig. 8-303
H·18
H·18
18 0.6 BIN H-18
16
~ l: ~ ..
.. .. d d
d
~ )£ ~ " ..
~ d
" .. d
1i
0.6 B
•

CHASSIS ELECTRICAL 8-257

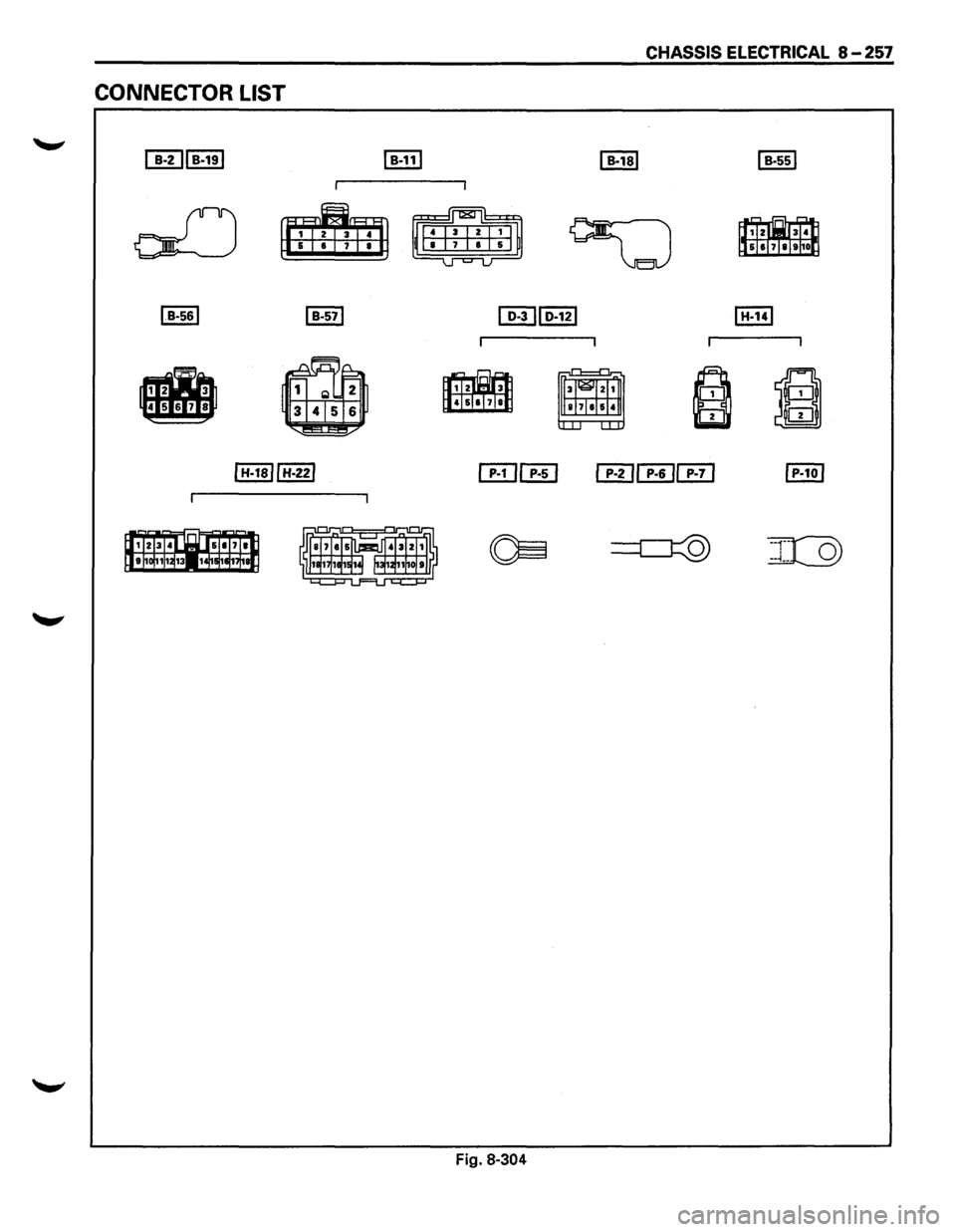

CONNECTOR LIST
[E]Is-191 I B-111 I s-1sl I s-ssl
l9lm •
I s-ssl I B-571 []Ill 0·121 I H-141
•
Q 1111
~ ~ mtilil • ' 8 6
IH-18llH·22l [EJ[EJ m:J[BJ[EJ I P-10 I
Fig. 8·304

8 -258 CHASSIS ELECTRICAL

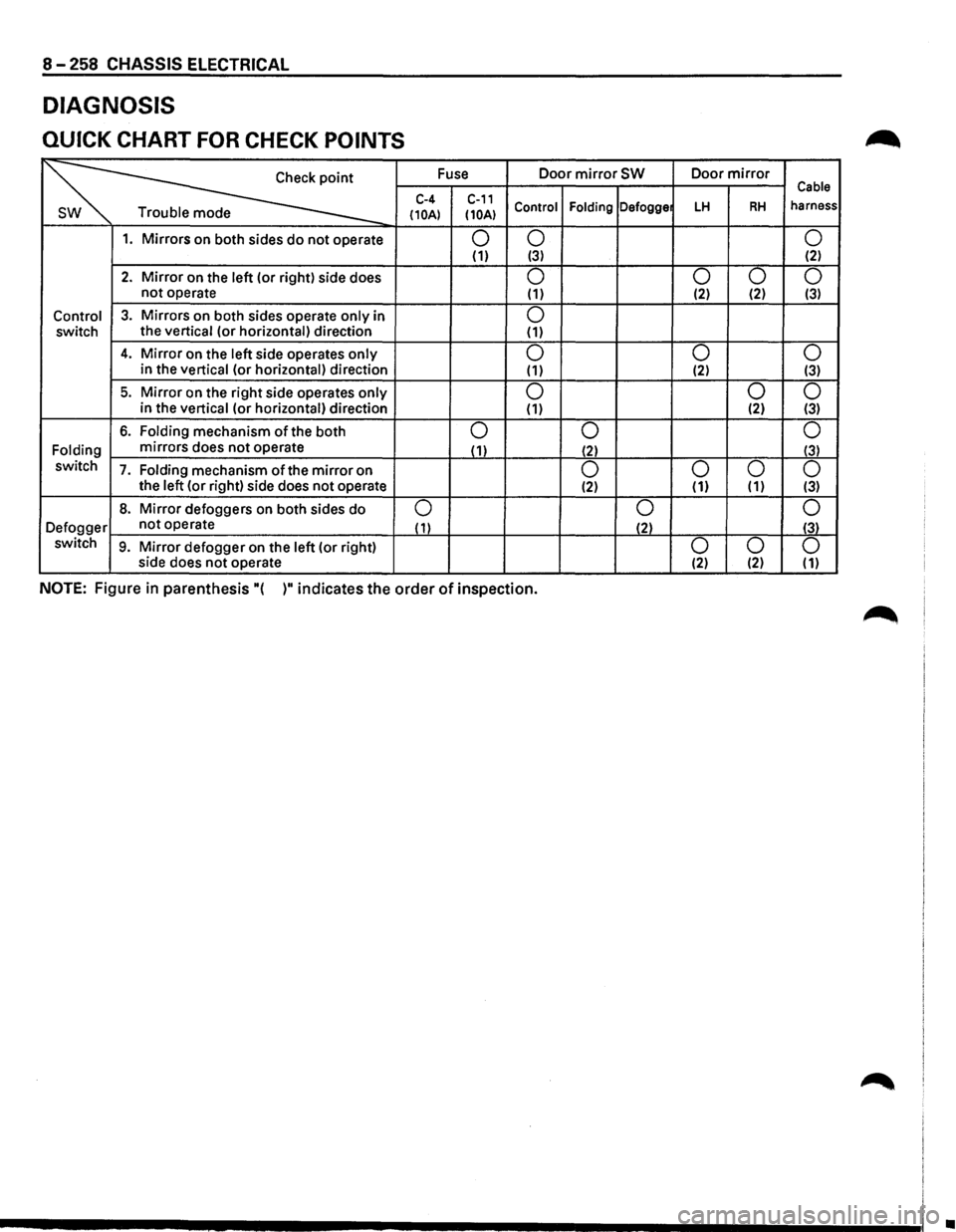

DIAGNOSIS
QUICK CHART FOR CHECK POINTS
~
Fuse Door mirror SW Door mirror Cable C-4 C-11 Control Folding Defogge LH RH harness Trouble mode (10A) (10A)
1. Mirrors on both sides do not operate 0 0
0 (1) (3) (2)
2. Mirror on the left (or right) side does 0 0 0 0 not operate (1) (2) (2) (3)
Control 3. Mirrors on both sides operate only in 0 switch the vertical
(or horizontal) direction (1)
4. Mirror on the left side operates only 0 0 0 in
the vertical (or horizontal) direction (1) (2) (3)
5. Mirror on
the right side operates only 0 0 0 in the vertical (or horizontal) direction (1) (2) (3)
6. Folding
mechanism of the both 0 0 0
Folding mirrors
does not operate (1)
(2) (3)
switch 7. Folding mechanism ofthe mirror on 0 0
0
0 the left (or right) side does not operate (2) (1) (1) (3)
8. Mirror defoggers
on both sides do 0 0
0
Defogger not
operate ( 1) (2) (3)
switch 9. Mirror defogger on the left (or right) 0 0
0 side does not operate (2) (2) (1)
NOTE: Figure in parenthesis "( )" indicates the order of inspection.
•
